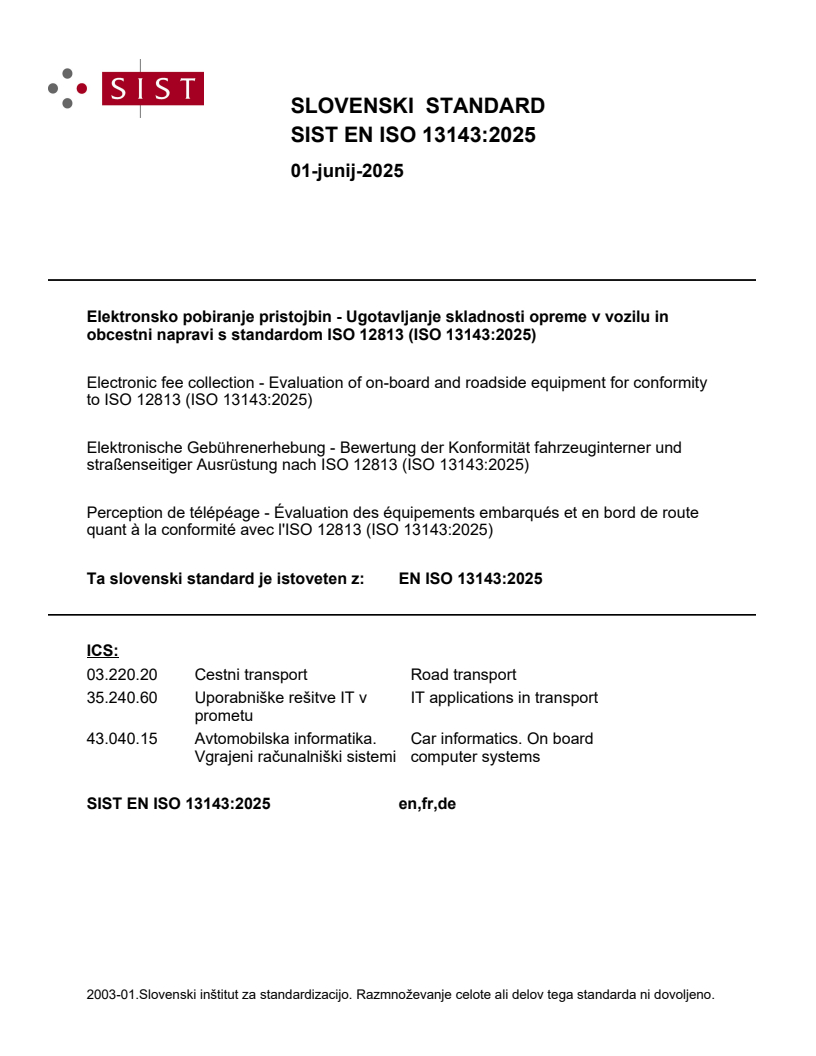

SLOVENSKI STANDARD
01-junij-2025
Elektronsko pobiranje pristojbin - Ugotavljanje skladnosti opreme v vozilu in
obcestni napravi s standardom ISO 12813 (ISO 13143:2025)
Electronic fee collection - Evaluation of on-board and roadside equipment for conformity
to ISO 12813 (ISO 13143:2025)
Elektronische Gebührenerhebung - Bewertung der Konformität fahrzeuginterner und
straßenseitiger Ausrüstung nach ISO 12813 (ISO 13143:2025)
Perception de télépéage - Évaluation des équipements embarqués et en bord de route
quant à la conformité avec l'ISO 12813 (ISO 13143:2025)
Ta slovenski standard je istoveten z: EN ISO 13143:2025
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
43.040.15 Avtomobilska informatika. Car informatics. On board
Vgrajeni računalniški sistemi computer systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

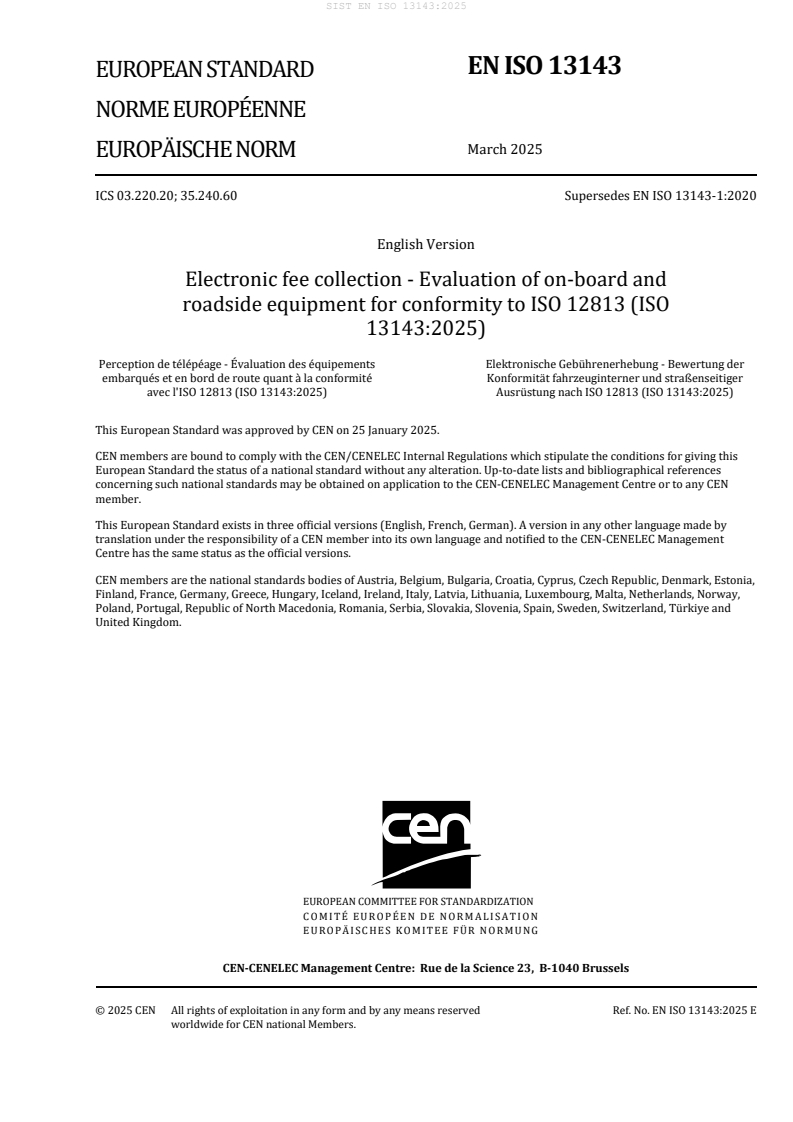

EN ISO 13143
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2025
EUROPÄISCHE NORM
ICS 03.220.20; 35.240.60 Supersedes EN ISO 13143-1:2020
English Version
Electronic fee collection - Evaluation of on-board and
roadside equipment for conformity to ISO 12813 (ISO
13143:2025)
Perception de télépéage - Évaluation des équipements Elektronische Gebührenerhebung - Bewertung der
embarqués et en bord de route quant à la conformité Konformität fahrzeuginterner und straßenseitiger
avec l'ISO 12813 (ISO 13143:2025) Ausrüstung nach ISO 12813 (ISO 13143:2025)
This European Standard was approved by CEN on 25 January 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13143:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 13143:2025) has been prepared by Technical Committee ISO/TC 204
"Intelligent transport systems" in collaboration with Technical Committee CEN/TC 278 “Intelligent
transport systems” the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2025, and conflicting national standards
shall be withdrawn at the latest by September 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 13143-1:2020.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 13143:2025 has been approved by CEN as EN ISO 13143:2025 without any modification.
International
Standard
ISO 13143
First edition
Electronic fee collection —
Evaluation of on-board and
2025-02
roadside equipment for conformity
to ISO 12813
Perception de télépéage — Évaluation des équipements embarqués
et en bord de route quant à la conformité avec l'ISO 12813
Reference number
ISO 13143:2025(en) © ISO 2025
ISO 13143:2025(en)
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 13143:2025(en)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 2
5 Conformance . 3
6 Test suite structure (TSS) . 3
6.1 Structure .3
6.2 Reference to conformance test specifications . .4
6.3 Test purposes (TPs) .4
6.3.1 TP definition conventions .4
6.3.2 TP naming conventions .5
Annex A (normative) Test purposes for on-board equipment . 6
Annex B (normative) Test purposes for roadside equipment .51
Annex C (normative) Protocol conformance test report proforma for OBE .71
Annex D (normative) Protocol conformance test report proforma for RSE.78
Bibliography .83
iii
ISO 13143:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 278,
Intelligent transport systems, in accordance with the Agreement on technical cooperation between ISO and
CEN (Vienna Agreement).
This first edition of ISO 13143 cancels and replaces the second edition of ISO 13143-1:2020, which has been
technically revised.
The main changes are as follows:
— updates have been made to reflect changes in the underlying normative references, in particular
ISO 12813, in which data and coding specifications have been revised;
1)
— the terms and definitions have been updated and ISO 17573-2:— has been included as the primary
source for harmonized terminology across electronic fee collection (EFC) standards;
— references to underlying standards have been updated.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
1) Under preparation. Stage at the time of publication: ISO/DIS 17573-2:2025.
iv
ISO 13143:2025(en)
Introduction
On-board equipment (OBE) that uses satellite-based positioning technology to collect data required for
charging for the use of roads operates in an autonomous way (i.e. without relying on dedicated roadside
infrastructure). The OBE records the amount of road usage in all toll charging systems it passes through.
This document specifies the process and tests for evaluation of OBE and roadside equipment (RSE) for
conformity to ISO 12813.
ISO 12813 specifies requirements for dedicated short-range communication (DSRC) between OBE and an
interrogator for the purpose of checking conformance of road use with a local toll regime. It assumes an
electronic fee collection (EFC) services architecture according to ISO 17573-1.
This document is intended to:
— assess OBE and RSE capabilities;
— assess OBE and RSE behaviour;
— serve as a guide for OBE and RSE conformance evaluation and type approval;
— achieve comparability between the results of the corresponding tests applied in different places at
different times; and
— facilitate communication between parties.
v
International Standard ISO 13143:2025(en)
Electronic fee collection — Evaluation of on-board and
roadside equipment for conformity to ISO 12813
1 Scope
This document specifies the test suite structure (TSS) and test purposes (TPs) for evaluating the conformity
of on-board equipment (OBE) and roadside equipment (RSE) to ISO 12813.
It provides a basis for conformance tests for dedicated short-range communication (DSRC) OBE and RSE to
support interoperability between different equipment supplied by different manufacturers.
ISO 12813 specifies requirements for the compliance check communication (CCC) interface level, but not
for the OBE or RSE internal functional behaviour. Consequently, tests regarding OBE and RSE functional
behaviour remain outside the scope of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 3166-1, Codes for the representation of names of countries and their subdivisions — Part 1: Country code
ISO 12813:2024, Electronic fee collection — Compliance check communication for autonomous systems
ISO 14816, Road transport and traffic telematics — Automatic vehicle and equipment identification —
Numbering and data structure
ISO 14907-2:2021, Electronic fee collection — Test procedures for user and fixed equipment — Part 2:
Conformance test for the on-board unit application interface
2)
ISO 17573-2 , Electronic fee collection — System architecture for vehicle related tolling — Part 2: Vocabulary
EN 12834:2003, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —
DSRC application layer
EN 13372:2004, Road Transport and Traffic Telematics (RTTT) — Dedicated short-range communication —
Profiles for RTTT applications
EN 15509:2023, Electronic fee collection — Interoperability application profile for DSRC
EN 15876, Electronic fee collection — Conformity evaluation of on-board and roadside equipment to EN 15509
ETSI/TS 102 486-2-2:2008, Intelligent Transport Systems (ITS); Road Transport and Traffic Telematics (RTTT);
Test specifications for Dedicated Short Range Communication (DSRC) transmission equipment; Part 2: DSRC
application layer; Sub-Part 2: Test Suite Structure and Test Purposes (TSS & TP)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17573-2 and the following apply.
2) Under preparation. Stage at the time of publication: ISO/DIS 17573-2:2025.
ISO 13143:2025(en)
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
Element
DSRC directory containing application information in the form of attributes
[SOURCE: ISO 14906:2022, 3.8]
3.3
protocol implementation conformance statement
ICS for an implementation or system claimed to conform to a given protocol specification
[SOURCE: ISO/IEC 9646-1:1994, 3.3.80]
4 Abbreviated terms
AC_CR access credentials
AID application identifier
APDU application protocol data unit
AP application process
ATS abstract test suite
BI behaviour invalid (i.e. invalid behaviour tests)
BST beacon service table
BV behaviour valid (i.e. valid behaviour tests)
CCC compliance check communication
DLC data link control
DSRC dedicated short-range communication
DUT device under test
EFC electronic fee collection
EID element identifier
ICS implementation conformance statement
LLC logical link control
MAC medium access control
OBE on-board equipment
PCTR protocol conformance test report
PDU protocol data unit
PICS protocol implementation conformance statement
ISO 13143:2025(en)
PIXIT protocol implementation extra information for testing
RSE roadside equipment
SCTR system conformance test report
T-APDU transfer-application protocol data unit
TP test purpose
TSS test suite structure
VST vehicle service table
5 Conformance
The conformance tests shall be performed as specified in Annex A and Annex B for OBE and RSE respectively.
The conformity assessment body of the OBE and RSE, respectively, is responsible for providing a conformance
test report.
The conformity assessment body of the OBE shall complete the protocol conformance test report (PCTR) for
the OBE as specified in Annex C.
The conformity assessment body of the RSE shall complete the PCTR for the RSE as specified in Annex D.
NOTE The PCTR forms a basis for the manufacturer’s declaration of conformity.
6 Test suite structure (TSS)
6.1 Structure
Table 1 shows the test suite structure (TSS) including its subgroups that are inherited from other
specifications.
Table 1 — Test suite structure
Group Type of DUT Behaviour
Physical layer OBE Valid behaviour (BV)
Invalid behaviour (BI)
RSE BV
BI
Data link control (DLC) OBE BV
Medium access control (MAC) sublayer
BI
RSE BV
BI
DLC OBE BV
Logical link control (LLC) sublayer
BI
RSE BV
BI
Application layer OBE BV
BI
RSE BV
BI
ISO 13143:2025(en)
Physical layer tests shall be performed in a radio wave laboratory.
6.2 Reference to conformance test specifications
Conformance to a profile standard implies conformance to the related base standards. Hence, a number of
test cases for the CCC application are identical to the conformance test cases for the related base standards.
Other test cases are derived from the base standards conformance test cases, by applying some restrictions
or choices in elements such as the parameters values, according to the elements stated in the profile
standard. Specific conformance test cases for the CCC application are identified for statements contained in
the CCC application, which have no equivalence in the base standards. These latter cases cover, for example,
the application layer data test purposes. This document considers existing test purposes for conformance to
the base standards by referencing them, so that:
a) for test purposes that are identical to those specified in the base standards conformance test cases (see
e.g. ETSI/TS 102 486-2-2 or EN 15876), a direct reference is reported;
NOTE For the reader’s convenience, the title or a verbal description of the referenced test purpose is provided,
together with the reference.
b) for test purposes that are derived from those specified in the base standards conformance test cases, a
direct reference is reported, plus an indication of how the referred test purpose has been modified for
the profile conformance testing;
c) for test purposes that are specific to the standard profile, a complete description is provided.
An indication of whether a test purpose is identical, derived or specific is given in each test purpose.
6.3 Test purposes (TPs)
6.3.1 TP definition conventions
The TPs are specified following the template and rules shown in Table 2.
Table 2 — TP definition rules
TP ID according to Title
the TP naming conventions Reference
TP origin
Initial condition
Stimulus and expected behaviour
TP ID The TP ID is a unique identifier. It is specified according to the TP naming conventions
defined in 6.3.2.
Title Short description of TP objective.
Reference Contains the reference (document, clause, paragraph) to the subject to be validated by
the actual TP.
TP origin Indicates if the TP is identical to a TP specified in another test standard, derived from a
TP specified in another test standard, or specific for this standard profile.
Initial condition The condition specifies the required initial state of the device under test (DUT) at the
time of launching of the actual TP.
Stimulus and expected Definition of the events the tester performs and the events that are expected from the
behaviour DUT to conform to the base specification.
ISO 13143:2025(en)
6.3.2 TP naming conventions
Each TP is given a unique identification. This unique identification is built up to contain the following string
of information:
TP/ //-
TP : to indicate that it is a test purpose;
: to which group among those specified in Table 1 the TP applies;
: type of DUT (i.e. OBE or RSE);
: type of testing (i.e. Valid behaviour tests, BV, or Invalid behaviour tests, BI);
: sequential TP number (01 to 99).
The naming conventions are as described in Table 3.
Table 3 — TP naming conventions
applicable for OBE/RSE PHY Physical layer
applicable for OBE/RSE MAC/LLC MAC/LLC sublayer
applicable for OBE/RSE AP-BAS Application layer – I Kernel support
applicable for OBE AP-FUN Application layer – T Kernel support
applicable for OBE AP-DAT Application layer – Data attributes support
applicable for OBE AP-SEC Application layer – Security Level 1 support
applicable for RSE AP-GET Application layer - GET-rq protocol data unit (PDU) test purposes,
applicable for RSE AP-STA Application layer - GET-STAMPED-rq PDU test purposes
applicable for RSE AP-MMI Application layer - SET-MMI-rq PDU test purposes
applicable for RSE AP-ECH Application layer - ECHO-rq PDU test purposes
applicable for RSE AP-REL Application layer - EVENT-REPORT-rq PDU test purposes
ISO 13143:2025(en)
Annex A
(normative)
Test purposes for on-board equipment
A.1 General
A.1.1 Content
This annex contains the test purposes (TPs) for the conformity evaluation of OBE to ISO 12813.
A.1.2 Symbols in TP descriptions
For the application layer test purposes (see Clause A.4), a special notation and symbol convention is used, as
specified in Table A.1.
Table A.1 — Description of TP symbols
Symbol Description
XXX.rq ⇒ The tester sends the XXX.rq protocol data unit (PDU) to the device under test (DUT).
⇐ YYY.rs The DUT sends the YYY.rs PDU to the tester.
A ≡ B Test purpose A “is congruent to” test purpose B. The notation "Test purpose A ≡ Test purpose B" means
that test purpose A is the same as test purpose B. If differences in parameters or parameter values have
to be applied, these differences are indicated in the text immediately below.
A → B Object A “is transformed” into object B. So, a notation like “Table X → Table Y” means that, for the scope
of the TP, any reference of Table X should be changed into a reference to Table Y.
= Means “assignment”, i.e. a notation like “accessCredentials = a value” means that the field accessCreden-
tials is given a value.
Ø Means “empty” or “not set”, i.e. a notation like “accessCredentials = Ø → accessCredentials = calculated
value”, for a given TP, means “change all occurrences in which the field accessCredentials has not been
assigned to a calculation of the value accessCredentials to a given value".
A.2 Physical layer
In accordance with ISO 12813:2024, 5.5.2, all test purposes TP/PHY/OBE/Bx/yy specified in EN 15876 shall
be applicable for the conformity evaluation of OBE to CEN–DSRC-based CCC as specified in ISO 12813:2024,
Table B.9, Item 1.
A.3 MAC and LLC
In accordance with ISO 12813:2024, 5.5.2, all test purposes TP/MAC/OBE/Bx/yy and TP/LLC/OBE/Bx/
yy specified in EN 15876 are applicable for the conformity evaluation of OBE to CEN–DSRC-based CCC as
specified in ISO 12813:2024, Table B.9, Item 1.
ISO 13143:2025(en)
A.4 Application Layer
A.4.1 Structure of BST and VST
A.4.1.1 BST
The BST general structure, as is transmitted to the OBE, shall be in accordance with Table A.2.
Table A.2 — BST general structure
Length Allowed values
T-APDUs 4 bits ‘1000’ indicating initialisation-request
(BST)
Option indicator 1 bit (nonmandApplications opt.) 0/1
RSE manufacturerid 16 bits In accordance with ISO 14816
individualid 27 bits As specified by manufacturer
Time 32 bits UNIX real time
Profile 1 bit (Profile ext.) 0 (= no extension)
7 bits In accordance with the Profile in
EN 13372:2004, 6.3.2
MandAp- 1 bit (mandApplications ext.) 0 (= no extension)
plications
7 bits (number of applications) M
CCC 1 bit (eid opt.) 0 (= eid not present)
applica-
1 bit (parameter opt.) 0 (= parameter not present)
tion
aid 1 bit (aid ext.) 0 (= no extension)
5 bits 20 (= CCC application)
Applica-
tion 2
1 bit (eid opt.) 0/1
(not CCC)
1 bit (parameter opt.) 0/1
aid 1 bit (aid ext.) 0 (= no extension)
5 bits ≠ 20 (= no CCC application)
eid 1 bit (eid ext.) 0 (= no extension)
7 bits Any
parameter ApplicationContextMark in accordance
with EN 12834:2003, Annex A
… . .
Applica-
tion M
1 bit (eid opt.) 0/1
(not CCC)
1 bit (parameter opt.) 0/1
aid 1 bit (aid ext.) 0 (= no extension)
5 bits ≠ 20 (= no CCC application)
eid 1 bit (eid ext.) 0 (= no extension)
7 bits Any
parameter ApplicationContextMark in accordance
with EN 12834:2003, Annex A
ISO 13143:2025(en)
TTabablele A A.22 ((ccoonnttiinnueuedd))
Length Allowed values
Nonmand 1 bit (mandApplications ext.) 0 (= no extension)
Applica-
7 bits (number of applications) Can be in the range of 0 . N, provid-
tions
ed the maximum framelength is not
exceeded.
Application 1 Same length and allowed values as in “Application 2 (not CCC)” of mandApplica-
tions
(not CCC)
... ...
Application N Same lengt and allowed values as in “Application 2 (not CCC)” of mandApplica-
tions
(not CCC)
profileL- 1 bit (profileList ext.) 0 (= no extension)
ist
7 bits (number of profiles) Can be in the range of 0.K provided the
maximum framelength is not exceeded.
Profile 1 1 bit (Profile ext.) 0 (= no extension)
7 bits Profile in accordance with
EN 12834:2003, Annex A and
EN 13372:2004, 6.3.2
... ... ...
Profile K 1 bit (Profile ext.) 0 (= no extension)
7 bits Profile in accordance with
EN 12834:2003, Annex A and
EN 13372:2004, 6.3.2
A.4.1.2 VST
The general structure for a VST indicating one CCC application as is transmitted by the OBE shall be in
accordance with Table A.3.
In addition to the CCC application the VST may optionally indicate one or more non-CCC applications.
Table A.3 — VST1 (security level 1): valid VST indicating one CCC application
Length Allowed value
Fill 4 bits Any
1 bit (Profile ext.) 0 (= no extension)
Profile
Profile in accordance with
7 bits
EN 12834:2003, Annex A
1 bit (applications ext.) 0 (= no extension)
Can be in the range of 0.M
7 bits (number of depending on OBE support
applic.) and provided the maximum
framelength is not exceeded
1 bit (eid opt.) 1 (= eid present)
1 bit (parameter opt.) 1 (= parameter present)
1 bit (aid ext.) 0 (= no extension)
aid
5 bits 20 (= CCC application)
1 bit (eid ext.) 0 (= no extension)
eid
Any (≠ other eid used in this
7 bits
VST)
ISO 13143:2025(en)
TTabablele A A.33 ((ccoonnttiinnueuedd))
Length Allowed value
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
In accordance with ISO 3166-
10 bits (CountryCode)
Contract
Provider
14 bits (IssuerIdenti- In accordance with
fier) ISO 14816
CccContext-
typeOf
Mark 16 bits Any
Contract
CCC
application
Applica- 1 bit (contextVersion
0 (= no extension)
context
tions ext.)
Version
7 bits Any
para
meter
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
AC_Master
8 bits Any
KeyRef
AC_CR-
Reference
AC_CR-
8 bits Any
Diversifier
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
RndOBE 32 bits Any
ISO 13143:2025(en)
TTabablele A A.33 ((ccoonnttiinnueuedd))
Length Allowed value
1 bit (eid opt.) 0/1
1 bit (parameter opt.) 0/1
1 bit (aid ext.) 0 (= no extension)
DSRCApplicationEntityID,
aid
5 bits in accordance with
EN 12834:2003, Annex A
Application 2
1 bit (eid ext.) 0 (= no extension)
eid
Any (≠ other eid used in this
7 bits
VST)
ApplicationContextMark,
parameter in accordance with
EN 12834:2003, Annex A
…
1 bit (eid opt.) 0/1
1 bit (parameter opt.) 0/1
1 bit (aid ext.) 0 (= no extension)
DSRCApplicationEntityID,
aid
Application M 5 bits in accordance with
N 12834:2003, Annex A
1 bit (eid ext.) 0 (= no extension)
eid
Any (≠ other eid used in this
7 bits
VST)
ApplicationContextMark,
parameter in accordance with
EN 12834:2003, Annex A
OBE 1 bit (obeStatus opt.) 0/1
Configura-
equipmentClass 15 bits Any
tion
manufacturerId 16 bits Any
obeStatus 16 bits Any
OBE may optionally transmit a VST containing two CCC applications.
If OBE supports this optional function, the structure for a VST indicating two CCC applications (VST2) shall
be in accordance with Table A.4.
VST2 shall indicate the presence of two CCC applications with the following definitions (refer to
ISO 12813:2024, 9.2.3):
— one CCC application shall conform to ISO 12813:2024; and
— the other CCC application shall conform to ISO 12813:2015.
NOTE Evaluation of conformance with ISO 12813:2015 is outside the scope of this document.
In addition to the CCC applications, the VST may optionally indicate one or more non-CCC applications.
ISO 13143:2025(en)
Table A.4 — VST2 (security level 1) — Valid VST indicating two CCC applications
Length Allowed value
Fill 4 bits Any
1 bit (Profile ext.) 0 (= no extension)
Profile
Profile in accordance with
7 bits
EN 12834:2003, Annex A
1 bit (applications ext.) 0 (= no extension)
Shall be in the range of 2.M
7 bits (number of
provided the maximum
applic.)
framelength is not exceeded
1 bit (eid opt.) 1 (= eid present)
1 bit (parameter opt.) 1 (= parameter present)
1 bit (aid ext.) 0 (= no extension)
aid
5 bits 20 (= CCC application)
1 bit (eid ext.) 0 (= no extension)
eid
7 bits Any
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
In accordance with ISO 3166-
10 bits (CountryCode)
Contract
Provider
14 bits (IssuerIdenti- In accordance with
fier) ISO 14816
CCC
Applica- CccContext- TypeOf
applica- 16 bits Any
tions Marl1 Contract
tion1
1 bit (contextVersion
0 (= no extension)
ext.)
context
Version
para
7 bits Any
meter
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
AC_Master
8 bits Any
KeyRef
AC_CR-
Reference
AC_CR-
8 bits Any
Diversifier
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
RndOBE 32 bits Any
ISO 13143:2025(en)
TTabablele A A.44 ((ccoonnttiinnueuedd))
Length Allowed value
1 bit (eid opt.) 1 (= eid present)
1 bit (parameter opt.) 1 (= parameter present)
1 bit (aid ext.) 0 (= no extension)
aid
5 bits 20 (= CCC application)
1 bit (eid ext.) 0 (= no extension)
eid
7 bits ≠ eid of CCC application1
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
In accordance with ISO 3166-
10 bits (CountryCode)
Contract
Provider
14 bits (IssuerIdenti- In accordance with
fier) ISO 14816
TypeOf
CccContext- 16 bits Any
Contract
Mark2
1 bit (contextVersion
0 (= no extension)
ext.)
context
CCC
Version
applica- 7 bits Any
tion2
1 bit (Container ext.) 0 (= no extension)
para 7 bits (Container
2 (= OCTET STRING)
meter CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
AC_Master
8 bits Any
KeyRef
AC_CR-
Reference
AC_CR-
8 bits Any
Diversifier
1 bit (Container ext.) 0 (= no extension)
7 bits (Container
2 (= OCTET STRING)
CHOICE)
1 bit (octet string ext.) 0 (= no extension)
7 bits (octet string
length)
RndOBE 32 bits Any
:::
1 bit (eid opt.) 1 (= eid present)
1 bit (parameter opt.) 0 (= parameter not present)
1 bit (aid ext.) 0 (= no extension)
Optional applica-
aid
tion M (non-CCC
5 bits ≠ 20
application)
1 bit (eid ext.) 0 (= no extension)
eid
Any (≠ other eid used in this
7 bits
VST)
ISO 13143:2025(en)
TTabablele A A.44 ((ccoonnttiinnueuedd))
Length Allowed value
obe 1 bit (obeStatus opt.) 1 (= obeStatus present)
Configura-
equipmentClass 15 bits Any
tion
manufacturerId 16 bits Any
obeStatus 16 bits Any
A.4.2 PDUs parameters
A.4.2.1 Parameters of request PDUs
Request APDUs shall be as specified in Table A.5 – Table A.9.
No other request commands are used by the CCC application.
Fill bits shall always be set to zero.
Table A.5 — GET-Rq parameters (security level 1)
EN 12834:2003, Annex A EN 15509:2023, Table B.16
GET-Rq fill =
eid =
accessCredentials optional mandatory
iid optional prohibited
attributeIdList optional mandatory
Table A.6 — Action-Rq parameters for GET_STAMPED action (security level 1)
EN 12834:2003, Annex A EN 15509:2023, Table B.20 and
ISO 12813
ACTION-Rq mode TRUE
eid =
actionType 0 (GET_STAMPED)
accessCredentials optional mandatory
actionParameters optional GetStampedRq
iid optional prohibited
Table A.7 — Action-Rq parameters for SET_MMI action
EN 12834:2003, Annex A EN 15509:2023, Table B.20 and
ISO 12813
ACTION-Rq mode =
eid 0
actionType 10 (SET_MMI)
accessCredentials optional prohibited
actionParameters optional SetMMIRq
iid optional prohibited
ISO 13143:2025(en)
Table A.8 — Action-Rq parameters for ECHO action
EN 12834:2003, Annex A EN 15509:2023, Table B.20 and
ISO 12813
ACTION-Rq mode =
eid 0
actionType 15 (ECHO)
accessCredentials optional prohibited
actionParameters optional mandatory
iid optional prohibited
Table A.9 — EVENT-REPORT-Rq parameters
EN 12834:2003, Annex A EN 15509:2023, Table B.22 and
ISO 12813
EVENT-RE- mode =
PORT-Rq
eid 0
eventType 0 (release)
accessCredentials optional prohibited
eventParameters optional prohibited
iid optional prohibited
A.4.2.2 Parameters of response PDUs
Response APDUs shall be as specified in Table A.10 – Table A.13.
No other request commands are used by CCC application.
Fill bits shall always be set to zero.
Table A.10 — GET-Rs parameters
EN 12834:2003, Annex A EN 15509:2023, Table B.17
GET-Rs fill =
eid =
Iid optional prohibited
attributeList optional mandatory
ret optional mandatory
Table A.11 — Action-Rs parameters for GET_STAMPED action
EN 12834:2003, Annex A EN 15509:2023, Table B.21 and
ISO 12813
ACTION-Rs fill =
eid =
iid optional prohibited
responseParameter optional mandatory
ret optional mandatory
ISO 13143:2025(en)
Table A.12 — Action-Rs parameters for SET_MMI action
EN 12834:2003, Annex A EN 15509:2023, Table B.21 and
ISO 12813
ACTION-Rs fil =
eid 0
iid optional prohibited
responseParameter optional prohibited
ret optional mandatory
Table A.13 — Action-Rs parameters for ECHO action
EN 12834:2003, Annex A EN 15509:2023, Table B.21 and
ISO 12813
ACTION-Rs fill =
eid 0
iid optional prohibited
responseParameter optional conditional (present when ret = 0)
ret optional mandatory
A.4.3 Application I-kernel TPs for OBE, security level 1
A.4.3.1 General
TPs specified in A.4.3 apply to security level 1 as specified in ISO 12813:2024, Table B.6, Item 1 and to
initialisation and termination processes specified in ISO 12813:2024, Table B.7, Items 1 and 5.
A.4.3.2 Data structures
For the purpose of this conformance test, the following BSTs described in:
— Table A.14 for a valid BST used in BV TPs, and
— Table A.15 for an invalid BST used in BI TPs
shall be transmitted to the DUT. Invalid values are indicated using a table footnote.
NOTE BST2 contains erroneous parameters in form of a CCC application inserted as non-mandatory application.
Table A.14 — BST1
Length Value
Option indicator 1 bit (nonmandApplications opt.) 0 (= nonmandApplications not
present)
RSE manufacturerid 16 bits Registered value
individualid 27 bits Any
Time 32 bits Any
profile 1 bit (Profile ext.) 0 (= no extension)
7 bits 0
ISO 13143:2025(en)
TTabablele A A.1144 ((ccoonnttiinnueuedd))
Length Value
MandApplica- 1 bit (mandApplications ext.) 0 (= no extension)
tions
7 bits (number of applications) 1
CCC 1 bit (eid opt.) 0 (= eid not present)
applica-
1 bit (parameter opt.) 0 (= parameter not present)
tion
aid 1 bit (aid ext.) 0 (= no extension)
5 bits 20 (= CCC application)
profileList 1 bit (profileList ext.) 0 (= no extension)
7 bits (number of profiles) 0 (= list empty)
Table A.15 — BST2
Length Value
Option indicator 1 bit (nonmandApplications opt.) 1 (= nonmandApplications pres-
ent)
RSE manufacturerid 16 bits Registered value
individualid 27 bits Any
Time 32 bits Any
profile 1 bit (Profile ext.) 0 (= no extension)
7 bits 0
MandApplications 1 bit (mandApplications ext.) 0 (= no extension)
7 bits (number of applications) 1
Application 1 bit (eid opt.) 1 (= eid present)
#1
1 bit (parameter opt.) 0 (= parameter not present)
(not CCC)
aid 1 bit (aid ext.) 0 (= no extension)
5 bits ≠ 20 (AID that is not supported by
the OBE)
eid 1 bit (eid ext.) 0 (= no extension)
7 bits Any
nonmandApplica- 1 bit (nonmandApplications ext.) 0 (= no extension)
tions
7 bits (number of applications) 1
a a
CCC 1 bit (eid opt.) 0 (= eid not present)
a
application
a a
1 bit (parameter opt.) 0 (= parameter not present)
a a a
aid 1 bit (aid ext.) 0 (= no extension)
a a
5 bits 20 (= CCC application)
profileList 1 bit (profileList ext.) 0 (= no extension)
7 bits (number of profiles) 0 (= list empty)
a
Invalid value.
A.4.3.3 BV test purposes
The test subgroup objectives are:
a) to test the behaviour of the DUT in relation to:
— valid BST, and
— valid EVENT-REPORT-Rq (Release);
ISO 13143:2025(en)
b) to test the DUT support of:
— BeaconId,
— Time,
— Profile,
— Applications, and
— LID.
TPs to assess conformity of Application I-kernel functions for OBE, security level 1, for valid behaviour shall
be performed as specified in Tables A.16 to A.21.
NOTE TPs with ID TP/AP-BAS/OBE/BV/05 to TP/AP-BAS/OBE/BV/08 have not been used to be in line with the
numbering in ETSI/TS 102 486–2-2.
Table A.16 — TP/AP BAS/OBE/BV/01
TP/AP-BAS/OBE/BV/01 Receive and manage INITIALISATION.request (BST)
TP origin Identical to TP/AL-I/OBE/BV/01 in ETSI/TS 102 486–2-2:2008, 5.4.1
Reference ISO 12813:2024, 7.1.2
Initial condition In accordance with TP/AL-I/OBE/BV/01 in ETSI/TS 102 486–2-2:2008, 5.4.1
Stimulus and expected be- In accordance with TP/AL-I/OBE/BV/01 in ETSI/TS 102 486–2-2:2008, 5.4.1
haviour
Table A.17 — TP/AP BAS/OBE/BV/02
TP/AP-BAS/OBE/BV/02 Receive and manage EVENTREPORT request (RELEASE) with mode = 0
TP origin Identical to TP/AL-I/OBE/BV/02 in ETSI/TS 102 486–2-2:2008, 5.4.1
Reference ISO 12813:2024, 7.1.6
Initial condition In accordance with TP/AL-I/OBE/BV/02 in ETSI/TS 102 486–2-2:2008, 5.4.1
Stimulus and expected be- In accordance with TP/AL-I/OBE/BV/02 in ETSI/TS 102 486–2-2:2008, 5.4.1
haviour
Table A.18 — TP/AP BAS/OBE/BV/03
TP/AP-BAS/OBE/BV/03 Read and manage the BeaconID in the BST
TP origin Identical to TP/AL-I/OBE/BV/03 in ETSI/TS 102 486–2-2:2008, 5.4.1
Reference ISO 12813:2024, 7.1.2
Initial condition Identical to TP/AL-I/OBE/BV/03 in ETSI/TS 102 486–2-2:2008, 5.4.1
Stimulus and expected be- In accordance with TP/AL-I/OBE/BV/03 in ETSI/TS 102 486–2-2:2008, 5.4.1
haviour
ISO 13143:2025(en)
Table A.19 — TP/AP BAS/OBE/BV/04
TP/AP-BAS/OBE/BV/04 Read and manage time of reception of BST in parameter Time in BST
TP origin Identical to TP/AL-I/OBE/BV/04 in ETSI/TS 102 486–2-2:2008, 5.4.1
Reference ISO 12813:2024, 7.1.2
Initial condition Identical to TP/AL-I/OBE/BV/04 in ETSI/TS 102 486–2-2:2008, 5.4.1
Test executi
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
