(Main)Agglomerated stone - Modular tiles for flooring and stairs (internal and external)
Agglomerated stone - Modular tiles for flooring and stairs (internal and external)
This European Standard specifies requirements and appropriate test methods for modular tiles of agglomerated stone which are made for use as flooring and stairs for internal and external uses, fixed by mortar or adhesives. It also provides for the evaluation of conformity and marking of the products to the requirements of this European Standard.
This European Standard is not applicable to terrazzo tiles covered by EN 13748-1 and EN 13748-2 (see Bibliography).
Künstlich hergestellter Stein - Fliesen für Fußbodenbeläge und Stufenbeläge (innen und außen)
Diese Europäische Norm legt Anforderungen an Fliesen aus künstlich hergestelltem Stein fest, die für Fußboden-
und Stufenbeläge hergestellt werden. Sie legt Prüfverfahren fest und enthält zusätzlich Vorgaben für
die Konformitätsbewertung der Produkte in Bezug auf die Anforderungen dieser Norm.
Pierre reconstituée - Dalles modulaires pour revetements de sol (intérieurs et extérieurs)
La présente Norme européenne spécifie les exigences et les méthodes d’essai appropriées aux carreaux modulaires en pierre agglomérée destinés à être utilisés en tant que revêtements de sol et escaliers, dans des applications en intérieur et extérieur, et fixés par du mortier ou de la colle. Cette norme prévoit également l’évaluation de la conformité et du marquage des produits en vertu des exigences de la présente Norme européenne.
La présente Norme européenne ne s’applique pas aux carreaux de mosaïque de marbre traités par les normes EN 13748-1 et EN 13748-2 (voir la Bibliographie).
Aglomeriran kamen - Modularne ploščice za tla in stopnice (notranje in zunanje)
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Agglomerated stone - Modular tiles for flooring and stairs (internal and external)Pierre reconstituée - Dalles modulaires pour revetements de sol (intérieurs et extérieurs)Künstlich hergestellter Stein - Fliesen für Fußbodenbeläge und Stufenbeläge (innen und außen)91.100.15Mineralni materiali in izdelkiMineral materials and productsICS:SIST EN 15285:2008en,fr,deTa slovenski standard je istoveten z:EN 15285:200801-junij-2008SIST EN 15285:2008SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15285February 2008ICS 91.100.15 English VersionAgglomerated stone - Modular tiles for flooring and stairs(internal and external)Pierre reconstituée - Dalles modulaires pour revêtementsde sol (intérieurs et extérieurs)Künstlich hergestellter Stein - Fliesen für Fußbodenbelägeund Stufenbeläge (innen und außen)This European Standard was approved by CEN on 5 January 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15285:2008: E

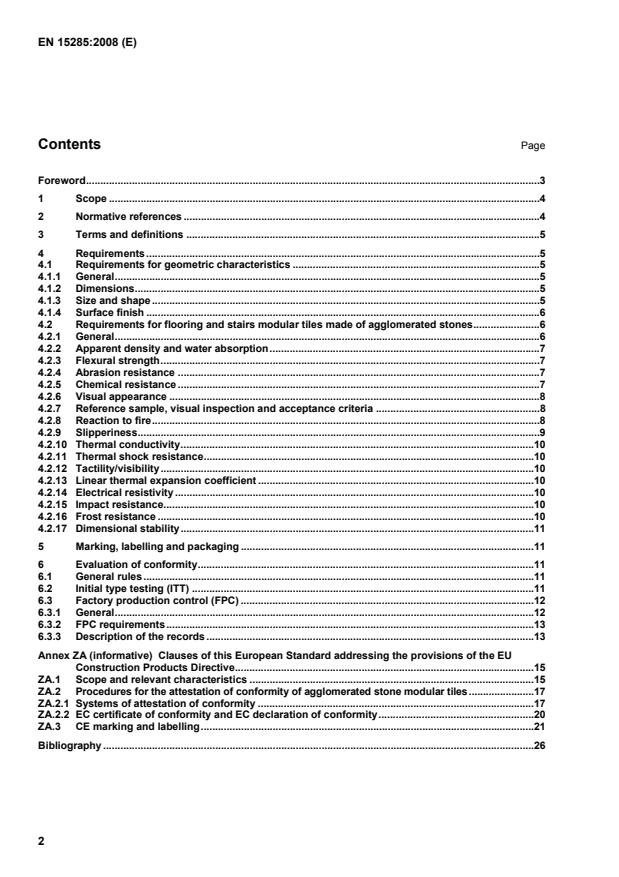

EN 15285:2008 (E) 2 Contents Page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.5 4 Requirements.5 4.1 Requirements for geometric characteristics.5 4.1.1 General.5 4.1.2 Dimensions.5 4.1.3 Size and shape.5 4.1.4 Surface finish.6 4.2 Requirements for flooring and stairs modular tiles made of agglomerated stones.6 4.2.1 General.6 4.2.2 Apparent density and water absorption.7 4.2.3 Flexural strength.7 4.2.4 Abrasion resistance.7 4.2.5 Chemical resistance.7 4.2.6 Visual appearance.8 4.2.7 Reference sample, visual inspection and acceptance criteria.8 4.2.8 Reaction to fire.8 4.2.9 Slipperiness.9 4.2.10 Thermal conductivity.10 4.2.11 Thermal shock resistance.10 4.2.12 Tactility/visibility.10 4.2.13 Linear thermal expansion coefficient.10 4.2.14 Electrical resistivity.10 4.2.15 Impact resistance.10 4.2.16 Frost resistance.10 4.2.17 Dimensional stability.11 5 Marking, labelling and packaging.11 6 Evaluation of conformity.11 6.1 General rules.11 6.2 Initial type testing (ITT).11 6.3 Factory production control (FPC).12 6.3.1 General.12 6.3.2 FPC requirements.13 6.3.3 Description of the records.13 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive.15 ZA.1 Scope and relevant characteristics.15 ZA.2 Procedures for the attestation of conformity of agglomerated stone modular tiles.17 ZA.2.1 Systems of attestation of conformity.17 ZA.2.2 EC certificate of conformity and EC declaration of conformity.20 ZA.3 CE marking and labelling.21 Bibliography.26
EN 15285:2008 (E) 3 Foreword This document (EN 15285:2008) has been prepared by Technical Committee CEN/TC 246 “Natural stones”, the secretariat of which is held by UNI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2008, and conflicting national standards shall be withdrawn at the latest by November 2009. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This European Standard is one of a series of standards for specifications of agglomerated stone products which includes the following: prEN 15286, Agglomerated stones — Slabs and tiles for wall finishes (internal and external), prEN 15388, Agglomerated stones — Slabs and cut to size products for vanity and kitchen tops. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
EN 15285:2008 (E) 4 1 Scope This European Standard specifies requirements and appropriate test methods for modular tiles of agglomerated stone which are made for use as flooring and stairs for internal and external uses, fixed by mortar or adhesives. It also provides for the evaluation of conformity and marking of the products to the requirements of this European Standard. This European Standard is not applicable to terrazzo tiles covered by EN 13748-1 and EN 13748-2 (see Bibliography). 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 12524, Building materials and products — Hygrothermal properties — Tabulated design values EN 12664, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Dry and moist products of medium and low thermal resistance EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using test data from reaction to fire tests EN 14231, Natural stone test methods — Determination of the slip resistance by means of the pendulum tester EN 14617-1, Agglomerated stone — Test methods — Part 1: Determination of apparent density and water absorption EN 14617-2, Agglomerated stone — Test methods — Part 2: Determination of flexural strength (bending) EN 14617-4, Agglomerated stone — Test methods — Part 4: Determination of the abrasion resistance EN 14617-5, Agglomerated stone — Test methods — Part 5: Determination of freeze and thaw resistance EN 14617-6, Agglomerated stone — Test methods — Part 6: Determination of thermal shock resistance EN 14617-9, Agglomerated stone — Test methods — Part 9: Determination of impact resistance EN 14617-10, Agglomerated stone — Test methods — Part 10: Determination of chemical resistance EN 14617-11, Agglomerated stone — Test methods — Part 11: Determination of linear thermal expansion coefficient EN 14617-12, Agglomerated stone — Test methods — Part 12: Determination of dimensional stability EN 14617-13, Agglomerated stone — Test methods — Part 13: Determination of electrical resistivity EN 14617-16, Agglomerated stone — Test methods — Part 16: Determination of dimensions, geometric characteristics and surface quality of modular tiles
EN 14618:2005, Agglomerated stone — Terminology and classification EN ISO 9001:2000, Quality management systems — Requirements (ISO 9001:2000)
EN 15285:2008 (E) 5 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 14618:2005 and the following apply. 3.1 modular tile piece of agglomerated stone in standard sizes, with dimensions (≤ 600 mm) × (≤ 600 mm) and nominal thickness from 6 mm to 20 mm 3.2 dimensions of modular tiles length l, width b and thickness d of a modular tile. The dimensions are given in the stated sequence in millimetres (see Figure 1)
Figure 1 — Dimensions of a modular tile 4 Requirements 4.1 Requirements for geometric characteristics 4.1.1 General All measurements of geometrical characteristics of modular tiles as given in the following clauses shall be carried out in accordance with EN 14617-16. 4.1.2 Dimensions The dimensions of modular tiles shall always be declared (see 3.2). 4.1.3 Size and shape The tolerances for size and shape of modular tiles shall be as given in Table 1. Stricter tolerances than those given in Table 1 may be declared by the manufacturer. This is particularly important when tiles are to be fixed with adhesive.
EN 15285:2008 (E) 6 4.1.4 Surface finish 4.1.4.1 General Surface finishes shall extend uniformly to the edges of the modular tiles. Table 1 — Tolerances on dimensions and shape of modular tiles Characteristic Tolerances on dimensions or shape Dimensions: – length and width
± 0,5 mm Thickness ± 0,7 mm Straightness of sides ± 0,3 mm Rectangularity ± 0,9 mm Flatness: – centre curvature – edge curvature – warping ± 2 % referred to length
If the tile is required to be bevelled (when no other specification is made), the angle of the bevel shall be 45° and the width of the bevel shall be 1,0 mm with a tolerance of ± 0,7 mm. 4.1.4.2 Surfaces after finishing Surfaces of modular tiles shall have a regular appearance as a function of the finishing process and shall be worked to meet the finish declared (e.g. by submission of samples beforehand between the manufacturer and purchaser). Examples of the surface finishes are: a) surfaces with texture in relief obtained by copying the design of the mould (e.g. hand-splitted or artistic design); b) fine ground surfaces, obtained e.g. by means of a grinding disk of grain size F 220; c) matt finished surfaces, obtained e.g. by means of a polishing disk with grain size F 400; d) highly polished surfaces, obtained e.g. by means of a polishing disk or felt. 4.2 Requirements for flooring and stairs modular tiles made of agglomerated stones 4.2.1 General The values for the characteristics in 4.2.2 to 4.2.17 shall be declared for flooring and stairs modular tiles made of agglomerated stones when subject to regulatory requirements and may be declared otherwise with reference to the intended end use conditions. The classification of flooring and stairs tiles according to water absorption, flexural strength, abrasion resistance and chemical resistance shall be expressed with letters corresponding to their values as indicated in Table 2.
EN 15285:2008 (E) 7 Contractual specifications can be used to establish reference values, e.g. in design or manufacturer's data sheet, due account being taken of any regulatory requirements applicable. 4.2.2 Apparent density and water absorption The values for apparent density and water absorption of modular tiles shall be declared and determined using the test method in EN 14617-1, and the results expressed accordingly. The water absorption of the tile shall be classified in accordance with Table 2. Table 2 — Classification of flooring and stairs modular tiles to their characteristics Sub-clause Characteristics Values 4.2.2 Water absorption (%) W1 > 2,0 2,0 ≥ W2 > 0,5 0,5 ≥ W3 > 0,05 W4 ≤ 0,05 4.2.3 Flexural strength (MPa) F1 < 12,0 12,0 ≤ F2 < 25,0 25,0 ≤ F3 < 40,0 F4 ≥ 40,0 4.2.4 Abrasion resistance (mm)
A1 > 36,5 36,5 ≥ A2 > 33,0 33,0 ≥ A3 > 29,0 A4 ≤ 29,0 4.2.5 Chemical resistance C1 C2 C3 C4 C1: Agglomerated stones which keep below 60 % of the reference reflection values (see EN 14617-10) after 8 h of alkali or acid attack. C2: Agglomerated stones which keep between 60 % and 80 % of the reference reflection value (see EN 14617-10) after 8 h of alkali attack and 1 h of acid attack. C3: Agglomerated stones which keep between 60 % and 80 % of the reference reflection value (see EN 14617-10) after 8 h of acid attack and 1 h of alkali attack. C4: Agglomerated stones which keep at least 80 % of the reference reflection value (see EN 14617-10) after 8 h of acid or alkali attack (or in one case, see EN 14617-10, is between 60 % and 80 %).
4.2.3 Flexural strength The values for flexural strength of modular tiles shall always be declared. The flexural strength shall be determined using the test method in EN 14617-2 and the results expressed accordingly. The classification of flexural strength of modular tiles is given in Table 2. 4.2.4 Abrasion resistance Where subject to contractual request or where the product is expected to be subject to aggressive abrasion actions, the values for abrasion resistance of modular tiles shall be declared. The resistance to abrasion shall be determined using the test method in EN 14617-4 and the results expressed accordingly. The classification of abrasion resistance of modular tiles is given in Table 2. 4.2.5 Chemical resistance Where subject to contractual request or where the product is expected to be subject to aggressive chemical actions, chemical resistance of modular tiles shall be declared.
EN 15285:2008 (E) 8 The chemical resistance of modular tiles shall be determined using the test method in EN 14617-10 and the results expressed accordingly. The classification of chemical resistance of modular tiles is given in Table 2. 4.2.6 Visual appearance Visual appearance of modular tiles shall always be declared. The colour, roughness etc. of the agglomerated stone shall be identified visually (see 4.2.7) e.g. by a range of samples selected in agreement by manufacturer and purchaser following the criteria given in EN 14617-16. Any visual variations, for example inclusions and veins, are permissible provided that they are characteristic of the relevant type of agglomerated stone and provided that they do not adversely affect the performance of the tiles. Reference samples are described in 4.2.7. 4.2.7 Reference sample, visual inspection and acceptance criteria A reference sample shall be an adequate number of pieces of agglomerated stone of sufficient size to indicate the general appearance of the finished work. The dimensions of individual pieces shall be at least 0,01 m2 (typical values are between 0,01 m2 and 0,25 m2 in face area but may be more) and shall indicate the range of appearance regarding the colouring, the vein pattern, the physical structure and the surface finish. Evaluation of the reference sample does not imply strict uniformity between the sample itself and the actual supply; natural variations in tonality can always occur due to natural raw materials. All the differences in aesthetical pattern between the tiles and the reference sample shall be considered typical of the agglomerated stone and not as flaws. Therefore they shall not become a reason for rejection, unless their presence exceeds 15 % of the surface and the typical pattern of the agglomerated stone is lost. Any comparison between production tile and reference sample shall be carried out by placing the reference sample in a vertical position against the production tile, viewing them at a distance of about two metres under normal daylight conditions and recording any visible differences in the characteristics of the agglomerated stone (see Figure 2). According to this method the shading tolerance and the gloss value (in the case of fine ground, honed or highly polished surfaces) measured at six different points of the tile shall be evaluated. Any features of tiles which are likely to adversely affect the flexural strength and the structural stability of the agglomerated stone, such as cracks, hairline cracks, cavities, soft inclusions or similar, are not permitted if the modular tiles are intended to be mechanically fixed. The name and address of the manufacturer or supplier of the agglomerated stone, shall also be indicated on the reference test sample. NOTE The pieces of agglomerated stone should be analysed under similar conditions: e.g. wet/dry, light. 4.2.8 Reaction to fire Reaction to fire performance shall always be declared when the modular tiles are intended to be used in areas subjected to reaction to fire regulation and may be declared otherwise.
EN 15285:2008 (E) 9 Agglomerated stones (except those containing more than 1 % by mass or volume, whichever is the most onerous, of organic materials), may be classified without testing (CWT) as reaction to fire Class A1fl 1). For agglomerated stones containing more than 1 % by mass or volume, whichever is the most onerous, of organic materials, and having an end use subject to reaction to fire regulatory requirements shall be tested and classified in accordance with EN 13501-1.
Key 1 reference sample 2 production sample 3 daylight Figure 2 — Comparison between production sample and reference sample of the modular tile
4.2.9 Slipperiness The value for slipperiness of modular tiles shall be declared when subject to regulatory requirements and may be declared otherwise. The slipperiness shall be determined using tests methods in EN 14231 and the results expressed accordingly.
1) See Decision of the Commission 96/603/EC of 1996-10-04 (see OJEC L267 of 1996-10-19), as amended twice by 2000/605/EC of 2000-09-26 (see OJEC L258 of 2000-10-12) and 2003/424/EC of 2003-06-06 (see OJEC L144 of 2003-06-12).
EN 15285:2008 (E) 10 4.2.10 Thermal conductivity The value for thermal conductivity of modular tiles shall always be declared. The thermal conductivity value shall be taken from tabulated values and based on the apparent density of the material. The apparent density shall be determined using the test method indicated in 4.2.2 and the value for thermal conductivity shall be taken from EN 12524 or tested in accordance with EN 12664 and the results expressed accordingly. 4.2.11 Thermal shock resistance Where subject to regulatory requirements or where the product is expected to be subject to critical thermal cycles, thermal shock resistance of modular tiles shall be declared. The thermal shock resistance shall be determined using the test method in EN 14617-6 and the results expressed accordingly. 4.2.12 Tactility/visibility Tactility/visibility of modular tiles shall be declared when it is requested for specific purposes. The tactility is expressed by a description of surface corrugation obtained by mechanical finishing. NOTE The characteristic "tactility", when requested, is covered by the description of the morphology of the surfaces. "Visibility" has been considered as not relevant for agglomerated stones, because, when a particular visibility is needed, it is not normally achieved using this product. 4.2.13 Linear thermal expansion coefficient Where subject to contractual request or where the modular tiles are expected to be subject to relevant dimensional variations due to temperature changes, linear thermal expansion coefficient of modular tiles shall be declared. The linear thermal expansion coefficient shall be determined using the test method in EN 14617-11 and the results expressed accordingly. 4.2.14 Electrical resistivity Where subject to contractual request, electrical resistivity of modular tiles shall be declared. The electrical resistivity shall be determined using the test method in EN 14617-13 and the results expressed accordingly. 4.2.15 Impact resistance Where subject to regulatory requirements or where the product is expected to be subject to impact of hard falling objects, impact resistance of modular tiles shall be declared. The impact resistance shall be determined using the test method in EN 14617-9 and the results expressed accordingly. 4.2.16 Frost resistance Where subject to regulatory requirements or where the product is expected to be subject to freeze/thaw cycles, frost resistance of modular tiles shall be declared.
EN 15285:2008 (E) 11 The frost resistance shall be determined using the test method in EN 14617-5 and the results expressed accordingly. 4.2.17 Dimensional stability Where subject to regulatory requirements or where the product is expected to be sensitive to the adhesive used for installation, dimensional stability of modular tiles shall be declared. The dimensional stability shall be determined using the test method in EN 14617-12 and the results expressed accordingly. 5 Marking, labelling and packaging As a minimum of identification, each consignment shall specify on the label and/or packaging the denomination of the agglomerated stone (see EN 14618). The dimensions, quantities and/or any other information shall be reported on the accompanying documents. The number of labels shall be sufficient to identify the delivered products according to the type of packaging. The modular tiles shall be clean before packaging and transporting. Sensitive polished surfaces shall be protected by appropriate means. Tiles which are susceptible to stains shall get special attention in order to protect them. Packing and tapes which are likely to stain shall not be used. Products with caustic properties shall not be used. 6 Evaluation of conformity 6.1 General rules The compliance of agglomerated stone modular tiles with the requirements of this European Standard and with the declared values shall be demonstrated by initial type testing and additionally the manufacturer shall exercise a permanent factory production control and register the results. 6.2 Initial type testing (ITT) Initial type testing of a modular tiles made of agglomerated stone product, as given in Table 3, shall be carried out: a) to demonstrate conformity to this European Standard or at the beginning of production of a new material, b) when significant variations occur in the production process, determined visually or by significant changes in FPC results. Tests previously performed in accordance with the provisions of this European Standard (i.e. same material/product, same characteristic measured with same test method, same sampling procedure and system of attestation of conformity) may be taken into account for the purpose of ITT. The results of the selected tests shall be expressed as referred to in 4.1 and 4.2. The results of all initial type tests shall be recorded and held by the manufacturer for at least 10 years after the date of last production of the tiles to which they relate.
EN 15285:2008 (E) 12 Table 3 — List of characteristic of modular tiles for flooring and stairs for initial type testing Reference sub-clause for applicability a Characteristics Test method 4.1.2 Dimensions EN 14617-16 4.1.3 Size and shape EN 14617-16 4.1.4 Surface finish Visual 4.2.2 Apparent density and water absorption EN 14617-1 4.2.3 Flexural strength EN 14617-2 4.2.4 Abrasion resistance EN 14617-4 4.2.5 Chemical resistance EN 14617-10 4.2.6 Visual appearance Visual (see 4.2.7) 4.2.8 Reaction to fire, for agglomerated stone containing organic material of: - less or equal than 1 %, - more than 1 %
- see 4.2.8 (CWT) b, - see EN 13501-1 4.2.9 Slipperiness
EN 14231 4.2.10 Thermal conductivity EN 14617-1, EN 12524 or EN 12664 c 4.2.11 Thermal shock resistance EN 14617-6 4.2.12 Tactility/visibility Description 4.2.13 Linear thermal expansion coefficient EN 14617-11 4.2.14 Electrical resistivity EN 14617-13 4.2.15 Impact resistance EN 14617-9 4.2.16 Frost resistance EN 14617-5 4.2.17 Dimensional stability EN 14617-12 a Reference shall be made to Clause 4 in order to decide which characteristics need to be declared. b Appropriate assessment shall be made to ensure compliance with the requirement for classification without testing (CWT). c EN 14617-1 is used in order to give a reference allowing reference data to be taken from EN 12524. Alternatively, products may be tested according to EN 12664.
6.3 Factory production control (FPC) 6.3.1 General The manufacturer shall establish, document and maintain an FPC system to ensure that the modular tiles placed on the market conform to the declared values for performance characteristics. The FPC system shall consist of written procedures (works' manual), regular inspections and tests and/or assessments and the use of the results to control raw and other incoming materials or components, equipment, the production process and the product. Records shall remain legible, readily identifiable and retrievable. An FPC system conforming with the requirements of EN ISO 9001:2000, and made specific to the requirements of this European Standard, shall be considered to satisfy the above requirements.
EN 15285:2008 (E) 13 The
...
