SIST-TS CLC IEC/TS 63394:2024

Safety of machinery - Guidelines on functional safety of safety-related control system

In the context of the safety of machinery, the sector standard IEC 62061 as well as ISO 13849 1 provide requirements to manufacturers of machines for the design, development and integration of safety-related control systems (SCS) or safety-related parts of control systems (SRP/CS), depending on technology used (mechanical, pneumatic, hydraulic or electrical technologies) to perform safety function(s). This document does not replace ISO 13849-1 and IEC 62061. This document gives additional guidance to the application of IEC 62061 or ISO 13849-1. This document:
   gives guidelines and specifies additional requirements for specific safety functions based on the methodology of ISO 12100, which are relevant in machinery and respecting typical boundary conditions of machinery;
   considers safety functions which are designed for high demand mode of operation yet are rarely operated, called rarely activated safety functions;
NOTE 1 IEC 62061:2021 completely covers high demand. However, other safety functions related to the protection of the machine itself and indirectly of persons are considered more in detail in this document.
   gives additional information for the calculation of failure rates using other (non-electronic) technologies based e.g. on Weibull distribution, because all the formula defined in IEC 62061 and ISO 13849-1 are based on exponential distribution.
Therefore, the basis for these guidelines and additional requirements is
   a typical classification of safety functions;
   a consideration of typical architectures used for designing safety functions;
   a consideration of modes of operation of safety functions;
   the derivation and evaluation of PFH formulas for subsystems considering the used technology.
NOTE 2 These guidelines can also be used for application of ISO 13849-1 for the design process of SRP/CS.
This document does not address low demand mode of operation according to IEC 61508.
This document does not take into account either layer of protection analysis (LOPA) or basic process control system (BPCS), according to IEC 61511 as a risk reduction measure.
This document considers all lifecycle phases of the machine regarding functional safety, and SCS or SRP/CS.
NOTE 3 The user of the machine needs information from the machine manufacturer for the safe operation of the machine, e.g. useful lifetime of components, maintenance information, testing of safety functions if necessary.

Sicherheit von Maschinen - Leitlinien zur funktionalen Sicherheit sicherheitsbezogener Steuerungssysteme

Sécurité des machines - Lignes directrices sur la sécurité fonctionnelle des systèmes de commande relatifs à la sécurité

Varnost strojev - Smernice za funkcionalno varnost varnostno vodenega sistema

V kontekstu varnosti strojev področna standarda IEC 62061 in ISO 13849-1 podajata zahteve za proizvajalce strojev v zvezi z načrtovanjem, razvojem in integracijo varnostno vodenih sistemov (SCS) ali varnostnih delov nadzornih sistemov (SRP/CS), glede na tehnologijo (mehansko, pnevmatsko, hidravlično ali električno), ki se uporablja za izvajanje varnostnih funkcij. Ta dokument ne nadomešča standardov ISO 13849-1 in IEC 62061. Ta dokument podaja dodatna navodila za uporabo standarda IEC 62061 oziroma ISO 13849-1. Ta dokument:
–   podaja smernice in določa dodatne zahteve za posebne varnostne funkcije na podlagi metodologije standarda ISO 12100, ki so relevantne za stroje, pri čemer se upoštevajo značilni mejni pogoji strojev;
–   obravnava varnostne funkcije, ki so zasnovane za način delovanja z visokimi zahtevami, vendar se redko uporabljajo (imenovane redko aktivirane varnostne funkcije);
OPOMBA 1: Visoke zahteve so v celoti zajete v standardu IEC 62061:2021. V tem dokumentu pa so podrobneje obravnavane druge varnostne funkcije, povezane z zaščito samega stroja in posredno oseb.
–   podaja dodatne informacije za izračun pogostosti okvar z uporabo drugih (neelektronskih) tehnologij, ki temeljijo na primer na Weibullovi porazdelitvi, saj vse formule, opredeljene v standardih IEC 62061 in ISO 13849-1, temeljijo na eksponentni porazdelitvi.
Podlaga za te smernice in dodatne zahteve je naslednja:
–   značilna razvrstitev varnostnih funkcij;
–   upoštevanje značilnih arhitektur, ki se uporabljajo za načrtovanje varnostnih funkcij;
–   upoštevanje načinov delovanja varnostnih funkcij;
–   izpeljava in vrednotenje formul PFH za podsisteme glede na uporabljeno tehnologijo.
OPOMBA 2: Te smernice je mogoče uporabiti tudi v povezavi s standardom ISO 13849-1 pri načrtovanju varnostnih delov nadzornih sistemov.
Ta dokument ne obravnava načina delovanja z nizkimi zahtevami v skladu s standardom IEC 61508.
Ta dokument ne obravnava analize varnostnih plasti (LOPA) ali osnovnega nadzornega sistema za proces (BPCS) kot ukrepa za zmanjšanje tveganja v skladu s standardom IEC 61511.
Ta dokument obravnava vse faze življenjskega cikla stroja v zvezi s funkcionalno varnostjo, vključno z varnostno vodenimi sistemi oziroma varnostnimi deli nadzornih sistemov.
OPOMBA 3: Uporabnik stroja mora od proizvajalca stroja prejeti informacije za njegovo varno delovanje (npr. uporabna življenjska doba sestavnih delov, informacije o vzdrževanju, preskušanje varnostnih funkcij, če je to potrebno).

General Information

• Status: Published
• Publication Date: 13-Aug-2024
• ICS: 13.110 - Safety of machinery
• ICS: 25.040.99 - Other industrial automation systems
• ICS: 29.020 - Electrical engineering in general
• Technical Committee: MOV - Measuring equipment for electromagnetic quantities
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 06-Feb-2024
• Due Date: 12-Apr-2024
• Completion Date: 14-Aug-2024
• Ref Project: CLC IEC/TS 63394:2024 - Safety of machinery - Guidelines on functional safety of safety-related control system

Overview

CLC IEC/TS 63394:2024 - Safety of machinery: Guidelines on functional safety of safety-related control system provides practical guidance for applying IEC 62061 and ISO 13849‑1 when designing, developing and integrating safety‑related control systems (SCS) or safety‑related parts of control systems (SRP/CS). It supplements, but does not replace, IEC 62061 or ISO 13849‑1. The Technical Specification focuses on machinery contexts and typical boundary conditions across mechanical, pneumatic, hydraulic and electrical technologies.

Key topics and technical requirements

• Scope and intent: Clarifies how to apply IEC 62061 / ISO 13849‑1 in machine design, following ISO 12100 risk assessment and risk‑reduction methodology.
• Classification of safety functions: Provides a typical classification relevant to machinery (person protection, machine integrity, other hazard prevention).
• Modes of operation: Emphasises high‑demand / continuous modes, and introduces guidance for rarely activated safety functions (functions designed for high demand but seldom operated). Note: low‑demand mode per IEC 61508 is out of scope.
• Architectures and subsystem design: Considers typical architectures, fault accumulation, undetected faults and architectural constraints when decomposing safety functions into subsystems.
• PFH and failure‑rate calculation: Supplies additional information for calculating failure rates of non‑electronic technologies (e.g., using Weibull distribution) because IEC 62061 and ISO 13849‑1 base their formulae on exponential distributions.
• Verification and lifecycle: Covers verification procedures including initial and periodic verification, test intervals, reporting and lifecycle considerations for safe operation, maintenance and component useful lifetime.
• Design process and documentation: Recommends safety requirements specifications, functional decomposition, subsystem design and systematic integrity practices.
• Limitations: Does not address Layer of Protection Analysis (LOPA), Basic Process Control Systems (BPCS) per IEC 61511, nor replace low‑demand IEC 61508 guidance.

Practical applications and users

Who benefits:

• Machine manufacturers and OEMs designing SCS / SRP‑CS
• Functional safety engineers and system integrators
• Safety assessors, certification bodies and compliance teams
• Maintenance planners and plant engineers responsible for verification and lifecycle management

Typical uses:

• Applying IEC 62061 / ISO 13849‑1 to complex machinery with mixed technologies
• Designing rarely‑activated high‑demand safety functions
• Calculating PFH for mechanical/pneumatic/hydraulic subsystems using non‑exponential statistical models
• Defining verification schedules, test intervals and maintenance information for safe machine operation

Related standards

• IEC 62061 - Functional safety of safety‑related control systems
• ISO 13849‑1 - Safety‑related parts of control systems - Part 1
• ISO 12100 - General principles for design; risk assessment and reduction
• IEC 61508 / IEC 61511 - (Not covered for low demand or LOPA/BPCS in this TS)

For implementation, consult the full CLC IEC/TS 63394:2024 text alongside IEC 62061 and ISO 13849‑1 to ensure compliant design, PFH calculation and verification of machinery safety‑related control systems.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2024
Varnost strojev - Smernice za funkcionalno varnost varnostno vodenega sistema
Safety of machinery - Guidelines on functional safety of safety-related control system
Sicherheit von Maschinen - Leitlinien zur funktionalen Sicherheit sicherheitsbezogener
Steuerungssysteme
Sécurité des machines - Lignes directrices sur la sécurité fonctionnelle des systèmes de
commande relatifs à la sécurité
Ta slovenski standard je istoveten z: CLC IEC/TS 63394:2024
ICS:
13.110 Varnost strojev Safety of machinery
25.040.99 Drugi sistemi za Other industrial automation
avtomatizacijo v industriji systems
29.020 Elektrotehnika na splošno Electrical engineering in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION CLC IEC/TS 63394

SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION February 2024
ICS 13.110; 29.020; 25.040.99
English Version
Safety of machinery - Guidelines on functional safety of safety-
related control system
(IEC/TS 63394:2023)
Sécurité des machines - Lignes directrices sur la sécurité Sicherheit von Maschinen - Leitlinien zur funktionalen
fonctionnelle des systèmes de commande relatifs à la Sicherheit sicherheitsbezogener Steuerungssysteme
sécurité (IEC/TS 63394:2023)
(IEC/TS 63394:2023)
This Technical Specification was approved by CENELEC on 2024-01-22.

CENELEC members are required to announce the existence of this TS in the same way as for an EN and to make the TS available promptly
at national level in an appropriate form. It is permissible to keep conflicting national standards in force.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. CLC IEC/TS 63394:2024 E

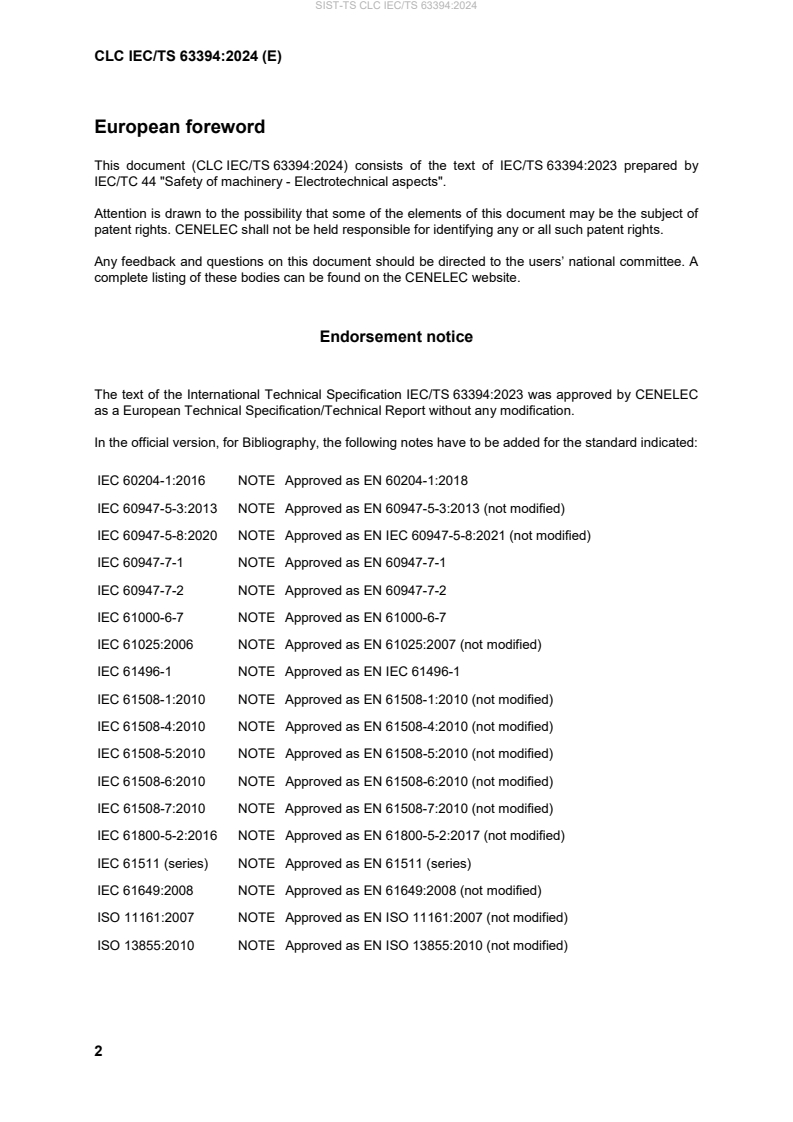

European foreword
