SIST EN 3364:2023

Aerospace series - Steel X5CrNiCu15-5 (1.4545) - Consumable electrode remelted, softened - Forging stocks - a or D ≤ 300 mm

This document specifies the requirements relating to:
Steel X5CrNiCu15-5 (1.4545)
Consumable electrode remelted, softened
Forging stocks
a or D ≤ 300 mm
for aerospace applications.

Luft- und Raumfahrt - Stahl X5CrNiCu15-5 (1.4545) - Mit selbstverzehrender Elektrode umgeschmolzen, weichgeglüht - Schmiedevormaterial - a oder D ≤ 300 mm

Dieses Dokument legt die Anforderungen an:
Stahl X5CrNiCu15-5 (1.4545)
Mit selbstverzehrender Elektrode umgeschmolzen, weichgeglüht
Schmiedevormaterial
a oder D ≤ 300 mm
für Anwendungen in der Luft- und Raumfahrt fest.

Série aérospatiale - Acier X5CrNiCu15-5 (1.4545) - Refondu à l'électrode consommable, adouci - Produits destinés à la forge - a ou D ≤ 300 mm

Le présent document spécifie les exigences relatives à :
Acier X5CrNiCu15-5 (1.4545)
Refondu à l'électrode consommable, adouci
Produits destinés à la forge
a ou D ≤ 300 mm
pour les applications aérospatiales.

Aeronavtika - Jeklo X5CrNiCu15-5 (1.4545) - Pretaljeno s taljivo elektrodo, mehčano - Materiali za kovanje - a ali D ≤ 300 mm

Ta dokument določa zahteve, ki se navezujejo na:
jeklo X5CrNiCu15-5 (1.4545),
pretaljeno s taljivo elektrodo in mehčano,
materiale za kovanje,
a ali D ≤ 300 mm,
za uporabo v aeronavtiki.

General Information

• Status: Published
• Public Enquiry End Date: 30-Nov-2021
• Publication Date: 22-Jan-2023
• ICS: 49.025.10 - Steels
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Jan-2023
• Due Date: 11-Mar-2023
• Completion Date: 23-Jan-2023
• Ref Project: EN 3364:2022 - Aerospace series - Steel X5CrNiCu15-5 (1.4545) - Consumable electrode remelted, softened - Forging stocks - a or D ≤ 300 mm

Relations

• Replaces: SIST EN 3364:2009 - Aerospace series - Steel FE-PM1802 (X5CrNiCu15-5) - Consumable electrode remelted, softened, forging stock a or D ≤ 300 mm
• Effective Date: 28-Dec-2022
• Revised: SIST EN 3364:2009 - Aerospace series - Steel FE-PM1802 (X5CrNiCu15-5) - Consumable electrode remelted, softened, forging stock a or D ≤ 300 mm
• Effective Date: 15-Sep-2021

Overview

EN 3364:2022 is a CEN aerospace-series material standard that specifies requirements for Steel X5CrNiCu15‑5 (1.4545) supplied as consumable‑electrode remelted, softened forging stocks with a or D ≤ 300 mm. It is intended for aerospace applications and defines chemical composition, production method, delivery condition, heat treatment options and key mechanical and quality criteria for forgings.

Key topics and technical requirements

• Material designation: X5CrNiCu15‑5 (1.4545) - composition limits are given for C, Si, Mn, P, S, Cr, Ni, Cu, Nb+Ta and Fe (balance).
• Melting method: Consumable electrode remelted (improved cleanliness and homogeneity).
• Form & size: Forging stock, maximum characteristic dimension a or diameter D ≤ 300 mm.
• Delivery condition: Softened (delivery condition code U).
• Heat treatments: Solution treatment 1 025–1 055 °C, t ≥ 30 min, air cool (or oil quench) to ≤ 30 °C, followed by precipitation treatment:
  • Test A: 565–595 °C, t ≥ 4 h, air cool
  • Test B: 465–495 °C, t ≥ 1 h, air cool
• Mechanical properties (representative ranges): Standard defines two test conditions (Test A and Test B). Example values include proof stress (Rp0.2) in the order of 1 000–1 170 MPa, tensile strength (Rm) ≈ 1 170–1 310 MPa, elongation A% ≈ 5–11%, reduction of area Z ≈ 15–45%, and Brinell hardness ranges depending on condition (see table in EN 3364:2022).
• Microstructure and cleanliness: δ‑ferrite ≤ 2%; inclusion content Category 4; macrostructure and internal imperfection acceptance levels specified (visual testing VT, ultrasonic testing UT class 3 for internal defects).
• Testing & samples: Forged sample preparation per EN 2957; technical specification and inspection/testing per EN 2157‑2. Product qualification per EN 2043.

Applications and users

• Primary use: Specification for aerospace forging stock where corrosion resistance, high strength and predictable heat‑treatment response are required (rotating parts, structural forgings, landing‑gear components, etc.).
• Who uses it: Aerospace material engineers, procurement/specification writers, forging manufacturers, metallurgists, quality/inspection teams, and certification bodies involved in aerospace component manufacture and supply chains.

Related standards

• EN 2157‑2 - Forging stock technical specification and inspection
• EN 2957 - Preparation of forged samples
• EN 2043 - Semi‑finished product qualification
• EN 4258 and EN 4500‑005 - Organization and drafting rules for aerospace metallic material standards

Keywords: EN 3364:2022, X5CrNiCu15‑5, 1.4545, aerospace steel, forging stocks, consumable electrode remelted, softened, heat treatment, mechanical properties, standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2023
Nadomešča:
SIST EN 3364:2009
Aeronavtika - Jeklo X5CrNiCu15-5 (1.4545) - Pretaljeno s taljivo elektrodo,
mehčano - Materiali za kovanje - a ali D ≤ 300 mm
Aerospace series - Steel X5CrNiCu15-5 (1.4545) - Consumable electrode remelted,
softened - Forging stocks - a or D ≤ 300 mm
Luft- und Raumfahrt - Stahl X5CrNiCu15-5 (1.4545) - Mit selbstverzehrender Elektrode
umgeschmolzen, weichgeglüht - Schmiedevormaterial - a oder D ≤ 300 mm
Série aérospatiale - Acier X5CrNiCu15-5 (1.4545) - Refondu à l'électrode consommable,
adouci - Produits destinés à la forge - a ou D ≤ 300 mm
Ta slovenski standard je istoveten z: EN 3364:2022
ICS:
49.025.10 Jekla Steels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3364
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2022
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 3364:2007
English Version
Aerospace series - Steel X5CrNiCu15-5 (1.4545) -
Consumable electrode remelted, softened - Forging stocks
- a or D  300 mm
Série aérospatiale - Acier X5CrNiCu15-5 (1.4545) - Luft- und Raumfahrt - Stahl X5CrNiCu15-5 (1.4545) -
Refondu à l'électrode consommable, adouci - Produits Mit selbstverzehrender Elektrode umgeschmolzen,
destinés à la forge - a ou D  300 mm weichgeglüht - Schmiedevormaterial - a oder D  300
mm
This European Standard was approved by CEN on 2 October 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3364:2022 E
worldwide for CEN national Members.

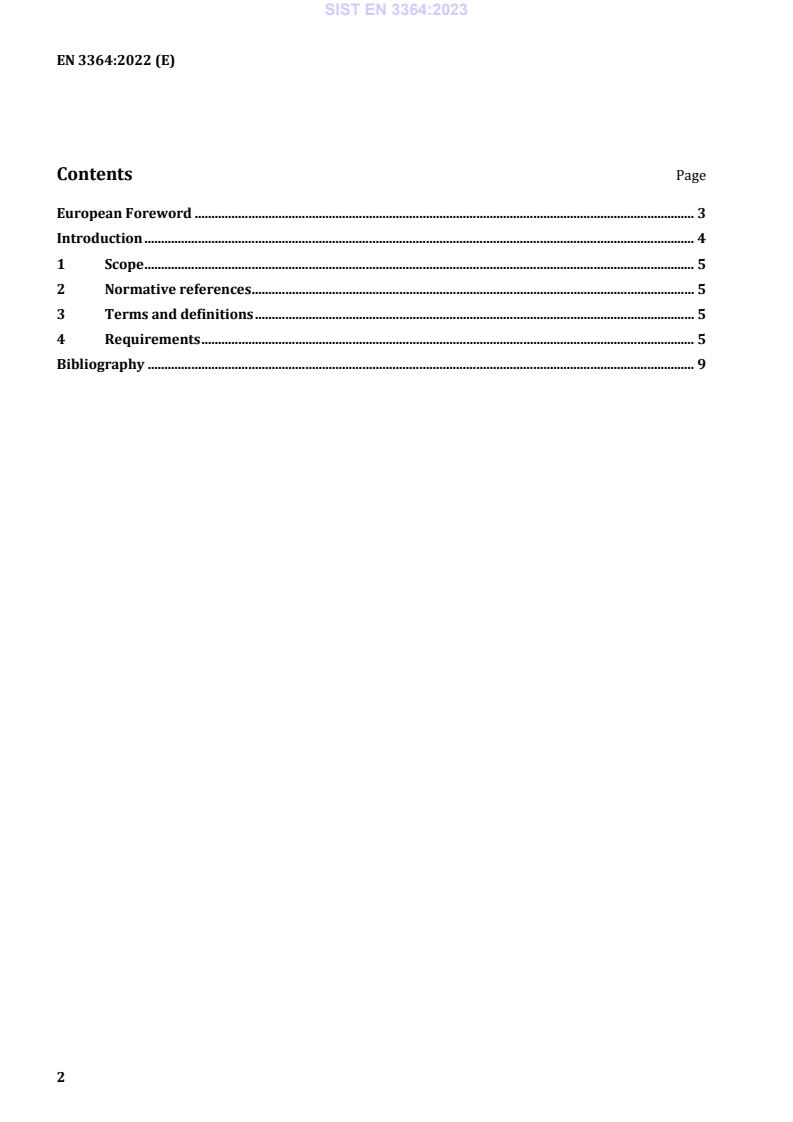

Contents Page
European Foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European Foreword
This document (EN 3364:2022) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall
be withdrawn at the latest by June 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3364:2007.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norwa
...
