SIST EN 15037-2:2009+A1:2011

Precast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks

This European Standard deals with the requirements and the basic performance criteria for blocks made in normal or lightweight aggregate concrete, used in conjunction with precast concrete beams in compliance with EN 15037-1, with or without cast-in-situ concrete for the construction of beam-and-block floor and roof systems.
Examples of typology of floor and roof systems are given in Annex B of EN 15037-1:2008.

Betonfertigteile - Balkendecken mit Zwischenbauteilen - Teil 2: Zwischenbauteile aus Beton

Diese Europäische Norm legt die Anforderungen und die grundlegenden Leistungskriterien für Zwischen-bauteile aus Normal  oder Leichtbeton fest, die zusammen mit vorgefertigten Betonbalken nach EN 15037 1 mit oder ohne Ortbeton zur Herstellung von Balkendecken mit Zwischenbauteilen sowie von Dachsystemen verwendet werden.
EN 15037 1:2008, Anhang B enthält eine Übersicht über die verschiedenen Typen von Decken  und Dachsystemen.

Produits préfabriqués en béton - Systèmes de planchers à poutrelles et entrevous - Partie 2: Entrevous en béton

La présente Norme européenne spécifie les prescriptions et les critères de performance de base des entrevous fabriqués en béton de granulats courants ou légers, utilisés conjointement avec des poutrelles préfabriquées en béton conformes à l’EN 15037 1, avec ou sans béton coulé en place, pour la construction de systèmes de planchers et de toitures à poutrelles et entrevous.
Des exemples de typologie de systèmes de planchers et de toitures sont donnés dans l’Annexe B de l’EN 15037-1:2008.

Montažni betonski izdelki - Stropni sistemi iz nosilcev in polnil - 2. del: Polnila

Ta evropski standard obravnava zahteve in osnovna merila za zmogljivost za polnila iz betona iz lahkega agregata, ki se uporabljajo v povezavi z montažnimi betonskimi nosilci v skladu z EN 15037-1, z ulivanjem betona in-situ za gradnjo stropnih sistemov iz nosilcev in polnil ali brez njega.
Primeri tipologije talnih in stropnih sistemov so podani v dodatku A EN 15037-1:2008.

General Information

• Status: Published
• Publication Date: 03-May-2011
• ICS: 91.060.30 - Ceilings. Floors. Stairs
• ICS: 91.100.30 - Concrete and concrete products
• Technical Committee: BBB - Concrete, reinforced concrete and prestressed concrete
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 02-Mar-2011
• Due Date: 07-May-2011
• Completion Date: 04-May-2011
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/100 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on precast concrete products
• Ref Project: EN 15037-2:2009+A1:2011 - Precast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks

Relations

• Replaces: SIST EN 15037-2:2009 - Precast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks
• Effective Date: 01-Jun-2011
• Consolidates: SIST EN 15037-2:2009 - Precast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks
• Effective Date: 18-Jan-2023

Overview

EN 15037-2:2009+A1:2011 is the CEN European Standard that specifies requirements and basic performance criteria for concrete blocks used in beam-and-block floor and roof systems. It covers blocks manufactured from normal or lightweight aggregate concrete to be used together with precast beams conforming to EN 15037-1, with or without a cast‑in‑situ topping. The document includes Amendment 1 (2011) and is intended for factory production, testing, conformity assessment and CE marking of precast concrete blocks.

Key topics and requirements

• Scope and definitions: Classification of block types - non‑resisting (NR), semi‑resisting (SR) and resisting (RR) blocks; longitudinal, transverse and open block geometries; terminology such as “nib”.
• Material and production: Material requirements reference EN 13369 and EN 771‑3 and address normal and lightweight aggregate concrete production methods.
• Finished product properties:
  • Geometrical and surface characteristics (dimensions, surface finish)
  • Mechanical resistance (tests for concentrated loads, bending strength, longitudinal and transverse compression for SR/RR blocks)
  • Durability, thermal and acoustic properties, and reaction/resistance to fire
  • Gross dry density and drying shrinkage (lightweight concrete)
• Test methods & sampling: Detailed test procedures for dimensions, strength, density and shrinkage; sampling rules for type testing and lot inspection are given in Annex A.
• Conformity and factory production control: Type testing, inspection schemes (Annex B), factory production control, marking and technical documentation requirements.
• Regulatory alignment: Annex ZA explains application of CE marking and relationship to the EU Construction Products Directive and relevant Eurocodes (EN 1992 series).

Applications and users

EN 15037-2 is used to:

• Specify and certify precast concrete blocks for beam-and-block floor and roof systems.
• Ensure consistent performance (structural behavior, fire, thermal and acoustic) across manufactured blocks.
• Support CE marking and conformity assessment for the EU market.

Typical users:

• Precast concrete manufacturers and quality managers
• Structural and façade engineers specifying beam-and-block solutions
• Contractors and installers of precast floor/roof systems
• Testing laboratories and conformity assessment bodies
• Product certification and compliance officers

Related standards

• EN 15037-1 (Beams for beam-and-block systems)
• EN 15037-3, -4, -5 (other block materials: clay, polystyrene, lightweight)
• EN 13369 (Common rules for precast concrete products)
• EN 1992-1-1 (Eurocode 2: design of concrete structures)
• EN 771-3 and relevant EN test standards

Keywords: EN 15037-2:2009+A1:2011, beam-and-block floor systems, concrete blocks, precast concrete, CE marking, Eurocode, conformity assessment.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Montažni betonski izdelki - Stropni sistemi iz nosilcev in polnil - 2. del: PolnilaBetonfertigteile - Balkendecken mit Zwischenbauteilen - Teil 2: Zwischenbauteile aus BetonProduits préfabriqués en béton - Systèmes de planchers à poutrelles et entrevous - Partie 2: Entrevous en bétonPrecast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks91.100.30Beton in betonski izdelkiConcrete and concrete products91.060.30Stropi. Tla. StopniceCeilings. Floors. StairsICS:Ta slovenski standard je istoveten z:EN 15037-2:2009+A1:2011SIST EN 15037-2:2009+A1:2011en,fr,de01-junij-2011SIST EN 15037-2:2009+A1:2011SLOVENSKI
STANDARDSIST EN 15037-2:2009/kFprA1:2010SIST EN 15037-2:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15037-2:2009+A1
February 2011 ICS 91.100.30 Supersedes EN 15037-2:2009English Version
Precast concrete products - Beam-and-block floor systems - Part 2: Concrete blocks
Produits préfabriqués en béton - Systèmes de planchers à poutrelles et entrevous - Partie 2: Entrevous en béton
Betonfertigteile - Balkendecken mit Zwischenbauteilen - Teil 2: Zwischenbauteile aus Beton This European Standard was approved by CEN on 25 January 2009 and includes Amendment 1 approved by CEN on 10 January 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15037-2:2009+A1:2011: ESIST EN 15037-2:2009+A1:2011

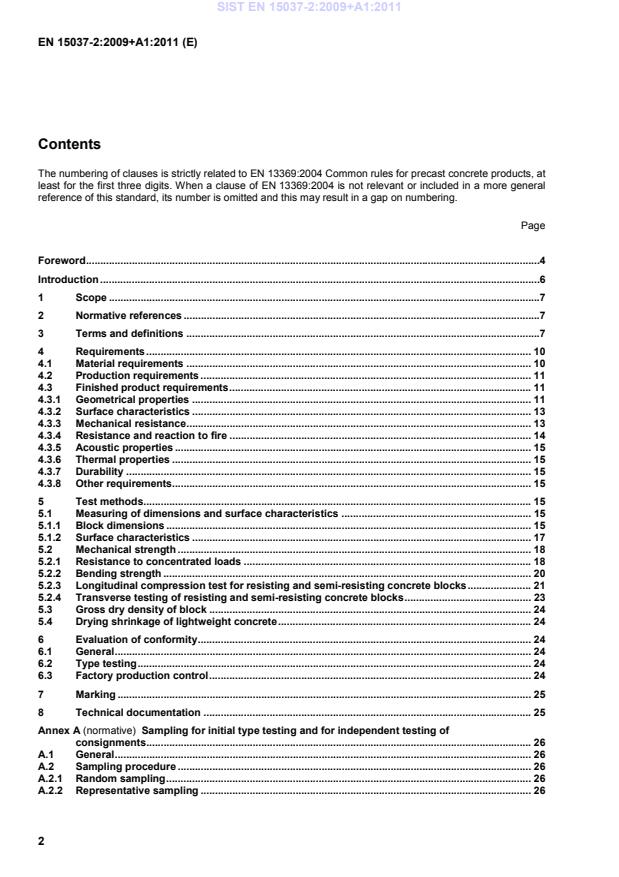

Page Foreword .4Introduction .61 Scope .72 Normative references .73 Terms and definitions .74 Requirements . 104.1 Material requirements . 104.2 Production requirements . 114.3 Finished product requirements . 114.3.1 Geometrical properties . 114.3.2 Surface characteristics . 134.3.3 Mechanical resistance . 134.3.4 Resistance and reaction to fire . 144.3.5 Acoustic properties . 154.3.6 Thermal properties . 154.3.7 Durability . 154.3.8 Other requirements. 155 Test methods . 155.1 Measuring of dimensions and surface characteristics . 155.1.1 Block dimensions . 155.1.2 Surface characteristics . 175.2 Mechanical strength . 185.2.1 Resistance to concentrated loads . 185.2.2 Bending strength . 205.2.3 Longitudinal compression test for resisting and semi-resisting concrete blocks . 215.2.4 Transverse testing of resisting and semi-resisting concrete blocks . 235.3 Gross dry density of block . 245.4 Drying shrinkage of lightweight concrete . 246 Evaluation of conformity . 246.1 General . 246.2 Type testing . 246.3 Factory production control . 247 Marking . 258 Technical documentation . 25Annex A (normative)
Sampling for initial type testing and for independent testing of consignments . 26A.1 General . 26A.2 Sampling procedure . 26A.2.1 Random sampling . 26A.2.2 Representative sampling . 26SIST EN 15037-2:2009+A1:2011

Inspection schemes for concrete blocks . 28Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 29ZA.1 Scope and relevant characteristics . 29ZA.2 Procedure for attestation of conformity of concrete blocks for beam-and-block floor systems . 31ZA.2.1 System of attestation of conformity . 31ZA.2.2 EC Certificate and Declaration of conformity . 31ZA.3 CE marking and labelling. 32ZA.3.1 General . 32ZA.3.2 Simplified label . 33ZA.3.3 Information to be provided with the CE marking . 34Bibliography . 36 SIST EN 15037-2:2009+A1:2011

Figure 1 — Example of semi-resisting concrete blocks 3.3 resisting block block with the same functions as semi-resisting blocks but whose top flange can, under certain conditions, play a role as compression slab in the final floor system (designated RR)
Figure 2 — Examples of resisting concrete blocks 3.4 nib shape given to the block so that it will bear on the beam 3.5 longitudinal block block where the axis of the perforations are parallel to the beam NOTE An example of a longitudinal block is given in Figure 3. SIST EN 15037-2:2009+A1:2011

Key 1 web 6 depth of the nib 2 overall length 7 overall width 3 flange (top part of the block) 8 overall height 4 height to nib 9 direction of the beam 5 width of the nib
Figure 3 — Example of a longitudinal block 3.6 transverse block block where the axis of the perforations are perpendicular to the beam NOTE An example of a transverse block is given in Figure 4. SIST EN 15037-2:2009+A1:2011

Key 1 web 6 depth of the nib 2 overall length 7 overall width 3 flange (top part of the block) 8 overall height 4 height to nib 9 direction of the beam 5 width of the nib
Figure 4 — Example of a transverse block 3.7 open block non-resisting or semi-resisting block without top flange NOTE An example of an open block is given in Figure 5.
Figure 5 — Example of open block 3.8 gross dry density mass per unit gross volume after drying to constant mass 4 Requirements 4.1 Material requirements 4.1.1 and 4.1.2 of EN 13369:2004 or 4.1 of !EN 771-3:2003" shall apply. SIST EN 15037-2:2009+A1:2011

Figure 6 — Minimum thickness of top of concrete resisting blocks These blocks shall not be used as compressive flange if the grouting is not effective. When the top flange of concrete resisting blocks has a slope, the dimensions shall be declared by the manufacturer. SIST EN 15037-2:2009+A1:2011

Key 1 width (l) 5 width of the nib 2 height (h) 6 depth of the nib 3 length (L) 7 horizontal part of the slope 4 height to nib
Figure 7 — Nominal dimensions declared for blocks When relevant to the use for which the blocks are put on the market also the minimum thickness of webs and shells shall be declared. 4.3.2 Surface characteristics Blocks shall not have cracks or spalling which may be detrimental to their mechanical performance. For test method see 5.1.2. 4.3.3 Mechanical resistance 4.3.3.1 General 4.3.3.4 of EN 13369:2004 shall apply. The manufacturer shall declare which class of mechanical resistance the blocks fulfil. 4.3.3.2 Class R1 The following properties shall be verified:  the resistance to concentrated loads, for each type of block (see a));  the characteristic longitudinal compressive strength, for resisting and semi-resisting blocks (see b)). a) Resistance to concentrated loads SIST EN 15037-2:2009+A1:2011

Figure 8 — Measurement of width b) Length Take the two measurements as shown in Figure 9.
Figure 9 — Measurement of length c) Height Take the two measurements as shown in Figure 10.
Figure 10 — Measurement of height SIST EN 15037-2:2009+A1:2011

Figure 11 — Measurement of thickness of the top flange e) Thickness of the web Take four measurements: two at each end of both sides.
Figure 12 — Measurement of thickness of the web f) Width and depth of the nib Place the block on a level horizontal surface (the flatness shall be controlled). Take two measurements: one in the middle of each side. Repeat the operation to measure depth. 5.1.1.3 Interpretation of results !Calculate the length, width and height for the sample as the mean of the values of the individual specimens. All results shall comply with the requirements of 4.3.1 and the values declared by the manufacturer. NOTE Measurements shown in Figures 8 to 12 may refer to different nominal values." 5.1.1.4 Test report !All the measured dimensions and the calculated dimensions such as length, width and height of the sample shall be recorded." 5.1.2 Surface characteristics The surface appearance of blocks shall be inspected visually. SIST EN 15037-2:2009+A1:2011
...
