SIST EN 13915:2017
(Main)Prefabricated gypsum plasterboard panels with a cellular paperboard core - Definitions, requirements and test methods
Prefabricated gypsum plasterboard panels with a cellular paperboard core - Definitions, requirements and test methods
This European Standard specifies the characteristics and performance of prefabricated panels made of gypsum plasterboard facings complying with EN 520 and a cellular paperboard core intended to be used as a lightweight partition, lining and encasement for general use in buildings.
This standard covers the following characteristics: reaction to fire, water vapour permeability, flexural strength (breaking load) and thermal resistance to be measured according to the corresponding European test methods.
This Standard covers only prefabricated panels installed so that the core is not exposed.
The following performance characteristics are linked to systems assembled with prefabricated panels made of gypsum plasterboard facings and a cellular paperboard core: shear strength, fire resistance, direct airborne sound insulation, acoustic absorption and air permeability to be measured according to the corresponding European test methods. If required, tests should be done on assembled systems simulating the end use conditions.
This document covers also additional technical characteristics that are of importance for the use and acceptance of the product by the Building Industry.
It provides for the evaluation of conformity of the products to this document.
Gipsplatten-Wandbaufertigtafeln mit einem Kartonwabenkern - Begriffe, Anforderungen und Prüfverfahren
Diese Europäische Norm legt die Eigenschaften und Leistung von Gipsplatten Wandbaufertigtafeln fest, die aus Gipsplatten nach EN 520 und einem Kartonwabenkern bestehen und zur allgemeinen Anwendung als Leicht Trennwände, Wandbekleidungen und Ummantelungen in Gebäuden bestimmt sind.
Die Norm behandelt die Leistungsmerkmale Brandverhalten, Wasserdampfdurchlässigkeit, Biegezugfestigkeit (Bruchlast) und Wärmedurchlasswiderstand, die mit den entsprechenden europäischen Prüfverfahren zu bestimmen sind.
Diese Norm deckt nur Gipsplatten Wandbaufertigtafeln ab, die so eingebaut sind, dass der Wabenkern nicht offen liegt.
Die folgenden Leistungsmerkmale beziehen sich auf Systeme, die mit Gipsplatten Wandbaufertigtafeln mit einem Kartonwabenkern erstellt werden: Scherfestigkeit, Feuerwiderstand, Luftschalldämmung, Schallabsorption und Luftdurchlässigkeit, die nach den entsprechenden europäischen Prüfverfahren zu bestimmen sind. Sofern erforderlich, sollten Prüfungen an zusammengesetzten Systemen, die den Gebrauchszustand simulieren, durchgeführt werden.
Dieses Dokument behandelt darüber hinaus zusätzliche technische Eigenschaften, die für die Anwendung und Akzeptanz des Produkts durch die Bauwirtschaft von Bedeutung sind.
Es enthält Festlegungen zur Bewertung der Übereinstimmung der Produkte mit diesem Dokument.
Panneaux de cloison préfabriqués en plaques de plâtre à âme cellulaire en carton - Définitions, prescriptions et méthodes d'essai
La présente Norme européenne définit les caractéristiques et les performances des panneaux de cloison préfabriqués composés de parements en plaques de plâtre conformes à l’EN 520 avec une âme cellulaire en carton, conçus pour être utilisés comme cloison légère, revêtement ou enrobage à usage général dans les bâtiments.
La présente norme couvre les caractéristiques suivantes : réaction au feu, perméabilité à la vapeur d’eau, résistance à la flexion (charge de rupture) et résistance thermique à mesurer conformément aux méthodes d’essai européennes correspondantes.
La présente norme couvre uniquement les panneaux de cloison préfabriqués installés de sorte que l’âme n’est pas exposée.
Les caractéristiques de performance suivantes sont liées aux systèmes assemblés avec des panneaux de cloison préfabriqués composés de parements en plaques de plâtre avec une âme cellulaire en carton : résistance au cisaillement, résistance au feu, isolation acoustique aux bruits aériens, absorption acoustique et perméabilité à l’air, qui doivent être mesurées conformément aux méthodes d’essai européennes correspondantes. Au besoin, il convient d’effectuer des essais sur des systèmes assemblés qui simulent les conditions d’utilisation finale.
Le présent document couvre également les caractéristiques techniques supplémentaires qui ont une incidence sur l’utilisation et la réception du produit par l’Industrie du Bâtiment.
Elle spécifie l’évaluation et la vérification de la constance des performances des produits.
Mavčne plošče - Stenski predizdelani elementi s celičastim jedrom - Definicije, zahteve in preskusne metode
Ta evropski standard določa lastnosti in zmogljivost stenskih predizdelanih elementov iz mavčnih plošč, ki so v skladu s standardom EN 520, s celičastim jedrom, namenjenih za uporabo kot lahke pregrade, obloge in ohišja za splošno uporabo v stavbah.
Ta standard zajema naslednje lastnosti, ki jih je treba meriti v skladu z ustreznimi evropskimi preskusnimi metodami: odziv na ogenj, prepustnost vodne pare, upogibna trdnost (porušna obremenitev) in toplotna odpornost.
Ta standard zajema le predizdelane elemente, ki so montirani tako, da jedro ni izpostavljeno.
S sistemi, sestavljenimi iz predizdelanih elementov iz mavčnih plošč s celičastim jedrom, so povezane naslednje lastnosti delovanja, ki jih je treba meriti v skladu z ustreznimi evropskimi preskusnimi metodami: strižna trdnost, požarna odpornost, izolirnost pred neposrednim zvokom v zraku, absorpcija zvoka in zračna prepustnost. Po potrebi je treba preskuse izvesti za sestavljene sisteme, ki simulirajo pogoje končne uporabe.
Ta dokument zajema tudi dodatne tehnične lastnosti, ki so pomembne pri uporabi in sprejemljivosti proizvoda s strani gradbene industrije.
Omogoča vrednotenje skladnosti izdelkov s tem dokumentom.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gipsplatten-Wandbaufertigtafeln mit einem Kartonwabenkern - Begriffe, Anforderungen und PrüfverfahrenPanneaux de cloison préfabriqués en plaques de plâtre à âme cellulaire en carton - Définitions, prescriptions et méthodes d'essaiPrefabricated gypsum plasterboard panels with a cellular paperboard core - Definitions, requirements and test methods91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 13915:2017SIST EN 13915:2017en,fr,de01-september-2017SIST EN 13915:2017SLOVENSKI
STANDARDSIST EN 13915:20071DGRPHãþD
SIST EN 13915:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13915
July
t r s y ICS
{ sä s r rä s r Supersedes EN
s u { s wã t r r yEnglish Version
Prefabricated gypsum plasterboard panels with a cellular paperboard core æ Definitionsá requirements and test methods Panneaux de cloison préfabriqués en plaques de plâtre à âme cellulaire en carton æ Définitionsá exigences et méthodes d 5essai
GipsplattenæWandbaufertigtafeln mit einem Kartonwabenkern æ Begriffeá Anforderungen und Prüfverfahren This European Standard was approved by CEN on
t { July
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u { s wã t r s y ESIST EN 13915:2017

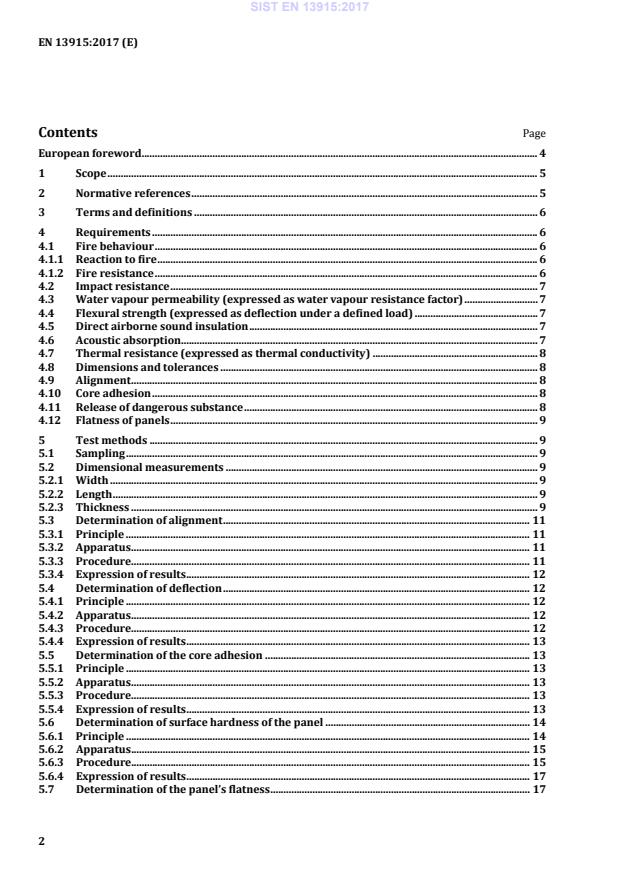

EN 13915:2017 (E) 2 Contents Page European foreword . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 6 4 Requirements . 6 4.1 Fire behaviour . 6 4.1.1 Reaction to fire . 6 4.1.2 Fire resistance . 6 4.2 Impact resistance . 7 4.3 Water vapour permeability (expressed as water vapour resistance factor) . 7 4.4 Flexural strength (expressed as deflection under a defined load) . 7 4.5 Direct airborne sound insulation . 7 4.6 Acoustic absorption. 7 4.7 Thermal resistance (expressed as thermal conductivity) . 8 4.8 Dimensions and tolerances . 8 4.9 Alignment . 8 4.10 Core adhesion . 8 4.11 Release of dangerous substance . 8 4.12 Flatness of panels . 9 5 Test methods . 9 5.1 Sampling . 9 5.2 Dimensional measurements . 9 5.2.1 Width . 9 5.2.2 Length . 9 5.2.3 Thickness . 9 5.3 Determination of alignment . 11 5.3.1 Principle . 11 5.3.2 Apparatus . 11 5.3.3 Procedure. 11 5.3.4 Expression of results . 12 5.4 Determination of deflection . 12 5.4.1 Principle . 12 5.4.2 Apparatus . 12 5.4.3 Procedure. 12 5.4.4 Expression of results . 13 5.5 Determination of the core adhesion . 13 5.5.1 Principle . 13 5.5.2 Apparatus . 13 5.5.3 Procedure. 13 5.5.4 Expression of results . 13 5.6 Determination of surface hardness of the panel . 14 5.6.1 Principle . 14 5.6.2 Apparatus . 15 5.6.3 Procedure. 15 5.6.4 Expression of results . 17 5.7 Determination of the panel’s flatness . 17 SIST EN 13915:2017
