SLOVENSKI STANDARD
SIST EN 62149-7:2012
01-julij-2012
$NWLYQHNRPSRQHQWHLQQDSUDYHRSWLþQLKYODNHQ7HKQLþQLVWDQGDUGLGHO
'LVNUHWQLQPVNLODVHUMLVSRYUãLQVNRHPLVLMRLQQDYSLþQLPUHVRQDWRUMHP,(&

Fibre optic active components and devices - Performance standards - Part 7: 1 310 nm
discrete vertical cavity surface emitting laser devices (IEC 62149-7:2012)
Aktive Lichtwellenleiterbauelemente und -geräte - Betriebsverhaltensnormen - Teil 7: 1
310 nm oberflächenemittierender Laser-Bauteile mit vertikalem Resonator (IEC 62149-
7:2012)
Composants et dispositifs actifs à fibres optiques - Norme de performance - Partie 7:
Dispositifs discrets à laser 1 310 nm émettant en surface (CEI 62149-7:2012)
Ta slovenski standard je istoveten z: EN 62149-7:2012
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
SIST EN 62149-7:2012 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62149-7:2012

---------------------- Page: 2 ----------------------

SIST EN 62149-7:2012

EUROPEAN STANDARD
EN 62149-7

NORME EUROPÉENNE
May 2012
EUROPÄISCHE NORM

ICS 33.180.20


English version


Fibre optic active components and devices -
Performance standards -
Part 7: 1 310 nm discrete vertical cavity surface emitting laser devices
(IEC 62149-7:2012)


Composants et dispositifs actifs  Aktive Lichtwellenleiterbauelemente
à fibres optiques - und -geräte -
Norme de performance - Betriebsverhaltensnormen -
Partie 7: Dispositifs discrets Teil 7: 1 310 nm oberflächenemittierender
à laser 1 310 nm émettant en surface Laser-Bauteile mit vertikalem Resonator
(CEI 62149-7:2012) (IEC 62149-7:2012)





This European Standard was approved by CENELEC on 2012-05-03. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62149-7:2012 E

---------------------- Page: 3 ----------------------

SIST EN 62149-7:2012

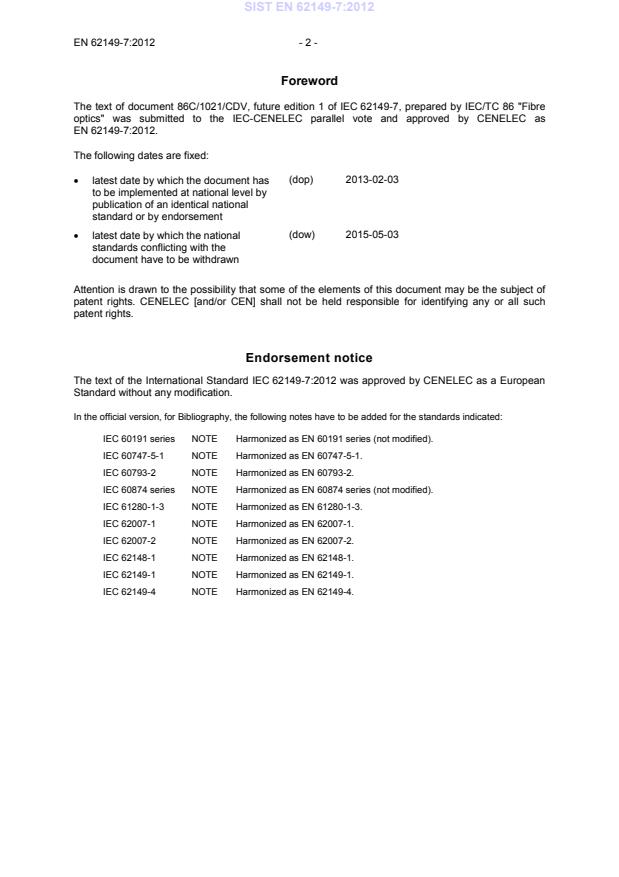

EN 62149-7:2012 - 2 -
Foreword
The text of document 86C/1021/CDV, future edition 1 of IEC 62149-7, prepared by IEC/TC 86 "Fibre
optics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
EN 62149-7:2012.
The following dates are fixed:
(dop) 2013-02-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-05-03
• latest date by which the national
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 62149-7:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60191 series NOTE Harmonized as EN 60191 series (not modified).
IEC 60747-5-1 NOTE Harmonized as EN 60747-5-1.
IEC 60793-2 NOTE Harmonized as EN 60793-2.
IEC 60874 series NOTE Harmonized as EN 60874 series (not modified).
IEC 61280-1-3 NOTE Harmonized as EN 61280-1-3.
IEC 62007-1 NOTE Harmonized as EN 62007-1.
IEC 62007-2 NOTE Harmonized as EN 62007-2.
IEC 62148-1 NOTE Harmonized as EN 62148-1.
IEC 62149-1 NOTE Harmonized as EN 62149-1.
IEC 62149-4 NOTE Harmonized as EN 62149-4.

---------------------- Page: 4 ----------------------

SIST EN 62149-7:2012
- 3 - EN 62149-7:2012
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.

Publication Year Title EN/HD Year

IEC 60749 Series Semiconductor devices - Mechanical and EN 60749 Series
climatic test methods


IEC 60825-1 - Safety of laser products - Part 1: Equipment EN 60825-1 -
classification and requirements


IEC 60950-1 - Information technology equipment - Safety - EN 60950-1 -
Part 1: General requirements


IEC 61300-2-4 - Fibre optic interconnecting devices and EN 61300-2-4 -
passive components - Basic test and
measurement procedures - Part 2-4: Tests -
Fibre/cable retention


IEC 61300-2-19 - Fibre optic interconnecting devices and EN 61300-2-19 -
passive components - Basic test and
measurement procedures - Part 2-19: Tests -
Damp heat (steady state)


IEC 61300-2-48 - Fibre optic interconnecting devices and EN 61300-2-48 -
passive components - Basic test and
measurement procedures - Part 2-48: Tests -
Temperature-humidity cycling


IEC 62148-15 - Fibre optic active components and devices - EN 62148-15 -
Package and interface standards - Part 15:
Discrete vertical cavity surface emitting laser
packages


IEC Guide 107 1998 Electromagnetic compatibility - Guide to the - -
drafting of electromagnetic compatibility
publications

---------------------- Page: 5 ----------------------

SIST EN 62149-7:2012

---------------------- Page: 6 ----------------------

SIST EN 62149-7:2012



IEC 62149-7

®

Edition 1.0 2012-03




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Fibre optic active components and devices – Performance standards –

Part 7: 1 310-nm discrete vertical cavity surface emitting laser devices




Composants et dispositifs actifs à fibres optiques – Norme de performance –

Partie 7: Dispositifs discrets à laser 1 310 nm émettant en surface
















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

V
CODE PRIX


ICS 33.180.20 ISBN 978-2-8322-0072-8



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------

SIST EN 62149-7:2012
– 2 – 62149-7 © IEC:2012
CONTENTS

FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, symbols and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Symbols and abbreviated terms. 9
4 Product parameters . 9
4.1 Absolute limiting ratings . 9
4.2 Operating environment . 9
4.3 Functional specification . 10
4.4 Diagrams . 10
5 Testing . 10
5.1 General . 10
5.2 Characterization testing . 10
5.3 Performance testing . 10
6 Environmental specifications . 10
6.1 General safety . 10
6.2 Laser safety . 10
6.3 Electromagnetic compatibility (EMC) requirements . 11
Annex A (normative) Specifications for multimode 1 310-nm VCSEL device without a
monitor photodiode (Case a) . 12
Annex B (normative) Specifications for multimode 1 310-nm VCSEL device with a
monitor photodiode (Case b) . 16
Annex C (normative) Specifications for single-mode 1 310-nm VCSEL device without a
monitor photodiode (Case c) . 21
Annex D (normative) Specifications for single-mode 1 310-nm VCSEL device with a
monitor photodiode (Case d) . 27
Bibliography . 33

Table 1 – Subcategorized specifications of the 1 310-nm discrete VCSEL . 7
Table 2 – Operating environment . 10
Table A.1 – Absolute limiting ratings . 12
Table A.2 – Operating conditions for functional specification. 12
Table A.3 – Functional specification . 13
Table A.4 – Performance test plan . 14
Table A.5 – Recommended performance test failure criteria . 15
Table B.1 – Absolute limiting ratings . 16
Table B.2 – Operating conditions for functional specification. 16
Table B.3 – Functional specification . 17
Table B.4 – Performance test plan . 19
Table B.5 – Recommended performance test failure criteria . 20

---------------------- Page: 8 ----------------------

SIST EN 62149-7:2012
62149-7 © IEC:2012 – 3 –
Table C.1 – Absolute limiting ratings . 21
Table C.2 – Operating conditions for functional specification . 21
Table C.3 – Functional specification . 22
Table C.4 – Performance test plan . 25
Table C.5 – Recommended performance test failure criteria . 26
Table D.1 – Absolute limiting ratings . 27
Table D.2 – Operating conditions for functional specification . 27
Table D.3 – Functional specification . 28
Table D.4 – Performance test plan . 31
Table D.5 – Recommended performance test failure criteria . 32

---------------------- Page: 9 ----------------------

SIST EN 62149-7:2012
– 4 – 62149-7 © IEC:2012
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PERFORMANCE STANDARDS –

Part 7: 1 310-nm discrete vertical cavity
surface emitting laser devices


FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62149-7 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
CDV Report on voting
86C/1021/CDV 86C/1047/RVC

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 10 ----------------------

SIST EN 62149-7:2012
62149-7 © IEC:2012 – 5 –
A list of all the parts in the IEC 62149 series, published under the general title Fibre optic
active components and devices – Performance standards, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 11 ----------------------

SIST EN 62149-7:2012
– 6 – 62149-7 © IEC:2012
INTRODUCTION
Fibre optic laser devices are used to convert electrical signals into optical signals. This part of
IEC 62149 covers the performance specification for 1 310 nm discrete vertical cavity surface
emitting laser devices in fibre optic telecommunication and optical data transmission
applications.

---------------------- Page: 12 ----------------------

SIST EN 62149-7:2012
62149-7 © IEC:2012 – 7 –
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PERFORMANCE STANDARDS –

Part 7: 1 310-nm discrete vertical cavity
surface emitting laser devices



1 Scope
This part of IEC 62149 covers the performance specification for 1 310-nm discrete vertical
cavity surface emitting laser (VCSEL) devices of transverse single-mode and multimode types
used for the fibre optic telecommunication and optical data transmission application in a form
of the VCSEL chips mounted on a substrate with wire bonding to their chips’ anode and
cathode terminals without any fibre pigtails. The performance standard contains a definition of
the product performance requirements together with a series of sets of tests and
measurements with clearly defined conditions, severities, and pass/fail criteria. The tests are
intended to be run on a “one-off” basis to prove any product’s ability to satisfy the
performance standard’s requirements.
A product that has been shown to meet all the requirements of a performance standard can
be declared as complying with the performance standard, but should then be controlled by a
quality assurance/quality conformance program.
Depending on the signalling speed and application areas, subcategorized specifications of the
1 310-nm discrete VCSEL are defined as shown in Table 1.
Table 1 – Subcategorized specifications of the 1 310-nm discrete VCSEL
1,0625 1,25 2,125 3,125 4,25 8,5 a 25,78125
10 GBd 16 GBd
GBd GBd GBd GBd GBd GBd GBd
Fibre FC16GB
FC1GB FC2GB FC4GB FC8GB
b
Channel
E1A1a E3A1a E10BLR
c
Ethernet E1A1b E3A1b  E10BLW E25B
E1B E10BLX4 E40BLR4
NOTE Bd is baud rate; A1a is 50 µm core multimode fibre; A1b is 62, 5 µm core multimode fibre; B is single-
mode fibre; LR is 10 G LAN; LW is 10 G WAN; LR4 is 40 G WDM. (Refer to IEC 60793-2, IEEE 802.3-2002,
INCITS 450-2009, INCITS/Project 2118-D/Rev1.00-2008.09.25, IEEE 802.3-2005, and IEEE P802.3ba-2009.)
a
 Nominal signal rate of 10 G Ethernet is 10,312 5 GBd for E10BLR and E40BLR4 and 9,953 28 GBd for
E10BLW.
b, c
 VCSEL specifications for signalling rates of 16 GBd, 25,781 25 GBd and above are left for future works.

Each subcategorized specification is also defined by separate details depending on the
device types, such as specifications for a VCSEL device without a monitor photodiode (Case
a) and for a VCSEL device with a monitor photodiode (Case b).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.

---------------------- Page: 13 ----------------------

SIST EN 62149-7:2012
– 8 – 62149-7 © IEC:2012
IEC 60749 (all parts), Semiconductor devise – Mechanical and climate test methods
IEC 60825-1: Safety of laser products – Part 1: Equipment classification and requirements
IEC 60950-1, Information technology equipment – Safety – Part 1: General requirements
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)
IEC 61300-2-48, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-48: Tests – Temperature-humidity cycling
IEC 62148-15, Fibre optic active components and devices – Package and interface
standards – Part 15: Discrete vertical cavity surface emitting laser packages
IEC Guide 107: 1998, Electromagnetic compatibility – Guide to the drafting of electromagnetic
compatibility publications
3 Terms, definitions, symbols and abbreviated terms
NOTE Terminology concerning the physical concepts, the types of devices, the general terms, and that related to
ratings and characteristics of semiconductor devices can be found in IEC 60747-5-1. In addition, the definition for
the essential ratings and characteristics of the semiconductor optoelectronic devices for fibre optic system
applications can be found in IEC 62007-1.
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE The following terms are defined for the specific characteristics of vertical cavity surface emitting laser
devices.
3.1.1
modulation speed
digital modulation speed with an optimum modulation amplitude between the operating current
and threshold current level
3.1.2
multimode
cross-section transverse mode of the laser beam profile with mode number greater than one
Note 1 to entry: This means that the intensity profile has more than one spot, compared to the single-mode which
corresponds to the cross-section transverse mode of the laser beam profile with mode number of one having the
intensity profile of one circular spot.
3.1.3
laser wavelength
peak central laser wavelength of the vertical cavity surface emitting laser device when it is
operated at the normal operating conditions which is specified in the sectional specification of
the VCSEL
3.1.4
submount
substrate upon which a laser is mounted for assembly into the further packaging

---------------------- Page: 14 ----------------------

SIST EN 62149-7:2012
62149-7 © IEC:2012 – 9 –
3.1.5
transverse mode
cross-sectional profile of the optical beam intensity at the laser output of the VCSEL
Note 1 to entry: Depending on the mode status between multimode and single-mode, the package type of the
VCSEL devices is also defined.
3.1.6
VCSEL device with a monitor photodiode
VCSEL packaged device with a monitor photodiode
3.1.7
VCSEL device without a monitor photodiode
VCSEL packaged device without a monitor photodiode
3.2 Symbols and abbreviated terms
λ  peak laser wavelength
p
I  threshold current
th
V  threshold voltage
th
I operating current

op
V  forward voltage at operating current
f
  series resistance
R
s
η  slope efficiency
P continuous laser output power (at connector output or pigtailed fibre output for
o
packaged types)
∆λ /∆T wavelength change over temperature
T
2
θ  beam divergence at 1/e intensity
t /t  rise and fall time from 20 % to 80 % of the peak intensity
r f
C  capacitance of the VCSEL chip
∆λ spectral width, RMS (at static condition) for multimode VCSELS, -20 dB for
single-mode VCSELs
RIN relative intensity noise
∆R /∆T series resistance temperature coefficient
S
4 Product parameters
4.1 Absolute limiting ratings
Absolute limiting (maximum and/or minimum) ratings imply that no catastrophic damage will
occur if the product is subject to these ratings for short periods, provided each limiting
parameter is in isolation and all other parameters have values within the normal performance
parameters. It should not be assumed that limiting value of more than one parameter can be
applied at any one time. The absolute maximum ratings of the subcategorized types, E1, E3,
E10, E40 BLR4, FC1GB, FC2GB, FC4GB and FC8GB for signalling speeds are listed in
Annexes A through D, depending on the transverse mode of the VCSELs between multimode
and single-mode and on the monitor photodiode packaged together or unpackaged.
4.2 Operating environment
The operating environment of all the subcategorized types of the 1 310 nm VCSEL is
specified in Table 2.

---------------------- Page: 15 ----------------------

SIST EN 62149-7:2012
– 10 – 62149-7 © IEC:2012
Table 2 – Operating environment
Value
Parameter Symbol Unit
Minimum Maximum
Operating temperature T -40 +85 °C

op

4.3 Functional specification
Functional specifications of all the subcategorized types, E1, E3, E10, E40BLR4, FC1GB,
FC2GB, FC4GB, and FC8GB, for signalling speeds and application areas are listed in
Annexes A through D depending on the transverse mode of the VCSELs between multimode
and single-mode and on the monitor photodiode packaged together or unpackaged.
4.4 Diagrams
Diagrams of all the VCSEL device types are included in Annexes A through D.
5 Testing
5.1 General
Initial characterisation and qualification shall be undertaken when a build standard has been
completed and frozen. Qualification maintenance is carried using periodic testing programs.
Test conditions for all tests unless otherwise stated are 25 °C ± 2 °C.
5.2 Characterization testing
Characterisation shall be carried out on at least 20 products taken from at least three different
manufacturing lots. The characteristics and conditions of laser diode are tested at the
operating temperature and the operating current to satisfy the functional specifications
defined in 4.3.
5.3 Performance testing
Performance testing is undertaken when characterization testing is complete. The
performance test plan and recommended performance test failure criteria are specified in
Annexes A through D, depending on the device types.
6 Environmental specifications
6.1 General safety
All products meeting this standard shall conform to IEC 60950-1.
6.2 Laser safety
Fibre optic transmitter and transceiver using the laser diode specified in this document shall
be class 3R laser certified under any condition of operation. This includes single fault
conditions whether coupled into a fibre or out of an open bore. Fibre optic transmitter and
transceiver using the laser diode specified in this document shall be certified to be in
conformance with IEC 60825-1.
Laser safety standards and regulations require that the manufacturer of a laser product
provide information about the product’s laser, safety features, labelling, use, maintenance and
service. This documentation shall explicitly define requirements and usage restrictions on the
host system necessary to meet these safety certifications.

---------------------- Page: 16 ----------------------

SIST EN 62149-7:2012
62149-7 © IEC:2012 – 11 –
6.3 Electromagnetic compatibility (EMC) requirements
Products defined in this specification shall comply with suitable requirements for
electromagnetic compatibility (in terms of both, emission and immunity), depending on
particular usage/environment in which they are intended to be installed or integr
...
