SLOVENSKI STANDARD
SIST EN 508-2:2019
01-oktober-2019
Nadomešča:
SIST EN 508-2:2008
Pločevina za pokrivanje streh in oblaganje sten - Specifikacija za samonosilne
proizvode iz jeklene, aluminijeve pločevine ali pločevine iz nerjavnega jekla - 2.
del: Aluminij
Roofing and cladding products from metal sheet - Specification for self-supporting
products of steel, aluminium or stainless steel sheet - Part 2: Aluminium
Dachdeckungs- und Wandbekleidungselemente aus Metallblech - Spezifikation für
selbsttragende Bedachungselemente aus Stahlblech, Aluminiumblech oder
nichtrostende Stahlblech - Teil 2: Aluminium
Produits de couverture et bardage en tôle métallique - Spécification pour les plaques de
couverture en tôle d'acier, d'aluminium ou d'acier inoxydable - Partie 2 : Aluminium
Ta slovenski standard je istoveten z: EN 508-2:2019
ICS:
77.150.10 Aluminijski izdelki Aluminium products
91.060.20 Strehe Roofs
SIST EN 508-2:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 508-2:2019

---------------------- Page: 2 ----------------------
SIST EN 508-2:2019


EN 508-2
EUROPEAN STANDARD

NORME EUROPÉENNE

August 2019
EUROPÄISCHE NORM
ICS 91.060.20 Supersedes EN 508-2:2008
English Version

Roofing and cladding products from metal sheet -
Specification for self-supporting products of steel,
aluminium or stainless steel sheet - Part 2: Aluminium
Produits de couverture et bardage en tôle métallique - Dachdeckungs- und Wandbekleidungselemente aus
Spécification pour les plaques de couverture en tôle Metallblech - Spezifikation für selbsttragende
d'acier, d'aluminium ou d'acier inoxydable - Partie 2 : Bedachungselemente aus Stahlblech, Aluminiumblech
Aluminium oder nichtrostende Stahlblech - Teil 2: Aluminium
This European Standard was approved by CEN on 26 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 508-2:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)

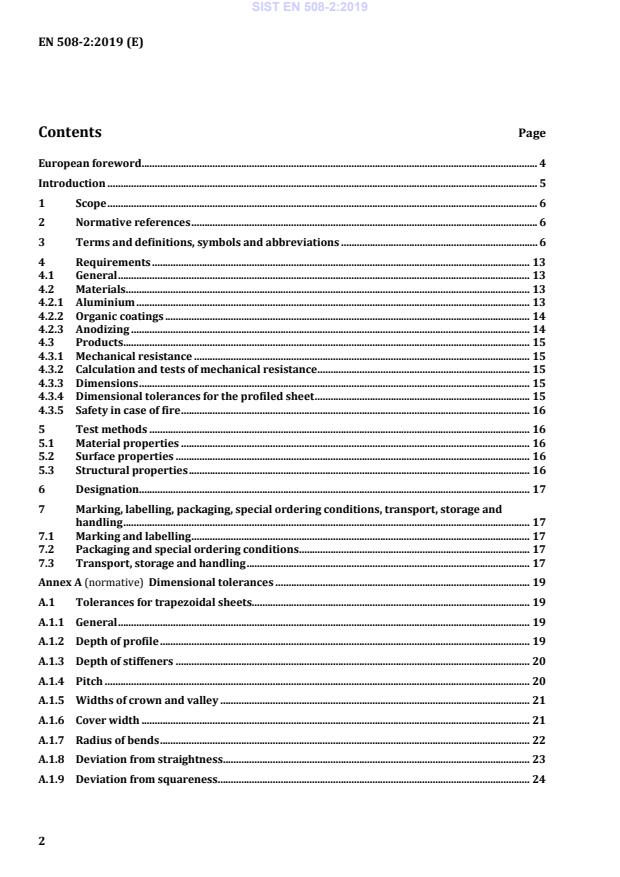

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions, symbols and abbreviations . 6
4 Requirements . 13
4.1 General . 13
4.2 Materials . 13
4.2.1 Aluminium . 13
4.2.2 Organic coatings . 14
4.2.3 Anodizing . 14
4.3 Products . 15
4.3.1 Mechanical resistance . 15
4.3.2 Calculation and tests of mechanical resistance . 15
4.3.3 Dimensions . 15
4.3.4 Dimensional tolerances for the profiled sheet . 15
4.3.5 Safety in case of fire . 16
5 Test methods . 16
5.1 Material properties . 16
5.2 Surface properties . 16
5.3 Structural properties . 16
6 Designation. 17
7 Marking, labelling, packaging, special ordering conditions, transport, storage and
handling . 17
7.1 Marking and labelling . 17
7.2 Packaging and special ordering conditions . 17
7.3 Transport, storage and handling . 17
Annex A (normative) Dimensional tolerances . 19
A.1 Tolerances for trapezoidal sheets . 19
A.1.1 General . 19
A.1.2 Depth of profile . 19
A.1.3 Depth of stiffeners . 20
A.1.4 Pitch . 20
A.1.5 Widths of crown and valley . 21
A.1.6 Cover width . 21
A.1.7 Radius of bends . 22
A.1.8 Deviation from straightness . 23
A.1.9 Deviation from squareness . 24
2

---------------------- Page: 4 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
A.1.10 Length . 25
A.1.11 Deviation of side lap . 26
A.1.12 Curve radius and angles . 26
A.2 Tolerances for sinusoidal profiles . 27
A.3 Tolerances on tiles . 27
A.3.1 General . 27
A.3.2 Depth of tile . 28
A.3.3 Web angular displacement (Figure A.12) . 28
A.3.4 Pitch . 28
A.3.5 Width of crown and valley (Figure A.14) . 29
A.3.6 Cover width . 29
A.3.7 Radius of bends . 30
A.3.8 Deviation from straightness . 31
A.3.9 Deviation from squareness . 31
A.3.10 Length . 32
A.3.11 Contraction or bulging . 32
A.4 Methods for measuring profiles . 32
A.4.1 General . 32
A.4.2 Depth of profile. 33
A.4.3 Depth of stiffeners . 33
A.4.4 Pitch . 33
A.4.5 Width of crown and valley . 34
A.4.6 Cover width . 35
A.4.7 Radius of bends . 35
A.4.8 Straightness . 35
A.4.9 Squareness . 35
A.4.10 Length . 35
A.4.11 Side laps . 35
A.4.12 Side lap ripple . 36
Annex B (informative) Test methods for concentrated load . 38
Bibliography . 39

3

---------------------- Page: 5 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
European foreword
This document (EN 508-2:2019) has been prepared by Technical Committee CEN/TC 128 “Roof covering
for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2020, and conflicting national standards shall
be withdrawn at the latest by February 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 508-2:2008.
EN 508 Roofing and cladding products from metal sheet - Specification for self-supporting products of steel,
aluminium or stainless steel sheet consists of the following parts:
— Part 1: Steel;
— Part 2: Aluminium;
— Part 3: Stainless steel.
In comparison with EN 508-2:2008, the scope of the standard has been extended to cladding products.
Reference has been added to anodised aluminium sheets as well as to the A1 EU-classification without
further testing of aluminium products in accordance with Commission decision 2010/737/EC.
These changes or additions can be found in the following Clauses and subclauses: Clause 1; Clause 2;
3.1.1; 4.2.1; 4.2.3; 4.3.1; 4.3.5; 4.3.5.2; 4.3.5.3; 5.3; Clause 6 and the Bibliography.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.

4

---------------------- Page: 6 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
Introduction
Figure 1 indicates the position of this standard in the CEN framework of standards concerning roofing
and cladding products of metal sheet.

Figure 1 — Framework of standards
In this standard the performance of the product has been defined in terms of calculation and a number of
type tests.
The performance of a roof constructed with these products depends not only on the properties of the
product as required by this standard, but also on the design, construction and performance of the roof as
a whole in relation to the environment and conditions of use.
5

---------------------- Page: 7 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
1 Scope
This part of EN 508 specifies requirements for self-supporting external profiled sheets for roof covering,
wall cladding, lining and liner tray products for discontinuous laying made from aluminium sheet with or
without surface treatment (additional organic coatings or anodising).
This document establishes general characteristics, definitions, classifications and labelling for the
products, together with requirements for the materials from which the products can be manufactured. It
is intended to be used either by manufacturers to ensure that their products comply with the
requirements or by purchasers to verify that the products comply before they are made available on the
market before being despatched from the factory. It specifies the requirements for products which enable
them to meet all normal service conditions.
This document applies to all discontinuously laid self-supporting external profiled sheets for roof
2
covering, wall cladding, lining and liner trays with the exception of tiles with a surface area less than 1 m
and produced by stamping. These profiled roof sheets are designed to keep wind, rain and snow out of
the building, and to transfer any resultant loads and infrequent maintenance loads to the structure.
This document does not cover products for structural purposes, i.e. it does cover products used in
structural class III (according to EN 1999-1-4), it does not cover products used in constructions of
Structural Classes I and II (according to EN 1999-1-4) intended to contribute to the global or partial
stability of the building structure by providing racking resistance or resistance of permanent static loads
(excluding self-weight of the metal sheet).
No requirements for supporting construction, design of roof system and execution of connections and
flashings are included.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 485-4, Aluminium and aluminium alloys — Sheet, strip and plate — Part 4: Tolerances on shape and
dimensions for cold-rolled products
EN 1396, Aluminium and aluminium alloys — Coil coated sheet and strip for general applications —
Specifications
EN 14782, Self-supporting metal sheet for roofing, external cladding and internal lining — Product
specification and requirements
EN ISO 7599, Anodizing of aluminium and its alloys — Method for specifying decorative and protective
anodic oxidation coatings on aluminium (ISO 7599)
3 Terms and definitions, symbols and abbreviations
3.1 General
For the purposes of this document, the terms and definitions given in EN 485-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
6

---------------------- Page: 8 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
NOTE Wherever the term aluminium is used it is meant unalloyed or alloyed aluminium.
3.1.1
self-supporting product
product which will, by virtue of its material and shape, support all applied loadings (e.g. snow, wind, foot
traffic, insulation, membrane), and transmit these loadings to spaced structural supports
3.2 Material definitions
3.2.1
temper
material conditions after a production stage, for example mechanical treatment and/or heat treatment,
intended to give the material physical and/or metallurgical properties
3.2.2
organic coated aluminium sheet
painted, post coated, laminated or coil coated (continuously organic coated) aluminium on one or on both
sides
3.2.3
anodized aluminium sheet
aluminium with an anodic coating, produced by an electrolytic oxidation process in which the surface of
the aluminium is converted to a mainly oxide coating having protective, decorative or functional
properties
3.3 Profile definitions
3.3.1
trapezoidal profiled sheet
self-supporting sheet which is designed to allow it to be side and end lapped, the crowns of which may
be rounded and, in addition, the crowns, web and valley may be stiffened
Note 1 to entry: See Figures 2, 3, 4 and 5.

Figure 2 — Part of typical trapezoidal profile

Figure 3 — Part of typical trapezoidal profile with rounded crowns
7

---------------------- Page: 9 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)

Figure 4 — Part of typical trapezoidal profile with stiffened crown and web

Figure 5 — Part of typical trapezoidal profile with stiffened valley
3.3.2
sinusoidal profiled sheet
self-supporting sheet which is designed to allow it to be side and end lapped, comprising a series of arc
shaped crowns and valleys interconnected with tangential webs
Note 1 to entry: See Figure 6.

Figure 6 — Part of typical sinusoidal profiled sheet
3.3.3
standing seam and concealed fix sheet
self-supporting sheet profiled in such a way that the fixings are hidden within the construction and are
not exposed to the weather
Note 1 to entry: See Figures 7 and 8.
Note 2 to entry: The profile shape is designed to allow the formation of side laps on site.
Note 3 to entry: As these types of roof covering and cladding products are used in proprietary roofing and
cladding systems, no structural requirements are given within this standard.
8

---------------------- Page: 10 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
Note 4 to entry: These products are normally designed by testing.

Figure 7 — Typical standing seam profile

Figure 8 — Typical concealed fix profile
3.3.4
tile profile
part of typical tile profiled sheets that can allow the sheet to be side and/or end lapped
Note 1 to entry: See Figure 9 (a) b) and c)).
Note 2 to entry: The tile profiles may include transverse steps.
Note 3 to entry: As these types of roof covering products are used in proprietary systems no structural
requirements are given within this part of EN 508.
Note 4 to entry: These products are normally designed by testing.

Figure 9 — Typical tile profiles
9

---------------------- Page: 11 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
3.4 Product geometry
NOTE The names for various parts of typical trapezoidal profiled sheets are given in Figure 10, Figure 11 with
additional definitions for sinusoidal profiles in Figure 12 and tile profiles in Figure 13.

Key
1 cover width 7 depth
2 valley stiffener 8 valley
3 rib 9 pitch
10

---------------------- Page: 12 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
4 web stiffener 10 crown
5 trough 11 drainage groove
6 web 12 crown stiffener
Figure 10 — Definitions of the parts of typical trapezoidal profiled sheets

Key
1 bend radius
2 end lap
3 web angle
4 overlap
5 underlap
6 side lap in principle the same on tiles
Figure 11 — Definitions of the parts of typical trapezoidal profiled sheets
11

---------------------- Page: 13 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)

Key
1 depth
2 pitch
Figure 12 — Definitions of the parts of typical sinusoidal profiled sheets

Key
1 height of the step
2 length of the step
3 number of steps
4 end lap
Figure 13 — Definitions of the parts of typical tile
3.5 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
EN AW The symbols for aluminium sheets are the alloy symbols as in 4.2.1
H Aluminium temper symbol
AY Acrylic paint coating
SP Polyester paint coating
SP-SI Silicone-modified polyester paint coating
PVDF Polyvinylidenefluoride paint coating
PVF(F) Polyvinylfluoride film coating
SP-PA Polyamid-modified polyester paint coating
PUR Polyurethane paint coating
PUR-PA Polyamide-modified polyurethane paint coating
12

---------------------- Page: 14 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
AK Alkyd paint coating
EP Epoxy paint coating for use within a building
4 Requirements
4.1 General
The product shall be manufactured from materials complying with 4.2.
The supplier of the materials is responsible for carrying out the tests necessary to verify that the materials
supplied to the manufacturer comply with the requirements and should provide appropriate inspection
documents (according to EN 10204) on request.
NOTE The symbols and abbreviations to be used to designate the aluminium alloy, the type and thickness of
the organic coating are those of the standards referred to in Clause 2.
Product testing shall be provided to a defined schedule. A permanent quality system shall be adopted by
1)
the manufacturer .
4.2 Materials
4.2.1 Aluminium
Aluminium alloys given in Table 1 are suitable provided that their properties conform to the values given
in the relevant material standards (EN 485-2, EN 573-3).
Table 1 — Alloys of aluminium
Designation based on chemical
Numerical designation
symbol
EN AW-3003 EN AW-Al Mn1Cu
EN AW-3004 EN AW-Al Mn1Mg1
EN AW-3005 EN AW-Al Mn1Mg0,5
EN AW-3103 EN AW-Al Mn1
EN AW-3105 EN AW-Al Mn0,5Mg0,5
EN AW-4015 EN AW-Al Si2Mn
EN AW-4016 EN AW-Al Si2MnZn
EN AW-4017 EN AW-Al Si1MnCu
EN AW-5005 EN AW-Al Mg1(B)
EN AW-5005A EN AW-AlMg1(C)
EN AW-5006 EN AW-Al Mg1Mn0,5
EN AW-5052 EN AW-Al Mg2,5
EN AW-5083 EN AW-Al Mg4,5Mn0,7
EN AW-5251 EN AW-Al Mg2

1)
E.g. a quality management system based on EN ISO 9001.
13

---------------------- Page: 15 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
Designation based on chemical
Numerical designation
symbol
EN AW-5754 EN AW-Al Mg3
EN AW-8011 A a
EN AW-Al Fe Si (A)
a
Only with organic coatings on both surfaces.

Temper shall be chosen so that the ultimate tensile strength is not lower than 150 MPa.
Alloy and temper are chosen to give corrosion resistance, strength and formability. Specification of alloy,
temper and coating finish should be agreed between purchaser and supplier at the time of ordering.
Tolerances on shape and dimensions shall be in accordance with EN 485-4.
4.2.2 Organic coatings
The main external weather resistant organic coatings suitable for application to aluminium substrates
are given in Table 2.
Table 2 — Factory applied organic coatings
Type of coating Designation Remarks
Factory applied coatings Acrylic AY
 Polyester SP
 Silicone-modified polyester SP-SI
 Polyvinylidene fluoride PVDF With proper primers
 Polyamide-modified polyurethane PUR-PA
 Polyurethane PUR
 Polyamide-modified polyester SP-PA
 Alkyd AK
 Epoxy EP Only within buildings
Factory applied laminated Polyvinyl fluoride PVF(F)
film

NOTE 1 Aluminium sheet is used either without coating or with organic coatings mainly for aesthetic reasons.
It should be noted that different coating systems behave in different ways under various climatic
conditions. The primer and/or adhesive should be chosen taking into account which type of substrate,
pre-treatment and top coat are used.
Reverse side painting or coating is used if being required for handling and storage reasons as well as for
corrosion protection in some installation conditions.
Performance and test methods for coil coated aluminium shall be in accordance with EN 1396.
Special coatings or films may be applied to the reverse side to reduce the dripping of moisture caused by
condensation.
4.2.3 Anodizing
Roofing and cladding products may have also anodised surfaces.
14

---------------------- Page: 16 ----------------------
SIST EN 508-2:2019
EN 508-2:2019 (E)
Product specifications for anodised aluminium shall be in accordance with EN ISO 7599.
4.3 Products
4.3.1 Mechanical resistance
The product for roof shall resist the design loads from self-weight, insulation (if applicable), eventual
membranes, snow, wind and maintenance. These loads shall be factored such that they will not impair
the performance of the roof. The load level, the levels of safety and permissible deflection are defined in
national building regula
...

SLOVENSKI STANDARD
oSIST prEN 508-2:2017
01-junij-2017
3ORþHYLQD]DSRNULYDQMHVWUHK6SHFLILNDFLMD]DVDPRQRVLOQHSURL]YRGHL]MHNOHQH
DOXPLQLMHYHSORþHYLQHDOLSORþHYLQHL]QHUMDYQHJDMHNODGHO$OXPLQLM
Roofing and cladding products from metal sheet - Specification for self-supporting
products of steel, aluminium or stainless steel sheet - Part 2: Aluminium
Dachdeckungs- und Wandbekleidungselemente aus Metallblech - Spezifikation für
selbsttragende Bedachungselemente aus Stahlblech, Aluminiumblech oder
nichtrostende Stahlblech - Teil 2: Aluminium
Produits de couverture et bardage en tôle métallique - Spécification pour les produits
autoportants en tôle d'acier, d'aluminium ou d'acier inoxydable - Partie 2 : Aluminium
Ta slovenski standard je istoveten z: prEN 508-2
ICS:
77.150.10 Aluminijski izdelki Aluminium products
91.060.20 Strehe Roofs
oSIST prEN 508-2:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 508-2:2017

---------------------- Page: 2 ----------------------
oSIST prEN 508-2:2017


DRAFT
EUROPEAN STANDARD
prEN 508-2
NORME EUROPÉENNE

EUROPÄISCHE NORM

April 2017
ICS 91.060.20 Will supersede EN 508-2:2008
English Version

Roofing and cladding products from metal sheet -
Specification for self-supporting products of steel,
aluminium or stainless steel sheet - Part 2: Aluminium
Produits de couverture et bardages en tôle métallique - Dachdeckungs- und Wandbekleidungselemente aus
Spécification pour les plaques de couverture en tôle Metallblech - Spezifikation für selbsttragende
d'acier, d'aluminium ou d'acier inoxydable - Partie 2 : Bedachungselemente aus Stahlblech, Aluminiumblech
Aluminium oder nichtrostende Stahlblech - Teil 2: Aluminium
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 128.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 508-2:2017 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions, symbols and abbreviations . 6
4 Requirements . 13
4.1 General . 13
4.2 Materials . 14
4.2.1 Aluminium . 14
4.2.2 Organic coatings . 14
4.2.3 Anodizing . 15
4.3 Products . 15
4.3.1 Mechanical resistance . 15
4.3.2 Calculation and tests of mechanical resistance . 16
4.3.3 Dimensions . 16
4.3.4 Dimensional tolerances for the profiled sheet . 16
4.3.5 Safety in case of fire . 16
5 Test methods . 17
5.1 Material properties . 17
5.2 Surface properties . 17
5.3 Structural properties . 17
6 Designation. 17
7 Marking, labelling and packaging . 18
7.1 Marking and labelling . 18
7.2 Packaging and special ordering conditions . 18
7.3 Transport, storage and handling . 18
Annex A (normative)  Dimensional tolerances . 19
A.1 Tolerances for trapezoidal sheets . 19
A.1.1 General . 19
A.1.2 Depth of profile . 19
A.1.3 Depth of stiffeners . 20
A.1.4 Pitch . 20
A.1.5 Widths of crown and valley . 20
A.1.6 Cover width . 21
A.1.7 Radius of bends . 22
A.1.8 Deviation from straightness . 23
A.1.9 Deviation from squareness . 24
A.1.10 Length . 24
2

---------------------- Page: 4 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
A.1.11 Deviation of side lap . 25
A.1.12 Curve radius and angles . 25
A.2 Tolerances for sinusoidal profiles . 26
A.3 Tolerances on tiles . 26
A.3.1 General . 26
A.3.2 Depth of tile . 27
A.3.3 Web angular displacement (Figure A.12) . 27
A.3.4 Pitch . 27
A.3.5 Width of crown and valley (Figure A.14) . 28
A.3.6 Cover width . 28
A.3.7 Radius of bends . 29
A.3.8 Deviation from straightness . 29
A.3.9 Deviation from squareness . 30
A.3.10 Length . 30
A.3.11 Contraction or bulging . 31
A.4 Methods for measuring profiles . 31
A.4.1 General . 31
A.4.2 Depth of profile . 32
A.4.3 Depth of stiffeners . 32
A.4.4 Pitch . 32
A.4.5 Width of crown and valley . 33
A.4.6 Cover width . 34
A.4.7 Radius of bends . 34
A.4.8 Straightness . 34
A.4.9 Squareness . 34
A.4.10 Length . 34
A.4.11 Side laps . 34
A.4.12 Side lap ripple . 34
Annex B (informative) Test methods for concentrated load . 36
Bibliography . 37

3

---------------------- Page: 5 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
European foreword
This European Standard has been prepared by Technical Committee CEN/TC 128 “Roof covering for
discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This document is currently submitted to the CEN Enquiry.
EN 508 Roofing products from metal sheet - Specification for self-supporting products of steel, aluminium
or stainless steel sheet consists of the following parts:
— Part 1: Steel;
— Part 2: Aluminium;
— Part 3: Stainless steel.
This document supersedes EN 508-2:2008.
In comparison with EN 508-2:2008 the following sections have been changed or added: Clause 1;
Clause 2; 3.1.1; 3.2.6; 4.2.1; 4.2.3; 4.3.1; 4.3.5; 4.3.5.2; 4.3.5.3; 5.3; Clause 6 and the Bibliography.
4

---------------------- Page: 6 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
Introduction
Table 1 indicates the position of this standard in the CEN framework of standards concerning roofing
products of metal.
Table 1 — Framework of standards
     Roofing products
of metal



  Self-supporting    Fully supported
products products



EN 14782




  Copper /
Steel Aluminium Stainless steel
Zinc
EN 508–1 EN 508–2 EN 508–3
EN 506
In this standard the performance of the product has been defined in terms of calculation and a number
of type tests.
The performance of a roof constructed with these products depends not only on the properties of the
product as required by this standard, but also on the design, construction and performance of the roof
as a whole in relation to the environment and conditions of use.
5

---------------------- Page: 7 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
1 Scope
This part of EN 508 specifies requirements for self-supporting external profiled sheets for roof covering
wall cladding, lining and liner tray products for discontinuous laying made from aluminium sheet with
or without surface treatment (additional organic coatings or anodising).
The standard establishes general characteristics, definitions, classifications and labelling for the
products, together with requirements for the materials from which the products can be manufactured.
It is intended to be used either by manufacturers to ensure that their products comply with the
requirements or by purchasers to verify that the products comply before they are made available on the
market before being despatched from the factory. It specifies the requirements for products which
enable them to meet all normal service conditions.
The standard applies to all discontinuously laid self-supporting external profiled sheets for roof
covering, wall cladding, lining and liner trays with the exception of tiles with a surface area less than
2
1 m and produced by stamping. These profiled roof sheets are designed to keep wind, rain and snow
out of the building, and to transfer any resultant loads and infrequent maintenance loads to the
structure.
This standard does not cover products for structural purposes, i.e. it does not cover products used in
structural class III (according to EN 1999-1-4), it does not cover products used in constructions of
Structural Classes I and II (according to EN 1999-1-4) intended to contribute to the global or partial
stability of the building structure by providing racking resistance or resistance of permanent static
loads (excluding self-weight of the metal sheet).
No requirements for supporting construction, design of roof system and execution of connections and
flashings are included.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 485-4, Aluminium and aluminium alloys - Sheet, strip and plate - Part 4: Tolerances on shape and
dimensions for cold-rolled products
EN 1396, Aluminium and aluminium alloys - Coil coated sheet and strip for general applications -
Specifications
EN 14782, Self-supporting metal sheet for roofing, external cladding and internal lining - Product
specification and requirements
EN ISO 7599, Anodizing of aluminium and its alloys - General specifications for anodic oxidation coatings
on aluminium (ISO 7599)
3 Terms and definitions, symbols and abbreviations
For the purposes of this document, the following terms and definitions apply.
6

---------------------- Page: 8 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
3.1 General
3.1.1
self-supporting product
product which will, by virtue of its material and shape, support all applied loadings (e.g. snow, wind,
foot traffic, insulation, membrane), and transmit these loadings to spaced structural supports
3.2 Material definitions
3.2.1
aluminium
unalloyed aluminium or aluminium
3.2.2
unalloyed aluminium
metal with a minimum content of 99,0% by mass of aluminium and with content by mass of any other
element within the limits of:
— a total content of iron and silicon not greater than 1,0 %;
— a content of any other element not greater than 0,10 % except for copper which can have a content
of up to 0,20 % provided that neither the chromium nor the manganese content exceeds 0,05 %
3.2.3
aluminium alloy
alloy in which aluminium predominates by mass overreach of the other elements and which is not
covered by the definition of unalloyed aluminium
3.2.4
temper
material conditions after a production stage, for example mechanical treatment and/or heat treatment,
intended to give the material physical and/or metallurgical properties
3.2.5
organic coated aluminium sheet
painted, post coated, laminated or coil coated (continuously organic coated) aluminium on one or on
both sides
3.2.6
anodized aluminium sheet
aluminium with an anodic coating, produced by an electrolytic oxidation process in which the surface of
the aluminium is converted to a mainly oxide coating having protective, decorative or functional
properties
3.3 Profile definitions
3.3.1
trapezoidal profiled sheet
self-supporting sheet which is designed to allow it to be side and end lapped, the crowns of which may
be rounded and, in addition, the crowns, web and valley may be stiffened
Note 1 to entry: See Figures 1, 2, 3 and 4.
7

---------------------- Page: 9 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Figure 1 — Part of typical trapezoidal profile

Figure 2 — Part of typical trapezoidal profile with rounded crowns

Figure 3 — Part of typical trapezoidal profile with stiffened crown and web

Figure 4 — Part of typical trapezoidal profile with stiffened valley
3.3.2
sinusoidal profiled sheet
self-supporting sheet which is designed to allow it to be side and end lapped, comprising a series of arc
shaped crowns and valleys interconnected with tangential webs
Note 1 to entry: See Figure 5.
8

---------------------- Page: 10 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Figure 5 — Part of typical sinusoidal profiled sheet
3.3.3
standing seam and concealed fix sheet
self-supporting sheet profiled in such a way that the fixings are hidden within the construction and are
not exposed to the weather
Note 1 to entry: See Figures 6 and 7.
Note 2 to entry: The profile shape is designed to allow the formation of side laps on site.
Note 3 to entry: As these types of roof covering products are used in proprietary roofing systems, no structural
requirements are given within this standard.
Note 4 to entry: These products are normally designed by testing.

Figure 6 — Typical standing seam profile
9

---------------------- Page: 11 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Figure 7 — Typical concealed fix profile
3.3.4
tile profile
part of typical tile profiled sheets that can allow the sheet to be side and/or end lapped
Note 1 to entry: See Figures 8a, 8b and 8c.
Note 2 to entry: The tile profiles may include transverse steps.
Note 3 to entry: As these types of roof covering products are used in proprietary systems no structural
requirements are given within this part of EN 508.
Note 4 to entry: These products are normally designed by testing.

Figure 8 — Typical tile profiles
3.4 Product geometry
NOTE The names for various parts of typical trapezoidal profiled sheets are given in Figure 9, Figure 10 with
additional definitions for sinusoidal profiles in Figure 11 and tile profiles in Figure 12.
10

---------------------- Page: 12 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Key
1 cover width 7 depth
2 valley stiffener 8 valley
3 rib 9 pitch
4 web stiffener 10 crown
5 trough 11 drainage groove
6 web 12 crown stiffener
Figure 9 — Definitions of the parts of typical trapezoidal profiled sheets
11

---------------------- Page: 13 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Key
1 bend radius
2 end lap
3 web angle
4 overlap
5 underlap
Figure 10 — Definitions of the parts of typical trapezoidal profiled sheets

Key
1 depth
2 pitch
Figure 11 — Definitions of the parts of typical sinusoidal profiled sheets
12

---------------------- Page: 14 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)

Key
1 height of the step
2 length of the step
3 number of steps
4 end lap
Figure 12 — Definitions of the parts of typical tile
3.5 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
AA The symbols for aluminium sheets are the alloy symbols as in 4.2.1
H Aluminium temper symbol
AY Acrylic paint coating
SP Polyester paint coating
SP-SI Silicone-modified polyester paint coating
PVDF Polyvinylidenefluoride paint coating
PVF(F) Polyvinylfluoride film coating
SP-PA Polyamid-modified polyester paint coating
PUR Polyurethane paint coating
PUR-PA Polyamide-modified polyurethane paint coating
AK Alkyd paint coating
EP Epoxy paint coating for use within a building
4 Requirements
4.1 General
The product shall be manufactured from materials complying with 4.2.
The supplier of the materials is responsible for carrying out the tests necessary to verify that the
materials supplied to the manufacturer comply with the requirements and should provide appropriate
inspection documents (according to EN 10204) on request.
NOTE The symbols and abbreviations to be used to designate the aluminium alloy, the type and thickness of
the organic coating are those of the standards referred to in Clause 2.
13

---------------------- Page: 15 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
Product testing shall be provided to a defined schedule and carried out by the manufacturer or by a
1)
notified body. A permanent quality system shall be adopted by the manufacturer .
4.2 Materials
4.2.1 Aluminium
Aluminium alloys given in Table 2 are suitable provided that their properties conform to the values
given in the relevant material standards (EN 485-2, EN 573-3).
Table 2 — Alloys of aluminium
Designation based on chemical
Numerical designation
symbol
EN AW-3003 EN AW-Al Mn1Cu
EN AW-3004 EN AW-Al Mn1Mg1
EN AW-3005 EN AW-Al Mn1Mg0,5
EN AW-3103 EN AW-Al Mn1
EN AW-3105 EN AW-Al Mn0,5Mg0,5
EN AW-4015 EN AW-Al Si2Mn
EN AW-4016 EN AW-Al Si2MnZn
EN AW-4017 EN AW-Al Si1MnCu
EN AW-5005 EN AW-Al Mg1(B)
EN AW-5005A EN AW-AlMg1(C)
EN AW-5006 EN AW-Al Mg1Mn0,5
EN AW-5052 EN AW-Al Mg2,5
EN AW-5083 EN AW-Al Mg4,5Mn0,7
EN AW-5251 EN AW-Al Mg2
EN AW-5754 EN AW-Al Mg3
EN AW-8011 A a
EN AW-Al Fe Si (A)
a
Only with organic coatings on both surfaces.
Temper shall be chosen so that the ultimate tensile strength is not lower than 150 MPa.
Alloy and temper are chosen to give corrosion resistance, strength and formability. Specification of
alloy, temper and coating finish should be agreed between purchaser and supplier at the time of
ordering.
Tolerances on shape and dimensions shall be in accordance with EN 485-4.
4.2.2 Organic coatings
The main external weather resistant organic coatings suitable for application to aluminium substrates
are given in Table 3.

1)
E.g. a quality management system based on EN ISO 9001.
14

---------------------- Page: 16 ----------------------
oSIST prEN 508-2:2017
prEN 508-2:2017 (E)
Table 3 — Factory applied organic coatings
Type of coating Designation Remarks
Factory applied coatings Acrylic AY
 Polyester SP
 Silicone-modified polyester SP-SI
 Polyvinylidene fluoride PVDF With proper primers
 Polyamide-modified polyurethane PUR-PA
 Polyurethane PUR
 Polyamide-modified polyester SP-PA
 Alkyd AK
 Epoxy EP Only within buildings
Factory applied Polyvinyl fluoride PVF(F)
laminated film
NOTE 1 Aluminium sheet is used either without coating or with organic coatings mainly for aesthetic reasons.
It should be noted that different coating systems behave in different ways under various climatic
conditions. The primer and/or adhesive should be chosen taking into account which type of substrate,
pre-treatment and top coat are used.
Reverse side painting or coating is used if being required for handling and storage reasons as well as for
corrosion protection in some installation conditions.
Performance and test methods for coil coated aluminium shall be in accordance with EN 1396.
Special coatings or films may be applied to the reverse side to reduce the dripping of moisture caused
by condensation.
4.2.3 Anodizing
Roofing and cladding products may have also anodised surfaces.
Product specifications for anodised aluminium shall be in accordance with EN ISO 7599.
4.3 Products
4.3.1 Mechanical resistance
The product for roof shall resist the design loads from self-weight, insulation (if applicable), eventual
membranes, snow, wind and maintenance. These loads shall be factored such that they will not impair
the performance of the roof.
The load level, the levels of safety and permissible deflection are defined in national building
regulations.
The product for cladding shall resist the design loads from self-weight, eventual insulation and wind.
These loads shall be factored such that they will not impair the performance of the roof.
The load level, the levels of safety and permissible deflection are defined in national building
regulatio
...
