SIST EN 62841-3-1:2014

Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden Machinery - Safety - Part 3-1: Particular requirements for transportable table saws

IEC 62841-3-1:2014 applies to transportable table saws with:
- a toothed single blade; or
- stacked blades that cut a single groove or slot; or
- a moulding head cutter intended for cutting wood and analogous materials, plastics and nonferrous metals except magnesium with a saw blade diameter between 105 mm and 315 mm, which hereinafter may simply be referred to as saw or tool. The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase a.c. tools. The rated input is not more than 3 700 W. The limits for the applicability of this standard for battery tools is given in Annex K. This standard deals with the hazards presented by tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools. This standard does not apply to table saws intended to cut other metals, such as magnesium, steel and iron. This standard does not apply to table saws with an automatic feeding device. This standard does not apply to saws designed for use with abrasive wheels. This standard does not apply to table saws with more than one spindle such as for a scoring blade. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 36 months from the date of publication.
Key words: Table Saw, Transportable
This publication is to be read in conjunction with IEC 62841-1:2014.

Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und Rasen- und Gartenmaschinen - Sicherheit - Teil 3-1: Besondere Anforderungen für transportable Tischkreissägen (IEC 62841-3-1:2014, modifiziert)

Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 3-1: Exigences particulières relatives aux scies stationnaires transportables

IEC 62841-3-1:2014 s'applique aux scies circulaires à table transportables munies:
- d'une unique lame dentée; ou
- de lames superposées qui coupe d'une simple rainure; ou
- d'un couteau de coupe de moulure pour la coupe du bois et de matériaux analogues, de plastiques et de métaux non ferreux à l'exception du magnésium, la lame de la scie ayant un diamètre entre 105 mm et 315 mm, celle-ci pouvant être simplement désignée ci-après comme scie ou outil. La tension assignée est inférieure à 250 V pour les outils à courant monophasé alternatif ou continu, et inférieure à 480 V pour les outils à courant alternatif triphasé. La tension assignée est inférieure à 3 700 W. Les limites d'application de la présente Norme aux outils fonctionnant sur batterie sont indiquées dans l'annexe K. La présente norme ne s'applique pas aux scies circulaires à table utilisées pour couper d'autres métaux, tels que le magnésium, l'acier et le fer. La présente norme ne s'applique pas aux scies circulaires à table, équipées d'un appareil d'alimentation automatique. La présente norme ne s'applique pas aux scies destinées à être utilisées avec un disque abrasif. La présente norme ne s'applique pas aux scies circulaires à table comportant plus d'un arbre telles que les scies à inciser. La présente Partie 3-1 doit être utilisée conjointement avec la première édition de l'IEC 62841-1. L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication CEI, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés. Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 36 mois après la date de publication.
Mots-clés: Outils à main, Tournevis, Clé à chocs
Cette publication doit être lue conjointement avec la CEI 62841-1:2014.

Električna motorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 3-1. del: Posebne zahteve za prenosne namizne žage (IEC 62841-3-1:2014)

Standard EN IEC 62841-3-1 se uporablja za prenosne namizne žage z – enim samim nazobčanim rezilom ali – več rezili, ki zarežejo en sam utor ali režo; – ali rezalnike z glavo za oblikovanje, namenjene rezanju lesa in podobnih materialov, plastike ter nebarvnih kovin, razen magnezija, s premerom rezila žage med 105 mm in 315 mm, v nadaljnjem besedilu lahko le: žaga ali orodje. Ta standard se ne uporablja za namizne žage, namenjene rezanju drugih materialov, kot so magnezij, jeklo in železo. Ta standard se ne uporablja za namizne žage s samodejnim podajalnikom. Ta standard se ne uporablja za stroje, namenjene uporabi z brusilnimi ploščami.

General Information

• Status: Published
• Publication Date: 31-Aug-2014
• ICS: 25.080.60 - Sawing machines
• ICS: 25.140.20 - Electric tools
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 29-Aug-2014
• Due Date: 03-Nov-2014
• Completion Date: 01-Sep-2014
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 62841-3-1:2014 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws (IEC 62841-3-1:2014, modified)

Relations

• Replaces: SIST EN 61029-2-1:2013 - Safety of transportable motor-operated electric tools - Part 2-1: Particular requirements for circular saw benches
• Effective Date: 07-Aug-2012
• Amended By: SIST EN IEC 62841-3-1:2014/kFprA2:2025 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws
• Effective Date: 24-Sep-2024
• Amended By: SIST EN 62841-3-1:2014/A12:2021 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws
• Effective Date: 22-Dec-2020
• Amended By: SIST EN 62841-3-1:2014/A1:2021 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws
• Effective Date: 05-Nov-2019
• Amended By: SIST EN 62841-3-1:2014/A11:2018 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws
• Effective Date: 15-Nov-2016
• Corrected By: SIST EN 62841-3-1:2014/AC:2016 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-1: Particular requirements for transportable table saws (IEC 62841-3-1:2014, modified)
• Effective Date: 01-Dec-2015
• Revised: SIST EN 61029-2-1:2013 - Safety of transportable motor-operated electric tools - Part 2-1: Particular requirements for circular saw benches
• Effective Date: 06-May-2014

Overview

EN 62841-3-1:2014 (IEC 62841-3-1:2014, modified) specifies safety requirements for transportable table saws (table-top/bench-style portable machines). The standard applies to saws with a single toothed blade, stacked blades that cut a single groove, or a moulding head cutter for wood and analogous materials, plastics and non‑ferrous metals (except magnesium), with blade diameters from 105 mm to 315 mm, rated input up to 3 700 W, and rated voltages up to 250 V (single‑phase) or 480 V (three‑phase). Battery tool limits are covered in Annex K. EN 62841-3-1 is to be read together with EN 62841-1:2014 (general requirements).

Key topics and requirements

• Scope & exclusions: excludes saws for cutting steels/iron/magnesium, table saws with automatic feeding devices, abrasive-wheel saws, multi-spindle scoring saws, and stationary table saws (stationary requirements are covered by EN 1870-1).
• Mass limits: transportable tools covered by the standard are limited to ≤25 kg (single-person lift) or ≤50 kg (two-person lift).
• Guards & mechanical hazards: protective enclosures and guards must not be removable without a tool (exceptions noted for saw blade guards and riving knives). Specific requirements address riving knives, anti-kickback devices, guard geometry and strength.
• Marking & instructions: include mandatory user instructions and a requirement to use saw blades recommended by the manufacturer and conforming to EN 847-1 where applicable.
• Testing & measurement: includes test conditions and clauses for mechanical strength, endurance, abnormal operation, and measurement of noise and vibration (Annex I).
• Electrical & safety integration: covers starting, protection against access to live parts, insulation/earthing, and component requirements consistent with EN 62841‑1 and EN ISO 12100.
• Regulatory alignment: informative Annex ZZ maps the standard to the essential requirements of EU Machinery Directive 2006/42/EC.

Applications and who uses it

• Manufacturers of transportable table saws use EN 62841-3-1 to design machines that meet European safety and conformity expectations.
• Test laboratories and conformity assessors apply the standard for type testing and certification.
• Product safety engineers and compliance teams use it to create instructions, labeling and risk-reduction features (guards, riving knives, anti-kickback).
• Procurement and asset managers in construction, woodworking and education sectors reference the standard to specify safe, compliant table saws.

Related standards

• EN 62841-1:2014 - General requirements for motor-operated tools
• EN 847-1 - Saw blades and milling tools (referenced for blade conformity)
• EN 1870-1 - Stationary table saws (for equipment beyond this standard’s transportable scope)
• EN 61029-2-1 - Superseded by EN 62841-3-1

Keywords: EN 62841-3-1, IEC 62841-3-1, transportable table saw, table saw safety, riving knife, saw blade, machine safety, EN 62841, Machinery Directive.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2014
1DGRPHãþD
SIST EN 61029-2-1:2013
(OHNWULþQDPRWRUQDURþQDRURGMDSUHQRVQDRURGMDWHUVWURML]DWUDWRLQYUW9DUQRVW
GHO3RVHEQH]DKWHYH]DSUHQRVQHQDPL]QHåDJH,(&
Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden
Machinery - Safety - Part 3-1: Particular requirements for transportable table saws
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Sécurité - Partie 3-1: Exigences particulières relatives aux scies stationnaires
transportables
Ta slovenski standard je istoveten z: EN 62841-3-1:2014
ICS:
25.080.60 Strojne žage Sawing machines
25.140.20 (OHNWULþQDRURGMD Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62841-3-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2014
ICS 25.140.20 Supersedes EN 61029-2-1:2012
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 3-1: Particular
requirements for transportable table saws
(IEC 62841-3-1:2014)
Outils électroportatifs à moteur, outils transportables et Elektrische motorbetriebene handgeführte Werkzeuge,
machines pour jardins et pelouses - Sécurité - Partie 3-1: transportable Werkzeuge und Rasen- und
Exigences particulières pour les scies circulaires à table Gartenmaschinen - Sicherheit - Teil 3-1: Besondere
transportables Anforderungen für transportable Tischkreissägen
(CEI 62841-3-1:2014) (IEC 62841-3-1:2014)
This European Standard was approved by CENELEC on 2014-05-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-3-1:2014 E

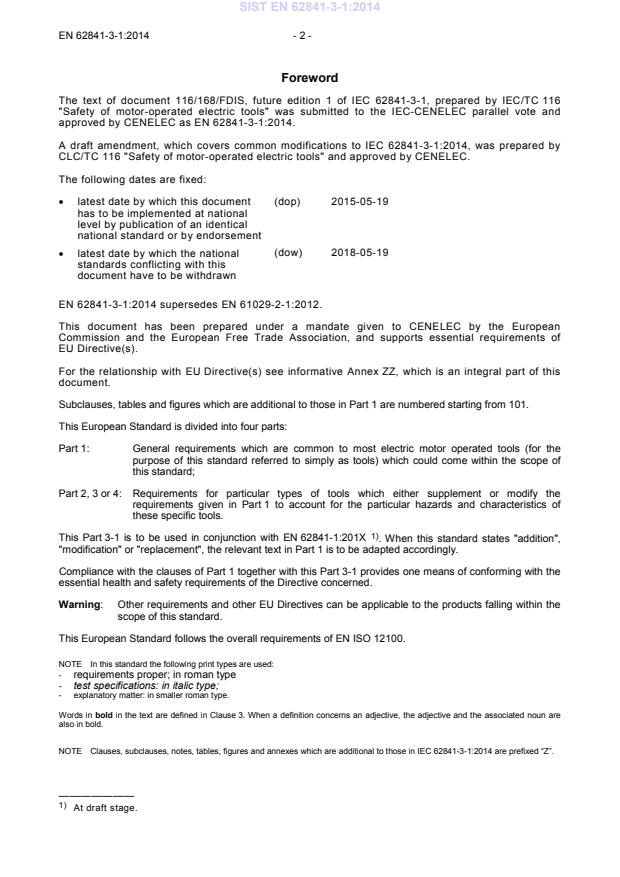

Foreword
The text of document 116/168/FDIS, future edition 1 of IEC 62841-3-1, prepared by IEC/TC 116
"Safety of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 62841-3-1:2014.

A draft amendment, which covers common modifications to IEC 62841-3-1:2014, was prepared by
CLC/TC 116 "Safety of motor-operated electric tools" and approved by CENELEC.

The following dates are fixed:

(dop) 2015-05-19
• latest date by which this document
has to be implemented at national
level by publication of an identical
national standard or by endorsement
• latest date by which the national (dow) 2018-05-19
standards conflicting with this
document have to be withdrawn
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 101.

This European Standard is divided into four parts:

Part 1: General requirements which are common to most electric motor operated tools (for the
purpose of this standard referred to simply as tools) which could come within the scope of
this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
1)
This Part 3-1 is to be used in conjunction with EN 62841-1:201X . When this standard states "addition",
"modification" or "replacement", the relevant text in Part 1 is to be adapted accordingly.

Compliance with the clauses of Part 1 together with this Part 3-1 provides one means of conforming with the
essential health and safety requirements of the Directive concerned.

Warning: Other requirements and other EU Directives can be applicable to the products falling within the
scope of this standard.
This European Standard follows the overall requirements of EN ISO 12100.

NOTE In this standard the following print types are used:
- requirements proper; in roman type
- test specifications: in italic type;
- explanatory matter: in smaller roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun are
also in bold.
NOTE Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 62841-3-1:2014 are prefixed “Z”.
———————
1)
At draft stage.
- 3 - EN 62841-3-1:2014
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.

COMMON MODIFICATIONS
1 Scope
Add after the first paragraph:
This standard applies to table saws having a mass of:
– maximum 25 kg for tools capable of being lifted by hand by one person;
– maximum 50 kg for tools capable of being lifted by hand by two persons.
This standard does not apply to stationary table saws.
NOTE  EN 1870-1 gives requirements for stationary table saws and table saws with a mass greater than indicated above.
2 Normative references
Add the following normative reference:
EN 847-1, Tools for woodworking - Safety requirements - Part 1: Milling tools, circular saw blades
8 Marking and instructions
8.14.2 a):
Add the following new item:
Z101) Instruction to use only saw blades recommended by the manufacturer, which conform to EN 847-1, if
intended for wood and analogous materials.
19 Mechanical hazards
Replace the first paragraph of 19.1 as follows:
19.1 Replacement:
Protective enclosures and guards shall not be removable without the aid of a tool. This requirement does not
apply to saw blade guards, riving knives.
21 Construction
Add the following new subclause:
21.101.Z101 The saw blade provided with the tool, if intended for cutting wood and analogous materials,
shall comply with EN 847-1.
Compliance is checked by inspection and by receipt of relevant information from the saw blade
manufacturer.
- 5 - EN 62841-3-1:2014
Replace the title of Annex I by the following:
Annex I
(normative)
Measurement of noise and vibration emissions

Add the following annexes:
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

ISO 180 - Plastics – Determination of Izod impact EN ISO 180 -
strength
Annex ZZ
(informative)
Coverage of Essential Requirements of Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all relevant
Essential Requirements as given in EU Directive 2006/42/EC (Machinery Directive).
Compliance with this standard provides one means of conformity with the specified essential requirements of
the Directives concerned.
WARNING: Other requirements and other EU Directives may be applicable to the products falling within the
scope of this standard.
Bibliography
Add the following to the bibliography:
EN 1870-1, Safety of woodworking machines - Circular sawing machines - Part 1: Circular saw benches
(with and without sliding table), dimension saws and building site saws
___________
IEC 62841-3-1 ®
Edition 1.0 2014-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – Safety –
Part 3-1: Particular requirements for transportable table saws

Outils électroportatifs à moteur, outils transportables et machines pour jardins

et pelouses – Sécurité –
Partie 3-1: Exigences particulières pour les scies circulaires à table

transportables
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 25.140.20 ISBN 978-2-8322-1571-5

– 2 – IEC 62841-3-1:2014 © IEC 2014
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 General requirements . 10
5 General conditions for the tests . 11
6 Radiation, toxicity and similar hazards . 11
7 Classification . 11
8 Marking and instructions . 11
9 Protection against access to live parts . 16
10 Starting . 17
11 Input and current . 17
12 Heating . 17
13 Resistance to heat and fire . 17
14 Moisture resistance . 17
15 Resistance to rusting . 17
16 Overload protection of transformers and associated circuits . 17
17 Endurance . 17
18 Abnormal operation . 17
19 Mechanical hazards . 18
20 Mechanical strength . 25
21 Construction . 27
22 Internal wiring . 37
23 Components . 37
24 Supply connection and external flexible cords . 37
25 Terminals for external conductors . 37
26 Provision for earthing . 37
27 Screws and connections . 37
28 Creepage distances, clearances and distances through insulation . 37
Annexes . 47
Annex I (informative) Measurement of noise and vibration emissions . 47
Annex K (normative) Battery tools and battery packs . 48
Bibliography . 49

Figure 101 – Marking of the riving knife . 38
Figure 102 – Marking of table inserts for cutting tools other than a single saw blade . 38
Figure 103 – Test probe . 39
Figure 104 – Guarded area of the saw blade . 39
Figure 105 – Probe application to the saw blade guard . 40
Figure 106 – Height range of the riving knife tip . 40
Figure 107 – Distance between riving knife and saw blade . 41

IEC 62841-3-1:2014 © IEC 2014 – 3 –
Figure 108 – Pull test for riving knife and extended riving knife . 42
Figure 109 – Side pull test for riving knife and extended riving knife . 42
Figure 110 – Push stick . 43
Figure 111 – Push stick force test . 43
Figure 112 – Bevel angle measurement . 44
Figure 113 – Dimensions of the saw table . 44
Figure 114 – Minimum distance from the front edge of the table top to the front edge of
the saw blade guard. 45
Figure 115 – Test of an anti-kickback device . 45
Figure 116 – Flange characteristics . 46

Table 4 – Required performance levels . 18
Table I.101 – Noise test conditions for table saws . 47

– 4 – IEC 62841-3-1:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 3-1: Particular requirements for transportable table saws

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62841-3-1 has been prepared by IEC technical committee 116:
Safety of motor-operated electric tools.
The text of this standard is based on the following documents:
FDIS Report on voting
116/168/FDIS 116/182/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IEC 62841-3-1:2014 © IEC 2014 – 5 –
This Part 3-1 is to be used in conjunction with the first edition of IEC 62841-1 (2014).
This Part 3-1 supplements or modifies the corresponding clauses in IEC 62841-1, so as to
convert it into the IEC Standard: Particular requirements for transportable table saws.
Where a particular subclause of Part 1 is not mentioned in this Part 3-1, that subclause
applies as far as reasonable. Where this standard states “addition”, “modification” or
“replacement”, the relevant text in Part 1 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes and figures which are additional to those in Part 1 are numbered starting
from 101.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated
hand-held tools, transportable tools and lawn and garden machinery – Safety, can be found
on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 36 months from the date of publication.

– 6 – IEC 62841-3-1:2014 © IEC 2014
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 3-1: Particular requirements for transportable table saws

1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:
This part of IEC 62841 applies to transportable table saws with
– a toothed single blade; or
– stacked blades that cut a single groove or slot; or
– a moulding head cutter
intended for cutting wood and analogous materials, plastics and nonferrous metals except
magnesium with a saw blade diameter between 105 mm and 315 mm, which hereinafter may
simply be referred to as saw or tool.
This standard does not apply to table saws intended to cut other metals, such as magnesium,
steel and iron. This standard does not apply to table saws with an automatic feeding device.
This standard does not apply to saws designed for use with abrasive wheels.
NOTE 101 Saws designed for use with abrasive wheels as cut-off machines are covered by IEC 62841-3-10.
This standard does not apply to table saws with more than one spindle such as for a scoring
blade.
NOTE 102 In Europe (EN 62841-3-1), the following conditions apply:
This standard applies to table saws having a mass of:
– maximum 25 kg for tools capable of being lifted by hand by one person;
– maximum 50 kg for tools capable of being lifted by hand by two persons.
This standard does not apply to stationary table saws.
2 Normative references
This clause of Part 1 is applicable, except as follows:
Addition:
ISO 180, Plastics – Determination of Izod impact strength
NOTE In Europe (EN 62841-3-1), the following normative reference applies:
EN 847-1, Tools for woodworking – Safety requirements – Part 1: Milling tools, circular saw blade

IEC 62841-3-1:2014 © IEC 2014 – 7 –
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Addition:
3.101
anti-kickback device
device that allows the movement of the workpiece in the cutting direction but reduces the
likelihood of the rapid movement of the workpiece in the direction opposite of feed
3.102
bevel angle
angular displacement of the saw blade plane with respect to the table top plane, the position
of the saw blade plane that is perpendicular to the table top being the 0° bevel position
3.103
cross cutting
any cutting operation performed utilizing a cross-cutting fence to guide the workpiece.
Note 1 to entry: For natural wood, a cross cut is performed predominantly in a perpendicular direction with the
grain of the wood; for engineered materials, a cross cut is performed perpendicular to the length of the workpiece.
3.104
cutting capacity
for any depth setting of the saw blade at 0° bevel position, the height of the highest saw blade
tooth tip above the table top
Note 1 to entry: For any depth setting of the saw blade, at bevel angles other than 0°, the height of the highest
saw blade tooth tip above the table top, but only the side of the tooth closest to the table is considered.
3.104.1
maximum cutting capacity
cutting capacity at the maximum depth setting of the saw blade and, unless otherwise
specified, at 0° bevel
3.105
cutting edge zone
the outer 20 % of the radius of the saw blade
3.106
D
specified diameter of the saw blade
3.107
dadoing
non-through cutting operation performed with a stack of specially designed saw blades of a
desired thickness to produce a rectangular sided slot in the workpiece
3.108
fence
device to guide or position the workpiece during the cutting process
3.108.1
cross-cutting fence
fence that is designed to move parallel with the plane of the saw blade during the cutting
process or to position the workpiece for a table saw with sliding function
Note 1 to entry: The fence may have provisions to adjust the workpiece guiding face laterally and may have mitre
angle capability.
– 8 – IEC 62841-3-1:2014 © IEC 2014
Note 2 to entry: A cross-cutting fence with mitre angle capability is also known as a mitreing fence or mitre
gauge.
3.108.2
rip fence
fence that has the workpiece guiding face parallel with the plane of the saw blade and can be
set to a desired distance from the saw blade
3.109
grooving
series of repeated non-through cuts of same or different depth and spacing from each other,
performed with an ordinary saw blade, to remove material for the purpose of creating a slot or
for shaping or bending the workpiece
Note 1 to entry: Grooving is also known as slotting or kerfing.
3.110
kerf width
distance between two parallel planes that are touching the opposing sides of at least three
saw blade tooth tips
3.111
kickback
sudden reaction to a pinched, jammed or misaligned workpiece with respect to the saw blade,
which causes the workpiece to be propelled by the saw blade
3.112
mitre angle
angular displacement of the plane of the cross-cutting fence with respect to the cutting line,
the position of the saw blade plane that is perpendicular to the plane of the cross-cutting
fence being the 0° mitre position
3.113
moulding head cutting
non-through cutting operation performed with a specially shaped cutting device which
produces a corresponding shape of the cutter on the bottom surface of the workpiece,
predominantly used for decoration
Note 1 to entry: Moulding head cutting is also known as shaping.
3.114
non-removable (device)
device that is welded, riveted or utilizing non-standard simple fasteners and cannot be
removed with ordinary household tools, such as slotted or Philips-tip screwdrivers and/or
simple wrenches
3.115
non-through cutting
any cutting operation where the cutting device does not protrude beyond the thickness of the
workpiece
3.116
plowing
non-through cutting operation performed by moving a workpiece over an ordinary saw blade
utilizing a special fence that is not parallel to the cutting line of the saw blade, and in very
small increments increasing the depth of the cut after each pass to shave off large, arcing
surface areas
Note 1 to entry: Plowing is also known as cove cutting.

IEC 62841-3-1:2014 © IEC 2014 – 9 –
3.117
plunge cutting
non-through cutting operation starting at a location other than the edge of a workpiece
Note 1 to entry: The cut is typically performed by first securing the workpiece over the stationary saw blade
lowered below the table top and then by slowly raising the rotating saw blade into the workpiece. The saw blade
can be raised to fully cut through the thickness of the workpiece before the workpiece is advanced by guiding it
with a rip or cross-cutting fence.
3.118
quadrant
portion of the saw blade section above the plane of the table top with a perpendicular
boundary line going through the centre of the saw blade
Note 1 to entry: The saw blade quadrant from the centre of the saw blade to the intersect point of the saw blade
with the table top at the front of the table saw is called the “front quadrant”, the saw blade quadrant at the back
of the table saw is called the “rear quadrant”. See Figure 107.
3.119
rabbeting
non-through cutting operation creating a rectangular notch in the edge of a workpiece where
the notch is either cut by dado blades or by two non-though cuts perpendicular to each other,
performed with an ordinary saw blade on the side and the bottom edge of the workpiece
Note 1 to entry: Rabbeting is also known as rebating.
3.120
resawing
combination of two non-through cuts performed with an ordinary saw blade in the same plane
but on opposite sides of a workpiece that result in reducing the thickness of the workpiece
3.121
rip cutting
any cutting operation performed utilizing a rip fence to guide the workpiece
Note 1 to entry: For natural wood, a rip cut is performed predominantly in a parallel direction with the grain of the
wood; for engineered materials, a rip cut is performed parallel with the length of the workpiece.
3.122
riving knife
device located behind and in the plane of the saw blade, within the cutting capacity of the
saw blade and in a fixed proximity to the saw blade through an entire depth of cut and bevel
angle operating range of the saw blade, with an intended function to reduce the risk of saw
blade pinching and binding
3.123
extended riving knife
device, in all aspects identical to a riving knife except it extends above the maximum
cutting capacity of the saw blade to allow the mounting of a saw blade guard and/or an
anti-kickback device
3.123.1
adjustable extended riving knife
device designed to function at least in one position as an extended riving knife and in a
second position as a riving knife
3.123.2
fixed extended riving knife
extended riving knife that is fixed in position

– 10 – IEC 62841-3-1:2014 © IEC 2014
3.124
saw blade guard
device mounted above the table such that a workpiece will pass between the mounted device
and the table, designed to minimize inadvertent blade contact by the user
3.124.1
over-arm saw blade guard
saw blade guard suspended from a device above the table such that the mounting structure
for the saw blade guard is not in the workable range of the table top plane
3.125
table saw
tool with a rotating toothed saw blade that projects through a slot in a table which supports
and positions the workpiece, where the workpiece is fed towards the saw blade and the motor
and drive assembly for the saw blade are located below the table top
3.125.1
table saw with sliding function
tool with a rotating toothed saw blade that projects through a slot in a table which supports
and positions the workpiece, where the motor and drive assembly for the saw blade are
located below the table top and mounted to a linear carriage system capable of advancing
the saw blade drive assembly and where the workpiece is held stationary with the cross-
cutting fence while the cutting saw blade is advanced through the workpiece
Note 1 to entry: The saw blade is either returned manually or automatically. These saws have a separate lockable
rip-cutting position.
Note 2 to entry: These saws are also known as pull type saws.
3.126
table top
surface of the saw table which is in contact with and supports the workpiece
3.127
tapered cut
cut performed utilizing a fixture to hold the workpiece such that the straight edge of the
workpiece is not parallel to the cutting line of the saw blade
Note 1 to entry: The fixture is guided by the rip fence.
3.128
through cutting
any cutting operation where the saw blade protrudes beyond the thickness of the workpiece
3.129
zero clearance table insert
table insert that is manufactured without any slot for the saw blade, with the intention that the
slot in the table insert will be cut after installation in the table saw by the actual saw blade
installed in the table saw
4 General requirements
This clause of Part 1 is applicable, except as follows:
4.101 Throughout the remaining part of this document, unless otherwise explicitly stated,
whenever a requirement or a reference is made to
– “saw blade”:
this shall equally apply to any “saw blade” as specified in accordance with 8.14.2 a);

IEC 62841-3-1:2014 © IEC 2014 – 11 –
– “riving knife”:
this shall equally apply to “extended riving knife”, but not vice versa.
This terminology rule does not apply to “riving knife position” i.e. the “riving knife
position” cannot be substituted with an “extended riving knife position”;
– “force” as multiple of D:
the force shall be measured in N and the saw blade diameter D shall be measured in mm.
5 General conditions for the tests
This clause of Part 1 is applicable, except as follows:
5.17 Addition:
The mass of the tool shall include the saw blade guard, anti-kickback device, if any, riving
knife, rip fence, cross-cutting fence and the push stick.
Any additional parts such as leg sets or carrying means that are required in accordance with
the user instructions shall be included in the mass.
6 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
Table saws shall be marked with:
– rated no-load speed of the output spindle.
8.3 Addition:
Table saws shall be marked with:
– saw blade diameter.
8.3.101 Table saws shall be marked with the direction of rotation of the spindle, indicated in
a visible location on the tool in the vicinity of the saw blade, such as on the saw blade guard,
riving knife or a table insert, by an arrow raised or recessed or by any other means no less
visible and indelible.
Compliance is checked by inspection.
8.3.102 The riving knife shall be permanently marked, e.g. by engraving, stamping or
etching, with its thickness and, as specified in Figure 101, with the saw blade diameter D, saw
blade body thicknesses, and kerf widths that can be used with this riving knife.
Compliance is checked by inspection.

– 12 – IEC 62841-3-1:2014 © IEC 2014
8.3.103 The saw blade(s) provided with the tool shall be marked with a maximum operating
speed and with an arrow indicating the correct direction of rotation.
Compliance is checked by inspection.
8.3.104 Table inserts for cutting tools other than single saw blades, see 21.101.6, shall be
marked as illustrated in Figure 102.
Compliance is checked by inspection.
8.14.1 Addition:
The additional safety instructions as specified in 8.14.1.101 shall be given. This part may be
printed separately from the “General Power Tool Safety Warnings”.
8.14.1.101 Safety instructions for table saws
1) Guarding related warnings
a) Keep guards in place. Guards must be in working order and be properly mounted. A
guard that is loose, damaged, or is not functioning correctly must be repaired or replaced.
b) Always use saw blade guard, riving knife and anti-kickback device for every
through–cutting operation. For through-cutting operations where the saw blade cuts
completely through the thickness of the workpiece, the guard and other safety devices
help reduce the risk of injury.
NOTE 1 If an anti-kickback device is not provided, the phrase “and anti-kickback device” is omitted.
NOTE 2 At the manufacturer’s discretion, the term “anti-kickback device” can be replaced by an appropriate
term such as “anti-kickback pawls” or “anti-kickback rollers”.
NOTE 3 The above warning is omitted, if the table saw is designed with a non-removable fixed extended
riving knife that has a non-removable guarding system.
c) Immediately reattach the guarding system after completing an operation (such as
rabbeting, dadoing or resawing cuts) which requires removal of the guard, riving
knife and/or anti-kickback device. The guard, riving knife, and anti-kickback device help
to reduce the risk of injury.
NOTE 1 The term “rabbeting” can be substituted by “rebating”.
NOTE 2 If dadoing or resawing cuts are not permitted, the term “dadoing or resawing cuts” is omitted.
NOTE 3 If an anti-kickback device is not provided, the phrase “anti-kickback device” is omitted.
NOTE 4 At the manufacturer’s discretion, the term “anti-kickback device” can be replaced by an appropriate
term such as “anti-kickback pawls” or “anti-kickback rollers”.
NOTE 5 The above warning is omitted, if the table saw is designed with a non-removable fixed extended
riving knife that has a non-removable guarding system.
d) Make sure the saw blade is not contacting the guard, riving knife or the workpiece
before the switch is turned on. Inadvertent contact of these items with the saw blade
could cause a hazardous condition.
e) Adjust the riving knife as described in this instruction manual. Incorrect spacing,
positioning and alignment can make the riving knife ineffective in reducing the likelihood of
kickback.
f) For the riving knife and anti-kickback device to work, they must be engaged in the
workpiece. The riving knife and anti-kickback device are ineffective when cutting
workpieces that are too short to be engaged with the riving knife and anti-kickback device.
Under these conditions a kickback cannot be prevented by the riving knife and anti-
kickback device.
NOTE 1 If an anti-kickback device is not provided, the phrase “and anti-kickback device” is omitted.

IEC 62841-3-1:2014 © IEC 2014 – 13 –
NOTE 2 At the manufacturer’s discretion, the term “anti-kickback device” can be replaced by an appropriate
term such as “anti-kickback pawls” or “anti-kickback rollers”.
g) Use the appropriate saw blade for the riving knife. For the riving knife to function
properly, the saw blade diameter must match the appropriate riving knife and the body of
the saw blade must be thinner than the thickness of the riving knife and the cutting width
of the saw blade must be wider than the thickness of the riving knife.
2) Cutting procedures warnings
a) DANGER: Never place your fingers or hands in the vicinity or in line with the saw
blade. A moment of inattention or a slip could direct your hand towards the saw blade and
result in serious personal injury.
b) Feed the workpiece into the saw blade or cutter only against the direction of
rotation. Feeding the workpiece in the same direction that the saw blade is rotating above
the table may result in the workpiece, and your hand, being pulled into the saw blade.
NOTE If cutters other than the saw blade are not permitted in accordance with 8.14.2 then “or cutter” is
omitted.
c) Never use the mitre gauge to feed the workpiece when ripping and do not use the rip
fence as a length stop when cross cutting with the mitre gauge. Guiding the
workpiece with the rip fence and the mitre gauge at the same time increases the likelihood
of saw blade binding and kickback.
d) When ripping, always apply the workpiece feeding force between the fence and the
saw blade. Use a push stick when the distance between the fence and the saw blade
is less than 150 mm, and use a push block when this distance is less than 50 mm.
“Work helping” devices will keep your hand at a safe distance from the saw blade.
e) Use only the push stick provided by the manufacturer or constructed in accordance
with the instructions. This push stick provides sufficient distance of the hand from the
saw blade.
f) Never use a damaged or cut push stick. A damaged push stick may break causing your
hand to slip into the saw blade.
g) Do not perform any operation “freehand”. Always use either the rip fence or the
mitre gauge to position and guide the workpiece. “Freehand” means using your hands
to support or guide the workpiece, in lieu of a rip fence or mitre gauge. Freehand sawing
leads to misalignment, binding and kickback.
h) Never reach around or over a rotating saw blade. Reaching for a workpiece may lead
to accidental contact with the moving saw blade.
i) Provide auxiliary workpiece support to the rear and/or sides of the saw table for
long and/or wide workpieces to keep them level. A long and/or wide workpiece has a
tendency to pivot on the table’s edge, causing loss of control, saw blade binding and
kickback.
j) Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming
occurs, turn the tool off immediately, unplug the tool then clear the jam. Jamming the
saw blade by the workpiece can cause kickback or stall the motor.
k) Do not remove pieces of cut-off material while the saw is running. The material may
become trapped between the fence or inside the saw blade guard and the saw blade
pulling your fingers into the saw blade. Turn the saw off and wait until the saw blade stops
before removing material.
l) Use an auxiliary fence in contact with the table top when ripping workpieces less
than 2 mm thick. A thin workpiece may wedge under the rip fence and create a kickback.
3) Kickback causes and related warnings
Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or
misaligned line of cut in the workpiece with respect to the saw blade or when a part of the
workpiece binds between the saw blade and the rip fence or other fixed object.

– 14 – IEC 62841-3-1:2014 © IEC 2014
Most frequently during kickb
...
