Standards Content (sample)

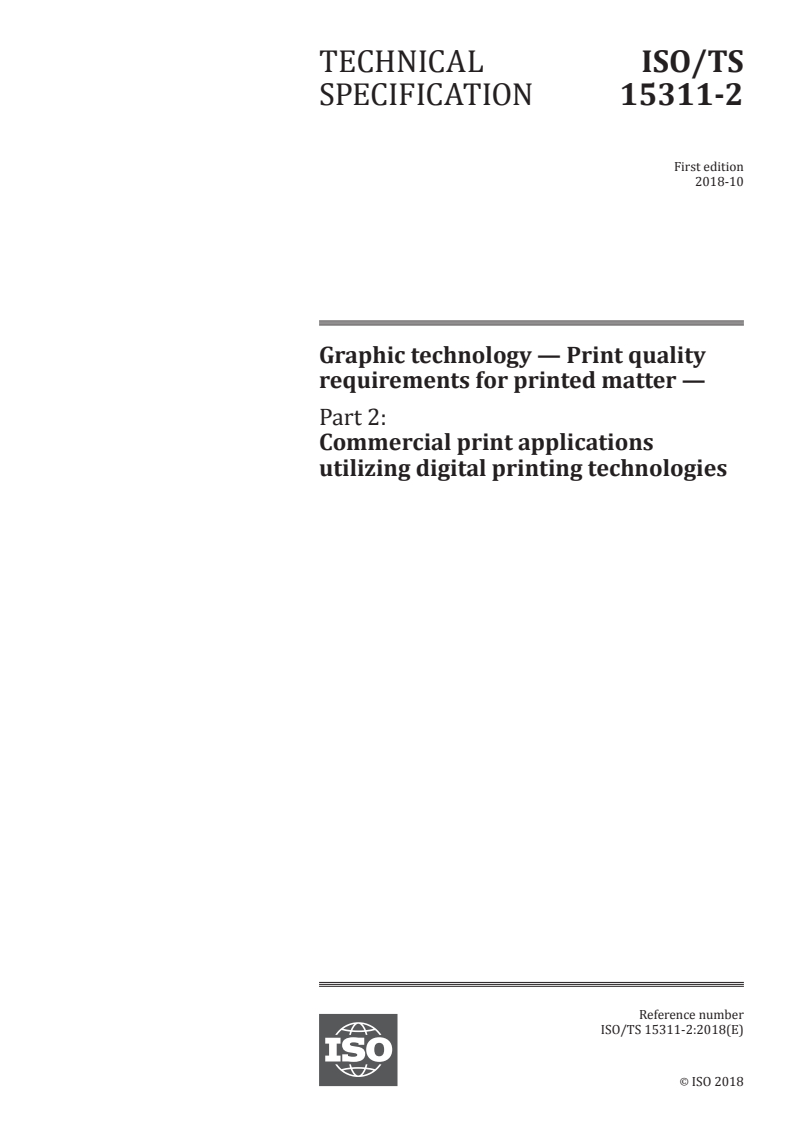

TECHNICAL ISO/TS
SPECIFICATION 15311-2
First edition
2018-10
Graphic technology — Print quality
requirements for printed matter —
Part 2:
Commercial print applications
utilizing digital printing technologies
Reference number
ISO/TS 15311-2:2018(E)
ISO 2018
---------------------- Page: 1 ----------------------
ISO/TS 15311-2:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 15311-2:2018(E)

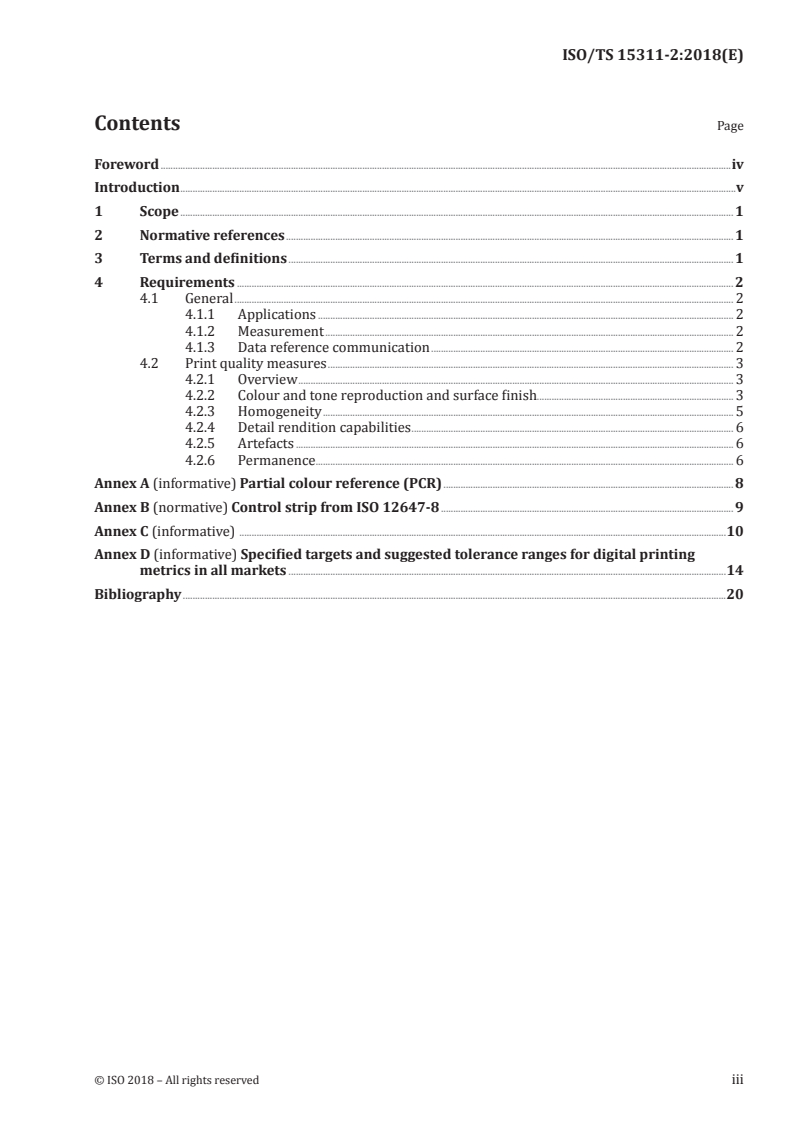

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Requirements .......................................................................................................................................................................................................... 2

4.1 General ........................................................................................................................................................................................................... 2

4.1.1 Applications ......................................................................................................................................................................... 2

4.1.2 Measurement ...................................................................................................................................................................... 2

4.1.3 Data reference communication ........................................................................................................................... 2

4.2 Print quality measures ..................................................................................................................................................................... 3

4.2.1 Overview ................................................................................................................................................................................. 3

4.2.2 Colour and tone reproduction and surface finish................................................................................ 3

4.2.3 Homogeneity ....................................................................................................................................................................... 5

4.2.4 Detail rendition capabilities ................................................................................................................................... 6

4.2.5 Artefacts .................................................................................................................................................................................. 6

4.2.6 Permanence ...................................................................... .................................................................................................... 6

Annex A (informative) Partial colour reference (PCR) ...................................................................................................................... 8

Annex B (normative) Control strip from ISO 12647-8 ....................................................................................................................... 9

Annex C (informative) ......................................................................................................................................................................................................10

Annex D (informative) Specified targets and suggested tolerance ranges for digital printing

metrics in all markets ..................................................................................................................................................................................14

Bibliography .............................................................................................................................................................................................................................20

© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 15311-2:2018(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 130, Graphic technology.

A list of all parts in the ISO/TS 15311 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 15311-2:2018(E)
Introduction
0.1 General

When producing a colour reproduction, it is important that the persons responsible for data creation,

colour separation, proofing and printing operations have previously agreed to a set of parameters

that define the visual characteristics and other technical properties of the planned print product. It

is equally important that they have agreed to the method that will be used to verify that the printed

output meets these aims and tolerances. This document identifies the minimum essential metrics and

optional metrics for analysing printing output produced for the general commercial print marketplace.

This marketplace has evolved in recent years from using classical reproduction processes such as

offset, letterpress, gravure, screen printing and flexography to include the many varied digital printing

systems that are being developed to meet a wide range of potential needs depending on how the user

chooses to prioritize speed, quality and cost. Along with and commensurate with this change has been a

shift in technical emphasis from using quality control of the printing process and expecting statistically

based predictable printing results to using colour management and other inherent measures of print

quality directly on the printed page. ISO/TS 15311-1 helps identify these metrics.

This document deals with the assessment of printed sheets and does not consider how the process of

printing the sheets is controlled. For reference, those methods for process control for conventional print

processes are described in ISO 12647-2 to ISO 12647-6. Additionally, ISO/PAS ISO 15339 establishes

principles for the use of colour characterization data as the definition of the intended relationship

between input data and printed colour in all printing applications. There is no ISO standard for process

control for digital printing; the inherent process control method is generally specified by the digital

printing system manufacturer. No matter what method is used for process control, this document may

be used to assess the printed results.

With this in mind, this document is intended to aid the printer and their customer, the print buyer,

to define the inherent quality of the sheet using targets that can be included directly on the sheet

(including the margin trim waste) or at least implied by the content of the images on the sheet itself.

It is intended to be a more direct approach to relate digital printing to visual results while achieving

the same quality levels of consistency that the industry has come to know and trust in their process

controlled printed sheet. While this document is necessary for any digital printing system output due

to the lack of a process control standard for digital printing, it could also be used to assess the resultant

quality of any printed sheet that had been printed using process control methods from any of the

classical printing processes if the printer and print buyer have previously agreed.

More importantly, because of the wide range of digital printing devices in terms of speed, quality, run

length and sheet or board size, and the equally wide range of quality needs in the various printing

market places, there presently is no cross-market agreement as to what constitutes “acceptable” quality.

This document gives guidance in applying the appropriate metrics to develop custom tolerances for

assessing printing system output, but it does not suggest specific acceptable quality levels. While it has

many of the same metrics as ISO 12647-7 and ISO 12647-8, those standards include aims and tolerances

limited to specified proofing application which are generally much tighter quality levels than normal

digital printing.

The metrics involved in this document have been selected from ISO/TS 15311-1. In a few cases if

representative metrics, for necessary aspects of judging quality such as legibility, are not included in

ISO/TS 15311-1, suggested metrics have been drawn from other sources. All specified metrics are

directly measureable on the printed sheet. Some suggested metrics, including more comprehensive

targets, which are at least indirectly measureable on another sheet printed on the same unit at

approximately the same time as the subject sheet, indicate the state that the process was in at the time

of printing. This document also includes other optional metrics for anyone who desires to analyse other

aspects of the printed sheet that are not essential to everyday transactions and which may require

special tests conducted in sophisticated laboratories. These will probably be used only to compare the

capabilities of various digital printing systems.
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TS 15311-2:2018(E)

Since the role and the process of digital printing are both rapidly evolving, as indicated above, the

printer and print buyer must jointly agree on the expected quality range for each of the required tests

in advance of their printed job. Because there are many different types of digital printing equipment,

specific machine expectations must come from the manufacturers of each piece of equipment.

0.2 Identification of suitable colour metrics

When selecting the set of metrics to be included in this document, only those metrics that have a clear

definition and that correlate well with human perception are used. Since this is an area of significant

research activity we expect many new metrics to emerge in the next few years. For this reason we

anticipate the need to revise this document within a very short time scale as new metrics are tested

and found to be reliable.

In many cases the existing standards use CIE dEab rather than CIEDE2000. Although these are not

interchangeable quantities, dEab has been superseded by CIEDE2000 in ISO TC 130 standards and in

this document. Similarly, printing density is seldom used to measure colour and where the referenced

standards specify printing density we have used CIELab colour measurement.
0.3 Reporting schema

As with any parameter that is used as part of a product specification it is important for readers to

understand clearly what the metric means. For this reason ISO/TS 15311-1 includes a reporting schema

that should be followed when reporting measurements in conformance with this document. This

document includes optional reporting forms.
vi © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL SPECIFICATION ISO/TS 15311-2:2018(E)
Graphic technology — Print quality requirements for
printed matter —
Part 2:
Commercial print applications utilizing digital printing
technologies
1 Scope

This document gives guidance to print buyers and other users of print for assessing printed products

on isotropic substrates that are typically held at a viewing distance of 30 to 50 cm. It specifies the

proper application of required, recommended and optional metrics, measurement methods and, where

appropriate, reporting requirements in the general commercial market.

Although this document is expected to be used primarily to measure prints from digital printing

systems the metrics are general and may be applied to other kinds of print.

This document does not provide process control aims or tolerances as these differ widely for different

types of commercial applications.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 13655, Graphic technology — Spectral measurement and colorimetric computation for graphic

arts images

ISO/TS 15311-1, Graphic Technology — Requirements for printed matter for commercial and industrial

production —Part 1: Measurement methods and reporting schema
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/TS 15311-1 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
digital printing system

system that prints one unique iteration at a time for either variable data or classical printing

applications, including but not limited to electrophotographic and ink-jet marking engines

© ISO 2018 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TS 15311-2:2018(E)
3.2
printing condition

components or settings used for printing that significantly constitute the final visual appearance of the

print product

Note 1 to entry: A typical printing condition comprises the printer, the substrate, the ink or toner, the used

interpreter (RIP), the colour management software, the reference printing condition to be simulated and the

print mode.
3.3
spot colour

non-process colour that is used in addition to, or in place of, a process colour and is normally applied

with a single impression

Note 1 to entry: When associated with a corporate product identity, a spot colour is also known as a brand colour.

3.4
print substrate
intended substrate to be used for production printing
4 Requirements
4.1 General
4.1.1 Applications

This document for printed output may be applied to two separate use applications:

1) Printing output from a new general commercial printing system production run. The print buyer

and the printer shall agree on aim values and tolerances for the metrics described in this document.

Aims and tolerances should be developed through use-case analysis. Measured values and ranges

for typical commercial print output for a number of regions are provided in Annex C.

2) Printing output intended to represent the capabilities of a specified digital printing system. This

shall not be implied to represent the capabilities of that model or similar models of digital printing

systems without documenting that it is representative of that group which is outside the scope of

this document. For this application no goals or tolerances are required, but aims and results shall

be reported. All care should be taken to ensure that the samples are representative of the specified

system. For multiple sheets and full press runs, sampling, measurement and reporting should be

done as described in ISO/TS 15311-1.

The application type shall be reported. It should be noted that there are no provisions for non-colour

related information such as varnishes, die cutting and other overlays.
4.1.2 Measurement

All colour measurements shall be made in accordance with ISO 13655. The measurement conditions

(M0, M1, M2 or M3) and the backing to be used (white or black backing) shall be in accordance with

those specified for the characterization data set being used, and if that is not possible, the conversion in

ISO 13655:2017, A.4 should be performed.

Metrics shall be assumed to apply to the assessment of a single printed sheet unless otherwise specified

and to the printing condition as defined in 3.2.
4.1.3 Data reference communication

All print elements shall be prepared as colorimetrically defined data. All evaluation and reference print

output shall have been targeted to pre-approved data sets. Referenced colorimetric data sets should

2 © ISO 2018 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TS 15311-2:2018(E)

be in conformance with ISO 15930. The intended printing condition shall be defined by the ICC output

profile.

In order to determine a match of a printed sheet to a characterization data set or a printing condition,

according to this document, the following information shall be documented:
— the characterization data set to be used as the reference;

— the colour tolerances (if a visual match is required) and the category of colour reproduction

(“absolute” or “media-relative”) for the image content;

— the colour tolerances (if a visual match is required) for spot colours, if present;

— if a partial colour reference (PCR) is requested, information about the affected region for which the

requirements should apply, see Annex A for more information;

— additional use-case-dependent requirements, such as minimum image resolution or line width,

should be defined on an individual basis. It is recommended that guidelines provided by trade

organizations such as the GWG or PDF/X-ready are used.
4.2 Print quality measures
4.2.1 Overview
The intended viewing distance is 30 to 50 cm.

Recommended targets for all metrics in this document and a suggested appropriate range for each test

are provided in Annex D.

Metrics specified in this document, to be used for evaluation of commercial printing system output, are

defined and specified in ISO/TS 15311-1. Other properties such as legibility, which are desirable to test,

but for which a test has not been validated in Part 1, will be referenced to the best-known alternative.

For all printing system output under evaluation, the evaluation report should include the printing

device, print condition, substrate the RIP and so on.
4.2.2 Colour and tone reproduction and surface finish
4.2.2.1 General

The following requirements concern image quality attributes that are closely related to colour and

surface finish. Evaluations based on this document shall report the required evaluation metrics plus

aims and custom tolerance where applicable. Unless otherwise reported, the colour measurement

method shall be assumed to be absolute colour.

NOTE There is presently no unambiguous cross-media definition for the metric tone value range/sharpness.

An accepted industry method is ISO 12647-8:2012, 4.2.6.
4.2.2.2 Print substrate

The print substrate shall conform with print buyer specifications for type of surface, mass-per-area,

colour, fluorescence and gloss. Substrate attributes shall be reported as shown in ISO/TS 15311-1:2016,

Table 2.
© ISO 2018 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TS 15311-2:2018(E)
4.2.2.3 Absolute colour reproduction (process colours)

For the purposes of this document, commercial printed output is separated into two types:

1) output used to establish the colorimetric match (setup) of the printing system being tested

(deviation from the intended reference printing condition) throughout the entire colour gamut

using ISO 12642-2 (or similar) colour charts and other appropriate test forms;

2) output limited to practical printing quality assessment using control strips (representative subsets

of the full colour charts) which previously were included on the output to monitor variation during

the print run.

Absolute colour reproduction testing and reporting for control strip applications (substrate, CSMax,

CSAve, CSAveNeutral) shall be required. Absolute colour reproduction testing and reporting for colour

chart applications (CCAveSurface, CCAve, CC95 %) should be required.

Targets and test methods and reporting shall be as defined in ISO/TS 15311-1. The control strip patch

requirements shall be as defined in Annex B.

The print buyer shall specify goals and tolerances for the categories listed in Table 1, as required by

the application. These requirements shall be specified in advance and suggested guidelines for these

requirements are provided in Annexes C and D.
Table 1 — Absolute colour evaluations metrics
Test type Test identification
Patch e) substrate by comparison to e) dE
the reference data set
Maximum colour difference for all CSMax dE
control strip patches
Average colour difference for control CSAve dE
strip patches
Average chromaticness difference for CSAveNeutral dCh
CMY neutral control strip patches
Average colour difference for selected CCAveSurface dE
surface gamut patches
Average colour difference for the CCAve dE
characterization chart
95th percentile for the characteriza- CC95 % dE
tion chart
∆C is the CIELAB chromaticness difference between two colours of

approximately the same lightness projected onto a constant lightness plane in the

CIELAB colour space. This is calculated the same way as ∆E
4.2.2.4 Media relative colour reproduction (process colours)

Media relative colour reproduction testing and reporting may be required for evaluating a press sheet.

Where required, targets, test methods and reporting shall be as defined in ISO/TS 15311-1.

4.2.2.5 Gloss
Gloss testing and reporting should be required for evaluating a press sheet.

For proper colour measurement and meaningful analysis the gloss of solid tone colours should be the

same category as the substrate on which they are printed (differential gloss).

If gloss is measured, it shall be measured, referenced and reported as defined in ISO/TS 15311-1:2016,

4.3.2.6.
4 © ISO 2018 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TS 15311-2:2018(E)
4.2.2.6 Colour deviation of multiple samples of printed matter

Colour deviation testing and reporting should be required. If required, colour deviation of printed

matter is evaluated by an average colour difference of all colours on the control strip. The average colour

difference is an average of CIE DE2000 values between the average CIE L*a*b* of all samples and CIE

L*a*b* of target colour. The samples shall be selected from printed matter in accordance with ISO/

TS 15311-1:2016, 4.2. Aims and tolerances, if required, shall be specified in advance by the print buyer for

the intended use case and suggested guidelines for these requirements are provided in Annexes C and D.

4.2.3 Homogeneity
4.2.3.1 Banding (monochrome)

A visual assessment by an experienced operator and reporting of banding should be required, and

monochrome banding testing and reporting may be required. If required, streaks and bands on 50 %

tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.2. The

target shall be 160 × 100 mm and should be 160 × 160 mm. Aims and tolerances, if required, shall be

specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.2 Large area uniformity

A visual assessment by an experienced operator and reporting of large area uniformity should be

required, and large area uniformity testing and reporting may be required. If required, large area

uniformity of C65 % M50 % Y50 % K50 %, C40 % M30 % Y30 % K30 %, C20 % M15 % Y15 % K15 %

tone values combinations shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.3. Aims and

tolerances, if required, shall be specified in advance by the print buyer for the intended use case and

suggested guidelines for these requirements are provided in Annexes C and D.
4.2.3.3 Mottle (monochrome)

A visual assessment by an experienced operator and reporting of mottle should be required, and

monochrome mottle testing and reporting may be required. If required, mottle of 70 %, 40 % and 20 %

tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.4. The

target shall be 25,4 × 25,4 mm and should be 30 × 30 mm. Aims and tolerances, if required, shall be

specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.4 Graininess (monochrome)

A visual assessment by an experienced operator and reporting of graininess should be required, and

monochrome graininess testing and reporting may be required. If required, graininess of 70 %, 40 %

and 20 % tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.5.

The target shall be 25,4 × 25,4 mm and should be 30 × 30 mm. Aims and tolerances, if required, shall

be specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.5 Show-through

Show-through testing and reporting may be required. If required, show-through shall be measured as

defined in ISO/TS 15311-1:2016, 4.3.3.6. Aims and tolerances, if required, shall be specified in advance

by the print buyer for the intended use case and suggested guidelines for these requirements are

provided in Annexes C and D.
4.2.3.6 Colour variation within printed matter

Colour variation testing and reporting should be required. If required, colour variation within printed

matter shall be evaluated by an average colour difference of solids of the primary and secondary colours

© ISO 2018 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TS 15311-2:2018(E)

and representative mid-tone values (e.g. 40 %, 50 %) of the primary colours, and should be evaluated

by an average colour difference of control strip colours. The average colour difference is an average

of CIE DE2000 values between the average CIE L*a*b* of all samples and CIE L*a*b* of each sample.

The 95 percentile colour difference is a 95 percentile of CIE DE2000 values between the average CIE

L*a*b* of all samples and CIE L*a*b* of each sample. The samples shall be selected from printed matter

in accordance with ISO/TS 15311-1:2016, 4.2. Aims and tolerances, if required, shall be specified in

advance by the print buyer for the intended use case and suggested guidelines for these requirements

are provided in Annexes C and D.
4.2.4 Detail rendition capabilities
4.2.4.1 General

NOTE There is presently no unambiguous cross-media definition for the metric legibility/sharpness. An

accepted industry method is ISO 12647-8:2012, 4.2.9.
4.2.4.2 Line width
...

SLOVENSKI STANDARD
SIST-TS ISO TS 15311-2:2020
01-april-2020
Grafična tehnologija - Zahteve za kakovost tiska tiskovin - 2. del: Komercialni
tiskarski postopki, izvedeni s tehnologijami digitalnega tiska

Graphic technology - Print quality requirements for printed matter - Part 2: Commercial

print applications utilizing digital printing technologies

Technologie graphique - Exigences pour les imprimés pour les productions industrielle et

commerciale - Partie 2: Titre manque
Ta slovenski standard je istoveten z: ISO TS 15311-2:2018
ICS:
37.100.01 Grafična tehnologija na Graphic technology in
splošno general
SIST-TS ISO TS 15311-2:2020 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS ISO TS 15311-2:2020
---------------------- Page: 2 ----------------------
SIST-TS ISO TS 15311-2:2020
TECHNICAL ISO/TS
SPECIFICATION 15311-2
First edition
2018-10
Graphic technology — Print quality
requirements for printed matter —
Part 2:
Commercial print applications
utilizing digital printing technologies
Reference number
ISO/TS 15311-2:2018(E)
ISO 2018
---------------------- Page: 3 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Requirements .......................................................................................................................................................................................................... 2

4.1 General ........................................................................................................................................................................................................... 2

4.1.1 Applications ......................................................................................................................................................................... 2

4.1.2 Measurement ...................................................................................................................................................................... 2

4.1.3 Data reference communication ........................................................................................................................... 2

4.2 Print quality measures ..................................................................................................................................................................... 3

4.2.1 Overview ................................................................................................................................................................................. 3

4.2.2 Colour and tone reproduction and surface finish................................................................................ 3

4.2.3 Homogeneity ....................................................................................................................................................................... 5

4.2.4 Detail rendition capabilities ................................................................................................................................... 6

4.2.5 Artefacts .................................................................................................................................................................................. 6

4.2.6 Permanence ...................................................................... .................................................................................................... 6

Annex A (informative) Partial colour reference (PCR) ...................................................................................................................... 8

Annex B (normative) Control strip from ISO 12647-8 ....................................................................................................................... 9

Annex C (informative) ......................................................................................................................................................................................................10

Annex D (informative) Specified targets and suggested tolerance ranges for digital printing

metrics in all markets ..................................................................................................................................................................................14

Bibliography .............................................................................................................................................................................................................................20

© ISO 2018 – All rights reserved iii
---------------------- Page: 5 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 130, Graphic technology.

A list of all parts in the ISO/TS 15311 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
Introduction
0.1 General

When producing a colour reproduction, it is important that the persons responsible for data creation,

colour separation, proofing and printing operations have previously agreed to a set of parameters

that define the visual characteristics and other technical properties of the planned print product. It

is equally important that they have agreed to the method that will be used to verify that the printed

output meets these aims and tolerances. This document identifies the minimum essential metrics and

optional metrics for analysing printing output produced for the general commercial print marketplace.

This marketplace has evolved in recent years from using classical reproduction processes such as

offset, letterpress, gravure, screen printing and flexography to include the many varied digital printing

systems that are being developed to meet a wide range of potential needs depending on how the user

chooses to prioritize speed, quality and cost. Along with and commensurate with this change has been a

shift in technical emphasis from using quality control of the printing process and expecting statistically

based predictable printing results to using colour management and other inherent measures of print

quality directly on the printed page. ISO/TS 15311-1 helps identify these metrics.

This document deals with the assessment of printed sheets and does not consider how the process of

printing the sheets is controlled. For reference, those methods for process control for conventional print

processes are described in ISO 12647-2 to ISO 12647-6. Additionally, ISO/PAS ISO 15339 establishes

principles for the use of colour characterization data as the definition of the intended relationship

between input data and printed colour in all printing applications. There is no ISO standard for process

control for digital printing; the inherent process control method is generally specified by the digital

printing system manufacturer. No matter what method is used for process control, this document may

be used to assess the printed results.

With this in mind, this document is intended to aid the printer and their customer, the print buyer,

to define the inherent quality of the sheet using targets that can be included directly on the sheet

(including the margin trim waste) or at least implied by the content of the images on the sheet itself.

It is intended to be a more direct approach to relate digital printing to visual results while achieving

the same quality levels of consistency that the industry has come to know and trust in their process

controlled printed sheet. While this document is necessary for any digital printing system output due

to the lack of a process control standard for digital printing, it could also be used to assess the resultant

quality of any printed sheet that had been printed using process control methods from any of the

classical printing processes if the printer and print buyer have previously agreed.

More importantly, because of the wide range of digital printing devices in terms of speed, quality, run

length and sheet or board size, and the equally wide range of quality needs in the various printing

market places, there presently is no cross-market agreement as to what constitutes “acceptable” quality.

This document gives guidance in applying the appropriate metrics to develop custom tolerances for

assessing printing system output, but it does not suggest specific acceptable quality levels. While it has

many of the same metrics as ISO 12647-7 and ISO 12647-8, those standards include aims and tolerances

limited to specified proofing application which are generally much tighter quality levels than normal

digital printing.

The metrics involved in this document have been selected from ISO/TS 15311-1. In a few cases if

representative metrics, for necessary aspects of judging quality such as legibility, are not included in

ISO/TS 15311-1, suggested metrics have been drawn from other sources. All specified metrics are

directly measureable on the printed sheet. Some suggested metrics, including more comprehensive

targets, which are at least indirectly measureable on another sheet printed on the same unit at

approximately the same time as the subject sheet, indicate the state that the process was in at the time

of printing. This document also includes other optional metrics for anyone who desires to analyse other

aspects of the printed sheet that are not essential to everyday transactions and which may require

special tests conducted in sophisticated laboratories. These will probably be used only to compare the

capabilities of various digital printing systems.
© ISO 2018 – All rights reserved v
---------------------- Page: 7 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)

Since the role and the process of digital printing are both rapidly evolving, as indicated above, the

printer and print buyer must jointly agree on the expected quality range for each of the required tests

in advance of their printed job. Because there are many different types of digital printing equipment,

specific machine expectations must come from the manufacturers of each piece of equipment.

0.2 Identification of suitable colour metrics

When selecting the set of metrics to be included in this document, only those metrics that have a clear

definition and that correlate well with human perception are used. Since this is an area of significant

research activity we expect many new metrics to emerge in the next few years. For this reason we

anticipate the need to revise this document within a very short time scale as new metrics are tested

and found to be reliable.

In many cases the existing standards use CIE dEab rather than CIEDE2000. Although these are not

interchangeable quantities, dEab has been superseded by CIEDE2000 in ISO TC 130 standards and in

this document. Similarly, printing density is seldom used to measure colour and where the referenced

standards specify printing density we have used CIELab colour measurement.
0.3 Reporting schema

As with any parameter that is used as part of a product specification it is important for readers to

understand clearly what the metric means. For this reason ISO/TS 15311-1 includes a reporting schema

that should be followed when reporting measurements in conformance with this document. This

document includes optional reporting forms.
vi © ISO 2018 – All rights reserved
---------------------- Page: 8 ----------------------
SIST-TS ISO TS 15311-2:2020
TECHNICAL SPECIFICATION ISO/TS 15311-2:2018(E)
Graphic technology — Print quality requirements for
printed matter —
Part 2:
Commercial print applications utilizing digital printing
technologies
1 Scope

This document gives guidance to print buyers and other users of print for assessing printed products

on isotropic substrates that are typically held at a viewing distance of 30 to 50 cm. It specifies the

proper application of required, recommended and optional metrics, measurement methods and, where

appropriate, reporting requirements in the general commercial market.

Although this document is expected to be used primarily to measure prints from digital printing

systems the metrics are general and may be applied to other kinds of print.

This document does not provide process control aims or tolerances as these differ widely for different

types of commercial applications.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 13655, Graphic technology — Spectral measurement and colorimetric computation for graphic

arts images

ISO/TS 15311-1, Graphic Technology — Requirements for printed matter for commercial and industrial

production —Part 1: Measurement methods and reporting schema
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/TS 15311-1 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
digital printing system

system that prints one unique iteration at a time for either variable data or classical printing

applications, including but not limited to electrophotographic and ink-jet marking engines

© ISO 2018 – All rights reserved 1
---------------------- Page: 9 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
3.2
printing condition

components or settings used for printing that significantly constitute the final visual appearance of the

print product

Note 1 to entry: A typical printing condition comprises the printer, the substrate, the ink or toner, the used

interpreter (RIP), the colour management software, the reference printing condition to be simulated and the

print mode.
3.3
spot colour

non-process colour that is used in addition to, or in place of, a process colour and is normally applied

with a single impression

Note 1 to entry: When associated with a corporate product identity, a spot colour is also known as a brand colour.

3.4
print substrate
intended substrate to be used for production printing
4 Requirements
4.1 General
4.1.1 Applications

This document for printed output may be applied to two separate use applications:

1) Printing output from a new general commercial printing system production run. The print buyer

and the printer shall agree on aim values and tolerances for the metrics described in this document.

Aims and tolerances should be developed through use-case analysis. Measured values and ranges

for typical commercial print output for a number of regions are provided in Annex C.

2) Printing output intended to represent the capabilities of a specified digital printing system. This

shall not be implied to represent the capabilities of that model or similar models of digital printing

systems without documenting that it is representative of that group which is outside the scope of

this document. For this application no goals or tolerances are required, but aims and results shall

be reported. All care should be taken to ensure that the samples are representative of the specified

system. For multiple sheets and full press runs, sampling, measurement and reporting should be

done as described in ISO/TS 15311-1.

The application type shall be reported. It should be noted that there are no provisions for non-colour

related information such as varnishes, die cutting and other overlays.
4.1.2 Measurement

All colour measurements shall be made in accordance with ISO 13655. The measurement conditions

(M0, M1, M2 or M3) and the backing to be used (white or black backing) shall be in accordance with

those specified for the characterization data set being used, and if that is not possible, the conversion in

ISO 13655:2017, A.4 should be performed.

Metrics shall be assumed to apply to the assessment of a single printed sheet unless otherwise specified

and to the printing condition as defined in 3.2.
4.1.3 Data reference communication

All print elements shall be prepared as colorimetrically defined data. All evaluation and reference print

output shall have been targeted to pre-approved data sets. Referenced colorimetric data sets should

2 © ISO 2018 – All rights reserved
---------------------- Page: 10 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)

be in conformance with ISO 15930. The intended printing condition shall be defined by the ICC output

profile.

In order to determine a match of a printed sheet to a characterization data set or a printing condition,

according to this document, the following information shall be documented:
— the characterization data set to be used as the reference;

— the colour tolerances (if a visual match is required) and the category of colour reproduction

(“absolute” or “media-relative”) for the image content;

— the colour tolerances (if a visual match is required) for spot colours, if present;

— if a partial colour reference (PCR) is requested, information about the affected region for which the

requirements should apply, see Annex A for more information;

— additional use-case-dependent requirements, such as minimum image resolution or line width,

should be defined on an individual basis. It is recommended that guidelines provided by trade

organizations such as the GWG or PDF/X-ready are used.
4.2 Print quality measures
4.2.1 Overview
The intended viewing distance is 30 to 50 cm.

Recommended targets for all metrics in this document and a suggested appropriate range for each test

are provided in Annex D.

Metrics specified in this document, to be used for evaluation of commercial printing system output, are

defined and specified in ISO/TS 15311-1. Other properties such as legibility, which are desirable to test,

but for which a test has not been validated in Part 1, will be referenced to the best-known alternative.

For all printing system output under evaluation, the evaluation report should include the printing

device, print condition, substrate the RIP and so on.
4.2.2 Colour and tone reproduction and surface finish
4.2.2.1 General

The following requirements concern image quality attributes that are closely related to colour and

surface finish. Evaluations based on this document shall report the required evaluation metrics plus

aims and custom tolerance where applicable. Unless otherwise reported, the colour measurement

method shall be assumed to be absolute colour.

NOTE There is presently no unambiguous cross-media definition for the metric tone value range/sharpness.

An accepted industry method is ISO 12647-8:2012, 4.2.6.
4.2.2.2 Print substrate

The print substrate shall conform with print buyer specifications for type of surface, mass-per-area,

colour, fluorescence and gloss. Substrate attributes shall be reported as shown in ISO/TS 15311-1:2016,

Table 2.
© ISO 2018 – All rights reserved 3
---------------------- Page: 11 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
4.2.2.3 Absolute colour reproduction (process colours)

For the purposes of this document, commercial printed output is separated into two types:

1) output used to establish the colorimetric match (setup) of the printing system being tested

(deviation from the intended reference printing condition) throughout the entire colour gamut

using ISO 12642-2 (or similar) colour charts and other appropriate test forms;

2) output limited to practical printing quality assessment using control strips (representative subsets

of the full colour charts) which previously were included on the output to monitor variation during

the print run.

Absolute colour reproduction testing and reporting for control strip applications (substrate, CSMax,

CSAve, CSAveNeutral) shall be required. Absolute colour reproduction testing and reporting for colour

chart applications (CCAveSurface, CCAve, CC95 %) should be required.

Targets and test methods and reporting shall be as defined in ISO/TS 15311-1. The control strip patch

requirements shall be as defined in Annex B.

The print buyer shall specify goals and tolerances for the categories listed in Table 1, as required by

the application. These requirements shall be specified in advance and suggested guidelines for these

requirements are provided in Annexes C and D.
Table 1 — Absolute colour evaluations metrics
Test type Test identification
Patch e) substrate by comparison to e) dE
the reference data set
Maximum colour difference for all CSMax dE
control strip patches
Average colour difference for control CSAve dE
strip patches
Average chromaticness difference for CSAveNeutral dCh
CMY neutral control strip patches
Average colour difference for selected CCAveSurface dE
surface gamut patches
Average colour difference for the CCAve dE
characterization chart
95th percentile for the characteriza- CC95 % dE
tion chart
∆C is the CIELAB chromaticness difference between two colours of

approximately the same lightness projected onto a constant lightness plane in the

CIELAB colour space. This is calculated the same way as ∆E
4.2.2.4 Media relative colour reproduction (process colours)

Media relative colour reproduction testing and reporting may be required for evaluating a press sheet.

Where required, targets, test methods and reporting shall be as defined in ISO/TS 15311-1.

4.2.2.5 Gloss
Gloss testing and reporting should be required for evaluating a press sheet.

For proper colour measurement and meaningful analysis the gloss of solid tone colours should be the

same category as the substrate on which they are printed (differential gloss).

If gloss is measured, it shall be measured, referenced and reported as defined in ISO/TS 15311-1:2016,

4.3.2.6.
4 © ISO 2018 – All rights reserved
---------------------- Page: 12 ----------------------
SIST-TS ISO TS 15311-2:2020
ISO/TS 15311-2:2018(E)
4.2.2.6 Colour deviation of multiple samples of printed matter

Colour deviation testing and reporting should be required. If required, colour deviation of printed

matter is evaluated by an average colour difference of all colours on the control strip. The average colour

difference is an average of CIE DE2000 values between the average CIE L*a*b* of all samples and CIE

L*a*b* of target colour. The samples shall be selected from printed matter in accordance with ISO/

TS 15311-1:2016, 4.2. Aims and tolerances, if required, shall be specified in advance by the print buyer for

the intended use case and suggested guidelines for these requirements are provided in Annexes C and D.

4.2.3 Homogeneity
4.2.3.1 Banding (monochrome)

A visual assessment by an experienced operator and reporting of banding should be required, and

monochrome banding testing and reporting may be required. If required, streaks and bands on 50 %

tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.2. The

target shall be 160 × 100 mm and should be 160 × 160 mm. Aims and tolerances, if required, shall be

specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.2 Large area uniformity

A visual assessment by an experienced operator and reporting of large area uniformity should be

required, and large area uniformity testing and reporting may be required. If required, large area

uniformity of C65 % M50 % Y50 % K50 %, C40 % M30 % Y30 % K30 %, C20 % M15 % Y15 % K15 %

tone values combinations shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.3. Aims and

tolerances, if required, shall be specified in advance by the print buyer for the intended use case and

suggested guidelines for these requirements are provided in Annexes C and D.
4.2.3.3 Mottle (monochrome)

A visual assessment by an experienced operator and reporting of mottle should be required, and

monochrome mottle testing and reporting may be required. If required, mottle of 70 %, 40 % and 20 %

tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.4. The

target shall be 25,4 × 25,4 mm and should be 30 × 30 mm. Aims and tolerances, if required, shall be

specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.4 Graininess (monochrome)

A visual assessment by an experienced operator and reporting of graininess should be required, and

monochrome graininess testing and reporting may be required. If required, graininess of 70 %, 40 %

and 20 % tone of black, cyan and magenta shall be measured as defined in ISO/TS 15311-1:2016, 4.3.3.5.

The target shall be 25,4 × 25,4 mm and should be 30 × 30 mm. Aims and tolerances, if required, shall

be specified in advance by the print buyer for the intended use case and suggested guidelines for these

requirements are provided in Annexes C and D.
4.2.3.5 Show-through

Show-through testing and reporting may be required. If required, show-through shall be measured as

defined in ISO/TS 15311-1:2016, 4.3.3.6. Aims and tolerances, if required, shall be specified in advance

by the print buyer for the intended use case and suggested guidelines for these requirements are

provided in Annexes C and D.
4.2.3.6 Colour variation within printed matter

Colour variation testing and reporting should be required. If required, colour variation within

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
