Residual current operated circuit-breakers with integral overcurrent protectionfor household and similar uses (RCBOs) - Part 1: General rules (IEC 61009-1:2010/A1:2012, modified)

D146/C016: NWI approved - Endorsement of IEC 61009-1:2010/A1:2012 A1 with common modifications*2014-02-07: UAP allocated to aclausse@cencenelec.eu

Fehlerstrom-/Differenzstrom-Schutzschalter mit eingebautem Überstromschutz (RCBOs) für Hausinstallationen und für ähnliche Anwendungen -- Teil 1: Allgemeine Anforderungen (IEC 61009-1:2010/A1:2012, modifiziert)

Interrupteurs automatiques à courant différentiel résiduel avec dispositif de protection contre les surintensités incorporé pour usages domestiques et analogues (DD) -- Partie 1: Règles générales (CEI 61009-1:2010/A1:2012, modifié)

Odklopniki na preostali (residualni) tok z vgrajeno nadtokovno zaščito za gospodinjsko in podobno rabo (RCBO's) - 1. del: Splošna pravila (IEC 61009-1:2010/A1:2012, spremenjen)

General Information

Status
Published
Publication Date
23-Nov-2014
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
08-Oct-2014
Due Date
13-Dec-2014
Completion Date
24-Nov-2014

Relations

Buy Standard

Amendment
EN 61009-1:2013/A1:2014
English language
66 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 61009-1:2013/A1:2014
01-december-2014
2GNORSQLNLQDSUHRVWDOL UHVLGXDOQL WRN]YJUDMHQRQDGWRNRYQR]DãþLWR]D
JRVSRGLQMVNRLQSRGREQRUDER 5&%2
V GHO6SORãQDSUDYLOD ,(&
$VSUHPHQMHQ
Residual current operated circuit-breakers with integral overcurrent protectionfor
household and similar uses (RCBOs) - Part 1: General rules (IEC 61009-
1:2010/A1:2012, modified)
Fehlerstrom-/Differenzstrom-Schutzschalter mit eingebautem Überstromschutz (RCBOs)
für Hausinstallationen und für ähnliche Anwendungen -- Teil 1: Allgemeine
Anforderungen (IEC 61009-1:2010/A1:2012, modifiziert)
Interrupteurs automatiques à courant différentiel résiduel avec dispositif de protection
contre les surintensités incorporé pour usages domestiques et analogues (DD) -- Partie
1: Règles générales (CEI 61009-1:2010/A1:2012, modifié)
Ta slovenski standard je istoveten z: EN 61009-1:2012/A1:2014
ICS:
29.120.50 9DURYDONHLQGUXJD Fuses and other overcurrent
PHGWRNRYQD]DãþLWD protection devices
SIST EN 61009-1:2013/A1:2014 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 61009-1:2013/A1:2014

---------------------- Page: 2 ----------------------

SIST EN 61009-1:2013/A1:2014


EUROPEAN STANDARD
EN 61009-1:2012/A1

NORME EUROPÉENNE

EUROPÄISCHE NORM
October 2014
ICS 29.120.50

English Version
Residual current operated circuit-breakers with integral
overcurrent protection for household and similar uses (RCBOs) -
Part 1: General rules
(IEC 61009-1:2010/A1:2012 , modified)
Interrupteurs automatiques à courant différentiel résiduel Fehlerstrom-/Differenzstrom-Schutzschalter mit
avec dispositif de protection contre les surintensités eingebautem Überstromschutz (RCBOs) für
incorporé pour usages domestiques et analogues (DD) - Hausinstallationen und für ähnliche Anwendungen - Teil 1:
Partie 1: Règles générales Allgemeine Anforderungen
(CEI 61009-1:2010/A1:2012 , modifiée) (IEC 61009-1:2010/A1:2012 , modifiziert)
This amendment A1 modifies the European Standard EN 61009-1:2012; it was approved by CENELEC on 2014-08-04. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status
as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 61009-1:2012/A1:2014 E

---------------------- Page: 3 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 2 –

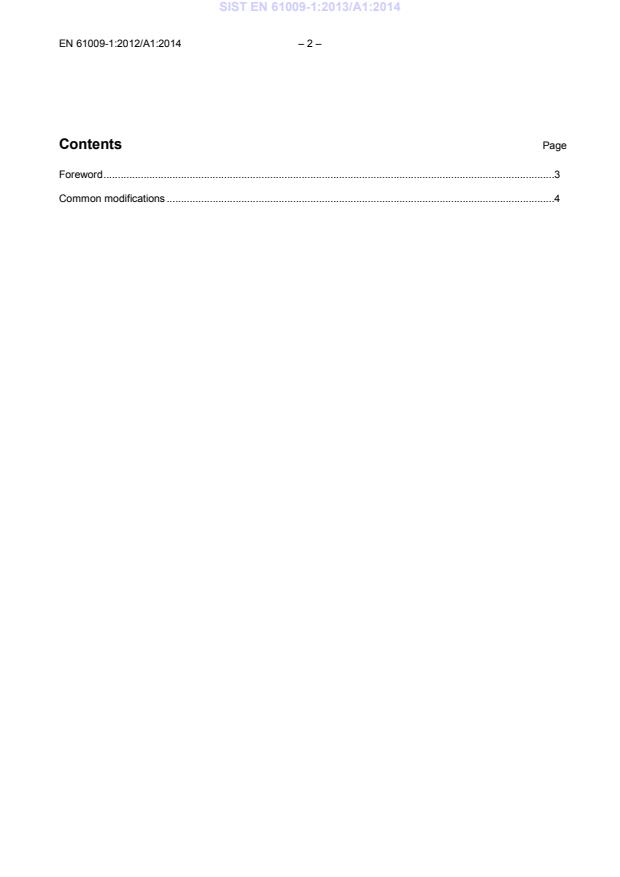

Contents Page
Foreword .3
Common modifications .4

---------------------- Page: 4 ----------------------

SIST EN 61009-1:2013/A1:2014
– 3 – EN 61009-1:2012/A1:2014
Foreword
This document (EN 61009-1:2012/A1:2014) consists of the text of IEC 61009-1:2010/A1:2012 prepared by
SC 23E "Circuit-breakers and similar equipment for household use" of IEC/TC 23 "Electrical accessories",
together with the common modifications prepared by CLC/TC 23E "Circuit breakers and similar devices for
household and similar applications".
The following dates are fixed:
– latest date by which this document has to be implemented at (dop) 2015-08-04
national level by publication of an identical national standard or
by endorsement
– latest date by which the national standards conflicting with this (dow) 2017-08-04
document have to be withdrawn

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 61009-1:2010/A1:2012 are prefixed “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.

This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2006/95/EC).
This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).
Endorsement notice
The text of the International Standard IEC 61009-1:2010/A1:2012 was approved by CENELEC as a
European Standard with agreed common modifications.

---------------------- Page: 5 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 4 –
Common modifications
Item Clause Common modifications
1. 1
Replace
“Delete Note 8 and replace it by the following paragraph and new Note 8”
by
“Replace the paragraph beginning by “For RCBOs incorporated…” by the following
paragraph and add a new Note 8:”
Delete “the requirements of IEC 60884-1 or” in the new paragraph.
Add “for socket-outlets” between “national requirements” and “of the country”.
2. 2
Delete the modifications to Clause 2.
3. 4.10 Replace the modifications to 4.10 by
“Delete the title “4.10.1 According to the fixation system” (but keep the contents of this
subclause).
Delete the subclause 4.10.2 (both title and contents).”
4. 4.13 Delete the last dash and Note 3.
5. Table 2 Delete “In the table, replace the word “non-operating” by “non-actuating".”
6. 5.3.10
Add a new modification:
"5.3.10  Standard values of rated impulse withstand voltage (U )
imp
Delete Note 2."
7. 6 Replace
“Replace the contents of item l) by the following:”
by
“Replace the contents of item l) in Table Z3 by the following:”
8. 6 Delete the two paragraphs beginning by “Replace the third paragraph…” and finishing
by “…manufacturer’s catalogue.”
9. 6 Replace
“Replace in the eleventh paragraph after Note 1, the word “circuit” by “conductor””
by
“Replace in the ninth paragraph of 6.Z1, the word “circuit” by “conductor””
10. 6 Replace
“Add the following text at the end of Clause 6:”
by
“Add the following text at the end of Clause 6.Z1:”
11. 8.1.3
Delete “before 9.7.1” in the new Note 1.
12. 8.1.3 Delete “Delete, in this table, point 5 in the first column and the existing Note 3.”
Table 7

---------------------- Page: 6 ----------------------

SIST EN 61009-1:2013/A1:2014
– 5 – EN 61009-1:2012/A1:2014
Item Clause Common modifications
13. 8.1.5.1 Replace
“Delete the second paragraph and the note in this subclause.”
by
"Insert a second paragraph:
In this standard, only terminals for copper conductors are considered."
14. 8.1.5.1 Replace
“Annexes J, K or L”
by
“Annexes J or K”
15. 8.1.5.2 Replace
“or terminals for external untreated aluminium conductors and with aluminium screw-
type terminals for use with copper or with aluminium conductors according to Annex L.”
by
“VOID”
16. 8.1.5.2 Delete “NOTE Information on AWG is given in Annex ID.”
Table 8
17. 8.13 Delete the modifications to 8.13.
18. 9.1.1
Replace
Table 12
“items”
by
“item”
Delete the first dashed item
“– Limiting values of the non-operating current under overcurrent conditions 9.18”
19. 9.5.1 Delete “NOTE Information on AWG is given in Annex ID.”
20. 9.7.7.1
Add the following new modification:
Table 18
"Replace the title of Table 18 by “Void” and delete the table."
21. 9.7.7.2
Delete twice “(or path)”

---------------------- Page: 7 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 6 –
Item Clause Common modifications
22. 9.7.7.4.1 Delete the two following rows:
Table 28
Single-phase system
with mid-point earthed
3,5 3,5 3,4 3,2 3,0
a)
120/240
Single phase system
6,2 6,0 5,8 5,6 5,0
b)
120/240 240

Replace
“Three-phase systems 230/400”
by
“Single-phase systems 230 or 400
Three-phase systems 400 or 230/400”
a) b)
Delete the two footnotes and .
23. 9.7.7.4.3
Delete twice “(or path)”
24. 9.7.7.5 In the paragraph after Note 1, replace
“50/60 Hz”
by
“50 Hz”
25. 9.7.7.5
Delete “(or path)” in the first dashed item.
26. 9.7.7.5 Replace the last sentence of the paragraph after Note 4 by:
“One test only is made, on one pole taken at random, with measurement of break time:
the latter shall not exceed the value specified in Table 2 at l .”
∆n
27. 9.7.7.5 Delete the last paragraph “This test is not applied to devices with solid neutral.”
28. 9.9.2.2
Delete the modifications to 9.9.2.2.
29. 9.12.2 Delete the two following dashed items:
“- a single-pole RCBO with two current paths;”
“- a three-pole RCBO with four current paths;”
30. 9.12.2 Replace
“The voltage sensors are connected
– across the terminals of the pole for single-pole RCBOs;
– across the supply terminals for multipole RCBOs.”
by
“The voltage sensors are connected across the supply terminals.”
31. 9.12.9.1 Replace the modification to 9.12.9.1 by
"Replace at the end of paragraph after Note 1, ”Figure 7 and 11” by “Figures 7 and 8”."

---------------------- Page: 8 ----------------------

SIST EN 61009-1:2013/A1:2014
– 7 – EN 61009-1:2012/A1:2014
Item Clause Common modifications
32. 9.12.11.2.1 In the second paragraph, replace
“105 %”
by
“110 %”
Add a sentence at the end of the second paragraph:
“Phases which do not carry the short circuit current during this test shall be connected
to the supply voltage at the line terminals.”
Add a new paragraph after the second paragraph:
"The measurement of the break time shall be carried out at every test and the values
shall comply with the values of Table 2."
33. 9.12.11.2.2 Add a new modification at the end of the modifications to 9.12.11.2.2:
“Delete the last paragraph.”
34. 9.12.11.3 In the first paragraph, replace
“ninth”
by
“seventh”
Delete the paragraph beginning with “For three-pole…”.
Delete the paragraph beginning with “For four-pole…”
In the last paragraph, delete “single-pole and”.
35. 9.12.11.4
Add a new modification:
“In paragraph d), replace “Figure 11” by “Figure 7””
36. 9.12.13.1 Delete the modification to 9.12.13.1.
37. 9.12.13.2 Delete the modification to 9.12.13.2
38. 9.15
Replace
“From the fifth to the ninth paragraph,”
by
“From the sixth to the tenth paragraph,”
39. 9.18
Delete the modification to 9.18.
40. 9.19.1 Delete the modification to 9.19.1.
41. 9.24 Delete the modification to Table 27.
Table 27
42. 9.25
Replace
” Add before Figure 1 the following new subclause:”
by
“Add before 9.Z1, the following new subclause:“
43. Before
In the first line of the modification, replace
Figure 7
“to 12”
by
“and 11”

---------------------- Page: 9 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 8 –
Item Clause Common modifications
44. Figure 8 Replace
“Figure 8 – Test circuit for the verification of the rated short-circuit capacity of a single-
pole RCBO with two-current paths (9.12)
Replace Figure 8 by the following:”
by
“Figure 8 – Void
Reintroduce Figure 8 as follows:”
45. Figure 9 Replace
“Figure 9 – Test circuit for the verification of the rated short-circuit capacity of a two-
pole RCBO, in case of a single-phase circuit (9.12)
Replace Figure 9 by the following:”
by
“Figure 9 – Void
Reintroduce Figure 9 as follows:”
46. Figures 10 Replace
to 12
“Delete Figures 10, 11 and 12 and replace by “Void”.”
by
“Delete Figure 11 and replace by “Void”.”
47. Figure 22 Delete “Delete Figure 22 and replace by “Void”.”
48. Annex A Replace the test sequence D of the new Table A.1 by:
1
Table A.1
D 9.17 Behaviour in case of failure of the line voltage
1
9.19 Behaviour in case of surge currents
9.21 D.C. components
9.16 Test device

49. Annex A
Replace the test sequences F , F and G of the new Table A.1 by:
0 1
Table A.1
F 9.12.11.4 b) Performance at service short-circuit capacity
0
(and 9.12.12)
F 9.12.11.4 c) Performance at rated short-circuit capacity
1
(and 9.12.12.2)
F 9.12.11.4 d) Performance at I
2
Δm
(and 9.12.12.2)
G 9.22.1 Reliability (climatic tests)
0
G 9.Z1 Verification of correct operation at low ambient
1
air temperature of RCBOs operating at
temperatures between -25 °C and + 40 °C

---------------------- Page: 10 ----------------------

SIST EN 61009-1:2013/A1:2014
– 9 – EN 61009-1:2012/A1:2014
Item Clause Common modifications
50. Annex A Replace
Table A.2
“In Table A.2, replace A by A
1.
containing the following:
In Table A.2, add a new row after the new A
1
A 3 2 3
2

by
“In Table A.2, replace A by the following:
A 1 1 -
1
A 3 2 3
2
f
and delete footnote ”.
51. Annex A Add a new modification:
Table A.4
a
"In Table A.4, replace contents of footnote by:
For sequence B, only the tests of 9.8 shall be performed on 3 samples of maximum rating I with
n
minimum rating I . For sequence E , only the test 9.9.2.2 shall be performed on one sample of
Δn 0
all ratings I with minimum rating I .
n Δn
52. Annex G Replace all modifications to Annex G by
"Add “G.1 General” before introduction and renumber all clauses accordingly.
G.4.2.3 Marking of the assembled circuit breaker and r.c. unit (RCBO)
Replace all paragraphs of G.4.2.3 by the following:
Marking c) on the r.c. unit, if lower than the maximum rated voltage of the circuit-
breaker with which the r.c. unit may be assembled, shall remain visible after assembly.
The marking of the maximum rated current of the circuit-breaker with which the r.c. unit
may be assembled shall not be visible after assembly.
Marking I) of the r.c. unit, if applicable, shall always remain visible after assembly.
G.4.3 Instructions for assembly and operation
Delete the second dashed item (“method of assembly”).
G.5.1 General
In the last sentence of G.5.1, replace “G.5.4” by “G.6.4”.
G.5.4 Electrical compatibility
Delete the first paragraph.
G.6.4 Verification of marking and constructional requirements of RCBOs
In the first paragraph, replace” G.3.1, G.3.2, G.3.3, G 4.1, G.4.2, G.4.3 and G.4.4” by
“G.4.1, G.4.2, G.4.3, G 5.1, G.5.2, G.5.3 and G.5.4”.
In the second paragraph, replace “G.4.1” by “G.5.1”."
53. Annex J Replace
“Add the following new Annexes J, K and L”
by
“Replace Annexes ZE and ZF by the following new Annexes J and K ”

---------------------- Page: 11 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 10 –
Item Clause Common modifications
54. Annex J In the first paragraph, replace
J.1
“with screwless terminals”
by
“with universal screwless terminals”
55. Annex J
Replace Note 1 by
J.1
“NOTE 1  Non-universal terminals are subject to special national conditions.”
56. Annex J Delete Note 1 to entry in Definition J.3.3.
J.3.3
57. Annex J
Replace
J.6
“Non-universal terminals:”
by
“Non-universal terminals (if accepted by Special National Conditions):”
58. Annex J Replace Table J.1 by
J.8.2
Table J.1 – Connectable conductors
Table J.1
Connectable conductors and their theoretical diameter
Rigid Flexible
Solid Stranded
2 2
mm ∅ mm ∅ mm mm ∅ mm
1,0 1,2 1,4 1,0 1,5
1,5 1,5 1,7 1,5 1,8
2,5 1,9 2,2 2,5 2,3
4,0 2,4 2,7 4,0 2,9
NOTE Diameters of the largest rigid and flexible conductors are based on IEC 60228.

59. Annex J Delete the last four references (ASTM B172-01a, ICEA S-19-81 / NEMA WC3,
J.10
ICEA S-66-524 / NEMA WC7 and ICEA S-68-516 / NEMA WC8).
60. Annex K Delete Note 1.
61. Annex K
At the end of the second paragraph, delete “(AWG equal to or greater than 12)”.
K.1
62. Annex K
Delete Note 1.
63. Annex L Delete Annex L.

---------------------- Page: 12 ----------------------

SIST EN 61009-1:2013/A1:2014
– 11 – EN 61009-1:2012/A1:2014
Item Clause Common modifications
64. Annex ZA Add the following new modifications:
"Annex ZA (normative) Normative references to international publications with
their corresponding European publications
Delete the reference to IEC 60051.
Add the following new references to the existing list:
Publication Year Title EN/HD Year
IEC 60228 2004 Conductors of insulated cables EN 60228 2005
+ corr. May 2005
IEC 60364-4-44 (mod) 2007 Low-voltage electrical installations HD 60364-4-444 2010
+ corr. May 2010 Part 4-44: Protection for safety - + corr. July 2010
Protection against voltage + AC:2012 2012
disturbances and electromagnetic
disturbances
IEC 60664-3 - Insulation coordination for EN 60664-3 -
equipment within low-voltage
systems
Part 3: Use of coating, potting or
moulding for protection against
pollution
1)
IEC 60695-2-10 - Fire hazard testing EN 60695-2-10 -
Part 2-10: Glowing/hot-wire based
test methods - Glow-wire
apparatus and common test
procedure
IEC 60695-2-11 2000 Fire hazard testing EN 60695-2-11 2001
+ corr. January 2001 Part 2-11: Glowing/hot-wire based
test methods - Glow-wire
flammability test method for end-
products

Replace the reference to IEC 61543 by the following:
IEC 61543 1995 Residual current-operated EN 61543 1995
- - protective devices (RCDs) for + corr. December 1997
+ A1 (mod) 2004 household and similar use - + A11 2003
- - Electromagnetic compatibility + corr. May 2004
+ A2 2005 + A2 2006
- - + A12 2005
"

65. Annex ZD Add a new modification:
"Annex ZD (normative) Classification of RCBOs Type B and C up to and
including 63A into energy limiting classes
Replace the first sentence after Table ZD.2 by:
“The maximum I²t values measured during the test sequence F or F as applicable
0 1
serve as reference values for the classification.”"

1)
EN 60695-2-10 is superseded by EN 60695-2-10:2013, which is based on IEC 60695-2-10:2013.

---------------------- Page: 13 ----------------------

SIST EN 61009-1:2013/A1:2014
EN 61009-1:2012/A1:2014 – 12 –
Item Clause Common modifications
66. Annex ZXX Add a new modification:
"Annex ZXX (informative) List of clauses that require retesting
Replace the contents of Annex ZXX by
“Based on EN 61009-1:2012, the following tests and/or requirements have been
technically modified and may require retesting or inspection as applicable:
− 9.5 Test of reliability of screw-type terminals for external copper conductors
− 9.7.7.5 Verification of the behaviour of components bridging the basic insulation
− 9.15 Test of resistance to abnormal heat and to fire” "
67. Bibliography Delete “IEC 60228”.
Replace
“IEC 60664-5”
by
“EN 60664-5”.
Delete “IEC 60695-2-11:2000”.

---------------------- Page: 14 ----------------------

SIST EN 61009-1:2013/A1:2014



IEC 61009-1

®

Edition 3.0 2012-04




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE




AMENDMENT 1

AMENDEMENT 1




Residual current operated circuit-breakers with integral overcurrent protection

for household and similar uses (RCBOs) –

Part 1: General rules




Interrupteurs automatiques à courant différentiel résiduel avec dispositif de

protection contre les surintensités incorporé pour usages domestiques et


analogues (DD) –

Partie 1: Règles générales











INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

XA
CODE PRIX


ICS 29.120.50 ISBN 978-2-83220-019-3



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 15 ----------------------

SIST EN 61009-1:2013/A1:2014
– 2 – 61009-1 Amend.1 © IEC:2012
FOREWORD
This amendment has been prepared by subcommittee 23E: Circuit-breakers and similar
equipment for household use, of IEC technical committee 23: Electrical accessories.
The text of this amendment is based on the following documents:
FDIS Report on voting
23E/741/FDIS 23E/745/RVD

Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________

1 Scope
Delete Note 8 and replace it by the following paragraph and new Note 8:
For RCBOs incorporated in, or intended only for association with socket-outlets, the
requirements of this standard may be used, as far as applicable, in conjunction with the
requirements of IEC 60884-1 or the national requirements of the country where the product is
placed on the market.
NOTE 8 Residual current-operated protective devices (RCDs) incorporated in, or intended only for association
with socket-outlets, can either meet IEC 62640 or this standard.
2 Normative references
Delete the reference to IEC 60051.
Add to the existing list, the following new references:
IEC 60228:2004, Conductors of insulated cables
IEC 60364-4-44:2007, Low-voltage electrical installations – Part 4-44: Protection for safety –
Protection against voltage disturbances and electromagnetic disturbances
IEC 60664-3, Insulation coordination for equipment within low-voltage systems – Part 3: Use
of coating, potting or moulding for protection against pollution

---------------------- Page: 16 ----------------------

SIST EN 61009-1:2013/A1:2014
61009-1 Amend.1 © IEC:2012 – 3 –
IEC 60695-2-10, Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods –
Glow-wire apparatus and common test procedure
IEC 60695-2-11:2000, Fire hazard testing – Part 2-11: Glowing /hot-wire based test methods
– Glow-wire flammability test method for end-products
Replace the reference to IEC 61543:1995 by the following new reference:
IEC 61543:1995, Residual current -operated protective devices (RCDs) for household and
similar use – Electromagnetic compatibility
Amendment 1:2004
Amendment 2:2005
4.10 According to the method of connection
In the subclause, replace the existing text and note by the following:
– RCBOs, the electrical connections which are not associated with the mechanical
mounting;
– RCBOs, the electrical connections which are associated with the mechanical mounting.
NOTE Examples of this type are:
– plug-in type;
– bolt-on type;
– screw-in type.
Some RCBOs may be of the plug-in type or bolt-on type on the line side only, the load terminals being usually
suitable for wiring connection.
Add the following new subclause:
According to the type of terminals
4.13
– RCBOs with screw-type terminals for external copper conductors;
– RCBOs with screwless type terminals for external copper conductors;
NOTE 1 The requirements for RCBOs equipped with these types of terminals are given in Annex J.
– RCBOs with flat quick-connect terminals for external copper conductors;
NOTE 2 The requirements for RCBOs equipped with these types of terminals are given in Annex K.
– RCBOs with screw-type terminals for external aluminium conductors.
NOTE 3 The requirements for RCBOs equipped with this type of terminal are given in annex L.
Table 2 – Limit values of break time and non-actuating time for alternating residual
currents (r.m.s. values) for type AC and A RCBO
In the table, replace the word “non-operating” by “non-actuating".
c)
In the table, at the end of Footnote , add the following text:
For the tests of 9.9.1.3 and 9.9.1.4 b), the current I is established so that the vector sum IΔt + I is equal to the
Δt n
lower limit of the overcurrent instantaneous tripping range, according to type B, C or D, as applicable.
6 Marking and other product information
Replace the contents of item l) by the following:
l) the position of use, if necessary;

---------------------- Page: 17 ----------------------

SIST EN 61009-1:2013/A1:2014
– 4 – 61009-1 Amend.1 © IEC:2012
Replace the third paragraph after Note 1 by the following:
If, for small devices, the space available does not allow all the above data to be marked, at
least the information under d), f), n), p) and r) (only for type A) shall be marked and visible
when the device is installed. The information under a), b), c), h) , l), r) (only for type AC) and
s) may be marked on the side or on the back of the device and be visible only before the
device is installed. The information under q) may be on the inside of any cover which has to
be removed in order to connect the supply wires. Any remaining information not marked shall
be given in the manufacturer's catalogues.
Replace in the eleventh paragraph after Note 1, the word “circuit” by “conductor”.
Add the following text at the end of Clause 6:
For universal terminals (for rigid-solid, rigid-stranded and flexible conductors):
– no marking.
For non-universal terminals:
– terminals declared for rigid-solid conductors only shall be marked by the letters “s” or
"sol";
– terminals declared for rigid (solid and stranded) conductors only shall be marked by the
letter "r".
The markings should appear on the RCBO or, if the space available is not sufficient, on the
smallest package unit or in technical information.
8.1.3 Clearances and creepage distances (see Annex B)
Replace the existing text in this subclause by the following:
The minimum required clearances and creepage distances are given in Table 7 which is
based on the RCBO being designed for operating in an environment with pollution degree 2.
Compliance for item 1 in Table 7 is checked by measurement and by the test of 9.7.7.4.1 and
9.7.7.4.2. The test is carried out with samples not submitted to the humidity treatment
described in 9.7.1.
The clearances of items 2 and 4 may be reduced provided that the measured clearances are
not shorter than the minimum allowed in IEC 60664-1 for homogenous field conditions.
In this case, after the humidity treatment described in 9.7.1, compliance for item 2 and 4 and
arrangements of 9.7.2 items b), c), d) and e) is checked in the following order:
– Tests according to 9.7.2 to 9.7.6 as applicable;
– Test according to 9.7.7.2 is applied with test voltages given in Table 19 with test
arrangements of 9.7.2 items b), c), d), e).
If measurement does not show any reduced clearance, test 9.7.7.2 is not applied.
Compliance for item 3 in Table 7 is checked by measurement.
NOTE 1 All measurements required in 8.1.3 are carried out in Test sequence A on one sample and the tests
9.7.7.2 are carried out before 9.7.1 on three samples of Test sequence B.
Parts of PCBs connected to the live parts protected against pollution by the use of a type 2
protection according to IEC 60664-3 are exempt from this verification.

---------------------- Page: 18 ----------------------

SIST EN 61009-1:2013/A1:2014
61009-1 Amend.1 © IEC:2012 – 5 –
The insulating materials are classified into material groups on the basis of their comparative
tracking index (CTI) according to 4.8.1 of IEC 60664-1:2007.
NOTE 2 Information on the requirements for design of solid insulation and appropriate testing is provided in
IEC 60664-1:2007, 5.3 and 6.1.3.
NOTE 3 For clearances on printed wiring material, the following Note 3 in Table F.2 in 60664-1:2007 can be used:
“For printed wiring material, the values for pollution degree 1 apply except that the value should not be less than
0,04 mm, as specified in Table F.4.” For creepage distances on printed wiring material, distances in Table F.4 in
60664-1:2007 can be used if protected with a coating meeting IEC 60664-3 requirements and tests.
NOTE 4 The dimensioning of clearances and creepage distances for spacings equal to or less than 2 mm for
printed wiring board may be optimised under certain conditions in case of use of IEC 60664-5. Only humidity levels
HL 2 and HL3 are considered.
Table 7 – Minimum clearances and creepage distances
Delete, in this table, point 5 in the first column and the existing Note 3.
e
Replace, in the table, the last sentence of the existing Footnote by the following text:
When interpolating, linear interpolation shall be used and values shall be rounded to the same number of digits as
the values picked up from the tables. For determination of creepage distances, see Annex B.
8.1.4.4
In the subclause, replace the existing text by the
...
