SIST EN 50264-2-2:2008

Railway applications - Railway rolling stock power and control cables having special fire performance -- Part 2-2: Cables with crosslinked elastomeric insulation - Multicore cables

EN 50264-2-2 specifies requirements for, and constructions and dimensions of, multicore cables of the following types and voltage ratings: 300/500 V screened or unscreened (1 mm², 1,5 mm² and 2,5 mm², number of cores from 2 to 40); 0,6/1 kV screened or unscreened (1,5 mm² to 50 mm², 2, 3 and 4 cores).

Bahnanwendungen - Starkstrom- und Steuerleitungen für Schienenfahrzeuge mit verbessertem Verhalten im Brandfall -- Teil 2-2: Leitungen mit vernetzter elastomerer Isolierung - Mehr- und vieladrige Leitungen

EN 50264-2-2 legt Anforderungen an und Aufbauten und Abmessungen von mehr- und vieladrigen Leitungen für folgende Bauarten und Nennspannungen fest: • 300 V/500 V mit oder ohne Schirm (1 mm², 1,5 mm² und 2,5 mm², Aderzahlen von 2 bis 40); • 0,6 kV/1 kV mit oder ohne Schirm (1,5 mm² bis 50 mm², 2, 3 und 4 Adern). ANMERKUNG Nicht alle Leiterquerschnitte oder Aderzahlen sind für jede Bauart festgelegt. Alle Leitungen haben einen verzinnten Kupferleiter Klasse 5 nach EN 60228, eine halogenfreie Isolierung und gegebenenfalls einen halogenfreien Mantel. Sie sind für feste Verlegung im Schienenfahrzeug bestimmt oder für Verdrahtungen, bei denen im Betrieb begrenzt mit Bewegungen gerechnet werden muss. Die Anforderungen berücksichtigen eine dauernde Leitertemperatur von nicht mehr als 90 °C und eine maximale Kurzschlusstemperatur von 200 °C bei einer Dauer von 5 Sekunden.  Unter Brandbedingungen zeigen die Leitungen besondere Leistungsmerkmale hinsichtlich der maximal zulässigen Weiterleitung der Flammen (Ausbreitung der Flammen) und der höchsten zulässigen Emission von Rauch und giftigen Gasen. EN 50264-2-2 sollte in Verbindung mit Teil 1 „Allgemeine Anforderungen“ gelesen werden.

Applications ferroviaires - Câbles de puissance et de contrôle à comportement au feu spécifié pour matériel roulant ferroviaire -- Partie 2-2: Câbles à enveloppe isolante réticulée - Câbles multiconducteurs

La EN 50264-2-2 spécifie les prescriptions, la construction et les dimensions des câbles multiconducteurs des types et tensions assignées suivants: • 300/500 V avec ou sans blindage (de 1 mm², 1,5 mm² et 2,5 mm²; de 2 à 40 conducteurs); • 0,6/1 kV avec ou sans blindage (de 1,5 mm² à 50 mm²; de 2, 3 et 4 conducteurs). NOTE Les combinaisons des sections et des nombres de conducteurs ne sont pas toutes spécifiées pour chaque type. Tous les câbles possèdent une âme en cuivre étamé de classe 5 selon la EN 60228, une enveloppe isolante et une gaine sans halogènes. Ils sont destinés aux installations fixes ou soumis à de faibles flexions en service des matériels roulants ferroviaires. Les prescriptions sont basées pour une température permanente de l’âme ne dépassant pas 90 °C et à une température maximale de 200 °C pour une durée de 5 s en cas de court-circuit. Les câbles présentent, en cas d’incendie, des performances particulières de propagation maximale admissible de la flamme (longueur brûlée) et d’émission de fumées et de gaz toxiques. Il est recommandé de lire la EN 50264-2-2 conjointement avec la Partie 1 "Prescriptions générales".

Železniške naprave - Energetski in krmilni kabli za železniška vozna sredstva, ki imajo posebne ognjevarne lastnosti - 2-2. del: Kabli z zamreženo elastomerno izolacijo - Večžilni kabli

General Information

• Status: Published
• Publication Date: 21-Jul-2008
• ICS: 13.220.20 - Fire protection
• ICS: 29.060.20 - Cables
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: IEKA - Electric cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 02-Jul-2008
• Due Date: 06-Sep-2008
• Completion Date: 22-Jul-2008
• Ref Project: EN 50264-2-2:2008 - Railway applications - Railway rolling stock power and control cables having special fire performance - Part 2-2: Cables with crosslinked elastomeric insulation - Multicore cables

Relations

• Replaces: SIST EN 50264-3:2003 - Railway applications - Railway rolling stock cables having special fire performance - Standard wall -- Part 3: Multicore cables
• Effective Date: 01-Apr-2011
• Replaces: SIST EN 50264-3:2003 - Railway applications - Railway rolling stock cables having special fire performance - Standard wall -- Part 3: Multicore cables
• Effective Date: 28-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50264-2-2:2008
01-september-2008
1DGRPHãþD
SIST EN 50264-3:2003
äHOH]QLãNHQDSUDYH(QHUJHWVNLLQNUPLOQLNDEOL]DåHOH]QLãNDYR]QDVUHGVWYDNL
LPDMRSRVHEQHRJQMHYDUQHODVWQRVWLGHO.DEOL]]DPUHåHQRHODVWRPHUQR
L]RODFLMR9HþåLOQLNDEOL
Railway applications - Railway rolling stock power and control cables having special fire
performance -- Part 2-2: Cables with crosslinked elastomeric insulation - Multicore cables
Bahnanwendungen - Starkstrom- und Steuerleitungen für Schienenfahrzeuge mit
verbessertem Verhalten im Brandfall -- Teil 2-2: Leitungen mit vernetzter elastomerer
Isolierung - Mehr- und vieladrige Leitungen
Applications ferroviaires - Câbles de puissance et de contrôle à comportement au feu
spécifié pour matériel roulant ferroviaire -- Partie 2-2: Câbles à enveloppe isolante
réticulée - Câbles multiconducteurs
Ta slovenski standard je istoveten z: EN 50264-2-2:2008
ICS:
13.220.20 3RåDUQD]DãþLWD Fire protection
29.060.20 Kabli Cables
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN 50264-2-2:2008 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50264-2-2:2008

---------------------- Page: 2 ----------------------

SIST EN 50264-2-2:2008


EUROPEAN STANDARD
EN 50264-2-2

NORME EUROPÉENNE
June 2008
EUROPÄISCHE NORM

ICS 13.220.20; 29.060.20; 45.060.01 Supersedes EN 50264-3:2002


English version


Railway applications -
Railway rolling stock power and control cables
having special fire performance -
Part 2-2: Cables with crosslinked elastomeric insulation -
Multicore cables




Applications ferroviaires - Bahnanwendungen -
Câbles de puissance et de contrôle Starkstrom- und Steuerleitungen
à comportement au feu spécifié für Schienenfahrzeuge mit verbessertem
pour matériel roulant ferroviaire - Verhalten im Brandfall -
Partie 2-2: Câbles à enveloppe Teil 2-2: Leitungen mit vernetzter
isolante réticulée - elastomerer Isolierung -
Câbles multiconducteurs Mehr- und vieladrige Leitungen




This European Standard was approved by CENELEC on 2008-03-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels


© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50264-2-2:2008 E

---------------------- Page: 3 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 2 –

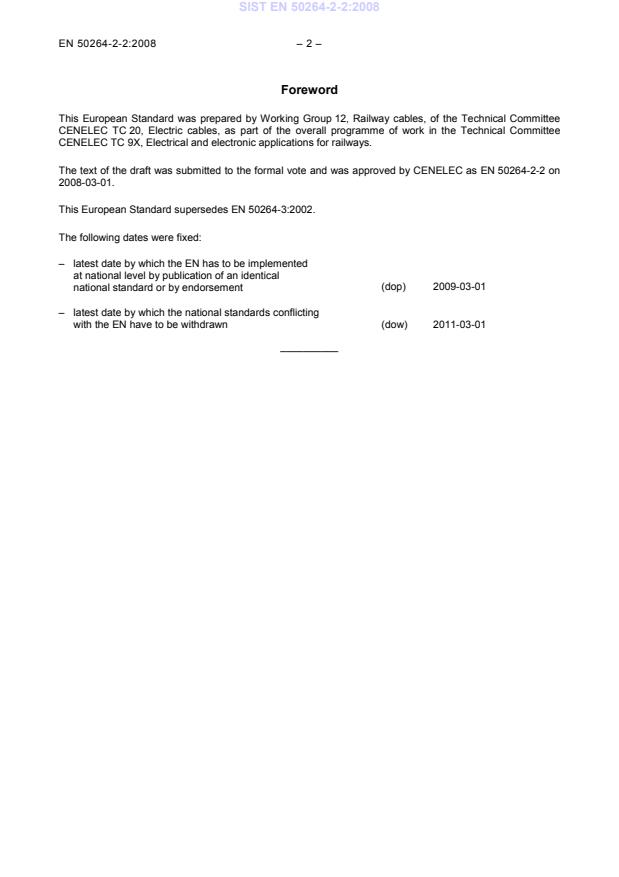

Foreword
This European Standard was prepared by Working Group 12, Railway cables, of the Technical Committee
CENELEC TC 20, Electric cables, as part of the overall programme of work in the Technical Committee
CENELEC TC 9X, Electrical and electronic applications for railways.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50264-2-2 on
2008-03-01.
This European Standard supersedes EN 50264-3:2002.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-03-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2011-03-01
__________

---------------------- Page: 4 ----------------------

SIST EN 50264-2-2:2008
– 3 – EN 50264-2-2:2008
Contents
Page

Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Definitions . 7
4 Rated voltage . 7
5 Marking and identification . 7
5.1 Marking of cable . 7
5.2 Core identification. 8
5.3 Sheath . 8
6 Construction of cables . 8
6.1 General . 8
6.2 Conductor . 8
6.3 Insulation system. 9
6.4 Laying up of cores and fillers . 9
6.5 Metallic screen . 9
6.6 Sheath . 9
6.7 Construction . 10
7 Tests . 18
7.1 Definitions relating to tests . 18
7.2 Conductor resistance. . 18
7.3 Voltage test . 18
7.4 Insulation resistance . 19
7.5 Dielectric strength on sample . 19
7.6 Spark test . 19
7.7 Surface resistance. 20
7.8 Ageing test . 20
7.9 Hot set test . 20
7.10 Compatibility . 20
7.11 Water absorption of sheath . 21
7.12 Ozone resistance . 21
7.13 Mineral oil resistance . 21
7.14 Fuel resistance . 22
7.15 Acid and alkali resistance . 22
7.16 Bending test at low temperature (cores or cables with OD ≤ 12,5 mm) . 23
7.17 Cold elongation test (cores or cables with OD > 12,5 mm) . 23
7.18 Impact test at low temperature . 23
7.19 Reaction to fire – Cable . 23
7.20 Reaction to fire – Components . 23
Annex A (normative) Code designation . 27
Bibliography . 28

---------------------- Page: 5 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 4 –
Tables

Table 1 – Multicore cables – unscreened (300/500 V) . 11
Table 2 – Multicore cables – screened (300/500 V) . 13
Table 3 – Dimensions of core (0,6/1 kV) . 15
Table 4 – Two cores – (0,6/1 kV) unscreened. 15
Table 5 – Two cores – (0,6/1 kV) screened. 16
Table 6 – Three cores – (0,6/1 kV) unscreened . 16
Table 7 – Three cores – (0,6/1 kV) screened . 17
Table 8 – Four cores – (0,6/1 kV) unscreened . 17
Table 9 – Four cores – (0,6/1 kV) screened . 18
Table 10 – Schedule of tests for cables . 24

---------------------- Page: 6 ----------------------

SIST EN 50264-2-2:2008
– 5 – EN 50264-2-2:2008
Introduction
The EN 50264 series covers a range of cables, based upon halogen free materials, for use in railway rolling
stock. It is divided into 5 parts under the generic title “Railway applications - Railway rolling stock power and
control cables having special fire performance”:
– Part 1 General requirements;
– Part 2-1 Cables with crosslinked elastomeric insulation – Single core cables;
– Part 2-2 Cables with crosslinked elastomeric insulation – Multicore cables;
– Part 3-1 Cables with crosslinked elastomeric insulation with reduced dimensions – Single core
cables;
– Part 3-2 Cables with crosslinked elastomeric insulation with reduced dimensions – Multicore cables.
Information regarding selection and installation of cables, including current ratings can be found in EN 50355
and EN 50343. The procedure for selection of cable cross-sectional area, including reduction factors for
ambient temperature and installation type, is described in EN 50343.
Special test methods referred to in EN 50264 are given in EN 50305.
Part 1, “General requirements”, contains a more extensive introduction to EN 50264, and should be read in
conjunction with this Part 2-2.

---------------------- Page: 7 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 6 –
1 Scope
EN 50264-2-2 specifies requirements for, and constructions and dimensions of, multicore cables of the
following types and voltage ratings:
• 300/500 V screened or unscreened (1 mm², 1,5 mm² and 2,5 mm², number of cores from 2 to 40);
• 0,6/1 kV screened or unscreened (1,5 mm² to 50 mm², 2, 3 and 4 cores).
NOTE  Not all conductor sizes or number of cores are specified for every type.
All cables have class 5 tinned copper conductors to EN 60228, halogen-free insulation and halogen-free
sheath. They are for use in railway rolling stock as fixed wiring, or wiring where limited flexing in operation is
encountered. The requirements provide for a continuous conductor temperature not exceeding 90 °C and a
maximum temperature for short circuit conditions of 200 °C based on a duration of 5 s.
Under fire conditions the cables exhibit special performance characteristics in respect of maximum
permissible flame propagation (flame spread) and maximum permissible emission of smoke and toxic gases.
EN 50264-2-2 should be read in conjunction with Part 1 “General requirements”.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 10002-1 Metallic materials – Tensile testing – Methods of test at ambient temperature
EN 50264-1:2008 Railway applications – Railway rolling stock power and control cables having
special fire performance – Part 1: General requirements
EN 50266-2-4 Common test methods for cables under fire conditions – Test for vertical flame
spread of vertically-mounted bunched wires or cables –
Part 2-4: Procedures – Category C
EN 50266-2-5 Common test methods for cables under fire conditions – Test for vertical flame
spread of vertically-mounted bunched wires or cables –
Part 2-5: Procedures – Small cables – Category D
EN 50305:2002 Railway applications – Railway rolling stock cables having special fire performance
– Test methods
EN 50334 Marking by inscription for the identification of cores of electric cables
EN 60228 Conductors of insulated cables (IEC 60228)
EN 60332-1-2 Tests on electric and optical fibre cables under fire conditions –
Part 1-2: Test for vertical flame propagation for a single insulated wire or cable –
Procedure for 1 kW pre-mixed flame (IEC 60332-1-2)
EN 60811-1-1:1995 Insulating and sheathing materials of electric and optical cables – Common test
methods – Part 1-1: General application – Measurement of thickness and overall
dimensions – Tests for determining the mechanical properties
(IEC 60811-1-1:1993)

---------------------- Page: 8 ----------------------

SIST EN 50264-2-2:2008
– 7 – EN 50264-2-2:2008
EN 60811-1-2:1995 Insulating and sheathing materials of electric cables – Common test methods –
Part 1-2: General application – Thermal ageing methods
(IEC 60811-1-2:1985 + A1:1989 + corr. May 1986)
EN 60811-1-3:1995 Insulating and sheathing materials of electric and optical cables – Common test
methods – Part 1-3: General application – Methods for determining the density –
Water absorption tests – Shrinkage test (IEC 60811-1-3:1993)
EN 60811-1-4:1995 Insulating and sheathing materials of electric and optical cables – Common test
methods – Part 1-4: General application – Tests at low temperature
(IEC 60811-1-4:1985 + A1:1993 + corr. May 1986)
EN 60811-2-1:1998 Insulating and sheathing materials of electric and optical cables – Common test
methods – Part 2-1: Methods specific to elastomeric compounds – Ozone
resistance, hot set and mineral oil immersion tests
(IEC 60811-2-1:1998)
EN 61034-2 Measurement of smoke density of cables burning under defined conditions –
Part 2: Procedure and requirements (IEC 61034-2)
HD 308 Identification of cores in cables and flexible cords
3 Definitions
For the purposes of this document, the terms and definitions given in EN 50264-1 apply.
4 Rated voltage
The rated voltage for multicore cables shall be as follows:
a) 300/500 V (1 mm² to 2,5 mm²) control cables;
b) 0,6/1 kV (1,5 mm² to 50 mm²) power cables.
5 Marking and identification
5.1 Marking of cable
Cables shall be marked with the following:
• manufacturer’s name;
• EN reference;
• voltage rating (U );
o
• number of cores and conductor size;
• a code designation according to Annex A.
If a cable is screened, an additional letter, S, shall be added.
An example of a complete mark is:
XYZ EN 50264-2-2   300 V 37 x 1,5  FF S

---------------------- Page: 9 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 8 –
The marking shall conform to the requirements of EN 50264-1, Clause 5.
5.2 Core identification
The cores of all cables, except the earthing conductor, shall be black unless otherwise specified.
The identification of the individual core in a cable, except the earthing conductor, shall be by printed number
or colour. The number shall be printed in a colour which contrasts with the core colour. If a colour other than
black is specified it shall be a clearly identifiable colour in accordance with HD 308 and shall be durable. The
colour shall be throughout the whole of the insulation or on its surface. Durability shall be checked by the test
given in EN 50305, 10.1.
The marking by numbers shall conform to EN 50334, unless otherwise specified, and conformity shall be
checked by visual examination and measurement.
5.3 Sheath
The sheath shall be black unless otherwise agreed between the manufacturer and purchaser.
6 Construction of cables
6.1 General
Cores complying with this part or EN 50264-2-1 may be used as components of multicore cables.
The control cable dimensions shall be as given in Tables 1 or 2 as appropriate to the cable type.
The power cable core dimensions shall be as given in Table 3 and cable dimensions as given in Tables 4
to 9 as appropriate to the cable type (see Clause 4).
If agreed between the purchaser and manufacturer, cables may be made with the number of cores not
specified in Tables 1 and 2. In such cases the thickness of the sheath and diameter of the braid wire (if any)
shall be those specified in the relevant table for the cable containing the next higher number of cores.
6.2 Conductor
Conductors shall be tin-coated annealed copper, class 5, according to EN 60228.
When tested in accordance with EN 10002-1 the minimum average elongation of the wires from the
conductor shall be 15 %, with a minimum value of 10 % for any individual wire.
NOTE  It is not necessary to test all individual wires. 5 % of wires or 10 wires, whichever is the least number, should be selected at
random.

---------------------- Page: 10 ----------------------

SIST EN 50264-2-2:2008
– 9 – EN 50264-2-2:2008
6.3 Insulation system
Insulation shall be one or more extruded materials as defined in EN 50264-1 applied so as to meet the
requirements of EI 101 to EI 105:
EI 101 low temperature resistant, oil resistant;
EI 102 extra low temperature resistant, oil resistant;
EI 103 low temperature resistant, extra oil and fuel resistant;
EI 104 extra low temperature resistant, extra oil and fuel resistant;
EI 105 extra low temperature resistant, non oil resistant.
To claim extra low temperature performance both insulation and sheath shall be extra low temperature
resistant.
The insulation shall be applied to meet the requirements of EN 50264-1, 6.2.
The insulation thickness shall conform to the specified value given in Tables 1 to 3.
6.4 Laying up of cores and fillers
The cores shall be twisted together with either a continuous right or left-hand direction of lay.
The pitch or lay for primary cores shall not be greater than 20 times the diameter of the bunch of cores in the
cable.
NOTE  Non-hygroscopic fillers may be applied as given in EN 50264-1, 6.3. A synthetic binder tape may be used over the laid-up
assembly at the manufacturer’s discretion.
6.5 Metallic screen
Where screens are applied over cores a tape shall be used between cores and screens. The metallic
screening braid shall meet the requirements of EN 50264-1, 6.4.
6.6 Sheath
Sheath shall be an extruded material as defined in EN 50264-1 applied so as to meet the requirements of
compound type EM 101 to EM 104:
EM 101 low temperature resistant, oil resistant;
EM 102 extra low temperature resistant, oil resistant;
EM 103 low temperature resistant, extra oil and fuel resistant;
EM 104 extra low temperature resistant, extra oil and fuel resistant.
The sheath shall consist of one or more extruded layers of the same type.
The sheath shall be applied to meet the requirements of EN 50264-1, 6.6.
The sheath thickness shall conform to the specified value given in Tables 1, 2 or 4 to 9 as appropriate.

---------------------- Page: 11 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 10 –
6.7 Construction
Power and control cables of all types shall be composed of the following components in the order given:
• conductor flexible tin coated annealed copper, class 5;
• separator optional;
• insulation compound as given in 6.3;
• laying up and fillers as given in 6.4;
• metallic screen (where required) as given in 6.5 and specified in Tables 2, 5, 7, 9;
• separator optional;
• sheath compound as given in 6.6.

---------------------- Page: 12 ----------------------

SIST EN 50264-2-2:2008
– 11 – EN 50264-2-2:2008

Table 1 – Multicore cables – unscreened (300/500 V)
1 2 3 45 6 7 8 9 10 11 1
Number and Conductor Mean Core Mean Overall diameter Conductor Insulation Insulation Number and
nominal cross- diameter thickness of diameter thickness of resistance resistance resistance nominal cross-
a b a
sectional area d insulation sheath D at 20 °C at 20 °C at 20 °C sectional area
EI 105 EI 101 – EI 104
min. max. min. max. max. min. min.
2
mm mm mm mm mm mm mm
n × mm² Ω/km MΩ.km MΩ.km n × mm
2 × 1 0,6  1,4 7,2 8,5 20,0 140 70 2 × 1
0,6  1,4 8,2 9,6 20,0 140 70
4 × 1 4 × 1
0,6  1,4 9,6 11,2 20,0 140 70
7 × 1 7 × 1
0,6  1,4 11,5 13,4 20,0 140 70
9 × 1 9 × 1
12 × 1 1,25 0,6 2,4 2,8 1,4 12,3 14,4 20,0 140 70 12 × 1
0,6  1,4 14,5 16,6 20,0 140 70
19 × 1 19 × 1
0,6  1,5 16,7 19,6 20,0 140 70
24 × 1 24 × 1
0,6  1,6 18,5 21,7 20,0 140 70
32 × 1 32 × 1
37 × 1 0,6  1,6 19,2 22,4 20,0 140 70 37 × 1
40 × 1 0,6  1,6 19,9 23,3 20,0 140 70 40 × 1

4 × 1,5 0,7  1,4 9,2 10,8 13,7 120 60 4 × 1,5
7 × 1,5 0,7  1,4 10,9 12,8 13,7 120 60 7 × 1,5
1,5 0,7 2,8 3,3 1,4 13,1 15,3 13,7 120 60
9 × 1,5 9 × 1,5
0,7  1,4 14,0 16,4 13,7 120 60
12 × 1,5 12 × 1,5
0,7  1,5 16,5 19,4 13,7 120 60
19 × 1,5 19 × 1,5
24 × 1,5 0,7  1,6 19,5 22,8 13,7 120 60 24 × 1,5
0,7  1,7 21,5 25,2 13,7 120 60
32 × 1,5 32 × 1,5
0,7  1,7 22,4 26,2 13,7 120 60
37 × 1,5 37 × 1,5

---------------------- Page: 13 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 12 –

Table 1 – Multicore cables – unscreened (300/500 V) (continued)
1 2 3 45 6 7 8 9 10 11 1
Number and Conductor Mean Core Mean Overall diameter Conductor Insulation Insulation Number and
nominal cross- diameter thickness of diameter thickness of resistance resistance resistance nominal cross-
a b a
sectional area d insulation sheath D at 20 °C at 20 °C at 20 °C sectional area
EI 105 EI 101 – EI 104
min. max. min. max. max. min. min.
2
mm mm mm mm mm mm mm
n × mm² Ω/km MΩ.km MΩ.km n × mm
4 × 2,5 0,8  1,4 10,7 12,5 8,21 90 45 4 × 2,5
0,8  1,4 12,7 14,9 8,21 90 45
7 × 2,5 7 × 2,5
1,95 0,8 3,4 4,0 1,5 15,6 18,3 8,21 90 45
9 × 2,5 9 × 2,5
0,8  1,5 16,7 19,6 8,21 90 45
12 × 2,5 12 × 2,5
19 × 2,5 0,8  1,6 19,7 23,1 8,21 90 45 19 × 2,5
0,8  1,8 23,5 27,5 8,21 90 45
24 × 2,5 24 × 2,5
a
One conductor may be coloured green and yellow and shall be contained in the outer layer.
b
For information, indicative only.

---------------------- Page: 14 ----------------------

SIST EN 50264-2-2:2008
– 13 – EN 50264-2-2:2008

Table 2 – Multicore cables – screened (300/500 V)
1 2 3 4 5 6 7 8 9 10 11 12 1
Number and Conductor Mean Core diameter Wire Mean Screened Conductor Insulation Insulation Number and
nominal cross- diameter thickness of diameter of thickness overall diameter resistance resistance resistance nominal cross-
a a
sectional area insulation screen of sheath at 20 °C at 20 °C at 20 °C sectional area
b

d D
EI 105 EI 101 - EI 104
  min. max. max. min. max. max. min. min.
2 2
mm mm mm mm mm mm mm mm
n × mm Ω/km MΩ.km MΩ.km n × mm

0,6  0,16 1,4 8,1 9,5 20,0 140 70
2 × 1 2 × 1
4 × 1 0,6  0,16 1,4 9,0 10,6 20,0 140 70 4 × 1
7 × 1 0,6  0,16 1,4 10,4 12,2 20,0 140 70 7 × 1
0,6  0,21 1,4 12,5 14,6 20,0 140 70
9 × 1 9 × 1
1,25 0,6 2,4 2,8 0,21 1,4 13,3 15,6 20,0 140 70
12 × 1 12 × 1
0,6  0,26 1,5 15,7 18,4 20,0 140 70
19 × 1 19 × 1
24 × 1 0,6  0,26 1,6 18,1 21,2 20,0 140 70 24 × 1
32 × 1 0,6  0,26 1,6 19,7 23,1 20,0 140 70 32 × 1
0,6  0,26 1,7 20,7 24,2 20,0 140 70
37 × 1 37 × 1
0,6  0,26 1,7 21,4 25,1 20,0 140 70
40 × 1 40 × 1

0,7  0,16 1,4 10,1 11,8 13,7 120 60
4 × 1,5 4 × 1,5
0,7  0,21 1,4 11,9 14,0 13,7 120 60
7 × 1,5 7 × 1,5
9 × 1,5 1,5 0,7 2,8 3,3 0,21 1,4 14,1 16,5 13,7 120 60 9 × 1,5
12 × 1,5 0,7  0,21 1,8 15,8 18,5 13,7 120 60 12 × 1,5
0,7  0,26 1,5 17,8 20,8 13,7 120 60
19 × 1,5 19 × 1,5
0,7  0,26 1,6 20,7 24,2 13,7 120 60
24 × 1,5 24 × 1,5
0,7  0,26 1,7 22,7 26,6 13,7 120 60
32 × 1,5 32 × 1,5
37 × 1,5 0,7  0,26 1,7 23,6 27,6 13,7 120 60 37 × 1,5

---------------------- Page: 15 ----------------------

SIST EN 50264-2-2:2008
EN 50264-2-2:2008 – 14 –

Table 2 – Multicore cables – screened (300/500 V) (continued)
1 2 3 4 5 6 7 8 9 10 11 12 1
Number and Conductor Mean Core diameter Wire Mean Screened Conductor Insulation Insulation Number and
nominal cross- diameter thickness of diameter of thickness overall diameter resistance resistance resistance nominal cross-
a a
sectional area insulation screen of sheath at 20 °C at 20 °C at 20 °C sectional area
b

d D
EI 105 EI 101 - EI 104
  min. max. max. min. max. max. min. min.
2 2
mm mm mm mm mm mm mm mm
n × mm Ω/km MΩ.km MΩ.km n × mm


0,8  0,21 1,4 11,8 13,9 8,21 90 45
4 × 2,5 4 × 2,5
7 × 2,5 0,8  0,21 1,4 13,7 16,1 8,21 90 45 7 × 2,5
9 × 2,5 1,95 0,8 3,4 4,0 0,26 1,5 16,8 19,7 8,21 90 45 9 × 2,5
0,8  0,26 1,5 18,0 21,1 8,21 90 45
12 × 2,5 12 × 2,5
0,8  0,26 1,6 21,1 24,6 8,21 90 45
19 × 2,5 19 × 2,5
0,8  0,26 1,8 24,7 28,9 8,21 90 45
24 × 2,5 24 × 2,5
a
One conductor may be coloured green and yellow and shall be contained in the outer layer.
b
For information, indicative only.

---------------------- Page: 16 ----------------------

SIST EN 50264-2-2:2008
– 15 – EN 50264-2-2:2008
Table 3 – Dimensions of core (0,6/1 kV)
1 2 3 4 5 6 1
Nominal Conductor Mean thickness Core diameter Resistance of Nominal
cross- diameter of insulation conductor cross-
a
sectional D at 20 °C sectional
d
area area

 min. max. max.
2 2
mm mm mm mm mm Ω/km mm
1,5 1,5 0,8 3,0 3,5 13,7 1,5
2,5 1,95 0,8 3,4 3,9 8,21 2,5
4 2,5 0,8 3,9 4,6 5,09 4
6 3,0 0,9 4,6 5,4 3,39 6
10 3,9 1,1 5,8 6,8 1,95 10
16 5,0 1,1 7,2 8,5 1,24 16
25 6,4 1,3 8,6 10,0 0,795 25
35 7,7 1,3 10,2 11,5 0,565 35
50 9,2 1,5 11,6 13,5 0,393 50
NOTE  This table should be read in conjunction with Tables 4 to 9.
a

For information, indicative only.


Table 4 – Two cores – (0,6/1 kV) unscreened
1 2 3 4 5 6 1
Nominal Mean Overall diameter Insulation Insulation Nominal
cross- thickness of resistance resistance cross-
sectional sheath at 20 °C at 20 °C sectional
D

area EI 105 EI 101 - EI 104 area
min. max. min. min.
2 2
mm mm mm mm mm
MΩ. km MΩ. km
1,5 1,4 8,5 9,9 150 75 1,5
2,5 1,4 9,3 10,9 130 65 2,5
4 1,4 10,3 12,1 110 55 4
6 1,4 11,8 13,9 90 45 6
10 1,4 14,3 16,7 85 45 10
16 1,5 16,5 19,4 70 35 16
25 1,6 20,1 23,5 65 35 25
...
