oSIST prEN IEC 60034-26:2025

Rotating electrical machines - Part 26: Effects of unbalanced voltages on the performance of three-phase cage induction motors

Drehende elektrische Maschinen - Teil 26: Auswirkungen von Spannungsunsymmetrien auf das Betriebsverhalten von Drehstrom-Induktionsmotoren

Machines électriques tournantes - Partie 26: Effets d'un système de tensions déséquilibrées sur les caractéristiques de fonctionnement des moteurs à induction à cage triphasés

Električni rotacijski stroji - 26. del: Učinki napetostnih neravnovesij na delovanje trifaznih indukcijskih motorjev s kletko

General Information

• Status: Not Published
• Public Enquiry End Date: 20-Apr-2025
• ICS: 29.160.01 - Rotating machinery in general
• ICS: 29.160.30 - Motors
• Technical Committee: ERS - Rotating machinery
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 04-Feb-2025
• Due Date: 24-Jun-2025
• Completion Date: 16-Jun-2025
• Ref Project: prEN IEC 60034-26:2025 - Rotating electrical machines - Part 26: Effects of unbalanced voltages on the performance of three-phase cage induction motors

Relations

• Revises: SIST EN 60034-26:2007 - Rotating electrical machines - Part 26: Effects of unbalanced voltages on the performance of three-phase cage induction motors (IEC 60034-26:2006)
• Effective Date: 09-Jul-2024
• Revises: SIST EN 60034-26:2007/AC:2015 - Rotating electrical machines - Part 26: Effects of unbalanced voltages on the performance of three-phase cage induction motors (IEC 60034-26:2006/COR1:2014)
• Effective Date: 09-Jul-2024

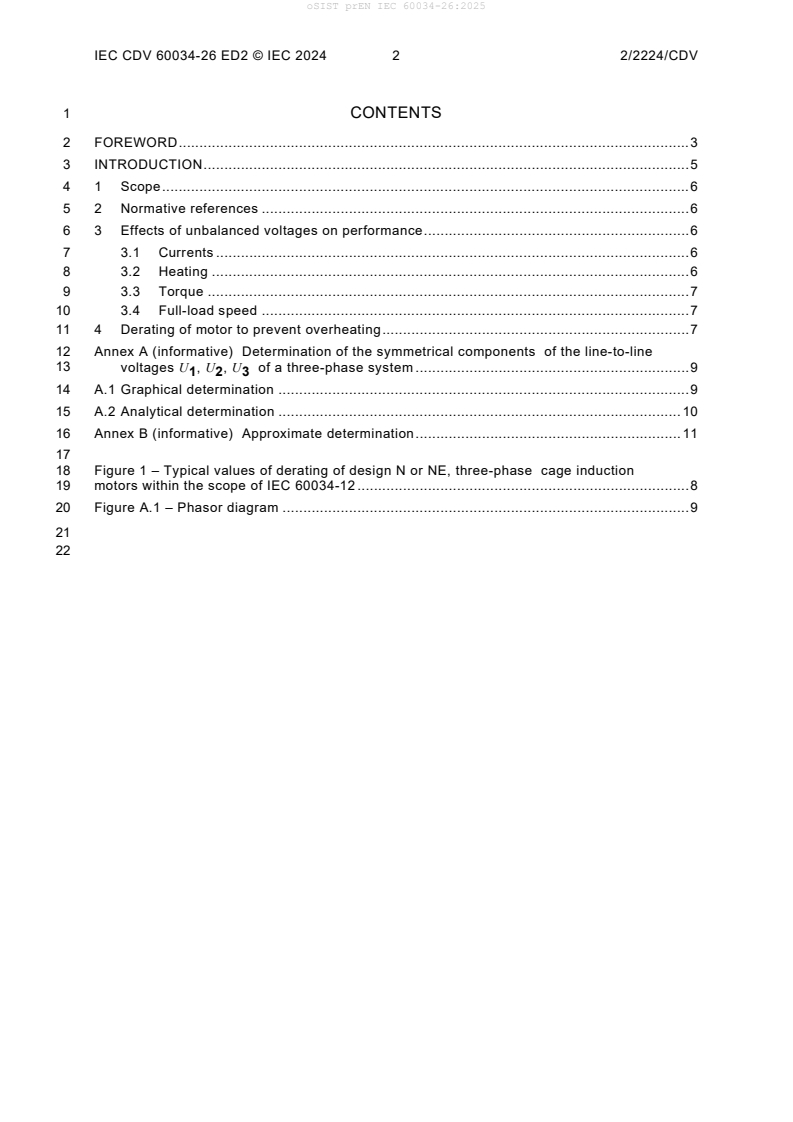

Overview

prEN IEC 60034-26:2025 (CLC) - Rotating electrical machines - Part 26: Effects of unbalanced voltages on the performance of three-phase cage induction motors - provides guidance on how voltage unbalance affects currents, heating, torque, speed and efficiency of three‑phase cage induction motors. This Committee Draft for Vote updates the 2006 edition and clarifies that the voltages considered are line‑to‑line voltages. It also adds guidance for design NE motors per IEC 60034‑12.

Keywords: IEC 60034‑26, rotating electrical machines, voltage unbalance, three‑phase cage induction motors, negative‑sequence voltage, derating.

Key topics and technical requirements

• Voltage unbalance definition and measurement
  • Unbalance factor f = U_n / U_p, where U_n is the RMS negative‑sequence component and U_p the RMS positive‑sequence component of the line‑to‑line voltages.
  • Annex A (informative) provides graphical and analytical methods to determine symmetrical components; Annex B gives an approximate evaluation method.
• Effects on currents
  • Negative‑sequence voltages induce a rotating flux opposing rotor rotation, producing high negative‑sequence currents. Phase current unbalance is typically about 6–10× the voltage unbalance.
  • Rotor currents can have frequency close to twice the rated frequency, amplifying rotor losses especially in cages with current displacement.
• Heating and losses
  • Stator and rotor temperature rise increases due to extra losses from negative‑sequence currents; rotor loss amplification is significant.
• Torque and dynamic effects
  • Locked‑rotor, pull‑up and breakdown torques are reduced by unbalance. An oscillating torque at twice line frequency appears; at f = 0.05 its peak can be ~25% of rated torque, possibly exciting torsional resonances.
• Performance and derating
  • Full‑load speed is slightly reduced; efficiency can fall and declared energy class may not be met.
  • When U_n exceeds 1% of U_p for durations comparable to the motor thermal time constant, motor power must be derated to avoid overheating. Operation above 5% voltage unbalance is not recommended.
• Normative reference
  • Cross‑references IEC 60034‑12 (starting performance for single‑speed three‑phase cage induction motors).

Applications and users

Who benefits from this standard:

• Motor designers and manufacturers - to specify thermal limits, derating curves and acceptable unbalance thresholds.
• Electrical engineers and system designers - to assess supply quality, select motors and design protection.
• Maintenance teams and test laboratories - for diagnostics, balancing checks, and interpreting measurements using symmetrical components.
• Utilities and facilities managers - to set site power quality criteria and avoid motor failures caused by long‑term unbalance.

Related standards

• IEC 60034 series (Rotating electrical machines) - see IEC 60034‑12 for motor starting performance and design NE guidance referenced in this part.

This standard is practical for anyone managing three‑phase cage induction motors in industrial power systems where voltage unbalance may occur.
