SIST EN 413-2:2017
(Main)Masonry cement - Part 2: Test methods
Masonry cement - Part 2: Test methods
This draft European Standard describes reference and alternative test methods to be used when testing masonry cements to assess their conformity to EN 413 1. It gives the tests on fresh mortar for consistence, water retention and air content.
In the event of a dispute, only the reference methods are used.
Putz- und Mauerbinder - Teil 2: Prüfverfahren
Dieser Europäische Norm-Entwurf beschreibt Referenz- und Alternativprüfverfahren, die für die Prüfung von Putz- und Mauerbinder anzuwenden sind, um ihre Übereinstimmung mit EN 413-1 zu bewerten. Er enthält die Prüfverfahren für die Konsistenz, das Wasserrückhaltevermögen und den Luftgehalt von Frischmörtel.
Im Streitfall sind ausschließlich die Referenzverfahren anzuwenden.
Ciment à maçonner - Partie 2 : Méthodes d'essai
La présente Norme européenne décrit les méthodes d’essai de référence ou les variantes pour les ciments à maçonner, qui doivent être utilisées pour évaluer leur conformité à l’EN 413-1. Elle indique les méthodes d’essai sur mortier frais pour la consistance, la rétention d’eau et la teneur en air.
En cas de litige, seules les méthodes de référence sont utilisées.
Zidarski cement - 2. del: Preskusne metode
Ta osnutek evropskega standarda opisuje referenčne in alternativne metode, ki se uporabljajo pri preizkušanju zidarskih cementov za ugotavljanje njihove skladnosti s standardom EN 413 1. Navaja preizkuse na sveži malti za gostoto, zadrževanje vode in vsebnost zraka.
V primeru spora se uporabijo le referenčne metode.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zidarski cement - 2. del: Preskusne metodePutz- und Mauerbinder - Teil 2: PrüfverfahrenCiment à maçonner - Partie 2 : Méthodes d'essaiMasonry cement - Part 2: Test methods91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 413-2:2016SIST EN 413-2:2017en,fr,de01-januar-2017SIST EN 413-2:2017SLOVENSKI
STANDARDSIST EN 413-2:20051DGRPHãþD
SIST EN 413-2:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 413-2
October
t r s x ICS
{ sä s r rä s r Supersedes EN
v s uæ tã t r r wEnglish Version
Masonry cement æ Part
tã Test methods Ciment à maçonner æ Partie
t ã Méthodes d 5essai
Putzæ und Mauerbinder æ Teil
tã Prüfverfahren This European Standard was approved by CEN on
s z June
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v s uæ tã t r s x ESIST EN 413-2:2017

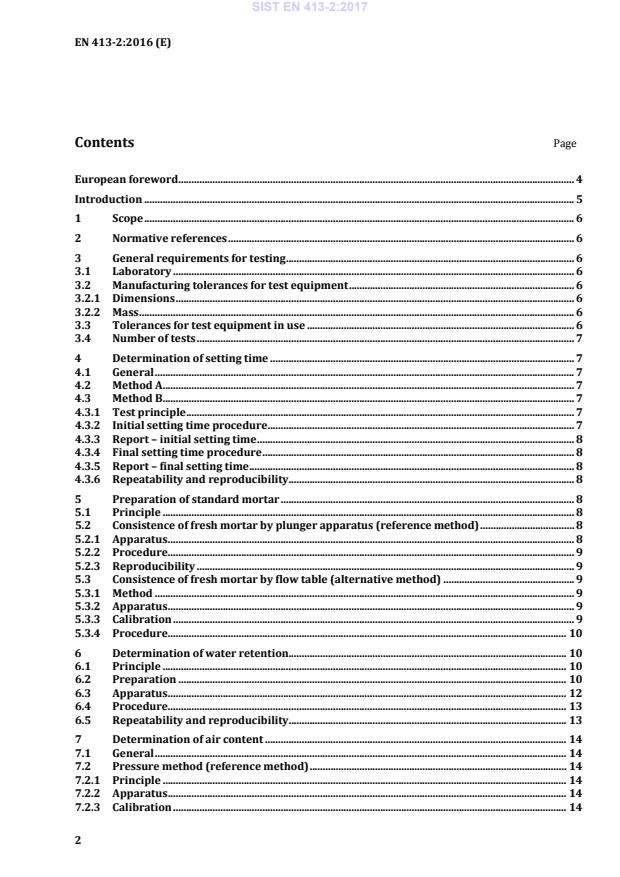

EN 413-2:2016 (E) 2 Contents Page European foreword . 4 Introduction . 5 1 Scope . 6 2 Normative references . 6 3 General requirements for testing . 6 3.1 Laboratory . 6 3.2 Manufacturing tolerances for test equipment . 6 3.2.1 Dimensions . 6 3.2.2 Mass . 6 3.3 Tolerances for test equipment in use . 6 3.4 Number of tests . 7 4 Determination of setting time . 7 4.1 General . 7 4.2 Method A . 7 4.3 Method B . 7 4.3.1 Test principle . 7 4.3.2 Initial setting time procedure . 7 4.3.3 Report – initial setting time . 8 4.3.4 Final setting time procedure . 8 4.3.5 Report – final setting time . 8 4.3.6 Repeatability and reproducibility . 8 5 Preparation of standard mortar . 8 5.1 Principle . 8 5.2 Consistence of fresh mortar by plunger apparatus (reference method) . 8 5.2.1 Apparatus . 8 5.2.2 Procedure . 9 5.2.3 Reproducibility . 9 5.3 Consistence of fresh mortar by flow table (alternative method) . 9 5.3.1 Method . 9 5.3.2 Apparatus . 9 5.3.3 Calibration . 9 5.3.4 Procedure . 10 6 Determination of water retention . 10 6.1 Principle . 10 6.2 Preparation . 10 6.3 Apparatus . 12 6.4 Procedure . 13 6.5 Repeatability and reproducibility . 13 7 Determination of air content . 14 7.1 General . 14 7.2 Pressure method (reference method) . 14 7.2.1 Principle . 14 7.2.2 Apparatus . 14 7.2.3 Calibration . 14 SIST EN 413-2:2017
EN 413-2:2016 (E) 3 7.2.4 Procedure . 15 7.2.5 Repeatability and reproducibility . 15 7.3 Alcohol method (alternative method) . 16 7.3.1 Principle . 16 7.3.2 Apparatus . 16 7.3.3 Procedure . 16 Bibliography . 18
SIST EN 413-2:2017
EN 413-2:2016 (E) 4 European foreword This document (EN 413-2:2016) has been prepared by Technical Committee CEN/TC 51 “Cement and building limes”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by February 2017, and conflicting national standards shall be withdrawn at the latest by February 2017. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 413-2:2005. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. EN 413, Masonry cement, consists of the following parts: — Part 1: Composition, specifications and conformity criteria; — Part 2: Test methods. The main differences between this document and EN 413-2:2005 are: — updating of normative references; — revised guidance on the properties of gauzes used in the water retention test; — revised repeatability and reproducibility limits for setting time(Method B), water retention and air content (these revisions are based on a round-robin test programme instituted following the introduction of a new class of Masonry cement MC 22,5 into EN 413-1). According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 413-2:2017
EN 413-2:2016 (E) 5 Introduction This European Standard includes additional test methods to those described in the EN 196 series, Methods of testing cement, that enable the performance of masonry cement to be assessed when used in mortar for bedding masonry units and for rendering and plastering. SIST EN 413-2:2017
EN 413-2:2016 (E) 6 1 Scope This European Standard describes reference and alternative test methods to be used when testing masonry cements to assess their conformity to EN 413-1. It gives the tests on fresh mortar for consistence, water retention and air content. In the event of a dispute, only the reference methods are used. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 196-1, Methods of testing cement - Part 1: Determination of strength EN 196-3:2005+A1:2008, Methods of testing cement - Part 3: Determination of setting times and soundness EN 459-2:2010, Building lime - Part 2: Test methods 3 General requirements for testing 3.1 Laboratory Unless specifically stated to the contrary, all the tests described in this document shall be carried out in a laboratory where the air temperature is maintained at (20 ± 2) °C and the relative humidity at not less than 50 %. 3.2 Manufacturing tolerances for test equipment 3.2.1 Dimensions Figures indicating the specified requirements for apparatus used in the tests described in this document shall include essential dimensions for which manufacturing tolerances are given. Unless otherwise stated, tolerance class m according to EN 22768-1 should be applied. NOTE Other dimensions are given for guidance. 3.2.2 Mass Specified masses shall have manufacturing tolerances within ± 1 % of the mass unless otherwise stated. 3.3 Tolerances for test equipment in use Tolerances applying to apparatus, which has been subjected to wear in use shall not exceed twice the corresponding manufacturing tolerance unless alternative requirements are specified. SIST EN 413-2:2017
EN 413-2:2016 (E) 7 3.4 Number of tests Where the test is one of a series subject to statistical control, determination of each property by a single test shall be the minimum required. Where the test is not part of a series subject to statistical control, two tests shall be performed to determine each property. 4 Determination of setting time 4.1 General The setting time is determined by observing the penetration of a needle into a cement paste of standard consistence until it reaches a specified value. The setting time is determined in accordance with either method A (4.2) or method B (4.3). Method B is the reference method. 4.2 Method A The setting time is determined in accordance with EN 196-3. NOTE Experience has shown that the method specified in EN 196–3, in which the specimens are tested under water, is not suitable for some masonry cements which have low clinker contents. 4.3 Method B 4.3.1 Test principle The equipment used and the specimen preparation procedures are as described in EN 196-3 but with the additional requirement for a room or a humidity cabinet of adequate size and maintained at (20 ± 1) °C and not less than 90 % relative humidity. 4.3.2 Initial setting time procedure Calibrate the Vicat apparatus with the needle, attached in advance of the test, by lowering the needle to rest on the base-plate to be used and adjusting the pointer to read zero on the scale. Raise the needle to the stand-by position. Fill a Vicat mould in accordance with EN 196-3:2005+A1:2008, 5.2.2 with paste of standard consistence mixed in accordance with EN 196-3:2005+A1:2008, 5.2.1 Place the filled mould and base-plate in the room or humidity cabinet and after a suitable time, position the mould and base-plate under the needle of the Vicat apparatus. Lower the needle gently until it is in contact with the paste. Pause in that position for between 1 s and 2 s in order to avoid initial velocity or forced acceleration of the moving parts. Then release the moving parts quickly and allow the needle to penetrate vertically into the paste. Read the scale when penetration has ceased, or 30 s after the release of the needle, whichever is the earlier. Record the scale reading, which indicates the distance between the end of the needle and the base-plate, together with the time from zero. Repeat the penetration on the same specimen at conveniently spaced positions, not less than 8 mm from the rim of the mould or 5mm from each other and at least 10 mm from the last penetration position, at conveniently spaced intervals of time, e.g. at 10 min intervals. Between penetrations keep the specimen in a room or humidity cabinet. Clean the Vicat needle immediately after each penetration. Retain the specimen if determination of the final setting time is to be made. SIST EN 413-2:2017
EN 413-2:2016 (E) 8 4.3.3 Report – initial setting time Report the elapsed time measured from zero to the time at which the distance between the needle and the base-plate is (6 ± 3) mm as the initial setting time of the cement to the nearest 5 min. If the initial setting time exceeds 6h determine the final setting time. 4.3.4 Final setting time procedure Invert the filled mould and follow the procedure described in EN 196-3:2005+A1:2008, 6.3 with the specimen held in the room or humidity cabinet at controlled humidity rather than under water. 4.3.5 Report – final setting time Report the elapsed time measured from zero to that at which the needle first penetrates only 0,5 mm into the specimen as the final setting time of the cement, to the nearest 15 min. 4.3.6 Repeatability and reproducibility The standard deviation of repeatability is 4 min for initial setting time and 7 min for final setting time. The standard deviation of reproducibility is 20 min for initial setting time and 24 min for final setting time. These precision data take into account uncertainty of measurement. 5 Preparation of standard mortar 5.1 Principle The properties of fresh mortar made with masonry cement are assessed on standard mortar pre
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zidarski cement - 2. del: Preskusne metodePutz- und Mauerbinder - Teil 2: PrüfverfahrenCiment à maçonner - Partie 2 : Méthodes d'essaiMasonry cement - Part 2: Test methods91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:FprEN 413-2kSIST FprEN 413-2:2016en,fr,de01-februar-2016kSIST FprEN 413-2:2016SLOVENSKI
STANDARD
kSIST FprEN 413-2:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
FINAL DRAFT
FprEN 413-2
December
t r s w ICS
{ sä s r rä s r Will supersede EN
v s uæ tã t r r wEnglish Version
Masonry cement æ Part
tã Test methods Ciment à maçonner æ Partie
t ã Méthodes d 5essai
Putzæ und Mauerbinder æ Teil
tã Prüfverfahren This draft European Standard is submitted to CEN members for unique acceptance procedureä It has been drawn up by the
If this draft becomes a European Standardá CEN members are bounwhich stipulate the conditions for giving this European Standard the status of a national standard without any alterationä
This draft European Standard was established by CEN in three ofer language made by translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
Recipients of this draft are invited to submitá with their commentsá notification of any relevant patent rights of which they are aware and to provide supporting documentationä
Warning ã This document is not a European Standardä It is distributed for review and commentsä It is subject to change without notice and shall not be referred to as a European Standardä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä FprEN
v s uæ tã t r s w EkSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 2 Contents Page European foreword .4 Introduction .5 1 Scope .6 2 Normative references .6 3 General requirements for testing .6 3.1 Laboratory .6 3.2 Manufacturing tolerances for test equipment .6 3.2.1 Dimensions .6 3.2.2 Mass .6 3.3 Tolerances for test equipment in use .6 3.4 Number of tests .6 4 Determination of setting time .7 4.1 General .7 4.2 Method A .7 4.3 Method B .7 4.3.1 Test principle .7 4.3.2 Initial setting time procedure .7 4.3.3 Report – initial setting time .8 4.3.4 Final setting time procedure .8 4.3.5 Report – final setting time .8 4.3.6 Repeatability and reproducibility .8 5 Preparation of standard mortar .8 5.1 Principle .8 5.2 Consistence of fresh mortar by plunger apparatus (reference method) .8 5.2.1 Apparatus .8 5.2.2 Procedure .9 5.2.3 Reproducibility .9 5.3 Consistence of fresh mortar by flow table (alternative method) .9 5.3.1 Method .9 5.3.2 Apparatus .9 5.3.3 Calibration .9 5.3.4 Procedure .9 6 Determination of water retention . 10 6.1 Principle . 10 6.2 Preparation . 10 6.3 Apparatus . 12 6.4 Procedure . 13 6.5 Repeatability and reproducibility . 13 7 Determination of air content . 14 7.1 General . 14 7.2 Pressure method (reference method) . 14 7.2.1 Principle . 14 7.2.2 Apparatus . 14 7.2.3 Calibration . 14 kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 3 7.2.4 Procedure . 14 7.2.5 Repeatability and reproducibility . 15 7.3 Alcohol method (alternative method) . 16 7.3.1 Principle . 16 7.3.2 Apparatus . 16 7.3.3 Procedure . 16 Bibliography . 18
kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 4 European foreword This document (FprEN 413-2:2015) has been prepared by Technical Committee CEN/TC 51 “Cement and building limes”, the secretariat of which is held by NBN. This document is currently submitted to the Unique Acceptance Procedure. This document will supersede EN 413-2:2005. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. EN 413, Masonry cement, consists of the following parts: — Part 1: Composition, specifications and conformity criteria; — Part 2: Test methods. The main differences between this document and EN 413-2:2005 are: — updating of normative references; — revised guidance on the properties of gauzes used in the water retention test; — inclusion of a requirement to measure plastic density of mortar as part of the determination of air content; — revised repeatability and reproducibility limits for setting time, water retention and air content (these revisions are based on a round-robin test programme instituted following the introduction of a new class of Masonry cement MC22,5 into EN 413-1). kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 5 Introduction This draft European Standard includes additional test methods to those described in the EN 196 series, Methods of testing cement, that enable the performance of masonry cement to be assessed when used in mortar for bedding masonry units and for rendering and plastering. kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 6 1 Scope This draft European Standard describes reference and alternative test methods to be used when testing masonry cements to assess their conformity to EN 413-1. It gives the tests on fresh mortar for consistence, water retention and air content. In the event of a dispute, only the reference methods are used. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 196-1, Methods of testing cement — Part 1: Determination of strength EN 196-3:2005+A1:2008, Methods of testing cement — Part 3: Determination of setting times and soundness EN 459-2:2010, Building lime — Part 2: Test methods 3 General requirements for testing 3.1 Laboratory Unless specifically stated to the contrary, all the tests described in this document shall be carried out in a laboratory where the air temperature is maintained at (20 ± 2) °C and the relative humidity at not less than 50 %. 3.2 Manufacturing tolerances for test equipment 3.2.1 Dimensions Figures indicating the specified requirements for apparatus used in the tests described in this document shall include essential dimensions for which manufacturing tolerances are given. Unless otherwise stated, tolerance class m according to EN 22768-1 should be applied. NOTE Other dimensions are given for guidance. 3.2.2 Mass Specified masses shall have manufacturing tolerances within ± 1 % of the mass unless otherwise stated. 3.3 Tolerances for test equipment in use Tolerances applying to apparatus, which has been subjected to wear in use shall not exceed twice the corresponding manufacturing tolerance unless alternative requirements are specified. 3.4 Number of tests Where the test is one of a series subject to statistical control, determination of each property by a single test shall be the minimum required. kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 7 Where the test is not part of a series subject to statistical control, two tests shall be performed to determine each property. 4 Determination of setting time 4.1 General The setting time is determined by observing the penetration of a needle into a cement paste of standard consistence until it reaches a specified value. The setting time is determined in accordance with either method A (4.2) or method B (4.3). Method B is the reference method. 4.2 Method A The setting time is determined in accordance with EN 196-3. NOTE 1. Experience has shown that the method specified in EN 196–3, in which the specimens are tested under water, is not suitable for some masonry cements which have low clinker contents. NOTE 2 The EN 196–3 method does not currently give values for repeatability and reproducibility, but CEN/TC 51/WG 15 intends to determine this data for a future revision of EN 196–3. 4.3 Method B 4.3.1 Test principle The equipment used and the specimen preparation procedures are as described in EN 196-3 but with the additional requirement for a room or a humidity cabinet of adequate size and maintained at (20 ± 1) °C and not less than 90 % relative humidity. 4.3.2 Initial setting time procedure Calibrate the Vicat apparatus with the needle, attached in advance of the test, by lowering the needle to rest on the base-plate to be used and adjusting the pointer to read zero on the scale. Raise the needle to the stand-by position. Fill a Vicat mould in accordance with EN 196-3:2005+A1:2008, 5.2.2 with paste of standard consistence mixed in accordance with EN 196-3:2005+A1:2008, 5.2.1. Place the filled mould and base-plate in the room or humidity cabinet and after a suitable time, position the mould, base-plate and container under the needle of the Vicat apparatus. Lower the needle gently until it is in contact with the paste. Pause in that position for between 1 s and 2 s in order to avoid initial velocity or forced acceleration of the moving parts. Then release the moving parts quickly and allow the needle to penetrate vertically into the paste. Read the scale when penetration has ceased, or 30 s after the release of the needle, whichever is the earlier. Record the scale reading, which indicates the distance between the end of the needle and the base-plate, together with the time from zero. Repeat the penetration on the same specimen at conveniently spaced positions, not less than 8 mm from the rim of the mould or 5mm from each other and at least 10 mm from the last penetration position, at conveniently spaced intervals of time, e.g. at 10 min intervals. Between penetrations keep the specimen in a room or humidity cabinet. Clean the Vicat needle immediately after each penetration. Retain the specimen if determination of the final setting time is to be made. kSIST FprEN 413-2:2016
FprEN 413-2:2015 (E) 8 4.3.3 Report – initial setting time Report the time measured from zero at which the distance between the needle and the base-plate is (6 ± 3) mm as the initial setting time of the cement to the nearest 5 min. If the initial setting time exceeds 6h determine the final setting time. 4.3.4 Final setting time procedure Invert the filled mould and follow the procedure described in EN 196-3:2005+A1:2008, 6.3 with the specimen held in the room or humidity cabinet at controlled humidity rather than under water. 4.3.5 Report – final setting time Report the time measured from zero at which the needle first penetrates only 0,5 mm into the specimen as the final setting time of the cement, to the nearest 15 min. 4.3.6 Repeatability and reproducibility The standard deviation of repeatability is 4 min for initial setting time and 7 min for final setting time The standard deviation of reproducibility is 20 min for initial setting time and 24 min for final setting time. These precision data take into account uncertainty of measurement. 5 Preparation of standard mortar 5.1 Principle The properties of fresh mortar made with masonry cement are assessed on standard mortar prepared in accordance with EN 196-1, but with the water content necessary for the standard consistence. The consistence is measured using the plunger apparatus (see 5.2) as the reference method to achieve the required value of penetration. A flow table test (see 5.3) is allowed as an alternative to the plunger test but it is important that the flow table spread equivalent to the required value of penetration is established, using the same type of masonry cement as tha
...
