SIST EN 1089-3:2011
(Main)Transportable gas cylinders - Gas cylinder identification (excluding LPG) - Part 3: Colour coding
Transportable gas cylinders - Gas cylinder identification (excluding LPG) - Part 3: Colour coding
This European Standard specifies a colour coding system for the secondary method of identification of the contents of gas cylinders for industrial gases, breathing gas application and gases for medical use with particular reference to the properties of the gas or gas mixture. This European Standard does not apply to cylinders containing liquefied petroleum gas (LPG), to refrigerant gases, to portable fire extinguishers or stationary cylinder extinguishing. Bundle colour coding is not addressed by this or other standards.
Ortsbewegliche Gasflaschen - Gasflaschen-Kennzeichnung (ausgenommen Flüssiggas LPG) - Teil 3: Farbcodierung
Diese Norm legt ein Farbcodierungssystem als Zweitmethode zur Kennzeichnung des Inhaltes von
Gasflaschen für Industriegase und Gase für die medizinische Verwendung mit besonderem Verweis auf die
Eigenschaft des Gases oder des Gasgemisches fest. Flaschenaufkleber stellen die Hauptmethode zur
Kennzeichnung des Gasflascheninhaltes dar.
Diese Norm gilt nicht für Flaschen, welche Flüssiggas (LPG, en.: Liquified Petroleum Gas) enthalten oder für
Feuerlöscher.
ANMERKUNG LPG beinhaltet Stoffe, die unter der UN-Nummer 1965 "Kohlenwasserstoffgas, Gemisch, verflüssigt,
N.A.G." transportiert werden.
Bouteilles à gaz transportables - Identification de la bouteille à gaz (GPL exclu) - Partie 3: Code couleur
La présente norme spécifie un système de codage par couleur comme seconde méthode d’identification du contenu des bouteilles à gaz à usage industriel et des bouteilles à gaz médicaux, avec référence particulière à la propriété du gaz ou du mélange de gaz. Les étiquettes de bouteilles constituent la première méthode permettant d’indiquer le contenu d’une bouteille.
La présente norme ne s’applique pas aux bouteilles contenant du gaz de pétrole liquéfié (GPL) ni aux extincteurs.
NOTE Le GPL contient des substances portant le numéro ONU 1965 « Hydrocarbures gazeux en mélange liquéfié, N.S.A ».
Premične plinske jeklenke - Označevanje jeklenk (razen UNP) - 3. del: Barvno označevanje
Ta evropski standard določa sistem barvnega označevanja za sekundarno metodo identifikacije vsebine jeklenk za industrijske pline, aplikacije z dihalnim plinom in pline za medicinsko uporabo, s posebnim sklicevanjem na lastnosti plina ali plinske mešanice. Ta evropski standard ne velja za jeklenke, ki vsebujejo utekočinjeni naftni plin (UNP), hladilne pline, prenosne gasilske aparate in stacionarne jeklenke za gašenje. Ne ta ne drugi standardi ne obravnavajo barvnega označevanja v svežnjih.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.R]QDþHYDQMHOrtsbewegliche Gasflaschen - Gasflaschen-Kennzeichnung (ausgenommen Flüssiggas LPG) - Teil 3: FarbcodierungBouteilles à gaz transportables - Identification de la bouteille à gaz (GPL exclu) - Partie 3: Code couleurTransportable gas cylinders - Gas cylinder identification (excluding LPG) - Part 3: Colour coding23.020.30MHNOHQNHPressure vessels, gas cylinders01.070Barvno kodiranjeColour codingICS:Ta slovenski standard je istoveten z:EN 1089-3:2011SIST EN 1089-3:2011en,fr,de01-november-2011SIST EN 1089-3:2011SLOVENSKI
STANDARDSIST EN 1089-3:20041DGRPHãþD
SIST EN 1089-3:2011
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1089-3
July 2011 ICS 01.070; 23.020.30 Supersedes EN 1089-3:2004English Version
Transportable gas cylinders - Gas cylinder identification (excluding LPG) - Part 3: Colour coding
Bouteilles à gaz transportables - Identification de la bouteille à gaz (GPL exclu) - Partie 3: Code couleur
Ortsbewegliche Gasflaschen - Gasflaschen-Kennzeichnung (ausgenommen Flüssiggas (LPG)) - Teil 3: FarbcodierungThis European Standard was approved by CEN on 4 May 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1089-3:2011: ESIST EN 1089-3:2011

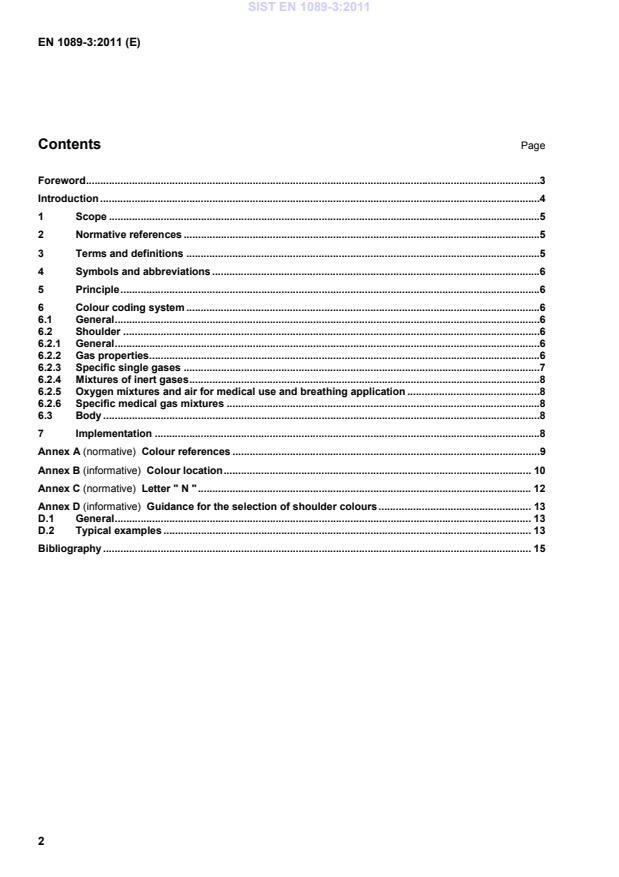

EN 1089-3:2011 (E) 2 Contents Page Foreword .3Introduction .41 Scope .52 Normative references .53 Terms and definitions .54 Symbols and abbreviations .65 Principle .66 Colour coding system .66.1 General .66.2 Shoulder .66.2.1 General .66.2.2 Gas properties .66.2.3 Specific single gases .76.2.4 Mixtures of inert gases .86.2.5 Oxygen mixtures and air for medical use and breathing application .86.2.6 Specific medical gas mixtures .86.3 Body .87 Implementation .8Annex A (normative)
Colour references .9Annex B (informative)
Colour location . 10Annex C (normative)
Letter " N " . 12Annex D (informative)
Guidance for the selection of shoulder colours . 13D.1 General . 13D.2 Typical examples . 13Bibliography . 15 SIST EN 1089-3:2011
EN 1089-3:2011 (E) 3 Foreword This document (EN 1089-3:2011) has been prepared by Technical Committee CEN/TC 23 “Transportable gas cylinders”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2012, and conflicting national standards shall be withdrawn at the latest by January 2012. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1089-3:2004. This document has been technically revised by the following: a) the white colouration of gas cylinder body dedicated for medical use; b) the new specific colour dedicated to nitric oxide/ nitrogen for medical use; c) the introduction of definitions (gas for medical use, breathing gas, industrial gas); d) the application of bright green colouration for inert gas mixtures N2 or He with O2 less than 20 % (exception for the two specific colours); e) the restriction of configuration of two colours on shoulder as quadrants to air (medical use or for breathing use); f) a guidance for the selection of shoulder with typical examples of assignment of colour. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 1089-3:2011
EN 1089-3:2011 (E) 4 Introduction The labelling of gas cylinders as required by the RID/ADR- Regulations is the primary method of indicating dangers of cylinder contents. However, colour coding is used to identify the contents of gas cylinders from a distance, e.g. in case of a fire. It is recognized that other systems are in use and may be used in conjunction with the requirements of this European Standard. This European standard, along with EN ISO 13769, EN ISO 21007-1 and EN ISO 21007-2 belongs to a series of European Standards specifying gas cylinder identification requirements. NOTE Labelling and marking of gas cylinders is subject to provisions of RID/ADR which take precedence over marking clauses in this standard.
SIST EN 1089-3:2011
EN 1089-3:2011 (E) 5 1 Scope This European Standard specifies a colour coding system for the secondary method of identification of the contents of gas cylinders for industrial gases, breathing gas application and gases for medical use with particular reference to the properties of the gas or gas mixture.
This European Standard does not apply to cylinders containing liquefied petroleum gas (LPG), to refrigerant gases, to portable fire extinguishers or stationary cylinder extinguishing. Bundle colour coding is not addressed by this or other standards. NOTE LPG includes substances carried under the UN number 1965 "Hydrocarbon gas mixture, liquefied, N.O.S." 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 10156, Gases and gas mixtures — Determination of fire potential and oxidizing ability for the selection of cylinder valve outlets (ISO 10156:2010) ISO 5145, Cylinder valve outlets for gases and gas mixtures — Selection and dimensioning ISO 10298, Determination of toxicity of a gas or gas mixture ISO 13338, Determination of tissue corrosiveness of a gas or gas mixture European pharmacopoeia, monograph 1684 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 gas for medical use any gas or mixture of gases intended to be administered to patients for therapeutic, diagnostic or prophylactic purposes, with or without pharmacological action, or to be used for surgical tools, and it covers both medicinal and medical gases (see ISO 5145) 3.2
inert gas
non-toxic, non-corrosive, non-flammable and non-oxidizing gas or gas mixture 3.3 synthetic air
for medical use to refer to pharmacopoeia, monograph 1684, and for other use mixtures containing 20 % to 23,5 % oxygen in nitrogen to be considered 3.4 industrial gas gas or gas mixtures not covered by 3.1 and not used for breathing gas use 3.5 breathing gas gas filled in cylinders for breathing and diving application, excluding gas for medical use SIST EN 1089-3:2011
EN 1089-3:2011 (E) 6 3.6 body cylin
...
