EUROPEAN STANDARD EN 62612:2013/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2017
ICS 29.140.01
English Version
Self-ballasted LED lamps for general lighting services with
supply voltages > 50 V - Performance requirements
Lampes à LED autoballastées pour l'éclairage général avec LED-Lampen mit eingebautem Vorschaltgerät für
des tensions d'alimentation > 50 V - Exigences de Allgemeinbeleuchtung mit Versorgungsspannungen > 50 V
performances - Anforderungen an die Arbeitsweise
This amendment A11 modifies the European Standard EN 62612:2013; it was approved by CENELEC on 2017-02-20. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62612:2013/A11:2017 E
---------------------- Page: 3 ----------------------
SIST EN 62612:2014/A11:2017
EN 62612:2013/A11:2017

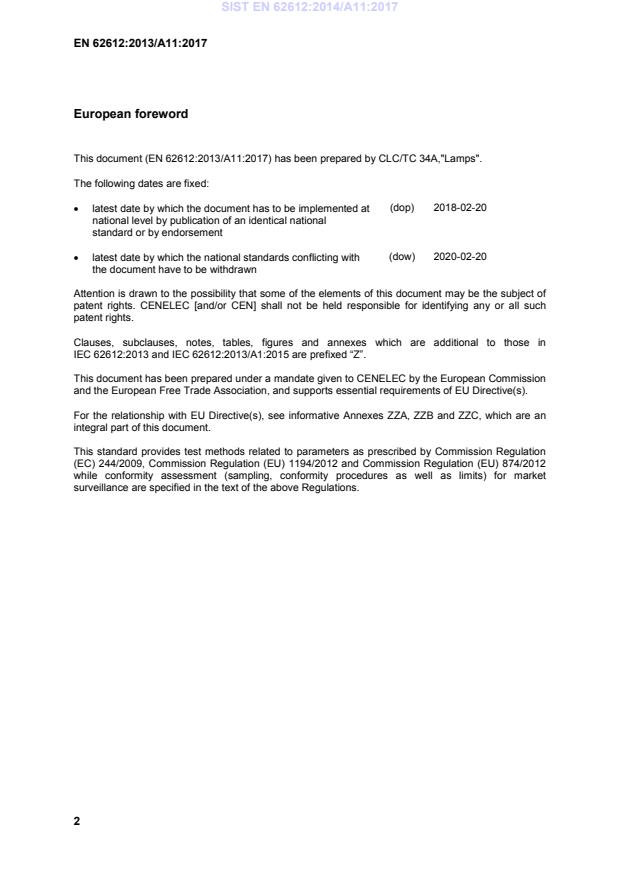

European foreword
This document (EN 62612:2013/A11:2017) has been prepared by CLC/TC 34A,"Lamps".
The following dates are fixed:
(dop) 2018-02-20
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2020-02-20
• latest date by which the national standards conflicting with
the document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62612:2013 and IEC 62612:2013/A1:2015 are prefixed “Z”.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s), see informative Annexes ZZA, ZZB and ZZC, which are an
integral part of this document.
This standard provides test methods related to parameters as prescribed by Commission Regulation
(EC) 244/2009, Commission Regulation (EU) 1194/2012 and Commission Regulation (EU) 874/2012
while conformity assessment (sampling, conformity procedures as well as limits) for market
surveillance are specified in the text of the above Regulations.
2
---------------------- Page: 4 ----------------------
SIST EN 62612:2014/A11:2017
EN 62612:2013/A11:2017
CONTENTS Add the following annexes:
Annex ZA (normative) Normative references to international publications with their
corresponding European publications
Annex ZZA (informative) Relationship between this European Standard and the
requirements of Commission Regulation (EC) No 244/2009
Annex ZZB (informative) Relationship between this European Standard and the
requirements of Commission Regulation (EC) No 1194/2012
Annex ZZC (informative) Relationship between this European Standard and the
requirements of Commission Regulation (EC) No 874/2012
1.0.Z1 Add the following clause before Clause 2
1.0.Z1 Overall statement
Where a Commission Regulation specifies limits for parameters these limits shall be
used instead of the limits specified in this standard.
3.Z1 After 3.21 add new definitions 3.Z1 up to 3.Z2:
3.Z1
partial luminous flux (of a light source, within a specified cone angle)
luminous flux emitted from a light source within a specified cone angle α, determined
from the luminous intensity distribution I(θ, ϕ) of the source:
2π α /2
Φ = I(θ,ϕ) sinθ dθ dϕ
α
∫∫
ϕθ00
(2)
Note 1 to entry: Partial luminous flux is expressed in lumen (lm)
Note 2 to entry: (θ, ϕ)=(0,0) is the direction of the cone axis
Note 3 to entry: The cone angle α is the full angle (diameter) of the cone
[SOURCE: EN 13032-4, 3.41, modified, – Notes 4 and 5 removed]
3.Z2
useful luminous flux
Φ
use
partial luminous flux of a LED lamp falling within the cone used for calculating the LED
lamp’s energy efficiency according Annex III, point 1.1 of regulation (EU) No
1194/2012
Note 1 to entry: Useful luminous flux is expressed in lumen (lm)
Note 2 to entry: The regulation specifies 90° or 120° cones according to the product characteristics
Note 3 to entry: useful luminous flux is similar to partial luminous flux. It is determined with the cone axis
coincident with the observed optical beam axis of the light source, the axis about which
the luminous intensity is substantially symmetrical
Z1 After Clause 12 add the following new clauses:
Z1 Requirements for directional LED lamps
Z1.1 Correlated colour temperature
Correlated colour temperature of a LED lamp shall be measured in accordance with
7.1, Colorimetric Measurements of EN 13032-4.
3
==
---------------------- Page: 5 ----------------------
SIST EN 62612:2014/A11:2017
EN 62612:2013/A11:2017
Z1.2 Useful luminous flux
The useful luminous flux of a directional LED lamp shall be measured according
Annex A together with the following:
- useful luminous flux of a directional LED lamp with a rated beam angle ≥ 90° shall
be measured in a 120° cone;
- otherwise the useful luminous flux of a directional LED lamp shall be measured in
90° cone.
If no rated beam angle is provided the useful luminous flux shall be measured in a 90°
cone.
Z1.3 - Functionality requirements
Z1.3.1 - Spectral power distribution
The measurement of the spectral power distribution shall be made under the
conditions of A.1 and in accordance with CIE 63.
Z1.3.2 Lamp starting and warm-up time
The starting time requirements for LED lamps that are intended to be switched on and
off via a communication protocol (and normally not by switching the mains supply on
and off) shall be determined from the time that the lamp receives an “on” signal
Starting and warm-up times shall be carried out as follows:
The test for starting and warm-up times shall be carried out in accordance with
FprEN 60969:2016, B.3.
Starting time is determined as the period from the start of the test to when the LED
lamp has fully completed the starting sequence (LED lamp has started and remains
alight).
Warm-up time is the time taken from the start of the test to when the LED lamp
achieves the required percentage of its stable luminous flux.
Z1.3.3 - Colour rendering (R )
a
Measurement of colour rendering indices shall be made in accordance with Annex A.
Z1.3.4 - Colour consistency
The requirements of 10.1 apply.
Compliance:
The variation of the chromaticity coordinates values of the LED lamp shall be within
colour variation category 6.
NOTE Category 6 implies a 6-step MacAdam ellipse centred on the rated colour target.
Z1.3.5 - Power factor
LED lamps operating on direct mains shall be in accordance with 8.1 and 8.2. The
distortion shall be measured according EN 61000-3-2 and the power factor λ be
calculated according to the relation given in D.1.
4
---------------------- Page: 6 ----------------------
SIST EN 62612:2014/A11:2017
EN 62612:2013/A11:2017
NOTE In view of future regulations, EN 62612 defines - the primary metric displacement factor and its
associated measurement method and recommended values – instead of the composite power factor metric.
Definitions related to power quantities are given in Table 2 of IEC/TR 61000-1-7:2016.
Z2 Requirements for non-directional LED lamps
Z2.1 Lamp efficacy requirements for non-directional LED lamps
The requirements of 8.1 and 9.1 apply in combination with the limits in Annex II, article
1 of commission regulation (EU) No 244/2009.
Z2.2 Functionality requirements for non-directional LED lamps
The requirements of Z1.3 apply.
Annex A.1 Replace the entire A.1 in EN 62612:2013 and EN 62612:2013/A1:2017 by:
A.1 General
Unless otherwise specified, all measurements shall be made in a draught-free room at
a temperature of 25 °C with a tolerance of ± 1 °C, a relative humidity of 65 %
maximum and steady state operation of the LED lamp.
If not exempted by specific clause, lamps shall be operated free burning in a vertical
position, cap-up, unless otherwise specified by the manufacturer or responsible
vendor.
The test voltage shall be the voltage as determined in A.2.4.
LED lamps do not require any ageing prior to testing. However, the manufacturer may
define an aging period up to 1 000 h.
For general conditions of photometric measurements see EN 13032-4.
For directional LED lamps the useful luminous flux is obtained by luminous intensity
integration according to EN 13032-4:2015, 6.3 "Partial luminous flux". Alternative
measurement methods may be used if they can be shown to give equivalent results
for the product being tested, if necessary by applying correction factors. However, the
lamp reference measurement position is vertical base-up operated in free air. In case
of doubt a goniophotometry measurement in accordance with EN 13032-4:2015, 6.3
shall be leading.
NOTE 1 Useful luminous flux measurements with lamps operating horizontally are often easier to carry
out. Examples of alternative measurement methods are.
• For small beam angles shine into integrating sphere.
• Mount lamp on internal surface of integrating sphere.
• Mount lamp inside integrating sphere with screening (LM-20 technique).
• Illuminate a surface and measure the illuminance across the surface with a photometer.
• Illuminate a surface and measure the surface luminance with a luminance camera.
• Illuminate a translucent screen and measure the surface luminance of the rear side with a luminance
camera.
For non-directional LED lamps the total luminous flux shall be measured according to
EN 13032-4. Also the partial luminous flux within a solid angle of π sr of the LED
lamps shall be evaluated to check the non-directionality.
5
---------------------- Page: 7 ----------------------
SIST EN 62612:2014/A11:2017
EN 62612:2013/A11:2017
Once the non-directionality is verified for one lamp, for lamps of the same type, only
the total luminous flux has to be measured.
Luminous intensity distribution shall be measured in accordance with EN 13032-4 and
EN 61341.
NOTE 2 EN13032-4 refers to EN 61341 for beam angle evaluation.
Chromaticity coordinates of
...
SLOVENSKI STANDARD
SIST EN 62612:2014/oprAA:2016
01-april-2016
/('VLMDONH]DVSORãQRUD]VYHWOMDYR]YJUDMHQRSUHGVWLNDOQRQDSUDYRSULQDSDMDOQL
QDSHWRVWLQDG97HKQLþQH]DKWHYH
Self-ballasted LED lamps for general lighting services with supply voltages > 50 V -
Performance requirements
LED-Lampen mit eingebautem Vorschaltgerät für Allgemeinbeleuchtung mit
Versorgungsspannungen > 50 V - Anforderungen an die Arbeitsweise
Lampes à LED autoballastées pour l'éclairage général avec des tensions d'alimentation
> 50 V - Exigences de performances
Ta slovenski standard je istoveten z: EN 62612:2013/prAA:2016
ICS:
29.140.01 Žarnice na splošno Lamps in general
SIST EN 62612:2014/oprAA:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 62612:2014/oprAA:2016
---------------------- Page: 2 ----------------------
SIST EN 62612:2014/oprAA:2016
EUROPEAN STANDARD DRAFT
EN 62612:2013
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
January 2016
ICS 29.140.01
English Version
Self-ballasted LED lamps for general lighting services with
supply voltages > 50 V - Performance requirements
Lampes à LED autoballastées pour l'éclairage général avec LED-Lampen mit eingebautem Vorschaltgerät für
des tensions d'alimentation > 50 V - Exigences de Allgemeinbeleuchtung mit Versorgungsspannungen > 50 V
performances - Anforderungen an die Arbeitsweise
This draft amendment prAA, if approved, will modify the European Standard EN 62612:2013; it is submitted to CENELEC members for
enquiry.
Deadline for CENELEC: 2016-04-22.
It has been drawn up by CLC/TC 34A.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 58955 Ref. No. EN 62612:2013/prAA:2016 E
---------------------- Page: 3 ----------------------
SIST EN 62612:2014/oprAA:2016
EN 62612:2013/prAA:2016
1 European foreword
2 This document (EN 62612:2013/prAA:2016) has been prepared by CLC/TC 34A, Lamps.
3
4 This document is currently submitted to the Enquiry.
5
6 The following dates are proposed:
– latest date by which the existence of this document has to be (doa) dor + 6 months
announced at national level
– latest date by which this document has to be implemented at (dop) dor + 12 months
national level by publication of an identical
national standard or by endorsement
– latest date by which the national standards conflicting with this (dow) dor + 36 months
document have to be withdrawn (to be confirmed or
modified when voting)
7
8 Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
9 IEC 62612:2013 and IEC 62612:2013/A1:2015 are prefixed “Z”.
10 This document has been prepared under a mandate given to CENELEC by the European Commission
11 and the European Free Trade Association, and supports essential requirements of EU Regulation(s).
12
13 For the relationship with EU Regulation(s) see informative Annex ZZ, which is an integral part of this
14 document.
15
16 This standard provides test methods related to parameters as prescribed by Commission Regulation
17 (EC) 244/2009, Commission Regulation (EU) 1194/2012 and Commission Regulation (EU) 874/2012
18 while conformity assessment (sampling, conformity procedures as well as limits) for market
19 surveillance are specified in the text of the above Regulations.
20
2
---------------------- Page: 4 ----------------------
SIST EN 62612:2014/oprAA:2016
EN 62612:2013/prAA:2016
21
22 CONTENTS Add the following annexes:
23 Annex ZA (normative) Normative references to international publications with their
24 corresponding European publications
25 Annex ZZA (informative) Relationship between this European Standard and the
26 requirements of Commission Regulation (EC) No 244/2009
27 Annex ZZB (informative) Relationship between this European Standard and the
28 requirements of Commission Regulation (EC) No 1194/2012
29 Annex ZZC (informative) Relationship between this European Standard and the
30 requirements of Commission Regulation (EC) No 874/2012
31
32 1.0.Z1 Add the following clause before clause 2
33 1.0.Z1 Overall statement
34 Where a Commission Regulation specifies limits for parameters these limits shall be
35 used instead of the limits specified in this standard.
36 3.Z1 After 3.21 add new definitions 3.Z1 up to 3.Z2:
37 3.Z1
38 partial luminous flux (of a light source, within a specified cone angle)
39 total luminous flux emitted from a light source within a specified cone angle α,
40 determined from the luminous intensity distribution I(θ, ϕ) of the source:
2π α /2
Φ = I(θ,ϕ) sinθ dθ dϕ
α
∫∫
ϕθ00
41 (2)
42 Note 1 to entry: Partial luminous flux is expressed in lumen (lm)
43 Note 2 to entry: (θ, ϕ)=(0,0) is the direction of the cone axis
44 Note 3 to entry: The cone angle α is the full angle (diameter) of the cone
45 [SOURCE: EN 13032-4, 3.41, modified, – Notes 4 and 5 removed]
46 3.Z2
47 useful luminous flux, Φuse
48 partial luminous flux of a LED lamp falling within the cone used for calculating the LED
49 lamp’s energy efficiency according Annex III, point 1.1 of regulation (EU) No
50 1194/2012
51 Note 1 to entry: Useful luminous flux is expressed in lumen (lm)
52 Note 2 to entry: The regulation specifies 90° or 120° cones according to the product characteristics
53 Note 3 to entry: useful luminous flux is similar to partial luminous flux. It is determined with the cone axis
54 coincident with the observed optical beam axis of the light source, the axis about which
55 the luminous intensity is substantially symmetrical
56 Z1 After Clause 12 add the following new clauses:
57 Z1 Requirements for directional LED lamps
58 Z1.1 Correlated Colour Temperature
3
==
---------------------- Page: 5 ----------------------
SIST EN 62612:2014/oprAA:2016
EN 62612:2013/prAA:2016
59 Correlated Colour Temperature of a LED lamp shall be measured in accordance with
60 7.1, Colorimetric Measurements of EN 13032-4.
61 Z1.2 Useful luminous flux
62 The useful luminous flux of a directional LED lamp shall be measured according
63 Annex A together with the following:
64 - useful luminous flux of a directional LED lamp with a rated beam angle ≥ 90° shall
65 be measured in a 120° cone;
66 - otherwise the useful luminous flux of a directional LED lamp shall be measured in
67 90° cone.
68 If no rated beam angle is provided the useful luminous flux shall be measured in a 90°
69 cone.
70 Z1.3 Energy efficiency requirements
71 The energy efficiency requirements for a directional LED lamps are determined by the
72 Energy Efficiency Index, EEI. The energy efficiency index, EEI is calculated as follows
73 and rounded to two decimal places:
74 EEI = P / P (1)
cor ref
75 Where:
76 a) P is the measured power of a LED lamp corrected in accordance with Table 1.
cor
77 Table Z1.1 – Power correction factors
Scope of the correction Corrected power (P )
cor
LEDi lamps P x 1,00
measured
78 NOTE LED lamps within the scope of EN 62612 are considered to be operated on direct mains (LEDi
79 lamps).
80 b) P is the reference power obtained from the measured useful luminous flux of
ref
81 the same LED lamp, Φ according clause Z1.3.
use
82
83 The LED lamp with a measured useful luminous flux, Φ < 1 300 lumen shall
use
84 apply P =0,88⋅ √(Φ )+0,049⋅Φ , otherwise P =0,07341⋅Φ
ref use use ref use
85 Z1.4 - Functionality requirements
86 Z1.4.1 - Spectral power distribution
87 The measurement of the spectral power distribution shall be made under the
88 conditions of A.1 and in accordance with CIE 63.
89 Z1.4.2 Lamp start (starting) time
90 Starting and warm-up times shall be carried out as follows:
4
---------------------- Page: 6 ----------------------
SIST EN 62612:2014/oprAA:2016
EN 62612:2013/prAA:2016
91 A typical test setup and equipment is shown in Figure Z1.1. Alternatively
92 picoammeters can be used to store sensor values.
93
94
95 Figure Z1.1 – Typical setup for starting time test
96 (1) The test equipment and the measurement device(s) shall be in a state such that
97 the lamp test can immediately be started.
98 (2) Switch on power to the lamp and triggering equipment as required.
99 (3) Record ambient temperature and relative humidity.
100 (4) Record luminous flux over time.
101 (5) The test shall run until the lamp starts fully and remains alight. If after a reasonable
102 period the lamp does not start, cease the test.
103 Secretary remark: Line 90 up to and including 102 are for information only and will be
104 replaced by the sentence in 105/106 in the final publication
105 The test for starting and warm-up times shall be carried out in accordance with
106 EN 60969:201x, B.3.
107 Starting time is determined as the period from the start of the test to when the LED
108 lamp has fully completed the starting sequence (LED lamp has started and remains
109 alight).
110 Warm-up time is the time taken from the start of the test to when the LED lamp
111 achieves the required percentage of its stable luminous flux.
5
---------------------- Page: 7 ----------------------
SIST EN 62612:2014/oprAA:2016
EN 62612:2013/prAA:2016
112 Z1.4.3 - Colour rendering (R )
a
113 Measurement of colour rendering indices shall be made in accordance with Annex A.
114 Z1.4.4 - Colour consistency
115 The requirements of 10.1 apply.
116 Compliance:
117 The variation of the chromaticity coordinates values of the LED lamp shall be within
118 colour variation category 6.
119 NOTE Category 6 implies a 6-step MacAdam ellipse centred on the rated colour target.
120 Z1.4.5 - Power factor
121 LED lamps operating on direct mains shall be in accordance with 8.1 and 8.2. The
122 distortion shall be measured according EN 61000-3-2 and the power factor λ be
123 calculated according to the relation given in D.1.
124 NOTE In view of future regulations, EN 62612 defines - the primary metric displacement factor and its
125 associated measurement method and recommended values – instead of the composite power factor metric.
126 Definitions related to power quantities are given in Table 2 of IEC/TR 61000-1-7 currently in preparation.
127 Z2 Requirements for non-directional LED lamps
128 Z2.1 Lamp efficacy requirements for non-directional LED lamps
129 The requirements of 8.1 and 9.1 apply in combination with the limits in Annex II, article
130 1 of commission regulation (EU) No 244/2009.
131 Z2.2 Functionality requirements for non-directional LED lamps
132 The requirements of Z1.5 apply.
133 Annex A.1 Replace the entire A.1 in EN 62612:2013 and EN 62612:2013/FprA1:2015 by:
134 A.1 General
135 Unless otherwise specified, all measurements shall be made in a draught-free room at
136 a t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
