Standards Content (Sample)

SLOVENSKI STANDARD
SIST-TS CEN/TS 13388:2020
01-maj-2020
Nadomešča:
SIST-TS CEN/TS 13388:2015
Baker in bakrove zlitine - Zbirka kemijskih sestav in izdelkov
Copper and copper alloys - Compendium of compositions and products
Kupfer und Kupferlegierungen - Übersicht über Zusammensetzungen und Produkte
Cuivre et alliages de cuivre - Inventaire des compositions et des produits
Ta slovenski standard je istoveten z: CEN/TS 13388:2020
ICS:
77.120.30 Baker in bakrove zlitine Copper and copper alloys
77.150.30 Bakreni izdelki Copper products
SIST-TS CEN/TS 13388:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 13388:2020

---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 13388:2020


CEN/TS 13388
TECHNICAL SPECIFICATION

SPÉCIFICATION TECHNIQUE

April 2020
TECHNISCHE SPEZIFIKATION
ICS 77.120.30; 77.150.30 Supersedes CEN/TS 13388:2015
English Version

Copper and copper alloys - Compendium of compositions
and products
Cuivre et alliages de cuivre - Inventaire des Kupfer und Kupferlegierungen - Übersicht über
compositions et des produits Zusammensetzungen und Produkte
This Technical Specification (CEN/TS) was approved by CEN on 21 October 2019 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 13388:2020 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)

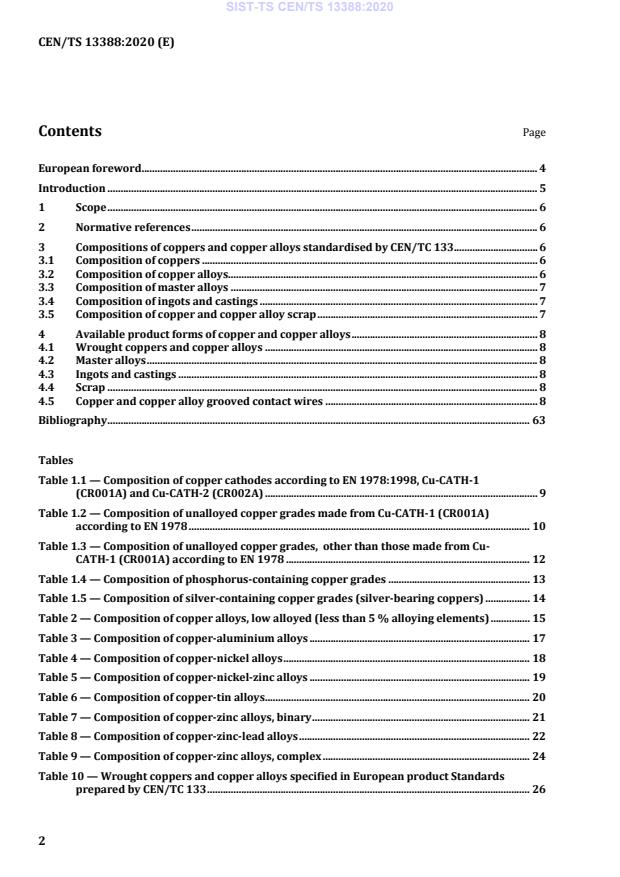

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Compositions of coppers and copper alloys standardised by CEN/TC 133. 6
3.1 Composition of coppers . 6
3.2 Composition of copper alloys. 6
3.3 Composition of master alloys . 7
3.4 Composition of ingots and castings . 7
3.5 Composition of copper and copper alloy scrap . 7
4 Available product forms of copper and copper alloys . 8
4.1 Wrought coppers and copper alloys . 8
4.2 Master alloys . 8
4.3 Ingots and castings . 8
4.4 Scrap . 8
4.5 Copper and copper alloy grooved contact wires . 8
Bibliography . 63

Tables
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1
(CR001A) and Cu-CATH-2 (CR002A) . 9
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A)
according to EN 1978 . 10
Table 1.3 — Composition of unalloyed copper grades, other than those made from Cu-
CATH-1 (CR001A) according to EN 1978 . 12
Table 1.4 — Composition of phosphorus-containing copper grades . 13
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers) . 14
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements) . 15
Table 3 — Composition of copper-aluminium alloys . 17
Table 4 — Composition of copper-nickel alloys . 18
Table 5 — Composition of copper-nickel-zinc alloys . 19
Table 6 — Composition of copper-tin alloys. 20
Table 7 — Composition of copper-zinc alloys, binary . 21
Table 8 — Composition of copper-zinc-lead alloys . 22
Table 9 — Composition of copper-zinc alloys, complex . 24
Table 10 — Wrought coppers and copper alloys specified in European product Standards
prepared by CEN/TC 133 . 26
2

---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 11 — Master alloys — Composition . 39
Table 12.1 — Ingots and castings — Copper and copper-chromium alloys — Compositions
and casting processes. 43
Table 12.2 — Ingots and castings — Copper-zinc alloys — Composition and casting
processes . 44
Table 12.3 — Ingots and castings — Copper-zinc-aluminium alloys — Composition and
casting processes . 45
Table 12.4 — Ingots and castings — Copper-zinc-lead alloys — Composition and casting
processes . 46
Table 12.5 — Ingots and castings — Copper-zinc-silicon alloys — Composition and casting
processes . 49
Table 12.6 — Ingots and castings — Other copper-zinc alloys — Composition and casting
processes . 50
Table 12.7 — Ingots and castings — Copper-tin alloys — Composition and casting processes . 51
Table 12.8 — Ingots and castings — Copper-tin-zinc-lead alloys — Composition and casting
processes . 52
Table 12.9 — Ingots and castings — Copper-tin-lead alloys — Composition and casting
processes . 53
Table 12.10 — Ingots and castings — Copper-aluminium alloys — Composition and casting
processes . 54
Table 12.11 — Ingots and castings — Copper-manganese alloys — Composition and casting
processes . 55
Table 12.12 — Ingots and castings — Copper-nickel alloys — Composition and casting
processes . 56
Table 12.13 — Ingots and castings — Copper-silicon-zinc alloys — Composition and casting
processes . 57
Table 13 — Scrap — Composition . 58
Table 14 — Composition of copper alloy according to EN 50149:2012 . 62

3

---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
European foreword
This document (CEN/TS 13388:2020) has been prepared by Technical Committee CEN/TC 133 “Copper
and copper alloys”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 13388:2015.
In comparison with CEN/TS 13388:2015, the following changes were made:
a) modifications regarding materials and compositions from EN 1982:2017, EN 12164:2016,
EN 12165:2016, EN 12167:2016, EN 12168:2016, EN 12449:2016+A1:2019, EN 12735-1:2016 and
EN 12861:2018 considered.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
4

---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Introduction
CEN/TC 133 “Copper and copper alloys” was established in 1988 to prepare and maintain standards in
the field of unwrought, wrought and cast products made from copper and copper alloys. Its
responsibilities included developing, defining, specifying and giving guidance on, as appropriate,
material compositions, designations, terminology, dimensions and tolerances, mechanical and physical
characteristics, conditions of delivery and methods of testing peculiar to copper and copper alloys.
During the development of standards for copper and copper alloy products, the experts realized the
necessity and seized the opportunity:
a) to coordinate and in some cases also to rationalize the composition limits which already existed for
the various product forms;
b) to establish unique, new and identifiably European designations for copper and copper alloys,
including a numerical option to be particularly convenient for computerized handling;
c) to confirm, clarify and redefine where necessary, the terminology which already existed in common
usage, at the international level or in customs nomenclature.
CEN/TC 133 decided, in view of the new form of presentation and new parameters for the description
and provision of information on copper and copper alloy products, to prepare and publish the present
consolidation and summary of essential details.
5

---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
1 Scope
This document provides a summary of material designations, compositions and the product forms in
which they are available, for coppers and copper alloys standardized in European Standards by
CEN/TC 133 “Copper and copper alloys”.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1976, Copper and copper alloys — Cast unwrought copper products
EN 1982:2017, Copper and copper alloys — Ingots and castings
3 Compositions of coppers and copper alloys standardised by CEN/TC 133
3.1 Composition of coppers
The symbol and number designations and compositions of copper grades are given in the following
tables:
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1 (CR001A) and
Cu-CATH-2 (CR002A)
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A) according to
EN 1978
Table 1.3 — Composition of unalloyed copper grades, other than those made from Cu-CATH-1
(CR001A) according to EN 1978
Table 1.4 — Composition of phosphorus-containing copper grades
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers)
3.2 Composition of copper alloys
The symbol and number designations and compositions of copper alloys are given in the following
tables:
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements)
Table 3 — Composition of copper-aluminium alloys
Table 4 — Composition of copper-nickel alloys
Table 5 — Composition of copper-nickel-zinc alloys
Table 6 — Composition of copper-tin alloys
Table 7 — Composition of copper-zinc alloys, binary
6

---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 8 — Composition of copper-zinc-lead alloys
Table 9 — Composition of copper-zinc alloys, complex
3.3 Composition of master alloys
The symbol and number designations and compositions of master alloys in accordance with
EN 1981:2003 are given in Table 11.
3.4 Composition of ingots and castings
The symbol and number designations and compositions of ingots and castings in accordance with
EN 1982:2017 are given in the following tables:
Table 12.1 — Ingots and castings — Copper and copper-chromium alloys — Compositions and
casting processes
Table 12.2 — Ingots and castings — Copper-zinc alloys — Composition and casting processes
Table 12.3 — Ingots and castings — Copper-zinc-aluminium alloys — Composition and casting
processes
Table 12.4 — Ingots and castings — Copper-zinc-lead alloys — Composition and casting processes
Table 12.5 — Ingots and castings — Copper-zinc-silicon alloys — Composition and casting
processes
Table 12.6 — Ingots and castings — Other copper-zinc alloys — Composition and casting processes
Table 12.7 — Ingots and castings — Copper-tin alloys — Composition and casting processes
Table 12.8 — Ingots and castings — Copper-tin-zinc-lead alloys — Composition and casting
processes
Table 12.9 — Ingots and castings — Copper-tin-lead alloys — Composition and casting processes
Table 12.10 — Ingots and castings — Copper-aluminium alloys — Composition and casting
processes
Table 12.11 — Ingots and castings — Copper-manganese alloys — Composition and casting
processes
Table 12.12 — Ingots and castings — Copper-nickel alloys — Composition and casting processes
Table 12.13 — Ingots and castings — Copper-silicon-zinc alloys — Composition and casting
processes
3.5 Composition of copper and copper alloy scrap
The symbol and number designations and compositions of copper and copper alloy scrap in accordance
with EN 12861:2018 are given in Table 13.
7

---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
4 Available product forms of copper and copper alloys
4.1 Wrought coppers and copper alloys
The product forms and applicable standards are given in Table 10.
4.2 Master alloys
The product forms are given in Table 11.
4.3 Ingots and castings
The product forms are given in Tables 12.1 to 12.13.
4.4 Scrap
The product forms are given in Table 13.
4.5 Copper and copper alloy grooved contact wires
The product forms are given in Table 14.
8

---------------------- Page: 10 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1 (CR001A) and Cu-CATH-2 (CR002A)
Material Composition in % (mass fraction)
designation Sum of elements listed in this table
Element Cu Ag As Bi Cd Co Cr Fe Mn Ni P Pb S Sb Se Si Sn Te Zn
other than copper
Symbol Number
min. — — — — — — — — — — — — — — — — — — — —
Cu-
CR001A
0,000 5 0,000 20 — — — 0,001 0 — — — 0,001 5 0,000 4 0,000 20 — — 0,000 20 —
CATH-1
max. — 0,002 5 0,000 5 0,006 5
a b a c a c a c a d a b c c b c

min. 99,90 — — — — — — — — — — — — — — — — — — —
Cu-
e

CR002A
CATH-2
max. — — — 0,000 5 — — — — — — — 0,005 — — — — — — — 0,03 excluding Ag
a
(As + Cd + Cr + Mn + P + Sb) maximum 0,001 5 %.
b
(Bi + Se + Te) maximum 0,000 3 %, of which (Se + Te) maximum 0,000 30 %.
c
(Co + Fe + Ni + Si + Sn + Zn) maximum 0,002 0 %.
d
The sulfur content shall be determined on a cast sample.
e
Including silver up to a maximum of 0,015 %.

9

---------------------- Page: 11 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A) according to EN 1978
Material designation Composition in % (mass fraction)
Symbol Number
Elemen
Cu Ag As Bi Cd Co Cr Fe Mn Ni O P Pb
unwroug wrought
t

ht copper copper

— — — — — — — —
min. — — — —
0,000 20
Cu-ETP1 CR003A CW003A
a a c a c a c a
max. — 0,002 5 0,040 0,000 5
0,000 5  —  —  — 0,001 0  —  —  —
b


— — — — — — — — —
min. — — —
Cu-OF1 CR007A CW007A 0,000 20
a a c a c a c d a
max. — 0,002 5 0,000 5
0,000 5  —  —  — 0,001 0  —  —  —  —
b


min. 99,99 — — — — — — — — — — —
Cu-OFE CR009A CW009A
d
max. — 0,002 5 0,000 5 0,000 20 0,000 1 — — 0,001 0 0,000 5 0,001 0 0,000 3 0,000 5


min. 99,99 — — — — — — — — — 0,001 —
Cu-PHCE CR022A CW022A
d
max. — 0,002 5 0,000 5 0,000 20 0,000 1 — — 0,001 0 0,000 5 0,001 0 0,006 0,000 5


Material designation Composition in % (mass fraction)
Elements listed in this
Symbol Number
table other than copper
Element S Sb Se Si Sn Te Zn
unwrought wrought
 total excluding
copper copper
— — — — — —
min. — —
Cu-ETP1 CR003A CW003A O
a b c c b c
max. 0,001 5 0,006 5
0,000 4 0,000 20  — — 0,000 20  —
— — — — — —
min. — —
Cu-OF1 CR007A CW007A O
a b c c b c
max. 0,001 5 0,006 5
0,000 4 0,000 20  — — 0,000 20  —
Cu-OFE CR009A CW009A —
min. — — — — — — — —
10

---------------------- Page: 12 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Material designation Composition in % (mass fraction)
Elements listed in this
Symbol Number
table other than copper
Element S Sb Se Si Sn Te Zn
unwrought wrought
 total excluding
copper copper
max. 0,001 5 0,000 4 0,000 20 — 0,000 2 0,000 20 0,000 1 —
min. — — — — — — — —
Cu-PHCE CR022A CW022A —
max. 0,001 5 0,000 4 0,000 20 — 0,000 2 0,000 20 0,000 1 —
a
(As + Cd + Cr + Mn + P + Sb) max. 0,001 5 %.
b
(Bi + Se + Te) max. 0,000 3 %, of which (Se + Te) max. 0,000 30 %.
c
(Co + Fe + Ni + Si + Sn + Zn) max. 0,002 0 %.
d
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement requirements of EN 1976.

11

---------------------- Page: 13 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 1.3 — Composition of unalloyed copper grades,
other than those made from Cu-CATH-1 (CR001A) according to EN 1978
Material designation Composition in % (mass fraction)
Symbol Number
Other elements
a (see note)
 Element Bi O Pb
unwrought wrought Cu
copper copper
      total excluding

min. 99,90 — — —
Cu-ETP CR004A CW004A Ag, O
b
max. — 0,000 5 0,005 0,03
0,040
— —
min. 99,90 — —
Cu-FRHC CR005A CW005A Ag, O
b d
max. — — —
0,040 0,06
min. 99,90 — — — —
Cu-FRTP CR006A CW006A Ag, Ni, O
max. — — 0,100 — 0,05

min. 99,95 — — —
Cu-OF CR008A CW008A Ag
c
max. — 0,000 5 0,005 0,03

NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb,
S, Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
Including silver, up to a maximum of 0,015 %.
b
Oxygen content up to 0,060 % is permitted, subject to agreement between the purchaser and the supplier.
c
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement
requirements of EN 1976.
d
Higher total impurities content is permitted, subject to agreement between the purchaser and the supplier.

12

---------------------- Page: 14 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 1.4 — Composition of phosphorus-containing copper grades
Material designation Composition in % (mass fraction)
Symbol Number
Other elements
(see note)
a
 Element Bi P Pb
Cu
unwrought wrought
copper copper
      total excluding

min. 99,95 — 0,001 —
Cu-PHC CR020A CW020A Ag, P
b
max. — 0,000 5 0,006 0,005
0,03

min. 99,95 — 0,002 —
Cu-HCP CR021A CW021A Ag, P
b
max. — 0,000 5 0,007 0,005
0,03
min. 99,90 — 0,005 — —
Cu-DLP CR023A CW023A Ag, Ni, P
max. — 0,000 5 0,013 0,005 0,03

min. 99,90 — 0,015 —
Cu-DHP CR024A CW024A —
c
max. — — 0,040 —

min. 99,90 — 0,04 — —
Cu-DXP CR025A — Ag, Ni, P
max. — 0,000 5 0,06 0,005 0,03
NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb,
S, Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
Including silver, up to a maximum of 0,015 %.
b
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement
requirements of EN 1976.
c
If required, the permitted total of elements, other than silver and phosphorus, should be agreed between the purchaser and the
supplier.

13

---------------------- Page: 15 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers)
Material designation Composition in % (mass fraction)
Other elements
Symbol Number
(see note)
 Element Cu Ag Bi O P
unwrought wrought
copper copper
       total excluding
min. Rem. 0,03 — — — —
CuAg0,04 CR011A CW011A Ag, O
max. — 0,05 0,000 5 0,040 — 0,03
min. Rem. 0,06 — — — —
CuAg0,07 CR012A CW012A Ag, O
max. — 0,08 0,000 5 0,040 — 0,03
min. Rem. 0,08 — — — —
CuAg0,10 CR013A CW013A Ag, O
max. — 0,12 0,000 5 0,040 — 0,03

min. Rem. 0,03 — 0,001 —
CuAg0,04P CR014A CW014A Ag, P
a
max. — 0,05 0,000 5 0,007 0,03


min. Rem. 0,06 — 0,001 —
CuAg0,07P CR015A CW015A Ag, P
a
max. — 0,08 0,000 5 0,007 0,03


min. Rem. 0,08 — 0,001 —
CuAg0,10P CR016A CW016A Ag, P
a
max. — 0,12 0,000 5 0,007 0,03


min. Rem. 0,03 — — —
CuAg0,04(OF) CR017A CW017A Ag, O
a
max. — 0,05 0,000 5 — 0,006 5


min. Rem. 0,06 — — —
CuAg0,07(OF) CR018A CW018A Ag, O
a
max. — 0,08 0,000 5 — 0,006 5


min. Rem. 0,08 — — —
CuAg0,10(OF) CR019A CW019A Ag, O
a
max. — 0,12 0,000 5 — 0,006 5

NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb, S,
Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen
embrittlement requirements of EN 1976.

14

---------------------- Page: 16 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements)
a
Density
Material designation Composition in % (mass fraction)
3
g/cm
Others
Symbol Number Element Cu Al Be Co Cr Fe Mn Ni P Pb S Si Sn Te Zn Zr
total approx.
min. Rem. — 1,6 — — — — — — — — — — — — — —
CuBe1,7 CW100C 8,3
max. — — 1,8 0,3 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — 1,8 — — — — — — — — — — — — — —
CuBe2 CW101C 8,3
max. — — 2,1 0,3 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — 1,8 — — — — — — 0,2 — — — — — — —
CuBe2Pb CW102C 8,3
max. — — 2,0 0,3 — 0,2 — 0,3 — 0,6 — — — — — — 0,5
min. Rem. — 0,4 0,8 — — — 0,8 — — — — — — — — —
CuCo1Ni1Be CW103C 8,8
max. — — 0,7 1,3 — 0,2 — 1,3 — — — — — — — — 0,5
min. Rem. — 0,4 2,0 — — — — — — — — — — — — —
CuCo2Be CW104C 8,8
max. — — 0,7 2,8 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — — — 0,5 — — — — — — — — — — — —
CuCr1 CW105C 8,9
max. — — — — 1,2 0,08 — — — — — 0,1 — — — — 0,2
min. Rem. — — — 0,5 — — — — — — — — — — 0,03 —
CuCr1Zr CW106C 8,9
max. — — — — 1,2 0,08 — — — — — 0,1 — — — 0,3 0,2
min. Rem. — — — — 2,1 — — 0,015 — — — — — 0,05 — —
CuFe2P CW107C 8,8
max. — — — — — 2,6 — — 0,15 0,03 — — — — 0,20 — 0,2
min. Rem. — — — — — — 0,8 0,15 — — — — — — — —
CuNi1P CW108C 8,9
max. — — — — — — — 1,2 0,25 — — — — — — — 0,1
min. Rem. — — — — — — 1,0 — — — 0,4 — — — — —
CuNi1Si CW109C 8,8
max. — — — — — 0,2 0,1 1,6 — 0,02 — 0,7 — — — — 0,3
min. Rem. — 0,2 — — — — 1,4 — — — — — — — — —
CuNi2Be CW110C 8,8
max. — — 0,6 0,3 — 0,2 — 2,4 — — — — — — — — 0,5
min. Rem. — — — — — — 1,6 — — — 0,4 — — — — —
CuNi2Si CW111C 8,8
max. — — — — — 0,2 0,1 2,5 — 0,02 — 0,8 — — — — 0,3
min. Rem. — — — — — — 2,6 — — — 0,8 — — — — —
CuNi3Si1 CW112C 8,8
max. — — — — — 0,2 0,1 4,5 — 0,02 — 1,3 — — — — 0,5
15

---------------------- Page: 17 ----------------------
SIST-TS CEN/TS 13388:2020
CEN/TS 13388:2020 (E)
a
Density
Material designation Composition in % (mass fraction)
3
g/cm
Others
Symbol Number Element Cu Al Be Co Cr Fe Mn Ni P Pb S Si Sn Te Zn Zr
total approx.
min. Rem. — — — — — — — 0,003 0,7 — — — — — — —
CuPb1P CW113C 8,9
max. — — — — — — — — 0,012 1,5 — — — — — — 0,1
min. Rem. — — — — — — — 0,003 — 0,2 — — — — — —
CuSP CW114C 8,9
max. — — — — — — — — 0,012 — 0,7 — — — — — 0,1
min. Rem. — — — — — — — — — — 0,8 — — — — —
CuSi1 CW115C 8,8
max. — 0,02 — — — 0,8 0,7 — 0,02 0,05 — 2,0 — — 1,5 — 0,5
min. Rem. — — — — — 0,7 — — — — 2,7 — — — — —
CuSi3Mn1 CW116C 8,8
max. — 0,05 — — — 0,2 1,3 — 0,05 0,05 — 3,2 — — 0,4 — 0,5
min. Rem. — — — — — — — — — — — 0,10 — — — —
CuSn0,15 CW117C 8,9
max. — — — — — 0,02 — 0,02 0,015 — — — 0,15 — 0,10 — 0,10
min. Rem. — — — — — — — 0,003 — — — — 0,4 — — —
CuTeP CW118C 8,9
max. — — — — — — — — 0,012 — — — — 0,7 — — 0,1
min. Rem. — — — — — — — — — — — — — 0,1 — —
CuZn0,5 CW119C 8,9
max. — — — — — — — — 0,02 — — — — — 1,0 — 0,1
min. Rem. — — — — — — — — — — — — — — 0,1 —
CuZr CW120C 8,9
max. — — — — — — — — — — — — — — — 0,2 0,1
min. Rem. — — — — — — — 0,01 — — 2,5 — — 1,0 — —
CuSi3Zn2P CW124C 8,6
max. — — — — — — 0,20 0,20 0,20 0,10 — 3,5 — — 3,0 — 0,2
min. Rem. — — — — 0,05 — — 0,015 — — — 0,05 — — — —
CuFe0,1Sn0,1P CW125C 8,6
max. — — — — — 0,20 — — 0,055 — — — 0,25 — — — 0,2
a
For i
...

SLOVENSKI STANDARD
kSIST-TS FprCEN/TS 13388:2019
01-september-2019
Baker in bakrove zlitine - Zbirka kemijskih sestav in izdelkov
Copper and copper alloys - Compendium of compositions and products
Kupfer und Kupferlegierungen - Übersicht über Zusammensetzungen und Produkte
Cuivre et alliages de cuivre - Inventaire des compositions et des produits
Ta slovenski standard je istoveten z: FprCEN/TS 13388
ICS:
77.120.30 Baker in bakrove zlitine Copper and copper alloys
77.150.30 Bakreni izdelki Copper products
kSIST-TS FprCEN/TS 13388:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

kSIST-TS FprCEN/TS 13388:2019

---------------------- Page: 2 ----------------------

kSIST-TS FprCEN/TS 13388:2019


FINAL DRAFT
TECHNICAL SPECIFICATION
FprCEN/TS 13388
SPÉCIFICATION TECHNIQUE

TECHNISCHE SPEZIFIKATION

June 2019
ICS 77.120.30; 77.150.30 Will supersede CEN/TS 13388:2015
English Version

Copper and copper alloys - Compendium of compositions
and products
Cuivre et alliages de cuivre - Inventaire et Kupfer und Kupferlegierungen - Übersicht über
compositions et des produits Zusammensetzungen und Produkte


This draft Technical Specification is submitted to CEN members for Vote. It has been drawn up by the Technical Committee
CEN/TC 133.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a Technical Specification.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TS 13388:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Compositions of coppers and copper alloys standardised by CEN/TC 133. 6
3.1 Composition of coppers . 6
3.2 Composition of copper alloys. 6
3.3 Composition of master alloys . 7
3.4 Composition of ingots and castings . 7
3.5 Composition of copper and copper alloy scrap . 7
4 Available product forms of copper and copper alloys . 8
4.1 Wrought coppers and copper alloys . 8
4.2 Master alloys . 8
4.3 Ingots and castings . 8
4.4 Scrap . 8
4.5 Copper and copper alloy grooved contact wires . 8
Bibliography . 63

Tables
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1
(CR001A) and Cu-CATH-2 (CR002A) . 9
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A)
according to EN 1978 . 10
Table 1.3 — Composition of unalloyed copper grades, other than those made from Cu-
CATH-1 (CR001A) according to EN 1978 . 12
Table 1.4 — Composition of phosphorus-containing copper grades . 13
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers) . 14
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements) . 15
Table 3 — Composition of copper-aluminium alloys . 17
Table 4 — Composition of copper-nickel alloys . 18
Table 5 — Composition of copper-nickel-zinc alloys . 19
Table 6 — Composition of copper-tin alloys. 20
Table 7 — Composition of copper-zinc alloys, binary . 21
Table 8 — Composition of copper-zinc-lead alloys . 22
Table 9 — Composition of copper-zinc alloys, complex . 24
Table 10 — Wrought coppers and copper alloys specified in European product Standards
prepared by CEN/TC 133 . 26
2

---------------------- Page: 4 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 11 — Master alloys — Composition . 39
Table 12.1 — Ingots and castings — Copper and copper-chromium alloys — Compositions
and casting processes. 43
Table 12.2 — Ingots and castings — Copper-zinc alloys — Composition and casting
processes . 44
Table 12.3 — Ingots and castings — Copper-zinc-aluminium alloys — Composition and
casting processes . 45
Table 12.4 — Ingots and castings — Copper-zinc-lead alloys — Composition and casting
processes . 46
Table 12.5 — Ingots and castings — Copper-zinc-silicon alloys — Composition and casting
processes . 49
Table 12.6 — Ingots and castings — Other copper-zinc alloys — Composition and casting
processes . 50
Table 12.7 — Ingots and castings — Copper-tin alloys — Composition and casting processes . 51
Table 12.8 — Ingots and castings — Copper-tin-zinc-lead alloys — Composition and casting
processes . 52
Table 12.9 — Ingots and castings — Copper-tin-lead alloys — Composition and casting
processes . 53
Table 12.10 — Ingots and castings — Copper-aluminium alloys — Composition and casting
processes . 54
Table 12.11 — Ingots and castings — Copper-manganese alloys — Composition and casting
processes . 55
Table 12.12 — Ingots and castings — Copper-nickel alloys — Composition and casting
processes . 56
Table 12.13 — Ingots and castings — Copper-silicon-zinc alloys — Composition and casting
processes . 57
Table 13 — Scrap — Composition . 58
Table 14 — Composition of copper alloy according to EN 50149:2012 . 62

3

---------------------- Page: 5 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
European foreword
This document (FprCEN/TS 13388:2019) has been prepared by Technical Committee CEN/TC 133
“Copper and copper alloys”, the secretariat of which is held by DIN.
This document is currently submitted to the Vote on TS.
This document will supersede CEN/TS 13388:2015.
In comparison with CEN/TS 13388:2015, the following changes were made:
a) modifications regarding materials and compositions from EN 1982:2017, EN 12164:2016,
EN 12165:2016, EN 12167:2016, EN 12168:2016, EN 12449:2016, EN 12735-1:2016 and
EN 12861:2018 considered.

4

---------------------- Page: 6 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Introduction
CEN/TC 133 “Copper and copper alloys” was established in 1988 to prepare and maintain standards in
the field of unwrought, wrought and cast products made from copper and copper alloys. Its
responsibilities included developing, defining, specifying and giving guidance on, as appropriate,
material compositions, designations, terminology, dimensions and tolerances, mechanical and physical
characteristics, conditions of delivery and methods of testing peculiar to copper and copper alloys.
During the development of standards for copper and copper alloy products, the experts realized the
necessity and seized the opportunity:
a) to coordinate and in some cases also to rationalize the composition limits which already existed for
the various product forms;
b) to establish unique, new and identifiably European designations for copper and copper alloys,
including a numerical option to be particularly convenient for computerized handling;
c) to confirm, clarify and redefine where necessary, the terminology which already existed in common
usage, at the international level or in customs nomenclature.
CEN/TC 133 decided, in view of the new form of presentation and new parameters for the description
and provision of information on copper and copper alloy products, to prepare and publish the present
consolidation and summary of essential details.
5

---------------------- Page: 7 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
1 Scope
This document provides a summary of material designations, compositions and the product forms in
which they are available, for coppers and copper alloys standardized in European Standards by
CEN/TC 133 “Copper and copper alloys”.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1976, Copper and copper alloys — Cast unwrought copper products
EN 1982:2017, Copper and copper alloys — Ingots and castings
3 Compositions of coppers and copper alloys standardised by CEN/TC 133
3.1 Composition of coppers
The symbol and number designations and compositions of copper grades are given in the following
tables:
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1 (CR001A) and
Cu-CATH-2 (CR002A)
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A) according to
EN 1978
Table 1.3 — Composition of unalloyed copper grades, other than those made from Cu-CATH-1
(CR001A) according to EN 1978
Table 1.4 — Composition of phosphorus-containing copper grades
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers)
3.2 Composition of copper alloys
The symbol and number designations and compositions of copper alloys are given in the following
tables:
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements)
Table 3 — Composition of copper-aluminium alloys
Table 4 — Composition of copper-nickel alloys
Table 5 — Composition of copper-nickel-zinc alloys
Table 6 — Composition of copper-tin alloys
Table 7 — Composition of copper-zinc alloys, binary
6

---------------------- Page: 8 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 8 — Composition of copper-zinc-lead alloys
Table 9 — Composition of copper-zinc alloys, complex
3.3 Composition of master alloys
The symbol and number designations and compositions of master alloys in accordance with
EN 1981:2017 are given in Table 11.
3.4 Composition of ingots and castings
The symbol and number designations and compositions of ingots and castings in accordance with
EN 1982:2017 are given in the following tables:
Table 12.1 — Ingots and castings — Copper and copper-chromium alloys — Compositions and
casting processes
Table 12.2 — Ingots and castings — Copper-zinc alloys — Composition and casting processes
Table 12.3 — Ingots and castings — Copper-zinc-aluminium alloys — Composition and casting
processes
Table 12.4 — Ingots and castings — Copper-zinc-lead alloys — Composition and casting processes
Table 12.5 — Ingots and castings — Copper-zinc-silicon alloys — Composition and casting
processes
Table 12.6 — Ingots and castings — Other copper-zinc alloys — Composition and casting processes
Table 12.7 — Ingots and castings — Copper-tin alloys — Composition and casting processes
Table 12.8 — Ingots and castings — Copper-tin-zinc-lead alloys — Composition and casting
processes
Table 12.9 — Ingots and castings — Copper-tin-lead alloys — Composition and casting processes
Table 12.10 — Ingots and castings — Copper-aluminium alloys — Composition and casting
processes
Table 12.11 — Ingots and castings — Copper-manganese alloys — Composition and casting
processes
Table 12.12 — Ingots and castings — Copper-nickel alloys — Composition and casting processes
Table 12.13 — Ingots and castings — Copper-silicon-zinc alloys — Composition and casting
processes
3.5 Composition of copper and copper alloy scrap
The symbol and number designations and compositions of copper and copper alloy scrap in accordance
with EN 12861:2018 are given in Table 13.
7

---------------------- Page: 9 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
4 Available product forms of copper and copper alloys
4.1 Wrought coppers and copper alloys
The product forms and applicable standards are given in Table 10.
4.2 Master alloys
The product forms are given in Table 11.
4.3 Ingots and castings
The product forms are given in Tables 12.1 to 12.13.
4.4 Scrap
The product forms are given in Table 13.
4.5 Copper and copper alloy grooved contact wires
The product forms are given in Table 14.
8

---------------------- Page: 10 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 1.1 — Composition of copper cathodes according to EN 1978:1998, Cu-CATH-1 (CR001A) and Cu-CATH-2 (CR002A)
Composition in % (mass fraction)
Sum of
Material
elements listed
designation
Element Cu Ag As Bi Cd Co Cr Fe Mn Ni P Pb S Sb Se Si Sn Te Zn in this table
other than
copper
Symbol Number
min. — — — — — — — — — — — — — — — — — — — —
Cu-CATH-1 CR001A
0,002 0,000 5 0,000 20 0,001 0 0,001 5 0,000 4 0,000 20 0,000 20
a c a a c a c c c
max. — 0,000 5 0,006 5
— — — — — — — — —
a b c d a b b
5

min. 99,90 — — — — — — — — — — — — — — — — — — —
e

Cu-CATH-2 CR002A
max. — — — 0,000 5 — — — — — — — 0,005 — — — — — — — 0,03 excluding
Ag
a
(As + Cd + Cr + Mn + P + Sb) maximum 0,001 5 %.
b
(Bi + Se + Te) maximum 0,000 3 %, of which (Se + Te) maximum 0,000 30 %.
c
(Co + Fe + Ni + Si + Sn + Zn) maximum 0,002 0 %.
d
The sulfur content shall be determined on a cast sample.
e
Including silver up to a maximum of 0,015 %.

9

---------------------- Page: 11 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 1.2 — Composition of unalloyed copper grades made from Cu-CATH-1 (CR001A) according to EN 1978
Material designation Composition in % (mass fraction)
Symbol Number
Elemen
Cu Ag As Bi Cd Co Cr Fe Mn Ni O P Pb
unwroug wrought
t

ht copper copper

— — — — — — — —
min. — — — —
0,000 20
Cu-ETP1 CR003A CW003A
a a c a c a c a
max. — 0,002 5 0,040 0,000 5
0,000 5  —  —  — 0,001 0  —  —  —
b


— — — — — — — — —
min. — — —
Cu-OF1 CR007A CW007A 0,000 20
a a c a c a c d a
max. — 0,002 5 0,000 5
0,000 5  —  —  — 0,001 0  —  —  —  —
b


min. 99,99 — — — — — — — — — — —
Cu-OFE CR009A CW009A
d
max. — 0,002 5 0,000 5 0,000 20 0,000 1 — — 0,001 0 0,000 5 0,001 0 0,000 3 0,000 5


min. 99,99 — — — — — — — — — 0,001 —
Cu-PHCE CR022A CW022A
d
max. — 0,002 5 0,000 5 0,000 20 0,000 1 — — 0,001 0 0,000 5 0,001 0 0,006 0,000 5


Material designation Composition in % (mass fraction)
Elements listed in this
Symbol Number
table other than copper
Element S Sb Se Si Sn Te Zn
unwrought wrought
 total excluding
copper copper
— — — — — —
min. — —
Cu-ETP1 CR003A CW003A O
a b c c b c
max. 0,001 5 0,006 5
0,000 4 0,000 20  — — 0,000 20  —
— — — — — —
min. — —
Cu-OF1 CR007A CW007A O
a b c c b c
max. 0,001 5 0,006 5
0,000 4 0,000 20  — — 0,000 20  —
Cu-OFE CR009A CW009A —
min. — — — — — — — —
10

---------------------- Page: 12 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
max. 0,001 5 0,000 4 0,000 20 — 0,000 2 0,000 20 0,000 1 —
min. — — — — — — — —
Cu-PHCE CR022A CW022A —
max. 0,001 5 0,000 4 0,000 20 — 0,000 2 0,000 20 0,000 1 —
a
(As + Cd + Cr + Mn + P + Sb) max. 0,001 5 %.
b
(Bi + Se + Te) max. 0,000 3 %, of which (Se + Te) max. 0,000 30 %.
c
(Co + Fe + Ni + Si + Sn + Zn) max. 0,002 0 %.
d
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement requirements of EN 1976.

11

---------------------- Page: 13 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 1.3 — Composition of unalloyed copper grades,
other than those made from Cu-CATH-1 (CR001A) according to EN 1978
Material designation Composition in % (mass fraction)
Symbol Number
Other elements
a (see note)
 Element Bi O Pb
unwrought wrought Cu
copper copper
      total excluding

min. 99,90 — — —
Cu-ETP CR004A CW004A Ag, O
b
max. — 0,000 5 0,005 0,03
0,040
— —
min. 99,90 — —
Cu-FRHC CR005A CW005A Ag, O
b d
max. — — —
0,040 0,06
min. 99,90 — — — —
Cu-FRTP CR006A CW006A Ag, Ni, O
max. — — 0,100 — 0,05

min. 99,95 — — —
Cu-OF CR008A CW008A Ag
c
max. — 0,000 5 0,005 0,03

NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb,
S, Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
Including silver, up to a maximum of 0,015 %.
b
Oxygen content up to 0,060 % is permitted, subject to agreement between the purchaser and the supplier.
c
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement
requirements of EN 1976.
d
Higher total impurities content is permitted, subject to agreement between the purchaser and the supplier.

12

---------------------- Page: 14 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 1.4 — Composition of phosphorus-containing copper grades
Material designation Composition in % (mass fraction)
Symbol Number
Other elements
(see note)
a
 Element Bi P Pb
Cu
unwrought wrought
copper copper
      total excluding

min. 99,95 — 0,001 —
Cu-PHC CR020A CW020A Ag, P
b
max. — 0,000 5 0,006 0,005
0,03

min. 99,95 — 0,002 —
Cu-HCP CR021A CW021A Ag, P
b
max. — 0,000 5 0,007 0,005
0,03
min. 99,90 — 0,005 — —
Cu-DLP CR023A CW023A Ag, Ni, P
max. — 0,000 5 0,013 0,005 0,03

min. 99,90 — 0,015 —
Cu-DHP CR024A CW024A —
c
max. — — 0,040 —

min. 99,90 — 0,04 — —
Cu-DXP CR025A — Ag, Ni, P
max. — 0,000 5 0,06 0,005 0,03
NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb,
S, Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
Including silver, up to a maximum of 0,015 %.
b
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen embrittlement
requirements of EN 1976.
c
If required, the permitted total of elements, other than silver and phosphorus, should be agreed between the purchaser and the
supplier.

13

---------------------- Page: 15 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 1.5 — Composition of silver-containing copper grades (silver-bearing coppers)
Material designation Composition in % (mass fraction)
Other elements
Symbol Number
(see note)
 Element Cu Ag Bi O P
unwrought wrought
copper copper
       total excluding
min. Rem. 0,03 — — — —
CuAg0,04 CR011A CW011A Ag, O
max. — 0,05 0,000 5 0,040 — 0,03
min. Rem. 0,06 — — — —
CuAg0,07 CR012A CW012A Ag, O
max. — 0,08 0,000 5 0,040 — 0,03
min. Rem. 0,08 — — — —
CuAg0,10 CR013A CW013A Ag, O
max. — 0,12 0,000 5 0,040 — 0,03

min. Rem. 0,03 — 0,001 —
CuAg0,04P CR014A CW014A Ag, P
a
max. — 0,05 0,000 5 0,007 0,03


min. Rem. 0,06 — 0,001 —
CuAg0,07P CR015A CW015A Ag, P
a
max. — 0,08 0,000 5 0,007 0,03


min. Rem. 0,08 — 0,001 —
CuAg0,10P CR016A CW016A Ag, P
a
max. — 0,12 0,000 5 0,007 0,03


min. Rem. 0,03 — — —
CuAg0,04(OF) CR017A CW017A Ag, O
a
max. — 0,05 0,000 5 — 0,006 5


min. Rem. 0,06 — — —
CuAg0,07(OF) CR018A CW018A Ag, O
a
max. — 0,08 0,000 5 — 0,006 5


min. Rem. 0,08 — — —
CuAg0,10(OF) CR019A CW019A Ag, O
a
max. — 0,12 0,000 5 — 0,006 5

NOTE The total of other elements (than copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb, S,
Sb, Se, Si, Sn, Te and Zn, subject to the exclusion of any individual elements indicated.
a
The oxygen content shall be controlled by the manufacturer so that the material conforms to the hydrogen
embrittlement requirements of EN 1976.

14

---------------------- Page: 16 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 2 — Composition of copper alloys, low alloyed (less than 5 % alloying elements)
a
Density
Material designation Composition in % (mass fraction)
3
g/cm
Others
Symbol Number Element Cu Al Be Co Cr Fe Mn Ni P Pb S Si Sn Te Zn Zr
total approx.
min. Rem. — 1,6 — — — — — — — — — — — — — —
CuBe1,7 CW100C 8,3
max. — — 1,8 0,3 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — 1,8 — — — — — — — — — — — — — —
CuBe2 CW101C 8,3
max. — — 2,1 0,3 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — 1,8 — — — — — — 0,2 — — — — — — —
CuBe2Pb CW102C 8,3
max. — — 2,0 0,3 — 0,2 — 0,3 — 0,6 — — — — — — 0,5
min. Rem. — 0,4 0,8 — — — 0,8 — — — — — — — — —
CuCo1Ni1Be CW103C 8,8
max. — — 0,7 1,3 — 0,2 — 1,3 — — — — — — — — 0,5
min. Rem. — 0,4 2,0 — — — — — — — — — — — — —
CuCo2Be CW104C 8,8
max. — — 0,7 2,8 — 0,2 — 0,3 — — — — — — — — 0,5
min. Rem. — — — 0,5 — — — — — — — — — — — —
CuCr1 CW105C 8,9
max. — — — — 1,2 0,08 — — — — — 0,1 — — — — 0,2
min. Rem. — — — 0,5 — — — — — — — — — — 0,03 —
CuCr1Zr CW106C 8,9
max. — — — — 1,2 0,08 — — — — — 0,1 — — — 0,3 0,2
min. Rem. — — — — 2,1 — — 0,015 — — — — — 0,05 — —
CuFe2P CW107C 8,8
max. — — — — — 2,6 — — 0,15 0,03 — — — — 0,20 — 0,2
min. Rem. — — — — — — 0,8 0,15 — — — — — — — —
CuNi1P CW108C 8,9
max. — — — — — — — 1,2 0,25 — — — — — — — 0,1
min. Rem. — — — — — — 1,0 — — — 0,4 — — — — —
CuNi1Si CW109C 8,8
max. — — — — — 0,2 0,1 1,6 — 0,02 — 0,7 — — — — 0,3
min. Rem. — 0,2 — — — — 1,4 — — — — — — — — —
CuNi2Be CW110C 8,8
max. — — 0,6 0,3 — 0,2 — 2,4 — — — — — — — — 0,5
min. Rem. — — — — — — 1,6 — — — 0,4 — — — — —
CuNi2Si CW111C 8,8
max. — — — — — 0,2 0,1 2,5 — 0,02 — 0,8 — — — — 0,3
min. Rem. — — — — — — 2,6 — — — 0,8 — — — — —
CuNi3Si1 CW112C 8,8
max. — — — — — 0,2 0,1 4,5 — 0,02 — 1,3 — — — — 0,5
15

---------------------- Page: 17 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
a
Density
Material designation Composition in % (mass fraction)
3
g/cm
Others
Symbol Number Element Cu Al Be Co Cr Fe Mn Ni P Pb S Si Sn Te Zn Zr
total approx.
min. Rem. — — — — — — — 0,003 0,7 — — — — — — —
CuPb1P CW113C 8,9
max. — — — — — — — — 0,012 1,5 — — — — — — 0,1
min. Rem. — — — — — — — 0,003 — 0,2 — — — — — —
CuSP CW114C 8,9
max. — — — — — — — — 0,012 — 0,7 — — — — — 0,1
min. Rem. — — — — — — — — — — 0,8 — — — — —
CuSi1 CW115C 8,8
max. — 0,02 — — — 0,8 0,7 — 0,02 0,05 — 2,0 — — 1,5 — 0,5
min. Rem. — — — — — 0,7 — — — — 2,7 — — — — —
CuSi3Mn1 CW116C 8,8
max. — 0,05 — — — 0,2 1,3 — 0,05 0,05 — 3,2 — — 0,4 — 0,5
min. Rem. — — — — — — — — — — — 0,10 — — — —
CuSn0,15 CW117C 8,9
max. — — — — — 0,02 — 0,02 0,015 — — — 0,15 — 0,10 — 0,10
min. Rem. — — — — — — — 0,003 — — — — 0,4 — — —
CuTeP CW118C 8,9
max. — — — — — — — — 0,012 — — — — 0,7 — — 0,1
min. Rem. — — — — — — — — — — — — — 0,1 — —
CuZn0,5 CW119C 8,9
max. — — — — — — — — 0,02 — — — — — 1,0 — 0,1
min. Rem. — — — — — — — — — — — — — — 0,1 —
CuZr CW120C 8,9
max. — — — — — — — — — — — — — — — 0,2 0,1
min. Rem. — — — — — — — 0,01 — — 2,5 — — 1,0 — —
CuSi3Zn2P CW124C 8,6
max. — — — — — — 0,20 0,20 0,20 0,10 — 3,5 — — 3,0 — 0,2
min. Rem. — — — — 0,05 — — 0,015 — — — 0,05 — — — —
CuFe0,1Sn0,1P CW125C 8,6
max. — — — — — 0,20 — — 0,055 — — — 0,25 — — — 0,2
a
For information only.

16

---------------------- Page: 18 ----------------------

kSIST-TS FprCEN/TS 13388:2019
FprCEN/TS 13388:2019 (E)
Table 3 — Composition of copper-aluminium alloys
Material designation Composition in % (mass fraction) a
Density
3
g/cm
Others
Symbol Number Element Cu Al As Fe Mn Ni P Pb Si Sn Zn
total approx.
min. Rem. 4,0 0,1 — — — — — — — — —
CuAl5As CW300G 8,2
max. – 6,5 0,4 0,2 0,2 0,2 — 0,02 — 0,05 0,3 0,3
min. Rem. 6,0 — 0,5 — — — — 2,0 — — —
CuAl6Si2Fe CW301G 7,7
max. — 6,4 — 0,7 0,1 0,1 — 0,05 2,4 0,1 0,4 0,2
min. Rem. 6,3 — — — — — — 1,5 — — —
CuAl7Si2 CW302G 7,7
max. — 7,6 — 0,3 0,2 0,2 — 0,05 2,2 0,2 0,5 0,2
min. Rem. 6,5 — 1,5 — — — — — — — —
CuAl8Fe3 CW303G 7,7
max. — 8,5 — 3,5 1,0 1,0 — 0,05 0,2 0,1 0,5 0,2
min. Rem. 8,0 — 1,0 — 2,0 — — — — — —
CuAl9Ni3Fe2 CW304G 7,4
max. — 9,5 — 3,0 2,5 4,0 — 0,05 0,1 0,1 0,2 0,3
min. Rem. 9,0 — 0,5 —
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
