Environmental Engineering (EE) - Measurement Methods for Power Consumption in Transport Telecommunication Networks Equipment

Write a deliverables contains methods for power consumption measurement, efficiency indicator. The document should be in line with similar published document from NIPP TEE especially on measurement methods

Okoljski inženiring (EE) - Metode merjenja porabe električne energije opreme prenosnih telekomunikacijskih omrežij

General Information

Status
Not Published
Current Stage
5020 - Formal vote (FV) (Adopted Project)
Start Date
31-Jan-2013
Due Date
21-Mar-2013
Completion Date
17-Jun-2013
Mandate

Buy Standard

Standard
ETSI ES 203 184 V1.1.1 (2012-12) - Environmental Engineering (EE); Measurement Methods for Power Consumption in Transport Telecommunication Networks Equipment
English language
21 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

Final draft ETSI ES 203 184 V1.1.1 (2012-12)
ETSI Standard
Environmental Engineering (EE);
Measurement Methods for Power Consumption in Transport
Telecommunication Networks Equipment
---------------------- Page: 1 ----------------------

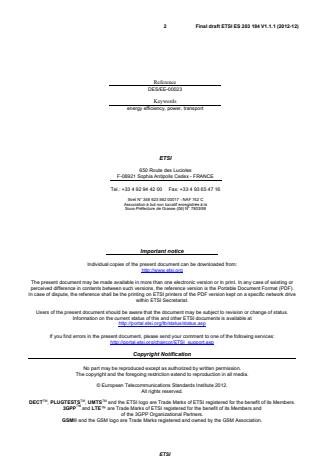

2 Final draft ETSI ES 203 184 V1.1.1 (2012-12)
Reference
DES/EE-00023
Keywords
energy efficiency, power, transport
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org

The present document may be made available in more than one electronic version or in print. In any case of existing or

perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).

In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive

within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI ES 203 184 V1.1.1 (2012-12)

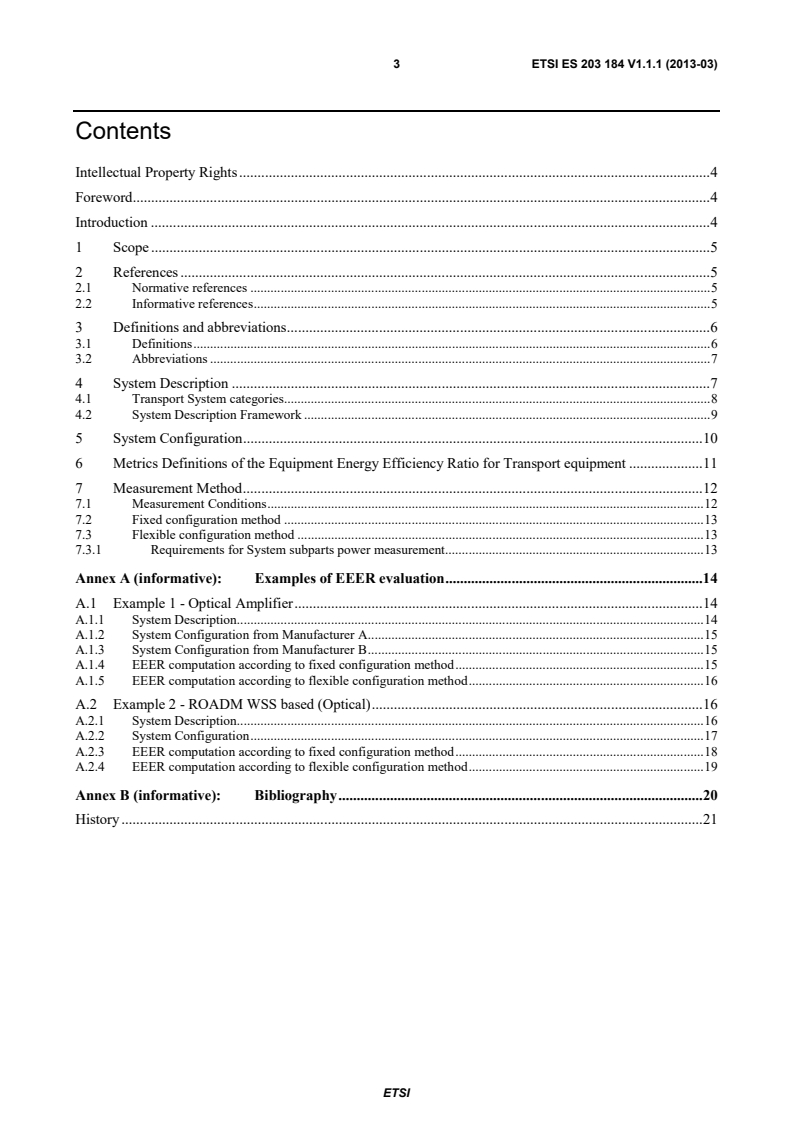

Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Introduction ........................................................................................................................................................ 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 5

3 Definitions and abbreviations ................................................................................................................... 6

3.1 Definitions .......................................................................................................................................................... 6

3.2 Abbreviations ..................................................................................................................................................... 7

4 System Description .................................................................................................................................. 7

4.1 Transport System categories............................................................................................................................... 8

4.2 System Description Framework ......................................................................................................................... 9

5 System Configuration ............................................................................................................................. 10

6 Metrics Definitions of the Equipment Energy Efficiency Ratio for Transport equipment .................... 11

7 Measurement Method ............................................................................................................................. 12

7.1 Measurement Conditions .................................................................................................................................. 12

7.2 Fixed configuration method ............................................................................................................................. 13

7.3 Flexible configuration method ......................................................................................................................... 13

7.3.1 Requirements for System subparts power measurement............................................................................. 13

Annex A (informative): Examples of EEER evaluation ...................................................................... 14

A.1 Example 1 - Optical Amplifier ............................................................................................................... 14

A.1.1 System Description........................................................................................................................................... 14

A.1.2 System Configuration from Manufacturer A .................................................................................................... 15

A.1.3 System Configuration from Manufacturer B .................................................................................................... 15

A.1.4 EEER computation according to fixed configuration method .......................................................................... 15

A.1.5 EEER computation according to flexible configuration method ...................................................................... 16

A.2 Example 2 - ROADM WSS based (Optical) .......................................................................................... 16

A.2.1 System Description........................................................................................................................................... 16

A.2.2 System Configuration ....................................................................................................................................... 17

A.2.3 EEER computation according to fixed configuration method .......................................................................... 18

A.2.4 EEER computation according to flexible configuration method ...................................................................... 19

Annex B (informative): Bibliography ................................................................................................... 20

History .............................................................................................................................................................. 21

ETSI
---------------------- Page: 3 ----------------------

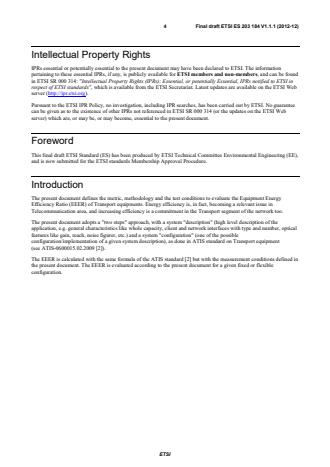

4 Final draft ETSI ES 203 184 V1.1.1 (2012-12)

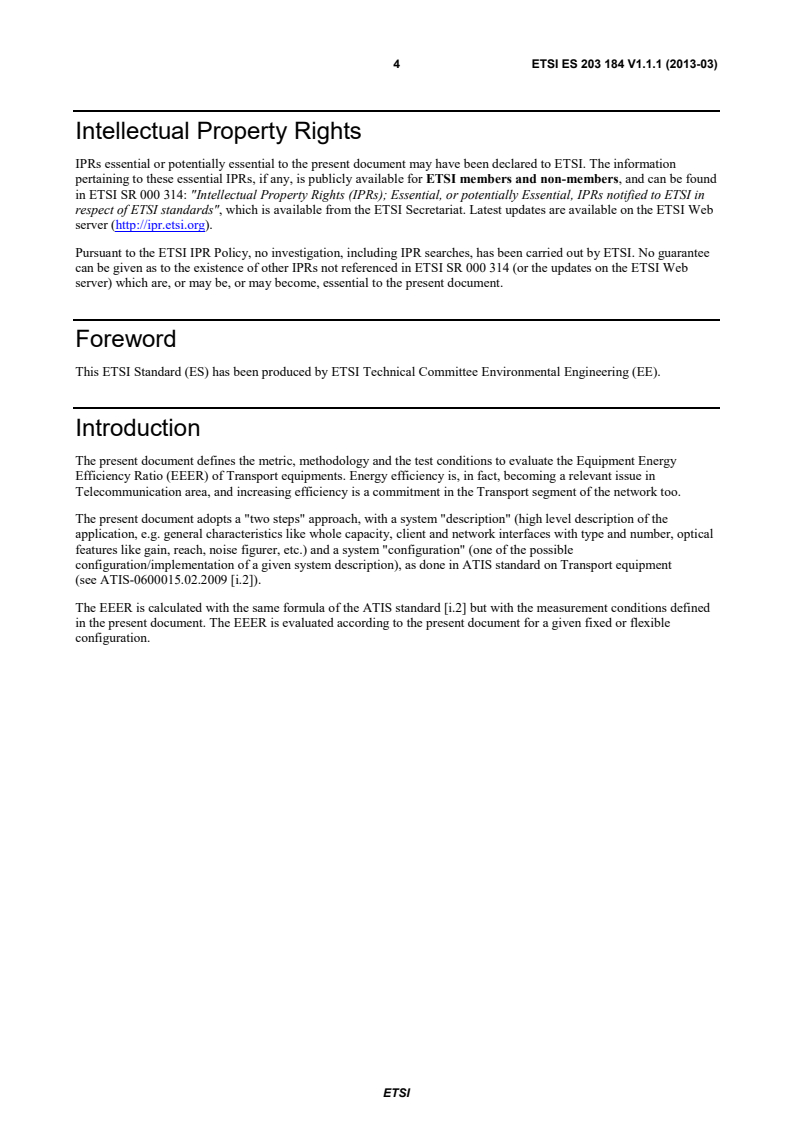

Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://ipr.etsi.org).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Foreword

This final draft ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE),

and is now submitted for the ETSI standards Membership Approval Procedure.
Introduction

The present document defines the metric, methodology and the test conditions to evaluate the Equipment Energy

Efficiency Ratio (EEER) of Transport equipments. Energy efficiency is, in fact, becoming a relevant issue in

Telecommunication area, and increasing efficiency is a commitment in the Transport segment of the network too.

The present document adopts a "two steps" approach, with a system "description" (high level description of the

application, e.g. general characteristics like whole capacity, client and network interfaces with type and number, optical

features like gain, reach, noise figurer, etc.) and a system "configuration" (one of the possible

configuration/implementation of a given system description), as done in ATIS standard on Transport equipment

(see ATIS-0600015.02.2009 [2]).

The EEER is calculated with the same formula of the ATIS standard [2] but with the measurement conditions defined in

the present document. The EEER is evaluated according to the present document for a given fixed or flexible

configuration.
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI ES 203 184 V1.1.1 (2012-12)
1 Scope

The present document defines the metric, methodology and the test conditions to evaluate the Equipment Energy

Efficiency Ratio (EEER) of Transport equipments. The Transport equipments covered will include all the transmission

equipment connected to the network by means of wired medium (i.e. copper or fiber), typically running at the network

OSI level 1. The present document also covers the equipment running at the network OSI level 2 (e.g. MPLS-TP) that

are not included in the ETSI standard on "Measurement Methods for Energy Efficiency of Router and Switch

Equipment" (the same approach is followed by ATIS standard on Transport equipment,

see ATIS-0600015.02.2009 [2]).

The present document is not applicable at node/network level but only at equipment level.

Examples of typical wired Transport equipments covered by the present document are switches or crosses connects

(SDH, OTN) and add/drop multiplexers (DWDM). The present document covers also simpler systems as

multiplexers/demultiplexers (DWDM), optical amplifiers, transponders.

Transport equipments that exploit radio or wireless interfaces (e.g. free space optics and point to point

wireless/microwave transport) are out of the scope of the present document. It is highlighted that ATIS standard for

transport equipment [2] includes wireless transport equipment.
2 References

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.
2.1 Normative references

The following referenced documents are necessary for the application of the present document.

[1] ATIS-0600015.2009: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting - General Requirements", February, 2009.

[2] ATIS-0600015.02.2009: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting - Transport Requirements", February, 2009.
2.2 Informative references

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to

telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".

ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI ES 203 184 V1.1.1 (2012-12)
3 Definitions and abbreviations
3.1 Definitions

For the purposes of the present document, the following terms and definitions apply:

Add Drop Multiplexer (ADM): network element that provides access to all, or some subset of the constituent signals

contained within an STM-N signal (in SDH) or in an OTU-k signal (in OTN) the ODUk and ODUflex can be accessed

in a similar way in the OTU. The constituent signals are added to (inserted), and/or dropped from (extracted) the

STM-N or OTU-k in OTN the OTU signal, as it passes through the ADM

card: part of an equipment implementing a given functionality (i.e. data interfaces, switching, control). Line cards with

data interfaces can have more ports

cross connect: apparatus enabling the termination of cable elements and their cross-connection, primarily by means of

patch cords or jumpers

Dense WDM (DWDM): WDM system characterised by an high density of optical signals on a given bandwidth

Digital Cross Connect (DXC): apparatus enabling the termination and the cross connection of signals (including

multiplexing and demultiplexing of signals according to a certain hierarchy) at electrical level

Forward Error Correction (FEC): technique which consists of transmitting the data in an encoded form such that the

redundancy added by the coding allows the decoding to detect and correct errors (e.g. in actual application the FEC is

used to extend the distance of transmission of optical signal)

hot-standby: state in which redundancy cards are not in use (stand-by), but are ready to work immediately when

needed

multi service protocol platform: transport equipment that is able to terminate and switch signals with more than one

protocol transport technology framing

Optical Add Drop Multiplexer (OADM): wavelength selective branching device (used in WDM transmission

systems) having a wavelength "drop" function in which one or more optical signals can be transferred from an input

port to either an output port or drop port(s) depending on the wavelength of the signal and also having a wavelength

"add" function in which optical signals presented to the add port(s) are also transferred to the output port (in OTN these

are the OCh signals)

optical amplifier: devices or subsystems in which optical signals can be amplified by means of the stimulated emission

taking place in a suitable active medium

Optical Cross Connect (OXC): apparatus enabling the termination and the cross connection of signal at optical level

(Optical) regenerator: transmitter-receiver combination device that performs the regeneration of an input optical

signal by means of conversion in the electrical domain and applying an FEC

(Optical) transponder: transmitter-receiver combination with or without pulse shaping and retiming that converts an

optical signal into another optical signal by a conversion into the electrical domain

passive (chromatic) dispersion compensator: passive component used to compensate the chromatic dispersion of an

optical path

port: part of a card in which a cable (typically a fiber) or a transceiver can be plugged to interconnect an equipment to

another compatible one

rack: free-standing or fixed structure for housing electrical and/or electronic and/or optical equipment, usually

organized in a number of slots

Reconfigurable OADM (ROADM): flexibly reconfigurable by means of control or management commands on the

node
slot: part of a rack for housing a card

switch: node that is capable of switching slots or packets/frames from one interface to another

ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI ES 203 184 V1.1.1 (2012-12)

transcesiver: combination of transmitter and receiver in a single package that is pluggable on a port of a line card with

compatible characteristics (in terms of rate and framing, for instance 40 GbEthernet)

transport equipment: transport equipment enables information transfer capabilities between originating and

terminating access service facilities

Wavelength Division Multiplexing (WDM): bidirectional multiplexing using different optical wavelength for up and

downstream signals
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
CBR Constant Bit Rate signal
CWDM Coarse Wavelength Division Multiplexing
DWDM Dense Wavelength Division Multiplexing
DXC Digital Cross-Connect
EE Energy Efficiency
EEER Equipment Energy Efficiency Ratio
FEC Forward Error Correction
GMPLS Generalized Multi-Protocol Label Switching
IMIX Internet MIX
MPLS Multi Protocol Label Switching
MPLS-TP MPLS- Transport Profile
MSTP Multi Service Transport Platform
NTU Network Termination Unit
OA Optical Amplifier
OCh Optical Channel
ODU Optical Data Unit
OLA Optical Line Amplifier
OMS Optical Multiplex Section
OSI Open Systems Interconnection
OTN Optical Transport Network
OTS Optical Transmission Section
OTU Optica Transport Unit
OXC Optical Cross Connect
PT Packet Transport
ROADM Reconfigurable Optical Add/Drop Multiplexer
SDH Synchronous Digital Hierarchy
SFP Small Form-factor Pluggable
SNC Sub-Network Connection
STM Synchronous Transport Module
TEER Telecommunications Energy Efficiency Ratio
VBR Variable Bit Rate
WADM Wavelength Add/Drop Multiplexer
WDM Wavelength Division Multiplexing
WSON Wavelength Switched Optical Networks
WSS Wavelength Selective Switch
WXC Wavelength Cross-Connect
XFP 10 Gigabit Small Form Factor Pluggable Module
4 System Description
This clause contains the rules to describe a Transport system.

The System Description provides a specification in terms of qualitative (i.e. which type of equipment) and quantitative

(i.e. how many ports of a certain rate) features, without any details about practical/physical implementation (e.g. in

terms of cards arranged on a rack) and number of racks part of a single node.
ETSI
---------------------- Page: 7 ----------------------
8 Final draft ETSI ES 203 184 V1.1.1 (2012-12)

It is suggested that the system description will be "implementation independent" and it shall be provided following the

framework reported in clause 4.2.

The present document covers the following non exhaustive list of Transport equipment types:

• Optical Amplifier, WDM Power Equalizer;
• WDM mux/demux (terminal for DWDM, CWDM);
• OADM, ROADM, OXC;
• SONET/SDH ADM, DXC;
• OTN ADM, DXC;
• Packet Transport switch (MPLS-TP);

• Multi Service Transport Platform (many combinations, i.e. SDH and Ethernet, OTN and Ethernet, OTN and

MPLS-TP, etc.);
• OTN-WDM platform (integrated DXC and ROADM node).
And other Transport equipments as defined in the scope of the present document.
4.1 Transport System categories

The following three Transport system categories are defined in order to properly provide the System Description.

Category A: terminal and signal conditioning equipment

This category, as regards signal handling by the system, is characterized by two sides: side a and side b (sometimes with

the meaning of Input and Output) as depicted in figure 1. The signals may be uni- or bi- directionally handled on each

of the two sides of the equipment.
The following equipments are examples of the category A:
• line OA;
• power equalizer;
• WDM terminal (mux/demux).
InIn / / ssididee a a
OutOut / s / siiddee b b
OuOut/t/ssiidde be b
In/sIn/siidde ae a
InIn / / side bside b
Out /Out / side side aa
Figure 1: Schematic representation for Category A Transport equipment:
unidirectional (on the left) or bidirectional (on the rigth)
Category B: switch and ADM without tributary add/drop ports

This category is characterized by switching or add/drop multiplexing functionalities and all the ports are used for

network interconnection (none of the ports is used for tributary add/drop function). Equipment belonging to this

category plays the role of pure transit equipment in a network.
ETSI
---------------------- Page: 8 ----------------------
9 Final draft ETSI ES 203 184 V1.1.1 (2012-12)
The following equipment are examples of the category B:
• SDH switch or ADM;
• OTN switch or ADM;
• WDM ROADM;
• PT switch.
Figure 2 give a schematic representation of category B.
Figure 2: Schematic representation for Category B Transport equipment
Category C: switch and ADM with tributary add/drop ports

This category is characterized by switching or add/drop multiplexing functionalities and the ports are used both for

network interconnection and for tributary add/drop function. Equipment belonging to this category plays the role of

node in a network where part of the switched traffic is terminated towards network clients.

A list of examples of equipment for category C is the same as the one provided for category B, but in case of category C

the equipment includes also tributary ports as depicted in figure 3.
TTribributarutary pory portsts
Figure 3: Schematic representation for Category C Transport equipment
4.2 System Description Framework
Each system shall be described according to the following framework:
a) System Category in accordance with the definitions of clause 4.1.
b) Type of equipment (i.e. for cat
...
