SIST EN IEC 61347-1:2025
(Main)Controlgear for electric light sources - Safety - Part 1: General requirements (IEC 61347-1:2024)
Controlgear for electric light sources - Safety - Part 1: General requirements (IEC 61347-1:2024)
IEC 61347-1:2024 specifies general safety requirements for controlgear for electric light sources for use on DC supplies up to 1 500 V or AC supplies up to 1 000 V at 50 Hz or 60 Hz.
This fourth edition cancels and replaces the third edition published in 2015 and Amendment 1:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) complete review of document structure, including but not limited to what is individually described under items b) to s);
b) removal of requirements for electromagnetic controlgear;
c) addition of more specific requirements for control circuit insulation and corresponding marking;
d) merging of thermal test requirements for transformers into a new Clause 16;
e) clarification of specifications for the moisture resistance test;
f) update of the normative reference to standards of the transformer series IEC 61558;
g) correction of the normative reference for PCB testing with respect to flames and fire;
h) update of further normative references where appropriate;
i) allowance of an alternative DC electric strength test;
j) addition of specific provisions for the use of bridging capacitors;
k) update of fire hazard testing requirements;
l) introduction of requirements for PELV applications;
m) clearance distances now generally based on peak instead of RMS voltage values;
n) introduction of a new type of protected emergency lighting controlgear;
o) review and clarification of touch current and voltage requirements;
p) clarification of the test sequence for independent controlgear with respect to the application of the IEC 60598 series versus the IEC 61347 series;
q) introduction of reduced touch voltages and currents for interrupted DC voltage applications or pulse width modulation (PWM);
r) changes concerning the recommendations for electric strength routine testing;
s) merging of requirements for safety isolating controlgear from former Annex L into the main body of the document;
t) introduction of Annex N intended to address touch current measurement;
u) introduction of Annex O intended to provide information on document reorganization.
Geräte für Lampen - Teil 1: Allgemeine und Sicherheitsanforderungen (IEC 61347-1:2024)
Appareillages de lampes - Partie 1: Exigences générales et exigences de sécurité (IEC 61347-1:2024)
L'IEC 61347-1:2024 spécifie les exigences de sécurité générales des appareillages pour sources de lumière électriques destinés à être utilisés avec des alimentations inférieures ou égales à 1 500 V en courant continu ou avec des alimentations inférieures ou égales à 1 000 V en courant alternatif à 50 Hz ou 60 Hz.
Cette quatrième édition annule et remplace la troisième édition parue en 2015 et l'Amendement 1:2017. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) revue complète de la structure du document, notamment les points b) à s) ci-dessous;
b) suppression des exigences relatives aux appareillages électromagnétiques;
c) ajout d'exigences plus spécifiques pour l'isolation du circuit de commande et le marquage correspondant;
d) fusion des exigences relatives aux essais thermiques des transformateurs dans un nouvel Article 16;
e) clarification des spécifications pour l'essai de résistance à l'humidité;
f) mise à jour des références normatives avec l'ajout de la série IEC 61558 relative aux transformateurs;
g) correction de la référence normative pour les essais des cartes de circuits imprimés, notamment pour l'évaluation de la résistance aux flammes et au feu;
h) mise à jour d'autres références normatives, le cas échéant;
i) ajout d'une variante pour l'essai de rigidité électrique sous un courant continu;
j) ajout de dispositions spécifiques au raccordement en pont de condensateurs;
k) mise à jour des exigences d'essais relatifs aux risques du feu;
l) ajout d'exigences pour les applications TBTP;
m) les distances d'isolement sont désormais déterminées généralement à partir des tensions de crête et non des valeurs de tension efficace;
n) ajout d'un nouveau type d'appareillage protégé pour l'éclairage de secours;
o) examen et clarification des exigences relatives au courant et à la tension de contact;
p) clarification de la séquence des essais pour les appareillages indépendants, selon la série IEC 60598 ou la série IEC 61347 appliquée;
q) ajout de valeurs de tension et de courant de contact inférieures pour les tensions continues interrompues ou la modulation de largeur d'impulsions (MLI);
r) modification des recommandations relatives aux essais individuels de série de rigidité électrique;
s) fusion des exigences relatives aux appareillages de sécurité de l'ancienne Annexe L dans le corps du document;
t) ajout de l'Annexe N afin de couvrir le mesurage des courants de contact;
u) ajout de l'Annexe O afin de fournir des informations sur la réorganisation des documents.
Stikalne naprave za sijalke - Varnost - 1. del: Splošne zahteve (IEC 61347-1:2024)
Ta del standarda IEC 61347 določa splošne varnostne zahteve za stikalne naprave za sijalke za uporabo z enosmernim napajanjem do vključno 1500 V ali izmeničnim napajanjem do vključno 1000 V pri frekvenci 50 Hz ali 60 Hz. OPOMBA 1: V nadaljevanju tega dokumenta se namesto izraza »sijalka« uporablja izraz»svetlobni vir«.
Ta dokument se uporablja samo v povezavi z ustreznimi deli skupine standardov IEC 61347-2.
OPOMBA 2: V kolikor je zajeto v ustreznem delu skupine standardov IEC 61347-2, se ta dokument uporablja tudi za stikalne naprave za električne vire, ki proizvajajo optično sevanje z isto tehnologijo, vendar za druge namene kot osvetlitev, in sevanje, ki ni spekter vidne svetlobe.
General Information
- Status
- Published
- Public Enquiry End Date
- 18-May-2023
- Publication Date
- 23-Dec-2024
- Technical Committee
- IESV - Lamps and related equipment
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 18-Dec-2024
- Due Date
- 22-Feb-2025
- Completion Date
- 24-Dec-2024
Relations
- Effective Date
- 01-Feb-2025
- Effective Date
- 01-Feb-2025
Overview
EN IEC 61347-1:2024 - "Controlgear for electric light sources - Safety - Part 1: General requirements" (CLC adoption of IEC 61347‑1:2024) defines general safety requirements for controlgear (e.g., ballasts, LED drivers and similar auxiliary devices) intended for use on DC supplies up to 1 500 V or AC supplies up to 1 000 V at 50 Hz or 60 Hz. This fourth edition replaces EN 61347‑1:2015 and its amendment and represents a technical revision with significant updates to structure, tests and requirements.
Key topics and technical requirements
This edition introduces numerous important changes and clarifications that affect design, testing and marking of controlgear:
- Scope & structure: Complete document reorganization and consolidation of previously annexed requirements into the main text.
- Insulation & markings: More specific requirements for control‑circuit insulation and corresponding marking obligations.
- Transformers & thermal testing: Thermal test requirements for transformers merged into a new Clause 16 and normative references updated to the IEC 61558 transformer series.
- Electric strength and routine testing: Introduction of an alternative DC electric strength test and updates to recommendations for electric strength routine testing.
- Fire and glow‑wire testing: Updated fire hazard and PCB flame/fire test references (glow‑wire and needle‑flame methods).
- Bridging capacitors & touch current: Specific provisions for bridging capacitors and clarified touch current/voltage limits, including reduced touch voltages/currents for interrupted DC or PWM applications.
- Safety isolating & PELV: Requirements for safety isolating controlgear moved into the main body and introduction of requirements for PELV applications.
- New device types: Introduction of a new type of protected emergency lighting controlgear.
- Ancillary guidance: New Annex N (touch current measurement) and Annex O (document reorganization information).
Keywords: EN IEC 61347-1:2024, controlgear for electric light sources, safety, insulation, electric strength, PWM, PELV, LED drivers, transformers, glow‑wire.
Applications and who uses it
EN IEC 61347‑1:2024 is essential for:
- Manufacturers of ballasts, LED drivers, emergency lighting controlgear and other lighting controlgear
- Luminaire designers and OEMs integrating built‑in or integral controlgear
- Product safety engineers and compliance officers preparing CE/market conformity evidence
- Test laboratories and certification bodies performing insulation, electric strength, fire and touch current testing
- Regulatory and standards committees referencing safety requirements for lighting equipment
Practical uses include guiding product design, specifying insulation and marking, defining test sequences (AC/DC strength, moisture resistance, thermal tests), and informing safety documentation for market approval.
Related standards
Relevant cross‑references and normative standards include IEC/EN series such as IEC 61558 (transformers), IEC 60598 (luminaires), IEC 60695 (glow‑wire/fire testing), IEC 60990 (touch current), and various IEC 61347 Part 2 standards for specific controlgear types.
Frequently Asked Questions
SIST EN IEC 61347-1:2025 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Controlgear for electric light sources - Safety - Part 1: General requirements (IEC 61347-1:2024)". This standard covers: IEC 61347-1:2024 specifies general safety requirements for controlgear for electric light sources for use on DC supplies up to 1 500 V or AC supplies up to 1 000 V at 50 Hz or 60 Hz. This fourth edition cancels and replaces the third edition published in 2015 and Amendment 1:2017. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) complete review of document structure, including but not limited to what is individually described under items b) to s); b) removal of requirements for electromagnetic controlgear; c) addition of more specific requirements for control circuit insulation and corresponding marking; d) merging of thermal test requirements for transformers into a new Clause 16; e) clarification of specifications for the moisture resistance test; f) update of the normative reference to standards of the transformer series IEC 61558; g) correction of the normative reference for PCB testing with respect to flames and fire; h) update of further normative references where appropriate; i) allowance of an alternative DC electric strength test; j) addition of specific provisions for the use of bridging capacitors; k) update of fire hazard testing requirements; l) introduction of requirements for PELV applications; m) clearance distances now generally based on peak instead of RMS voltage values; n) introduction of a new type of protected emergency lighting controlgear; o) review and clarification of touch current and voltage requirements; p) clarification of the test sequence for independent controlgear with respect to the application of the IEC 60598 series versus the IEC 61347 series; q) introduction of reduced touch voltages and currents for interrupted DC voltage applications or pulse width modulation (PWM); r) changes concerning the recommendations for electric strength routine testing; s) merging of requirements for safety isolating controlgear from former Annex L into the main body of the document; t) introduction of Annex N intended to address touch current measurement; u) introduction of Annex O intended to provide information on document reorganization.
IEC 61347-1:2024 specifies general safety requirements for controlgear for electric light sources for use on DC supplies up to 1 500 V or AC supplies up to 1 000 V at 50 Hz or 60 Hz. This fourth edition cancels and replaces the third edition published in 2015 and Amendment 1:2017. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) complete review of document structure, including but not limited to what is individually described under items b) to s); b) removal of requirements for electromagnetic controlgear; c) addition of more specific requirements for control circuit insulation and corresponding marking; d) merging of thermal test requirements for transformers into a new Clause 16; e) clarification of specifications for the moisture resistance test; f) update of the normative reference to standards of the transformer series IEC 61558; g) correction of the normative reference for PCB testing with respect to flames and fire; h) update of further normative references where appropriate; i) allowance of an alternative DC electric strength test; j) addition of specific provisions for the use of bridging capacitors; k) update of fire hazard testing requirements; l) introduction of requirements for PELV applications; m) clearance distances now generally based on peak instead of RMS voltage values; n) introduction of a new type of protected emergency lighting controlgear; o) review and clarification of touch current and voltage requirements; p) clarification of the test sequence for independent controlgear with respect to the application of the IEC 60598 series versus the IEC 61347 series; q) introduction of reduced touch voltages and currents for interrupted DC voltage applications or pulse width modulation (PWM); r) changes concerning the recommendations for electric strength routine testing; s) merging of requirements for safety isolating controlgear from former Annex L into the main body of the document; t) introduction of Annex N intended to address touch current measurement; u) introduction of Annex O intended to provide information on document reorganization.
SIST EN IEC 61347-1:2025 is classified under the following ICS (International Classification for Standards) categories: 29.130.01 - Switchgear and controlgear in general; 29.140.99 - Other standards related to lamps. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61347-1:2025 has the following relationships with other standards: It is inter standard links to SIST EN 61347-1:2015, SIST EN 61347-1:2015/A1:2021. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 61347-1:2025 is associated with the following European legislation: EU Directives/Regulations: 2014/35/EU; Standardization Mandates: M/511. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN IEC 61347-1:2025 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)

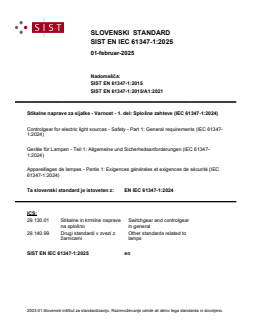

SLOVENSKI STANDARD
01-februar-2025
Nadomešča:
SIST EN 61347-1:2015
SIST EN 61347-1:2015/A1:2021
Stikalne naprave za sijalke - Varnost - 1. del: Splošne zahteve (IEC 61347-1:2024)
Controlgear for electric light sources - Safety - Part 1: General requirements (IEC 61347-
1:2024)
Geräte für Lampen - Teil 1: Allgemeine und Sicherheitsanforderungen (IEC 61347-
1:2024)
Appareillages de lampes - Partie 1: Exigences générales et exigences de sécurité (IEC
61347-1:2024)
Ta slovenski standard je istoveten z: EN IEC 61347-1:2024
ICS:
29.130.01 Stikalne in krmilne naprave Switchgear and controlgear
na splošno in general
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

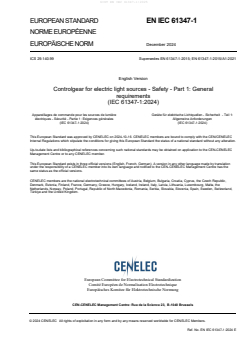

EUROPEAN STANDARD EN IEC 61347-1
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2024
ICS 29.140.99 Supersedes EN 61347-1:2015; EN 61347-1:2015/A1:2021
English Version
Controlgear for electric light sources - Safety - Part 1: General
requirements
(IEC 61347-1:2024)
Appareillages de commande pour les sources de lumière Geräte für elektrische Lichtquellen - Sicherheit - Teil 1:
électriques - Sécurité - Partie 1: Exigences générales Allgemeine Anforderungen
(IEC 61347-1:2024) (IEC 61347-1:2024)
This European Standard was approved by CENELEC on 2024-10-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61347-1:2024 E

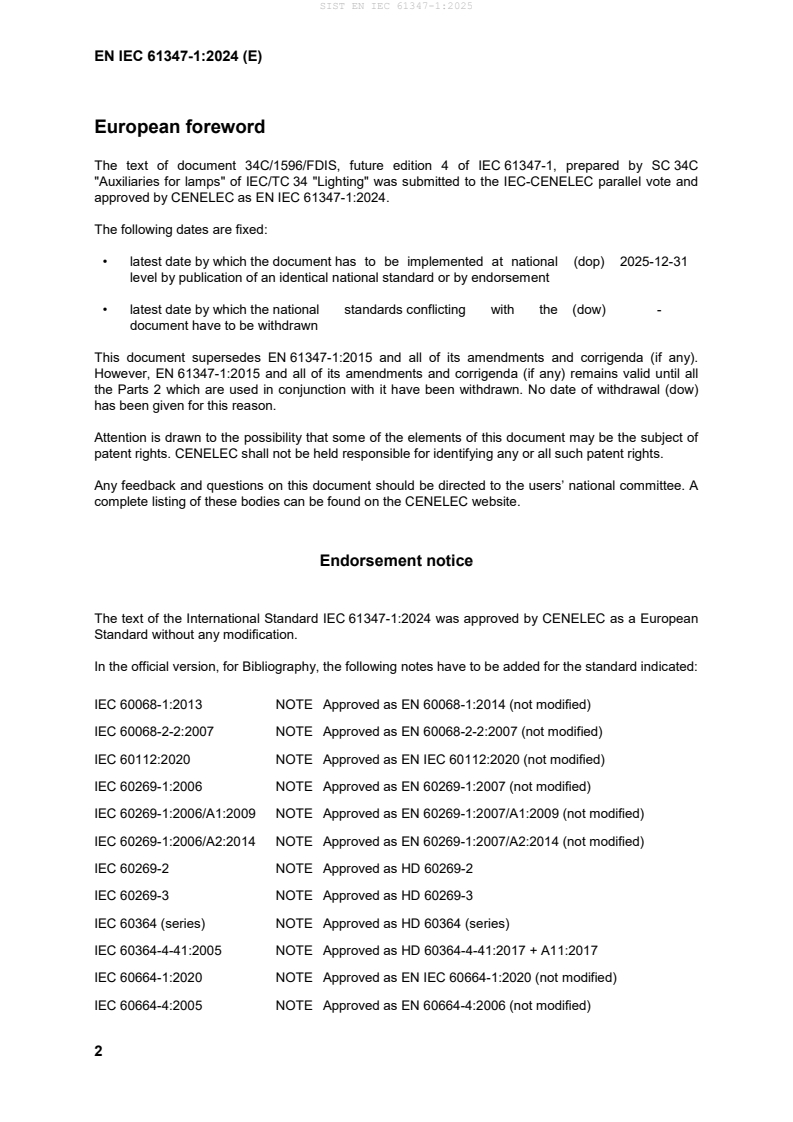

European foreword
The text of document 34C/1596/FDIS, future edition 4 of IEC 61347-1, prepared by SC 34C
"Auxiliaries for lamps" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 61347-1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-12-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) -
document have to be withdrawn
This document supersedes EN 61347-1:2015 and all of its amendments and corrigenda (if any).
However, EN 61347-1:2015 and all of its amendments and corrigenda (if any) remains valid until all
the Parts 2 which are used in conjunction with it have been withdrawn. No date of withdrawal (dow)
has been given for this reason.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61347-1:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-1:2013 NOTE Approved as EN 60068-1:2014 (not modified)
IEC 60068-2-2:2007 NOTE Approved as EN 60068-2-2:2007 (not modified)
IEC 60112:2020 NOTE Approved as EN IEC 60112:2020 (not modified)
IEC 60269-1:2006 NOTE Approved as EN 60269-1:2007 (not modified)
IEC 60269-1:2006/A1:2009 NOTE Approved as EN 60269-1:2007/A1:2009 (not modified)
IEC 60269-1:2006/A2:2014 NOTE Approved as EN 60269-1:2007/A2:2014 (not modified)
IEC 60269-2 NOTE Approved as HD 60269-2
IEC 60269-3 NOTE Approved as HD 60269-3
IEC 60364 (series) NOTE Approved as HD 60364 (series)
IEC 60364-4-41:2005 NOTE Approved as HD 60364-4-41:2017 + A11:2017
IEC 60664-1:2020 NOTE Approved as EN IEC 60664-1:2020 (not modified)
IEC 60664-4:2005 NOTE Approved as EN 60664-4:2006 (not modified)
IEC 60747-5-5:2020 NOTE Approved as EN IEC 60747-5-5:2020 (not modified)
IEC 60838-2-2 NOTE Approved as EN 60838-2-2
IEC 60929:2011 NOTE Approved as EN 60929:2011 (not modified)
IEC 60929:2011/A1:2015 NOTE Approved as EN 60929:2011/A1:2016 (not modified)
IEC 60947-7-4 NOTE Approved as EN IEC 60947-7-4
IEC 60998 (series) NOTE Approved as EN 60998 (series)
IEC 61000-4-5 NOTE Approved as EN 61000-4-5
IEC 61047 NOTE Approved as EN 61047
IEC 61048 NOTE Approved as EN 61048
IEC 61140:2016 NOTE Approved as EN 61140:2016 (not modified)
IEC 61347-2-1 NOTE Approved as EN IEC 61347-2-1
IEC 61347-2-2 NOTE Approved as EN 61347-2-2
IEC 61347-2-3 NOTE Approved as EN 61347-2-3
IEC 61347-2-7 NOTE Approved as EN 61347-2-7
IEC 61347-2-8 NOTE Approved as EN 61347-2-8
IEC 61347-2-9 NOTE Approved as EN 61347-2-9
IEC 61347-2-10 NOTE Approved as EN 61347-2-10
IEC 61347-2-11 NOTE Approved as EN 61347-2-11
IEC 61347-2-12 NOTE Approved as EN 61347-2-12
IEC 61347-2-13 NOTE Approved as EN 61347-2-13
IEC 61347-2-14 NOTE Approved as EN IEC 61347-2-14
IEC 61558 (series) NOTE Approved as EN 61558 (series)
IEC 62384 NOTE Approved as EN IEC 62384
IEC 62386-101 NOTE Approved as EN IEC 62386-101
IEC 62386-250 NOTE Approved as EN IEC 62386-250
IEC 62733 NOTE Approved as EN 62733
IEC 63128 NOTE Approved as EN IEC 63128
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-14 2009 Environmental testing - Part 2-14: Tests - EN 60068-2-14 2009
Test N: Change of temperature
IEC 60127 series Miniature fuses EN IEC 60127 series
IEC 60317-0-1 2013 Specifications for particular types of winding EN 60317-0-1 2014
wires - Part 0-1: General requirements -
Enamelled round copper wire
+ A1 2019 + A1 2019
IEC 60384-14 2023 Fixed capacitors for use in electronic EN IEC 60384-14 2023
equipment - Part 14: Sectional specification -
Fixed capacitors for electromagnetic
interference suppression and connection to
the supply mains
IEC 60598 series Luminaires EN IEC 60598 series
IEC 60598-1 2020 Luminaires - Part 1: General requirements EN IEC 60598-1 2021
and tests
+ A11 2022
IEC 60695-2-10 2021 Fire hazard testing - Part 2-10: Glowing/hot- EN IEC 60695-2-10 2021
wire based test methods - Glow-wire
apparatus and common test procedure
IEC 60695-2-11 2021 Fire hazard testing - Part 2-11: Glowing/hot- EN IEC 60695-2-11 2021
wire based test methods - Glow-wire
flammability test method for end products
(GWEPT)
IEC 60695-11-5 2016 Fire hazard testing - Part 11-5: Test flames - EN 60695-11-5 2017
Needle-flame test method - Apparatus,
confirmatory test arrangement and guidance
IEC 60691 2023 Thermal-links - Requirements and application EN IEC 60691 2023
guide
Withdrawn.
Publication Year Title EN/HD Year
IEC 60990 2016 Methods of measurement of touch current EN 60990 2016
and protective conductor current
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification
IEC 61180 2016 High-voltage test techniques for low-voltage EN 61180 2016
equipment - Definitions, test and procedure
requirements, test equipment
IEC 61189-2 2006 Test methods for electrical materials, printed EN 61189-2 2006
boards and other interconnection structures
and assemblies - Part 2: Test methods for
materials for interconnection structures
IEC 61249-2 series Materials for printed boards and other EN 61249-2 series
interconnecting structures - Part 2:
Reinforced base materials, clad and unclad
IEC 61558-1 2017 Safety of transformers, reactors, power EN IEC 61558-1 2019
supply units and combinations thereof - Part
1: General requirements and tests
IEC 61558-2-1 - Safety of transformers, reactors, power EN IEC 61558-2-1 -
supply units and combinations thereof - Part
2-1: Particular requirements and tests for
separating transformers and power supplies
incorporating separating transformers for
general applications
IEC 61558-2-4 - Safety of transformers, reactors, power EN 61558-2-4 -
supply units and combinations thereof - Part
2-4: Particular requirements and tests for
isolating transformers and power supply units
incorporating isolating transformers for
general applications
IEC 61558-2-6 - Safety of transformers, reactors, power EN 61558-2-6 -
supply units and combinations thereof - Part
2-6: Particular requirements and tests for
safety isolating transformers and power
supply units incorporating safety isolating
transformers for general applications
IEC 61558-2-13 - Safety of transformers, reactors, power EN IEC 61558-2-13 -
supply units and combinations thereof - Part
2-13: Particular requirements and tests for
auto-transformers and power supply units
incorporating auto-transformers for general
applications
IEC 61558-2-16 2021 Safety of transformers, reactors, power - -
supply units and combinations thereof - Part
2-16: Particular requirements and tests for
switch mode power supply units and
transformers for switch mode power supply
units for general applications
IEC 61643-11 2011 Low-voltage surge protective devices - Part EN 61643-11 2012
(mod) 11: Surge protective devices connected to
low-voltage power systems - Requirements
and test methods
- - + A11 2018
Publication Year Title EN/HD Year
IEC 62368-1 2023 Audio/video, information and communication EN IEC 62368-1 2024
technology equipment - Part 1: Safety
requirements
+ A11 2024
ISO 8820 series Road vehicles - Fuse-links - -
IEC 61347-1 ®
Edition 4.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Controlgear for electric light sources – Safety –
Part 1: General requirements
Appareillages de commande pour les sources de lumière électriques – Sécurité –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-9057-6
– 2 – IEC 61347-1:2024 © IEC 2024
CONTENTS
FOREWORD . 8
INTRODUCTION . 11
1 Scope . 12
2 Normative references . 12
3 Terms and definitions . 14
4 General requirements . 25
4.1 General . 25
4.2 Transformers . 25
4.3 Information for controlgear design in light sources standards . 26
5 General notes on tests . 26
5.1 General . 26
5.2 Sample size . 26
5.3 Test sequence . 26
5.4 DC supplied controlgear . 27
6 Information and marking . 27
6.1 General . 27
6.2 Information and marking items . 27
6.3 Durability and legibility of marking . 31
6.4 Built-in controlgear without an enclosure and integral controlgear . 31
7 Terminals . 32
8 Earthing . 32
8.1 General . 32
8.2 Protective earthing . 32
8.2.1 Constructional requirements . 32
8.2.2 Earthing via printed circuit board tracks . 33
8.2.3 Earthing via independent controlgear . 33
8.2.4 Conditioning and compliance . 33
8.3 Functional earthing . 34
9 Protection against accidental contact with hazardous live parts . 34
9.1 General . 34
9.2 Capacitors . 34
9.3 ELV limits . 35
9.4 SELV and PELV touch currents . 35
9.5 Safety isolating controlgear which does not rely upon the luminaire
enclosure for protection against electric shock . 36
9.5.1 General . 36
9.5.2 Touch voltage limits . 36
9.5.3 Touch current limits . 37
10 Insulation resistance and electric strength . 37
10.1 General . 37
10.2 Insulation resistance . 38
10.2.1 Moisture treatment and testing. 38
10.2.2 Compliance . 38
10.3 Electric strength . 38
10.3.1 General . 38
10.3.2 AC test . 39
IEC 61347-1:2024 © IEC 2024 – 3 –
10.3.3 DC test . 39
10.3.4 General test conditions and compliance . 39
11 Fault conditions . 40
11.1 General . 40
11.2 Applicable fault conditions . 40
11.2.1 PCB tracks . 40
11.2.2 Electronic components. 40
11.2.3 Insulation layers . 40
11.3 Test power supply requirements . 40
11.4 Test procedure and compliance . 42
11.4.1 Test procedure . 42
11.4.2 Compliance . 43
12 Construction . 43
12.1 Use of fibrous materials . 43
12.2 Insulation between circuits and accessible parts . 44
12.2.1 General . 44
12.2.2 SELV or PELV circuits . 44
12.2.3 FELV circuits . 45
12.2.4 Other circuits . 45
12.3 Metal core printed circuits boards (MCPCBs) . 45
12.4 Interrupted DC output . 45
12.5 Control circuits . 45
12.6 Bridging of insulation . 46
12.6.1 Resistors . 46
12.6.2 Capacitors . 46
12.7 Built-in controlgear with basic insulation and built-in controlgear with double
insulation . 47
12.8 Transformers . 47
12.8.1 General . 47
12.8.2 Components . 48
12.9 Independent controlgear . 48
13 Creepage distances, clearances and distances through insulation . 48
13.1 General . 48
13.2 Creepage distances . 49
13.2.1 General . 49
13.2.2 Creepage distances for working frequencies not exceeding 30 kHz . 49
13.2.3 Creepage distances for working frequencies above 30 kHz . 50
13.2.4 Compliance with the required creepage distances . 51
13.3 Clearances . 52
13.3.1 General . 52
13.3.2 Clearances considering mains supply transient overvoltages . 53
13.3.3 Clearances not considering mains supply transient overvoltages . 54
13.3.4 Compliance with the required clearances . 57
13.4 Distances through insulation (DTI) . 57
13.5 Specific requirements for PCB . 57
13.5.1 General . 57
13.5.2 Reduction of creepage distances . 57
13.5.3 No minimum requirements for creepage distances and clearances . 58
13.6 Specific requirements for insulation layers . 58
– 4 – IEC 61347-1:2024 © IEC 2024
14 Screws, current-carrying parts and connections . 58
14.1 General . 58
14.2 Electrical connections . 58
14.3 Self-tapping and thread-cutting screws . 59
14.4 Locking against loosening . 59
14.5 Current-carrying parts . 59
14.6 Mechanical stress resistance . 60
15 Resistance to heat, fire and tracking . 61
15.1 Resistance to heat . 61
15.2 Resistance to flames and fire . 62
15.2.1 General . 62
15.2.2 Glow-wire test. 62
15.2.3 Needle-flame test . 62
15.2.4 Printed circuit boards . 63
15.3 Resistance to tracking . 63
16 Thermal requirements . 63
16.1 General . 63
16.1.1 Test specifications . 63
16.1.2 Built-in controlgear . 63
16.1.3 Integral controlgear . 64
16.1.4 Independent controlgear . 64
16.2 Normal operation . 65
16.3 Abnormal operation . 65
Annex A (normative) Test to establish whether a conductive part is a hazardous live
part. 69
A.1 General . 69
A.2 Touch voltage limits . 69
A.3 Touch current limits . 69
A.4 Compliance . 69
Annex B (normative) Temperature declared thermally protected controlgear . 70
B.1 General requirements . 70
B.1.1 Thermal protection means . 70
B.1.2 Circuit breaking of the thermal protection means . 70
B.2 General notes on tests . 70
B.3 Classification . 70
B.4 Limitation of heating. 70
B.4.1 Pre-selection test . 70
B.4.2 Functioning of the thermal protection means . 71
Annex C (normative) Thermal tests of thermally protected controlgear . 72
C.1 General . 72
C.2 Test chamber . 72
C.3 Controlgear operating temperatures . 72
C.4 Controlgear position in the test chamber . 72
C.5 Temperature measurements . 73
Annex D (normative) Draught-proof test chambers . 74
Annex E (normative) Tests requirements . 75
E.1 Ambient temperature and test room . 75
E.2 Test voltage and test frequency . 75
IEC 61347-1:2024 © IEC 2024 – 5 –
E.3 Magnetic effects. 75
E.4 Instrument characteristics . 75
E.4.1 Potential circuits . 75
E.4.2 Current circuits . 75
E.4.3 RMS measurements . 75
E.5 Test conditions . 76
E.5.1 Resistance measurement delays . 76
E.5.2 Electrical resistance of contacts and leads . 76
Annex F (informative) Schedule of more onerous requirements . 77
Annex G (informative) Conformity testing during manufacture . 78
G.1 General . 78
G.2 Routine testing . 78
G.3 Additional electric strength routine tests for controlgear with protection
against pollution using coating or potting material . 78
Annex H (normative) Requirements for insulation materials used for double or
reinforced insulation . 80
H.1 General requirements . 80
H.2 Insulating barrier test . 80
Annex I (normative) Reduction of creepage distances and clearances for coated or
potted controlgear . 81
I.1 General . 81
I.2 Reduction of creepage distances . 81
I.2.1 Creepage distances for working frequencies not exceeding 30 kHz . 81
I.2.2 Creepage distances for working frequencies above 30 kHz . 81
I.3 Conditioning and compliance . 83
I.3.1 Compliance . 83
I.3.2 Conditioning of the controlgear . 83
I.3.3 Moisture resistance and electric strength . 83
I.3.4 Impulse voltage dielectric test . 83
Annex J (informative) Example for U calculation . 85
p
Annex K (informative) Concept of creepage distances and clearances . 86
K.1 Basic concept considerations . 86
K.1.1 Creepage distances . 86
K.1.2 Clearances . 86
K.2 Reasons for setting up tables . 87
Annex L (informative) Overvoltage category III controlgear . 88
L.1 General . 88
L.2 Electric strength test voltages . 88
L.3 Clearances for controlgear not protected against pollution by coating or
potting materials . 88
L.4 Clearances for controlgear protected against pollution by coating or potting . 89
L.5 Distances through insulation . 89
L.6 Bridging by Y capacitors . 89
Annex M (informative) Information for luminaire design . 91
M.1 Controlgear to be tested together with the luminaire . 91
M.2 Earthing of built-in controlgear . 91
M.3 Insulation between controlgear circuits and accessible conductive parts of
luminaires . 91
M.4 Thermally protected controlgear . 91
– 6 – IEC 61347-1:2024 © IEC 2024
Annex N (normative) Touch current measurements . 94
N.1 General conditions . 94
N.2 Perception weighted measuring network . 95
N.3 Set-up and test sequence . 95
N.3.1 Touch currents between accessible parts and earth . 95
N.3.2 Touch currents between (different) accessible parts . 96
N.3.3 Touch currents between output and earth . 97
Annex O (informative) Information on document reorganization . 100
O.1 General . 100
O.2 Renumbering of clauses and annexes . 100
O.3 Renumbering of figures . 102
O.4 Renumbering of tables . 103
O.5 Rearrangement of marking and information items . 103
Bibliography . 105
Figure 1 – Test circuit (default) . 41
Figure 2 – Test circuit (for controlgear provided with internal protection that supports
selectivity) . 41
Figure 3 – Determination of creepage distances . 49
Figure 4 – Determination of clearances (general) . 52
Figure 5 – Determination of clearances (guidance on Table 15 and Table 16) . 53
Figure 6 – Screw type examples . 59
Figure 7 – Ball-pressure apparatus . 62
Figure 8 – Test arrangement for heating test . 64
Figure C.1 – Example of a heating test chamber for thermally protected controlgear . 73
Figure H.1 – Test electrode . 80
Figure J.1 – Example for the calculation of U . 85
p
Figure M.1 – Example of a controlgear insulation . 92
Figure N.1 – Measuring network (perception weighted) . 95
Figure N.2 – Test configuration for touch currents between accessible parts and earth . 96
Figure N.3 – Test configuration for touch currents between different accessible parts . 97
Figure N.4 – Test configuration for touch currents between output and earth . 98
Table 1 – Required rated impulse withstand voltage of equipment . 23
Table 2 – Marking according to installation type . 27
Table 3 – Symbols according to output isolation type . 28
Table 4 – Voltage steps . 30
Table 5 – Further markings . 31
Table 6 – ELV limits . 35
Table 7 – Touch current limits . 36
Table 8 – SELV touch voltage limits . 36
Table 9 – PELV touch voltage limits . 37
Table 10 – Electric strength test voltages. 39
Table 11 – Required number and type of Y capacitors . 47
Table 12 – Creepage distances – Working frequencies not exceeding 30 kHz . 50
IEC 61347-1:2024 © IEC 2024 – 7 –
Table 13 – Creepage distances – Working frequencies above 30 kHz . 51
Table 14 – Clearances considering mains supply transient overvoltages . 53
Table 15 – Clearances without considering mains supply transient overvoltages –
Basic or supplementary insulation . 55
Table 16 – Clearances without considering mains supply transient overvoltages –
Reinforced insulation . 56
Table 17 – Minimum creepage distances on printed circuit boards (PCBs) . 58
Table 18 – Torque tests on screws . 60
Table 19 – Values of maximum temperatures in normal use . 65
Table 20 – Maximum temperatures under abnormal operation . 66
Table 21 – Values of T and k for fuses . 67
Table G.1 – Minimum values for electrical routine tests . 79
Table I.1 – Creepage distances – Working frequencies not exceeding 30 kHz (coated
or potted controlgear) . 81
Table I.2 – Creepage distances – Working frequencies above 30 kHz (coated or
potted controlgear) . 82
Table I.3 – Impulse withstand test voltages . 84
Table L.1 – Electric strength test voltages for overvoltage category III controlgear. 88
Table L.2 – Impulse withstand test voltages for overvoltage category III coated or
potted controlgear . 89
Table L.3 – Overview of required Y capacitors . 90
Table M.1 – Insulation requirements between live parts and accessible conductive
parts for different luminaire constructions . 93
Table N.1 – Test sequence according to Figure N.2, Figure N.3 and Figure N.4 . 99
Table O.1 – Renumbering of clauses . 101
Table O.2 – Renumbering of annexes . 102
Table O.3 – Renumbering of figures. 103
Table O.4 – Renumbering of tables . 103
Table O.5 – Rearrangement of marking and information items . 104
– 8 – IEC 61347-1:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
...
La norme SIST EN IEC 61347-1:2025 présente un cadre robuste et actualisé pour les exigences de sécurité des dispositifs de contrôle des sources lumineuses électriques. Cette quatrième édition, qui remplace la troisième édition de 2015, inclut des révisions techniques importantes qui en renforcent la pertinence et l'applicabilité dans un contexte technologique en constante évolution. L’un des principaux points forts de cette norme est sa vaste portée, car elle définit les exigences générales de sécurité pour les dispositifs de contrôle fonctionnant sous des alimentations DC allant jusqu'à 1500 V ou des alimentations AC allant jusqu'à 1000 V à des fréquences de 50 Hz ou 60 Hz. Cela garantit une utilisation sûre dans divers environnements d'application. Les changements techniques significatifs incluent une révision complète de la structure du document, ce qui améliore sa lisibilité et sa compréhension pour les utilisateurs. Par exemple, la suppression des exigences relatives aux dispositifs de contrôle électromagnétiques et l'intégration de nouvelles dispositions spéciales pour l'utilisation de condensateurs de pont montrent une adaptation aux technologies modernes. De plus, l'introduction de nouvelles exigences pour les applications de basse tension de sécurité (PELV) et de distances de séparation basées sur des valeurs de tension de crête plutôt que de valeurs RMS souligne l'importance croissante accordée à la sécurité des installations. Le document met également à jour les exigences de test liées aux dangers liés aux incendies, ce qui est essentiel pour garantir la sécurité des utilisateurs. La norme améliore également les directives de test, telles que la clarification de la séquence de test pour les dispositifs de contrôle indépendants, et introduit des exigences pour le contrôle des courants de fuite et des tensions de toucher réduites pour les applications à tension continue interrompue ou modulée en largeur d'impulsion (PWM). Enfin, l'ajout d'annexes spécifiant la mesure du courant de toucher et les informations sur la réorganisation du document contribue à une meilleure compréhension et mise en œuvre des exigences de la norme. Par conséquent, la SIST EN IEC 61347-1:2025 se positionne comme une ressource incontournable pour les professionnels et les entreprises actives dans le domaine de l'éclairage électrique, garantissant la sécurité tout en prenant en compte les évolutions technologiques.
Der Standard SIST EN IEC 61347-1:2025 definiert die allgemeinen Sicherheitsanforderungen für Steuergeräte von elektrischen Lichtquellen, die bei Gleichstromversorgungen bis zu 1.500 V oder Wechselstromversorgungen bis zu 1.000 V bei 50 Hz oder 60 Hz eingesetzt werden. Die vierte Auflage ersetzt die dritte Auflage von 2015 sowie die Änderung 1:2017 und stellt eine technische Überarbeitung dar. Ein Schwerpunkt dieser neuen Ausgabe ist die umfassende Überprüfung der Dokumentenstruktur, die eine klare und kohärente Gliederung der Anforderungen ermöglicht. Besonders hervorzuheben ist die Entfernung der Vorgaben für elektromagnetische Steuergeräte, was die Benutzerfreundlichkeit erhöht und sich stärker auf die sicherheitsrelevanten Anforderungen konzentriert. Die spezifischen Anforderungen an die Isolierung von Steuerkreisen sowie das entsprechende Markierungssystem wurden präzisiert, wodurch mögliche Missverständnisse ausgeschlossen werden. Die besonderen Änderungen, die in dieser Ausgabe vorgenommen wurden, umfassen auch die Zusammenführung der thermischen Testanforderungen für Transformatoren in einen neuen Abschnitt 16 und die Klarstellung der Spezifikationen für den Feuchtigkeitsbeständigkeitstest. Diese Überarbeitungen verbessern die Konsistenz und Nachvollziehbarkeit der Prüfkriterien, die für Hersteller und Prüfer von entscheidender Bedeutung sind. Ein weiteres Highlight des Standards ist die Aktualisierung der normative Referenzen zu den Transformatornormen IEC 61558 sowie die Korrektur der normativen Referenz für PCB-Tests in Bezug auf Flammen und Feuer. Zudem wird eine alternative DC-Elektrofestigkeitsprüfung zugelassen und spezifische Bestimmungen für die Verwendung von Brückenkondensatoren hinzugefügt. Die Anforderungen für Brandgefahrenprüfungen wurden aktualisiert, wodurch der Standard noch relevanter für die Entwicklung von sichereren Produkten im Bereich der elektrischen Beleuchtung wird. Die Einführung von Anforderungen für PELV-Anwendungen und die allgemeine Basis der Abstände auf den Spitzenspannungswerten anstelle der RMS-Werte gestalten die elektrische Sicherheit robuster. Zusätzlich werden reduzierte Berührungs- und Spannungsvorgaben für unterbrochene DC-Spannungsanwendungen sowie Änderungen in den Empfehlungen für die Durchführung von Elektrofestigkeitsroutineprüfungen eingeführt. Diese Fortschritte im Standard fördern innovative Ansätze in der Branche und unterstützen die Einhaltung von Sicherheitsstandards. Durch diese umfassenden Revisionen und technischen Anpassungen zeigt SIST EN IEC 61347-1:2025 seine hohe Relevanz und Bedeutung für Hersteller, Prüfstellen und Anwender in der elektrischen Beleuchtungsindustrie und bietet eine solide Grundlage für die Gewährleistung der Sicherheit von Steuergeräten für elektrische Lichtquellen.
The SIST EN IEC 61347-1:2025 standard presents a comprehensive framework for controlling electric light sources, focusing primarily on safety requirements associated with controlgear operating on both DC and AC supplies. This standard's scope is significant, as it applies to systems utilizing DC supplies up to 1,500 V and AC supplies up to 1,000 V at standard power frequencies of 50 Hz or 60 Hz, ensuring a wide range of applications are covered. One of the notable strengths of this fourth edition is its thorough technical revision, including a complete overhaul of the document structure for enhanced clarity and usability. The removal of requirements for electromagnetic controlgear streamlines the standard, allowing manufacturers to focus on critical safety aspects without unnecessary complexities. The introduction of specific requirements related to control circuit insulation marks a significant improvement, offering clearer guidance on compliance and safety measures. Furthermore, the merging of thermal test requirements for transformers into a newly defined Clause 16 not only simplifies the testing process but also strengthens the overall integrity of the safety measures required. The clarification and update of testing protocols, particularly in relation to moisture resistance, fire hazards, and electric strength testing, reflect an increased emphasis on practical applicability and safety in real-world scenarios. Moreover, the adjustments to touch current and voltage requirements, along with the incorporation of reduced touch voltages for interrupted DC voltage applications and PWM, demonstrate the standard’s responsiveness to current technological trends and safety challenges. The introduction of specific provisions for PELV applications showcases the standard’s relevance in today’s diversified market of electrical controlgear, adapting necessary guidelines as needed. With the incorporation of new annexes-specifically Annex N on touch current measurement and Annex O on document reorganization-this standard further enhances its usability by providing essential clarifications. The update of normative references, particularly concerning the transformer standards of IEC 61558 and PCB testing corrections, underscores the commitment to aligning with existing safety regulations and best practices. In summary, SIST EN IEC 61347-1:2025 emerges as a robust and essential standard that not only enhances safety for users and manufacturers but also signifies a progressive step towards more reliable controlgear for electric light sources within the defined voltage range. Its comprehensive nature and thoughtful revisions ensure that it remains relevant in an ever-evolving industry landscape.
SIST EN IEC 61347-1:2025は、電気光源用制御機器の一般的な安全要件を定めた標準であり、その範囲は直流電源1,500Vまで、または50Hzまたは60Hzの交流電源1,000Vまでを対象としています。この新しい第四版は、2015年に発行された第三版と2017年の改訂1をキャンセルし、技術的な改訂を目的としています。 この標準の強みは、文書構造の全面的な見直しにあります。項目b)からs)までの詳細な説明が含まれており、より特定的な制御回路の絶縁要件や対応するマーキングが追加されています。電磁制御装置に関する要件の削除や、トランスの熱試験要件の新しい条項16への統合は、より効率的かつ明確なガイドラインを提供します。 さらに、湿気耐性試験の仕様の明確化、IEC 61558のトランスシリーズ標準への準拠の更新、PCB試験に関する炎と火の参照の修正などがなされています。これにより、標準の関連性が高まり、現代の技術要件に適合したものになっています。 新たに追加されたPELアプリケーションに関する要件や、最小の接触電圧及び電流を持つ中断DC電圧アプリケーション用の規定も、使用者にとって重要な情報を提供します。また、常に進化する安全基準に基づく火災危険試験要件のアップデートは、この標準が持つ信頼性を一層強化しています。 このように、SIST EN IEC 61347-1:2025は、最新の技術的要求を反映し、電気安全の分野において非常に重要な標準であると言えます。
SIST EN IEC 61347-1:2025 표준은 전기 조명 소스를 위한 제어 장비에 대한 일반 안전 요구 사항을 명시하고 있으며, DC 전원 1,500V 및 AC 전원 1,000V(50Hz 또는 60Hz)에서 사용될 수 있도록 설계되었습니다. 본 표준은 2015년에 발행된 제3판과 2017년 수정판을 대체하는 네 번째 판으로, 기술 개정이 이루어졌습니다. 이번 개정판의 주된 강점은 문서 구조의 전면적인 재검토입니다. 또한, 전자기적 제어 장비에 대한 요구 사항이 제거되고, 제어 회로 절연 및 해당 마킹에 대한 구체적인 요구가 추가되었습니다. 이러한 변화들은 제어 장비의 안전성을 높이는 데 기여하며, 사용자의 안전과 신뢰성을 보장합니다. 특히, 변압기에 대한 열 시험 요구 사항이 새로운 조항으로 통합되었으며, 습기 저항 시험에 대한 명확한 사양이 포함되었습니다. 또한, PCB 테스트의 화염 및 화재 관련 규정이 수정되어 안전성을 더욱 강화하고 있습니다. DC 전기 강도 시험에 대한 대체 방법을 허용하고, 브리징 콘덴서 사용에 대한 특정 조항이 추가된 점도 주목할 만합니다. 이 외에도 화재 위험 시험 요구 사항의 업데이트, PELV 응용 프로그램에 대한 요구 사항의 도입, 터치 전류 및 전압 요구 사항의 명확화 등도 포함되어 있습니다. 공칭 전압 대신 피크 전압 값을 기준으로 한 클리어런스 거리의 일반화는 전반적인 안전 기준을 강화시킵니다. 새로운 유형의 보호된 비상 조명 제어 장비의 도입은 사용 환경에서의 안전성을 더욱 향상시킵니다. SIST EN IEC 61347-1:2025 표준은 전기 조명 소스 관련 제어 장비의 안전성 및 신뢰성을 확보하는 중요한 기준으로, 업계에서의 적용 가능성을 넓히며, 향후 기술 발전에 발맞춘 안전 기준을 지속적으로 제공하는 데 큰 의미를 갖습니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
