Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer

EN-IEC 60317-36 specifies the requirements of solderable enamelled round copper winding wire of class 180 with a dual coating. The underlying coating is based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The superimposed coating is a bonding layer based on a thermoplastic resin. The range of nominal conductor diameters covered by this part is: - Grade 1B: 0,020 mm up to and including 1,600 mm; - Grade 2B: 0,020 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.

/

Spécifications pour types particuliers de fils de bobinage - Partie 36: Fil de section circulaire en cuivre émaillé avec polyesterimide brasable, classe 180, avec une couche adhérente

La CEI 60317-36:2013 spécifie les exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé de classe 180 avec un double revêtement. La sous-couche est à base de résine polyesterimide, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. La surcouche est une couche adhérente à base de résine thermoplastique. NOTE - Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer certaines performances ou les caractéristiques d'utilisation. La gamme des diamètres nominaux des conducteurs couverte par la présente partie est:  - Grade 1B: 0,020 mm jusqu'à 1,600 mm compris;  - Grade 2B: 0,020 mm jusqu'à 1,600 mm compris. Les diamètres nominaux des conducteurs sont spécifiés dans l'Article 4 de la CEI 60317-0-1:2013. Cette deuxième édition annule et remplace la première édition parue en 1992, l'Amendement 1:1997 et l'Amendement 2:1999. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:  - un nouveau 3.2.2 contenant des notes générales sur le fil de bobinage intégrées auparavant au domaine d'application;  - la révision des références à la CEI 60317-0-1:2013 pour bien établir que leur application est normative;  - la consolidation de 17.1 et 17.2 des exigences relatives à la brasabilité;  - un nouvel Article 23, Détection des microfissures en immersion. Mots clés: exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé, classe 180, double revêtement

Specifikacije za posebne vrste navijalnih žic - 36. del: S poliesterimidom emajlirana okrogla bakrena žica, za spajkanje, razred 180, s spajalno plastjo (IEC 60317-36:2013)

Standard EN-IEC 60317-36 določa zahteve za spajkljive prevlečene okrogle bakrene navijalne žice razreda 180 z dvojno prevleko. Spodnja prevleka je osnovana na poliesteramidski smoli, ki se lahko prilagodi, če ohrani kemijsko identiteto izvirne smole in zadosti vsem določenim zahtevam žice. Vrhnja prevleka je vezana plast, ki je osnovana na termoplastični smoli. Razpon nazivnega premera prevodnika, ki ga zajema ta del standarda, je: – razred 1B: 0,020 mm do (vključno z) 1,600 mm; – razred 2B: 0,020 mm do (vključno z) 1,600 mm. Nazivni premeri prevodnika so navedeni v točki 4 standarda IEC 60317-0-1:2013.

General Information

Status
Published
Publication Date
05-Mar-2014
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
27-Feb-2014
Due Date
04-May-2014
Completion Date
06-Mar-2014

Relations

Buy Standard

Standard
EN 60317-36:2014
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60317-36:2014
01-april-2014
1DGRPHãþD
SIST EN 60317-36:2001
SIST EN 60317-36:2001/A1:2002
SIST EN 60317-36:2001/A2:2001
Specifikacije za posebne vrste navijalnih žic - 36. del: S poliesterimidom
emajlirana okrogla bakrena žica, za spajkanje, razred 180, s spajalno plastjo (IEC
60317-36:2013)
Specifications for particular types of winding wires - Part 36: Solderable polyesterimide
enamelled round copper wire, class 180, with a bonding layer
/
Spécifications pour types particuliers de fils de bobinage - Partie 36: Fil de section
circulaire en cuivre émaillé avec polyesterimide brasable, classe 180, avec une couche
adhérente
Ta slovenski standard je istoveten z: EN 60317-36:2014
ICS:
29.060.10 Žice Wires
SIST EN 60317-36:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60317-36:2014

---------------------- Page: 2 ----------------------

SIST EN 60317-36:2014

EUROPEAN STANDARD
EN 60317-36

NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM

ICS 29.060.10 Supersedes EN 60317-36:1994 + A1:1998 + A2:2000


English version


Specifications for particular types of winding wires -
Part 36: Solderable polyesterimide enamelled round copper wire, class
180, with a bonding layer
(IEC 60317-36:2013)


Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 36: Fil brasable de section circulaire Teil 36: Runddrähte aus Kupfer,
en cuivre émaillé avec polyesterimide, verzinnbar und verbackbar, lackisoliert mit
classe 180, avec une couche adhérente Polyesterimid, Klasse 180
(CEI 60317-36:2013) (IEC 60317-36:2013)





This European Standard was approved by CENELEC on 2013-11-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-36:2014 E

---------------------- Page: 3 ----------------------

SIST EN 60317-36:2014
EN 60317-36:2014 - 2 -

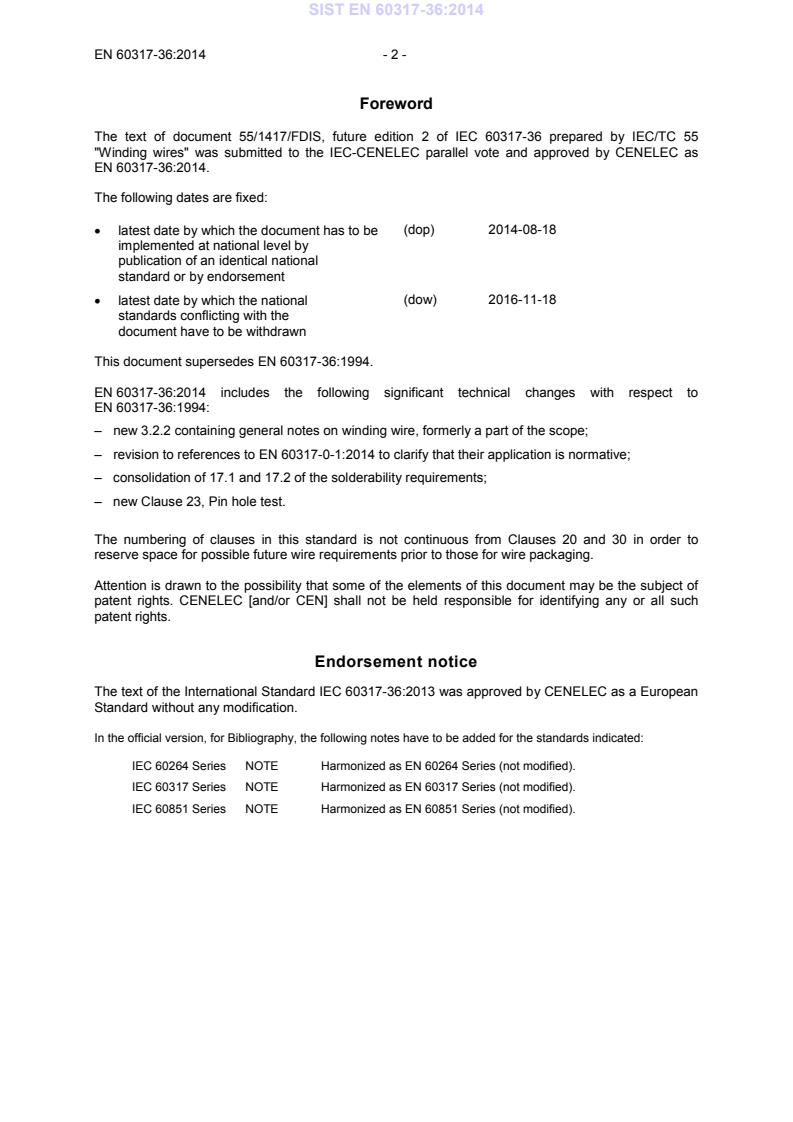

Foreword
The text of document 55/1417/FDIS, future edition 2 of IEC 60317-36 prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
EN 60317-36:2014.

The following dates are fixed:
(dop) 2014-08-18
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-18
standards conflicting with the
document have to be withdrawn

This document supersedes EN 60317-36:1994.

EN 60317-36:2014 includes the following significant technical changes with respect to
EN 60317-36:1994:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to EN 60317-0-1:2014 to clarify that their application is normative;
– consolidation of 17.1 and 17.2 of the solderability requirements;
– new Clause 23, Pin hole test.

The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 60317-36:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).

---------------------- Page: 4 ----------------------

SIST EN 60317-36:2014
- 3 - EN 60317-36:2014
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.

Publication Year Title EN/HD Year

IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire

---------------------- Page: 5 ----------------------

SIST EN 60317-36:2014

---------------------- Page: 6 ----------------------

SIST EN 60317-36:2014



IEC 60317-36

®


Edition 2.0 2013-10




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Specifications for particular types of winding wires –

Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with

a bonding layer




Spécifications pour types particuliers de fils de bobinage –

Partie 36: Fil brasable de section circulaire en cuivre émaillé avec


polyesterimide, classe 180, avec une couche adhérente













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

CODE PRIX M


ICS 29.060.10 ISBN 978-2-8322-1145-8



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------

SIST EN 60317-36:2014
– 2 – 60317-36 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Test methods . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
17.1 Nominal conductor diameters up to and including 0,100 mm. 9
17.2 Nominal conductor diameters over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

---------------------- Page: 8 ----------------------

SIST EN 60317-36:2014
60317-36 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordan
...
