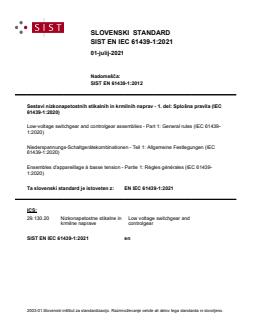

SLOVENSKI STANDARD
SIST EN IEC 61439-1:2021
01-julij-2021
Nadomešča:
SIST EN 61439-1:2012

Sestavi nizkonapetostnih stikalnih in krmilnih naprav - 1. del: Splošna pravila (IEC

61439-1:2020)

Low-voltage switchgear and controlgear assemblies - Part 1: General rules (IEC 61439-

1:2020)
Niederspannungs-Schaltgerätekombinationen - Teil 1: Allgemeine Festlegungen (IEC
61439-1:2020)

Ensembles d'appareillage à basse tension - Partie 1: Règles générales (IEC 61439-

1:2020)
Ta slovenski standard je istoveten z: EN IEC 61439-1:2021
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
SIST EN IEC 61439-1:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 61439-1:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 61439-1:2021

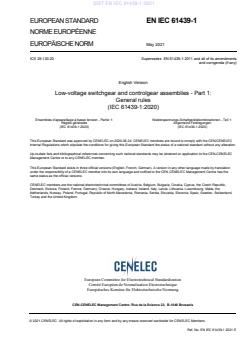

EUROPEAN STANDARD EN IEC 61439-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2021
ICS 29.130.20 Supersedes EN 61439-1:2011 and all of its amendments
and corrigenda (if any)
English Version
Low-voltage switchgear and controlgear assemblies - Part 1:
General rules
(IEC 61439-1:2020)

Ensembles d'appareillage à basse tension - Partie 1: Niederspannungs-Schaltgerätekombinationen - Teil 1:

Règles générales Allgemeine Festlegungen
(IEC 61439-1:2020) (IEC 61439-1:2020)

This European Standard was approved by CENELEC on 2020-06-24. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 61439-1:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61439-1:2021
EN IEC 61439-1:2021 (E)

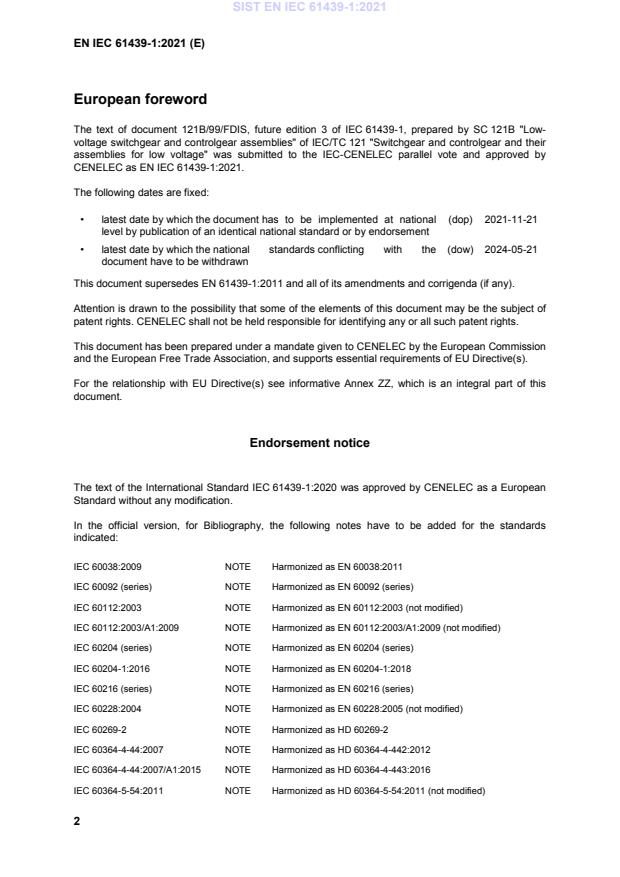

European foreword

The text of document 121B/99/FDIS, future edition 3 of IEC 61439-1, prepared by SC 121B "Low-

voltage switchgear and controlgear assemblies" of IEC/TC 121 "Switchgear and controlgear and their

assemblies for low voltage" was submitted to the IEC-CENELEC parallel vote and approved by

CENELEC as EN IEC 61439-1:2021.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2021-11-21

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2024-05-21

document have to be withdrawn

This document supersedes EN 61439-1:2011 and all of its amendments and corrigenda (if any).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission

and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.
Endorsement notice

The text of the International Standard IEC 61439-1:2020 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards

indicated:
IEC 60038:2009 NOTE Harmonized as EN 60038:2011
IEC 60092 (series) NOTE Harmonized as EN 60092 (series)
IEC 60112:2003 NOTE Harmonized as EN 60112:2003 (not modified)
IEC 60112:2003/A1:2009 NOTE Harmonized as EN 60112:2003/A1:2009 (not modified)
IEC 60204 (series) NOTE Harmonized as EN 60204 (series)
IEC 60204-1:2016 NOTE Harmonized as EN 60204-1:2018
IEC 60216 (series) NOTE Harmonized as EN 60216 (series)
IEC 60228:2004 NOTE Harmonized as EN 60228:2005 (not modified)
IEC 60269-2 NOTE Harmonized as HD 60269-2
IEC 60364-4-44:2007 NOTE Harmonized as HD 60364-4-442:2012
IEC 60364-4-44:2007/A1:2015 NOTE Harmonized as HD 60364-4-443:2016
IEC 60364-5-54:2011 NOTE Harmonized as HD 60364-5-54:2011 (not modified)
