SIST EN 4566:2022

Aerospace series - Heat resisting alloy CO-PH4101 (CoCr20W15N1) -Vacuum melted - Solution treated - Forgings - De ≤ 100 mm

This document specifies the requirements relating to:
Heat resisting alloy CO-PH4101 (CoCr20W15Ni)
Vacuum melted
Solution treated
Forgings
De ≤ 100 mm
for aerospace applications.

Luft- und Raumfahrt - Hochwarmfeste Legierung CO-PH4101 (CoCr20W15Ni) - Vakuumerschmolzen - Lösungsgeglüht - Schmiedestücke - De ≤ 100 mm

Dieses Dokument legt die Anforderungen an:
Hochwarmfeste Legierung CO-PH4101 (CoCr20W15Ni)
Vakuumerschmolzen
Lösungsgeglüht
Schmiedestücke
De ≤ 100 mm
für Anwendungen in der Luft  und Raumfahrt fest.

Série aérospatiale - Alliage résistant à chaud CO-PH4101 (CoCr20W15Ni) - Élaboré sous vide - Mis en solution - Pièces forgées ou matricées - De ≤ 100 mm

Aeronavtika - Toplotno odporna zlitina CO-PH4101 (CoCr20W15N1) - Taljena v vakuumu - Topilno žarjena - Izkovki - De ≤ 100 mm

Ta dokument določa zahteve, ki se navezujejo na:
toplotno odporno zlitino CO-PH4101 (CoCr20W15Ni),
taljeno v vakuumu,
topilno žarjeno
(izkovki)
De ≤ 100 mm
za uporabo v aeronavtiki.

General Information

• Status: Published
• Publication Date: 05-Apr-2022
• ICS: 49.025.15 - Non-ferrous alloys in general
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 30-Mar-2022
• Due Date: 04-Jun-2022
• Completion Date: 06-Apr-2022
• Ref Project: EN 4566:2022 - Aerospace series - Heat resisting alloy CO-PH4101 (CoCr20W15Ni) -Vacuum melted - Solution treated - Forgings - De ≤ 100 mm

Overview

SIST EN 4566:2022 is a European standard established by CEN that specifies the requirements for the heat-resisting alloy CO-PH4101 (CoCr20W15Ni). This high-performance alloy is vacuum melted, solution treated, and supplied in forging form with a diameter (De) of up to 100 mm. The standard is part of the aerospace series, tailored specifically for aerospace applications demanding materials with exceptional heat resistance and mechanical strength.

The alloy’s controlled composition and treatment processes ensure reliability and optimal performance in demanding aerospace environments. SIST EN 4566:2022 aligns with other aerospace metallic material standards and prescribes chemical, physical, and mechanical properties to guarantee consistent quality.

Key Topics

• Material Designation and Composition:
  • Alloy: CO-PH4101 (CoCr20W15Ni)
  • Chemical Elements: Carbon (0.05-0.15%), Silicon (max 0.40%), Manganese (max 2.00%), Phosphorus (max 0.020%), Sulfur (max 0.015%), Chromium (19.0-21.0%), Iron (max 3.00%), Nickel (9.0-11.0%), Tungsten (14.0-16.0%), Cobalt (balance)
• Manufacturing Process:
  • Vacuum melting to minimize impurities
  • Solution treatment at temperatures between 1180 °C and 1240 °C for at least 2 hours followed by air cooling or faster
  • Forged products, specifically for diameters ≤ 100 mm
• Mechanical Properties:
  • Minimum proof stress (Rp0.2) of 340 MPa
  • Tensile strength ≥ 860 MPa
  • Elongation ≥ 35% for ductility
  • Hardness not exceeding 282 HB
  • Temperature resistance verified at 815 °C with rupture stress of 165 MPa and elongation at rupture ≥ 10%
• Testing and Inspection:
  • Compliance with EN 4700-006 for testing, marking, and dimensional inspection
  • Product qualification program agreed upon between manufacturer and purchaser to ensure standards adherence
• Scope and Application:
  • Specifically developed for aerospace components that require high heat resistance in forged parts up to 100 mm diameter in size
• Standardization and Compliance:
  • Harmonized across multiple European countries enforced by national standards bodies
  • Developed under Aerospace and Defence Industries Association of Europe - Standardization (ASD STAN) guidance

Applications

The SIST EN 4566:2022 standard alloy CO-PH4101 is utilized extensively in aerospace sectors where materials are subject to high temperatures and demanding mechanical loads, including:

• Jet engine components: turbine blades, hot section parts requiring resistance to oxidation and mechanical stress during operation
• Aerospace structural parts: heat-resistant forgings in airframes where high strength and temperature endurance are critical
• Gas turbine assemblies: environments where stable mechanical performance at elevated temperatures is mandatory
• High-temperature fasteners and fittings: requiring excellent corrosion and oxidation resistance combined with durability under thermal stress

This alloy’s unique composition and processing standards assure superior performance, enhancing the safety, reliability, and lifespan of aerospace hardware.

Related Standards

• EN 4700-006: Aerospace steel and heat-resistant alloys - Technical specifications and testing methods for forgings, referenced for pre-production, production, and inspection
• EN 4246: Aerospace series - Heat resisting alloy CO-PH4101 (CoCr26Ni11W) - Forging stock for larger diameters (≤ 360 mm), related alloy variants and dimensions
• EN 4258: General organization of aerospace metallic material standards, providing framework and linkage between different EN standards
• EN 4500-003: Rules for drafting and presenting aerospace metallic material standards, specifically covering heat-resisting alloys
• ISO and IEC Terminological Databases: For standard terminology applicable in aerospace materials and alloys

By referencing these complementary standards, SIST EN 4566:2022 fits into a comprehensive ecosystem of aerospace materials standards that ensure uniformity, quality control, and interoperability across the industry.

---

Keywords: SIST EN 4566:2022, aerospace standard, heat resisting alloy, CO-PH4101, CoCr20W15Ni, vacuum melted, solution treated, forgings, aerospace applications, high temperature alloy, mechanical properties, aerospace materials standard, forging diameter ≤ 100 mm, aerospace heat resistant alloy.

Standards Content (Sample)

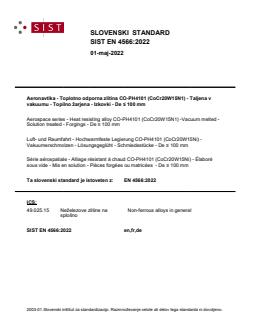

SLOVENSKI STANDARD
01-maj-2022
Aeronavtika - Toplotno odporna zlitina CO-PH4101 (CoCr20W15N1) - Taljena v
vakuumu - Topilno žarjena - Izkovki - De ≤ 100 mm
Aerospace series - Heat resisting alloy CO-PH4101 (CoCr20W15N1) -Vacuum melted -
Solution treated - Forgings - De ≤ 100 mm
Luft- und Raumfahrt - Hochwarmfeste Legierung CO-PH4101 (CoCr20W15Ni) -
Vakuumerschmolzen - Lösungsgeglüht - Schmiedestücke - De ≤ 100 mm
Série aérospatiale - Alliage résistant à chaud CO-PH4101 (CoCr20W15Ni) - Élaboré
sous vide - Mis en solution - Pièces forgées ou matricées - De ≤ 100 mm
Ta slovenski standard je istoveten z: EN 4566:2022
ICS:
49.025.15 Neželezove zlitine na Non-ferrous alloys in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 4566
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2022
EUROPÄISCHE NORM
ICS 49.025.15
English Version
Aerospace series - Heat resisting alloy CO-PH4101
(CoCr20W15N1) -Vacuum melted - Solution treated -
Forgings - De  100 mm
Série aérospatiale - Alliage résistant à chaud CO- Luft- und Raumfahrt - Hochwarmfeste Legierung CO-
PH4101 (CoCr20W15Ni) - Élaboré sous vide - Mis en PH4101 (CoCr20W15Ni) - Vakuumerschmolzen -
solution - Pièces forgées ou matricées - De  100 mm Lösungsgeglüht - Schmiedestücke - De  100 mm
This European Standard was approved by CEN on 22 February 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4566:2022 E
worldwide for CEN national Members.

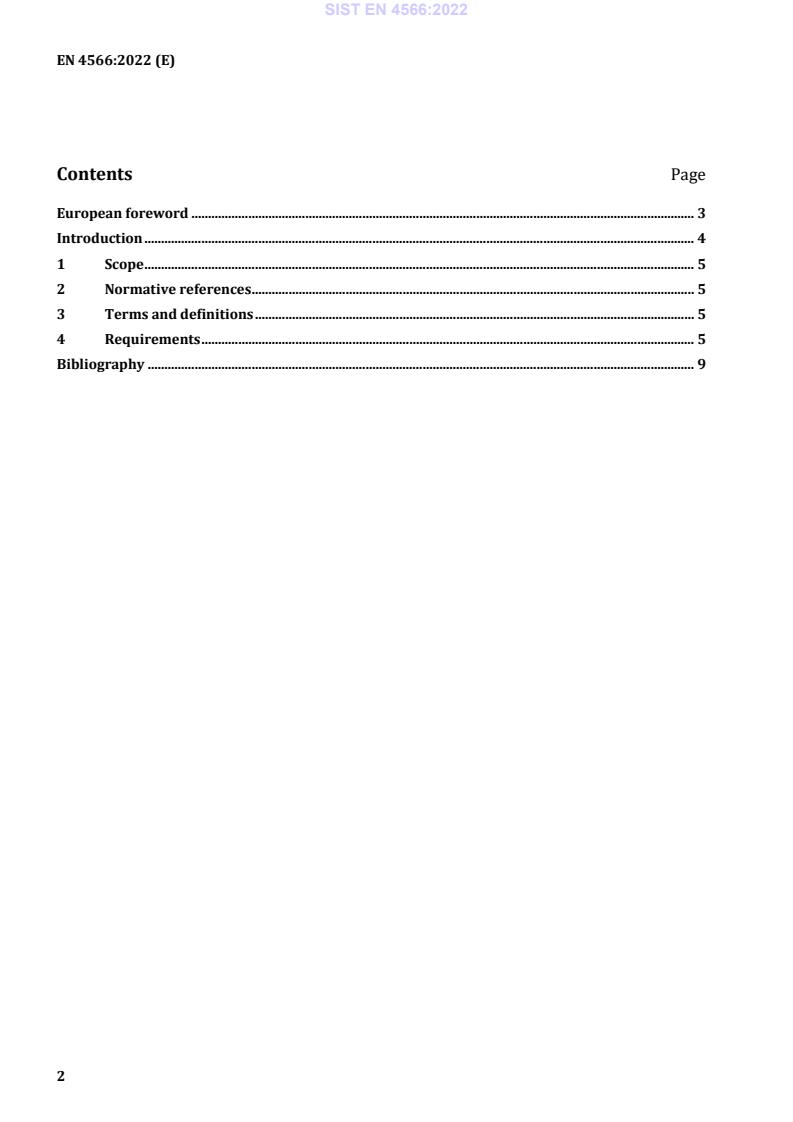

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European foreword
This document (EN 4566:2022) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by September 2022, and conflicting national standards s
...
