SIST EN 16025-1:2013
(Main)Themal and/or sound insulating products in building construction - Bound EPS ballastings - Part 1: Requirements for factory premixed EPS dry plaster
Themal and/or sound insulating products in building construction - Bound EPS ballastings - Part 1: Requirements for factory premixed EPS dry plaster
This European Standard specifies the requirements for in-situ formed bound EPS products (BEPS) for the thermal and/or sound insulation of buildings when applied to walls, ceilings, roofs and floors. The products are manufactured as factory premixed EPS dry mortar. This Part 1 of the standard is a specification for the bound EPS products before installation. Part 1 of this European standard describes the product characteristics and includes procedures for testing, marking and labelling And the rules for evaluation of conformity, The standard does not specify the required class or level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The classes and levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal conductivity at 10 °C greater than 0,18 W/(m - K) are not covered by this standard. This standard does not cover factory made insulation products in the form of prefabricated shapes or boards made of bound EPS. This European Standard also specifies performance requirements for airborne sound insulation and for acoustic absorption applications.
Dämmstoffe für den Wärme- und/oder Schallschutz im Hochbau - Gebundene EPS-Schüttungen - Teil 1: Anforderungen an den werkmäßig vorgemischten EPS-Trockenmörtel
Diese Europäische Norm legt die Anforderungen an der Verwendungsstelle hergestellte Produkte aus gebundenem EPS (BEPS) für die Wärme- und/oder Schalldämmung von Gebäuden fest, wenn sie an Wänden, Decken, Dächern und Fußböden eingesetzt werden.
Diese Europäische Norm gilt für Produkte, die als werkmäßig vorgemischter EPS-Trockenmörtel in einem Werk oder einer mobilen Produktionseinrichtung hergestellt werden.
Diese Europäische Norm ist eine Spezifikation für die gebundenen EPS-Produkte vor dem Einbau.
Teil 1 dieser Europäischen Norm beschreibt die Merkmale der Produkte und enthält Verfahren für die Prüfung, Kennzeichnung und Etikettierung sowie die Regeln für die Konformitätsbewertung.
Diese Europäische Norm legt keine geforderten Klassen oder Stufen für eine bestimmte Eigenschaft fest, die ein Produkt erreichen muss, um für eine bestimmte Verwendung geeignet zu sein. Die für eine bestimmte Verwendung geforderten Klassen und Stufen sind Regelwerken oder nicht entgegenstehenden Normen zu entnehmen.
Produkte, deren Nennwert der Wärmeleitfähigkeit bei 10 °C mehr als 0,18 W/(m K) beträgt, sind nicht durch diese Norm abgedeckt.
Die vorliegende Norm deckt keine werkmäßig hergestellten Dämmstoffe in Form vorgefertigter Formen oder Platten aus gebundenem EPS ab.
Diese Europäische Norm legt auch Leistungsanforderungen für Anwendungen im Zusammenhang mit der Luftschalldämmung und/oder Schallabsorption fest.
Produits isolants thermiques et/ou acoustiques utilisés dans la construction - Empierrements en PSE lié - Partie 1: Exigences pour un pré-mélange en usine plâtre sec PSE
La présente Norme européenne spécifie les exigences relatives aux produits en PSE lié formés in-situ (BPSE) pour l’isolation thermique et/ou acoustique des bâtiments, lorsqu’ils sont appliqués aux murs, plafonds, toitures et planchers.
Les produits sont fabriqués sous forme de mortier sec en PSE pré-mélangé.
La partie 1 de la norme est une spécification des produits PSE liés avant mise en œuvre.
La partie 1 de la présente Norme européenne décrit les caractéristiques de ces produits et comporte des modes opératoires d’essai, de marquage et d’étiquetage, et les règles d’évaluation de conformité.
La présente Norme ne spécifie pas de niveau ou de classe à atteindre par le produit pour une propriété donnée, pour démontrer son aptitude à l’usage dans une application particulière. Les niveaux et classes requis pour une application donnée figurent dans les réglementations ou dans les normes non contradictoires.
Les produits ayant une conductivité thermique déclarée à 10 °C supérieure à 0,18 W/(mK) ne sont pas couverts par cette norme.
Cette norme ne couvre pas les produits isolants manufacturés sous forme de profilés ou de panneaux en PSE lié.
Cette Norme européenne spécifie aussi les exigences de performance des applications d’isolation contre les bruits aériens et d’absorption acoustique.
Toplotno- in/ali zvočnoizolacijski proizvodi v gradbeništvu - Vezano EPS-nasutje - 1. del: Zahteve za industrijsko pripravljeno suho maltno mešanico EPS
Ta evropski standard določa zahteve za vezane proizvode EPS (BEPS), oblikovane na mestu vgradnje, za uporabo na stenah, stropih, strehah ter tleh za toplotno in/ali zvočno izolacijo zgradb. Proizvodi so izdelani kot tovarniška mešanica suhe malte EPS. 1. del standarda je specifikacija vezanih proizvodov EPS pred vgradnjo. 1. del tega evropskega standarda opisuje lastnosti proizvoda in vključuje postopke za preskušanje, označevanje in etiketiranje ter pravila za ocenjevanje skladnosti. Standard ne določa zahtevane ravni določene lastnosti, ki jo mora proizvod doseči, da se dokaže njegova primernost za namen v okviru izbranega načina uporabe. Zahtevani razredi in ravni za posamezno uporabo so določeni v uredbah ali standardih, ki niso v nasprotju s tem standardom. Proizvodi z deklarirano toplotno prevodnostjo pri 10 °C, ki je višja od 0,18 W/(mK), v tem standardu niso zajeti. Ta standard ne zajema tovarniško izdelanih izolacijskih proizvodov v obliki predizdelanih oblik ali plošč iz vezanih proizvodov EPS. Ta evropski standard določa tudi zahteve za zmogljivost izolirnosti pred zvokom v zraku in aplikacij za absorpcijo zvoka.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dämmstoffe für den Wärme- und/oder Schallschutz im Hochbau - Gebundene EPS-Schüttungen - Teil 1: Anforderungen an den werkmäßig vorgemischten EPS-TrockenmörtelProduits isolants thermiques et/ou acoustiques utilisés dans la construction - Empierrements en PSE lié - Partie 1: Exigences pour un pré-mélange en usine plâtre sec PSEThemal and/or sound insulating products in building construction - Bound EPS ballastings - Part 1: Requirements for factory premixed EPS dry plaster91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 16025-1:2013SIST EN 16025-1:2013en,fr,de01-oktober-2013SIST EN 16025-1:2013SLOVENSKI
STANDARD
SIST EN 16025-1:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16025-1
May 2013 ICS 91.100.60 English Version
Thermal and/or sound insulating products in building construction - Bound EPS ballastings - Part 1: Requirements for factory premixed EPS dry plaster
Produits isolants thermiques et/ou acoustiques utilisés dans la construction des bâtiments - Empierrements en PSE lié - Partie 1: exigences pour un pré-mélange en usine plâtre sec PSE
Wärmedämmstoffe für den Wärme- und/oder Schallschutz im Hochbau - Gebundene EPS-Schüttungen - Teil 1: Anforderungen an den werkmäßig vorgemischten EPS-Trockenmörtel This European Standard was approved by CEN on 23 February 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16025-1:2013: ESIST EN 16025-1:2013

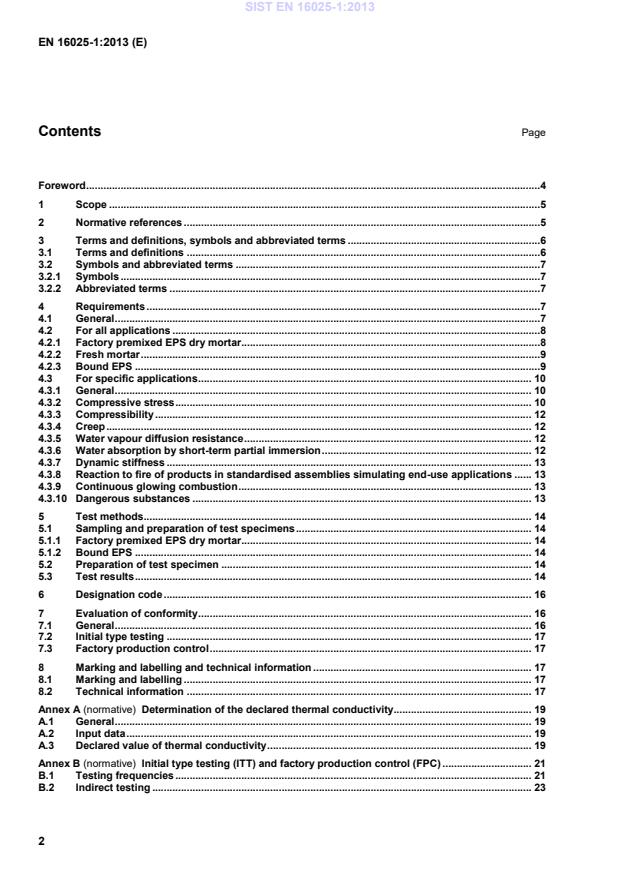

EN 16025-1:2013 (E) 2 Contents Page
Foreword .4 1 Scope .5 2 Normative references .5 3 Terms and definitions, symbols and abbreviated terms .6 3.1 Terms and definitions .6 3.2 Symbols and abbreviated terms .7 3.2.1 Symbols .7 3.2.2 Abbreviated terms .7 4 Requirements .7 4.1 General .7 4.2 For all applications .8 4.2.1 Factory premixed EPS dry mortar .8 4.2.2 Fresh mortar .9 4.2.3 Bound EPS .9 4.3 For specific applications . 10 4.3.1 General . 10 4.3.2 Compressive stress . 10 4.3.3 Compressibility . 12 4.3.4 Creep . 12 4.3.5 Water vapour diffusion resistance . 12 4.3.6 Water absorption by short-term partial immersion . 12 4.3.7 Dynamic stiffness . 13 4.3.8 Reaction to fire of products in standardised assemblies simulating end-use applications . 13 4.3.9 Continuous glowing combustion . 13 4.3.10 Dangerous substances . 13 5 Test methods . 14 5.1 Sampling and preparation of test specimens . 14 5.1.1 Factory premixed EPS dry mortar . 14 5.1.2 Bound EPS . 14 5.2 Preparation of test specimen . 14 5.3 Test results . 14 6 Designation code . 16 7 Evaluation of conformity . 16 7.1 General . 16 7.2 Initial type testing . 17 7.3 Factory production control . 17 8 Marking and labelling and technical information . 17 8.1 Marking and labelling . 17 8.2 Technical information . 17 Annex A (normative)
Determination of the declared thermal conductivity. 19 A.1 General . 19 A.2 Input data . 19 A.3 Declared value of thermal conductivity . 19 Annex B (normative)
Initial type testing (ITT) and factory production control (FPC) . 21 B.1 Testing frequencies . 21 B.2 Indirect testing . 23 SIST EN 16025-1:2013
EN 16025-1:2013 (E) 3
Annex C (normative)
Testing for reaction to fire of products . 24 C.1 Scope . 24 C.2 Product and installation parameters . 24 C.3 Standardised Mounting and fixing . 25 C.4 Fixing of the test specimen . 26 C.5 Field of application . 27 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 29 ZA.1 Scope and relevant characteristics . 29 ZA.2 Procedure for attestation of factory made bound EPS products . 31 ZA.3 CE marking and labelling. 34 Bibliography . 36
SIST EN 16025-1:2013
EN 16025-1:2013 (E) 4 Foreword This document (EN 16025-1:2013) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2013, and conflicting national standards shall be withdrawn at the latest by November 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This document consists of two parts which form a package: EN 16025-1, Thermal and/or sound insulating products in building construction — Bound EPS ballastings — Part 1: Requirements for factory premixed EPS dry plaster EN 16025-2, Thermal and/or sound insulating products in building construction — Bound EPS ballastings — Part 2: Processing of the factory premixed EPS dry plaster The first part is the harmonised part satisfying the mandate and the CPD and is the basis for the CE marking covering the products, which are placed on the market. The second part, which is the non-harmonised part, covers the specification for the installed products. Both parts need to be used for the application of the insulation product in the end-use applications covered by the standard. This document is one of a series for mineral wool, expanded clay, expanded perlite, exfoliated vermiculite, polyurethane/polyisocyanurate, cellulose, bound EPS and expanded polystyrene in-situ formed insulation products used in buildings, but this document may be used in other areas where appropriate. The reduction in energy used and emissions produced during the installed life of insulation products exceeds by far the energy used and emissions made during the production and disposal processes. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16025-1:2013
EN 16025-1:2013 (E) 5 1 Scope This European Standard specifies the requirements for in-situ formed bound EPS products (BEPS) for the thermal and/or sound insulation of buildings when applied to walls, ceilings, roofs and floors. This European Standard covers products which are manufactured as premixed EPS dry plaster/mortar in a factory or mobile production unit. This European Standard is a specification for the bound EPS products before installation. This European Standard describes the product characteristics and includes procedures for testing, marking and labelling and the rules for evaluation of conformity. This European Standard does not specify the required class or level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The classes and levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal conductivity at 10 °C greater than 0,18 W/(m ⋅ K) are not covered by this European Standard. This European Standard does not cover factory made insulation products in the form of prefabricated shapes or boards made of bound EPS. This European Standard also specifies performance requirements for airborne sound insulation and for acoustic absorption applications. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 933-1, Tests for geometrical properties of aggregates — Part 1: Determination of particle size distribution — Sieving method EN 1097-3, Tests for mechanical and physical properties of aggregates — Part 3: Determination of loose bulk density and voids EN 1602, Thermal insulating products for building applications — Determination of the apparent density EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1609:2013, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086:2013, Thermal insulating products for building applications — Determination of water vapour transmission properties EN 12350-6, Testing fresh concrete — Part 6: Density EN 12431, Thermal insulating products for building applications — Determination of thickness for floating floor insulating products EN 12667, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Products of high and medium thermal resistance SIST EN 16025-1:2013
EN 16025-1:2013 (E) 6 EN 12939, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Thick products of high and medium thermal resistance EN 13172:2012, Thermal insulation products — Evaluation of conformity
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using data from reaction to fire tests EN 13823:2010, Reaction to fire tests for building products — Building products excluding floorings exposed to the thermal attack by a single burning item EN 29052-1, Acoustics — Determination of dynamic stiffness — Part 1: Materials used under floating floors in dwellings EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007) EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO 11925-2) 3 Terms and definitions, symbols and abbreviated terms
3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 and the following apply. 3.1.1 fresh mortar EPS dry mortar mixed with water on the construction site 3.1.2 bound EPS (BEPS) installed and hardened fresh mortar for use as insulating material for thermal and/or impact noise insulation 3.1.3 class combination of two levels of the same or different property between which the performance falls, where the levels are given by the declared value of the characteristic concerned 3.1.4 level given value, which is the upper or lower limit of a requirement Note 1 to entry: The level is given by the declared value of the characteristic concerned. 3.1.5 factory premixed EPS dry mortar loose dry mixture of EPS aggregate and mineral binder for producing bound EPS SIST EN 16025-1:2013
EN 16025-1:2013 (E) 7 3.2 Symbols and abbreviated terms 3.2.1 Symbols C compressibility mm dB thickness of the specimen under a load of 2 kPa after removal of an additional load of 48 kPa mm dL thickness of the specimen under a load of 250 Pa mm dN nominal thickness of the product mm εct compressive creep % εt total relative thickness reduction
% λ90/90 90 % fractile with a confidence level of 90 % for the thermal conductivity W/(m ⋅ K) λD declared value of thermal conductivity W/(m ⋅ K) λU=design value of thermal conductivity W/(m ⋅ K) µ water vapour diffusion resistance factor 1 s′ dynamic stiffness MN/m3 σ2 compressive stress at 2 % deformation kPa σ10 compressive stress at 10 % deformation kPa σc compressive stress kPa Wp water absorption by short-term partial immersion kg/m2 CC(i1/i2/25)σc declared level for compressive creep
CP declared level for compressibility
CS(2) declared level for compressive stress at 2 % deformation
CS(10) declared level for compressive stress at 10 % deformation
DLT declared level for dimensional stability under load and temperature conditions
DMD bound EPS density
FMD apparent density of fresh mortar
LD bulk density of the EPS dry mortar
MU declared range of the water vapour resistance factor
PS particle size group
SD declared level for dynamic stiffness
3.2.2 Abbreviated terms BEPS Bound EPS EPS Expanded PolyStyrene ITT Initial Type Test 4 Requirements 4.1 General Product properties shall be assessed in accordance with Clause 5. To comply with this document, products shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate. SIST EN 16025-1:2013
EN 16025-1:2013 (E) 8 One test result for a product property is the average of the measured values on the number of test specimens given in Table 8. 4.2 For all applications 4.2.1 Factory premixed EPS dry mortar 4.2.1.1 Type of EPS aggregate The manufacturer shall identify the type of EPS aggregate. With regard to the type of aggregate, a differentiation shall be made between freshly foamed EPS indicated by N (= new) and ground EPS indicated by R (= recycled). In a visual inspection, the EPS aggregate shall be checked for foreign substances and lumps. These shall be removed from the aggregate. 4.2.1.2 Particle size group of the EPS aggregate The maximum size of the EPS beads shall be determined in accordance with EN 933-1. The maximum volume of the beads having a diameter greater than specified in Table 1 for the appropriate level shall not exceed 5 %. Table 1 — Levels of maximum sizes of the EPS beads Level Maximum diameter of beads
in mm PS10 ≤ 10 PS8 ≤ 8 PS6 ≤ 6 PS5 ≤ 5 PS2 ≤ 2
The amount of dust (0 mm to 0,5 mm) in the EPS beads, regarding to the volume, shall be determined in accordance with EN 933-1. The level shall be determined according to Table 2 and recorded during the factory production control process. Table 2 — Levels of the percentage of dust (0 mm to 0,5 mm) Level Amount of dust D0 < 1 vol-% D5 < 5 vol-% D10 < 10 vol-%
4.2.1.3 Mineral binder (e.g. cement, mixtures produced by the manufacturer, including additives) The manufacturer shall inform the testing body of the binder’s active ingredients, to monitor the mixing of binder ingredients and to keep records thereon. This obligation can be waived if a ready mixed, supervised binder is used. SIST EN 16025-1:2013
EN 16025-1:2013 (E) 9 4.2.1.4 Density of the EPS dry mortar The bulk density of the EPS dry mortar shall be determined in accordance with EN 1097-3 and shall be indicated by the manufacturer in steps of 1 kg/m3. The tolerances shall not exceed the values given in Table 3. NOTE There is a relationship between the thermal conductivity, dynamic stiffness, compressive stress, compressibility and the bulk density of the EPS dry mortar. 4.2.2 Fresh mortar 4.2.2.1 Mixing water The manufacturer shall specify the quantity of mixing water. The mixing water used shall have drinking-water quality. 4.2.2.2 Apparent density of fresh mortar The apparent density of fresh mortar shall be determined in accordance with EN 12350-6 and shall be indicated by the manufacturer in steps of 1 kg/m3. The tolerances shall not exceed the values given in Table 3. NOTE There is a relationship between the thermal conductivity, dynamic stiffness, compressive stress, compressibility and the bulk density of the EPS dry mortar. 4.2.3 Bound EPS 4.2.3.1 Thermal conductivity Thermal conductivity shall be based upon measurements carried out in accordance with EN 12667 or EN 12939 for thick products. The thermal conductivity shall be determined in accordance with Annex A and declared by the manufacturer according to the following: the reference mean temperature shall be 10 °C; the measured values shall be expressed with three significant figures; the declared thermal conductivity, λ90/90, shall be given as a limit value representing at least 90 % of the
production, determined with a confidence level of 90 %; the value of thermal conductivity, λ90/90, shall be rounded upwards to the nearest 0,001 W/(m ⋅ K) and
declared as λD in levels with steps of 0,001 W/(m ⋅ K). NOTE The declaration of the declared installed thermal resistance for an installed bound EPS product is given in EN 16025-2. 4.2.3.2 Bound EPS density Bound EPS density shall be determined in accordance with EN 1602 and shall be indicated by the manufacturer rounded to 1 kg/m3. The tolerances shall not exceed the values given in Table 3. NOTE There is a relationship between the thermal conductivity, dynamic stiffness, compressive stress, compressibility and the bulk density of the EPS dry mortar. SIST EN 16025-1:2013
EN 16025-1:2013 (E) 10 Table 3 — Maximum deviation of the bulk density of EPS dry mortar, apparent density of the fresh mortar and bound EPS density from the manufacturer’s specifications Density Products for thermal insulation Products for sound insulation Mean Individual
value Mean Individual
value Bulk density of the EPS dry mortar ± 10 % ± 15 % ± 7 % ± 10 % Apparent density of fresh mortar ± 10 % ± 15 % ± 7 % ± 10 % Bound EPS density ± 10 % ± 15 % ± 7 % ± 10 %
4.2.3.3 Reaction to fire The reaction to fire classification of the products placed on the market but not simulating the end-use application shall be determined in accordance with Annex C and EN 13501-1 and using data obtained from tests carried out according to procedures EN ISO 11925-2 (see C.3.1) and EN 13823 (see C.3.2), using test specimens prepared in accordance with C.3.1.2 and C.3.2.1. 4.2.3.4 Durability characteristics 4.2.3.4.1 General The appropriate durability characteristics have been considered and are covered in 4.2.3.4.2, 4.2.3.4.3 and 4.2.3.4.4. 4.2.3.4.2 Durability of reaction to fire against ageing/degradation The reaction to fire performance of BEPS products does not decrease with time, in the applications covered by this document. 4.2.3.4.3 Durability of thermal resistance against ageing/degradation The thermal conductivity of BEPS products does not change with time. This is covered by 4.2.3.1 thermal resistance — thermal conductivity. 4.2.3.4.4 Durability of compression strength against ageing/degradation The compression strength of BEPS products does not change with time. This is covered by 4.3.2.1, compressive stress, 4.3.3.3, compressibility and 4.3.4, creep. 4.3 For specific applications 4.3.1 General If there is no intended requirement for a property described in 4.3, for a product in the end-use application, then the property need not be determined and declared by the manufacturer. 4.3.2 Compressive stress 4.3.2.1 Compressive stress at 2 % deformation Compressive stress at 2 % deformation, σ2, or compressive strength, σm, shall be determined in accordance with EN 826. No test results shall be less than the value given in Table 4 for the declared level. NOTE The compressive stress at 2 % deformation is not a design value. SIST EN 16025-1:2013
EN 16025-1:2013 (E) 11 Table 4 — Levels of compressive stress at 2 % deformation or compressive strength Level Requirement kPa CS(2)10 ≥ 10 CS(2)15 ≥ 15 CS(2)20 ≥ 20 CS(2)25 ≥ 25 CS(2)30 ≥ 30 CS(2)40 ≥ 40 CS(2)50 ≥ 50 CS(2)60 ≥ 60 CS(2)70 ≥ 70 CS(2)80 ≥ 80
4.3.2.2 Compressive stress at 10 % deformation Compressive stress at 10 % deformation, σ10, or compressive strength, σm, shall be determined in accordance with EN 826. No test results shall be less than the value given in Table 5 for the declared level. NOTE The compressive stress at 10 % deformation is not a design value. Table 5 — Levels of compressive stress at 10 % deformation
or compressive strength Level Requirement kPa CS(10)30 ≥ 30 CS(10)40 ≥ 40 CS(10)50 ≥ 50 CS(10)60 ≥ 60 CS(10)70 ≥ 70 CS(10)80 ≥ 80 CS(10)100 ≥ 100 CS(10)120 ≥ 120 CS(10)150 ≥ 150 CS(10)200 ≥ 200 SIST EN 16025-1:2013
EN 16025-1:2013 (E) 12 4.3.3 Compressibility 4.3.3.1 Thickness, dL The thickness dL shall be determined under a load of 250 Pa in accordance with EN 12431. 4.3.3.2 Thickness, dB The thickness, dB, shall be determined in accordance with EN 12431 with a pause of 300 s before measuring dB. 4.3.3.3 Compressibility, C Compressibility, C, shall be determined as the difference between dL and dB. No test result shall exceed the values given in Table 6 for the declared level. Table 6 — Levels of compressibility Level Useful load on the floor screed Requirement Maximum deviation of a test result kPa mm mm CP5 ≤ 2,0 ≤ 5 +2 CP4 ≤ 3,0 ≤ 4 +2 CP3 ≤ 4,0 ≤ 3 +2 CP2 ≤ 5,0 ≤ 2 +1 4.3.4 Creep Compressive creep shall be measured and extrapolated according to the method described in EN 1606, at the specified stress level, εct, and for the specified extrapolation time, y; the total relative thickness reduction, εt, shall not exceed the declared level, i1, and the compressive creep, εct, shall not exceed the declared level i2. The specified stress level should preferably be indicated in values of 3,5 kPa; 6,5 kPa and 10 kPa. The extrapolation time should be 10 years. EXAMPLE
Example for declaration of levels. The designation code CC(2/1,5/10)6,5 defines a declared level of 2 % for the total relative thickness reduction and the declared level of 1,5 % for the compressive creep of 6,5 kPa for an extrapolated time of 10 years. 4.3.5 Water vapour diffusion resistance The water vapour diffusion resistance factor µ shall be determined in accordance with EN 12086:2013, Table 1 (SET B). None of the test results shall be out of the range declared by the manufacturer. In the absence of measurement data, the water vapour resistance diffusion factor of BEPS products may be indicated as 5 to 20. 4.3.6 Water absorption by short-term partial immersion Water absorption by short-term immersion Wp shall be determined in accordance with EN 1609:2013, 7.2.2 (procedure A). SIST EN 16025-1:2013
EN 16025-1:2013 (E) 13 4.3.7 Dynamic stiffness Dynamic stiffness, s′, shall be determined in accordance with EN 29052-1. For binders that have not reached their nominal strength after 28 days, the test shall be performed at the time when the specimens have rea
...
