SIST EN 50631-4-1:2023

Household appliances network and grid connectivity - Part 4-1: Communication Protocol Specific Aspects: SPINE, SPINE-IoT and SHIP

This document specifies the application of relevant transport protocols for Home and Wide Area Networks as well as cloud connectivity; in this case, SPINE (Smart Premises Interoperable Neutral-Message Exchange), SPINE-IoT, and SHIP (Smart Home IP).
This document is part of the EN 50631 series, which defines the information exchange between Smart Appliances and management systems in homes and buildings including energy management.

Netzwerk- und Stromnetz-Konnektivität von Haushaltsgeräten - Teil 4-1: Spezifische Aspekte der Kommunikationsprotokolle: SPINE, SPINE-IoT und SHIP

Appareils domestiques connectés au réseau et réseau intelligent - Partie 4-1: Aspects spécifiques des protocoles de communication: SPINE, SPINE-IoT et SHIP

Le présent document spécifie l'application des protocoles de transport appropriés pour les réseaux domestiques et étendus, ainsi que la connectivité cloud; en l'occurrence, SPINE (Smart Premises Interoperable Neutral-Message Exchange), SPINE-IoT et SHIP (Smart Home IP).
Le présent document fait partie de la série EN 50631, qui définit l'échange d'informations entre les appareils intelligents et les systèmes de gestion des habitations et des bâtiments, y compris pour la gestion d'énergie.

Omrežje gospodinjskih aparatov in povezljivost mreže - 4-1. del: Posebni vidiki komunikacijskih protokolov: SPINE, SPINE-IoT in SHIP

Ta dokument natančno določa uporabo ustreznih prevoznih protokolov za domača in prostrana omrežja ter povezljivost v oblaku v tem primeru SHIP (Smart Home IP).
Ta dokument je del skupine standardov EN 50631, ki določa izmenjavo informacij med pametnimi gospodinjskimi aparati in sistemi za upravljanje v gospodinjstvih in stavbah, vključno z upravljanjem z energijo.

General Information

• Status: Published
• Publication Date: 04-Apr-2023
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: FGA - Consumer information related to household electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 23-Mar-2023
• Due Date: 28-May-2023
• Completion Date: 05-Apr-2023
• Ref Project: EN 50631-4-1:2023 - Household appliances network and grid connectivity - Part 4-1: Communication Protocol Specific Aspects: SPINE, SPINE-IoT and SHIP

Overview

EN 50631-4-1:2023 (CLC) defines communication-protocol-specific aspects for networks of household appliances and their grid/cloud connectivity. It specifies how relevant transport and application-layer protocols-SPINE, SPINE‑IoT, and SHIP (Smart Home IP)-are applied for Home and Wide Area Networks and cloud connectivity. This part of the EN 50631 series targets interoperable information exchange between smart appliances and building/home management systems, including energy management use cases.

Key Topics

The standard covers technical requirements and protocol behaviors including:

• SPINE‑IoT architecture and device model

  • Device/entity/feature abstractions, API versioning and use-case modeling for smart appliances.
  • Mechanisms for binding, subscriptions, callbacks and requesting feature changes.

• SPINE datagram and communication modes

  • Datagram structure, headers and payload formats.
  • Simple and enhanced communication modes; addressing and discovery mechanisms.

• SHIP (Smart Home IP) transport and security

  • Registration, reconnection and service discovery semantics (mDNS, service names).
  • TCP/TLS and WebSocket usage, connection keepalive, retransmission and fragmentation considerations.
  • Message representation using JSON and XML transformation rules.

• Key management and commissioning

  • Certificate handling, SHIP node public keys, symmetric keys, PINs, commissioning tools and QR code-based commissioning recommendations.

• Operational requirements

  • Functional commissioning, detailed discovery, destination lists, binding/subscription workflows and use case discovery for energy and appliance control.

Applications

EN 50631-4-1 is practical for stakeholders implementing interoperable smart-home and energy-management solutions:

• Appliance manufacturers integrating networked control and telemetry.
• Smart-home platform and IoT cloud service developers implementing SPINE/SHIP transports and APIs.
• Energy management and utility integrators enabling demand-response, load scheduling and grid-interactive appliances.
• System integrators, test laboratories and certification bodies validating interoperability, commissioning and security.
• Firmware and device developers implementing subscription/callback models and secure commissioning flows.

Related Standards

• Part of the EN 50631 series on household appliances network and grid connectivity.
• Interoperates with widely used transport and security technologies referenced in the document: TCP, TLS, WebSocket, JSON/XML.
• Useful alongside national/regional electrotechnical and IoT security standards when designing compliant smart-appliance solutions.

This standard is essential when building secure, interoperable smart-appliance ecosystems that connect homes, buildings and cloud services using SPINE, SPINE‑IoT and SHIP protocols.

Standards Content (Sample)

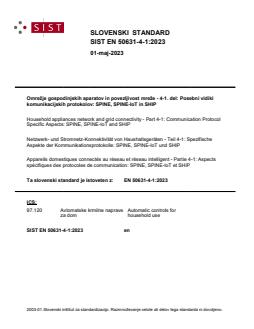

SLOVENSKI STANDARD
01-maj-2023
Omrežje gospodinjskih aparatov in povezljivost mreže - 4-1. del: Posebni vidiki
komunikacijskih protokolov: SPINE, SPINE-IoT in SHIP
Household appliances network and grid connectivity - Part 4-1: Communication Protocol
Specific Aspects: SPINE, SPINE-IoT and SHIP
Netzwerk- und Stromnetz-Konnektivität von Haushaltsgeräten - Teil 4-1: Spezifische
Aspekte der Kommunikationsprotokolle: SPINE, SPINE-IoT und SHIP
Appareils domestiques connectés au réseau et réseau intelligent - Partie 4-1: Aspects
spécifiques des protocoles de communication: SPINE, SPINE-IoT et SHIP
Ta slovenski standard je istoveten z: EN 50631-4-1:2023
ICS:
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

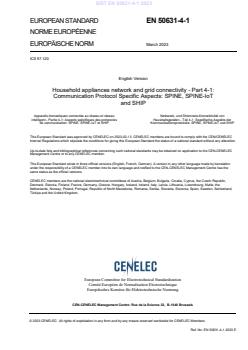

EUROPEAN STANDARD EN 50631-4-1

NORME EUROPÉENNE
EUROPÄISCHE NORM March 2023
ICS 97.120
English Version
Household appliances network and grid connectivity - Part 4-1:
Communication Protocol Specific Aspects: SPINE, SPINE-IoT
and SHIP
Appareils domestiques connectés au réseau et réseau Netzwerk- und Stromnetz-Konnektivität von
intelligent - Partie 4-1: Aspects spécifiques des protocoles Haushaltsgeräten - Teil 4-1: Spezifische Aspekte der
de communication: SPINE, SPINE-IoT et SHIP Kommunikationsprotokolle: SPINE, SPINE-IoT und SHIP
This European Standard was approved by CENELEC on 2023-02-13. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50631-4-1:2023 E

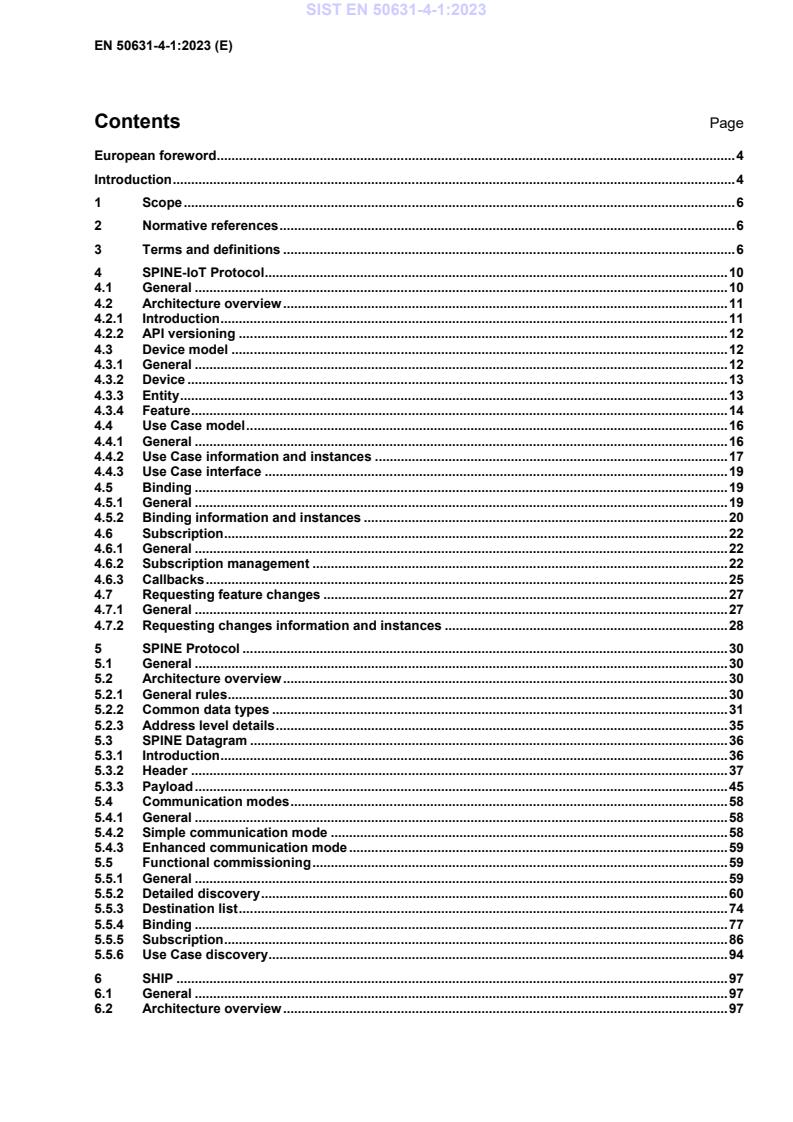

Contents Page
European foreword . 4
Introduction . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 SPINE-IoT Protocol . 10
4.1 General . 10
4.2 Architecture overview . 11
4.2.1 Introduction . 11
4.2.2 API versioning . 12
4.3 Device model . 12
4.3.1 General . 12
4.3.2 Device . 13
4.3.3 Entity . 13
4.3.4 Feature . 14
4.4 Use Case model . 16
4.4.1 General . 16
4.4.2 Use Case information and instances . 17
4.4.3 Use Case interface . 19
4.5 Binding . 19
4.5.1 General . 19
4.5.2 Binding information and instances . 20
4.6 Subscription . 22
4.6.1 General . 22
4.6.2 Subscription management . 22
4.6.3 Callbacks . 25
4.7 Requesting feature changes . 27
4.7.1 General . 27
4.7.2 Requesting changes information and instances . 28
5 SPINE Protocol . 30
5.1 General . 30
5.2 Architecture overview . 30
5.2.1 General rules . 30
5.2.2 Common data types . 31
5.2.3 Address level details . 35
5.3 SPINE Datagram . 36
5.3.1 Introduction . 36
5.3.2 Header . 37
5.3.3 Payload . 45
5.4 Communication modes . 58
5.4.1 General . 58
5.4.2 Simple communication mode . 58
5.4.3 Enhanced communication mode . 59
5.5 Functional commissioning . 59
5.5.1 General . 59
5.5.2 Detailed discovery . 60
5.5.3 Destination list . 74
5.5.4 Binding . 77
5.5.5 Subscription . 86
5.5.6 Use Case discovery. 94
6 SHIP . 97
6.1 General . 97
6.2 Architecture overview . 97

6.2.1 General . 97
6.2.2 General Considerations On Closing Communication Channels . 98
6.2.3 SHIP Node Parameters. 98
6.3 Registration . 99
6.3.1 General . 99
6.3.2 Successful Registration. 101
6.3.3 Registration details and recommendations (informative). 101
6.4 Reconnection . 102
6.4.1 General . 102
6.4.2 Reconnection details in case of changed key material (informative) . 102
6.5 Discovery . 103
6.5.1 General . 103
6.5.2 Service Instance . 103
6.5.3 Service Name . 103
6.5.4 Multicast DNS Name . 103
6.5.5 Recommendations for re-discovery . 105
6.6 TCP. 105
6.6.1 General . 105
6.6.2 Limited Connection Capabilities . 105
6.6.3 Online Detection . 106
6.6.4 TCP Connection Establishment . 106
6.6.5 Retransmission Timeout. 107
6.7 TLS . 107
6.7.1 General . 107
6.7.2 Cipher Suites . 108
6.7.3 Maximum Fragment Length . 108
6.7.4 TLS Compression . 109
6.7.5 Renegotiation . 109
6.7.6 Session Resumption . 109
6.7.7 TLS extension for ECC. 110
6.7.8 TLS Probing . 110
6.8 WebSocket . 111
6.8.1 General . 111
6.8.2 TLS Dependencies . 111
6.8.3 Opening Handshake . 111
6.8.4 Data Framing . 111
6.8.5 Connection Keepalive . 112
6.9 Message Representation Using JSON Text Format . 112
6.9.1 Introduction . 112
6.9.2 Definitions . 112
6.9.3 Examples For Each Type . 113
6.9.4 XML to JSON Transformation . 113
6.9.5 JSON to XML Transformation . 120
6.10 Key Management . 120
6.10.1 General . 120
6.10.2 Certificates . 121
6.10.3 SHIP Node Specific Public Key . 125
6.10.4 Verification Procedure . 127
6.10.5 Symmetric Key . 133
6.10.6 SHIP Node PIN . 134
6.10.7 SHIP Commissioning Tool . 135
6.10.8 QR Code . 137
6.11 SHIP Data Exchange . 140
6.11.1 Introduction . 140
6.11.2 Terms in the context of SHIP Data Exchange . 140
6.11.3 Protocol Architecture / Hierarchy . 142
6.11.4 SHIP Message Exchange . 143
6.12 Well-known protocolId . 183
Annex A (normative) SHIP XSD . 184
Bibliography . 191
European foreword
This document (EN 50631-4-1:2023) has been prepared by WG 07 “Smart Household Appliances” of CLC/TC
59X “Performance of household and similar electrical appliances”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-02-13
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-02-13
conflicting with this document have to be
withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Introduction
Energy management systems will more and more become necessary due to change from fossil and nuclear
to renewable production and the associated decentralization. Since an appropriate standard for a home and
building management is in preparation this document specifies how sets of products from multiple
manufacturers can exchange information with Home and Building / Customer Energy Management Systems,
located in a home network or in the cloud.
This document focuses on interoperability of household appliances and describes the necessary control and
monitoring. It defines a set of functions of household and similar electrical appliances. The functions in this
document cover next to energy-management main remote-control and – monitoring use cases.
This document does not deal with safety and security requirements. Safety requirements have been set in the
IEC/EN 60335 series [1].
EN 50631 will provide interoperability on information exchange among various appliances in the home. The
EN 50631 series will be re-arranged regarding the further development and will be split into 6 parts:
— EN 50631-1, Household appliances network and grid connectivity — Part 1: General Requirements,
Generic Data Modelling and Neutral Messages
— EN 50631-2, Household appliances network and grid connectivity — Part 2: Product Specific mappings,
details, requirements and deviations
— EN 50631-3-x, Household appliances network and grid connectivity — Part 3: Specific Data Model
Mapping
— EN 50631-4-x, Household appliances network and grid connectivity — Part 4: Communication Protocol
Specific Aspects
— EN 50631-5, Household appliances network and grid connectivity — Part 5: General Test-Requirements
and - Specification
— EN 50631-6, Household appliances network and grid connectivity — Part 6: SPINE Data Model Toolbox
Data communication heavily depends on the environment of appliances. Sometimes low bitrate or energy
efficient communication puts strict requirements to selected communication technologies. Therefore, popular
and de facto standards had been and will be developed by the industry to fulfil such requirements. To not
influence common data modelling for appliances because of such restrictions, the standardized data models
and neutral message structures need to be applied to communication technologies.
This standard series therefore is intended to separate data modelling and neutral message structure from the
attached communication.
Part 1 defines general requirements, generic data modelling and generic neutral messages without relation to
any specific communication technology or any product specific layout.
Part 2 lists and specifies product specific requirements and implementation guidance based on the generic
data model and generic neutral messages.
Part 3 defines the mapping of neutral messages to examples of typical data models like SPINE, OCF, and so
forth. These data models are neither mandatory nor to be seen as complete spectrum of data models.
Part 4 defines the mapping of neutral messages to examples of typical communication protocols. These
communication protocols are neither mandatory, nor do they provide an exhaustive list of communication
protocols.
Part 5 defines testing requirements and testing specifications. This part will be covered in the future by a New
Work Item Proposal.
Part 6 provides the technical reference specification for the SPINE data model. This part will be covered in
the future by a New Work Item Proposal.
1 Scope
This document specifies the application of relevant transport protocols for Home and Wide Area Networks as
well as cloud connectivity; in this case, SPINE (Smart Premises Interoperable Neutral-Message Exchange),
SPINE-IoT, and SHIP (Smart Home IP).
This document is part of the EN 50631 series, which defines the information exchange between Smart
Appliances and management systems in homes and buildings including energy management.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
IETF RFC 793:1981, Transmission Control Protocol
IETF RFC 3280:2002, Internet X.509 Public Key Infrastructure Certificate Revocation List (CRL) Profile
IETF RFC 6455:2011, The WebSocket Protocol
IETF RFC 6763, DNS-Based Service Discovery
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
CA
Certificate Authority
Certification Authority
entity which can provide a digital signature for certificates
Note 1 to entry: Other SHIP nodes can check this digital signature with the certificate from the CA itself, the “CA-
certificate”.
3.2
Commissioning Tool
instrument to establish the trust between different devices in the smart home installation, e.g.
distribute trustworthy credentials from some SHIP nodes to other SHIP nodes
Note 1 to entry: E.g. a smart phone, a web server or a dedicated device can embody the role of a commissioning tool.
So far, the SHIP specification does not specify a commissioning tool; an interoperable protocol for commissioning can be
used on the layer above SHIP.
Note 2 to entry: A manufacturer may also use their own solutions.
3.3
DNS
Domain Name System
[SOURCE: IETF RFC 1035]
3.4
DNS host name
fully qualified domain name used within DNS as host name to get the IP address of the corresponding
internet host
3.5
DNS-SD
Domain Name System – Service discovery
[SOURCE: IETF RFC 6763]
3.6
EUI
Extended Unique Identifier
Note 1 to entry: https://standards.ieee.org/develop/regauth/tut/eui64.pdf
3.7
factory default
setting that allows the user to reset the SHIP node to the as-new condition
Note 1 to entry: This means that all data that has been provided and stored by the SHIP node during its operation time
SHALL be deleted.
3.8
IANA
Internet Assigned Numbers Authority
3.9
IP
Internet Protocol
3.10
LAN
Local Area Network
3.11
MAC
Media Access Control
3.12
mDNS
multicast DNS host name
fully qualified domain name used within mDNS as host name to get the IP address of the corresponding local
SHIP node
3.13
M/O/NV/C
abbreviations which refer to:
1. M = mandatory
2. O = optional
3. NV = not valid
4. C = choice, i.e. a presence or support depends also on the selection from multiple possibilities
and which are primarily used within specific definition tables describing certain specialized data model
definitions
3.14
numerical representation
written system for expressing numbers
EXAMPLE 0xab represents a decimal value of 171
3.15
PIN
Personal Identification Number
specification which makes use of a PIN as secret for SHIP specific verification procedures
3.16
PKI
Public Key Infrastructure
3.17
Push Button
switching mechanism to control some aspects of a machine or a process
Note 1 to entry: A push button event does not necessarily mean that a real physical button has to be used to trigger this
event. A push button event may also be generated by other means, e.g. via a smart phone application or a web-interface
(secure connection to SHIP node required). A push button shall provide a simple mechanism for a user to bring the
device to a certain state or start a certain process.
3.18
QR Code
registered trademark of DENSO WAVE INCORPORATED which is the short form for “Quick Response Code”
and used for efficient encoding of data into a small graphic
Note 1 to entry: Among others, international standard ISO/IEC 18004:2015 specifies the encoding of QR code symbols.
3.19
RFC
request for comments
3.20
SHIP
Smart Home Internet Protocol
Note 1 to entry: This term is used throughout this document to refer to the described communication protocol.
3.21
SHIP ID
identification which is used to uniquely identify a SHIP node, e.g. in its service discovery, and which is
present in the mDNS/DNS-SD local service discovery
Note 1 to entry: Each SHIP node has a globally unique SHIP ID.
Note 2 to entry: See 6.5.
3.22
SHIP Client
role which is assigned to the SHIP node that also embodies the TCP client role for a specific peer-to-peer
connection
3.23
SHIP Commissioning
term which denotes the distribution of trustworthy SKIs from certain SHIP nodes to other SHIP nodes
Note 1 to entry: The distribution of the trustworthy SKIs is handled by a so-called SHIP commissioning tool.
3.24
SHIP Commissioning Tool
instrument which is used to distribute trustworthy SKIs from certain SHIP nodes to other SHIP nodes, and
which allows a user to handle the trust relationships in the whole SHIP installation (if each node in the
installation supports commissioning) over one simple user interface
3.25
SHIP Node
logical device which communicates via the described SHIP protocobe and can be integrated into a web
server or physical device
Note 1 to entry: One physical device may have more than one logical SHIP node. In this case, each SHIP node MUST
use distinct ports (e.g. a physical device provides 3 open ports with 3 different SHIP services).
3.26
SHIP Server
role which shall be assigned to the SHIP node that also embodies the TCP server role for a specific peer-to-
peer connection
3.27
SKI
Subject Key Identifier
identifying certificates that contain a specific public key and is used as a cryptographically backed
identification and authentication criterion
Note 1 to entry: Each SHIP node has a specific public key.
3.28
SPINE
Smart Premises Interoperable Neutral message Exchange
Technical Specification of EEBus Initiative e.V
3.29
Trusted SHIP Node
term only applicable from a specific SHIP node point of view
Note 1 to entry: If SHIP node A has a communication partner and a trusted relationship to SHIP node B, SHIP node B is
called a trusted SHIP node from SHIP node A's point of view; a trusted relationship can be established in different ways.
3.30
UCS
Universal Character Set
3.31
UTF
UCS Transformation Format
computing industry standard for the consistent encoding, representation, and handling of text expressed in
most of the world's writing systems
3.32
WAN
Wide Area Network
3.33
web server based SHIP node
SHIP node that is hosted by a web server
3.34
WiFi
IP networks based on the IEEE 802.11 set of standards, used for wireless IP communication
4 SPINE-IoT Protocol
4.1 General
This document specifies the application of relevant transport protocols for Home and Wide Area Networks as
well as cloud connectivity; in this case, SPINE (Smart Premises Interoperable Neutral-Message Exchange),
SPINE-IoT, and SHIP (Smart Home IP).
Figure 1 shows the use of the transport protocols within this document. In case of local operation (the Smart
Appliance is connected to a local Customer Connectivity Manager via the HAN), the transport protocols
SPINE and SHIP SHALL be used. In case of IoT/Cloud operation (the Smart Appliance communicates via its
cloud representation or directly with an IoT/cloud based Customer Connectivity Manager), the transport
protocol SPINE-IoT via HTTP/ REST API / Open API SHALL be used.

Figure 1 — Overview of transport protocols within EN 50631-4-1
SPINE-IoT (Smart Premises Interoperable Neutral-message Exchange for Internet of Things) defines a
neutral IP-based layer which helps connecting different communications technologies (i.e. Wi-Fi, Ethernet,
Mobile telephony) to build a smart home / smart grid system. This allows devices to talk directly to the cloud-
based energy management system as well as other IoT devices. This direct connection permits different
manufactures to keep a connection to their devices and their users, and having access to important data of
connected devices.
4.2 Architecture overview
4.2.1 Introduction
SPINE-IoT is based upon the OpenAPI specification to model an API that permits interactions with devices.
Devices can comprise sub-devices, called entities. The data of the entities is organized in so-called features.
A feature is an address with an explicitly named data type.
One of the most important capabilities of SPINE-IoT is the explicit support of Use Cases. Each device can
report which Use Cases it supports. Via so-called Use Case interfaces it is possible to work with the device's
data (i.e. the features) and hence the functionaility in a more simple way in comparison to work directly with
the features: A Use Case interface permits to get specifically data (features) of the requested Use Case and it
can provide Use Case specific commands to alter the data (e.g. to trigger a specific behaviour at the device).
The API models all device, entity, and feature information, which permits to analyse the devices in detail.
However, a client may also search directly for the supported Use Cases instead. Once a client is configured
for selected Use Case instances, the further interactions can basically be focused on the Use Case interfaces.
The rest of this introduction provides some more technical details on the architecture.
The OpenAPI Specification defines a standard, language-agnostic interface to RESTful APIs which allows
both humans and computers to discover and understand the capabilities of a service.
An OpenAPI definition can then be used by documentation generation tools to display the API, code
generation tools to generate servers and clients in various programming languages, testing tools, and many
other use cases [2].
The SPINE-IoT Protocol is an OpenAPI-based specification to model ONE API of a given (cloud) provider
with HTTP protocol concepts and JSON payload. It specifies a LIST of devices. Each device can have a LIST
of Use Cases. The API model is available as YAML files (see EN 50631-3-1).
Details on device model will be explained in subsequent sections. With regard to a device's functional data,
there are in general two interaction styles possible:
— Features: A feature is the core of the API design, it models and represents the application domain. The
feature is uniquely defined with by the tuple (deviceId, entityId, featureObjType, featureType).
— Use Case Interfaces: A Use Case Interface retrieves the features of the requested Use Case instances.
Many Use Cases require the use of more than one feature.
A Use Case defines actors with particular roles and information (data) exchange to fulfil a defined task. The
Use Case discovery allows to discover which Use Cases are supported and which actor a device embodies in
a corresponding Use Case. This allows to derive information about which data a device supports as a client
or as a server, as defined by each Use Case scenario.
Use Case discovery simplifies finding the right entity address where a server's data of a Use Case can be
found. It also permits announcement of Use Cases that are available only conditionally.
Once a client read out present data at the required addresses, it can compare the data with requirements
stated by a Use Case specification to see if all requirements are fulfilled for a given scenario.
Next to Use Case discovery and Use case interfaces, SPINE-IoT supports the following mechanisms:
— Discovery: Allows to discover devices and their components and data.
— Binding: A binding is required to obtain particular permissions to control a (part) of a device.
— Subscription: Subscribes to an event stream to monitor for changes.
In this document Oauth2 will be used according to RFC 6749 [3]. Oauth2.0 Authorization Code Grant Flow is
used to get an access token. The Oauth2 requires that a client is registered on the authorization server
before the client can be granted access to the resources of the resource server. The Oauth2 does not oblige
the communication patterns (data and its format) to share necessary information between a resource server
and an authorization server. The client needs to use the access token as bearer token in each request to the
API. The security tokens contain information about authorization and are intended to be used for accessing
resources on a resource server or refreshing an access token.
Some definitions and values in SPINE-IoT should be identical to SPINE. The identical definitions and values
are explained in details in Clause 5.
4.2.2 API versioning
The API SHALL be versioned to allow compatibility between communicating devices. Only as a whole and
not in parts, even if several elements of the API are unchanged between different API versions.
SPINE-IoT follows the version numbering scheme according to the “Semantic Versioning 2.0.0” specification
[4]. The SPINE-IoT version number has the format MAJOR.MINOR.PATCH, with the major, minor and patch
constituents being non-negativ integer numbers as specified in the “Semantic Versioning 2.0.0” specification
[4].
This edition defines the major version “1”, with the server variable “majorVersion” set to “v1” accordingly (see
YAML models in EN 50631-3-1). This technical solution defines the SPINE-IoT Protocol Specification version
1.0.0.
For a given MAJOR.MINOR.PATCH version, the patch number is increased if and only if the documentation
contains backwards compatible corrections to the previous specification version. For a given MAJOR.MINOR
version, the minor version is increased if the specification is extended with backwards compatible extensions.
For a given MAJOR version, the major version is increased if incompatible changes to the previous version
are introduced.
For a given base URL, the server provides exactly one version of the API. This version belongs to exactly one
major version. A server may provide other versions of the API at different base URLs.
For information on the API itself and potentially further API versions supported by the server (at other base
URLs), this path is available:
□ Path “/api”
Access to information through this path depends on the authorization scope. In particular, a command like
“GET /api” needs to return information on other API versions only if the authorized requester is permitted to
access the other versions or at least can ask for access to the other versions.
The properties of a successful response are shown in Table 1.
Table 1 — Properties of “api” information
Element name Type M/O/C Brief explanation
thisVersion string M The version number of this API. The format
is “MAJOR.MINOR.PATCH” (without
quotation marks).
otherVersions array of string O Array of further version numbers supported
by the server (at other URLs).
For each major version, it is sufficient to
specify just the highest version number.
4.3 Device model
4.3.1 General
Like SPINE, a SPINE-IoT device is subdivided into one or more entities (see Clause 5). An entity represents
a logical sub-device. Each entity can comprise other entities or so-called “features”. A SPINE-IoT feature is a
collection of data, e.g. a measured power value or a table of time-dependent prices, as described in Figure 2.
Figure 2 — Primary device model
4.3.2 Device
In the SPINE-IoT model, each level can be accessed individually. For the device information level, this path is
available:
— Path “/devices”:
This path provides information on available devices.
The access to information through these paths and other SPINE-IoT paths depends on the authorization
scope. In particular, a command like “GET /devices” will only return information on those devices where the
authorized requester was granted sufficient access rights.
Within the given API, each device is uniquely identified by its deviceId. The device properties of a successful
response are shown in Table 2. Please note that in this subclause only the properties of a single device are
described, not the complete response. The full response is described in EN 50631-3-1 (see YAML models).
With a GET command on the above-mentioned paths it is possible to get an overview on available device
types and available entity types or to query for a particular device or device type. The deviceId is an essential
parameter in queries of almost all paths if information of a particular device is required.
Table 2 — Properties of “device” information
Element name Type M/O/C Brief explanation
deviceId string M SPINE-IoT device identifier. SHALL be
unique within the API.
deviceAddress string O SPINE device address. SHALL be unique.
See Clause 5.
deviceType string M SPINE device type. See Clause 5.
entitiesOverview. object M Overview of available entity properties.
entitiesOverview. array of string M Array of SPINE entity types that are
entityTypes available for the given device. See
Clause 5.
4.3.3 Entity
For the entity information level, this path is available:
— Path “/entities”
Access to information through this path depends on the authorization scope. In particular, a command like
“GET /entities” will only return information on those entities where the authorized requester was granted
sufficient access rights. Access to an entity SHALL NOT be given if there are no sufficient access rights for
any of its parent entities or its device.
Within the given API, each entity is uniquely identified by the tuple (deviceId, entityId). The entity properties of
a successful response are shown in Table 3.
With a GET command on this path it is possible to get an overview on available entity types and available use
cases and feature object types or to query for particular properties like an entity type. The deviceId and
entityId are essential parameters in queries of several paths if information of a particular entity of a particular
device is
...
