SIST EN ISO 9100-11:2005

Glass containers - Vacuum lug finishes - Part 11: 82 regular (ISO 9100-11:2005)

ISO 9100-11:2005 specifies the dimensions of a vacuum lug finish with a nominal size of 82 mm regular for wide-mouth glass containers.

Glasbehälter - Vakuum-Nockenverschluss-Mündungen - Teil 11: 82 regular (ISO 9100-11:2005)

Récipients en verre - Bagues a crans pour bouchage sous vide - Partie 11: 82 regular (ISO 9100-11:2005)

L'ISO 9100-11:2005 spécifie les dimensions des bagues à crans pour bouchage sous vide de cote nominale 82 mm regular, destinées aux récipients en verre à col large.

Steklena embalaža – Grla za vakuumsko zapiranje - 11. del: 82, standardno (ISO 9100-11:2005)

General Information

• Status: Published
• Publication Date: 28-Feb-2005
• ICS: 55.100 - Bottles. Pots. Jars
• Technical Committee: EPO - Packaging - sales and grouped
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2005
• Due Date: 01-Mar-2005
• Completion Date: 01-Mar-2005
• Directive: 80/232/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packaged products
• Directive: 87/356/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packged products (Dir. 80/232/EEC amendment)
• Ref Project: EN ISO 9100-11:2005 - Glass containers - Vacuum lug finishes - Part 11: 82 regular (ISO 9100-11:2005)

Overview

EN ISO 9100-11:2005 - Glass containers: Vacuum lug finishes - Part 11: 82 regular specifies the geometric design and dimensional requirements for a vacuum lug finish with a nominal size of 82 mm (regular) intended for wide-mouth glass containers. Published by CEN and aligned with ISO/TC 63, this standard defines the finish geometry that ensures reliable sealing and compatibility with vacuum lug closures used in food, beverage and other packaged products requiring vacuum sealing.

Key topics and technical requirements

• Scope and intent: Defines the finish dimensions and form for the 82 mm vacuum lug finish for wide-mouth glass containers.
• Dimension drawings: Detailed Figures 1–3 illustrate the cutter profile, thread construction and an enlarged section (A–A) showing sealing and clearance areas.
• Tabulated dimensions: Table 1 lists the specified diameters, cutter leads and thread parameters (including pitch and threads-per-inch where applicable).
• Cutter profile and leads: The standard prescribes the cutter inclination (α angle) and how lead-in/lead-out profiles relate to mould opening requirements.
• Thread construction: Parameters for the lug threads (pitch, T.P.I., angles) are given so caps and closures mate correctly.
• Sealing surface quality: The sealing area must be free of checks, dips, crizzles and other defects that could impair vacuum sealing.
• Form control: Ovality of finish diameters should be minimized and critical diameters (E and T) should be concentric to ensure consistent closure fit and vacuum integrity.
• Closure position and clearance: The C diameter and H height define closure seating; adequate clearance between any mould beads and the closure seating area is required.
• Tolerances: Unless otherwise specified, general tolerances apply as per EN 22768-1.

Practical applications and users

This standard is directly applicable to:

• Glass container designers and manufacturers producing wide-mouth jars and pots with vacuum lug finishes.
• Tooling and mould makers who must produce cutter profiles and finish geometries to the specified dimensions.
• Closure and cap manufacturers designing vacuum lug closures to mate with 82 mm finishes.
• Packaging engineers, quality control and procurement teams specifying interface compatibility and inspection criteria for vacuum-sealed glass packaging used in food, beverage, pharmaceutical and cosmetic products.

Using EN ISO 9100-11:2005 helps ensure interchangeability, reliable vacuum sealing and consistent production quality across suppliers.

Related standards

• EN 22768-1 (General tolerances for linear and angular dimensions) - referenced for general tolerances.
• ISO/TC 63 (Glass containers) - technical committee responsible for related standards.
• CETIE data sheet GME 20‑09:1995 - historical technical basis referenced in the foreword.

Keywords: EN ISO 9100-11:2005, vacuum lug finish, 82 regular, glass containers, wide-mouth, dimensions, thread construction, sealing surface, packaging standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2005
Steklena embalaža – Grla za vakuumsko zapiranje - 11. del: 82, standardno (ISO
9100-11:2005)
Glass containers - Vacuum lug finishes - Part 11: 82 regular (ISO 9100-11:2005)
Glasbehälter - Vakuum-Nockenverschluss-Mündungen - Teil 11: 82 regular (ISO 9100-
11:2005)
Récipients en verre - Bagues a crans pour bouchage sous vide - Partie 11: 82 regular
(ISO 9100-11:2005)
Ta slovenski standard je istoveten z: EN ISO 9100-11:2005
ICS:
55.100 Steklenice. Lonci. Kozarci Bottles. Pots. Jars
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 9100-11
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2005
ICS 55.100
English version
Glass containers - Vacuum lug finishes - Part 11: 82 regular
(ISO 9100-11:2005)
Récipients en verre - Bagues à crans pour bouchage sous Glasbehälter - Vakuum-Nockenverschluss-Mündungen -
vide - Partie 11: 82 regular (ISO 9100-11:2005) Teil 11: 82 regular (ISO 9100-11:2005)
This European Standard was approved by CEN on 23 September 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 9100-11:2005: E
worldwide for CEN national Members.

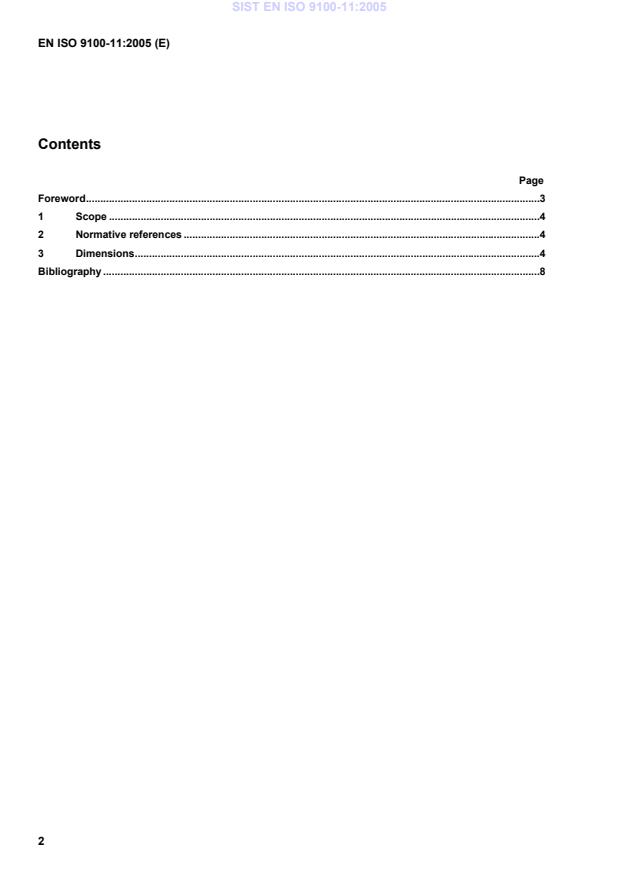

Contents
Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Dimensions.4
Bibliography .8

Foreword
This document (EN ISO 9100-11:2005) has been prepared by Technical Committee CEN/TC 261 “Packaging”,
the secretariat of which is held by AFNOR,
...
