EUROPEAN STANDARD EN 62920:2017/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2021
ICS 27.160
English Version
Photovoltaic power generating systems - EMC requirements and
test methods for power conversion equipment
(IEC 62920:2017/A1:2021)

Systèmes de production d'énergie photovoltaïque - Photovoltaische Stromerzeugungssysteme - EMV-

Exigences de CEM et méthodes d'essai pour les Anforderungen und Prüfverfahren für Leistungsumrichter

équipements de conversion de puissance (IEC 62920:2017/A1:2021)
(IEC 62920:2017/A1:2021)

This amendment A1 modifies the European Standard EN 62920:2017; it was approved by CENELEC on 2021-05-11. CENELEC members

are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a

national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 62920:2017/A1:2021 E
---------------------- Page: 3 ----------------------
SIST EN 62920:2017/A1:2021
EN 62920:2017/A1:2021 (E)

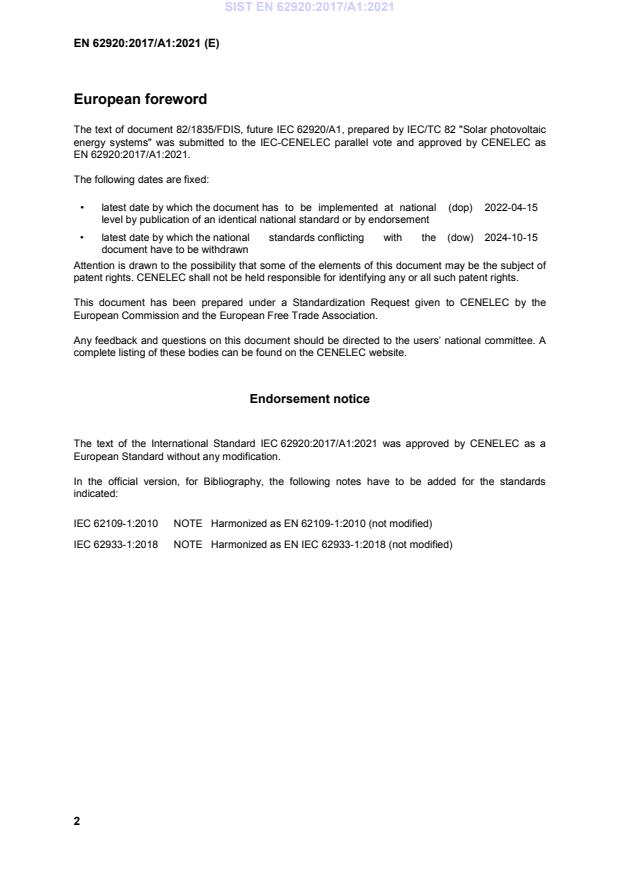

European foreword

The text of document 82/1835/FDIS, future IEC 62920/A1, prepared by IEC/TC 82 "Solar photovoltaic

energy systems" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as

EN 62920:2017/A1:2021.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2022-04-15

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2024-10-15

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a Standardization Request given to CENELEC by the

European Commission and the European Free Trade Association.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
Endorsement notice

The text of the International Standard IEC 62920:2017/A1:2021 was approved by CENELEC as a

European Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards

indicated:
IEC 62109-1:2010 NOTE Harmonized as EN 62109-1:2010 (not modified)
IEC 62933-1:2018 NOTE Harmonized as EN IEC 62933-1:2018 (not modified)
---------------------- Page: 4 ----------------------
SIST EN 62920:2017/A1:2021
IEC 62920
Edition 1.0 2021-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Photovoltaic power generating systems – EMC requirements and test methods
for power conversion equipment
Systèmes de production d'énergie photovoltaïque – Exigences de CEM et
méthodes d'essai pour les équipements de conversion de puissance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.160 ISBN 978-2-8322-9595-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 5 ----------------------
SIST EN 62920:2017/A1:2021
– 2 – IEC 62920:2017/AMD1:2021
© IEC 2021
FOREWORD

This amendment has been prepared by the IEC technical committee 82: Solar photovoltaic

energy systems.
The text of this amendment is based on the following documents:
FDIS Report on voting
82/1835/FDIS 82/1874/RVD

Full information on the voting for the approval of this amendment can be found in the report on

voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION
Replace the existing text of the Introduction with the following:
Background

Power conversion equipment (PCE) is indispensable for solar photovoltaic power energy

systems in order to convert the DC electric power energy generated by solar photovoltaic panels

into AC or DC electric power, and to feed the AC power energy into the AC mains network or

loads. PCE consists of DC to DC, DC to AC or AC to DC converters and forms systems with or

without DC-coupled electrical energy storage devices.

Manufacturers of PCE ensure the performance and reliability of PCE. Electromagnetic

compatibility (EMC) is one aspect of performance which must be ensured wherever PCE is used

in or exposed to an electromagnetic environment.

IEC Guide 107 specifies that TC 77 and CISPR, which are called EMC committees, have

responsibility for the development of basic, product family and generic standards on EMC

requirements, and product committees must use the emission limits developed by EMC

committees and must refer to basic immunity standards for the specification of test techniques.

---------------------- Page: 6 ----------------------
SIST EN 62920:2017/A1:2021
IEC 62920:2017/AMD1:2021 – 3 –
© IEC 2021
However, when the EMC standards which are developed by TC 77 and CISPR are not

considered suitable for a particular product or electromagnetic environment, product

committees must seek their assistance and advice for any change in the emission limits and/or

measurement requirements. Product committees are responsible for selecting the appropriate

immunity test items and levels for their products as well as for defining the relevant performance

criteria for the evaluation of the immunity test results. Consequently, product committees, such

as TC 22, TC 26, TC 9, and TC 69, have their own EMC standard to define EMC requirements

and test methods for their particular types of products.

TC 82 also has the responsibility to consider EMC requirements for PCE applying to the solar

photovoltaic power energy systems, and TC 82 has taken action as follows to develop its own

product EMC standards:

a) selection of the immunity test items in accordance with EMC environments for the solar

photovoltaic power energy systems,

b) supplement of generic standards with a detailed description of test conditions and test set

up,

c) development of the conditional limits and alternative test methods in terms of installation

environmental and operational conditions, and

d) development of appropriate requirements and test method for high power equipment.

In 2017, TC82 published IEC 62920 (Ed.1.0). By taking into account the latest market needs,

IEC 62920:2017 (Ed.1.0) has covered the above mentioned items and presents the minimum

EMC requirements for PCE applying to solar photovoltaic power energy systems.
Purpose of the maintenance of a product EMC standard

Following the state of the art technology as well as the latest market needs, users of standards

recognize the improvement of product EMC standards. The maintenance of product standards

is also one of important activities for product committees.

IEC 62920:2017 (Ed.1.0) is amended to extend the scope of IEC 62920:2017 (Ed.1.0) by taking

into account the following technical items.
– DC to DC power conversion equipment used in photovoltaic power energy systems.

– Electrical energy storage devices connected to DC power ports of PCE used in photovoltaic

power energy systems.

Furthermore, IEC 62920:2017 (Ed.1.0) is amended to cover the latest options of measurement

distance of radiated disturbances by taking the latest updates of CISPR 16-1-4 and CISPR 16-

2-3 into consideration to adapt it to different sizes of products.
1 Scope
Replace the existing first paragraph with the following:

This document specifies electromagnetic compatibility (EMC) requirements for power

conversion equipment (PCE) (e.g. DC to DC, DC to AC and AC to DC) for use in photovoltaic

(PV) power systems with or without DC-coupled electrical energy storage devices.
---------------------- Page: 7 ----------------------
SIST EN 62920:2017/A1:2021
– 4 – IEC 62920:2017/AMD1:2021
© IEC 2021
3 Terms and definitions
Replace the existing terms and definitions with the following:
3.1
photovoltaic power generating system
PV system

electric power generating system which uses the photovoltaic effect to convert solar power into

electricity
3.2
power conversion equipment
PCE

electrical device converting one form of electrical power to another form of electrical power with

respect to voltage, current, frequency, phase and the number of phases

[SOURCE: IEC 62109-1:2010, 3.66, modified – The definition has been rephrased, and the note

has been deleted.]
3.3
photovoltaic module
PV modules

complete and environmentally protected assembly of interconnected photovoltaic cells

[SOURCE: IEC TS 61836:2016, 3.1.48.7, modified – The note has been deleted.]
3.4
electrical energy storage devices
ESS

devices that are able to absorb electrical energy, to store it for a certain amount of time and to

release electrical energy during which energy conversion processes may be included

[SOURCE: IEC 62933-1:2018, 3.1, modified – The example and the note have been deleted.]

3.5
port
particular interface of the PCE with the external electromagnetic environment
Note 1 to entry: See Figure 1 for examples of ports.
Figure 1 – Example of ports
3.6
enclosure port

physical boundary of the PCE product which electromagnetic fields may radiate through or

impinge on
---------------------- Page: 8 ----------------------
SIST EN 62920:2017/A1:2021
IEC 62920:2017/AMD1:2021 – 5 –
© IEC 2021
3.7
AC mains power port

port used to connect to a public low voltage AC mains power distribution network or other low

voltage AC mains installation
3.8
auxiliary AC power port
additional low voltage AC power port for purposes other than feeding in AC power
3.9
DC power port

port used to connect a local low voltage DC power generating system or electrical energy

storage devices
3.10
auxiliary DC power port

additional low voltage DC power port for purposes other than supplying DC power for the DC

to AC conversion or electrical energy storage devices
3.11
signal and control port

port intended for the interconnection of components of PCE, or between PCE and local auxiliary

equipment, and used in accordance with relevant functional specifications

Note 1 to entry: Examples include RS-232, Universal Serial Bus (USB), high-definition multimedia interface (HDMI),

IEEE standard 1394 (“Fire Wire”) and control pilot.
3.12
wired network port

point to connection for voice, data and signalling transfers intended to interconnect widely

dispersed systems by direct connection to a single-user or multi-user communication network

Note 1 to entry: Examples include CATV, PSTN, ISDN, xDSL, LAN and similar networks. These ports can support

screened or unscreened cables and can also carry AC or DC power where this is an integral part of the

telecommunication specification.
3.13
high power electronic equipment and system

one or more power conversion equipment with a combined rated power greater than 75 kVA, or

a system containing such equipment
3.14
low voltage

set of voltage levels used for the distribution of electricity and whose upper limit is generally

accepted to be 1 000 V AC or 1 500 V DC
3.15
high voltage
a) in a general sense, the set of voltage levels in excess of low voltage

b) in a restrictive sense, the set of upper voltage levels used in power system for bulk

transmission of electricity
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
