SIST EN 334:2019+A1:2025

Gas pressure regulators for inlet pressure up to 10 MPa (100 bar)

This European Standard specifies constructional, functional, testing, marking, sizing and documentation requirements of gas pressure regulators:
-   for inlet pressures up to 100 bar and nominal diameters up to DN 400;
-   for an operating temperature range from - 20  °C to +60 °C,
which operate with fuel gases of the 1st and 2nd  family as defined in EN 437:2003+A1:2009, used in the pressure regulating stations in accordance with EN 12186 or EN 12279, in transmission and distribution networks and also in commercial and industrial installations.
"Gas pressure regulators" hereafter will be called "regulators" except in the titles.
For standard regulators when used in pressure regulating stations complying with EN 12186 or EN 12279, the Annex ZA lists all applicable essential safety requirements of the European legislation on pressure equipment except external and internal corrosion resistance for applications in corrosive environment.
This document considers the following temperature classes/types of regulators:
-   temperature class 1: operating temperature range from −10 °C to 60 °C;
-   temperature class 2: operating temperature range from −20 °C to 60 °C;
-   type IS: (integral strength type);
-   type DS: (differential strength type).
This document applies to regulators which use the pipeline gas as a source of control energy unassisted by any external power source.
The regulator may incorporate a second regulator, used as monitor, complying with the requirements in this document.
The regulator may incorporate a safety shut off device (SSD) complying with the requirements of EN 14382.
The regulator may incorporate a creep (venting) relief device, complying with the requirements in Annex E and/or a vent limiter, complying with the requirements in Annex I.
This document does not apply to:
-   regulators upstream from/on/in domestic gas-consuming appliances which are installed downstream of domestic gas meters;
-   regulators designed to be incorporated into pressure control systems used in service lines ) with volumetric flow rate ≤ 200 m3/h at normal conditions and inlet pressure ≤ 5 bar;
-   regulators for which a specific document exists (e.g. EN 88-1 and EN 88-2, etc.);
-   industrial process control valves in accordance with EN 1349.
The normative Annex G of this document lists some suitable materials for pressure bearing parts, inner metallic partition walls, auxiliary devices, integral process and sensing lines, connectors and fasteners. Other materials may be used when complying with the restrictions given in Table 5.
Continued integrity of gas pressure regulators is ensured by suitable surveillance checks and maintenance. For periodic functional checks and maintenance it is common to refer to national regulations/standards where existing or users/manufacturers practices.
This document has introduced the reaction of the pressure regulators to the specified reasonable expected failures in terms of "fail close" and "fail open" pressure regulator types, but it should be considered that there are other types of failures whose consequences can bring to the same reactions (these risks are covered via redundancy as per EN 12186) and that residual hazards will be reduced by a suitable surveillance in use / maintenance.
In this document, both pressure regulators that can be classified as "safety accessories" by themselves (monitors) according to European legislation on pressure equipment as well as regulators that can be used to provide the necessary pressure protection through redundancy (e.g. pressure regulator with integrated safety shut-off device, pressure regulator + in-line monitor, pressure regulator + safety shut off device) are considered.
The provisions in this document are in line with the state of art at the moment of writing.

Gas-Druckregelgeräte für Eingangsdrücke bis 10 MPa (100 bar)

No scope available

Régulateurs de pression de gaz pour des pressions amont jusqu’à 10 MPa (100 bar)

Regulatorji tlaka plina za vstopne tlake do 10 MPa (100 bar) (vključno z dopolnilom A1)

Ta dokument določa konstrukcijske, funkcionalne in preskusne zahteve ter zahteve za označevanje, določanje velikosti in dokumentacijo regulatorjev tlaka plina:
– za vstopne tlake do 100 barov in nazivne premere do DN 400,
– za temperaturno območje delovanja od –20 °C do +60 °C,
ki delujejo z gorivnimi plini prve in druge družine, opredeljenimi v standardu EN 437:2018 [1], ki se uporabljajo v postajah za regulacijo tlaka v skladu s standardom EN 12186 ali EN 12279, v prenosnih in distribucijskih omrežjih ter tudi v komercialnih in industrijskih napravah.
»Regulatorji tlaka plina« bodo v nadaljevanju imenovani »regulatorji«, razen v naslovih.
Za standardne regulatorje, kadar se ti uporabljajo v postajah za regulacijo tlaka v skladu s standardom EN 12186 ali EN 12279, so v dodatku ZA navedene vse veljavne osnovne varnostne zahteve evropske zakonodaje o tlačni opremi, razen zunanje in notranje odpornosti proti rjavenju za uporabo v korozivnem okolju.
Ta dokument obravnava naslednje temperaturne razrede/vrste regulatorjev:
– temperaturni razred 1: temperaturno območje delovanja od −10 °C do 60 °C;
– temperaturni razred 2: temperaturno območje delovanja od −20 °C do 60 °C;
– vrsta IS: (integralna trdnost);
– vrsta DS: (diferencialna trdnost).
Ta dokument se uporablja za regulatorje, ki kot vir krmilne energije uporabljajo plin iz plinovoda brez pomoči zunanjega vira energije.
Regulator lahko vključuje dodatni regulator, ki se uporablja kot naprava za nadzor v skladu z zahtevami v tem dokumentu.
Regulator lahko vključuje varnostno zaporno napravo (SSD) v skladu z zahtevami iz standarda EN 14382.
Regulator lahko vključuje napravo za razbremenitev pri lezenju (odzračevanje) v skladu z zahtevami iz dodatka E in/ali omejevalnik odzračevanja v skladu z zahtevami iz dodatka I.
Ta dokument se ne uporablja za:
– regulatorje, nameščene pred gospodinjskimi napravami, ki delujejo na plin, oziroma na ali v njih, ki so nameščeni za merilniki plina za gospodinjstvo;
– regulatorje, zasnovane za vgradnjo v sisteme za regulacijo tlaka, ki se uporabljajo v priključnih cevovodih2) z volumetričnim pretokom ≤ 200 m3/h ob normalnih pogojih in vstopnim tlakom ≤ 5 barov;
– regulatorje, za katere obstaja specifičen dokument (npr. EN 88-1 in EN 88-2 itd.);
– regulacijske ventile za industrijske procese v skladu s standardom EN 1349.
V informativnem dodatku G tega dokumenta je navedenih nekaj primernih materialov za tlačno obremenjene dele, notranje kovinske pregrade, pomožne naprave, vgrajene vode za obdelavo in zaznavanje ter priključke in vezne elemente. Uporabijo se lahko tudi drugi materiali, ki so v skladu z omejitvami iz preglednice 5.
Stalna celovitost regulatorjev tlaka plina je zagotovljena z ustreznimi pregledi in vzdrževanjem. V zvezi z rednim preverjanjem delovanja in vzdrževanjem je običajno sklicevanje na nacionalne predpise/standarde, če obstajajo, ali prakse uporabnikov/proizvajalcev.
Ta dokument uvaja odziv regulatorjev tlaka na navedene razumno pričakovane okvare v smislu vedenja »zaprtje ob okvari« in »odprtje ob okvari«, vendar naj se upošteva, da obstajajo tudi druge vrste okvar, katerih posledice lahko povzročijo enake odzive (ta tveganja so zajeta z redundanco v skladu s standardom EN 12186), in da se preostala tveganja zmanjšajo z ustreznim nadzorom med uporabo/vzdrževanjem.
V tem dokumentu so obravnavani tako regulatorji tlaka, ki jih je mogoče opredeliti kot »varnostne pripomočke« (naprave za nadzor) v skladu z evropsko zakonodajo o tlačni opremi, kot tudi regulatorji, s katerimi je mogoče
zagotoviti potrebno zaščito pred tlakom z redundanco (npr. regulator tlaka z vgrajeno varnostno zaporno napravo, regulator tlaka z napravo za nadzor tlaka v vodu, regulator tlaka z varnostno zaporno napravo).
Določbe v tem dokumentu so v skladu s stanjem tehnike v času njegove priprave.
Ta dokument ne namerava omejevati izboljšanja dejanskih določb (materiali, zahteve, preskusne metode, merila sprejemljivosti itd.) ali ob

General Information

• Status: Published
• Publication Date: 07-Jan-2025
• ICS: 23.060.40 - Pressure regulators
• Technical Committee: DPL - Gas supply
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 14-Nov-2024
• Due Date: 19-Jan-2025
• Completion Date: 08-Jan-2025
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Mandate: M/601 - COMMISSION IMPLEMENTING DECISION of 1.3.2024 on a standardisation request to the European Committee for Standardization and the European Committee for Electrotechnical Standardization as regards pressure equipment and assemblies in support of Directive 2014/68/EU of the European Parliament and of the Council
• Ref Project: EN 334:2019+A1:2024 - Gas pressure regulators for inlet pressure up to 10 MPa (100 bar)

Relations

• Replaces: SIST EN 334:2019 - Gas pressure regulators for inlet pressure up to 10 MPa (100 bar)
• Effective Date: 01-Jan-2025
• Consolidates: SIST EN 334:2019/kFprA1:2024 - Gas pressure regulators for inlet pressure up to 10 MPa (100 bar)
• Effective Date: 01-Jan-2025

Overview

EN 334:2019+A1:2024 is the European Standard for gas pressure regulators with inlet pressures up to 10 MPa (100 bar) and nominal diameters up to DN 400. It defines constructional, functional, testing, sizing, marking and documentation requirements for regulators that operate with fuel gases of the 1st and 2nd families (per EN 437) and that are used in pressure regulating stations, transmission and distribution networks, and commercial/industrial installations. The standard covers regulators operating in the temperature range −20 °C to +60 °C and includes amendment A1 (2024).

Key topics and technical requirements

• Scope & limits
  • Applies to pipeline-gas-powered regulators (no external power source).
  • Covers temperature classes (Class 1: −10 °C to +60 °C; Class 2: −20 °C to +60 °C) and strength types (IS - integral strength, DS - differential strength).
  • Excludes domestic appliance regulators downstream of domestic meters, certain service-line regulators (≤ 200 m3/h at inlet ≤ 5 bar), devices covered by other standards (e.g., EN 88‑1/‑2) and industrial process control valves (EN 1349).
• Design & materials
  • Construction and strength requirements for bodies, flanges, inner partition walls and pressure-bearing parts.
  • Material guidance in Normative Annex G and restrictions in Table 5 for alternative materials.
  • Requirements for elastomers, sealing, springs and parts transmitting actuating forces.
• Functional performance
  • Accuracy classes, lock-up behaviour, flow characteristics, fail‑close and fail‑open behaviour.
  • Sizing equations and procedures for volumetric flow and maximum accuracy flow rates.
  • Antistatic characteristics and mounting/installation considerations.
• Testing & quality
  • Type tests, routine tests, production surveillance, field surveillance and documentation requirements.
  • Annexes for specific devices: safety shut-off devices (SSD per EN 14382), creep (venting) relief devices (Annex E) and vent limiters (Annex I).
  • Annex ZA lists essential safety requirements under EU pressure equipment legislation (except corrosion resistance in corrosive environments).

Applications and who uses it

• Intended users:
  • Regulator manufacturers designing and certifying regulators to European requirements.
  • Gas network operators and system designers specifying components for transmission, distribution and pressure regulating stations (EN 12186 / EN 12279).
  • Testing laboratories, inspection bodies and compliance engineers performing type and routine tests.
  • Commissioning, maintenance and procurement teams ensuring correct sizing, marking, documentation and surveillance.
• Typical applications:
  • Pressure regulating stations, inline or integrated regulator + monitor assemblies, commercial and industrial gas installations.

Related standards

• EN 437 (gas families)
• EN 12186, EN 12279 (pressure regulating stations)
• EN 14382 (safety shut-off devices)
• EN 88‑1 / EN 88‑2 (specific regulator families)
• EN 1349 (industrial process control valves)

EN 334:2019+A1:2024 provides the harmonized technical baseline for safe, tested and correctly sized high‑pressure gas regulators used across European gas infrastructure.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2025
Nadomešča:
SIST EN 334:2019
Regulatorji tlaka plina za vstopne tlake do 10 MPa (100 bar) (vključno z dopolnilom
A1)
Gas pressure regulators for inlet pressure up to 10 MPa (100 bar)
Gas-Druckregelgeräte für Eingangsdrücke bis 10 MPa (100 bar)
Régulateurs de pression de gaz pour des pressions amont jusqu’à 10 MPa (100 bar)
Ta slovenski standard je istoveten z: EN 334:2019+A1:2024
ICS:
23.060.40 Tlačni regulatorji Pressure regulators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 334:2019+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2024
EUROPÄISCHE NORM
ICS 23.060.40 Supersedes EN 334:2019
English Version
Gas pressure regulators for inlet pressure up to 10 MPa
(100 bar)
Régulateurs de pression de gaz pour des pressions Gas-Druckregelgeräte für Eingangsdrücke bis 10 MPa
amont jusqu'à 10 MPa (100 bar) (100 bar)
This European Standard was approved by CEN on 23 April 2019 and includes Amendment 1 approved by CEN on 21 July 2024.
This European Standard was corrected and reissued by the CEN-CENELEC Management Centre on 20 November 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 334:2019+A1:2024 E
worldwide for CEN national Members.

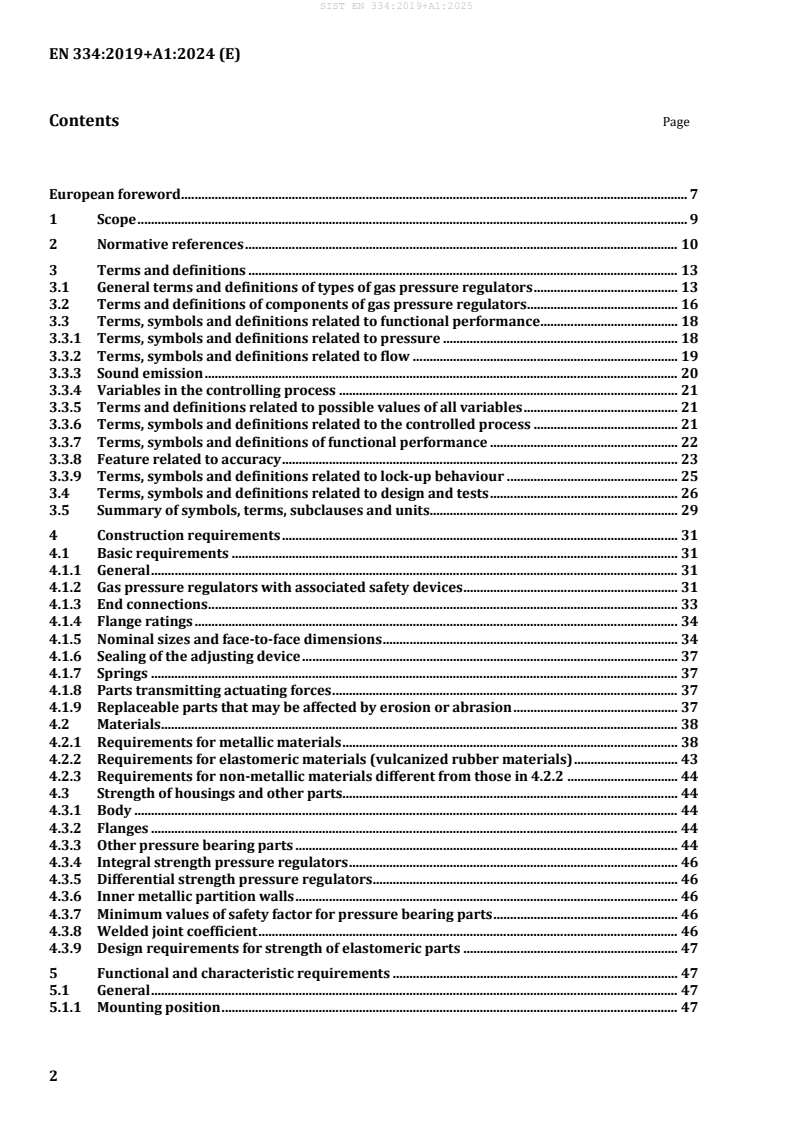

Contents Page
