Lead-acid starter batteries - Part 1: General requirements and methods of test

This standard is applicable to lead-acid batteries with a nominal voltage of 12 V, used primarily as a power source for the starting of internal combustion engines, lighting and also for auxiliary equipment of internal combustion engine vehicles. These batteries are commonly called “starter batteries”. Batteries with a nominal voltage of 6 V are also included within the scope of this standard. All referenced voltages have to be divided by two for 6 V batteries.
This standard is applicable to batteries for the following purposes:
−   batteries for passenger cars,
−   batteries for commercial and industrial vehicles.
This standard is not applicable to batteries for other purposes, for example the starting of railcar internal combustion engines or for motorcycles.
NOTE   Separate standard for motorcycle batteries is under preparation.

Blei-Akkumulatoren-Starterbatterien - Teil 1: Allgemeine Anforderungen und Prüfungen

Diese Norm gilt für Blei-Säure-Batterien mit einer Nennspannung von 12 V, die in erster Linie als Energie-quelle zum Starten von Verbrennungsmotoren, zur Beleuchtung und auch für die Zusatzausrüstung von Fahrzeugen mit Verbrennungsmotor benutzt werden. Diese Batterien werden einheitlich als „Starterbatterien“ bezeichnet. Batterien mit einer Nennspannung von 6 V sind in dieser Norm ebenfalls eingeschlossen. Alle erwähnten Spannungen müssen für 6 V Batterien durch zwei geteilt werden.
Diese Norm gilt für Batterien der folgenden Anwendungen:
–   Batterien für Personenwagen;
–   Batterien für kommerzielle und industrielle Fahrzeuge.
Diese Norm gilt nicht für Batterien mit anderen Einsatzbestimmungen, z. B. zum Starten von Motoren von Schienenfahrzeugen oder Motorrädern.
ANMERKUNG   Eine eigenständige Norm für Motorradbatterien ist in Vorbereitung.

Batteries d'accumulateurs de démarrage au plomb - Partie 1: Prescriptions générales et méthodes d'essais

La présente Norme européenne est applicable aux batteries d'accumulateurs au plomb, d'une tension nominale de 12 V, utilisées principalement comme source de courant pour le démarrage des moteurs à combustion interne, ainsi que pour l'éclairage et les installations auxiliaires des véhicules équipés de moteurs à combustion interne. Ces batteries sont couramment appelées "batteries de démarrage". Les batteries d'une tension nominale de 6 V relèvent également du domaine d'application de la présente norme. Pour les batteries de 6 V, toutes les tensions référencées doivent être divisées par deux.
La présente Norme européenne est applicable aux batteries destinées aux usages suivants:
−   batteries pour véhicules de tourisme,
−   batteries pour véhicules commerciaux, utilitaires et industriels.
La présente Norme européenne ne s'applique pas aux batteries destinées à d'autres usages tels que, par exemple, le démarrage des moteurs à combustion interne des automotrices ou les motocycles.

Svinčeno-kislinske zaganjalne baterije - 1. del: Splošne zahteve in preskusne metode

Ta standard se uporablja za svinčeno-kislinske baterije z nazivno napetostjo 12 V, ki se uporabljajo predvsem kot vir napajanja za zagon motorjev z notranjim izgorevanjem, razsvetljavo in tudi za pomožno opremo vozil z motorji z notranjim izgorevanjem. Običajno te baterije imenujemo »zaganjalne baterije«. Tudi baterije z nazivno napetostjo 6 V so zajete v področje uporabe tega standarda. Vse navedene napetosti je treba v primeru baterij z napetostjo 6 V deliti z 2.
Ta standard se uporablja za baterije za naslednje namene:
− baterije za potniške avtomobile;
− baterije za komercialna in industrijska vozila.
Ta standard se ne uporablja za baterije za druge namene, na primer za zagon železniških motornih vozil z motorjem z notranjim izgorevanjem ali za motorna kolesa.
NOTE: V pripravi je ločen standard za baterije motornih koles.

General Information

Status
Published
Public Enquiry End Date
31-May-2014
Publication Date
27-Jan-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
26-Nov-2015
Due Date
31-Jan-2016
Completion Date
28-Jan-2016

Relations

Buy Standard

Standard
EN 50342-1:2016 - BARVE
English language
24 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 50342-1:2014 - BARVE
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50342-1:2016
01-marec-2016
1DGRPHãþD
SIST EN 50342-1:2006
SIST EN 50342-1:2006/A1:2012
6YLQþHQRNLVOLQVNH]DJDQMDOQHEDWHULMHGHO6SORãQH]DKWHYHLQSUHVNXVQH
PHWRGH
Lead-acid starter batteries - Part 1: General requirements and methods of test
Blei-Akkumulatoren-Starterbatterien - Teil 1: Allgemeine Anforderungen und Prüfungen
Batteries d'accumulateurs de démarrage au plomb - Partie 1: Prescriptions générales et
méthodes d'essais
Ta slovenski standard je istoveten z: EN 50342-1:2015
ICS:
29.220.20 .LVOLQVNLVHNXQGDUQLþOHQLLQ Acid secondary cells and
EDWHULMH batteries
SIST EN 50342-1:2016 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50342-1:2016

---------------------- Page: 2 ----------------------

SIST EN 50342-1:2016

EUROPEAN STANDARD EN 50342-1

NORME EUROPÉENNE

EUROPÄISCHE NORM
November 2015
ICS 29.220.20 Supersedes EN 50342-1:2006
English Version
Lead-acid starter batteries - Part 1: General requirements and
methods of test
Batteries d'accumulateurs de démarrage au plomb - Partie Blei-Akkumulatoren-Starterbatterien - Teil 1: Allgemeine
1 : Prescriptions générales et méthodes d'essais Anforderungen und Prüfungen
This European Standard was approved by CENELEC on 2015-10-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 50342-1:2015 E

---------------------- Page: 3 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)

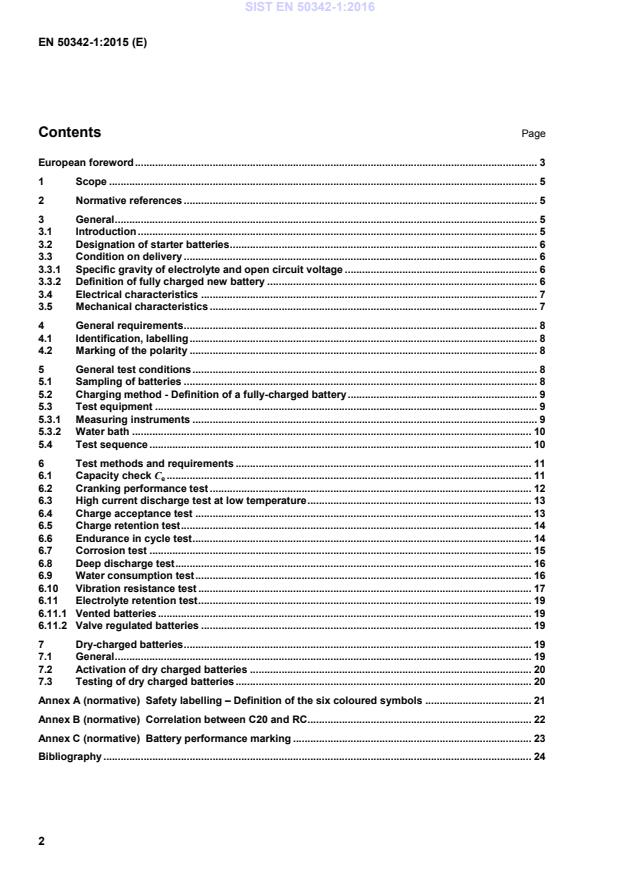

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 General . 5
3.1 Introduction . 5
3.2 Designation of starter batteries . 6
3.3 Condition on delivery . 6
3.3.1 Specific gravity of electrolyte and open circuit voltage . 6
3.3.2 Definition of fully charged new battery . 6
3.4 Electrical characteristics . 7
3.5 Mechanical characteristics . 7
4 General requirements . 8
4.1 Identification, labelling . 8
4.2 Marking of the polarity . 8
5 General test conditions . 8
5.1 Sampling of batteries . 8
5.2 Charging method - Definition of a fully-charged battery . 9
5.3 Test equipment . 9
5.3.1 Measuring instruments . 9
5.3.2 Water bath . 10
5.4 Test sequence . 10
6 Test methods and requirements . 11
6.1 Capacity check C . 11
e
6.2 Cranking performance test . 12
6.3 High current discharge test at low temperature . 13
6.4 Charge acceptance test . 13
6.5 Charge retention test . 14
6.6 Endurance in cycle test . 14
6.7 Corrosion test . 15
6.8 Deep discharge test . 16
6.9 Water consumption test . 16
6.10 Vibration resistance test . 17
6.11 Electrolyte retention test . 19
6.11.1 Vented batteries . 19
6.11.2 Valve regulated batteries . 19
7 Dry-charged batteries . 19
7.1 General . 19
7.2 Activation of dry charged batteries . 20
7.3 Testing of dry charged batteries . 20
Annex A (normative) Safety labelling – Definition of the six coloured symbols . 21
Annex B (normative) Correlation between C20 and RC. 22
Annex C (normative) Battery performance marking . 23
Bibliography . 24

2

---------------------- Page: 4 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
European foreword
This document (EN 50342-1:2015) has been prepared by CLC/TC 21X “Secondary cells and batteries”.
The following dates are fixed:
• latest date by which this document has (dop) 2016-10-05
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2018-10-05
standards conflicting with this
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 50342-1:2006.
EN 50342, Lead-acid starter batteries, is currently composed of the following parts:
− Part 1: General requirements and methods of test [the present document];
− Part 2: Dimensions of batteries and marking of terminals;
− Part 3: Terminal system for batteries with 36 V nominal voltage;
− Part 4: Dimensions of batteries for heavy vehicles;
− Part 5: Properties of battery housings and handles;
− Part 6: Batteries for Micro-Cycle Applications [currently at Formal Vote stage];
− Part 7: General requirements and methods of tests for motorcycle batteries [currently at Formal Vote
stage].
EN 50342-1:2015 includes the following significant technical changes with respect to EN 50342-1:2006:
a) The following topics have been reworked/changed in the new version:
1) simplified structure;
2) correction of errors;
3) updated to actual state of art of lead acid batteries;
4) definition of new requirement levels and a new system for identification.
b) The following test procedures and requirements have been updated:
1) charging procedure (reworked);
2) cold cranking procedure (reworked);
3

---------------------- Page: 5 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
3) charge retention (reworked);
4) deep discharge (new);
5) cycling (reworked);
6) water consumption;
7) vibration test procedures (reworked and new requirement level V4 added for heavy trucks).
4

---------------------- Page: 6 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
1 Scope
This European Standard is applicable to lead-acid batteries with a nominal voltage of 12 V, used primarily as a
power source for the starting of internal combustion engines, lighting and also for auxiliary equipment of
internal combustion engine vehicles. These batteries are commonly called “starter batteries”. Batteries with a
nominal voltage of 6 V are also included within the scope of this standard. All referenced voltages need to be
divided by two for 6 V batteries.
This European Standard is applicable to batteries for the following purposes:
− batteries for passenger cars,
− batteries for commercial and industrial vehicles.
This European Standard is not applicable to batteries for other purposes, for example the starting of railcar
internal combustion engines or for motorcycles.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 50342–2, Lead-acid starter batteries — Part 2: Dimensions of batteries and marking of terminals
EN 50342–4, Lead-acid starter batteries — Part 4: Dimensions of batteries for heavy vehicles
EN 50342-5, Lead-acid starter batteries — Part 5: Properties of battery housings and handles
EN 50342–6, Lead-acid starter batteries — Part 6: Batteries for Micro-Cycle Applications
EN 61429, Marking of secondary cells and batteries with the international recycling symbol ISO 7000-1135
and indications regarding directives 93/86/EEC and 91/157/EEC (IEC 61429)
IEC 60050–482, International Electrotechnical Vocabulary — Part 482: Primary and secondary cells and
batteries
3 General
3.1 Introduction
The object of this standard is to specify:
- general requirements;
- certain essential functional characteristics, the relevant test methods and results required, for several
classes and types of starter batteries.
For general definitions of terms see IEC 60050-482, Part 482 of the International Electro-technical Vocabulary
(IEV).
5

---------------------- Page: 7 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
3.2 Designation of starter batteries
Batteries are classified according to their types.
3.2.1
flooded or vented batteries
secondary battery having a cover provided with one or more openings through which gaseous products may
escape
3.2.2
Enhanced Flooded Batteries
EFB
secondary batteries with additional special design features to significantly improve the cycling capability
compared to standard flooded batteries
Note 1 to entry: These batteries need to have a water consumption performance level of W3, W4 or W5.
3.2.3
Valve Regulated Lead-Acid batteries
VRLA
valve regulated lead-acid batteries are secondary batteries which are closed under normal conditions but
which has an arrangement that allows the escape of gas if the internal pressure exceeds a predetermined
value
Note 1 to entry: The battery cannot receive addition to the electrolyte. In VRLA batteries the electrolyte is immobilized.
3.2.4
Absorbent Glass Mat batteries
AGM
VRLA batteries in which the electrolyte is immobilized by absorption in a glass mat
3.2.5
gel batteries
VRLA batteries in which the electrolyte is immobilized by fixing as gel
3.3 Condition on delivery
3.3.1 Specific gravity of electrolyte and open circuit voltage
Specific gravity of electrolyte and open circuit voltage of a lead acid battery depend on its state of charge and
temperature.
The specific gravity of the electrolyte of fully charged vented batteries shall be in the range 1,27 kg/l to
1,30 kg/l at 25 °C unless otherwise specified by the manufacturer.
The open circuit voltage (OCV), of fully charged batteries after a minimum of 24 h stand on open circuit, shall
be in the range 12,70 V to 12,90 V for vented types and 12,80 V to 13,00 V for valve regulated types at 25 °C
unless otherwise specified by the manufacturer.
3.3.2 Definition of fully charged new battery
New vented batteries may be supplied:
- either in a state ready for use, filled with the appropriate electrolyte to the maximum level. 24 h after an
initial charge (according to 5.2), the specific gravity of electrolyte or OCV shall be within the ranges
specified in 3.3.1. In batteries with lids without plugs checking specific gravity of electrolyte is generally
not possible. In these cases, only OCV shall be checked according to 3.3.1;
6

---------------------- Page: 8 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
- or dry charged as defined in Clause 7.
Valve regulated batteries are normally supplied in a state ready for use. After an initial charge according to 5.2
followed by a 24 h rest period, the OCV shall be within the range specified in 3.3.1. For these batteries, the
electrolyte is not accessible and therefore its specific gravity cannot be checked.
3.4 Electrical characteristics
3.4.1 The cranking current I , to be indicated by the manufacturer, is the discharge current which the
cc
battery can supply at –18°C for 10 s to a minimum voltage U = 7,50 V and meeting requirements of a
f
simulated cranking profile according to 6.2. It is used as well to check the high current discharge performance
according to 6.3.
3.4.2 The capacity of a starter battery is defined for the temperature of 25 °C ± 2 °C. The nominal capacity
C in this standard is a C20. It shall be indicated by the manufacturer as nominal 20 h capacity C20 (Ah).
n
The nominal 20 h capacity C is the electric charge (in Ah) that a battery can supply with a current:
n
C
n
I = (A)
n
20 h
to a final voltage U = 10,50 V.
f
The effective capacity C shall be determined by discharging a battery with constant current I to U = 10,50 V
e n f
(see 6.1).
3.4.3 The charge acceptance is expressed as the current I which a partially discharged battery accepts at
ca
0 °C and a constant voltage of 14,40 V (see 6.4).
3.4.4 Charge retention is measured by the high current discharge performance of the charged and filled
battery after storage on open circuit under defined conditions of temperature and time (see 6.5).
3.4.5 The Cycling test represents the ability of a battery to perform repeated discharge / recharge cycles.
This ability shall be tested by a series of cycles under specified conditions after which the cold cranking
performance and the 20 h capacity shall be determined (see 6.6).
3.4.6 The Corrosion test checks the resistance of a battery against overcharging at increased temperatures
(see 6.7)
3.4.7 The Deep discharge test represents the ability of battery to overcome an over discharge in a vehicle
by small loads during parking for a long time (see 6.8)
3.4.8 Water consumption test checks if the battery can keep its performance under extended exposure to
heat and overcharge conditions. It is measured as loss of weight during overcharge of a fully charged battery
and is defined as g/Ah C (see 6.9).
e
3.5 Mechanical characteristics
3.5.1 Vibration resistance represents the ability of a battery to maintain service under acceleration forces.
(see 6.10)
3.5.2 Electrolyte retention is the ability of a battery to retain electrolyte under specified mechanical
conditions (see 6.11).
7

---------------------- Page: 9 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
4 General requirements
4.1 Identification, labelling
Batteries according to this standard shall bear the following characteristics on at least one of their sides or on
the top surface:
a) the identification of manufacturer or supplier;
b) the nominal voltage, i.e. 12 V or 6 V;
c) nominal capacity C20 (Ah) (see 3.4.2),
The values of C20 for all batteries shall correspond to the specific gravity of electrolyte or OCV given in
3.3.1;
d) the nominal cranking current I (see 3.4.1);
cc
e) the six coloured symbols as specified in Annex A, Safety labelling;
f) the marking for the separate collection and recycling according to EN 61429;
g) valve regulated batteries shall be marked ‘VRLA'.
h) Date of production (this could be a part of more complex code too)
i) Requirement levels according to water consumption, charge retention, endurance and vibration as
specified in Annex C
Batteries may be marked with other information such as the filling and charging date.
Label size: The capacity C20 (Ah) and the cold cranking current I (A) shall be displayed on a separate label
cc
or as text on a combined label (e.g. together with additional information of the producer or type mark). The
size of the label shall be at least 3 % of the largest side of the battery. The character size high should be at
least 3 mm. The label shall be fixed on one of the four sides or on the lid. A multiple labelling is allowed.
For batteries for micro-cycle application: Specific identification according to EN 50342-6.
4.2 Marking of the polarity
This shall be in accordance with:
- EN 50342-2, Lead-acid starter batteries — Part 2: Dimensions of batteries and marking of terminals;
- EN 50342-4, Lead-acid starter batteries — Part 4: Dimensions of batteries for heavy vehicles.
5 General test conditions
5.1 Sampling of batteries
All tests shall be carried out on new battery samples. Samples shall be considered as new no later than:
- 30 d after the acid filling and formation date in the case of filled and charged batteries,
- 60 d after shipment date of the manufacturer in the case of dry-charged batteries.
8

---------------------- Page: 10 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
Out of different production or sampling lots 7 batteries shall be selected for testing. Six of these batteries shall
be used for the tests. In case of equipment failures or technical deviation, one battery can be replaced to
repeat the complete sequence for this battery.
All tests shall be performed only if above conditions and conditions according to 3.3.2 are fulfilled.
5.2 Charging method - Definition of a fully-charged battery
All tests, except that in 7.3, shall commence with fully-charged batteries.
Batteries shall be considered as fully-charged if they have undergone the charging procedures. Prior to the
first capacity test, the battery charge shall be limited to 16 h.
If not specified differently by the battery manufacturer, the batteries that will be tested according to this
standard shall be charged according to Table 1.
Table 1 — Charging method
Battery Type Voltage U Current Time Battery Remarks
c
temperature
Flooded batteries
having size
a
16,00 V ± 0,05 V 5 I 24 h (16 h) 15 °C to 35 °C
n
according to
EN 50342–2
a
Flooded batteries
5 I
16,00 V ± 0,05 V 20 h (16 h) 15 °C to 35 °C Step 1
n
having size
according to
a
no limitation I 4 h (0 h) 15 °C to 35 °C Step 2
n
EN 50342–4
Valve regulated
a
14,80 ± 0,05 V 5 I 24 h (16 h) 15 °C to 35 °C
n
batteries
a
 After cranking performance test and prior to first capacity check (Step 1 of present Table).

All charges shall be performed with batteries in a water bath at 25 °C ± 2 °C according to 5.3.2.
NOTE Using the water bath, it is generally accepted that the battery temperature during the charge will be maintained
in the required range.
5.3 Test equipment
5.3.1 Measuring instruments
The range of instruments used shall be appropriate for the magnitude of the parameters to be measured. The
minimum accuracy of test equipment is given in Table 2.
9

---------------------- Page: 11 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
Table 2 — Accuracy of test equipment
Parameter Accuracy of test equipment
Current for cold cranking tests 0,5 %
1 % full-scale with a minimum
Current for other tests
accuracy of ± 30 mA
Voltage ±0,04 V
Temperature ±1 K
Time ±10 ms
Specific gravity of electrolyte ≤ 0,005 kg/l
±1 g below 30 kg
Weight of battery
±5 g above 30 kg

The instruments used for measuring time shall be graduated in hours, minutes and seconds.
5.3.2 Water bath
If a test needs to be carried out in a water bath, the following conditions shall be fulfilled. The terminal base of
the battery shall be at least 15 mm but not more than 25 mm above the water surface level. If several batteries
are in the same water bath then the distance between them and also the distance to the walls of the bath shall
be at least 25 mm.
Minimum soak time for batteries in water bath is 4 h.
If not stated differently in the individual test description the tolerance for the temperature of the water bath
is ± 2 °C.
It is recommended to cover the surface of the water with floating elements using testing temperatures of 40 °C
or more. This improves the thermal isolation against air and avoids evaporation of water.
5.4 Test sequence
Filled and charged batteries shall be subjected to the following initial test series:
a) 1st C check,
e
b) 1st cranking performance test;
c) 2nd C check,
e
d) 2nd cranking performance test;
e) 3rd C check,
e
f) 3rd cranking performance test.
For C and the cranking performance the specified values shall be met in at least one of the relevant
e
discharges above.
It is not necessary to complete the sequence if the specified values are achieved on the first or second test
other than for batteries that will subsequently be tested for charge acceptance.
10

---------------------- Page: 12 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
If, and only if, the initial capacity and cranking tests are successful, the batteries shall be tested in accordance
with the remainder of the test sequence given in Table 3.
These tests shall commence not later than one week after completion of the initial tests.
Table 3 — Test sequence
Step Battery Reference 1 2 3 4 5 6
1 Initial charge prior to test 5.2 X X X X X X
2 1st Capacity check C 6.1 X X X X X X
e
3 1st cranking performance test 6.2 X X X X X X
4 2nd Capacity check C 6.1 (X) (X) (X) X (X) (X)
e
5 2nd cranking performance test 6.2 (X) (X) (X) X (X) (X)

6 3rd Capacity check C 6.1 (X) (X) (X) X (X) (X)
e
7 3rd cranking performance test 6.2 (X) (X) (X) X (X) (X)
8 Endurance in cycle test 6.6 X
9 Corrosion test 6.7  X
10 High current discharge 6.3 X X

11 Capacity check C 6.1 X X
e
12 Charge retention 6.5   X
13 High current discharge 6.3   X
14 Deep discharge 6.8   X
15 Capacity check C 6.1   X
e
16 Cranking performance test 6.2   X
17 10 cycles with 50 % DOD 6.6   X
18 Charge acceptance 6.4    X
19 Electrolyte retention 6.11    X
20 Vibration resistance 6.10     X
21 Water consumption 6.9      X
22 High current discharge 6.3      X
(X) denotes that this test needs to be carried out if the previous same test did not achieve
the requirement level. One of the batteries 1 to 6 can be replaced by battery 7 for testing
starting from step 1 in case of unexpected deviations below 90 % C or test equipment
n

failures during test.

6 Test methods and requirements
6.1 Capacity check C
e
6.1.1 Throughout the duration of the tests, the battery shall be placed in a water bath at 25 °C ± 2 °C
according to 5.3.2
6.1.2 The battery shall be discharged with the current I (calculated according to 3.4.2) kept constant
n
at ± 1 % of the nominal value until the terminal voltage falls to 10,50 V ± 0,05 V. The duration t (h) of this
11

---------------------- Page: 13 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
discharge shall be recorded. The beginning of the discharge shall take place within a period of 1 h to 5 h from
the time of the end of charging.
6.1.3 The capacity C is C = t x I (Ah).
e e n
From each single test sequence, the maximum value of all performed capacity tests is taken to calculate the
mean value of the 20-h capacity over the six batteries as
6
max
C
∑ e
i=1 i
C =
e
6
The standard deviation is calculated for these data as:
2
6
CC−
( )
∑ ee
i=1 i
S=
5
6.1.4 Requirements:
As a target, the mean value of the capacity should be equal to or greater than the labelled capacity C . Due to
n
inevitable statistical deviations, the requirement for compliance of 20-h capacity shall fulfil the following
condition:
CS−
( )
e
≥ 0,95
C
n

6.2 Cranking performance test
6.2.1 After a rest period of 24 h up to 72 h after preparation according to 5.2, the battery shall be placed in a
cooling chamber with (forced) air circulation at a temperature of −18 °C ± 1 °C until the temperature of the
middle cells has reached −18 °C ± 1 °C.
It is generally accepted that the required temperature will be achieved after a minimum period of 24 h in the
cooling chamber.
6.2.2 The battery shall then be discharged, either within or outside the cooling chamber, within 2 min after
the end of the cooling period with a current I (see 3.4.1). This current shall be kept constant to within ± 0,5 %
cc
during the discharge.
6.2.3 After 10 s discharge, the terminal voltage U shall be recorded and the current shall be cut off. The
f
voltage U shall be not less than 7,50 V for all the 6 tested battery individuals in at least one sequence.
f
Subclauses 6.2.1 to 6.2.3 comprise stage 1 of the cranking performance test.
6.2.4 After a rest period of 10 s ± 1 s, the test shall be continued in accordance with 6.2.5.
6.2.5 The battery shall then be discharged at 0,6 I . The current shall be kept constant to within ± 0,5 %
cc
during the discharge. The discharge shall be terminated when the battery voltage reaches 6 V. The discharge
time (t' ) at 0,6 I to 6 V shall be recorded in seconds.
6v cc
Subclause 6.2.5 comprises stage 2 of the test.
12

---------------------- Page: 14 ----------------------

SIST EN 50342-1:2016
EN 50342-1:2015 (E)
6.2.6 t is defined as the duration of the second stage (t’ ) plus the equivalent duration of the first stage
6v 6v
discharge if run at 0,6 I , i.e. it is given, in seconds, by the following equation:
cc
10 s
t=t '+=t '+17 s
6v 6v 6v
0,6

6.2.7 Require
...

SLOVENSKI STANDARD
oSIST prEN 50342-1:2014
01-maj-2014
1DGRPHãþD
SIST EN 50342-1:2006
SIST EN 50342-1:2006/A1:2012
6YLQþHQRNLVOLQVNH]DJDQMDOQHEDWHULMHGHO6SORãQH]DKWHYHLQSUHVNXVQH
PHWRGH
Lead-acid starter batteries - Part 1: General requirements and methods of test
Blei-Akkumulatoren-Starterbatterien - Teil 1: Allgemeine Anforderungen und Prüfungen
Batteries d'accumulateurs de démarrage au plomb - Partie 1: Prescriptions générales et
méthodes d'essais
Ta slovenski standard je istoveten z: prEN 50342-1:2014
ICS:
29.220.20 .LVOLQVNLVHNXQGDUQLþOHQLLQ Acid secondary cells and
EDWHULMH batteries
oSIST prEN 50342-1:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 50342-1:2014

---------------------- Page: 2 ----------------------
oSIST prEN 50342-1:2014
 DRAFT
EUROPEAN STANDARD
prEN 50342-1

NORME EUROPÉENNE
March 2014
EUROPÄISCHE NORM

ICS Will supersede EN 50342-1:2006 + A1:2011


English version


Lead-acid starter batteries -
Part 1: General requirements and methods of test



Batteries d'accumulateurs de démarrage Blei-Akkumulatoren-Starterbatterien -
au plomb - Teil 1: Allgemeine Anforderungen und
Partie 1: Prescriptions générales et Prüfungen
méthodes d'essais



This draft European Standard is submitted to CENELEC members for CENELEC enquiry.
Deadline for CENELEC: 2014-08-21.

It has been drawn up by CLC/TC 21X.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national
standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own
language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to
change without notice and shall not be referred to as a European Standard.


CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Project: 24057 Ref. No. prEN 50342-1:2014 E

---------------------- Page: 3 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
Contents Page
Foreword. 3
0 Introduction . 4
0.1 Object . 4
0.2 Designation of starter batteries . 4
0.3 Condition on delivery. 4
1 Scope . 6
2 Normative references . 6
3 General requirements. 6
3.1 Identification, labelling . 6
3.2 Marking of the polarity . 7
4 Functional characteristics . 7
4.1 Electrical characteristics . 7
4.2 Mechanical characteristics . 8
5 General test conditions. 8
5.1 Sampling of batteries . 8
5.2 Charging method - Definition of a fully-charged battery . 8
5.3 Test equipment . 9
5.4 Test sequence . 10
6 Tests/methods and requirements .11
6.1 20 h capacity check C . 11
e
6.2 Cranking performance test . 12
6.3 High current discharge test at low temperature. 12
6.4 Charge acceptance test . 13
6.5 Charge retention test. 13
6.6 Endurance in cycles test . 13
6.7 Deep discharge test . 15
6.8 Water consumption test . 15
6.9 Vibration resistance test . 16
6.10 Electrolyte retention test . 18
7 Dry-charged batteries .18
7.1 Activation of dry charged batteries . 18
7.2 Testing of dry charged batteries . 19
Annex A (normative) Safety labelling – Definition of the six coloured symbols .20
Annex B (normative) Correlation between C20 and RC .22
Annex C (normative) Battery performance marking .23

2

---------------------- Page: 4 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
Foreword
This document (prEN 50342-1:2014) has been prepared by CLC/TC 21X "Secondary cells and
batteries".
This document is currently submitted to the Enquiry.
This document will supersede EN 50342-1:2006.
3

---------------------- Page: 5 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
0 Introduction
0.1 Object
The object of this standard is to specify
− general requirements;
− certain essential functional characteristics, the relevant test methods and results required, for
several classes and types of starter batteries.
0.2 Designation of starter batteries
Batteries are classified according to their types
Battery type Definition
Flooded or a secondary battery having a cover provided with one or more
vented openings through which gaseous products may escape
batteries
EFB batteries are enhanced vented (flooded) secondary batteries, with
additional special design features to significantly improve the cycling
capability compared to standard flooded batteries. These batteries shall
have a water consumption performance level of W3, W4 or W5.
Valve a secondary battery which is closed under normal conditions but which
regulated
has an arrangement that allows the escape of gas if the internal
batteries pressure exceeds a predetermined value. The battery cannot receive
addition to the electrolyte.
In Valve Regulated batteries, the electrolyte is immobilized.
In case electrolyte is immobilized by absorbing in a glass mat this type
of VRLA-battery is called AGM-battery (Absorbent Glass Mat).
In case electrolyte is immobilized by fixing as gel this type of VRLA-
battery is called GEL- battery
0.3 Condition on delivery
0.3.1 Electrolyte density and open circuit voltage
Electrolyte density and open circuit voltage of lead acid battery are depending on state of charge and
temperature.
The density of the electrolyte in all fully charged vented batteries shall be in the range 1,27 kg/l to
1,30 kg/l at 25 °C unless otherwise specified by the manufacturer.
The open circuit voltage (OCV), of fully charged batteries after a minimum of 24 h stand on open
circuit, shall be in the range 12,70 V to 12,90 V for vented types and 12,80 V to 13,00 V for valve
regulated types at 25 °C unless otherwise specified by the manufacturer.
0.3.2 Definition of fully charged new battery
New vented batteries may be supplied
− either in a state ready for use, filled with the appropriate electrolyte to the maximum level. 24h
after an initial charge (according to 5.2), the electrolyte density or OCV shall be within the ranges
specified in 0.3.1.In batteries with lid without plugs checking electrolyte density is generally not
possible. In this cases OCV is to check only according 0.3.1.
4

---------------------- Page: 6 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
− or dry charged as defined in chapter 7.
Valve regulated batteries are normally supplied in a state ready for use. 24 h after an initial charge
(according to 5.2) OCV shall be within ranges specified in 0.3.1. For these batteries the electrolyte is
not accessible and therefore its density cannot be checked.
5

---------------------- Page: 7 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
1 Scope
This standard is applicable to lead-acid batteries with a nominal voltage of 12 V, used primarily as a
power source for the starting of internal combustion engines, lighting and also for auxiliary equipment
of internal combustion engine vehicles. These batteries are commonly called “starter batteries”.
Batteries with a nominal voltage of 6 V are also included within the scope of this standard. All
referenced voltages have to be divided by two for 6 V batteries.
This standard is applicable to batteries for the following purposes:
− batteries for passenger cars,
− batteries for commercial and industrial vehicles.
This standard is not applicable to batteries for other purposes, for example the starting of railcar
internal combustion engines or for motorcycles.
NOTE Separate standard for motorcycle batteries is under preparation.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 50342–2:2001, Lead-acid starter batteries. Part 2: Dimensions of batteries and dimensions and
marking of terminals
EN 50342–4:2009, Lead-acid starter batteries. Part 4. Dimensions of batteries for heavy commercial
vehicles
EN 61429:1996/A11:1998, Marking of secondary cells and batteries with the international recycling
symbol ISO 7000-1135 and indications regarding directives 93/86/EEC and 91/157/EEC
IEC 60050–482:2004, International Electrotechnical Vocabulary. Part 482: Primary and secondary
cells and batteries
ECE 37, UN/ECE Regulation ECE 37, Agreement Concerning the adoption of uniform technical
prescriptions for wheeled vehicles, equipment and parts which can be fitted and/or be used on
wheeled vehicles and the conditions for reciprocal recognition of approvals granted on the basis of
these prescriptions, Regulation No. 37: Uniform provisions concerning the approval of filament lamps
for use in approved lamp units of power-driven vehicles and of their trailers.
3 General requirements
3.1 Identification, labelling
Batteries according to this standard shall bear the following characteristics on at least one of their
sides or on the top surface:
a) the identification of manufacturer or supplier;
b) the nominal voltage, i.e. 12 V or 6 V;
c) Obligatory: nominal capacity C20 (Ah) (see 4.1.2),
The values of C20 for all batteries shall correspond to the electrolyte density or OCV given in
section 0.3.1;
6

---------------------- Page: 8 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
d) Obligatory: the nominal cranking current I (see 4.1.1);
cc
e) the six coloured symbols as specified in Annex A, Safety labelling;
f) the marking for the separate collection and recycling according to EN 61429;
g) valve regulated batteries shall be marked ‘VRLA'.
h) Label size: The capacity C20 and the cold cranking current I (A) shall be displayed on a
cc
separate label or as text on a combined label (e.g. together with additional information of the
producer or type mark). The size of the label shall be at least 3 % of the largest side of the
battery. The character size high should be at least 3 mm. The label must be fixed on one of the
four sides or on the lid. A multiple labelling is allowed.
i) Batteries for micro-hybrid application shall be specifically identified
NOTE Separate standard is under preparation
j) Date of production (this could be a part of more complex code too)
k) Requirement levels according to water consumption, charge retention, endurance and vibration
as specified in Appendix C
NOTE Batteries may be marked with other information such as the filling and charging date
3.2 Marking of the polarity
This shall be in accordance with:
EN 50342-2, Part 2: Dimensions of batteries and dimensions and marking of terminals
EN 50342-4, Part 4: Dimensions of batteries for heavy commercial vehicles
4 Functional characteristics
For general definitions of terms see Part 482 of the International Electro-technical Vocabulary (IEV)
(IEC 60050-482).
4.1 Electrical characteristics
4.1.1 The cranking current is the discharge current i to be indicated by the manufacturer which a
cc
battery can supply at –18°C for 10 s to a minimum voltage U = 7,50 V and complying with
f
requirements of a simulated cranking profile according 6.2. It is used as well to check the high current
discharge performance according 6.3
4.1.2 The capacity of a starter battery is defined for the temperature of 25 °C ± 2 °C. The nominal
capacity C in this standard is a C20. It has to be indicated by the manufacturer as nominal 20h
n
capacity C20 (Ah).
The nominal 20 h capacity C is the electric charge (in Ah) that a battery can supply with a current:
n
C
n
I =
n
20
(A)
to a final voltage U = 10,50 V.
f
The effective capacity C shall be determined by discharging a battery with constant current I to
e n
U = 10,50 V (see 6.1).
f
7

---------------------- Page: 9 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
4.1.3 The charge acceptance is expressed as the current I which a partially discharged battery
ca
accepts at 0 °C and a constant voltage of 14,40 V (see 6.3).
4.1.4 Charge retention is measured by the high current discharge performance of the charged and
filled battery after storage on open circuit under defined conditions of temperature and time (see 6.4).
4.1.5 The endurance tests consist of cycling and a deep discharge part.
The Cycling test represents the ability of a battery to perform repeated discharge / recharge cycles.
This ability shall be tested by a series of cycles under specified conditions after which the cold
cranking performance and the 20h capacity shall be determined (see 6.6).
Deep discharge test represents ability of battery to overcome an over discharge in a vehicle by small
loads during parking a vehicle for a long time (see 6.7).
4.1.6 Water consumption test checks if the battery can keep its performance under extended
exposure to heat and overcharge conditions. It is measured as loss of weight during overcharge of a
fully charged battery and is defined as g/Ah C (see 6.8).
e
4.2 Mechanical characteristics
4.2.1 Vibration resistance represents the ability of a battery to maintain service under acceleration
forces. (see 6.9)
4.2.2 Electrolyte retention is the ability of a battery to retain electrolyte under specified mechanical
conditions (see 6.9). Valve regulated batteries are submitted to a special test (see 6.10).
5 General test conditions
5.1 Sampling of batteries
All tests shall be carried out on new battery samples. Samples shall be considered as new no later
than
− 30 days after the acid filling and formation date in the case of filled and charged batteries,
− 60 days after shipment date of the manufacturer in the case of dry-charged batteries.
Out of different production or sampling lots 7 batteries shall be selected for testing. Six of these
batteries shall be used for the tests. In case of equipment failures or technical deviation one battery
can be replaced to repeat the complete sequence for this battery.
All tests shall be performed only if above conditions and conditions according to 0 are fulfilled.
5.2 Charging method - Definition of a fully-charged battery
All tests, except that in 7.2.2, shall commence with fully-charged batteries.
Batteries shall be considered as fully-charged if they have undergone the charging procedures. Prior
to the first capacity test, the battery charge shall be limited to 16h.
If not specified differently by the battery manufacturer, the batteries shall be charged according to
Table 1.
8

---------------------- Page: 10 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
Table 1 : charging method
Battery Type Voltage U Current Time Battery Remarks
c
temperature
Flooded
batteries
24 h 15 °C to
having size 16,00 V ± 0,05 V 5 I
n a
(16 h ) 35 °C
according to
EN 50342–2
Flooded 16,00 V ± 0,05 V 5 I 20 h Step 1
n
a
batteries (16 h )
no limitation I Step 2
n
15 °C to
having size
4 h (0
35 °C
a
according to
h )
EN 50342–4
Valve
24 h 15 °C to
regulated
14,80 ± 0,05 V 5 I
n a
(16 h ) 35 °C
batteries
a
after cranking performance test and prior to first capacity check (Step 1 in Table)
All charges shall be performed with batteries in a water bath at 25 °C ± 2 °C according to section
5.3.2.
NOTE Using the water bath it is generally accepted that the battery temperature during the charge will be
maintained in the required range.
5.3 Test equipment
5.3.1 Measuring instruments
The range of instruments used shall be appropriate for the magnitude of the parameters to be
measured. The minimum accuracy of test equipment is given in Table 2.
Table 2 : accuracy of test equipment
parameter Accuracy of test equipment
Current for CCA tests 0,5 %
Current for other tests 1 %
Voltage ±0,04 V
Temperature ±1 K
Time ±1 %
Density of acid ≤ 0,005 kg/l
Internal resistance ±3 %
±1 g below 30kg
Weight of battery
±5 g above 30kg
The instruments used for measuring time shall be graduated in hours, minutes and seconds.
5.3.2 Water bath
If a test needs to be carried out in a water bath, the following conditions shall be fulfilled. The terminal
base of the battery shall be at least 15 mm but not more than 25 mm above the water surface level. If
several batteries are in the same water bath then the distance between them and also the distance to
the walls of the bath shall be at least 25 mm.
9

---------------------- Page: 11 ----------------------
oSIST prEN 50342-1:2014
prEN 50342-1:2014 (E)
Minimum soak time for batteries in water bath is 4 h.
If not stated differently in the individual test description the tolerance for the temperature of the water
bath is ± 2 °C.
NOTE Especially for testing temperatures of 40 °C or more, the surface of the water should be covered with
floating elements to improve the isolation against air and to avoid evaporation of water.
5.4 Test sequence
Batteries filled and charged are initially subjected to the following series of tests:
1st C check,
e
1st cranking performance test;
2nd C check,
e
2nd cranking performance test;
3rd C check,
e
3rd cranking performance test.
For C and the cranking performance the specified values shall be met in at least one of the relevant
e
discharges above.
NOTE It is not necessary to complete the sequence if the specified values are achieved on the first or
second test other than for batteries that will subsequently be tested for charge acceptance.
If, and only if, the initial capacity and cranking tests are successful, the batteries shall be tested in
accordance with the remainder of the test sequence given in Table 1.
These tests shall commence not later than one week after completion of the initial tests.
Table 3: Test sequence
a,b
Step Battery Reference 1 2 3 4 5 6
1 Initial char
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
