Non destructive testing of welded joints in thermoplastics semi-finished products - Part 3: Ultrasonic testing

This European Standarddocument specifies methods for the manual ultrasonic examination of heated tool, electrofusion, extrusion and hot gas joints in plastics materials. It applies to joints in single wall pipes and plates. The range of thicknesses covered is from 10 mm to 100 mm.
This standard document does not specify acceptance levels of the indications.

Zerstörungsfreie Prüfung von Schweißverbindungen thermoplastischer Kunststoffe - Teil 3: Ultraschallprüfung

Dieses Dokument legt Verfahren für die manuelle Ultraschallprüfung von Heizelement-, Heizwendel-, Extrusions-
und Warmgasverbindungen an Kunststoffen fest. Es gilt für Verbindungen an einwandigen Rohren und Platten im
Dickenbereich von 10 mm bis 100 mm.
Dieses Dokument legt keine Zulässigkeitskriterien für die Anzeigen fest.

Contrôle non destructif des assemblages soudés sur produits semi-finis en thermoplastiques - Partie 3 : Contrôle par ultrasons

La présente Norme européenne spécifie les méthodes pour le contrôle manuel par ultrasons des assemblages de matieres plastiques soudés par élément chauffant, par électrofusion, par extrusion et au gaz chaud. Elle s'applique aux assemblages sur simple paroi de tubes et de plaques. Le domaine d'épaisseurs couvert s'étend de 10 mm a 100 mm.
La présente norme ne spécifie pas de niveaux d'acceptation relatifs aux indications.

Neporušitveno preskušanje zvarjenih spojev plastomernih polizdelkov - 3. del: Ultrazvočno preskušanje

General Information

Status
Published
Publication Date
28-Feb-2005
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Mar-2005
Due Date
01-Mar-2005
Completion Date
01-Mar-2005

RELATIONS

Buy Standard

Standard
SIST EN 13100-3:2005
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 13100-3:2005
01-marec-2005
1HSRUXãLWYHQRSUHVNXãDQMH]YDUMHQLKVSRMHYSODVWRPHUQLKSROL]GHONRYGHO
8OWUD]YRþQRSUHVNXãDQMH

Non destructive testing of welded joints in thermoplastics semi-finished products - Part 3:

Ultrasonic testing

Zerstörungsfreie Prüfung von Schweißverbindungen thermoplastischer Kunststoffe - Teil

3: Ultraschallprüfung
Contrôle non destructif des assemblages soudés sur produits semi-finis en
thermoplastiques - Partie 3 : Contrôle par ultrasons
Ta slovenski standard je istoveten z: EN 13100-3:2004
ICS:
25.160.40 Varjeni spoji in vari Welded joints
SIST EN 13100-3:2005 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13100-3:2005
---------------------- Page: 2 ----------------------
SIST EN 13100-3:2005
EUROPEAN STANDARD
EN 13100-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2004
ICS 25.160.40
English version
Non destructive testing of welded joints in thermoplastics semi-
finished products - Part 3: Ultrasonic testing

Contrôle non destructif des assemblages soudés sur Zerstörungsfreie Prüfung von Schweißverbindungen

produits semi-finis en thermoplastiques - Partie 3 : Contrôle thermoplastischer Kunststoffe - Teil 3: Ultraschallprüfung

par ultrasons
This European Standard was approved by CEN on 14 October 2004.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official

versions.

CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,

Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13100-3:2004: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13100-3:2005
EN 13100-3:2004 (E)

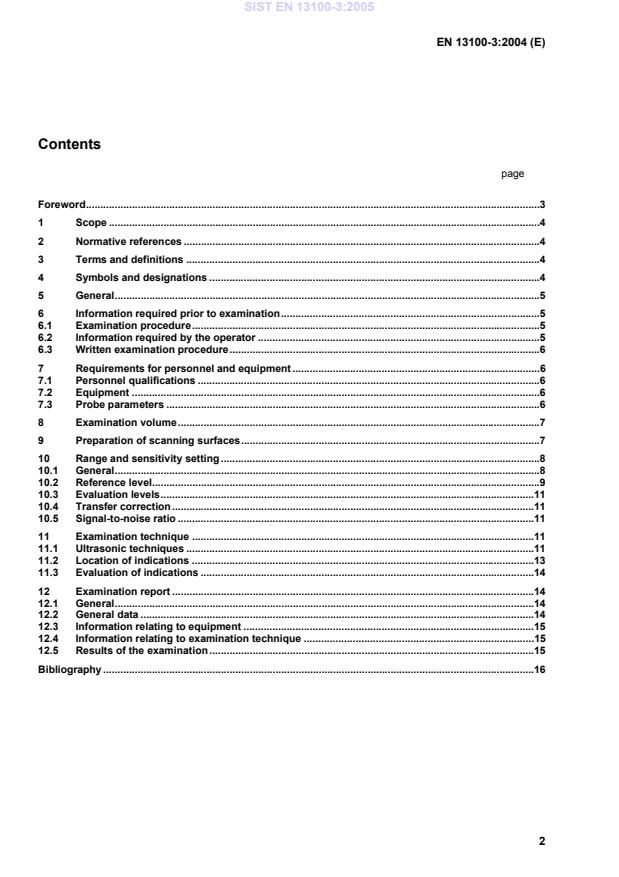

Contents
page

Foreword..............................................................................................................................................................3

1 Scope ......................................................................................................................................................4

2 Normative references ............................................................................................................................4

3 Terms and definitions ...........................................................................................................................4

4 Symbols and designations ...................................................................................................................4

5 General....................................................................................................................................................5

6 Information required prior to examination..........................................................................................5

6.1 Examination procedure.........................................................................................................................5

6.2 Information required by the operator ..................................................................................................5

6.3 Written examination procedure............................................................................................................6

7 Requirements for personnel and equipment ......................................................................................6

7.1 Personnel qualifications .......................................................................................................................6

7.2 Equipment ..............................................................................................................................................6

7.3 Probe parameters ..................................................................................................................................6

8 Examination volume..............................................................................................................................7

9 Preparation of scanning surfaces........................................................................................................7

10 Range and sensitivity setting...............................................................................................................8

10.1 General....................................................................................................................................................8

10.2 Reference level.......................................................................................................................................9

10.3 Evaluation levels..................................................................................................................................11

10.4 Transfer correction..............................................................................................................................11

10.5 Signal-to-noise ratio ............................................................................................................................11

11 Examination technique .......................................................................................................................11

11.1 Ultrasonic techniques .........................................................................................................................11

11.2 Location of indications .......................................................................................................................13

11.3 Evaluation of indications ....................................................................................................................14

12 Examination report ..............................................................................................................................14

12.1 General..................................................................................................................................................14

12.2 General data .........................................................................................................................................14

12.3 Information relating to equipment .....................................................................................................15

12.4 Information relating to examination technique ................................................................................15

12.5 Results of the examination.................................................................................................................15

Bibliography ......................................................................................................................................................16

---------------------- Page: 4 ----------------------
SIST EN 13100-3:2005
EN 13100-3:2004 (E)
Foreword

This document (EN 13100-3:2004) has been prepared by Technical Committee CEN/TC 249 “Plastics”, the

secretariat of which is held by IBN.

This European Standard shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by May 2005, and conflicting national standards shall be withdrawn at the

latest by May 2005.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland

and United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 13100-3:2005
EN 13100-3:2004 (E)
1 Scope

This document specifies methods for the manual ultrasonic examination of heated tool, electrofusion,

extrusion and hot gas joints in plastics materials. It applies to joints in single wall pipes and plates. The range

of thicknesses covered is from 10 mm to 100 mm.
This document does not specify acceptance levels of the indications.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

EN 473, Non-destructive testing — Qualification and certification of NDT personnel — General principles

EN 583-2, Non-destructive testing — Ultrasonic examination — Part 2: Sensitivity and range setting

EN 583-4, Non-destructive testing — Ultrasonic examination — Part 4: Examination for discontinuities

perpendicular to the surface

EN 1330-2:1998, Non-destructive testing — Terminology — Part 2: Terms common to the non-destructive

testing methods

EN 1330-4:2000, Non-destructive testing — Terminology — Part 4: Terms used in ultrasonic testing

EN 12668-1, Non-destructive testing — Characterization and verification of ultrasonic examination

equipment — Part 1: Instruments

EN 12668-2, Non-destructive testing — Characterization and verification of ultrasonic examination

equipment — Part 2: Probes

EN 12668-3, Non-destructive testing — Characterization and verification of ultrasonic examination

equipment — Part 3: Combined equipment

ENV 583-6, Non-destructive testing — Ultrasonic examination – Part 6: Time-of-flight diffraction technique as

a method for detection and sizing of discontinuities
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 1330-2:1998 and EN 1330-4:2000

apply.
4 Symbols and designations
Symbols and designations are given in Table 1.
---------------------- Page: 6 ----------------------
SIST EN 13100-3:2005
EN 13100-3:2004 (E)
Table 1 — Symbols and designations
Symbol Designations Unit
t Thickness of parent material (thinnest part) mm
l Length of the indication mm
h Extension of the indication in depth direction mm
x Position of the indication in the longitudinal direction mm
y Position of the indication in the transverse direction mm
z Position of the indication in depth mm
D Diameter of the component mm
a Dimension of the wedge in the direction of examination mm
5 General

The purpose of this document is to describe general methods of ultrasonic examination for the most

commonly used welded joints in thermoplastics. The specific requirements specified by this document cover

the equipment, preparation, performance of the examination and reporting. Methods to be used for ultrasonic

assessment of indications and acceptance criteria shall be specified.
6 Information required prior to examination
6.1 Examination procedure
The following items shall be specified:
 method for setting the reference level;
 method to be used for evaluation of indications;
 acceptance levels;
 examination level;

 manufacturing and operation stage(s) at which the examination is to be carried out;

 qualification of personnel;
 whether or not a written examination procedure is required;
 requirements for written examination procedures.
6.2 Information required by the operator

Before any examination of a welded joint can begin, the operator shall have access to the following

information:
 written examination procedure, if required (see 6.3);
 type(s) of parent material;
 joint preparation and dimensions;
---------------------- Page: 7 ----------------------
SIST EN 13100-3:2005
EN 13100-3:2004 (E)
 welding procedure or relevant information on the welding process;
 reporting requirements.
6.3 Written examination procedure

The definitions and requirements in this document will normally satisfy the need for a written examination

procedure. When this is not the case, or when the techniques described in this document are not applicable to

the welded joint to be examined, additional written examination procedures shall be used.

7 Requirements for personnel and equipment
7.1 Personnel qualifications

Personnel performing examinations in accordance with this document shall be qualified to an appropriate level

in accordance with the relevant document, e.g. EN 473.

In addition to a general knowledge of ultrasonic weld inspection, the personnel shall be aware of testing

problems specifically associated with the thermoplastic material and type of welded joints to be examined.

7.2 Equipment

Any equipment used in conjunction with this document shall comply with the requirements of EN 12668-1 to

EN 12668-3. Prior to the publication
...
