SIST EN 16779-1:2018
(Main)Textile child care articles - Safety requirements and test methods for children's cot duvets - Part 1: Duvet (excluding duvet covers)
Textile child care articles - Safety requirements and test methods for children's cot duvets - Part 1: Duvet (excluding duvet covers)
This draft European Standard specifies requirements for the safety of children's cot duvets, excluding removable duvet covers, used in the child’s sleeping environment (i.e. not under supervision), and designed to provide sufficient warmth when sleeping in a cot or similar product (e.g. crib/cradle) in which a child is contained. This document specifies requirements for cot duvets suitable for children up to 36 months. Cot duvets with permanent decorative outer fabrics also known as cot quilts or coverlet are also in the scope.
NOTE The informative Annex E lists topics of further investigations which might lead to necessary improvement of the safety requirements of children's cot duvets.
The requirements for removable cot duvet covers are excluded from this document and are covered in prEN 16779 2 (in preparation).
If a part of the children's cot duvet is designed to offer additional function (e.g. play function), in addition of the following requirements, this part will be subjected to safety requirements related to relevant standards (see A.1).
Textile Artikel für Kleinkinder und Säuglinge - Sicherheitstechnische Anforderungen und Prüfverfahren für Kinderbettdecken - Teil 1: Bettdecken (ausgenommen Bettbezüge)
Diese Europäische Norm legt Anforderungen an die Sicherheit von Kinderbettdecken, ausgenommen abziehbare Bettbezüge, fest, die im Schlafumfeld des Kindes (d. h. nicht beaufsichtigt) verwendet werden und dafür gestaltet sind, dem in einem Kinderbett oder in einem ähnlichen Produkt (z. B. Krippe/Wiege) schlafenden Kind ausreichend Wärme zu bieten. Dieses Dokument legt Anforderungen an Kinderbettdecken für Kinder im Alter bis zu 36 Monaten fest. In den Anwendungsbereich fallen auch Kinderbettdecken mit dauerhaftem dekorativem Bezug, auch bekannt als Steppdecke oder Tagesdecke.
ANMERKUNG Im informativen Anhang E sind Themen zu weiteren Untersuchungen aufgeführt, die zur notwendigen Verbesserung der sicherheitstechnischen Anforderungen an Kinderbettdecken führen können.
Die Anforderungen an abziehbare Kinderbettbezüge sind von diesem Dokument ausgenommen und werden in EN 16779 2 behandelt.
Wenn ein Teil des Kinderschlafsacks so gestaltet ist, dass er eine zusätzliche Funktion bietet (z.B. Spielfunktion), unterliegt dieser Teil zusätzlich zu den folgenden Anforderungen auch den sicherheitstechnischen Anforderungen der zutreffenden Normen.
Articles textiles de puériculture - Exigences de sécurité et méthodes d’essai pour les couettes pour lit d’enfant - Partie 1 : Couette (excluant les housses de couette)
Le présent projet de Norme européenne spécifie les exigences pour la sécurité des couettes pour lit d’enfant, à l’exclusion des housses de couette amovibles, utilisées dans l’environnement de sommeil de l’enfant (autrement dit hors surveillance) et conçues pour apporter une chaleur suffisante pendant le sommeil dans un lit d’enfant ou un produit similaire (berceau par exemple) dans lequel l’enfant est installé. Le présent document spécifie les exigences relatives aux couettes pour lit d’enfant adaptées aux enfants jusqu’à 36 mois. Les couettes pour lit d’enfant munies d’étoffes extérieures décoratives permanentes, aussi appelées couvertures piquées pour lit d’enfant ou couvre-lits, entrent également dans le domaine d’application.
NOTE L’Annexe E, informative, présente des pistes de recherches complémentaires susceptibles de faire évoluer les exigences de sécurité des couettes pour lit d’enfant.
Le présent document ne traite pas des exigences concernant les housses de couette amovibles pour lit d’enfant. Celles-ci sont traitées dans le prEN 16779 2 (en préparation).
Si une partie d’une couette pour lit d’enfant est conçue pour permettre une fonction supplémentaire (fonction de jouer par exemple), en plus des exigences suivantes, cette partie sera soumise aux exigences de sécurité des normes correspondantes (voir A.1).
Tekstilni izdelki za otroke - Varnostne zahteve in preskusne metode za prešite odeje za otroško posteljico - 1. del: Prešite odeje (razen prevleke za odeje)
Ta evropski standard določa varnostne zahteve za prešite odeje za otroške posteljice, razen odstranljive prevleke za odeje, ki se uporabljajo v otrokovem spalnem okolju (tj. brez nadzora), ki so zasnovane za zagotavljanje zadostne toplote pri spanju v otroški posteljici ali podobnem izdelku (npr. zibelki), v katerem se nahaja otrok. Ta dokument določa zahteve za prešite odeje za otroške posteljice, primerne za otroke, stare do 36 mesecev. Prešite odeje za otroške posteljice s trajno dekorativno zunanjo tkanino, znane tudi kot pregrinjala, so tudi del področja uporabe tega standarda.
OPOMBA Informativni dodatek E navaja seznam tem za nadaljnje raziskave, ki lahko vodijo do nujnih izboljšav varnostnih zahtev za prešite odeje za otroške posteljice.
Zahteve za odstranljive prevleke za odeje niso del tega dokumenta in so obravnavane v standardu EN 16779-2.
Če je del prešite odeje za otroške posteljice zasnovan tako, da ponuja dodatno funkcijo (npr. predvajanje), za ta del poleg navedenih zahtev veljajo tudi varnostne zahteve ustreznih standardov (glejte A.1).
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tekstilni izdelki za otroke - Varnostne zahteve in preskusne metode za prešite odeje za otroško posteljico - 1. del: Prešite odeje (razen prevleke za odeje)Textile Artikel für Kleinkinder und Säuglinge - Sicherheitstechnische Anforderungen und Prüfverfahren für Kinderbettdecken - Teil 1: Bettdecken (ausgenommen Bettbezüge)Articles textiles de puériculture - Exigences de sécurité et méthodes d’essai pour les couettes pour lit d’enfant - Partie 1 : Couette (excluant les housses de couette)Textile child care articles - Safety requirements and test methods for children's cot duvets - Part 1: Duvet (excluding duvet covers)97.190Otroška opremaEquipment for children97.160Tekstilije za dom. PeriloHome textiles. LinenICS:Ta slovenski standard je istoveten z:EN 16779-1:2018SIST EN 16779-1:2018en,fr,de01-oktober-2018SIST EN 16779-1:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16779-1
August
t r s z ICS
{ yä s x râ
{ yä s { r English Version
Textile child care articles æ Safety requirements and test methods for children 5s cot duvets æ Part
sã Duvet Articles textiles de puériculture æ Exigences de sécurité et méthodes d 5essai pour les couettes pour lit à nacelle
Textile Artikel für Kleinkinder und Säuglinge æ Sicherheitstechnische Anforderungen und Prüfverfahren für Kinderbettdecken æ Teil
sã This European Standard was approved by CEN on
z February
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x y y {æ sã t r s z ESIST EN 16779-1:2018

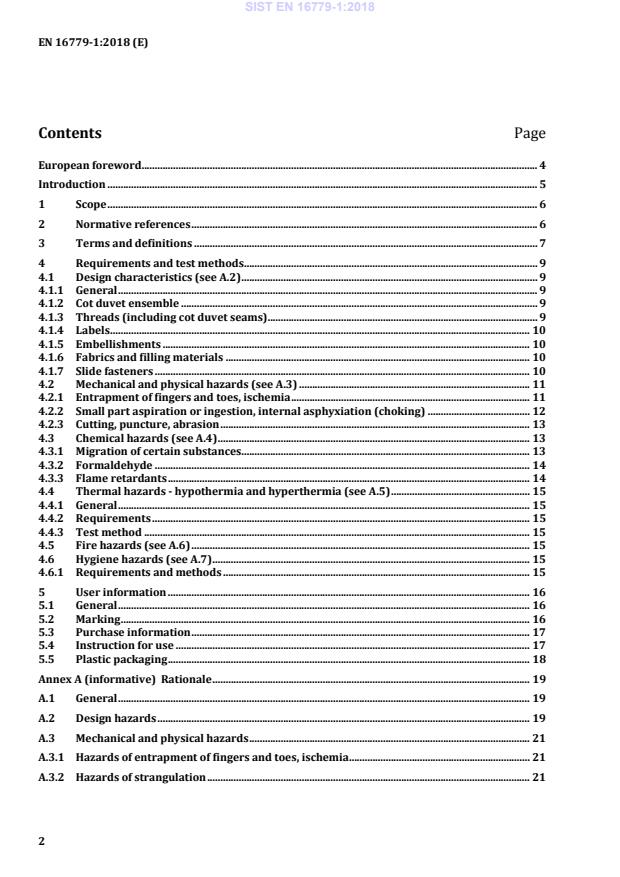

Rationale . 19 A.1 General . 19 A.2 Design hazards . 19 A.3 Mechanical and physical hazards . 21 A.3.1 Hazards of entrapment of fingers and toes, ischemia . 21 A.3.2 Hazards of strangulation . 21 SIST EN 16779-1:2018
Supplementary information on thermal hazards . 26 B.1 Background information. 26 B.2 Thermal resistance measurement . 26 B.3 Rationale for guidance to the purchaser and/or user . 27 B.4 Relationship between thermal resistance and thickness or mass per unit area (surface density) . 28 Annex C (informative)
Specific marking, purchase information and user instruction . 30 Annex D (informative)
Guidance for the cot duvet dimensions . 31 Annex E (informative)
Topics for further investigations . 32 E.1 Thermal comfort . 32 E.2 Cot duvet characteristics . 32 Annex F (informative)
A–deviations . 33 Bibliography . 34 SIST EN 16779-1:2018
1 Impacted by EN 71-3:2013+A2:2017 SIST EN 16779-1:2018
IEC Electropedia: available at http://www.electropedia.org/
ISO Online browsing platform: available at http://www.iso.org/obp 3.1 cot duvet bedding item intended to cover the child’s body, consisting of a filling material permanently sewn into a textile cover intended to be used with or without duvet cover in the cot or in a similar product Note 1 to entry:
The terms “cot quilt” or “coverlet” are interchangeable with “cot duvet”. 3.2 cot duvet cover removable bedding item intended to envelop cot duvet(s) 3.3 cot bed for a child consisting of a base and enclosed by high sides to prevent the child from falling out 3.4 harm injury or damage to the health of people [SOURCE: ISO/IEC Guide 51:2014, 3.1, modified - “or damage to property or the environment” has been deleted.] 3.5 hazard potential source of harm (3.4) [SOURCE: ISO/IEC Guide 51:2014, 3.2] 3.6 risk combination of the probability of occurrence of harm (3.4) and the severity of that harm [SOURCE: ISO/IEC Guide 51:2014, 3.9, modified — Note 1 to entry has been deleted.] SIST EN 16779-1:2018
Insufficient supply of air could be caused e.g. by closing off the flow of air as a result of choking or suffocation or by entrapment in an unventilated, confined space. [SOURCE: EN 71-1:2014, 3.3] 3.9 choking closing off the flow of air as a result of internal asphyxiation Note 1 to entry:
Choking can, for example, be caused by inhalation of an object, by an object becoming wedged in the mouth or pharynx, or by an object becoming lodged over the entrance to the lower airways. [SOURCE: EN 71-1:2014, 3.9] 3.10 suffocation closing off the flow of air as a result of airway obstruction external to the mouth and nose [SOURCE: EN 71-1:2014, 3.59] 3.11 cord cord, chain, ribbon, string or tape of any textile or non-textile material, including elastic material 3.12 monofilament thread single thread of man-made fibre 3.13 burr roughness, caused by not cleanly severing or finishing the material [SOURCE: EN 71-1:2014, 3.6] 3.14 surface flash rapid spread of flame over the surface of a material without ignition of its basic structure [SOURCE: ISO 4880:1997, 63, Note 1 to entry: “However, if the latter occurs simultaneously or sequentially with surface flash, it is not considered as a part of surface flash.”] SIST EN 16779-1:2018
Figure 1 — Test Probe for seams 4.1.3.4 For exposed faces of the article, the maximum length of uncut float threads or uncut stitches shall be 10 mm, and the maximum length for cut threads or cut stitches shall be 20 mm (see A.3.1.2). 4.1.3.5 Monofilament threads shall not be used (see A.3.1.2, A.3.5.). 4.1.4 Labels 4.1.4.1 Labels shall not be attached on the cot duvet either in form of a loop (loop label), nor in a way they may create a loop when the cot duvet is used (see A.3.1.1, A.3.1.2). 4.1.4.2 Heat sealed or laser cut materials shall not have sharp edges (see A.3.5.). NOTE
Test methods are referred in 4.2.3.2. 4.1.4.3 The ends of labels or the edge of raw edge fabric shall be secured to prevent unravelling (see A.3.1.2). The security of the ends of the labels can be confirmed by carrying out a tactile inspection. 4.1.4.4 Labels with free end shall have no more than 75 mm in length (see A.3.2). 4.1.5 Embellishments 4.1.5.1 There shall be no three dimensional embellishments, such as pom-poms, tassels, beads, sequins, diamantés, glitter prints (e.g. plastic glue glitter and spread over glitter) or cords on children's cot duvets (see A.3.3.1). 4.1.5.2 There shall be no embellishments on slide fastener puller. 4.1.6 Fabrics and filling materials Fabrics and filling materials shall not contain any hard, sharp or foreign objects (i.e. any items which are not intended to be present such as needle, staple, nail, unattached press fastener, wood splinter, or insect or other infestation) (see A.3.5.). NOTE Test methods are referred in 4.2.3.2. 4.1.7 Slide fasteners 4.1.7.1 Requirements 4.1.7.1.1 Slide fasteners shall comply with EN 16732:2015, at least the performance requirements of code C and with the requirements of Table 2, as stated in EN 16732:2015. 4.1.7.1.2 The top stops and the elements (teeth) shall be free from burrs and sharp edges (see A.3.5.). Where components of a slide fastener could come into contact with the skin, the use of a plastic slide fastener with plastic top stops and bottom stops is recommended, in preference to a slide fastener with claw-type metal stops. SIST EN 16779-1:2018
there shall be no openings in any textile materials including loop, mesh, knitted fabric and lace that allow the conical probe for mesh to penetrate to the 7 mm diameter section (see A.3.1.1);
there shall be no completely bounded openings in rigid materials between 5mm and 12mm, unless the depth is less than 10 mm (see A.3.1.1). 4.2.1.2 Test method The test probes shall be made from plastic or other smooth, hard material, which can be mounted on a force measuring device. Check whether the conical probe for mesh (Figure 2) with an applied force of up to 30 N enters into a mesh hole to the 7 mm section. Dimensions in millimetres
Figure 2 — Conical probe for mesh Check whether the 5 mm test probe (Figure 3) with an applied force of up to 30 N, enters 10 mm or more into any completely bounded circular openings in rigid materials, in any possible orientation. SIST EN 16779-1:2018
Figure 3 — Test Probes for openings in rigid materials If the 5 mm test probe enters 10 mm or more, then the 12 mm test probe (Figure 1) shall also enter 10 mm or more with an applied force of up to 5 N. 4.2.2 Small part aspiration or ingestion, internal asphyxiation (choking) 4.2.2.1 Requirements Cot duvets shall not contain attached components:
which can be detached under a force less than 70 N when tested according to 4.2.2.2.1 (removal force procedure) (see A.3.3.1, A.3.3.4), or
which can be detached after 5 cycles of washing and tumble drying when tested according to 4.2.2.2.2 (washing/drying procedure). The components shall remain completely attached onto the fabric surface. Then the component attachment can be confirmed by carrying out visual and tactile inspection. Table 1 listed the components to be tested, in one hand, according to removal force procedure and in the other hand, according to the washing/drying procedure. Table 1 —Components to be tested Components to be tested according to the removal force procedure (4.2.2.2.1) Components to be tested according to the washing/drying procedure (4.2.2.2.2)
mechanically applied metallic press fasteners
sewn-on press fasteners
buttons
other sewn-on components (except sewn-on appliqués and sewn-on motifs)
rivets
non-textile labels
plastic press fasteners (except sewn-on press fasteners)
heat-fused components
embroidery
placement prints
eyelets
all appliqués
all motifs (including sewn-on)
textile labels If a component of the cot duvet is not listed in Table 1, then identify if this component is similar to one listed, or use the feeler gauge, as described in EN 71-1:2014, 8.4.2.1 [12] (but it has not been found always suitable for textile materials). If the feeler gauge can be inserted, then test according to 4.2.2.2.1 (removal force procedure), otherwise, test according to 4.2.2.2.2 (washing/drying procedure). SIST EN 16779-1:2018
2 Impacted by EN 71-3:2013+A2:2017 SIST EN 16779-1:2018
condition the sample in accordance to EN ISO 139 (standard atmosphere);
where possible, do not cut the sample but support it in order to keep it in flat contact with the hot plate; for cut samples, guard them against edge loss by a suitable means. Measure the temperature with a device for which the measurement uncertainty is not exceeding 0,05 m2·K/W. 4.5 Fire hazards (see A.6) Raised fabric (e.g. fleeced fabric, pile fabric, terry fabric) shall not produce a surface flash, when testing according to EN 1103 — the washing and drying conditions of the cot duvet according to EN ISO 6330, based on one cycle, shall be selected in relation to care instructions; the test specimens shall be prepared and tested before and after domestic cleaning. 4.6 Hygiene hazards (see A.7) 4.6.1 Requirements and methods 4.6.1.1 Cot duvets shall be washable, excluding dry cleaning process (see A.7.1). The care instructions shall indicate the washing and drying processes. 4.6.1.2 Cot duvets shall be free from infestation and foreign materials (see A.7.2). Infestation and foreign materials shall be confirmed by carrying out a visual inspection. SIST EN 16779-1:2018
Figure 4 — ISO 7000-1641: Operation instructions 5.3 Purchase information The purchase information shall be provided at the point of sale, including, if appropriate, on the internet. The following warning shall be provided in the form given: a) WARNING! Do not use in combination with sleep bag or blanket The following warning may be provided in the form given: b) WARNING! Not recommended for children under 12 months NOTE See the warning notice “IMPORTANT” in 4.4. The following information shall be provided: c) Guidance on selection of the cot duvet taken into account the thermal resistance of the cot duvet, the room temperature and the child's sleepwear; d) Cot duvet dimensions (width and length) suitable for use in a cot or similar product with minimum dimensions of (width and length); 5.4 Instruction for use The instructions shall be headed “IMPORTANT KEEP FOR FUTURE REFERENCE”. The following warnings shall be provided in the form given: a) WARNING! Ensure the child’s face is uncovered; b) Do not use in combination with sleep bag or blanket. Take into account the room temperature and the child's sleepwear. Overheating can endanger the life of your child! ; c) Keep away from fire. The following warning may be provided in the form given: d) WARNING! Not recommended for children under 12 months NOTE 1 See the warning notice “IMPORTANT” in 4.4. The following information shall be provided: SIST EN 16779-1:2018
Stop using cot duvet at the first signs of damage. i) (applicable only for cot duvet ensemble) Ensemble of two or more individual and separable cot duvets shall be combined into a closed cot duvet cover in order to avoid the risk of entrapment; Annex C summarizes the specific marking, purchase information and user instruction related to the cot duvet itself. 5.5 Plastic packaging If a plastic packaging is used, the following warning shall be provided on it: “WARNING! Keep plastic covering away from children to avoid suffocation.” NOTE Alternative expression of the warning can be used so long as it has the same meaning. Bags made of impermeable material with an opening perimeter greater than 360 mm shall not have a drawstring or cord as a means of closing. SIST EN 16779-1:2018
Rationale A.1 General This European Standard seeks as far as possible to apply a hazard approach instead of design restrictions. For most of the requirements, the hazard which is addressed is explained in Annex A together with a background and rationale. These requirements and justifications are crossed referenced to the relevant standards. In some European countries, cot duvets are used from birth (such as Finland, Sweden, Norway, Denmark, Iceland), and in some others they are not recommended for infants under the age of 9 months (such as France) or under the age of 12 months (UK, Germany, Spain, Belgium, Netherlands) due to the increased risk of hyperthermia (overheating) (see 5.2 d) – Some of these recommendations are issued by national healthcare agencies. The Toy Safety Directive (2009/48/EC) covers all items which have play value regardless of whether or not the play function is the primary function or not. It is necessary to incorporate this requirement to cover the use of textures, mirrors, attachments such as rattles or squeakers and other elements which would be considered as having a play value (see 1). A.2 Design hazards A.2.1 Inherently safe design: Table A.1 summarizes the relation between the design characteristics (4.1) and the hazards (4.2 to 4.6). SIST EN 16779-1:2018
Entrapment, ischaemic hazards 4.2.1 Single thread chain stitches float length threads or stitches free length threads or stitches monofilament threads labels (loop) labels (ravelling) 4.1.3.1 4.1.3.4 4.1.3.4 4.1.3.5 4.1.4.1 4.1.4.3 Strangulation hazards A.3.2 drawstrings or cords labels (length) 4.1.1.1 4.1.4.4 Choking hazards 4.2.2 pockets seam allowance stitch density (access to filling) tridimensional embellishments slide fasteners (puller) slide fasteners (slider) slide fasteners (top stop) 4.1.1.2 4.1.3.2 4.1.3.3 4.1.5.1 4.1.5.2 4.1.7.1.3 4.1.7.1.3 Suffocation hazards A.3.4 plastic transfer or coated fabrics 4.1.1.4 Cutting, puncture, abrasion hazards 4.2.3 magnetic components monofilament threads labels (sharp edges) fabrics and filling materials slide fasteners (burrs, sharp edges) 4.1.1.5 4.1.3.5 4.1.4.2 4.1.6 4.1.7.1.2 Chemical hazards
Harmful substances A.4.1 refer to A.4.1
Migration of certain substances 4.3.1 refer to 4.3.1
Formaldehyde 4.3.2 refer to 4.3.2
Flame retardants 4.3.3 refer to 4.3.3
Thermal hazards 4.4 Dimensions Ensemble of cot duvets 4.1.1.3 4.1.2 Fire hazards 4.5 refer to 4.5
Hygiene hazards 4.6 refer to 4.6
A.2.2 Maximum dimensions: cot duvet dimensi
...
