oSIST prEN 10219-2:2016

Cold formed welded structural steel hollow sections - Part 2: Technical delivery conditions

This part of the European Standard specifies the technical delivery conditions for cold formed welded structural hollow sections of circular, square or rectangular forms and applies to structural hollow sections formed cold without subsequent heat treatment.
Requirements for tolerances, dimensions and sectional properties are contained in EN 10219-2.

Kaltgeformte geschweißte Hohlprofile für den Stahlbau - Teil 2: Technische Lieferbedingungen

Dieser Teil der Europäischen Norm legt die technischen Lieferbedingungen für kaltgeformte elektrisch und unterpulvergeschweißte Hohlprofile für den Stahlbau mit runder, quadratischer, rechteckiger oder elliptischer Form fest.
Die allgemeinen Anforderungen (Erzeugnismerkmale, die Prüfverfahren und die Leistungskriterien entsprechend der Bauproduktenverordnung) sind in EN 10219-1 und Anforderungen bezüglich der Grenzabmaße, Maße und statischen Werte sind in EN 10219-3 festgelegt.
ANMERKUNG 1    Teil 1 dieser Norm behandelt die Vorschriften der Bauproduktenverordnung (CPR) um die europäischen Gesetze bezüglich Bauprodukte zu erfüllen. Die technischen Lieferbedingungen sind in Teil 2 beschrieben und zwar im Zusammenhang mit den Abschnitten 2, 3, 4, 5, 7 und 8 des Teils 1.
ANMERKUNG 2   Der Anwender wird darauf aufmerksam gemacht, dass die kaltgeformten Hohlprofile nach EN 10219-2 zwar vergleichbare mechanische Eigenschaften zu den warmgefertigten Hohlprofilen nach EN 10210-2 aufweisen können, dass aber die Maße und statischen Werte von quadratischen und rechteckigen Hohlprofilen nach EN 10210-3 und EN 10219-3 nicht vergleichbar sind.
ANMERKUNG 3   Eine Anzahl von Stahlsorten ist in dieser Norm festgelegt und der Anwender sollte die geeignetste Sorte für die beabsichtigte Verwendung aussuchen. Die Sorten und die mechanischen Eigenschaften, aber nicht der Auslieferungszustand der kaltgeformten Hohlprofile sind vergleichbar mit den Sorten die in EN 10025-2, EN 10025-3, EN 10025-4, EN 10025-5, EN 10025-6, EN 10149-2 und EN 10149-3 aufgeführt sind.
ANMERKUNG 4   Hohlprofile für Offshore-Konstruktionen werden in der Europäischen Norm EN 10225 behandelt.

Profils creux de construction soudés formés à froid en aciers - Partie 2 : Conditions techniques de livraison

La présente partie de la prEN 10219 spécifie les conditions techniques de livraison pour les profils creux de construction formés à froid en aciers, soudés électriquement et soudés à l’arc immergé sous flux en poudre, de forme circulaire, carrée, rectangulaire ou elliptique et s’applique aux profils creux de construction formés à froid sans traitement thermique ultérieur.
Les conditions générales (caractéristiques du produit, méthodes d’essai et critères de performance qui s’appliquent dans le cadre du Règlement Produits de Construction) sont spécifiées dans la prEN 10219-1 et les exigences relatives aux tolérances, dimensions et caractéristiques du profil sont spécifiées dans la pr’EN 10219-3.
NOTE 1   La prEN 10219-1 de la présente norme couvre les dispositions du Règlement Produits de Construction (RPC) permettant de satisfaire à la législation européenne sur les produits de construction. Les conditions techniques de livraison sont décrites dans la prEN 10219-2 en combinaison avec les Articles 2, 3, 4, 5, 7 et 8 de la prEN 10219-1.
NOTE 2   L’attention des utilisateurs est attirée sur le fait que, même si les nuances formées à froid de la prEN 10219-2 peuvent présenter des caractéristiques mécaniques équivalentes aux nuances finies à chaud de la prEN 10210-2, les caractéristiques de profil des profils creux carrés et rectangulaires figurant dans la prEN 10219-3 et la prEN 10210-3 ne sont pas équivalentes.
NOTE 3   Une gamme de nuances d’acier est spécifiée dans la présente Norme européenne et il convient que l’utilisateur choisisse la nuance la plus appropriée à l’utilisation prévue et aux conditions de service. Les nuances et les caractéristiques mécaniques des profils creux formés à froid, mais non leur état de livraison final, sont comparables à celles figurant dans l’EN 10025-2, l’EN 10025-3, l’EN 10025-4, l’EN 10025-5, l’EN 10025-6, l’EN 10149-2 et l’EN 10149-3.
NOTE 4   Les profils creux destinés aux structures marines sont traités dans l' EN 10225.

Hladno oblikovani varjeni votli konstrukcijski profili iz jekla - 2. del: Tehnični dobavni pogoji

General Information

• Status: Not Published
• Public Enquiry End Date: 02-Mar-2016
• ICS: 77.140.45 - Non-alloyed steels
• ICS: 77.140.70 - Steel profiles
• Technical Committee: IFEK - Ferrous metals
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 22-Mar-2021
• Due Date: 27-Mar-2021
• Completion Date: 22-Mar-2021
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/120 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on structural metallic products and ancillaries
• Ref Project: prEN 10219-1 rev - Cold formed welded structural hollow sections of non-alloy and fine grain steels - Part 1: Technical delivery conditions

Relations

• Split Into: oSIST prEN 10219-1:2016 - Cold formed welded structural steel hollow sections - Part 1: General
• Effective Date: 08-Mar-2023
• Revised: SIST EN 10219-1:2006 - Cold formed welded structural hollow sections of non-alloy and fine grain steels - Part 1: Technical delivery conditions
• Effective Date: 18-Jan-2023
• Revised: SIST EN 10219-1:2006 - Cold formed welded structural hollow sections of non-alloy and fine grain steels - Part 1: Technical delivery conditions
• Effective Date: 01-Feb-2016

Overview

prEN 10219-1 rev defines the technical delivery conditions for cold-formed welded structural hollow sections of non-alloy and fine-grain steels. The standard applies to hollow sections formed cold (without subsequent heat treatment) in common geometric forms - circular, square and rectangular - and establishes the framework for material acceptance, testing, inspection and marking. This document is intended for manufacturers, specifiers, fabricators and inspection bodies working to CEN/EN requirements for construction steelwork.

Key Topics

• Scope and applicability: Cold-formed welded structural hollow sections produced for structural use; covers delivery requirements rather than dimensional tolerances.
• Information for ordering: The standard describes mandatory and optional information that purchasers must supply to manufacturers (grade, dimensions, form, delivery condition, inspection level and any special tests).
• Manufacturing and supply conditions: Defines manufacturing process considerations and the required supply condition for products formed cold without subsequent heat treatment.
• Inspection and testing: Framework for inspection types, frequency of testing, sample selection and test report contents to demonstrate conformity with the standard.
• Marking and documentation: Requirements for product marking and inspection documentation to enable traceability and compliance with construction product regulations.

Practical keywords: cold-formed welded hollow sections, technical delivery conditions, structural steel, inspection, testing, marking, CEN, EN 10219.

Applications

This standard provides direct practical value in the specification, procurement and quality assurance of structural hollow sections used in:

• Building and civil engineering frames and load-bearing members
• Architectural and façade systems where hollow sections form part of structural envelope
• Fabricated assemblies, trusses and modular steel elements
• General structural fabrication where consistent material, testing and documentation are required

Key benefits for users:

• Consistency in material acceptance criteria and inspection practices across suppliers
• Traceability through standardized marking and inspection documentation
• Risk reduction by specifying clear testing and sampling regimes that support structural performance and regulatory compliance

Related Standards

prEN 10219-1 rev sits in a series of EN documents on cold-formed hollow sections; relevant companion standards include:

• EN 10219-2 / EN 10219-3 - related parts covering technical delivery details, and tolerances/dimensions/sectional properties (check the latest part numbering applicable in your national adoption)
• prEN 10219-2:2016 - references and cross-links on testing, inspection and delivery conditions
• EN 10020 / EN 10168 / EN 10204 - normative references for steel grade classification, inspection documents and types of inspection certificates

For purchasers and manufacturers, use prEN 10219-1 rev as the primary reference for delivery conditions and combine it with the dimensional and tolerance parts when preparing specifications and contracts. Always confirm the applicable national implementation and any superseding parts when writing procurement or compliance documentation.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2016
+ODGQRREOLNRYDQLYDUMHQLYRWOLNRQVWUXNFLMVNLSURILOLL]MHNODGHO7HKQLþQL
GREDYQLSRJRML
Cold formed welded structural steel hollow sections - Part 2: Technical delivery
conditions
Kaltgeformte geschweißte Hohlprofile für den Stahlbau - Teil 2: Technische
Lieferbedingungen
Profils creux de construction soudés formés à froid en aciers - Partie 2 : Conditions
techniques de livraison
Ta slovenski standard je istoveten z: prEN 10219-2
ICS:
77.140.45 Nelegirana jekla Non-alloyed steels
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
prEN 10219-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2016
ICS 77.140.75 Will supersede EN 10219-1:2006
English Version
Cold formed welded structural steel hollow sections - Part
2: Technical delivery conditions
Profils creux de construction soudés formés à froid en Kaltgeformte geschweißte Hohlprofile für den Stahlbau
aciers - Partie 2 : Conditions techniques de livraison - Teil 2: Technische Lieferbedingungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
ECISS/TC 103.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10219-2:2016 E
worldwide for CEN national Members.

prEN 10219-2:2016 (E)

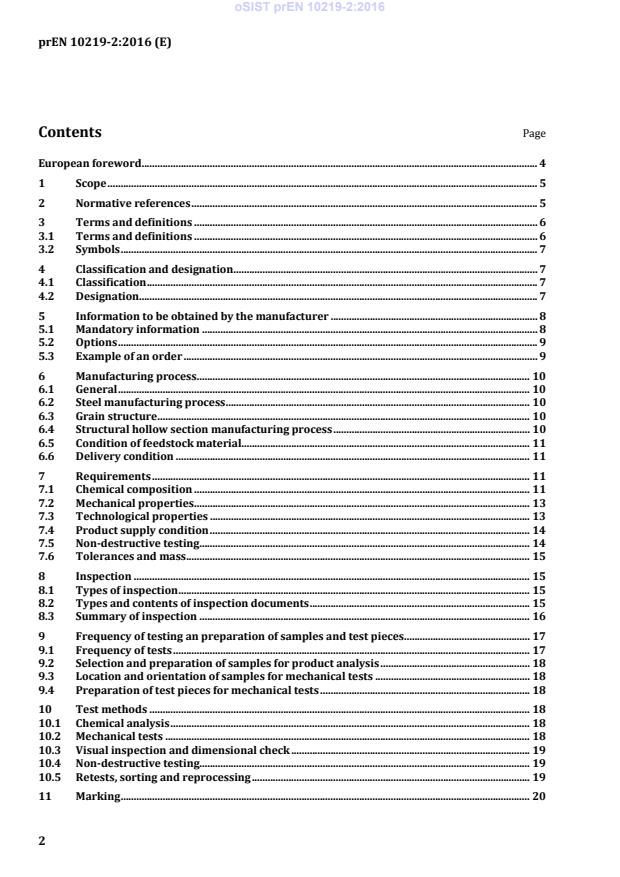

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
3.1 Terms and definitions . 6
3.2 Symbols . 7
4 Classification and designation . 7
4.1 Classification . 7
4.2 Designation. 7
5 Information to be obtained by the manufacturer . 8
5.1 Mandatory information . 8
5.2 Options . 9
5.3 Example of an order . 9
6 Manufacturing process . 10
6.1 General . 10
6.2 Steel manufacturing process . 10
6.3 Grain structure . 10
6.4 Structural hollow section manufacturing process . 10
6.5 Condition of feedstock material . 11
6.6 Delivery condition . 11
7 Requirements . 11
7.1 Chemical composition . 11
7.2 Mechanical properties . 13
7.3 Technological properties . 13
7.4 Product supply condition . 14
7.5 Non-destructive testing. 14
7.6 Tolerances and mass . 15
8 Inspection . 15
8.1 Types of inspection . 15
8.2 Types and contents of inspection documents . 15
8.3 Summary of inspection . 16
9 Frequency of testing an preparation of samples and test pieces . 17
9.1 Frequency of tests . 17
9.2 Selection and preparation of samples for product analysis . 18
9.3 Location and orientation of samples for mechanical tests . 18
9.4 Preparation of test pieces for mechanical tests . 18
10 Test methods . 18
10.1 Chemical analysis . 18
10.2 Mechanical tests . 18
10.3 Visual inspection and dimensional check . 19
10.4 Non-destructive testing. 19
10.5 Retests, sorting and reprocessing . 19
11 Marking . 20
prEN 10219-2:2016 (E)
Annex A (normative) Structural hollow sections of non-alloy quality steels - Chemical
composition and mechanical properties . 21
Annex B (normative) Structural hollow sections of normalized/normalized rolled steels -
Chemical composition and mechanical properties . 23
Annex C (normative) Structural hollow sections of thermomechanical rolled steels -
Chemical composition and mechanical properties . 26
Annex D (normative) Structural hollow sections of quenched and tempered steels —
Chemical composition and mechanical properties . 31
Annex E (normative) Structural hollow sections of steels with improved atmospheric
corrosion resistance — Chemical composition and mechanical properties . 36
Annex F (normative) Location of samples and test pieces . 38
Bibliography . 39

prEN 10219-2:2016 (E)
European foreword
This document (prEN 10219-2:2016) has been prepared by Technical Committee ECISS/TC 103
“Structural steels other than reinforcements”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 10219-1:2006.
This standard consists of the following parts under the general title 'Cold formed welded structural
steel hollow sections’:
— Part 1: General
— Part 2: Technical delivery conditions
— Part 3: Tolerances, dimensions and sectional properties
It forms part of a series of standards on hollow sections together with prEN 10210-1 to prEN 10210-3.
prEN 10219-2:2016 (E)
1 Scope
This part of prEN 10219 specifies the technical delivery conditions for electric welded and submerged
arc welded cold formed structural steel hollow sections of circular, square, rectangular or elliptical
forms and applies to structural hollow sections formed cold without subsequent heat treatment.
The general conditions (product characteristics, test methods and performance criteria that apply
under the Construction Products Regulations) are specified in prEN 10219-1 and the requirements for
tolerances, dimensions and sectional properties in prEN 10219-3.
NOTE 1 prEN 10219-1 covers provision of the Construction Products Regulations (CPR) to fulfil European law
for construction products. The technical delivery conditions are described within prEN 10219-2 in combination
with Clauses 2, 3, 4, 5, 7 and 8 of prEN 10219-1.
NOTE 2 The attention of users is drawn to the fact that whilst cold formed grades in prEN 10219-2 can have
equivalent mechanical properties to hot-finished grades in prEN 10210-2 the sectional properties of square and
rectangular hollow sections in prEN 10219-3 and prEN 10210-3 are not equivalent.
NOTE 3 A range of steel grades is specified in this European Standard and the user should select the grade most
appropriate to the intended use and service conditions. The grades and mechanical properties, but not the final
supply condition of cold formed hollow sections are comparable with those in EN 10025-2, EN 10025-3,
EN 10025-4, EN 10025-5, EN 10025-6, EN 10149-2 and EN 10149-3.
NOTE 4 Hollow sections for offshore structures are covered in EN 10225.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 10020, Definition and classification of grades of steel
EN 10021, General technical delivery requirements for steel and iron products
EN 10160, Ultrasonic testing of steel flat product of thickness equal or greater than 6 mm (reflection
method)
EN 10168, Steel products - Inspection documents - List of information and description
EN 10204, Metallic products - Types of inspection documents
prEN 10219-1:2016, Cold formed welded structural steel hollow sections - Part 1: General
prEN 10219-3, Cold formed welded structural steel hollow sections - Part 3: Tolerances, dimensions and
sectional properties
CEN/TR 10261, Iron and steel - European standards for the determination of chemical composition
EN 10266:2003, Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for
use in product standards
EN ISO 643, Steels - Micrographic determination of the apparent grain size (ISO 643)
EN ISO 2566-1, Steel - Conversion of elongation values - Part 1: Carbon and low alloy steels (ISO 2566-1)
prEN 10219-2:2016 (E)
EN ISO 9606-1, Qualification testing of welders - Fusion welding - Part 1: Steels (ISO 9606-1)
EN ISO 10893-2, Non-destructive testing of steel tubes - Part 2: Automated eddy current testing of
seamless and welded (except submerged arc-welded) steel tubes for the detection of imperfections
(ISO 10893-2)
EN ISO 10893-3, Non-destructive testing of steel tubes - Part 3: Automated full peripheral flux leakage
testing of seamless and welded (except submerged arc-welded) ferromagnetic steel tubes for the detection
of longitudinal and/or transverse imperfections (ISO 10893-3)
EN ISO 10893-8, Non-destructive testing of steel tubes - Part 8: Automated ultrasonic testing of seamless
and welded steel tubes for the detection of laminar imperfections (ISO 10893-8)
EN ISO 10893-9, Non-destructive testing of steel tubes - Part 9: Automated ultrasonic testing for the
detection of laminar imperfections in strip/plate used for the manufacture of welded steel tubes
(ISO 10893-9)
EN ISO 10893-10, Non-destructive testing of steel tubes - Part 10: Automated full peripheral ultrasonic
testing of seamless and welded (except submerged arc-welded) steel tubes for the detection of longitudinal
and/or transverse imperfections (ISO 10893-10)
EN ISO 10893-11, Non-destructive testing of steel tubes - Part 11: Automated ultrasonic testing of the
weld seam of welded steel tubes for the detection of longitudinal and/or transverse imperfections
(ISO 10893-11)
EN ISO 14713-2:2009, Zinc coatings - Guidelines and recommendations for the protection against
corrosion of iron and steel in structures - Part 2: Hot dip galvanizing (ISO 14713-2:2009)
EN ISO 15607, Specification and qualification of welding procedures for metallic materials - General rules
(ISO 15607)
EN ISO 15609-1, Specification and qualification of welding procedures for metallic materials - Welding
procedure specification - Part 1: Arc welding (ISO 15609-1)
EN ISO 15614-1, Specification and qualification of welding procedures for metallic materials - Welding
procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys
(ISO 15614-1)
ISO 11484, Steel products - Employer's qualification system for non-destructive testing (NDT) personnel
3 Terms and definitions
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in prEN 10219-1:2016 and the
following apply.
3.1.1
hot-dip zinc coating
application of a zinc coating by immersing the prepared strip or hollow section in a molten bath
containing a zinc content of at least 99 %
prEN 10219-2:2016 (E)
3.2 Symbols
For the purposes of this document, the symbols defined in EN 10266:2003 apply.
4 Classification and designation
4.1 Classification
4.1.1 Within the grades of the non-alloy steels given in Annex A, four qualities JR, J0, J2 and K2 are
specified. These differ in respect of specified impact requirements, limits on values of various elements,
with particular reference to sulphur and phosphorus, and the inspection and testing requirements.
In accordance with the classification system in EN 10020, all steel grades Annex A are non-alloy quality
steels.
4.1.2 Within the grades of steels given in Annex B, C and D eight qualities N, NL, M, ML, Q, QL and QL1
are specified. These differ in respect of the carbon, sulphur and phosphorus content, low temperature
impact properties, production process, heat treatment and grain size.
In accordance with the classification system in EN 10020, steel grades S275NH, S275NLH, S355NH and
S355NLH are non-alloy quality steels and all other steel grades are alloy special steels.
4.1.3 Within the grades of steels given in Annex E, three qualities J0, J2 and K2 are specified. These
differ in respect of specified impact requirements and limits on values of various elements.
In accordance with the classification system in EN 10020, all steel grades in Annex E are alloy special
steels.
4.2 Designation
4.2.1 For the general designation of steel grades, see prEN 10219-1:2016, 7.2.
4.2.2 The special designation of steel hollow sections consists of:
a) the number of this European Standard (prEN 10219-2);
b) the capital letter S for structural steel;
c) the indication of the minimum specified yield strength for thicknesses ≤16 mm expressed in MPa;
d) further designations for either:
1) non-alloy structural steels:
i) the capital letters JR for the qualities with specified impact properties at room
temperature,
ii) the characters J0 for the qualities with specified impact properties at 0 °C, and
iii) the characters J2 or K2 for the qualities with specified impact properties at -20 °C; or
2) normalized/normalized rolled structural steels:
i) capital letter N to indicate normalized or normalized rolled with specified impact
properties at -20 °C (see 6.4), and
prEN 10219-2:2016 (E)
ii) capital letter NL for qualities with specified impact properties at –50 °C; or
3) thermomechanical rolled structural steels:
i) capital letter M to indicate thermomechanical rolled with specified impact properties
at -20 °C (see 6.4), and
ii) capital letter ML for qualities with specified impact properties at –50 °C; or
4) structural steels in the quenched and tempered condition:
i) capital letter Q to indicate the quenched and tempered condition with specified impact
properties at -20 °C (see 6.4), and
ii) capital letter QL or QL1 for qualities with specified impact properties at –40 or –50 °C; or
5) steels with improved atmospheric corrosion resistance:
i) the capital letters JR for the qualities with specified impact properties at room
temperature,
ii) the characters J0 for the qualities with specified impact properties at 0 °C, and
iii) the characters J2 or K2 for the qualities with specified impact properties at -20 °C ,
iv) and the letter W (weather) for improved atmospheric corrosion resistance, and;
v) the capital letter H to indicate hollow sections.
EXAMPLE 1 Hollow section made of structural steel (S) with a specified minimum yield strength for thickness
not greater than 16 mm of 355 MPa, with a minimum impact energy value of 27 J at -20 °C (J2), hollow section (H):
prEN 10219-2 — S355H
or
prEN 10219-2 — 1.0576
EXAMPLE 2 Hollow section made of structural steel (S) with a specified minimum yield strength for thickness
not greater than 16 mm of 420 MPa, thermomechanically rolled steel (M), with a minimum impact energy value of
27 J at -50 °C (L), hollow section (H):
prEN 10219-2 — S420MLH
or
prEN 10219-2 — 1.8848
5 Information to be obtained by the manufacturer
5.1 Mandatory information
The following information shall be contained in the order document at the time of enquiry and order:
a) the quantity (mass or total length);
b) details of the product form:
1) CFCHS = cold formed circular hollow section;
prEN 10219-2:2016 (E)
2) CFRHS = cold formed square or rectangular hollow section;
3) CFEHS = cold formed elliptical hollow section;
c) the name of the standard for dimensions and tolerances (prEN 10219-3);
d) the dimensions and the type of length, length range or length (see prEN 10219-3);
e) the steel designation (see 4.2).
5.2 Options
A number of options are specified in parts 2 and 3 of this European Standard. These are listed below
with appropriate clause references. In the event that the purchaser does not indicate a wish to
implement any of these options at the time of enquiry and order, the hollow sections shall be supplied
in accordance with the basic specification.
2.1 Internal weld bead trimmed (see 6.4.2);
2.2 Other surface condition than as rolled (see 6.6);
2.3 Product analysis (see 7.1.1);
2.4 Cr, Cu, Mo, Ni, Ti and V cast analysis contents to be reported for non-alloy quality steels (see
7.1.2);
2.5 Verification of impact properties for qualities J0 and JR (see 7.2.1);
2.6 The product shall have a chemical composition required for hot-dip-zinc coating (see 7.3.2);
2.7 Weld repairs to the body of structural steel hollow sections are permitted (see 7.4.4);
2.8 Full peripheral NDT of the circular tube for imperfections – not possible for elliptical,
rectangular, square and SAW hollow sections (see 7.5);
2.9 Ultrasonic testing for laminar imperfections (see 7.5);
2.10 Inspection certificate 3.1 for steel grades S235JRH, S275J0H, S355J0H of Annex A and S355J0WH
of Annex E instead of the test report (see 8.1);
2.11 Inspection certificate 3.2 instead of the standard document (see 8.1),
2.12 Tensile test in corner region (see 9.3);
2.13 Impact test in corner region (see 9.3).
5.3 Example of an order
10 t cold formed welded square hollow sections in accordance with prEN 10219-3 with specified
outside dimensions 100 mm × 100 mm and wall thickness of 8 mm of 12 m standard lengths, made
from structural steel S355MH according to prEN 10219-2 including product analysis (Option 2.3) and
prEN 10219-2:2016 (E)
suitable for hot dip zinc coating (Option 2.6), supplied with inspection certificate 3.1 and with
regulatory marking according to prEN 10219-1.
10 t – CFRHS – prEN 10219-3 — 100 x 100 x 8 – standard lengths 12 m
prEN 10219-2 — S355MH – Options 2.3, 2.6
6 Manufacturing process
6.1 General
Structural welded cold formed hollow sections of non-alloy steels shall conform to the requirements of
Annex A. Structural welded cold formed hollow sections of normalized/normalized rolled,
thermomechanical rolled and quenched and tempered steels shall conform to Annexes B to D and steels
with improved atmospheric corrosion resistance shall conform to the requirements of Annex E.
In addition, the general technical delivery requirements specified in EN 10021 shall apply.
6.2 Steel manufacturing process
6.2.1 The steel manufacturing process shall be at the discretion of the hollow section manufacturer
with the exception that the open hearth (Siemens-Martin) process shall not be employed unless in
combination with a secondary steelmaking or ladle refining process.
6.2.2 The method of deoxidation shall be as specified in Tables A.1, B.1, C.1, D.1 and E.1.
6.3 Grain structure
The fine grain steels given in Annexes B to D shall have a ferritic grain size equal to or finer than 6 when
measured in accordance with EN ISO 643 (see 7.2.2).
6.4 Structural hollow section manufacturing process
6.4.1 Structural hollow sections shall be manufactured by electric welding or submerged arc welding
without subsequent heat treatment (see 6.6). Hollow sections manufactured by a continuous process
shall not include the welds used to join the lengths of strip prior to forming the hollow section, except
that for helically welded submerged arc-welded (SAW) hollow sections, such welds shall be permitted
when tested in accordance with 10.4.3.
6.4.2 Electric welded hollow sections shall be supplied with the external weld bead trimmed to an
essentially flush condition. Trimming of the internal weld bead is at the discretion of the manufacturer
unless Option 2.1 is specified.
Option 2.1 Electric welded hollow sections shall be supplied with the internal weld bead trimmed, the
maximum height of the internal weld bead after trimming shall be agreed at the time of enquiry and
order.
6.4.3 All NDT activities shall be carried out by qualified and competent level 1, 2 and/or 3 personnel
authorised to operate by the employer.
The qualification shall be in accordance with ISO 11484 or, at least, an equivalent to it.
It is recommended that the level 3 personnel be certified in accordance with EN ISO 9712 or, at least, an
equivalent to it.
The operating authorisation issued by the employer shall be in accordance with a written procedure.
NDT operations shall be authorised by a level 3 NDT individual approved by the employer.
prEN 10219-2:2016 (E)
NOTE The definition of levels 1, 2 and 3 can be found in the appropriate standards, e.g. EN ISO 9712 and
ISO 11484.
6.5 Condition of feedstock material
According to the designation given in the order the following delivery conditions apply for the feedstock
material used for the manufacture of cold formed hollow sections:
— as rolled (+AR) or normalized/normalized rolled (+N) or thermomechanically rolled (+M) for steels
according to Annex A;
— normalized/normalized rolled (N) for steels of qualities N and NL according to B;
— thermomechanically rolled (M) for steels of quality M and ML according to Annex C;
— quenched and tempered (Q) for steels of qualities Q, QL and QL1 according to Annex D;
— as rolled (+AR) ) or normalized/normalized rolled (+N) for steels with improved atmospheric
corrosion resistance (W) according to Annex E.
6.6 Delivery condition
The hollow sections shall be delivered cold formed without subsequent heat treatment except that the
weld seam may be in the as welded or heat treated condition.
NOTE For SAW hollow sections, it may be necessary to perform a warm shaping operation, which does not
affect the mechanical properties, in order to meet the out-of-roundness tolerance requirements.
The surface shall be in the as rolled condition.
Option 2.2 Other possible surface conditions are:
a) S1 black;
b) S2 pickled feedstock;
c) S3 pickled hollow section;
d) S4 hot-dip-zinc coated feedstock;
e) S5 hot-dip-zinc coated hollow section.
7 Requirements
7.1 Chemical composition
7.1.1 In addition to prEN 10219-1:2016, 4.1 the following option can be specified by the purchaser at
the time of enquiry and order:
Option 2.3 For products supplied with specific inspection and testing, a product analysis shall be
reported.
Deviations of the product analysis from the specified limits of the cast analysis shall be in accordance
with Table 1.
prEN 10219-2:2016 (E)
7.1.2 For non-alloy steel products the following option may be specified:
Option 2.4 The recording on the inspection certificate of the Cr, Cu, Mo, Ni, Ti and V content (cast
analysis).
7.1.3 When products are supplied with a control on Si e.g. for hot-dip zinc-coating so that there could
be a need to increase the content of other elements like C and Mn to achieve the required tensile
properties, the maximum carbon equivalent values of Tables A.2 to E.2 shall be increased as follows:
— for Si ≤ 0,04 %, increase the value of the CEV by 0,02;
— for Si ≤ 0,25 %, increase the value of the CEV by 0,01.
Table 1 — Permissible deviations of the product analysis from the specified limits of the cast
analysis given in Tables A.1, B.1, C.1, D.1 and E.1
Permissible deviation of the
product analysis from
Permissible maximum content in the cast
Element
analysis specified limits for the cast
analysis
% by mass % by mass
≤ 0,20 + 0,02
C
> 0,20 + 0,03
≤ 0,60 + 0,05
Si
> 0,60 + 0,06
non-alloy ≤ 1,60 + 0,10
normalized ≤ 1,70 – 0,05 / + 0,10
Mn thermomechanical rolled ≤ 2,20 + 0,10
quenched and tempered ≤ 1,70 + 0,10
weather ≤ 1,50 – 0,05 / + 0,10
non-alloy ≤ 0,040 + 0,010
normalized/thermomechanical rolled,
P + 0,005
quenched and tempered ≤ 0,030
weather ≤ 0,035 + 0,010
non-alloy ≤ 0,040 + 0,010
normalized/ thermomechanical rolled ≤
+ 0,005
0,025
S
quenched and tempered ≤ 0,015 + 0,002
weather ≤ 0,035 + 0,010
Nb ≤ 0,060 + 0,010
V ≤ 0,20 + 0,02
≤ 0,03 + 0,01
Ti
> 0,03 + 0,02
≤ 0,30 + 0,05
Cr
> 0,30 + 0,10
≤ 0,80 + 0,05
Ni
> 0,80 + 0,10
≤ 0,10 + 0,03
Mo
> 0,10 + 0,04
non-alloy, normalized/thermomechanical
Cu +/- 0,04
rolled, weather ≤ 0,35
prEN 10219-2:2016 (E)
Permissible deviation of the
Permissible maximum content in the cast product analysis from
Element
analysis specified limits for the cast
analysis
% by mass % by mass
non-alloy, normalized/thermomechanical
+ 0,07
rolled, weather 0,35 < Cu ≤ 0,70
quenched and tempered ≤ 0,50 + 0,05
non-alloy, normalized/thermomechanical
+ 0,002
rolled, weather ≤ 0,025
N
quenched and tempered ≤ 0,015 + 0,001
Al ≥ 0,020 – 0,005
total
B ≤ 0,0050 + 0,000 5
Zr ≤ 0,15 + 0,02
7.2 Mechanical properties
7.2.1 Subject to limitations to prEN 10219-1:2016, 4.2:
a) the impact properties of structural hollow sections of steel qualities J2, K2, N, NL, M, ML, Q, QL and
QL1 shall be verified;
b) the impact properties of structural hollow sections of steel qualities JR and J0 need not be verified
unless Option 2.5 is specified by the purchaser at the time of enquiry and order.
Option 2.5 For products in qualities JR and J0 supplied with specific inspection and testing (see Options
2.10 and 2.11) the verification of the impact properties is specified.
7.2.2 In addition to prEN 10219-1:2016, 4.2 the following requirement for fine grain steel is specified.
For fine grain steel hollow sections in thicknesses which do not permit impact test pieces of width ≥ 5
mm to be taken, the ferritic grain size (see 6.3) shall be verified by the method as described in
EN ISO 643.
When aluminium is used as the grain refining element, the grain size requirement shall be deemed to be
fulfilled if the cast analysis shows the aluminium content to be not less than 0,020 % total aluminium or
alternatively 0,015 % soluble aluminium. In these cases, verification of the grain size is not required.
7.3 Technological properties
7.3.1 Weldability
In addition to prEN 10219-1:2016, 4.3 following restriction/option should be noted:
Eurocode 3 (EN 1993-1-8) includes restrictions on welding in the cold formed corner area of square
and rectangular tubes. Welding in the cold-formed corner area of steel qualities J2H, K2H, MH, MLH, NH,
NLH, QH, QLH or QL1H with a nominal thickness not exceeding 12,5 mm is permitted with restricted
contents of C ≤ 0,18%, P ≤ 0,020% and S ≤ 0,012%.
7.3.2 Hot-dip-zinc coating
EN ISO 1461 should be used to specify coating requirements. EN ISO 14713-2 provides further
guidance, including information on the influence of various factors, including steel chemical
composition, on the coating formation.
prEN 10219-2:2016 (E)
Option 2.6 can be used to order steels with a chemical composition required for hot-dip-zinc coating.
When Option 2.6 is implemented, the purchaser and manufacturer shall agree a steel composition (ladle
analysis) of silicon and phosphorous according to either
— Category A (for steels satisfying the formula Si<= 0,03 and Si + 2,5 P <= 0,09); or
— Category B (limited to 0,14 % <= Si <= 0,25 %); or
— Category D (limited to 0,25 % <= Si <= 0,35 %)
with required values as cited by the ranges given in Column 2 of Table 1 in EN ISO 14713-2:2009.
Option 2.6 The products shall be suitable for hot dip zinc coating. If no additional information is given
the delivered category is at the discretion of the manufacturer.
NOTE Table 1 of EN ISO 14713-2:2009 gives guidance on typical coating characteristics associated with
certain steel compositions on the basis of the surface composition of silicon and phosphorous.
The maximum carbon equivalent shall be increased by 0,02 or by 0,01 (see 7.1.3).
7.4 Product supply condition
7.4.1 The hollow sections shall have a smooth surface corresponding to the manufacturing method
used; bumps, cavities or shallow longitudinal grooves resulting from the manufacturing process are
permissible, provided the remaining thickness is within tolerance.
Surface imperfections may be removed by the manufacturer by grinding, provided that the thickness of
the hollow section after the repair is not less than the minimum permissible thickness in accordance
with prEN 10219-3.
7.4.2 The ends of the hollow section shall be cut nominally square to the axis of the product.
7.4.3 Weld repair shall not be permitted for cold formed hollow sections except in the case of
submerged arc welded hollow sections.
7.4.4 For hollow sections repair of the body by welding shall not be permitted unless otherwise
specified. The conditions under which, and the extent to which, welding repair to the body may be
carried out shall be agreed between the manufacturer and the purchaser.
Option 2.7 Weld repairs to the body of structural steel hollow sections are permitted.
7.4.5 Any permitted weld repairs shall be carried by operators qualified in accordance with
EN ISO 9606-1. Welding repair procedures shall be issued in a written form and qualified in accordance
with EN ISO 15607, EN ISO 15609-1 and EN ISO 15614-1.
The repaired hollow section shall conform to all the requirements of this European Standard.
7.5 Non-destructive testing
The seam weld of all welded hollow sections supplied with specific inspection and testing shall be
subjected to an applicable non-destructive test in accordance with 10.4.1 to 10.4.3.
Option 2.8 If agreed at the time of enquiry and order every circular hollow section shall be full
peripheral NDT-tested for imperfections according to one of the following standards: EN ISO 10893-2,
EN ISO 10893-3 or EN ISO 10893-10 (see 10.4.4).
NOTE Full peripheral NDT is not possible for elliptical, rectangular, square and SAW hollow sections.
prEN 10219-2:2016 (E)
Option 2.9 If agreed at the time of enquiry and order every circular hollow sections shall be tested for
laminar imperfections according to EN ISO 10893-8 or testing is also possible prior to welding
according to EN ISO 10893-9 or EN 10160 (see 10.4.5).
7.6 Tolerances and mass
7.6.1 Tolerances on dimensions and shape
See prEN 10219-3.
7.6.2 Mass
Mass shall be determined using a density of 7,85 kg/dm .
Dimensions, sectional properties and mass per unit length for a limited range of sizes of cold formed
structural hollow sections are given in prEN 10219-3. The purchaser should preferably select hollow
section dimensions from this limited range of sizes.
8 Inspection
8.1 Types of inspection
Products complying with this European Standard shall in accordance with EN 10021 be ordered and
delivered with an inspection document 2.2, 3.1 or 3.2 as specified in EN 10204. The type of document
shall be agreed upon at the time of enquiry and order. If the order does not contain any specification of
this type a test report 2.2 for steel grades S235JRH, S275J0H and S355J0H of Annex A and S355J0WH of
Annex E and an inspection certificate 3.1 for all other steel grades of Annexes A to E shall be issued.
Option 2.10 An inspection certificate 3.1 for steel grades S235JRH, S275J0H, S355J0H of Annex A and
S355J0WH of Annex E shall be issued if agreed at the time of enquiry and order.
Option 2.11 An inspection certificate 3.2 shall be issued if agreed at the time of enquiry and order.
8.2 Types and contents of inspection documents
8.2.1 For products supplied with non-specific inspection a test report 2.2 in accordance with
EN 10204 shall be provided.
The test report shall contain the following codes and relevant information in accordance with
EN 10168.
A — Commercial transactions and parties involved.
B — Description of products to which the test report applies.
C10-C13 — Tensile test;
C71-C92 — Cast analysis.
Z — Validation.
8.2.2 For products supplied with an inspection certificate 3.1 or 3.2 following codes and relevant
information in accordance with EN 10168 shall be provided.
A — Commercial transactions and parties involved.
B — Description of products to which the inspection certificate applies.
prEN 10219-2:2016 (E)
C01-C03 — Location of the samples, direction of test pieces and test temperature;
C10-C13 — Tensile test — Test piece shape and test results;
C40-C43 — Impact test — Test piece type and test results, if applicable;
C71-C92 — Cast analysis and, if applicable, product analysis (as a minimum all the elements referred to
in Tables A.1, B.1, C.1, D.1 and E.1 as applicable and the CEV shall be reported);
D02-D50 — if applicable, statement confirming that the NDT has been carried out and that the test
results are satisfactory;
Z — Validation.
In addition, if an inspection certificate 3.2 is ordered, the purchaser shall notify the manufacturer of the
address of the organization or person nominated by him to carry out the inspection and validate the
inspection document. It shall also be agreed which party shall issue the certificate.
8.3 Summary of inspection
The requirements for inspection are given in Tables 2 and 3.
Table 2 — Non-specific inspection for welded cold formed hollow sections for steel grades
S235JRH, S275J0H and S355J0H of Annex A and S355J0WH of Annex E
Inspection requirements Inspection programme
Subclause
Type of test Non-specific inspection
reference(s)
4.1
One result per
1 Cast analysis 5.1
delivery item
prEN 10219-1:2016
4.2.1
One result per
2 Tensile test 5.2
delivery item
prEN 10219-1:2016
Impact test for 4.2.2, 4.2.3
Mandatory 3 qualities 5.2 Not applicable
JR and J0 only prEN 10219-1:2016
tests
4.4
Surface condition
4 5.4 See 10.3
and dimensions
prEN 10219-1:2016
10.4.2
5 NDT of the weld Not applicable
10.4.3
Tensile test in
7.2 One result per
6 corner region
9.2 delivery item
(Option 2.12)
Optional
tests
All other optional
7  Not applicable
tests
prEN 10219-2:2016 (E)
Table 3 — Specific inspection for welded cold formed hollow sections
Inspection requirements Inspection programme
Subclause
Type of test Specific inspection
reference(s)
4.1
1 Cast analysis 5.1.2, 5.1.3 One per cast
prEN 10219-1:2016
4.2.1
a, b
2 Tensile test 5.2.2, 5.2.3, 5.2.4
One test per test unit
prEN 10219-1:2016
Impact test 4.2.2, 4.2.3,
One set of tests per
Mandatory
3 (not for non-alloy steel 5.2.2, 5.2.3, 5.2.4
a, b
tests test unit
grades of qualities JR, J0) prEN 10219-1:2016
4.4
Surface condition and
4 5.4.2, 5.4.3 see 10.3
dimensions
prEN 10219-1:2016
10.4.2
5 NDT of the weld Full length
10.4.3
Product analysis 7.1
6 One per cast
(Option 2.3) 10.1
Cast analysis
additional elements
7.1
7 only for non-alloy steels See option 2.3
10.1
according to Annex A
(Option 2.4)
Impact test verification for
One set of tests per
non-alloy steels of 7.2
a, b
qualities JR and J0
10.2
test unit
(Option 2.5)
Optional
Full peripheral NDT of the
tests 7.5 Circular products, full
9 tube
10.4.4 length
(Option 2.8)
Ultrasonic inspection for
7.5 Circular products, full
10 laminar imperfections
10.4.5 length
Option 2.9
Tensile test in
7.2
a
11 corner region
One test per test unit
9.3
(Option 2.12)
Impact test in
One set of tests per test
7.2
12 corner region
a
9.3
unit
(Option 2.13)
a
For test unit see, 9.1.
b
Longitudinal or transverse samples at the discretion of the manufacturer.
9 Frequency of testing an preparation of samples and test pieces
9.1 Frequency of tests
The verification of the mechanical properties and product analysis, if applicable, shall be carried out by
test unit. A test unit is defined as a quantity of hollow sections from one manufacturing lot of same
prEN 10219-2:2016 (E)
grade and sectional dimensions including tubes from one or more coils or bars or ingots originating
from one to three casts, and, if applicable, in the same heat treatment condition, submitted for
acceptance at the same time.
The following samples shall be taken from one sample product of each test unit:
— 1 for tensile testing;
— 1 sufficient for 2 sets of 3 impact test pieces;
The mass of a test unit shall not exceed the maximum tonnage of sections specified in Table 4.
Table 4 — Test units
Type of hollow section Test unit

Circular Square, rectangular or

elliptical
max. mass
Outside diameter D External perimeter
t
mm mm
≤ 114,3 ≤ 400 40
> 114,3 ≤ 323,9 > 400 ≤ 800 50
> 323,9 > 800 75
9.2 Selection and preparation of samples for product analysis
Samples for product analysis, when required shall be taken from the sample product or alternatively
from test pieces used for mechanical testing or from the full thickness of the hollow section at the same
location as for the mechanical test samples. For the preparation of samples see prEN 10219-1:2016,
5.1.2.
9.3 Location and orientation of samples for mechanical tests
In addition to prEN 10219-1:2016, 5.2.2 the following options can be specified by the purchaser at the
time of enquiry and order:
Option 2.12 longitudinal test pieces for the tensile test shall be taken from the centre of the corner, but
remote from the weld in welded section (see Annex F).
Option 2.13 longitudinal test pieces for the impact test shall be taken from the centre of the corner with
the notch orientated through the material thickness.
9.4 Pre
...
