SIST EN 300 440-1 V1.3.1:2003
(Main)Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 1: Technical characteristics and test methods
Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 1: Technical characteristics and test methods
To keep the existing published standard (1999) brought in line to the 99/5 Directive and the CEPT/ERC REC 70-03. Technical caracteristics and test methods for Short Range Devices, operating in the 1000 MHz to 40 GHz
Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) – Naprave kratkega dosega (SRDs) – Radijska oprema za uporabo v frekvenčnem območju od 1 do 40 GHz – 1. del: Tehnične karakteristike in preskusne metode
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.NYHQþQHPElectromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 1: Technical characteristics and test methods33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 300 440-1 Version 1.3.1SIST EN 300 440-1 V1.3.1:2003en01-december-2003SIST EN 300 440-1 V1.3.1:2003SLOVENSKI
STANDARD
ETSI EN 300 440-1 V1.3.1 (2001-09)European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);Short range devices;Radio equipment to be usedin the 1 GHz to 40 GHz frequency range;Part 1: Technical characteristics and test methods SIST EN 300 440-1 V1.3.1:2003

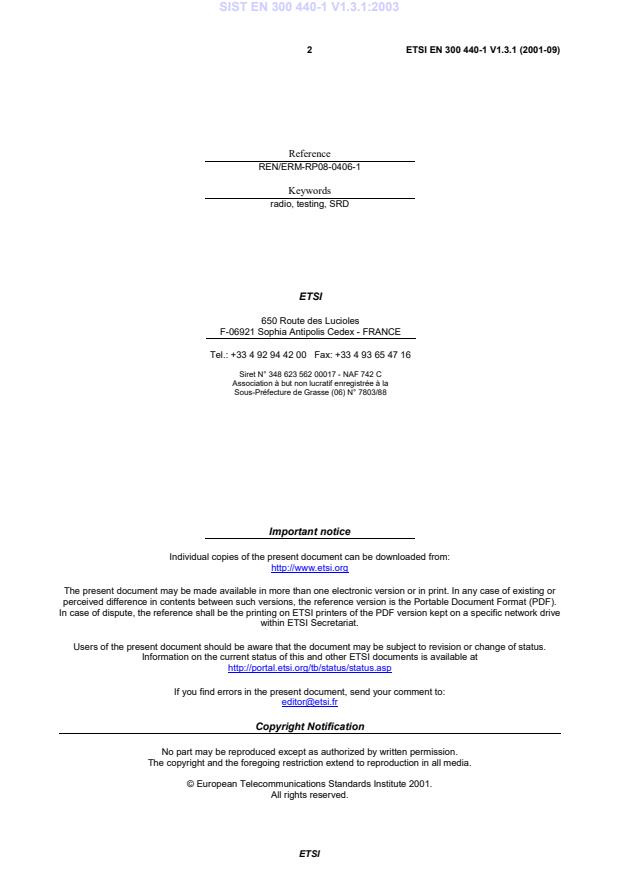

ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 2
Reference REN/ERM-RP08-0406-1 Keywords radio, testing, SRD ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.fr Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2001. All rights reserved.
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 3 Contents Intellectual Property Rights.6 Foreword.6 1 Scope.7 2 References.8 3 Definitions, symbols and abbreviations.8 3.1 Definitions.8 3.2 Symbols.9 3.3 Abbreviations.10 4 Technical requirements specifications.10 4.1 General requirements.10 4.1.1 Receiver classification.10 4.1.2 General performance criteria.11 4.2 Presentation of equipment for testing purposes.11 4.2.1 Choice of model for testing.11 4.2.2 Testing of equipment with alternative power levels.11 4.2.3 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment).12 4.2.3.1 Equipment with an internal permanent or temporary antenna connector.12 4.2.3.2 Equipment with a temporary antenna connector.12 4.3 Mechanical and electrical design.12 4.3.1 General.12 4.3.2 Controls.12 4.3.3 Transmitter shut-off facility.12 4.3.4 Receiver mute or squelch.12 4.3.5 Marking (equipment identification).12 4.3.5.1 Equipment identification.13 4.3.5.2 Regulatory marking.13 4.4 Declarations by the applicant.13 4.5 Auxiliary test equipment.13 4.6 Interpretation of the measurement results.13 5 Test conditions, power sources and ambient temperatures.13 5.1 Normal and extreme test conditions.13 5.2 Test power source.13 5.2.1 External test power source.14 5.2.2 Internal test power source.14 5.3 Normal test conditions.14 5.3.1 Normal temperature and humidity.14 5.3.2 Normal test power source.14 5.3.2.1 Mains voltage.14 5.3.2.2 Regulated lead-acid battery power sources.14 5.3.2.3 Other power sources.14 5.4 Extreme test conditions.15 5.4.1 Extreme temperatures.15 5.4.1.1 Procedure for tests at extreme temperatures.15 5.4.1.1.1 Procedure for equipment designed for continuous operation.15 5.4.1.1.2 Procedure for equipment designed for intermittent operation.15 5.4.1.2 Extreme temperature ranges.15 5.4.2 Extreme test source voltages.16 5.4.2.1 Mains voltage.16 5.4.2.2 Regulated lead-acid battery power sources.16 5.4.2.3 Power sources using other types of batteries.16 5.4.2.4 Other power sources.16 6 General conditions.16 SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 4 6.1 Normal test signals and test modulation.16 6.1.1 Normal test signals for data.17 6.2 Artificial antenna.17 6.3 Test fixture.17 6.4 Test sites and general arrangements for radiated measurements.18 6.5 Measuring receiver.18 7 Methods of measurement and limits for transmitter parameters.18 7.1 Equivalent isotropically radiated power (eirp).19 7.1.1 Definition.19 7.1.2 Method of measurement.19 7.1.2.1 Non spread spectrum transmitters with a -6 dB bandwidth up to 20 MHz.19 7.1.2.2 Other transmitters than defined in clause 7.1.2.1.19 7.1.3 Limits.21 7.2 Permitted range of operating frequencies.21 7.2.1 Definition.21 7.2.2 Method of measurement.21 7.2.3 Method of measurement for equipment using FHSS modulation.22 7.2.4 Limit.23 7.3 Spurious emissions.23 7.3.1 Definition.23 7.3.2 Measuring receiver.23 7.3.3 Method of measurement conducted spurious emission.24 7.3.4 Method of measurement cabinet spurious radiation.24 7.3.5 Method of measurement radiated spurious emission.25 7.3.6 Additional requirements for equipment employing FHSS modulation.26 7.3.7 Limits.26 7.4 Duty cycle.26 7.4.1 Definitions.26 7.4.2 Declaration.26 7.4.3 Duty cycle classes.26 7.5 Additional requirements for FHSS equipment.27 7.5.1 FHSS modulation.27 7.5.2 FHSS transmit level during frequency hop.27 8 Receiver.27 8.1 Adjacent channel selectivity-in band.27 8.1.1 Definition.27 8.1.2 Method of measurement.27 8.1.3 Limits.28 8.2 Adjacent band selectivity.28 8.2.1 Definition.28 8.2.2 Method of measurement.28 8.2.3 Limits.29 8.3 Blocking or desensitization.29 8.3.1 Definition.29 8.3.2 Methods of measurement.29 8.3.3 Limits.30 8.4 Spurious emissions.30 8.4.1 Definition.30 8.4.2 Method of measurement conducted spurious components.30 8.4.3 Method of measurement cabinet radiation.31 8.4.4 Method of measurement radiated spurious components.31 8.4.5 Limits.32 9 Measurement uncertainty.32 Annex A (normative): Radiated measurements.33 A.1 Test sites and general arrangements for measurements involving the use of radiated fields.33 A.1.1 Outdoor test site.33 A.1.1.1 Standard position.34 A.1.2 Test antenna.34 SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 5 A.1.3 Substitution antenna.34 A.1.4 Optional additional indoor site.35 A.2 Guidance on the use of radiation test sites.35 A.2.1 Measuring distance.36 A.2.2 Test antenna.36 A.2.3 Substitution antenna.36 A.2.4 Artificial antenna.36 A.2.5 Auxiliary cables.36 A.3 Further optional alternative indoor test site using an anechoic chamber.36 A.3.1 Example of the construction of a shielded anechoic chamber.37 A.3.2 Influence of parasitic reflections in anechoic chambers.37 A.3.3 Calibration of the shielded RF anechoic chamber.38 Annex B (normative): General description of measurement methods.40 B.1 Conducted measurements.40 B.2 Radiated measurements.40 Annex C (normative): Power limits for RFID systems operating in the 2,45 GHz ISM band.41 C.1 Power limits and frequency band.41 C.1.1 Additional requirements for 2,45 GHz 4 W eirp indoor RFID equipment.41 C.1.2 Spectrum mask.42 Annex D (informative): Example of implementation for restriction of 4 W RFID to in-building use only.43 Annex E (informative): Clauses of the present document relevant for essential requirements of relevant EC Council Directives.45 E.1 Compliance with 1999/5/EC (R&TTE Directive) article 3.3e.45 E.2 Compliance with 1999/5/EC (R&TTE Directive) article 3.3f.45 Annex F (informative): Bibliography.46 History.47
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://www.etsi.org/legal/home.htm). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). For non EU countries the present document may be used for regulatory (Type Approval) purposes. The present document is part 1 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range, as identified below: Part 1: "Technical characteristics and test methods"; Part 2: "Harmonized EN under article 3.2 of the R&TTE Directive".
National transposition dates Date of adoption of this EN: 7 September 2001 Date of latest announcement of this EN (doa): 31 December 2001 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 June 2002 Date of withdrawal of any conflicting National Standard (dow): 30 June 2002
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 7 1 Scope The present document applies to Short Range Devices (SRDs) transmitters and receivers: a) transmitters operating in range from 1 GHz to 40 GHz with power levels ranging up to 4W; b) receivers operating in the range from 1 GHz to 40 GHz; The present document contains the technical characteristics for radio equipment and is referencing CEPT/ERC Recommendation for SRDs CEPT/ERC Recommendation 70-03 [1] and ERC Decisions. The present document does not necessarily include all the characteristics which may be required by a user, nor does it necessarily represent the optimum performance achievable. It is a product family standard which may be completely or partially superseded by specific standards covering specific applications. The present document applies to generic SRDs: - either with a Radio Frequency (RF) output connection and specified antenna, or with an integral antenna; - for alarms, identification systems, radio-determination, telecommand, telemetry etc. applications; - for all types of modulation; - with or without speech. When selecting parameters for new SRDs, which may have inherent safety of human life implications, manufacturers and users should pay particular attention to the potential for interference from other systems operating in the same or adjacent bands. The present document covers fixed stations, mobile stations and portable stations. If a system includes transponders, these are measured together with the transmitter. All types of modulation for radio devices are covered by the present document, provided the requirements of clause 7.2 are met. The radio equipment, covered by the classification SRD is divided into several power classes based on maximum output power (see table 1). The power class designation is based on CEPT/ERC Recommendation 70-03 [1] or ERC Decisions. Table 1: Maximum radiated peak power (e.i.r.p.) Power Class (see note 1) Power level (conducted or radiated) 8 10 mW 9
25 mW 11
100 mW 12
500 mW (see note 2) 13 1 W 14 2 W 14a 4 W (see note 2) NOTE 1: Class designation is based on CEPT/ERC Recommendation 70-03 [1]. NOTE 2: For RFID applications, see annex C of the present document.
On non-harmonized parameters, national administrations may impose conditions on the type of modulation, frequency, channel/frequency separations, maximum transmitter radiated field strength/maximum output current to a defined antenna, duty cycle, equipment marking and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of an individual or general licence, or as a condition for use under licence exemption. The present document does not require measurements for radiated emissions below 25 MHz. SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 8 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] CEPT/ERC Recommendation 70-03 (1997): "Relating to the use of Short Range Devices (SRD)". [2] CEPT/ERC Recommendation 74-01 (1998): "Spurious emissions". [3] CISPR 16-1: "Specification for radio disturbance and immunity measuring apparatus and methods; Part 1: Radio disturbance and immunity measuring apparatus". [4] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity". [5] ETSI EN 300 440-2 (V1.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 2: Harmonized EN under article 3.2 of the R&TTE Directive". [6] ETSI ETR 028: "Radio Equipment and Systems (RES); Uncertainties in the measurement of mobile radio equipment characteristics". [7] ITU-T Recommendation O.41: "Psophometer for use on telephone-type circuits". [8] ITU-T Recommendation O.153: "Basic parameters for the measurement of error performance at bit rates below the primary rate". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: alarm: use of radio communication for indicating an alarm condition at a distant location artificial antenna: non-radiating dummy load equal to the nominal impedance specified by the applicant assigned frequency band: frequency band within which the device is authorized to operate chip: unit of modulation used in Direct Sequence Spread Spectrum (DSSS) modulation chip rate: number of chips per second conducted measurements: measurements which are made using a direct connection to the equipment under test Direct Sequence Spread Spectrum (DSSS): form of modulation where a combination of data to be transmitted and a fixed code sequence (chip sequence) is used to directly modulate a carrier, e.g. by phase shift keying. The code sequence length determines the occupied bandwidth dedicated antenna: removable antenna supplied and type tested with the radio equipment, designed as an indispensable part of the equipment SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 9 fixed station: equipment intended for use in a fixed location Frequency Hopping Spread Spectrum (FHSS): a spread spectrum technique in which the transmitter signal occupies a number of frequencies in time, each for some period of time, referred to as the dwell time NOTE 1: Transmitter and receiver follow the same frequency hop pattern. The number of hop positions and the bandwidth per hop position determine the occupied bandwidth. identification system: equipment consisting of a transmitter(s), receiver(s) (or a combination of the two) and an antenna(s) to identify objects by means of a transponder integral antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment mobile station: equipment normally fixed in a vehicle or used as a transportable station portable station: equipment intended to be carried, attached or implanted operating frequency: nominal frequency at which equipment is operated; this is also referred to as the operating centre frequency NOTE 2: Equipment may be able to operate at more than one operating frequency. operating frequency range: range of operating frequencies over which the equipment can be adjusted through tuning, switching or reprogramming radiated measurements: measurements which involve the absolute measurement of a radiated field radio determination: determination of the position, velocity and/or other characteristics of an object, or the obtaining of information relating to these parameters, by means of the propagation properties of radio waves spread spectrum: modulation technique in which the energy of a transmitted signal is spread throughout a large portion of the frequency spectrum telecommand: use of radio communication for the transmission of signals to initiate, modify or terminate functions of equipment at a distance telemetry: use of radio communication for indicating or recording data at a distance transponder: device which responds to an interrogation signal wideband: equipment to be used in a non-channelized continuous frequency band, or to be used in a channelized frequency band using more than one consecutive channel 3.2 Symbols For the purposes of the present document, the following symbols apply: E Electrical field strength Eo Reference electrical field strength, (see annex A) f Frequency P Power R Distance Ro Reference distance, (see annex A) t Time λ wavelength SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 10 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: dB Decibel dBi gain in decibels relative to an isotropic antenna DSSS Direct Sequence Spread Spectrum eirp equivalent isotropically radiated power EMC ElectroMagnetic Compatibility ERC European Radiocommunication Committee FHSS Frequency Hopping Spread Spectrum DSSS Direct Sequence Spread Spectrum PSTN Public Switched Telephone Network R&TTE Radio and Telecommunications Terminal Equipment RF Radio Frequency RFID Radio Frequency Identification SRD Short Range Device Tx Transmitter VSWR Voltage Standing Wave Ratio 4 Technical requirements specifications 4.1 General requirements 4.1.1 Receiver classification The product family of short range radio devices is divided into three equipment classes, see table 2, each having its own set of minimum performance criteria. This classification is based upon the impact on persons in case the equipment does not operate above the specified minimum performance level. Table 2 Receiver class Relevant receiver clauses Risk assessment of receiver performance
8.1, 8.2, 8.3 and 8.4 Highly reliable SRD communication media; e.g. serving human life inherent systems (may result in a physical risk to a person).
8.3 and 8.4 Medium reliable SRD communication media e.g. causing Inconvenience to persons, which cannot simply be overcome by other means.
8.4 Standard reliable SRD communication media e.g. Inconvenience to persons, which can simply be overcome by other means (e.g. manual). NOTE: With reference to the present document manufacturers are recommended to declare classification of their devices in accordance with table 2 and EN 300 440-2 [5] clause 4.2, as relevant. In particular where an SRD which may have an inherent safety of human life implications, manufacturers and users should pay particular attention to the potential for interference from other systems operating in the same or adjacent bands.
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 11 4.1.2 General performance criteria For the purpose of the receiver performance tests, the receiver will produce an appropriate output under normal conditions as indicated below. Where the indicated performance cannot be achieved, the manufacturer shall declare and publish the performance criteria used to determine the performance of the receiver: - a SND/ND ratio of 20 dB, measured at the receiver output through a telephone psophometric weighting network as described in ITU-T Recommendation O.41 [7]; or - after demodulation, a data signal with a bit error ratio of 10-2; or - after demodulation, a message acceptance ratio of 80 %. 4.2 Presentation of equipment for testing purposes Each equipment submitted for testing, where applicable, shall fulfil the requirements of the present document on all frequencies over which it is intended to operate. Where appropriate the applicant should chose appropriate frequencies in consultation with the Administration(s) from whom type approval is sought. If an equipment is designed to operate with different carrier powers, measurements of each transmitter parameter shall be performed at the highest power level at which the transmitter is intended to operate. Additionally, technical documentation and operating manuals, sufficient to allow testing to be performed, shall be supplied. A test fixture for equipment with an integral antenna may be supplied by the applicant (see clause 6.3). To simplify and harmonize the testing procedures between the different testing laboratories, measurements shall be performed, according to the present document, on samples of equipment defined in clauses 4.2.1 to 4.2.3.2. These clauses are intended to give confidence that the requirements set out in the present document have been met without the necessity of performing measurements on all frequencies. 4.2.1 Choice of model for testing The applicant shall provide one or more samples of the equipment, as appropriate for testing. Stand alone equipment shall be offered by the applicant complete with any ancillary equipment needed for testing. If an equipment has several optional features, considered not to affect the RF parameters then the tests need only to be performed on the equipment configured with that combination of features considered to be the most complex, as proposed by the applicant and agreed by the test laboratory. Where practicable, equipment offered for testing shall provide a 50 Ω connector for conducted RF power measurements. In the case of integral antenna equipment, if the equipment does not have a internal permanent 50 Ω connector then it is permissible to supply a second sample of the equipment with a temporary antenna connector fitted to facilitate testing, see clause 4.2.3. 4.2.2 Testing of equipment with alternative power levels If a family of equipment has alternative output power levels provided by the use of separate power modules or add on stages, or additionally has alternative frequency coverage, then all these shall be declared by the applicant. Each module or add on stage shall be tested in combination with the equipment. The necessary samples and tests can be proposed by the applicant and/or the test laboratory and shall be agreed with the Administration(s), based on the requirements of clause 4.2. As a minimum, measurements of the radiated power (eirp) and spurious emissions shall be performed for each combination and shall be stated in the test report. SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 12 4.2.3 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment) 4.2.3.1 Equipment with an internal permanent or temporary antenna connector The means to access and/or implement the internal permanent or temporary antenna connector shall be stated by the applicant with the aid of a diagram. The fact that use has been made of the internal antenna connection, or of a temporary connection, to facilitate measurements shall be recorded in the test report. 4.2.3.2 Equipment with a temporary antenna connector The applicant may submit one set of equipment with the normal antenna connected, to enable radiated measurements to be made. The applicant shall attend the test laboratory at the conclusion of the radiated measurements, to disconnect the antenna and fit the temporary connector. The testing laboratory staff shall not connect or disconnect any temporary antenna connector. Alternatively, the applicant may submit two sets of equipment to the test laboratory, one fitted with a temporary antenna connector with the antenna disconnected and another equipment with the antenna connected. Each equipment shall be used for the appropriate tests. The applicant shall declare that the two sets of equipment are identical in all aspects except for the antenna connector. 4.3 Mechanical and electrical design 4.3.1 General The equipment submitted by the applicant shall be designed, constructed and manufactured in accordance with good engineering practice and with the aim of minimizing harmful interference to other equipment and services. Transmitters and receivers may be individual or combination units. 4.3.2 Controls Those controls which, if maladjusted, might increase the interfering potentialities of the equipment shall not be easily accessible to the user. 4.3.3 Transmitter shut-off facility If the transmitter is equipped with an automatic transmitter shut-off facility, it should be made inoperative for the duration of the test. 4.3.4 Receiver mute or squelch If the receiver is equipped with a mute, squelch or battery-saving circuit, this circuit shall be made inoperative for the duration of the tests. 4.3.5 Marking (equipment identification) The equipment shall be marked in a visible place. This marking shall be legible and durable. Where this is not possible due to physical constraints, the marking shall be included in the users manual. SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 13 4.3.5.1 Equipment identification The marking shall include as a minimum: - the name of the manufacturer or his trademark; - the type designation; - equipment classification, see clause 4.1.1. 4.3.5.2 Regulatory marking The equipment shall be marked, where applicable, in accordance with CEPT/ERC Recommendation 70-03 [1] or the Directive 1999/5/EC [4], whichever is applicable. Where this is not applicable the equipment shall be marked in accordance with the National Regulatory requirements. 4.4 Declarations by the applicant Where appropriate, the applicant shall supply the necessary information required by the appropriate application form. 4.5 Auxiliary test equipment All necessary test signal sources and set-up information shall accompany the equipment when it is submitted for type testing. 4.6 Interpretation of the measurement results The interpretation of the results recorded on the appropriate test report for the measurements described in the present document shall be as follows: - the measured value relating to the corresponding limit shall be used to decide whether an equipment meets the requirements of the present document; - the measurement uncertainty value for the measurement of each parameter shall be included in the test report; - the recorded value of the measurement uncertainty shall, for each measurement, be equal to, or lower than, the figures in the table of measurement uncertainty (see clause 9). 5 Test conditions, power sources and ambient temperatures 5.1 Normal and extreme test conditions Type testing shall be made under normal test conditions, and also, where stated, under extreme test conditions. The test conditions and procedures shall be as specified in clauses 5.2 to 5.4. 5.2 Test power source The equipment shall be tested using the appropriate test power source as specified in clauses 5.2.1 or 5.2.2. Where equipment can be powered using either external or internal power sources, then the equipment shall be tested using the external power source as specified in clause 5.2.1 then repeated using the internal power source as specified in clause 5.2.2. The test power source used shall be stated in the test report. SIST EN 300 440-1 V1.3.1:2003
ETSI ETSI EN 300 440-1 V1.3.1 (2001-09) 14 5.2.1 External test power source During type tests, the power source of the equipment shall be replaced by an external test power source capable of producing normal and extreme test voltages as specified in clauses 5.3.2 and 5.4.2. The internal impedance of the external test power source shall be low enough for its effect on the test results to be negligible. For the purpose of the tests, the voltage of the external test power source shall be measured at the input terminals of the equipment. The external test power source shall be suitably de-coupled and applied as close to the equipment battery terminals as practicable. For radiated measurements any external power leads should be so arranged so as not to affect the measurements. During tests the test power source voltages shall be within a tolerance of < ±1 % relative to the voltage at the beginning of each test. The value of this tolerance can be critical for certain measurements. Using a smaller tolerance will provide a better uncertainty value for these measurements. 5.2.2 Internal test power source For radiated measurements on portable equipment with integral antenna, fully charged internal batteries should be used. The batteries used should be as supplied or recommended by the applicant. If internal batteries are used, at the end of each test the voltage shall be within a tolerance of < ±5 % relative to the voltage at the beginning of each
...
