Flexible sheets for waterproofing - Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet - Definitions and characteristics

This document specifies definitions and characteristics of flexible plastic and rubber sheets which are intended to be used as damp proofing for buildings, including basement tanking. It specifies the requirements and test methods, and provides for the evaluation of conformity of the products with the requirements of this standard.

Abdichtungsbahnen - Kunststoff- und Elastomerbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser - Definitionen und Eigenschaften

Feuilles souples d'étanchéité - Feuilles plastiques et élastomères empêchant les remontées capillaires du sol - Définitions et caractéristiques

La présente Norme européenne spécifie les définitions et les caractéristiques des feuilles souples plastiques et élastomères qui sont destinées à être utilisées pou  empêcher les remontées capillaires du sol dans les bâtiments. Elle spécifie les exigences et les méthodes d'essai et fournit des indications relatives à l'évaluation de la conformité des produits aux exigences de la présente Norme.

Hidroizolacijski trakovi - Polimerni in elastomerni tesnilni trakovi za temelje - Definicije in lastnosti

V tem dokumentu so navedene definicije in lastnosti polimernih in elastomernih trakov, namenjenih uporabi kot tesnilni trakovi za temelje stavb. Določa zahteve in preskusne metode ter predvideva vrednotenje skladnosti proizvodov z zahtevami iz tega standarda.

General Information

Status
Published
Publication Date
15-Aug-2017
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
20-Apr-2017
Due Date
25-Jun-2017
Completion Date
16-Aug-2017

RELATIONS

Buy Standard

Standard
SIST EN 13967:2012+A1:2017 - natisnjeno za čitalnico
English language
32 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hidroizolacijski trakovi - Polimerni in elastomerni tesnilni trakovi za temelje - Definicije in lastnostiAbdichtungsbahnen - Kunststoff- und Elastomerbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser - Definitionen und EigenschaftenFeuilles souples d'étanchéité - Feuilles plastiques et élastomères empêchant les remontées capillaires du sol - Définitions et caractéristiquesFlexible sheets for waterproofing - Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet - Definitions and characteristics91.100.50Veziva. Tesnilni materialiBinders. Sealing materials01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 13967:2012+A1:2017SIST EN 13967:2012+A1:2017en,fr,de01-september-2017SIST EN 13967:2012+A1:2017SLOVENSKI

STANDARDSIST EN 13967:20121DGRPHãþD
SIST EN 13967:2012+A1:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13967:2012+A1
April
t r s y ICS
r sä r v rä { sâ
{ sä s r rä w r Supersedes EN
s u { x yã t r s tEnglish Version

Flexible sheets for waterproofing æ Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet æ Definitions and characteristics Feuilles souples d 5étanchéité æ Feuilles plastiques et élastomères empêchant les remontées capillaires du sol æ Définitions et caractéristiques

Abdichtungsbahnen æ Kunststoffæ und Elastomerbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser æ Definitionen und Eigenschaften This European Standard was approved by CEN on

t u March
t r s t and includes Amendment
s approved by CEN on
t v January
t r s yä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s u { x yã t r s t ªA sã t r s y ESIST EN 13967:2012+A1:2017

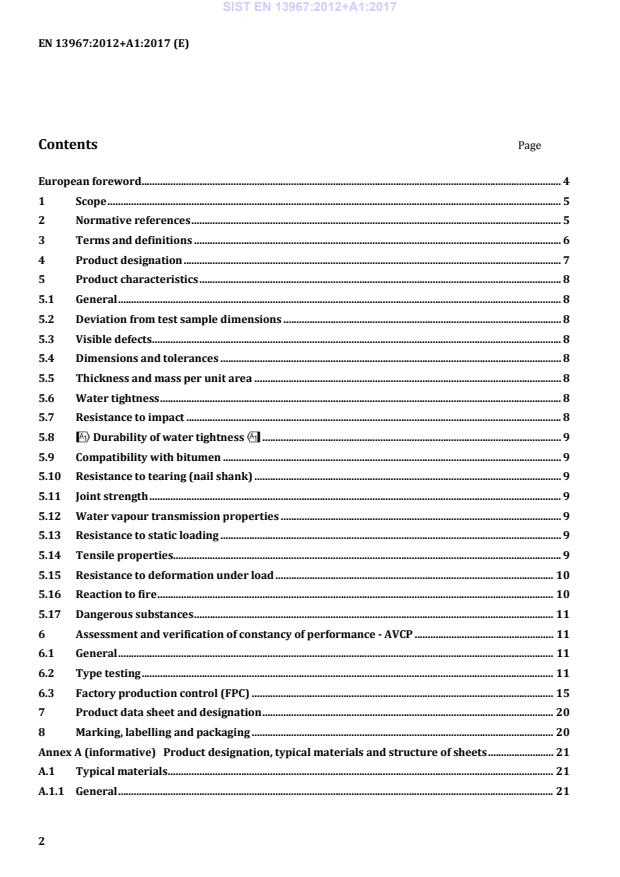

EN 13967:2012+A1:2017 (E) 2 Contents

Page European foreword ................................................................................................................................................................ 4 1 Scope ............................................................................................................................................................................. 5 2 Normative references ............................................................................................................................................. 5 3 Terms and definitions ............................................................................................................................................ 6 4 Product designation ................................................................................................................................................ 7 5 Product characteristics .......................................................................................................................................... 8 5.1 General ......................................................................................................................................................................... 8 5.2 Deviation from test sample dimensions .......................................................................................................... 8 5.3 Visible defects ............................................................................................................................................................ 8 5.4 Dimensions and tolerances .................................................................................................................................. 8 5.5 Thickness and mass per unit area ..................................................................................................................... 8 5.6 Water tightness ......................................................................................................................................................... 8 5.7 Resistance to impact ............................................................................................................................................... 8 5.8 !Durability of water tightness" .................................................................................................................. 9 5.9 Compatibility with bitumen ................................................................................................................................. 9 5.10 Resistance to tearing (nail shank) ..................................................................................................................... 9 5.11 Joint strength ............................................................................................................................................................. 9 5.12 Water vapour transmission properties ........................................................................................................... 9 5.13 Resistance to static loading .................................................................................................................................. 9 5.14 Tensile properties .................................................................................................................................................... 9 5.15 Resistance to deformation under load .......................................................................................................... 10 5.16 Reaction to fire ....................................................................................................................................................... 10 5.17 Dangerous substances ......................................................................................................................................... 11 6 Assessment and verification of constancy of performance - AVCP ..................................................... 11 6.1 General ...................................................................................................................................................................... 11 6.2 Type testing ............................................................................................................................................................. 11 6.3 Factory production control (FPC) ................................................................................................................... 15 7 Product data sheet and designation ............................................................................................................... 20 8 Marking, labelling and packaging ................................................................................................................... 20 Annex A (informative)

Product designation, typical materials and structure of sheets ......................... 21 A.1 Typical materials ................................................................................................................................................... 21 A.1.1 General ...................................................................................................................................................................... 21 SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 3 A.1.2 Plastics ....................................................................................................................................................................... 21 A.1.3 Rubbers ..................................................................................................................................................................... 21 A.1.4 Thermoplastic rubbers ........................................................................................................................................ 22 Annex B (normative)

Method of measuring the resistance of ventilating and draining damp-proof sheets to deformation under load .......................................................................................... 23 B.1 Principle .................................................................................................................................................................... 23 B.2 Apparatus ................................................................................................................................................................. 24 B.3 Preparation of test samples and test specimens ........................................................................................ 25 B.3.1 Sampling ................................................................................................................................................................... 25 B.3.2 Preparation of test specimens .......................................................................................................................... 25 B.4 Procedure ................................................................................................................................................................. 26 B.5 Expression of results ............................................................................................................................................ 26 B.6 Test report ............................................................................................................................................................... 26 Annex ZA (informative)

!Relationship of this European Standard with Regulation (EU) No.305/2011" ..................................................................................................................................................... 28 ZA.1 Scope and relevant characteristics ................................................................................................................. 28 ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) ............................... 29 ZA.3 Assignment of AVCP tasks .................................................................................................................................. 29 Bibliography .......................................................................................................................................................................... 32

SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 4 European foreword This document (EN 13967:2012+A1:2017) has been prepared by Technical Committee CEN/TC 254 “Flexible sheets for waterproofing”, the secretariat of which is held by NEN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by October 2017, and conflicting national standards shall be withdrawn at the latest by January 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1 approved by CEN on 2017-01-24. This document supersedes !EN 13967:2012". The start and finish of text introduced or altered by amendment is indicated in the text by tags !". !deleted text" This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This European Standard is a general product standard for flexible sheets of plastics intended for damp proof sheets, including plastics basement tanking sheets, for use in buildings. This standard is one of a series of product standards for factory made flexible sheets for use in buildings. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 5 1 Scope This document specifies definitions and characteristics of flexible plastic and rubber sheets which are intended to be used as damp proofing for buildings, including basement tanking. It specifies the requirements and test methods, and provides for the evaluation of conformity of the products with the requirements of this standard. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1296, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roofing — Method of artificial ageing by long term exposure to elevated temperature EN 1548, Flexible sheets for waterproofing — Plastic and rubber sheets for roof waterproofing — Method for exposure to bitumen EN 1847:2009, Flexible sheets for waterproofing —Plastic and rubber sheets for roof waterproofing — Methods for exposure to liquid chemicals, including water EN 1848-2, Flexible sheets for waterproofing — Determination of length, width, straightness and flatness — Part 2: Plastic and rubber sheets for roof waterproofing EN 1849-2, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 2: Plastic and rubber sheets EN 1850-2, Flexible sheets for waterproofing — Determination of visible defects — Part 2: Plastic and rubber sheets for roof waterproofing EN 1928:2000, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of watertightness EN 1931, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of water vapour transmission properties EN 12310-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for waterproofing — Determination of resistance to tearing (nail shank) !EN 12311-2:2013 Flexible sheets for waterproofing — Determination of tensile properties — Part 2: Plastic and rubber sheets for roof waterproofing" EN 12317-2, Flexible sheets for waterproofing — Determination of shear resistance of joints — Part 2: Plastic and rubber sheets for roof waterproofing EN 12691, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of resistance to impact !EN 12730:2015", Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of resistance to static loading SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 6 EN 13416:2001, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Rules for sampling EN 13501-1:2007+A1:2009, Fire classification of construction products and building elements — Part 1: Classification using data from reaction to fire tests !EN 13859-1:2014", Flexible sheets for waterproofing — Definitions and characteristics of underlays — Part 1: Underlays for discontinuous roofing !CEN/TR 16625:2013, Flexible sheets for waterproofing — Statistical definition of manufacturer's limiting value and declared value (MLV and MDV) — 95 % Statistic" EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO 11925-2) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 13416:2001 and the following apply. 3.1 sheet for damp proofing plastic or rubber sheet used on or under floors/ground slabs or in walls to prevent liquid water not under hydrostatic pressure passing from the ground into the internal environment 3.2 ventilating or draining damp proof sheet sheet conforming to the definition in 3.1 and with the ability to provide a continuous void or structure to allow free movement of water vapour or liquid water between the sheet and any further construction 3.3 tanking sheet sheet conforming to the definition in 3.1 used in wall construction or on or under floors or ground slabs to prevent liquid water under hydrostatic pressure passing from the ground into the internal environment or from one section of the structure to another 3.4 manufacturer's limiting value MLV !nominal value including a single sided specification according to the product standard for a given test method or property Note 1 to entry: The MLV can be a minimum or a maximum value according to statements made under product characteristics of the relevant product standard. [CEN/TR 16625:2013, 2.2]" 3.5 manufacturer's declared value MDV !nominal value including double sided specification according to the product standard for a given test method or property SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 7 [CEN/TR 16625:2013, 2.1]" 3.6 plastic sheet factory-made flexible sheet made from a plastic polymeric material and which may include composites of other materials 3.7 rubber sheet factory-made flexible sheet made from an elastomeric polymeric material and which may include composites of other materials 3.8 sampling procedure used to select or constitute a sample 3.9 sample sheet from which a test piece is taken 3.10 test piece part of the sample from which test specimens are taken 3.11 test specimen piece of precise dimensions taken from the test piece 3.12 batch amount of product continuously manufactured to the same specification ! 3.13 overpack outer container or packaging designed to enclose on secure one or more inner containers or packagings" 4 Product designation The types of damp proof sheets covered by this document are designated as follows: TYPE A damp proof sheet; TYPE V damp proof ventilating or draining sheet; TYPE T tanking sheet. SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 8 5 Product characteristics 5.1 General 5.1.1 Where a tolerance is specified by this document, it does not have to be declared by the manufacturer. 5.1.2 When tested for purposes other than initial type testing or factory production control, the tests to determine product characteristics indicated in this document shall be started within 1 month of delivery from the manufacturer. ! 5.1.3 Manufacturer's limiting value (MLV) and declared value (MDV) shall be defined in accordance with CEN/TR 16625." 5.2 Deviation from test sample dimensions Where the contours of the product make it impossible to obtain a test sample of the required dimensions, or otherwise render the test impracticable, testing may be carried out either on samples of different dimensions, or if still impracticable, on the equivalent flat sheet of the same thickness as the finished product. Any such deviations from the test method shall be recorded on the test report and the product data sheet. 5.3 Visible defects The product shall be free of visible defects as determined in accordance with EN 1850-2. 5.4 Dimensions and tolerances The length, width and straightness shall be determined in accordance with EN 1848-2. The length and width shall lie within the declared tolerance of the manufacturer's declared value (MDV). The maximum deviation from straightness shall not exceed 75 mm per 10 m length or shall be in the same proportion for other lengths (e.g. 37,5 mm per 5 m length). 5.5 Thickness and mass per unit area !The thickness or mass per unit area shall be determined in accordance with EN 1849-2." Where a product is specified by mass per unit area, the mass shall lie within the declared tolerance of the manufacturer's declared value. Where the dimensions of any profile are comparable to the area to be measured, a larger sample area shall be used and the deviation from the test method noted. Where a product is specified by thickness, the thickness shall lie within the declared tolerance of the manufacturer's declared value. No single measurement shall lie outside the declared tolerance of the manufacturer's declared value. 5.6 Water tightness The product shall be watertight as determined by Method A or B of EN 1928:2000 with a pressure of 2 kPa for Types A and V damp proof sheets and a pressure of 60 kPa for Type T damp proof sheets. 5.7 Resistance to impact Where required, the resistance to impact shall be determined in accordance with EN 12691 and the result SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 9 shall be greater than or equal to the manufacturer's limiting value. ! 5.8 Durability of water tightness" 5.8.1 Against ageing/degradation In order to verify the artificial ageing behaviour of the product, watertightness shall be determined after exposure in accordance with EN 1296 for a period of 12 weeks. The watertightness shall be determined in accordance with EN 1928:2000 Method A or B. Type A and V damp proof sheets shall be tested at a pressure of 2 kPa and Type T tanking sheets at a pressure of 60 kPa, and shall give a pass result. 5.8.2 Against chemicals In order to verify the durability of the products, the sheet shall be tested before and after exposure to chemicals in accordance with EN 1847. The sheet shall be watertight as determined in accordance EN 1928:2000 Method A or B, with a pressure of 2 kPa for Types A and V damp proof sheets and a pressure of 60 kPa for Type T damp proof sheets, both before and after long-term exposure to alkali, in accordance with EN 1847:2009 test liquid 2 (milk of lime), 28 d, 23 °C. 5.9 Compatibility with bitumen Where required, the product shall be exposed to bitumen for 28 days at 70 °C using the method given in EN 1548, but with a sample size large enough to provide a 200 mm diameter circular sample after exposure. It shall be watertight when subsequently tested in accordance with Method A of EN 1928:2000. Type A and V damp proof sheets shall be tested at a pressure of 2 kPa and Type T tanking sheets at a pressure of 60 kPa. 5.10 Resistance to tearing (nail shank) !Tear resistance (nail shank) shall be determined in accordance with EN 12310-1 and shall be greater or equal to the manufacturer limiting value." 5.11 Joint strength Where required, the joint strength shall be determined in accordance with EN 12317-2 and shall be greater than or equal to the manufacturer's limiting value. 5.12 Water vapour transmission properties Where required, the moisture resistance factor

of plastic and rubber sheets shall be determined in accordance with EN 1931 and the result shall lie within the declared tolerance of the MDV. The tolerance of the MDV shall lie in ± 30 %. 5.13 Resistance to static loading !The resistance to static loading shall be determined in accordance with Method C of EN 12730:2015 and shall be greater than or equal to the manufacturer's limiting value. If required the resistance to static loading shall be determined in accordance with Method A of EN 12730:2015 and shall be greater than or equal to the manufacturer's limiting value." 5.14 Tensile properties !Type T and A: SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 10 The tensile properties for unreinforced sheets such as homogenous sheets and sheets with a non-woven inner layer (e.g. fibre glass mat) of less than or equal to 80 g/m2 shall be determined in accordance with Method B of EN 12311-2:2013. For all other sheets Method A of EN 12311-2:2013 shall be used to determine tensile properties. Type V: The tensile properties of unreinforced sheets shall be determined in accordance with EN 12311-2:2013 Method B and shall be greater than or equal to the manufacturer's limiting value for the longitudinal and transverse directions of the sheet. The tensile properties of reinforced sheets shall be determined in accordance with EN 13859-1:2014, Annex A. For all types T, A and V the tensile properties shall be greater than or equal to the manufacturer's limiting value for the longitudinal and transverse directions of the sheet." 5.15 Resistance to deformation under load The resistance of ventilating or draining damp proof sheets to deformation under load shall be determined in accordance with Annex B and the results shall be less than or equal to the manufacturer's limiting value of deformation at the defined load and the defined time. 5.16 Reaction to fire Where required, the product shall be tested and classified in accordance with EN 13501-1:2007+A1:2009, Table 1. According to EN ISO 11925-2, the test is required to be undertaken on the exposed surface of the delivered flexible sheet membrane (surface exposure), free hanging without any substrate, in one direction only. The reinforcement shall be stated by the manufacturer as “organic” or “inorganic”. a) Test results from EN ISO 11925-2 for a given product shall apply to all colors (including black and white). b) Test results from EN ISO 11925-2 for a given product without an inner layer (homogenous) shall apply to a comparable product with an additional organic inner layer (lower than 150g/m2) or any additional inorganic layer. c) Test results from EN ISO 11925-2 for a product with a thickness of above 1 mm shall apply to any comparable product with a higher thickness up to a limit of 3 mm respectively d) Test results from EN ISO 11925-2 for a given product with a backing shall apply to a comparable product with a backing of the same type of lower mass per unit area or no backing; e) !Test results from EN ISO 11925-2 for a given product with edge exposure shall also apply for surface exposure." NOTE Whether the Euroclasses Classification system at Classes D and above requires investigation to determine its appropriateness to the products covered by this document is currently under consideration. (In particular it is thought that the SBI test may be inappropriate for products covered by the standard.) Pending results of such an investigation and discussions in the Fire Experts Group, products covered by this document are tested to EN ISO 11925-2. If and when a new fire test scenario and test method are developed for the products, this document will be amended to refer to them. SIST EN 13967:2012+A1:2017

EN 13967:2012+A1:2017 (E) 11 5.17 Dangerous substances !National regulations on dangerous substances may require verification and declaration on release, and sometimes content, when construction products covered by this standard are placed on those markets. Verification and declaration on release/content should be done taking into account national provisions in the place of use. NOTE 1 An informative database covering European and national provisions on dangerous substances is available at the Construction web site on EUROPA accessed through: http://ec.europa.eu/growth/tools-databases/cp-ds_en NOTE 2 Experience has shown that products which have the same polymeric base as the components of the leaching apparatus specified in CEN/TS 16637-2 leach less than the detection limit of this method." ! 6 Assessment and verification of constancy of performance - AVCP 6.1 General The compliance of plastic and rubber damp proof sheets including plastic and rubber basement tanking sheets with the requirements of this standard and with the performances declared by the manufacturer in the DoP shall be demonstrated by: — determination of the product type; — factory production control by the manufacturer, including product assessment. The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the conformity of the product with its declared performance(s). NOTE The assignment of tasks to the notified body(ies) and the manufacturer is shown in Annex ZA, Tables ZA.3. 6.2 Type testing 6.2.1 General All performances related to characteristics included in this standard shall be determined when the manufacturer intends to declare the respective performances unless the standard gives provisions for declaring them without performing tests (e.g. use of previously existing data, CWFT and conventionally accepted performance). The performance of the characteristics shall be tested at the beginning of the production of a new product type (unless a member of the same family) or at the beginning of a new method of production (where this may affect the stated properties). Whenever a change occurs in the product design, the raw material, supplier of the components or the production process (subject to the definition of a family) which would change significantly one or more of the characteristics, the type tests shall be repeated for the appropriate characteristic(s). Assessment prev

...
