EUROPEAN STANDARD
EN 60143-2
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 29.240.99; 31.060.70 Supersedes EN 60143-2:1994
English version
Series capacitors for power systems -
Part 2: Protective equipment for series capacitor banks
(IEC 60143-2:2012)
Condensateurs série destinés Reihenkondensatoren für
à être installés sur des réseaux - Starkstromanlagen -
Partie 2: Matériel de protection pour les Teil 2: Schutzeinrichtungen für
batteries de condensateurs série Reihenkondensatorbatterien
(CEI 60143-2:2012) (IEC 60143-2:2012)
This European Standard was approved by CENELEC on 2013-01-15. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60143-2:2013 E
---------------------- Page: 3 ----------------------
SIST EN 60143-2:2013

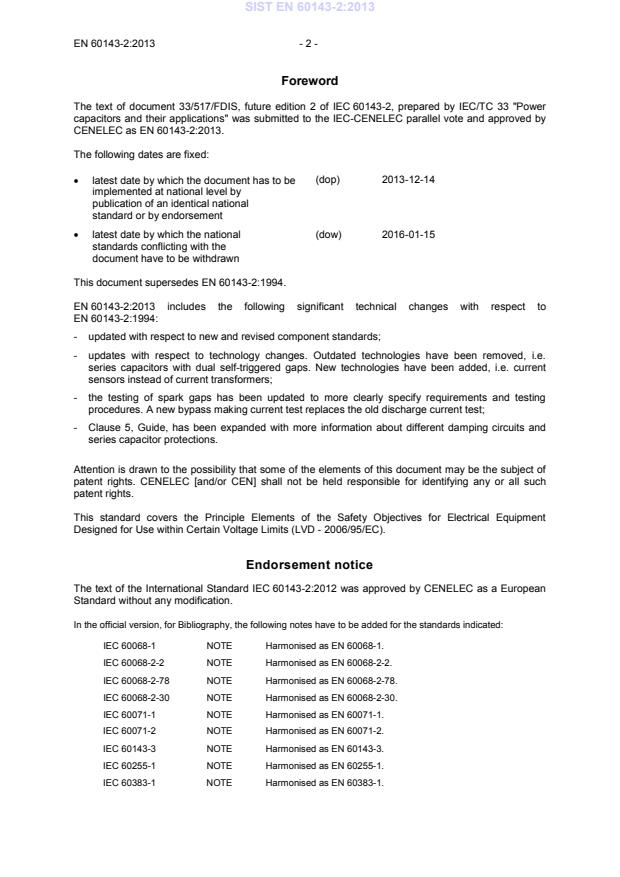

EN 60143-2:2013 - 2 -
Foreword
The text of document 33/517/FDIS, future edition 2 of IEC 60143-2, prepared by IEC/TC 33 "Power
capacitors and their applications" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 60143-2:2013.
The following dates are fixed:
(dop) 2013-12-14
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-01-15
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60143-2:1994.
EN 60143-2:2013 includes the following significant technical changes with respect to
EN 60143-2:1994:
- updated with respect to new and revised component standards;
- updates with respect to technology changes. Outdated technologies have been removed, i.e.
series capacitors with dual self-triggered gaps. New technologies have been added, i.e. current
sensors instead of current transformers;
- the testing of spark gaps has been updated to more clearly specify requirements and testing
procedures. A new bypass making current test replaces the old discharge current test;
- Clause 5, Guide, has been expanded with more information about different damping circuits and
series capacitor protections.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 60143-2:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60068-1 NOTE Harmonised as EN 60068-1.
IEC 60068-2-2 NOTE Harmonised as EN 60068-2-2.
IEC 60068-2-78 NOTE Harmonised as EN 60068-2-78.
IEC 60068-2-30 NOTE Harmonised as EN 60068-2-30.
IEC 60071-1 NOTE Harmonised as EN 60071-1.
IEC 60071-2 NOTE Harmonised as EN 60071-2.
IEC 60143-3 NOTE Harmonised as EN 60143-3.
IEC 60255-1 NOTE Harmonised as EN 60255-1.
IEC 60383-1 NOTE Harmonised as EN 60383-1.
---------------------- Page: 4 ----------------------
SIST EN 60143-2:2013
- 3 - EN 60143-2:2013
IEC 60383-2 NOTE Harmonised as EN 60383-2.
IEC 60507 NOTE Harmonised as EN 60507.
IEC 60549 NOTE Harmonised as EN 60549.
IEC 60654-1 NOTE Harmonised as EN 60654-1.
IEC 60654-4 NOTE Harmonised as EN 60654-4.
IEC 60871-1 NOTE Harmonised as EN 60871-1.
IEC 60909 Series NOTE Harmonised as EN 60909 Series (not modified).
IEC 61000-4-2 NOTE Harmonised as EN 61000-4-2.
IEC 61000-4-11 NOTE Harmonised as EN 61000-4-11.
IEC 62217 NOTE Harmonised as EN 62217.
IEC 62271-100 NOTE Harmonised as EN 62271-100.
IEC 62223 NOTE Harmonised as EN 62223.
