Aerospace series - Rivets, solid, 100° countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based series

This standard specifies the characteristics of solid rivets, with 100° countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based series, for maximum operating temperature 700 °C.

Luft- und Raumfahrt - Vollniete, mit 100° normalem Senkkopf, aus korrosionsbeständigem Stahl FE-PA PA11, passiviert, Inch-Reihe

Diese Norm legt die Eigenschaften von Vollnieten, mit 100° normalem Senkkopf, aus korrosionsbeständigem Stahl FE-PA11, passiviert, Inch-Reihe, zur Verwendung bei Temperaturen bis 700 °C, fest.

Série aérospatiale - Rivets ordinaires, a tete fraisée 100° normale, en acier résistant a la corrosion FE-PA11, passivés, série base inches

La présente norme spécifie les caractéristiques des rivets ordinaires, à tête fraisée 100° normale, en acier résistant à la corrosion FE-PA11, passivés, série base inches, pour température maximale d'utilisation 700 °C.

Aerospace series - Rivets, solid, 100-countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based series

General Information

• Status: Published
• Publication Date: 31-Dec-2001
• ICS: 49.030.60 - Rivets
• Technical Committee: SS SPL - Technical Board for the general field
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jan-2002
• Due Date: 01-Jan-2002
• Completion Date: 01-Jan-2002
• Ref Project: EN 3139:2001 - Aerospace series - Rivets, solid, 100° countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based series

Overview

SIST EN 3139:2002 is a European standard developed by CEN that defines the specifications for solid rivets used in aerospace applications. These rivets feature a 100° countersunk normal head and are made from corrosion resisting steel FE-PA11, which is passivated to enhance durability and corrosion resistance. The standard specifically addresses inch-based sizes suitable for operating temperatures up to 700 °C. This standard ensures that rivets meet stringent quality and performance requirements essential for aerospace engineering, facilitating uniformity and reliability in aircraft manufacturing and maintenance.

Key Topics

• Rivet Type: Solid rivets with a 100° countersunk normal head, optimized for aerospace use.
• Material: Corrosion resisting steel FE-PA11, passivated to improve corrosion resistance and surface durability.
• Size Series: Inch-based dimensional series, enabling compatibility with aerospace components designed in imperial units.
• Operating Temperature: Suitable for high-temperature environments, withstanding up to 700 °C.
• Dimensions and Mass: Detailed dimensional tolerances and mass specifications provided, ensuring precise application in aerospace assemblies.
• Marking and Identification: Rivets are marked according to EN 2424 (style G) and comply with material identification standards ISO 10299 and technical specifications detailed in ISO 2898.
• Manufacturing Quality: Compliance with EN 2000 for manufacturer quality system approval, ensuring consistent production integrity.

Applications

EN 3139 rivets are specifically engineered for aerospace manufacturing and repair, playing a pivotal role in:

• Aircraft Structural Assembly: Providing strong, durable fastening solutions for airframe components requiring flush surfaces for aerodynamic efficiency.
• High-Temperature Components: Used in engine surroundings or aircraft areas exposed to elevated temperatures due to their resistance to heat up to 700 °C.
• Corrosion-Prone Environments: Their corrosion-resistant FE-PA11 steel composition and passivation treatment ensure longevity in harsh environmental conditions encountered in aerospace operations.
• Precision Engineering: Inch-based sizing facilitates their use in aerospace markets or countries where imperial measurement systems predominate, allowing for accurate integration.

These rivets are essential in ensuring the structural integrity, safety, and performance of aerospace vehicles, contributing to overall aircraft reliability.

Related Standards

Understanding EN 3139 in the context of associated standards highlights its role within aerospace manufacturing quality control and material specification frameworks:

• ISO 10299 – Aerospace solid rivets material and metric series identification, ensuring consistent material classification.
• EN 2424 – Marking of aerospace products, dictating proper identification and traceability.
• EN 2470 – Specifications for steel FE-PA11 rivet wire, detailing the raw material properties.
• EN 2516 – Passivation processes for corrosion resisting steels, critical for rivet surface treatment.
• ISO 2898 – Technical specification for corrosion and heat resisting steel rivets, complementing EN 3139's material requirements.
• EN 2000 – Quality assurance for aerospace products, governing the approval of manufacturing quality systems.

Integration with these standards forms a comprehensive system to guarantee that aerospace rivets meet all required mechanical, chemical, and quality criteria.

---

Keywords: EN 3139 rivets, aerospace rivets, solid rivets, 100° countersunk head rivets, corrosion resisting steel FE-PA11, passivated rivets, inch-based rivet series, high-temperature rivets, aerospace fastening, aerospace standard, aerospace manufacturing quality.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Rivets, solid, 100-countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based seriesLuft- und Raumfahrt -
Vollniete,
mit 100° normalem Senkkopf, aus korrosionsbeständigem Stahl FE-PA PA11, passiviert, Inch-ReiheSérie aérospatiale -
Rivets ordinaires,
a tete fraisée 100° normale, en acier résistant a la corrosion FE-PA11, passivés, série base inchesAerospace series - Rivets, solid, 100° countersunk normal head, in corrosion resisting steel FE-PA11, passivated, inch based series49.030.60KoviceRivetsICS:Ta slovenski standard je istoveten z:EN 3139:2001SIST EN 3139:2002en01-januar-2002SIST EN 3139:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3139June 2001ICS 49.030.60English versionAerospace series - Rivets, solid, 100° countersunk normal head,in corrosion resisting steel FE-PA11, passivated, inch basedseriesSérie aérospatiale - Rivets ordinaires, à tête fraisée 100°normale, en acier résistant à la corrosion FE-PA11,passivés, série base inchesLuft- und Raumfahrt - Vollniete, mit 100° normalemSenkkopf, aus korrosionsbeständigem Stahl FE-PA11,passiviert, Zoll-ReiheThis European Standard was approved by CEN on 28 February 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3139:2001 ESIST EN 3139:2002

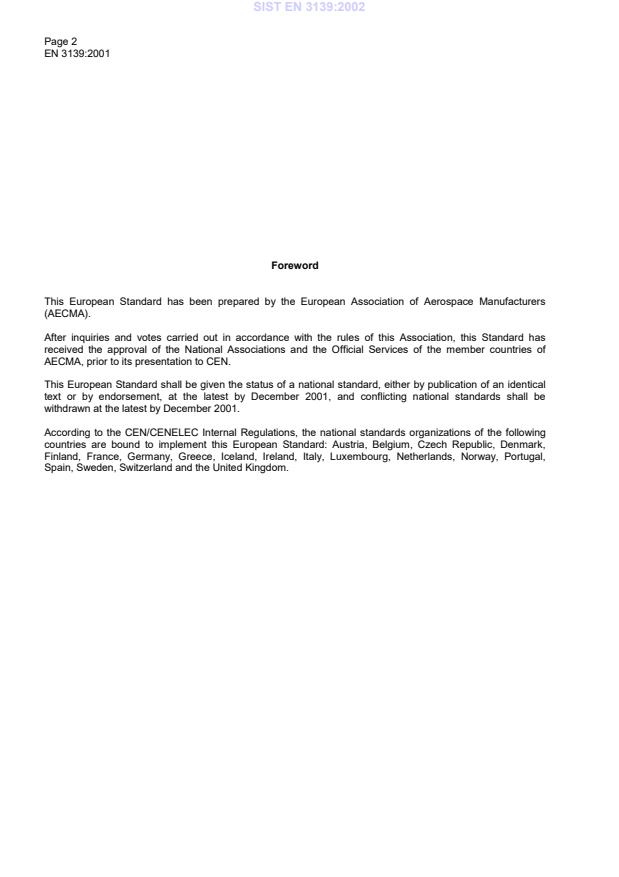

Page 2EN 3139:2001ForewordThis European Standard has been prepared by the European Association of Aerospace Manufacturers(AECMA).After inquiries and votes carried out in accordance with the rules of this Association, this Standard hasreceived the approval of the National Associations and the Official Services of the member countries ofAECMA, prior to its presentation to CEN.This European Standard shall be given the status of a national standard, either by publication of an identicaltext or by endorsement, at the latest by December 2001, and conflicting national standards shall bewithdrawn at the latest by December 2001.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark,Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal,Spain, Sweden, Switzerland and the United Kingdom.SIST EN 3139:2002

Page 3EN 3139:20011ScopeThis standard specifies the characteristics of solid rivets, with 100° countersunk normal head, in corrosionresisting steel FE-PA11, passivated, inch based series, for maximum operating temperature 700 °C.2Normative referencesThis European Standard incorporates by dated or undated reference provisions from other publications.These normative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent
...
