SLOVENSKI STANDARD
SIST EN 60358-2:2014
01-marec-2014
1DGRPHãþD
SIST HD 597 S1:2001

6NORSQLNRQGHQ]DWRUMLLQNRQGHQ]DWRUVNLGHOLOQLNLGHO,]PHQLþQLDOLHQRVPHUQL

HQRID]QLVNORSQLNRQGHQ]DWRUYH]DQPHGYRGQLNRPLQ]HPOMR]DDSOLNDFLMH]
QRVLOQRIUHNYHQFRSULNRPXQLNDFLMDKSRHQHUJHWVNLKYRGLK 3/&  ,(&


Coupling capacitors and capacitor dividers - Part 2: AC or DC single-phase coupling

capacitor connected between line and ground for power line carrier-frequency (PLC)

application
Condensateur de couplage monophasé à courant alternatif ou à courant continu

connecté entre la ligne et la terre pour application aux liaisons à courant porteur sur

lignes d'énergie (CPL)
Ta slovenski standard je istoveten z: EN 60358-2:2013
ICS:
31.060.99 Drugi kondenzatorji Other capacitors
33.040.60 Telekomunikacije po Powerline
elektroenergetskih vodih telecommunications
SIST EN 60358-2:2014 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60358-2:2014
---------------------- Page: 2 ----------------------
SIST EN 60358-2:2014
EUROPEAN STANDARD
EN 60358-2
NORME EUROPÉENNE
December 2013
EUROPÄISCHE NORM
ICS 29.120.99; 29.240.99; 31.060.70 Supersedes HD 597 S1:1992 (partially)
English version
Coupling capacitors and capacitor dividers -
Part 2: AC or DC single-phase coupling capacitor connected between line and
ground for power line carrier-frequency (PLC) application
(IEC 60358-2:2013)
Condensateurs de couplage et diviseurs Kopplungskondensatoren und kapazitive
capacitifs - Teiler -
Partie 2: Condensateur de couplage Teil 2: Einphasen-Kopplungskondensatoren

monophasé à courant alternatif ou à courant für Wechsel- oder Gleichstrom, die für

continu connecté entre la ligne et la terre Trägerfrequenzübertragungen auf
pour application aux liaisons à courant Hochspannungsleitungen (TFH-
porteur sur lignes d’énergie (CPL) Übertragung) zwischen Außenleiter und
(CEI 60358-2:2013) Erde geschaltet sind
(IEC 60358-2:2013)

This European Standard was approved by CENELEC on 2013-09-16. CENELEC members are bound to comply with

the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a

national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to

the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language

made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-

CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the

Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,

Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60358-2:2013 E
---------------------- Page: 3 ----------------------
SIST EN 60358-2:2014
EN 60358-2:2013 - 2 -

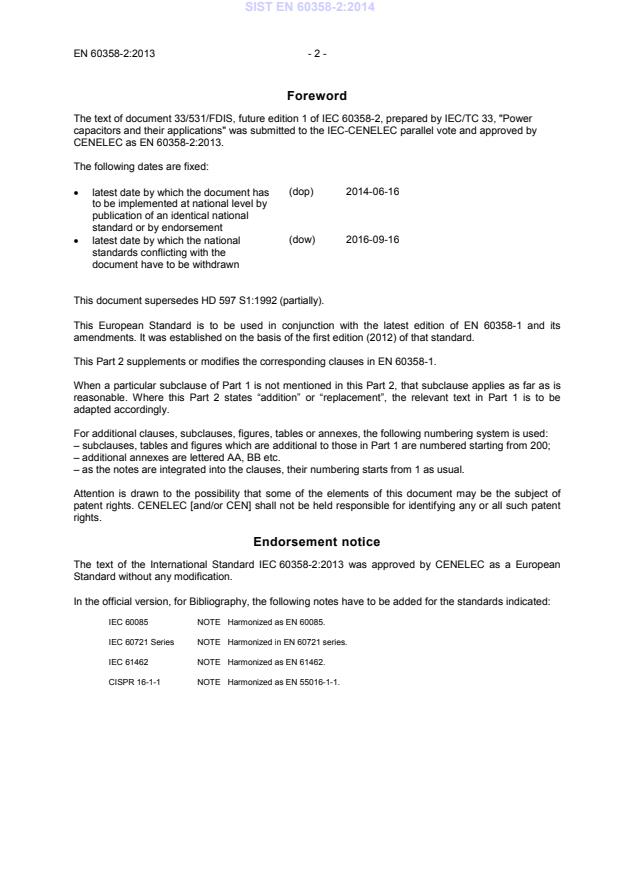

Foreword

The text of document 33/531/FDIS, future edition 1 of IEC 60358-2, prepared by IEC/TC 33, "Power

capacitors and their applications" was submitted to the IEC-CENELEC parallel vote and approved by

CENELEC as EN 60358-2:2013.
The following dates are fixed:
• latest date by which the document has (dop) 2014-06-16
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-09-16
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes HD 597 S1:1992 (partially).

This European Standard is to be used in conjunction with the latest edition of EN 60358-1 and its

amendments. It was established on the basis of the first edition (2012) of that standard.

This Part 2 supplements or modifies the corresponding clauses in EN 60358-1.

When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as far as is

reasonable. Where this Part 2 states “addition” or “replacement”, the relevant text in Part 1 is to be

adapted accordingly.

For additional clauses, subclauses, figures, tables or annexes, the following numbering system is used:

– subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 200;

– additional annexes are lettered AA, BB etc.

– as the notes are integrated into the clauses, their numbering starts from 1 as usual.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent

rights.
Endorsement notice

The text of the International Standard IEC 60358-2:2013 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60085 NOTE Harmonized as EN 60085.
IEC 60721 Series NOTE Harmonized in EN 60721 series.
IEC 61462 NOTE Harmonized as EN 61462.
CISPR 16-1-1 NOTE Harmonized as EN 55016-1-1.
---------------------- Page: 4 ----------------------
SIST EN 60358-2:2014
- 3 - EN 60358-2:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60060-1 High-voltage test techniques - Part 1: General EN 60060-1
definitions and test requirements
IEC 60060-2 High-voltage test techniques - Part 2: EN 60060-2
Measuring systems
IEC 60358-1 2012 Coupling capacitors and capacitor dividers - EN 60358-1 2012
+ corr. July 2013 Part 1: General rules + AC:2013 2013
IEC 60481 Coupling devices for power line carrier - -
systems
IEC 61869-5 Instrument transformers - Part 5: Additional
requirements for capacitor voltage
transformers
---------------------- Page: 5 ----------------------
SIST EN 60358-2:2014
---------------------- Page: 6 ----------------------
SIST EN 60358-2:2014
IEC 60358-2
Edition 1.0 2013-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Coupling capacitors and capacitor dividers –
Part 2: AC or DC single-phase coupling capacitor connected between line and
ground for power line carrier-frequency (PLC) application
Condensateurs de couplage et diviseurs capacitifs –
Partie 2: Condensateur de couplage monophasé à courant alternatif ou à

courant continu connecté entre la ligne et la terre pour application aux liaisons à

courant porteur sur lignes d’énergie (CPL)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX R
ICS 29.120.99; 29.240.99; 31.060.70 ISBN 978-2-8322-1038-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 60358-2:2014
– 2 – 60358-2 © IEC:2013
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope ............................................................................................................................... 7

2 Normative references ....................................................................................................... 7

3 Terms and definitions ....................................................................................................... 7

3.200 Carrier-frequency accessories definitions ............................................................. 8

4 Service conditions ............................................................................................................ 8

5 Ratings ............................................................................................................................. 8

6 Design requirements ........................................................................................................ 8

6.200 Design requirements for coupling capacitor and carrier-frequency

accessories .......................................................................................................... 8

6.200.1 Design requirements for coupling capacitor .......................................... 8

6.200.2 Design requirements for carrier-frequency accessories ......................... 9

7 Test conditions ............................................................................................................... 10

8 Classification of tests ..................................................................................................... 10

8.1 General ................................................................................................................. 10

8.2 Routine tests ......................................................................................................... 10

8.2.200 General .............................................................................................. 10

8.2.201 Routine tests for carrier frequency accessories ................................... 10

8.3 Type tests ............................................................................................................. 10

8.3.200 Type test for coupling capacitor and carrier-frequency

accessories ........................................................................................ 10

8.4 Special tests.......................................................................................................... 11

9 Routine tests .................................................................................................................. 11

9.1 Tightness of the liquid-filled equipment.................................................................. 11

9.2 Electrical routine tests ........................................................................................... 11

9.2.200 Electrical tests for coupling capacitor and carrier frequency

accessories ........................................................................................ 11

10 Type tests ...................................................................................................................... 12

10.200 Test on capacitor ................................................................................................ 12

10.200.1 High frequency capacitance and equivalent series resistance ............. 12

10.200.2 Measurement of the stray capacitance and stray conductance of

the low voltage terminal ...................................................................... 12

10.201 Type test on carrier frequency accessories ......................................................... 13

10.201.1 General .............................................................................................. 13

10.201.2 Type tests for drain coil ...................................................................... 13

10.201.3 Type test for voltage limitation device together with drain coil:

Impulse voltage test ............................................................................ 14

11 Special tests ................................................................................................................... 14

12 Marking .......................................................................................................................... 15

12.1 General ............................................................................................................ 15

12.2 Marking of capacitor ......................................................................................... 15

12.200 Marking of the carrier-frequency accessories ................................................... 15

Annexes ............................................................................................................................... 15

Annex A (informative) Typical diagram of an equipment ....................................................... 16

---------------------- Page: 8 ----------------------
SIST EN 60358-2:2014
60358-2 © IEC:2013 – 3 –

Annex AA (informative) High-frequency characteristics of coupling capacitors for

power line carrier circuits ...................................................................................................... 17

Bibliography .......................................................................................................................... 19

Figure A.200.1 – Example of a diagram for a coupling capacitor with carrier-frequency

accessories (see IEC 60481) ................................................................................................ 16

Figure AA.1 – Wiring diagram of the measuring circuit for the high-frequency

capacitance and equivalent series resistance of a coupling capacitor ................................... 18

Figure AA.2 – Relation between length and capacitance where capacitive deviation –

20 % to +50 % can be fulfilled up to 500 kHz ........................................................................ 18

Table 200 – Limits of temperature rise of windings................................................................ 14

---------------------- Page: 9 ----------------------
SIST EN 60358-2:2014
– 4 – 60358-2 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COUPLING CAPACITORS AND CAPACITOR DIVIDERS –
Part 2: AC or DC single-phase coupling capacitor connected between
line and ground for power line carrier-frequency (PLC) application
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60358-2 has been prepared by IEC technical committee 33: Power

capacitors and their applications.
The text of this standard is based on the following documents:
FDIS Report on voting
33/531/FDIS 33/537/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60358 series, published under the general title Coupling

capacitors and capacitor dividers, can be found on the IEC website.
---------------------- Page: 10 ----------------------
SIST EN 60358-2:2014
60358-2 © IEC:2013 – 5 –

This International Standard is to be used in conjunction with the latest edition of IEC 60358-1

and its amendments. It was established on the basis of the first edition (2012) of that

standard.
This Part 2 supplements or modifies the corresponding clauses in IEC 60358-1.

When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies

as far as is reasonable. Where this Part 2 states “addition” or “replacement”, the relevant text

in Part 1 is to be adapted accordingly.

For additional clauses, subclauses, figures, tables or annexes, the following numbering

system is used:

– subclauses, tables and figures which are additional to those in Part 1 are numbered

starting from 200;
– additional annexes are lettered AA, BB etc.

– as the notes are integrated into the clauses, their numbering starts from 1 as usual.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 11 ----------------------
SIST EN 60358-2:2014
– 6 – 60358-2 © IEC:2013
INTRODUCTION
This series consists of the following parts:
IEC 60358-1, Coupling capacitors and capacitor dividers – Part 1: General rules

IEC 60358-2, Coupling capacitors and capacitor dividers – Part 2: AC or DC single-phase

coupling capacitor connected between line and ground for power line
carrier-frequency (PLC) application

IEC 60358-3 , Coupling capacitors and capacitor dividers – Part 3: AC or DC single-phase

coupling capacitor connected between line and ground for harmonic-filters
applications

IEC 60358-4 , Coupling capacitors and capacitor dividers – Part 4: AC or DC single-phase

capacitor-divider and RC-divider connected between line and ground
(except for CVT’s which belong to IEC 61869 series)
—————————
Under consideration.
Under consideration.
---------------------- Page: 12 ----------------------
SIST EN 60358-2:2014
60358-2 © IEC:2013 – 7 –
COUPLING CAPACITORS AND CAPACITOR DIVIDERS –
Part 2: AC or DC single-phase coupling capacitor connected between
line and ground for power line carrier-frequency (PLC) application
1 Scope
Clause 1 of IEC 60358-1:2012 is applicable with the following additions:

This part of the IEC 60358 series applies to AC or DC single-phase coupling capacitors, with

rated voltage > 1 000 V, connected between line and ground with a low voltage terminal either

permanently earthed or connected to a device for power line carrier-frequency (PLC)

applications at frequencies from 30 kHz to 500 kHz or similar applications (DC or AC) at

power frequencies from 15 Hz to 60 Hz.

The transmission requirements for coupling devices for power line carrier (PLC) systems are

defined in IEC 60481.

NOTE Diagrams of coupling capacitors to which this standard applies are given in Figure A.1.

2 Normative references
Clause 2 of IEC 60358-1:2012 is replaced by the following:

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60060-1, High-voltage test techniques – Part 1: General definitions and test requirements

IEC 60060-2, High-voltage test techniques – Part 2: Measuring systems

IEC 60358-1:2012, Coupling capacitors and capacitor dividers. – Part 1: General rules

IEC 60481, Coupling devices for power line carrier systems

IEC 61869-5, Instrument transformers – Part 5: Additional requirements for capacitor voltage

transformers
3 Terms and definitions
Clause 3 of IEC 60358-1:2012 is applicable with the following additions:

For the purposes of this document, the terms and definitions given in Clause 3 of

IEC 60358-1:2012, as well as the following apply.
---------------------- Page: 13 ----------------------
SIST EN 60358-2:2014
– 8 – 60358-2 © IEC:2013
3.200 Carrier-frequency accessories definitions
3.200.1
coupling device

arrangement of elements which contribute to ensure, together with one or more associated

coupling capacitors, the transmission, under prescribed conditions, of carrier-frequency

signals between one or more conductors of the power line and the carrier-frequency

connection
3.200.2
carrier-frequency accessories

circuit element intended to permit the injection of carrier frequency signal and which is

connected between the low voltage terminal of a coupling capacitor unit and earth, and having

an impedance which is insignificant at the power frequency, but appreciable at carrier

frequency
Note 1 to entry: See Figure A.1.
3.200.3
drain coil

inductance which is connected between the low voltage terminal of a coupling capacitor and

earth, and whose impedance is insignificant at the power frequency, but has a high value at

the carrier frequency
3.200.4
voltage limitation device

element connected between the coupling capacitor and earth to limit the overvoltages which

appear across the coupling device.
Note 1 to entry: Overvoltages appear in case of:
a) a short circuit between the high-voltage terminal and earth;

b) where an impulse voltage is applied between the high voltage terminal and earth.

3.200.5
carrier earthing switch
switch for earthing the low voltage terminal
4 Service conditions
Clause 4 of IEC 60358-1:2012 is applicable.
5 Ratings
Clause 5 of IEC 60358-1:2012 is applicable.
6 Design requirements
Clause 6 of IEC 60358-1:2012 is applicable with the following additions:

6.200 Design requirements for coupling capacitor and carrier-frequency accessories

6.200.1 Design requirements for coupling capacitor

Coupling capacitors shall be designed to withstand an additional steady high frequency

current of at least 1 A (r.m.s. value of current equivalent to a power of 400 W for a terminal

resistance of 400 Ω), without any damage or deterioration.
---------------------- Page: 14 ----------------------
SIST EN 60358-2:2014
60358-2 © IEC:2013 – 9 –
6.200.2 Design requirements for carrier-frequency accessories
6.200.2.1 General

The carrier-frequency accessories, comprising a drain coil and a protective device, shall be

connected between the low voltage terminal of the coupling capacitor and the earth terminal.

The connections are typically as shown in Figure A.1.
The requirements for the complete coupling device are specified in IEC 60481.
6.200.2.2 Drain coil
The drain coil shall be designed in such a way, that:

a) for an AC application, the impedance should be as low as possible and in no case exceed

20 Ω at power frequency;

for a DC application, no standard value is defined; manufacturer and purchaser shall

define the impedance value;
b) the current-carrying capability at power frequency is as follows:

– continuous operation: rated current of capacitor, but not less than 1 A r.m.s.;

– short-time current: 30 A r.m.s. for 0,2 s;

c) the drain coil shall be able to withstand a 1,2/50 μs impulse voltage whose peak value is

twice the value of the impulse spark voltage of the voltage limitation device, but the

minimum value should be 10 kV peak (see 10.201.2.2)

d) for a drain coil with iron core, the insulation between winding and iron core shall support

3 kV for 60 s (see 9.2.200.2.1.3).

e) If the maximum fundamental frequency current of the capacitor is higher than 1 A, the

continuous operation current for the drain coil should be increased accordingly

f) for a DC application, the grading current of the coupling capacitor shall not saturate the

drain coil.
6.200.2.3 Voltage limitation device

A lightning arrester shall be connected as directly as possible between the low voltage

terminal of the coupling capacitor and the earth terminals and shall be capable of protecting

the coupling device and the carrier-frequency connection.

For AC applications: The AC protection level voltage U at power frequency shall be greater

than 10 times the maximum AC voltage across the drain coil during rated operation

conditions.
The voltage U is given by the following formula:
U ≥ 10⋅ F ⋅ ⋅(2⋅π ⋅ f ) ⋅ C ⋅ L
PL V R R D
where
L is the value of the drain coil in henry;
F is the voltage factor according to IEC 60358-1:2012, Table 2.

NOTE 1 Arresters of the air-gap type or those of the non-linear resistor type are used.

Example:
a) power-frequency withstand test voltage:
– air-gap arrester: 2 kV r.m.s.,
– arrester with spark-gap: rated voltage: approx. 1 kV r.m.s.
---------------------- Page: 15 ----------------------
SIST EN 60358-2:2014
– 10 – 60358-2 © IEC:2013
b) impulse withstand voltage:

– air-gap arrester and arrester with spark-gap: at test impulse voltage of about 4 kV peak with a wave shape

8/20 μs the arrester are able to sustain the peak current of at least 5 kA.

NOTE 2 It is desirable that the arrester be capable of sustaining a power frequency current of at least 5 kA r.m.s.

for a period of 0,2 s while ensuring, even if damaged, that the other parts of the coupling device remain adequately

protected.
For DC applications:
The DC protection level voltage U shall be:
U ≥ 3,5 kV DC
NOTE 3 3,5 kV coming from 2,5 kV AC × √2.
7 Test conditions
Clause 7 of IEC 60358-1:2012 is applicable.
8 Classification of tests
8.1 General
Subclause 8.1 of IEC 60358-1:2012 is applicable with the following addition:

The tests specified in this standard are classified as routine tests, type tests and special

tests.
8.2 Routine tests
Subclause 8.2 of IEC 60358-1:2012 is applicable with the following additions:
8.2.200 General
The tests specified in 8.1 apply to coupling capacitors.
8.2.201 Routine tests for carrier frequency accessories
8.2.201.1 Routine test for drain coil
a) current carrying capability test (9.2.200.2.1.1);
b) measurement of the impedance at power frequency (9.2.200.2.1.2);
c) voltage test between winding and iron core (9.2.200.2.1.3).
8.2.201.2 Routine test for voltage limitation devise
AC or DC voltage test (9.2.200.2.2.1).
8.3 Type t
...
