This European Standard specifies a test code for the vibro-acoustic characterization of glandless circulators
with pump housing having a rated power input P1 ≤ 200W, intended to be used in heating installations,
domestic hot water service installations and cooling systems, and is limited to glandless circulators with
threaded connections of 11/2 inch. The test code comprises the test rig, the measurement method and the
test conditions.
This European Standard applies to glandless circulators, which are manufactured after the date of issue of
this European Standard.
The characterization principle is based on measuring the structure-borne and the fluid-borne power
transmitted respectively by vibration and pressure fluctuations in the pipe connected to a glandless circulator.
Pumpen - Kreiselpumpen - Umwälzpumpen in Nassläuferbauart mit elektrischer Leistungsaufnahme bis 200 W für Heizungsanlagen und Brauchwassererwärmungsanlagen für den Hausgebrauch - Geräuschprüfvorschrift (vibro-akustisch) zur Messung von Körperschall und Flüssigkeitsschall
Dieses Dokument legt eine Prüfvorschrift für die vibro-akustische Beschreibung von Umwälzpumpen mit einer Eingangsleistung P1 200W fest, die für die Anwendung in Heizungsanlagen, häuslichen Heisswasserinstallationen und Kühlungssystemen vorgesehen sind und auf Umwälzpumpen mit einer Schraubverbindung von 1½" beschränkt. Die Prüfvorschrift umfasst den Prüfstand, das Messverfahren und die Prüfbedingungen.
Diese Europäische Norm ist für Heizungsumwälzpumpen in Nassläuferbauart anzuwenden, die nach der Veröffentlichung dieser Norm hergestellt wurden.
Grundlage der Beschreibung ist die Messung von Körperschallleistung und Flüssigkeitsschallleistung, die durch Schwingungen bzw. Druckpulsationen in der mit der Umwälzpumpe verbundenen Rohrleitung weitergeleitet werden.
Pompes - Pompes rotodynamiques - Circulateurs sans presse-étoupe de puissance absorbée n'excédant pas 200 W, destinés au chauffage central et à la distribution d'eau chaude sanitaire domestique - Code d'essai sonore (vibro-acoustique) pour le mesurage des bruits de structure et hydrauliques
Le présent document spécifie un code d'essai pour la caractérisation vibro-acoustique des circulateurs sans presse-étoupe avec corps de pompe d'une puissance absorbée nominale P1 200W, destinés à être utilisés pour le chauffage central, la distribution d'eau chaude sanitaire domestique et les systèmes d'air conditionné, et est limité aux circulateurs sans presse-étoupe ayant des raccords filetés de 1"½. Le code d'essai comprend la boucle d’essai, la méthode de mesurage et les conditions d’essai.
La présente Norme européenne s'applique aux circulateurs sans presse-étoupe fabriqués après la date de publication de la présente Norme européenne.
Le principe de caractérisation est basé sur la mesure de la puissance, solidienne et dans le liquide, transmise respectivement par vibration et par fluctuations de pression dans le tuyau raccordé au circulateur sans presse-étoupe.
Črpalke - Centrifugalne črpalke - Obtočne črpalke z naznačeno vhodno močjo do največ 200 W za grelne in gospodinjske toplovodne napeljave - Oznaka preskusa hrupa (vibro-akustičnega) pri merjenju hrupa konstrukcije in hrupa tekočine
Ta evropski standard določa oznako preskusa za vibro-akustično karakterizacijo obtočnih črpalk z okrovom z naznačeno vhodno močjo P1 ≤ 200 W, ki so namenjene uporabi v grelnih in gospodinjskih toplovodnih napeljavah ter hladilnih sistemih, in je omejen na obtočne črpalke z navojnimi priključki 11/2 palcev. Oznaka preskusa zajema merilno mesto, merilno metodo in preskusne pogoje.
Ta evropski standard se uporablja za obtočne črpalke, ki so bile izdelane po datumu objave tega evropskega standarda.
Načelo karakterizacije temelji na merjenju moči konstrukcije in moči tekočine, ki jo oddajajo vibracijska nihanja in nihanja tlaka v cevi, priključeni na obtočno črpalko.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Pumpen - Kreiselpumpen - Umwälzpumpen in Nassläuferbauart mit elektrischer Leistungsaufnahme bis 200 W für Heizungsanlagen und Brauchwassererwärmungsanlagen für den Hausgebrauch - Geräuschprüfvorschrift (vibro-akustisch) zur Messung von Körperschall und FlüssigkeitsschallPompes - Pompes rotodynamiques - Circulateurs sans presse-étoupe de puissance absorbée n'excédant pas 200 W, destinés au chauffage central et à la distribution d'eau chaude sanitaire domestique - Code d'essai sonore (vibro-acoustique) pour le mesurage des bruits de structure et hydrauliquesPumps - Rotodynamic pumps - Glandless circulators having a rated power input not exceeding 200 W for heating installations and domestic hot water installations - Noise test code (vibro-acoustics) for measuring structure- and fluid-borne noise23.080ýUSDONHPumpsICS:Ta slovenski standard je istoveten z:EN 16644:2014SIST EN 16644:2015en,fr,de01-marec-2015SIST EN 16644:2015SLOVENSKI
STANDARDSIST EN 1151-2:2007/AC:2008SIST EN 1151-2:20071DGRPHãþD
SIST EN 16644:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16644
December 2014 ICS 23.080 Supersedes EN 1151-2:2006English Version
Pumps - Rotodynamic pumps - Glandless circulators having a rated power input not exceeding 200 W for heating installations and domestic hot water installations - Noise test code (vibro-acoustics) for measuring structure- and fluid-borne noise
Pompes - Pompes rotodynamiques - Circulateurs sans presse-étoupe de puissance absorbée n'excédant pas 200 W, destinés au chauffage central et à la distribution d'eau chaude sanitaire domestique - Code d'essai acoustique (vibro-acoustique) pour le mesurage des bruits de structure et hydrauliques
Pumpen - Kreiselpumpen - Umwälzpumpen in Nassläuferbauart mit elektrischer Leistungsaufnahme bis 200 W für Heizungsanlagen und Brauchwassererwärmungsanlagen für den Hausgebrauch -Geräuschprüfvorschrift (vibro-akustisch) zur Messung von Körperschall und Flüssigkeitsschall This European Standard was approved by CEN on 2 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16644:2014 ESIST EN 16644:2015

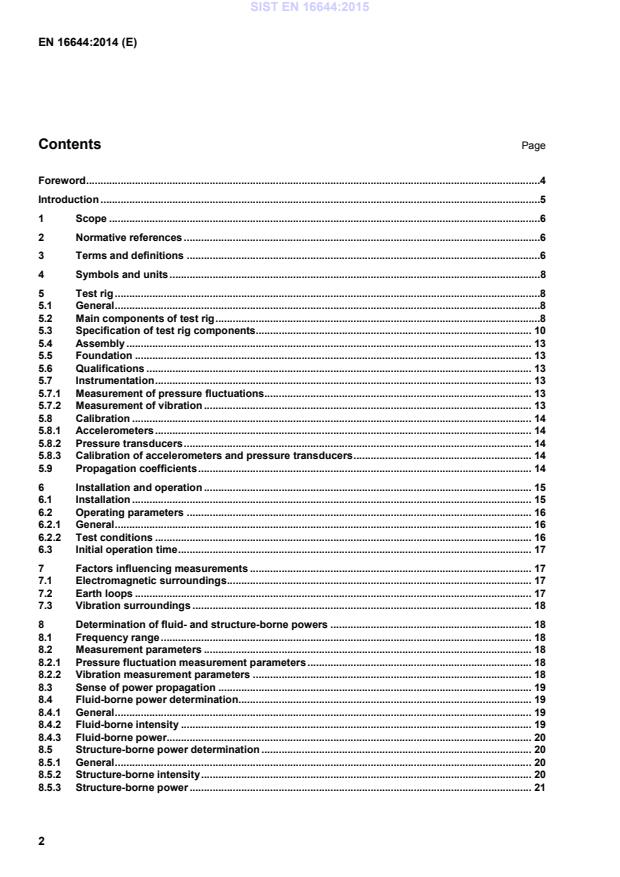

EN 16644:2014 (E) 2 Contents Page Foreword .4 Introduction .5 1 Scope .6 2 Normative references .6 3 Terms and definitions .6 4 Symbols and units .8 5 Test rig .8 5.1 General .8 5.2 Main components of test rig .8 5.3 Specification of test rig components. 10 5.4 Assembly . 13 5.5 Foundation . 13 5.6 Qualifications . 13 5.7 Instrumentation . 13 5.7.1 Measurement of pressure fluctuations. 13 5.7.2 Measurement of vibration . 13 5.8 Calibration . 14 5.8.1 Accelerometers . 14 5.8.2 Pressure transducers . 14 5.8.3 Calibration of accelerometers and pressure transducers . 14 5.9 Propagation coefficients . 14 6 Installation and operation . 15 6.1 Installation . 15 6.2 Operating parameters . 16 6.2.1 General . 16 6.2.2 Test conditions . 16 6.3 Initial operation time . 17 7 Factors influencing measurements . 17 7.1 Electromagnetic surroundings . 17 7.2 Earth loops . 17 7.3 Vibration surroundings . 18 8 Determination of fluid- and structure-borne powers . 18 8.1 Frequency range . 18 8.2 Measurement parameters . 18 8.2.1 Pressure fluctuation measurement parameters . 18 8.2.2 Vibration measurement parameters . 18 8.3 Sense of power propagation . 19 8.4 Fluid-borne power determination . 19 8.4.1 General . 19 8.4.2 Fluid-borne intensity . 19 8.4.3 Fluid-borne power. 20 8.5 Structure-borne power determination . 20 8.5.1 General . 20 8.5.2 Structure-borne intensity . 20 8.5.3 Structure-borne power . 21 SIST EN 16644:2015
