SIST EN ISO 18640-1:2018/A1:2020

Protective clothing for firefighters - Physiological impact - Part 1: Measurement of coupled heat and moisture transfer with the sweating torso - Amendment 1 (ISO 18640-1:2018/Amd 1:2019)

This European Standard specifies the Sweating Torso as a method to
measure the coupled heat and mass transfer through protective clothing
in fire fighters’ specific conditions.
NOTE The Sweating Torso is developed to perform highly reproducible
laboratory tests for heat and mass transfer on clothing systems under
controlled conditions which are closely correlated to real conditions. The
Sweating Torso is a cylinder with the same size as a human trunk. The
layers of the measurement cylinder are made of compact Teflon,
polyethylene and aluminium. Due to this combination of materials,
transient processes can be modelled. Thus, changes in the skin and core
temperature can be simulated. The Sweating Torso contains a total of 54
independently-controlled sweating nozzles. In order to avoid any axial
heat loss, the cylinder has a heated guard at each end. The cylinder and
the thermal guards are heated electrically using heating foils. The
Sweating Torso can be run either with constant surface temperature or
with constant heating. The whole Sweating Torso is placed on a
precision scale to assess the evaporated and condensed amount of
water.

Schutzkleidung für die Feuerwehr - Physiologische Wärmebelastung - Teil 1: Messung von gekoppeltem Wärme- und Feuchtetransport mit dem schwitzenden Torso - Änderung 1 (ISO 18640-1:2018/Amd 1:2019)

Vêtements de protection pour sapeurs-pompiers - Effet physiologique - Partie 1: Mesurage du transfert couplé de chaleur et d'humidité à l'aide du torse transpirant - Amendement 1 (ISO 18640-1:2018/Amd 1:2019)

Varovalna obleka za gasilce - Fiziološki vpliv - 1. del: Merjenje skupnega prenosa toplote in vlage s torzom za potenje - Dopolnilo A1 (ISO 18640-1:2018/Amd 1:2019)

Ta evropski standard določa torzo za potenje kot metodo za merjenje skupnega prenosa toplote in mase skozi varovalno obleko v specifičnih pogojih dela gasilcev. OPOMBA: torzo za potenje je bil zasnovan za izvajanje laboratorijskih preskusov z visoko stopnjo ponovljivosti za prenos toplote in mase na oblačila v nadzorovanih pogojih, ki so zelo podobni dejanskim pogojem. Torzo za potenje je valj, ki je enake velikosti kot človeški trup. Plasti merilnega valja so izdelan iz kompaktnega teflona, polietilena in aluminija. Takšna kombinacija materialov omogoča izdelavo modela za procese prehajanja. Na ta način je mogoče posnemati spremembe v temperaturi kože in bazalni temperaturi. Torzo za potenje skupaj vsebuje 54 šob za potenje z neodvisnim upravljanjem. Valj je na obeh koncih opremljen z ogrevanim varovalom, ki preprečuje aksialno izgubo toplote. Za ogrevanje valja in toplotnih varoval se uporabljajo električne grelne folije. Torzo za potenje lahko deluje s stalno temperaturo površine ali s stalnim ogrevanjem. Celoten torzo za potenje je postavljen na natančno tehtnico, s katero je mogoče oceniti količino izhlapele in kondenzirane vode.

General Information

• Status: Published
• Public Enquiry End Date: 19-May-2019
• Publication Date: 10-Dec-2019
• ICS: 13.220.10 - Fire-fighting
• ICS: 13.340.10 - Protective clothing
• Technical Committee: OVP - Personal protecting equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 27-Nov-2019
• Due Date: 01-Feb-2020
• Completion Date: 11-Dec-2019
• Ref Project: EN ISO 18640-1:2018/A1:2019 - Protective clothing for firefighters - Physiological impact - Part 1: Measurement of coupled heat and moisture transfer with the sweating torso - Amendment 1 (ISO 18640-1:2018/Amd 1:2019)

Relations

• Amends: SIST EN ISO 18640-1:2018 - Protective clothing for firefighters - Physiological impact - Part 1: Measurement of coupled heat and moisture transfer with the sweating torso (ISO 18640-1:2018)
• Effective Date: 01-Jan-2020

Overview

EN ISO 18640-1:2018/A1:2019 is an amendment to ISO 18640-1:2018 titled "Protective clothing for firefighters - Physiological impact - Part 1: Measurement of coupled heat and moisture transfer with the sweating torso." Prepared by ISO/TC 94 and adopted by CEN, this Amendment A1 (approved July 2019) clarifies test procedural elements and changes the status of key annexes. It refines how heat and moisture transfer are measured using the sweating torso test apparatus for firefighter protective ensembles.

Key topics and technical requirements

• Measurement focus: Coupled heat and moisture transfer using the sweating torso test method to assess physiological impact of firefighter protective clothing.
• Annex status changes: Annex A (technical description of the sweating torso) and Annex B (calibration) have been changed from informative to normative, making their contents mandatory for test conformity.
• Mandatory technical description: Amendment requires that “A technical description shall be given in Annex A,” reinforcing that apparatus details are part of the required method.
• Calibration requirements: The amendment adds explicit statements that calibration requirements shall be given in Annex B, and an additional clause in clause 5.5.1 points readers to Annex B for calibration procedure requirements.
• Specific corrections and clarifications:
  • Terminology correction: references to “lower guard” in A.4 were replaced by “upper guard”; dimensions provided in the amendment include a measurement cylinder diameter of 30.0 ± 0.25 cm and guard length 26.7 ± 0.25 cm, with the upper guard shell made of aluminium to ensure uniform temperature.
  • Measurement setup correction: Figure 4 key corrected to read “M2 reference wind speed measurement at distance l/2 to the outlet of fan system.”
  • Text edits: consistent use of phrasing such as “according to Annex A/B” for normative cross-references.

Applications and users

This amendment-and the underlying Part 1 test-are used by:

• PPE manufacturers and designers to validate thermal-moisture performance of turnout gear and to support product development.
• Independent testing laboratories and certification bodies performing standardized sweating-torso tests.
• Procurement and specifiers (fire services, safety managers) who require objective physiological performance data for selection of protective clothing.
• Standards committees and researchers involved in firefighter thermo-physiological risk assessment and test method development.

Related standards and context

• Part of the ISO 18640 series addressing physiological impact of firefighting clothing and developed by ISO/TC 94 (Personal safety - Personal protective equipment) in cooperation with CEN/TC 162.
• EN adoption required national implementation (withdrawal of conflicting national standards) by April 2020.

Keywords: EN ISO 18640-1:2018/A1:2019, protective clothing for firefighters, sweating torso, heat and moisture transfer, physiological impact, calibration, Annex A normative, Annex B normative, test method.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2020
Varovalna obleka za gasilce - Fiziološki vpliv - 1. del: Merjenje skupnega prenosa
toplote in vlage s torzom za potenje - Dopolnilo A1 (ISO 18640-1:2018/Amd 1:2019)
Protective clothing for firefighters - Physiological impact - Part 1: Measurement of
coupled heat and moisture transfer with the sweating torso - Amendment 1 (ISO 18640-
1:2018/Amd 1:2019)
Schutzkleidung für die Feuerwehr - Physiologische Wärmebelastung - Teil 1: Messung
von gekoppeltem Wärme- und Feuchtetransport mit dem schwitzenden Torso -
Änderung 1 (ISO 18640-1:2018/Amd 1:2019)
Vêtements de protection pour sapeurs-pompiers - Effet physiologique - Partie 1:
Mesurage du transfert couplé de chaleur et d'humidité à l'aide du torse transpirant -
Amendement 1 (ISO 18640-1:2018/Amd 1:2019)
Ta slovenski standard je istoveten z: EN ISO 18640-1:2018/A1:2019
ICS:
13.220.10 Gašenje požara Fire-fighting
13.340.10 Varovalna obleka Protective clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 18640-1:2018/A1
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 13.340.10
English Version
Protective clothing for firefighters - Physiological impact -
Part 1: Measurement of coupled heat and moisture
transfer with the sweating torso - Amendment 1 (ISO
18640-1:2018/Amd 1:2019)
Vêtements de protection pour sapeurs-pompiers - Effet Schutzkleidung für die Feuerwehr - Physiologische
physiologique - Partie 1: Mesurage du transfert couplé Wärmebelastung - Teil 1: Messung von gekoppeltem
de chaleur et d'humidité à l'aide du torse transpirant - Wärme- und Feuchtetransport mit dem schwitzenden
Amendement 1 (ISO 18640-1:2018/Amd 1:2019) Torso - Änderung 1 (ISO 18640-1:2018/Amd 1:2019)
This amendment A1 modifies the European Standard EN ISO 18640-1:2018; it was approved by CEN on 6 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18640-1:2018/A1:2019 E
worldwide for CEN national Members.

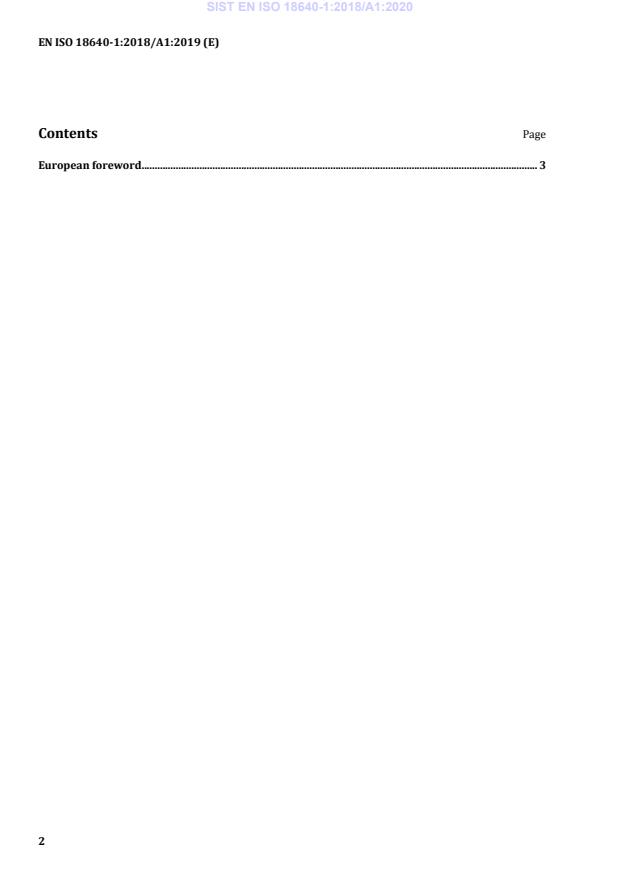

Contents Page
