SIST EN 301 681 V1.4.1:2012
(Main)Satellite Earth Stations and Systems (SES) - Harmonized EN for Mobile Earth Stations (MESs) of Geostationary mobile satellite systems, including handheld earth stations, for Satellite Personal Communications Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile Satellite Service (MSS) covering the essential requirements of article 3.2 of the R&TTE Directive
Satellite Earth Stations and Systems (SES) - Harmonized EN for Mobile Earth Stations (MESs) of Geostationary mobile satellite systems, including handheld earth stations, for Satellite Personal Communications Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile Satellite Service (MSS) covering the essential requirements of article 3.2 of the R&TTE Directive
REN/SES-00320
Satelitske zemeljske postaje in sistemi (SES) - Harmonizirani evropski standard (EN) za mobilne zemeljske postaje (MES) geostacionarnih mobilnih satelitskih sistemov, vključno z ročnimi zemeljskimi postajami, za satelitska osebna komunikacijska omrežja (S-PCN), ki delujejo v frekvenčnih pasovih 1,5/1,6 GHz pri mobilni satelitski storitvi (MSS), ki zajema bistvene zahteve člena 3.2 direktive o radijski in telekomunikacijski terminalski opremi (R&TTE)
Ta dokument velja za S-PCN MES za geostacionarne mobilne satelitske sisteme z EIRP, manjšim od 15 dBW ali enakim.
Ta dokument podaja minimalne delovne zahteve in tehnične značilnosti mobilnih zemeljskih postaj (MES) z zmožnostjo oddajanja in sprejemanja za delovanje v satelitskem osebnem komunikacijskem omrežju (S-PCN) v kateri koli kombinaciji vseh ali katerih koli delov podpasu 1 in podpasu 2 frekvenčnih pasov mobilnih satelitskih storitev (MSS), kot je določeno v preglednici 1.
S-PCN MES je lahko ročna, prenosna, nameščena na vozilo, povezana na gostitelja, polpritrjena ali pritrjena oprema, lahko pa je element v večrodovnem terminalu; lahko je sestavljena iz številnih modulov s povezanimi priključki in uporabniškimi vmesniki, lahko pa je ena samostojna enota.
Če je MES element v večrodovnem terminalu, razen če je drugače navedeno v tem dokumentu, njegove zahteve veljajo samo za element S-PCN MES terminala, ki deluje v frekvenčnem pasu MSS, navedenem v preglednici 1. Ta dokument zajema določbe člena 3.2 Direktive 1999/5/ES [1] (Direktive R&TTE), ki navaja, da je »… radijska oprema narejena tako, da učinkovito izrablja spekter, dodeljen
zemeljskim/vesoljskim radiokomunikacijam in orbitalnim virom, tako da ne pride do škodljivega motenja«. Poleg tega dokumenta se preostali EN, ki določajo tehnične zahteve v skladu z bistvenimi zahtevami v drugih delih člena 3 Direktive R&TTE [1], lahko uporabljajo za opremo v okviru obsega uporabe tega dokumenta.
General Information
Standards Content (Sample)

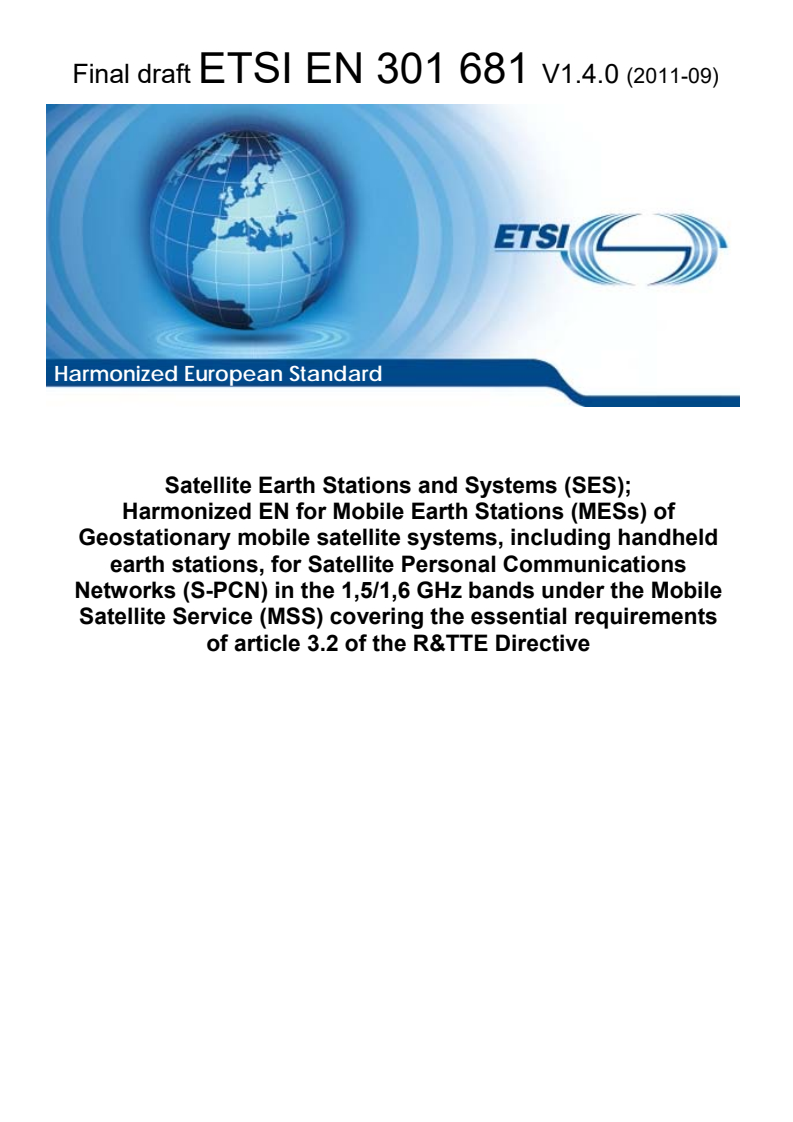

Draft ETSI EN 301 681 V1.4.0 (2011-02)
Harmonized European Standard (EN)
Satellite Earth Stations and Systems (SES);
Harmonized EN for Mobile Earth Stations (MESs) of
Geostationary mobile satellite systems, including handheld
earth stations, for Satellite Personal Communications
Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile
Satellite Service (MSS) covering the essential requirements
of article 3.2 of the R&TTE Directive

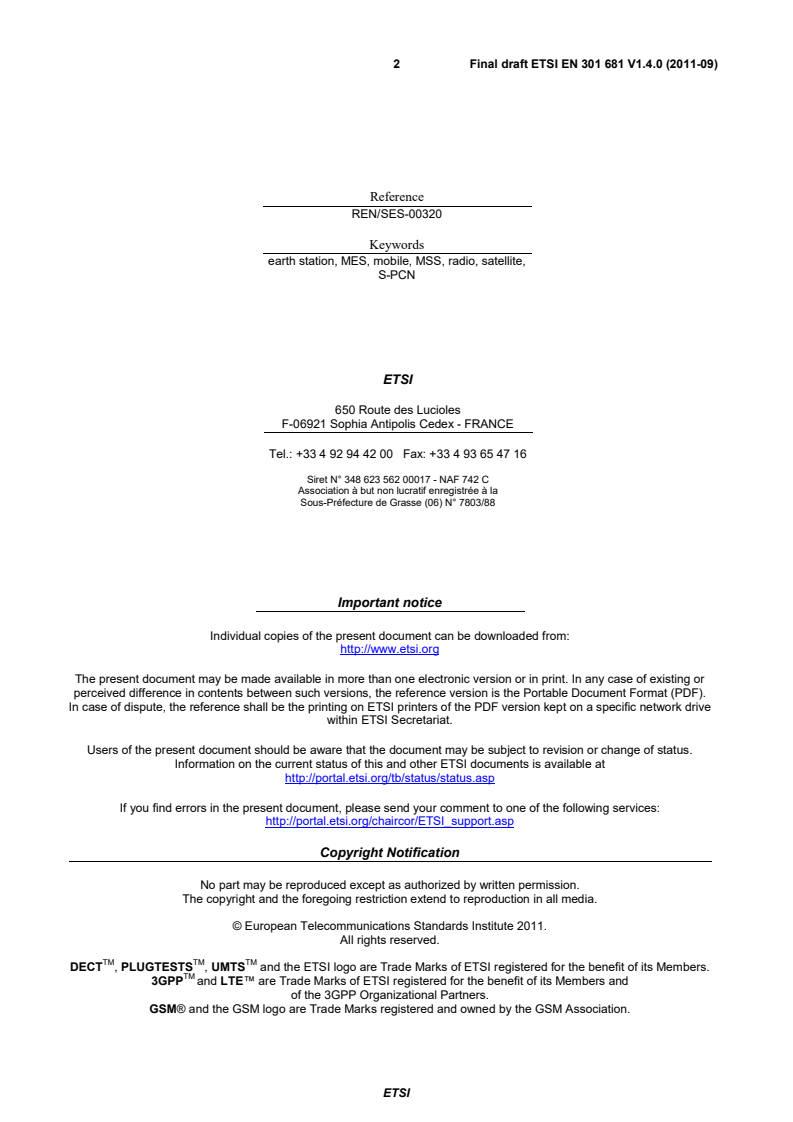

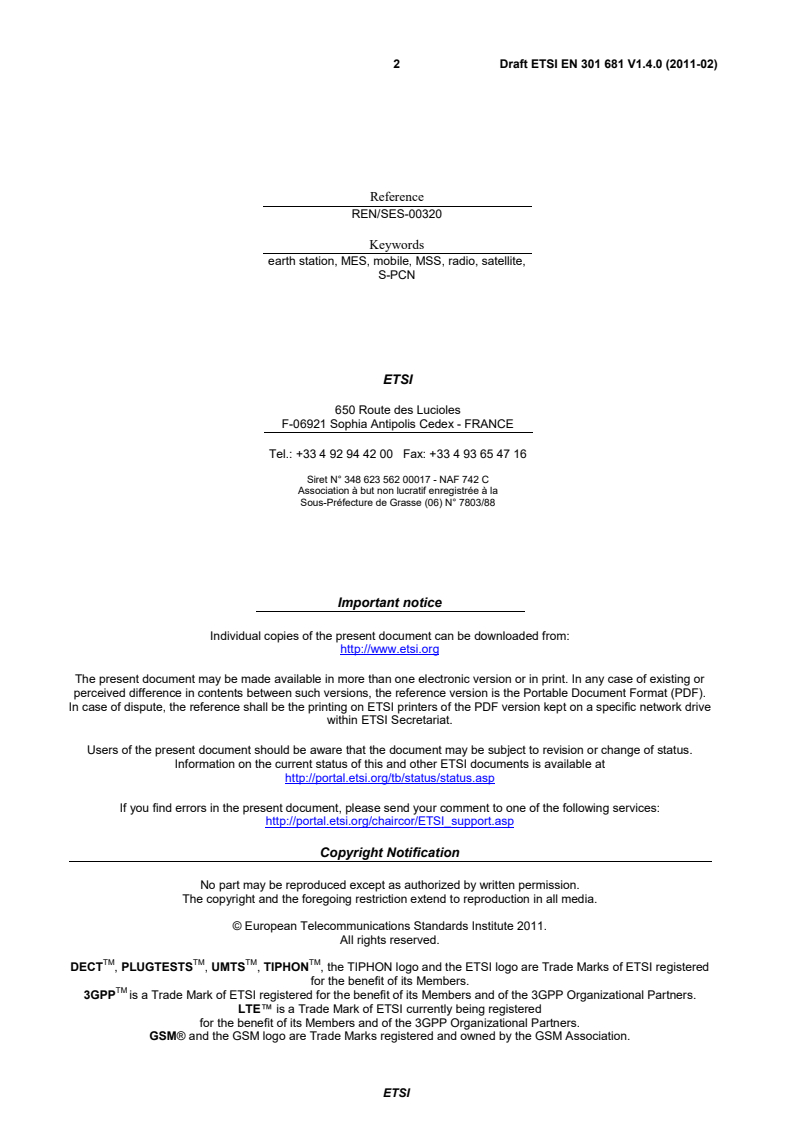

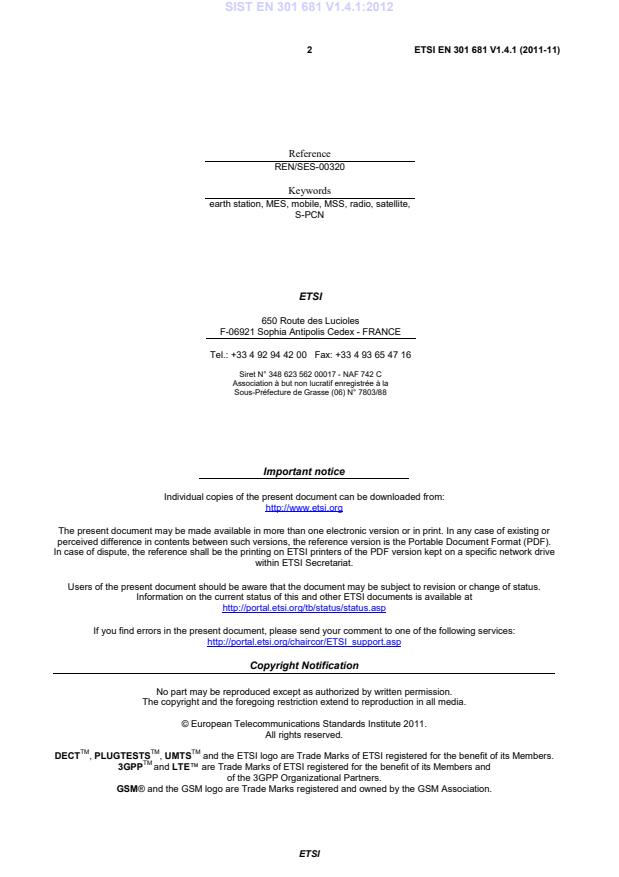

2 Draft ETSI EN 301 681 V1.4.0 (2011-02)
Reference
REN/SES-00320
Keywords
earth station, MES, mobile, MSS, radio, satellite,
S-PCN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

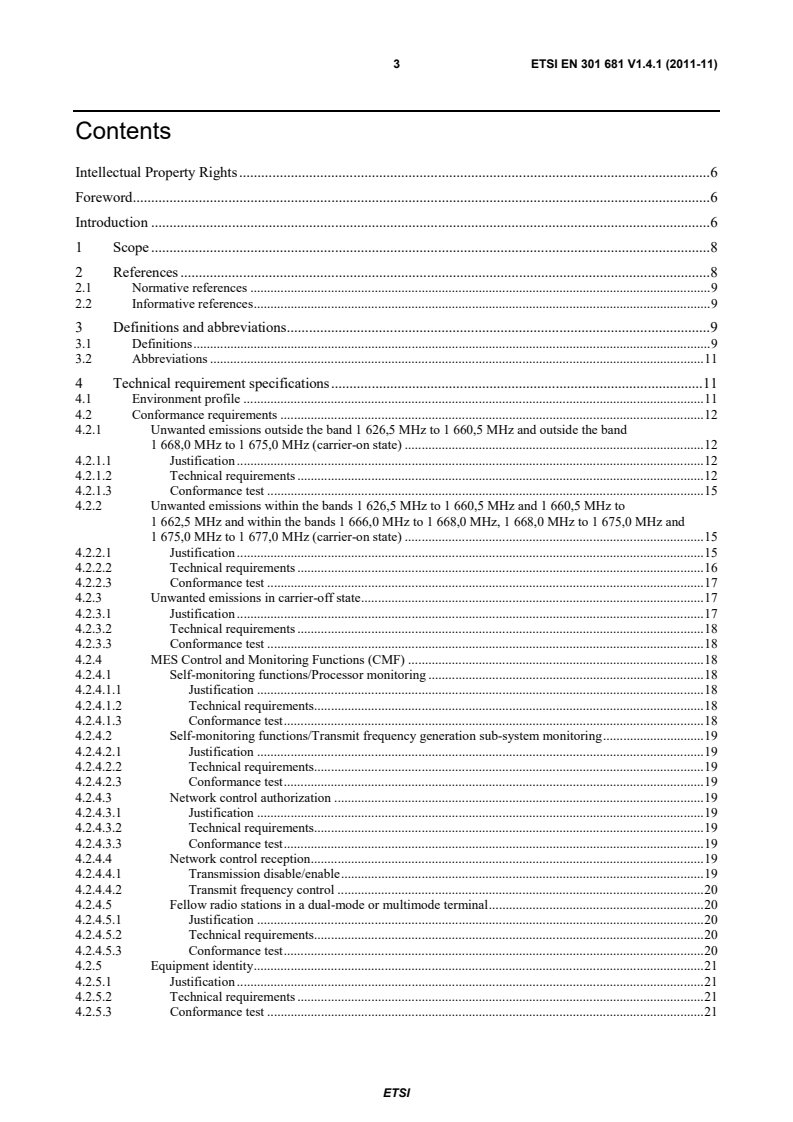

3 Draft ETSI EN 301 681 V1.4.0 (2011-02)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 11
4 Technical requirement specifications . 11
4.1 Environment profile . 11
4.2 Conformance requirements . 11
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 11
4.2.1.1 Justification . 11
4.2.1.2 Technical requirements . 12
4.2.1.3 Conformance test . 14
4.2.2 Unwanted emissions within the bands 1 626,5 MHz to 1 660,5 MHz and 1 660,5 MHz to
1 662,5 MHz and within the bands 1 666,0 MHz to 1 668,0 MHz, 1 668,0 MHz to 1 675,0 MHz and
1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 14
4.2.2.1 Justification . 14
4.2.2.2 Technical requirements . 15
4.2.2.3 Conformance test . 16
4.2.3 Unwanted emissions in carrier-off state . 16
4.2.3.1 Justification . 16
4.2.3.2 Technical requirements . 17
4.2.3.3 Conformance test . 17
4.2.4 MES Control and Monitoring Functions (CMF) . 17
4.2.4.1 Self-monitoring functions/Processor monitoring . 17
4.2.4.1.1 Justification . 17
4.2.4.1.2 Technical requirements. 17
4.2.4.1.3 Conformance test . 17
4.2.4.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 18
4.2.4.2.1 Justification . 18
4.2.4.2.2 Technical requirements. 18
4.2.4.2.3 Conformance test . 18
4.2.4.3 Network control authorization . 18
4.2.4.3.1 Justification . 18
4.2.4.3.2 Technical requirements. 18
4.2.4.3.3 Conformance test . 18
4.2.4.4 Network control reception . 18
4.2.4.4.1 Transmission disable/enable . 18
4.2.4.4.2 Transmit frequency control . 19
4.2.4.5 Fellow radio stations in a dual-mode or multimode terminal . 19
4.2.4.5.1 Justification . 19
4.2.4.5.2 Technical requirements. 19
4.2.4.5.3 Conformance test . 19
4.2.5 Equipment identity . 20
4.2.5.1 Justification . 20
4.2.5.2 Technical requirements . 20
4.2.5.3 Conformance test . 20
ETSI

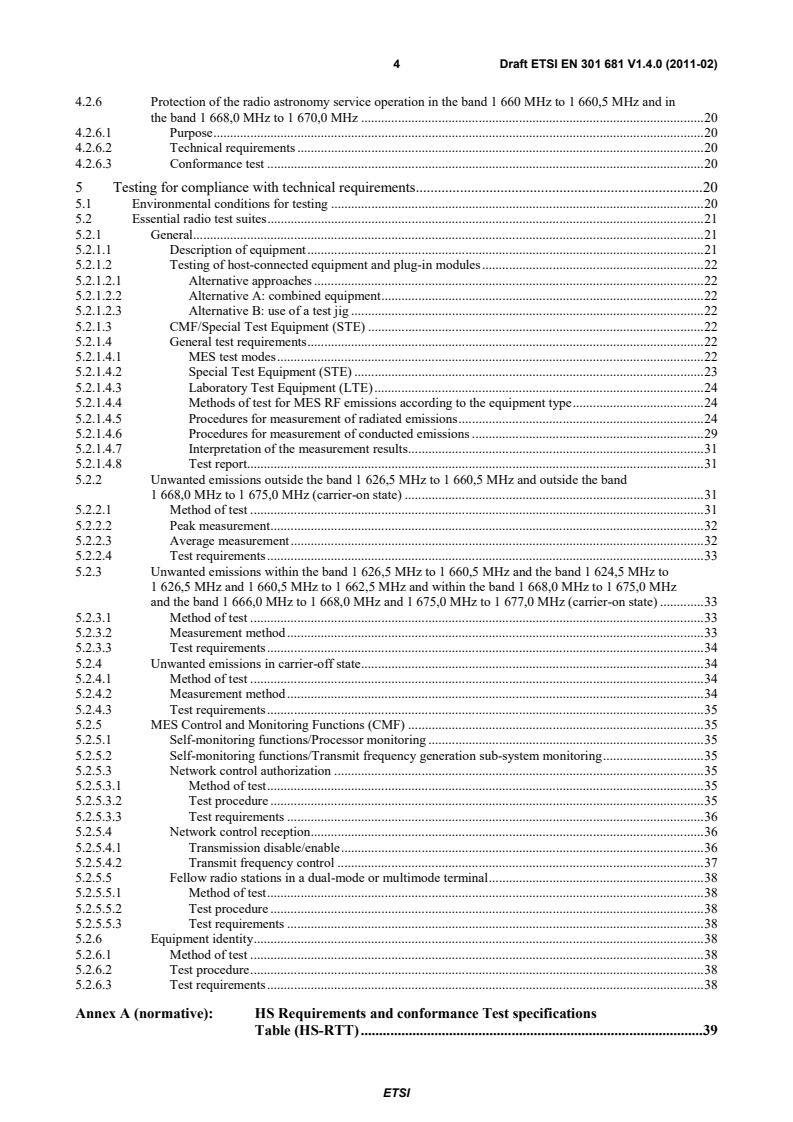

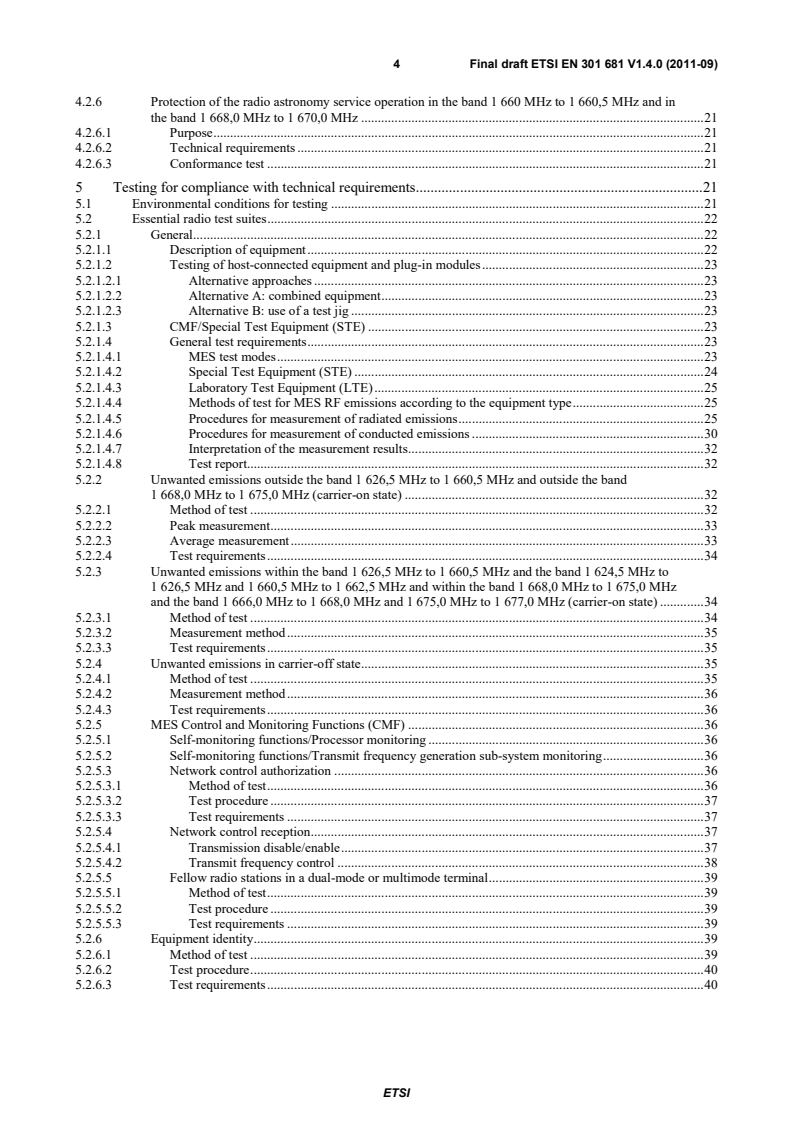

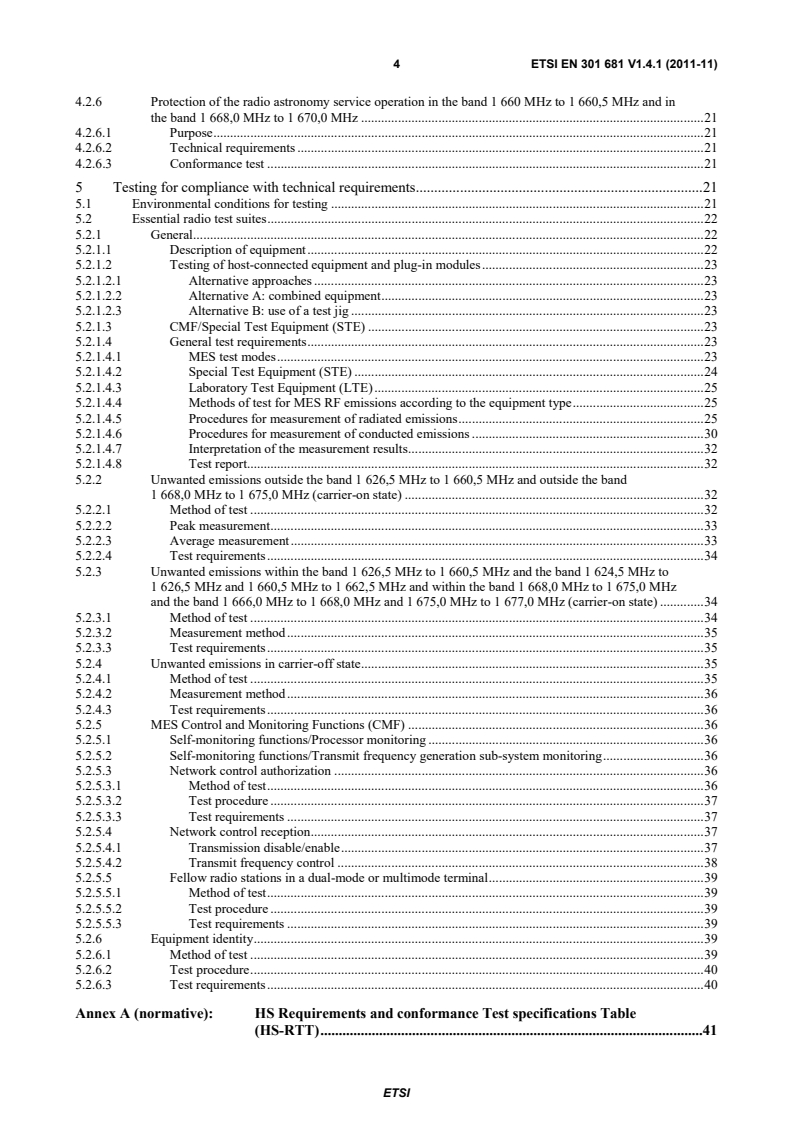

4 Draft ETSI EN 301 681 V1.4.0 (2011-02)
4.2.6 Protection of the radio astronomy service operation in the band 1 660 MHz to 1 660,5 MHz and in
the band 1 668,0 MHz to 1 670,0 MHz . 20
4.2.6.1 Purpose . 20
4.2.6.2 Technical requirements . 20
4.2.6.3 Conformance test . 20
5 Testing for compliance with technical requirements . 20
5.1 Environmental conditions for testing . 20
5.2 Essential radio test suites . 21
5.2.1 General . 21
5.2.1.1 Description of equipment . 21
5.2.1.2 Testing of host-connected equipment and plug-in modules . 22
5.2.1.2.1 Alternative approaches . 22
5.2.1.2.2 Alternative A: combined equipment . 22
5.2.1.2.3 Alternative B: use of a test jig . 22
5.2.1.3 CMF/Special Test Equipment (STE) . 22
5.2.1.4 General test requirements . 22
5.2.1.4.1 MES test modes . 22
5.2.1.4.2 Special Test Equipment (STE) . 23
5.2.1.4.3 Laboratory Test Equipment (LTE) . 24
5.2.1.4.4 Methods of test for MES RF emissions according to the equipment type . 24
5.2.1.4.5 Procedures for measurement of radiated emissions . 24
5.2.1.4.6 Procedures for measurement of conducted emissions . 29
5.2.1.4.7 Interpretation of the measurement results . 31
5.2.1.4.8 Test report . 31
5.2.2 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 31
5.2.2.1 Method of test . 31
5.2.2.2 Peak measurement . 32
5.2.2.3 Average measurement . 32
5.2.2.4 Test requirements . 33
5.2.3 Unwanted emissions within the band 1 626,5 MHz to 1 660,5 MHz and the band 1 624,5 MHz to
1 626,5 MHz and 1 660,5 MHz to 1 662,5 MHz and within the band 1 668,0 MHz to 1 675,0 MHz
and the band 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 33
5.2.3.1 Method of test . 33
5.2.3.2 Measurement method . 33
5.2.3.3 Test requirements . 34
5.2.4 Unwanted emissions in carrier-off state . 34
5.2.4.1 Method of test . 34
5.2.4.2 Measurement method . 34
5.2.4.3 Test requirements . 35
5.2.5 MES Control and Monitoring Functions (CMF) . 35
5.2.5.1 Self-monitoring functions/Processor monitoring . 35
5.2.5.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 35
5.2.5.3 Network control authorization . 35
5.2.5.3.1 Method of test . 35
5.2.5.3.2 Test procedure . 35
5.2.5.3.3 Test requirements . 36
5.2.5.4 Network control reception . 36
5.2.5.4.1 Transmission disable/enable . 36
5.2.5.4.2 Transmit frequency control . 37
5.2.5.5 Fellow radio stations in a dual-mode or multimode terminal . 38
5.2.5.5.1 Method of test . 38
5.2.5.5.2 Test procedure . 38
5.2.5.5.3 Test requirements . 38
5.2.6 Equipment identity . 38
5.2.6.1 Method of test . 38
5.2.6.2 Test procedure . 38
5.2.6.3 Test requirements . 38
Annex A (normative): HS Requirements and conformance Test specifications
Table (HS-RTT) . 39
ETSI
5 Draft ETSI EN 301 681 V1.4.0 (2011-02)
Annex B (informative): The EN title in the official languages . 42
Annex C (informative): Bibliography . 43
History . 44
ETSI
6 Draft ETSI EN 301 681 V1.4.0 (2011-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Satellite Earth Stations
and Systems (SES), and is now submitted for the Public Enquiry phase of the ETSI standards Two-step Approval
Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [7] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [1] of the European Parliament and
of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [1] are summarised in annex A.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399 [i.1]. The determination of the parameters of the user earth stations using a given
satellite for the protection of the spectrum allocated to that satellite, is considered to be under the responsibility of the
satellite operator or the satellite network operators.
The present document specifies new emission requirements for MESs that are capable of transmitting in the frequency
band from 1 668,0 MHz to 1 675,0 MHz. Following the WRC-03 decision to allocate to MSS the bands 1 518 MHz to
1 525 MHz (space to Earth) and 1 668 MHz to 1 675 MHz (Earth to space) and the conclusions of WRC-07, the present
document specifies the necessary requirements to harmonise the use of these extended frequency bands by MESs.
The present document treats the two parts of the L-band frequency allocation (as extended) as two sub-bands which
may be used separately or in any combination. The original L-band allocation is referenced in the present document as
"sub-band 1" and the extended L-band is referenced as "sub-band 2".
ETSI
7 Draft ETSI EN 301 681 V1.4.0 (2011-02)
A new table (table 3a) is added to the present document for MESs that are capable of transmitting in any combination of
either or both of these sub-bands. The new table 3a is recommended for all new MESs, including MESs that can only
operate in sub-band 1.
The applicant may choose between table 3 and table 3a for new MESs that are capable of transmitting in only the
sub-band 1: the applicant has to declare which alternative is used.
The technical requirements in the present document are applied under article 3.2 of the R&TTE Directive [1],
concerning the effective uses of the spectrum allocated to terrestrial/space radio communication and orbital resources so
as to avoid harmful interference. These requirements are in two major categories:
• emissions limits: to protect other radio services from harmful interference generated by the MES in normal
use;
• MES Control and Monitoring Functions (CMF): to protect other radio services from unwanted
transmissions from the MES. The CMF in each MES is capable of answering to commands from the Network
Control Facilities (NCF) for its S-PCN.
NOTE: The requirements for Network Control Facilities (NCF) for S-PCN are contained in EN 301 682 [i.2].
The determination of the parameters of the user earth stations using a given satellite for the protection of the spectrum
allocated to that satellite, is considered to be under the responsibility of the satellite operator or the satellite network
operators.
Figure 1: Void
ETSI
8 Draft ETSI EN 301 681 V1.4.0 (2011-02)
1 Scope
The present document applies to S-PCN MES for Geostationary mobile satellite systems with an EIRP less than or
equal to 15 dBW.
The present document sets out the minimum performance requirements and technical characteristics of Mobile Earth
Stations (MES) with both transmit and receive capabilities for operation in a Satellite Personal Communication
Network (S-PCN) in any combination of all or any part of the Mobile Satellite Service (MSS) frequency bands
sub-band 1 and sub-band 2 defined in table 1.
Table 1: Mobile Satellite Service (MSS) frequency band
Sub-band Transmission path MSS frequency band
1 MESs transmit 1 1 626,5 MHz to 1 660,5 MHz
MESs receive 1 1 525 MHz to 1 559 MHz
2 MESs transmit 2 1 668,0 MHz to 1 675,0 MHz
MESs receive 2 1 518,0 MHz to 1 525,0 MHz
An S-PCN MES may be handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed equipment, or may
be an element in a multimode terminal; it may consist of a number of modules with associated connections and user
interface, or may be a self contained single unit.
If the MES is an element in a multimode terminal, unless otherwise stated in the present document, its requirements
apply only to the S-PCN MES element of the terminal operating in the MSS frequency band given in table 1.
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2
which states that "….radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [1] may apply to equipment within the scope of the present
document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
NOTE 2: These MESs are controlled and monitored by a Network Control Facility (NCF). The NCF is outside the
scope of the present document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[2] Void.
ETSI
9 Draft ETSI EN 301 681 V1.4.0 (2011-02)
[3] Void.
[4] ITU-T Recommendation O.153 (1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] CISPR 16-1-4 (2010): "Specification for radio disturbance and immunity measuring apparatus and
methods - Part 1-4: Radio disturbance and immunity measuring apparatus- Antennas and test sites
for radiated disturbance measurements".
[6] Void.
[7] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.2] ETSI EN 301 682: "Satellite Personal Communications Networks (S-PCN); Network Control
Facilities (NCF) for Mobile Earth Stations (MESs), including handheld earth stations, for S-PCN
in the 1,5/1,6 GHz bands, providing voice and/or data communications under the Mobile Satellite
Service (MSS)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [1] and the following
apply:
applicant: manufacturer or his authorized representative within the European Community or the person responsible for
placing the apparatus on the market
carrier-on time (initial bursts): period when an MES is transmitting a signal
NOTE: For MESs that transmit in a non-continuous mode, the carrier-on time only includes the times when the
MES is transmitting a signal.
carrier-off state: MES is in this state when either it is authorized by the Network Control Facility (NCF) to transmit
but when it does not transmit any signal, or when it is not authorized by the NCF to transmit
carrier-on state: MES is in this state when it is authorized by the NCF to transmit and when it transmits a signal
conducted measurement: measurement of emissions from an antenna port of the MES made by direct wired
connection to the port
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
Equivalent Isotropically Radiated Power (EIRP): product of transmitter power and the antenna gain in the direction
considered, relative to an isotropic source radiating uniformly in all directions
fellow radio station: one of the (other) modes of a multimode MES
handheld: indicates an MES which is self-contained and is small enough and light enough to be carried and used
during a call with one hand
ETSI
10 Draft ETSI EN 301 681 V1.4.0 (2011-02)
host-connected: indicates an MES for which connection to or integration with host equipment is necessary to offer
functionality
host equipment: any equipment which has a complete user functionality when not connected to the MES, and to which
the MES provides additional functionality, and to which connection is necessary for the MES to offer functionality
Installable Equipment (IE): equipment which is intended to be installed in a vehicle
NOTE: An IE may consist of one or several interconnected modules. The IE is composed of modules intended to
be externally mounted as declared by the applicant, and defined as Externally Mounted Equipment (EME)
and the remaining modules(s) as Internally Mounted Equipment (IME).
Laboratory Test Equipment (LTE): logical grouping that contains the standard test equipment provided by a test
laboratory
MSS band: continuous range of frequencies allocated by the ITU to the MSS
multimode: indicates equipment that accommodates radio stations of different radio networks
network control channel: channel by which an MES receives general control information from the NCF of its S-PCN
NCF control message: message, normally originating from a network, to a specified terminal or set of terminals of the
network which indicates to the terminal or set of terminals that it/they should carry out some specific action or should
enter or maintain some specific state
NOTE: For test purposes NCF control messages may originate from Special Test Equipment (STE).
nominated bandwidth (Bn): bandwidth of the MES radio frequency transmission that is nominated by the applicant
and that is wide enough to encompass all spectral elements of the transmission necessary for communication and which
have a level greater than the specified unwanted emissions limits; also the nominated bandwidth is centred on the
transmit frequency and does not exceed 180 % of the 3 dB bandwidth of the signal and is within the assigned part of the
MSS transmit frequency band within which the MES operates
NOTE: The nominated bandwidth is wide enough to take account of the transmit carrier frequency stability.
3dB Bandwidth (B3dB): total width of the signal spectrum 3 dB below the maximum in-band density
operational frequency range(s): sub-portion(s) of the band 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz in the earth-to-space direction to the MSS network, for which the equipment has been
designed as declared by the applicant
Portable Equipment (PE): equipment generally intended to be self-contained, free standing and portable
NOTE: A PE would normally consist of a single module, but may consist of several interconnected modules.
radiated measurement: measurement of an actual radiated field
Special Test Equipment (STE): equipment which allows a test laboratory to control the MES so that the tests required
by the present document can be performed
sub-band: contiguous portion of the operating band
NOTE: Two sub-bands are defined (see table 1).
test laboratory: laboratory which performs the conformance testing of the MES against the present document
NOTE: The test laboratory may be the applicant's laboratory.
test load: substantially non-reactive, non-radiating power attenuator which is capable of safely dissipating the power
from the transmitter(s)
transmission format: physical characteristics of the signal that is transmitted by an MES
NOTE: An MES may use more than one transmission format within a single S-PCN.
unwanted emissions: emissions falling outside the nominated bandwidth in the carrier-on state and those generated in
the carrier-off state
ETSI
11 Draft ETSI EN 301 681 V1.4.0 (2011-02)
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
B 3dB Bandwidth
3dB
B Nominated Bandwidth
n
CDMA Code Division Multiple Access
CMF Control and Monitoring Functions
dBW deciBels relative to 1 Watt
EIRP Equivalent Isotropically Radiated Power
EMC Electro-Magnetic Compatibility
EME Externally Mounted Equipment
IE Installable Equipment
IEC International Electrotechnical Commission/Committee
IME Internally Mounted Equipment
ITU International Telecommunications Union
LTE Laboratory Test Equipment
MES Mobile Earth Station
MIC MES Identification Code
MSS Mobile Satellite Service
NCF Network Control Facility
PE Portable Equipment
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
S-PCN Satellite Personal Communications Network
STE Special Test Equipment
TDMA Time Division Multiple Access
4 Technical requirement specifications
4.1 Environment profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the applicant. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
The environmental profile for operation of the equipment shall include the ranges of humidity, temperature and supply
voltage.
Table 2: Void
4.2 Conformance requirements
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz
and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state)
4.2.1.1 Justification
The technical requirements presented in this clause shall apply to all MESs that are capable of transmitting either in
sub-band 1, or sub-band 2, or in both sub-bands as defined in table 1 for the purpose of:
• Protection of other radio services operating outside the band 1 626,5 MHz to 1 660,5 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 1 frequency band as defined in table 1; and
ETSI
12 Draft ETSI EN 301 681 V1.4.0 (2011-02)
• Protection of other radio services operating outside the band 1 668,0 MHz to 1 675,0 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 2 frequency band as defined in table 1.
4.2.1.2 Technical requirements
Unwanted emissions from Mobile Earth Stations (LMESs) outside the band 1 626,5 MHz to 1 660,5 MHz and outside
the band 1 668 MHz to 1 675 MHz shall be below the following limits.
Unless otherwise stated the specification in this clause shall apply to all types of MESs notwithstanding their
transmitting capabilities within the frequency bands as defined in table 1:
1) For MES that are capable of transmitting within only the sub-band 1 frequency band as defined in table 1, the
maximum EIRP spectral density of the unwanted emissions from the MES outside the band 1 626,5 MHz to
1 660,5 MHz shall not exceed the limits in either table 3 or table 3a. The applicant shall declare which
alternative shall be used.
2) For MES that are capable of transmitting within only sub-band 2 frequency band or within both the sub-band 1
and sub-band 2 frequency bands, the maximum EIRP spectral density of the unwanted emissions from the
MES outside the bands 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz shall not exceed the
limits in table 3a.
In tables 3 and 3a, whenever a change of limit between adjacent frequency bands occurs, the lower of the two limits
shall apply at the transition frequency.
Table 3: Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz for MES only capable of
transmitting within sub-band 1 frequency band as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 6)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 3) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 4) (see note 3)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 4)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 4)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 4, 5, 7)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 4, 5, 7)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 4, 5, 7)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 4, 5, 7)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 4, 5, 7)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 5, 7)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 The levels in table 4a shall apply from 1 660,5 MHz to 1 662,5 MHz
1 662,5 to 1 665,5 -60 30 kHz Average
1 665,5 to 1 670,5 -60 100 kHz Average
1 670,5 to 1 680,5 -60 300 kHz Average
1 680,5 to 1 690,5 -60 1 MHz Average
1 690,5 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Peak Hold
(see note 1)
ETSI
13 Draft ETSI EN 301 681 V1.4.0 (2011-02)
NOTE 1: In the band 3 253,0 MHz to 3 321,0 MHz the maximum EIRP in one, and only one, 3 MHz
measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band the power limit in table 3
shall be applied.
In each of the bands 4 879,5 MHz to 4 981,5 MHz, 6 506,0 MHz to 6 642,0 MHz and 8 132,5 MHz to
8 302,5 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not
exceed -48 dBW. Elsewhere in this band the power limit in table 3 shall be applied.
NOTE 2: The average measurement method defined in clause 5.2.2.3 shall apply except that an averaging
period of 20 ms shall be used in the sub-band 1 573,42 MHz to 1 580,42 MHz.
NOTE 3: Measurement bandwidths less than 1 MHz are allowable provided the power in the narrower
bandwidth is integrated over 1 MHz.
NOTE 4: Linearly interpolated in dBW vs. Frequency.
NOTE 5: The power limits specified in the band 1 624,5 MHz to 1 626,5 MHz require further study. This study is
important to determine whether less stringent limits may enhance spectrum efficiency and utilization
immediately above 1 626,5 MHz.
NOTE 6: Peak Hold and Average measurements shall be performed as specified in clauses 5.2.2.2 and 5.2.2.3.
NOTE 7: For systems employing CDMA, the EIRP limits shall be decreased by 10 log (N) dB, where N is the
maximum number of MESs in the receive beam of the satellite to which these MESs are
communicating and which are expected to transmit simultaneously in the same frequency band within
that same beam. This number shall be declared by the manufacturer (N = 1 in a TDMA system).
Table 3a: Unwanted emissions outside the bands 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz for MES capable of transmitting within all or any part of
sub-band 1 and sub-band 2 frequency bands as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 5) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 6) (see note 5)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 6)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 6)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 6, 7, 9)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 6, 7, 9)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 6, 7, 9)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 6, 7, 9)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 6, 7, 9)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 7, 9)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 note 1 note 1 note 1
1 662,5 to 1 666,0 -55 30 kHz Average
1 666,0 to 1 668,0 note 2 note 2 note 2
1 668,0 to 1 675,0 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 675,0 to 1 677,0 note 2 note 2 note 2
ETSI
14 Draft ETSI EN 301 681 V1.4.0 (2011-02)
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
1 677,0 to 1 680,0 -60 30 kHz Average
1 680,0 to 1 685,0 -60 100 kHz Average
1 685,0 to 1 695,0 -60 300 kHz Average
1 695,0 to 1 705,0 -60 1 MHz Average
1 705,0 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Average
(see note 3)
NOTE 1: For an MES transmitting in sub-band 1 (as defined in table 1) the limits defined in table 4a shall apply
for the band 1 660,5 MHz to 1 662,5 MHz. For an MES transmitting in sub-band 2 (as defined in
table 1) a limit of -55 dBW in 30 kHz shall apply for the band 1 660,5 MHz to 1 662,5 MHz.
NOTE 2: For an MES transmitting in sub-band 2 (as defined in table 1) the limits defined in table 4a shall apply
for the bands 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz. For an MES transmitting
in sub-band 1 (as defined in table 1) a limit of -55 dBW in 30 kHz shall apply for the bands
1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz.
NOTE 3: In the bands 3 253,0 MHz to 3 321,0 MHz and 3 336,0 MHz to 3 350,0 MHz the maximum EIRP in
one, and only one, 3 MHz measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band
the power limit in table 3a shall be applied.
In the bands 4 879,5 MHz to 4 981,5 MHz and 5 004,0 MHz to 5 025,0 MHz the maximum EIRP in
one, and only one, 3 MHz measurement bandwidth shall not exceed -48 dBW. Elsewhere in this band
the power limit in table 3a sha
...
Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Harmonized European Standard
Satellite Earth Stations and Systems (SES);
Harmonized EN for Mobile Earth Stations (MESs) of
Geostationary mobile satellite systems, including handheld
earth stations, for Satellite Personal Communications
Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile
Satellite Service (MSS) covering the essential requirements
of article 3.2 of the R&TTE Directive
2 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Reference
REN/SES-00320
Keywords
earth station, MES, mobile, MSS, radio, satellite,
S-PCN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 8
2 References . 8
2.1 Normative references . 9
2.2 Informative references . 9
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 11
4 Technical requirement specifications . 11
4.1 Environment profile . 11
4.2 Conformance requirements . 12
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 12
4.2.1.1 Justification . 12
4.2.1.2 Technical requirements . 12
4.2.1.3 Conformance test . 15
4.2.2 Unwanted emissions within the bands 1 626,5 MHz to 1 660,5 MHz and 1 660,5 MHz to
1 662,5 MHz and within the bands 1 666,0 MHz to 1 668,0 MHz, 1 668,0 MHz to 1 675,0 MHz and
1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 15
4.2.2.1 Justification . 15
4.2.2.2 Technical requirements . 16
4.2.2.3 Conformance test . 17
4.2.3 Unwanted emissions in carrier-off state . 17
4.2.3.1 Justification . 17
4.2.3.2 Technical requirements . 18
4.2.3.3 Conformance test . 18
4.2.4 MES Control and Monitoring Functions (CMF) . 18
4.2.4.1 Self-monitoring functions/Processor monitoring . 18
4.2.4.1.1 Justification . 18
4.2.4.1.2 Technical requirements. 18
4.2.4.1.3 Conformance test . 18
4.2.4.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 19
4.2.4.2.1 Justification . 19
4.2.4.2.2 Technical requirements. 19
4.2.4.2.3 Conformance test . 19
4.2.4.3 Network control authorization . 19
4.2.4.3.1 Justification . 19
4.2.4.3.2 Technical requirements. 19
4.2.4.3.3 Conformance test . 19
4.2.4.4 Network control reception . 19
4.2.4.4.1 Transmission disable/enable . 19
4.2.4.4.2 Transmit frequency control . 20
4.2.4.5 Fellow radio stations in a dual-mode or multimode terminal . 20
4.2.4.5.1 Justification . 20
4.2.4.5.2 Technical requirements. 20
4.2.4.5.3 Conformance test . 20
4.2.5 Equipment identity . 21
4.2.5.1 Justification . 21
4.2.5.2 Technical requirements . 21
4.2.5.3 Conformance test . 21
ETSI
4 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
4.2.6 Protection of the radio astronomy service operation in the band 1 660 MHz to 1 660,5 MHz and in
the band 1 668,0 MHz to 1 670,0 MHz . 21
4.2.6.1 Purpose . 21
4.2.6.2 Technical requirements . 21
4.2.6.3 Conformance test . 21
5 Testing for compliance with technical requirements . 21
5.1 Environmental conditions for testing . 21
5.2 Essential radio test suites . 22
5.2.1 General . 22
5.2.1.1 Description of equipment . 22
5.2.1.2 Testing of host-connected equipment and plug-in modules . 23
5.2.1.2.1 Alternative approaches . 23
5.2.1.2.2 Alternative A: combined equipment . 23
5.2.1.2.3 Alternative B: use of a test jig . 23
5.2.1.3 CMF/Special Test Equipment (STE) . 23
5.2.1.4 General test requirements . 23
5.2.1.4.1 MES test modes . 23
5.2.1.4.2 Special Test Equipment (STE) . 24
5.2.1.4.3 Laboratory Test Equipment (LTE) . 25
5.2.1.4.4 Methods of test for MES RF emissions according to the equipment type . 25
5.2.1.4.5 Procedures for measurement of radiated emissions . 25
5.2.1.4.6 Procedures for measurement of conducted emissions . 30
5.2.1.4.7 Interpretation of the measurement results . 32
5.2.1.4.8 Test report . 32
5.2.2 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 32
5.2.2.1 Method of test . 32
5.2.2.2 Peak measurement . 33
5.2.2.3 Average measurement . 33
5.2.2.4 Test requirements . 34
5.2.3 Unwanted emissions within the band 1 626,5 MHz to 1 660,5 MHz and the band 1 624,5 MHz to
1 626,5 MHz and 1 660,5 MHz to 1 662,5 MHz and within the band 1 668,0 MHz to 1 675,0 MHz
and the band 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 34
5.2.3.1 Method of test . 34
5.2.3.2 Measurement method . 35
5.2.3.3 Test requirements . 35
5.2.4 Unwanted emissions in carrier-off state . 35
5.2.4.1 Method of test . 35
5.2.4.2 Measurement method . 36
5.2.4.3 Test requirements . 36
5.2.5 MES Control and Monitoring Functions (CMF) . 36
5.2.5.1 Self-monitoring functions/Processor monitoring . 36
5.2.5.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 36
5.2.5.3 Network control authorization . 36
5.2.5.3.1 Method of test . 36
5.2.5.3.2 Test procedure . 37
5.2.5.3.3 Test requirements . 37
5.2.5.4 Network control reception . 37
5.2.5.4.1 Transmission disable/enable . 37
5.2.5.4.2 Transmit frequency control . 38
5.2.5.5 Fellow radio stations in a dual-mode or multimode terminal . 39
5.2.5.5.1 Method of test . 39
5.2.5.5.2 Test procedure . 39
5.2.5.5.3 Test requirements . 39
5.2.6 Equipment identity . 39
5.2.6.1 Method of test . 39
5.2.6.2 Test procedure . 40
5.2.6.3 Test requirements . 40
ETSI
5 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (informative): The EN title in the official languages . 44
Annex C (informative): Bibliography . 45
History . 46
ETSI
6 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Satellite Earth
Stations and Systems (SES), and is now submitted for the Vote phase of the ETSI standards Two-step Approval
Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [7] as amended by Directive 98/48/EC [8].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [1].
See article 5.1 of Directive 1999/5/EC [1] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [1] are summarised in annex A.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [1]. The modular
structure is shown in EG 201 399 [i.1]. The determination of the parameters of the user earth stations using a given
satellite for the protection of the spectrum allocated to that satellite, is considered to be under the responsibility of the
satellite operator or the satellite network operators.
The present document specifies new emission requirements for MESs that are capable of transmitting in the frequency
band from 1 668,0 MHz to 1 675,0 MHz. Following the WRC-03 decision to allocate to MSS the bands 1 518 MHz to
1 525 MHz (space to Earth) and 1 668 MHz to 1 675 MHz (Earth to space) and the conclusions of WRC-07, the present
document specifies the necessary requirements to harmonise the use of these extended frequency bands by MESs.
The present document treats the two parts of the L-band frequency allocation (as extended) as two sub-bands which
may be used separately or in any combination. The original L-band allocation is referenced in the present document as
"sub-band 1" and the extended L-band is referenced as "sub-band 2".
ETSI
7 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
A new table (table 3a) is added to the present document for MESs that are capable of transmitting in any combination of
either or both of these sub-bands. The new table 3a is recommended for all new MESs, including MESs that can only
operate in sub-band 1.
The applicant may choose between table 3 and table 3a for new MESs that are capable of transmitting in only the
sub-band 1: the applicant has to declare which alternative is used.
The technical requirements in the present document are applied under article 3.2 of the R&TTE Directive [1],
concerning the effective uses of the spectrum allocated to terrestrial/space radio communication and orbital resources so
as to avoid harmful interference. These requirements are in two major categories:
• emissions limits: to protect other radio services from harmful interference generated by the MES in normal
use;
• MES Control and Monitoring Functions (CMF): to protect other radio services from unwanted
transmissions from the MES. The CMF in each MES is capable of answering to commands from the Network
Control Facilities (NCF) for its S-PCN.
NOTE: The requirements for Network Control Facilities (NCF) for S-PCN are contained in EN 301 682 [i.2].
The determination of the parameters of the user earth stations using a given satellite for the protection of the spectrum
allocated to that satellite, is considered to be under the responsibility of the satellite operator or the satellite network
operators.
Figure 1: Void
ETSI
8 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
1 Scope
The present document applies to S-PCN MES for Geostationary mobile satellite systems with an EIRP less than or
equal to 15 dBW.
The present document sets out the minimum performance requirements and technical characteristics of Mobile Earth
Stations (MES) with both transmit and receive capabilities for operation in a Satellite Personal Communication
Network (S-PCN) in any combination of all or any part of the Mobile Satellite Service (MSS) frequency bands
sub-band 1 and sub-band 2 defined in table 1.
Table 1: Mobile Satellite Service (MSS) frequency band
Sub-band Transmission path MSS frequency band
1 MESs transmit 1 1 626,5 MHz to 1 660,5 MHz
MESs receive 1 1 525 MHz to 1 559 MHz
2 MESs transmit 2 1 668,0 MHz to 1 675,0 MHz
MESs receive 2 1 518,0 MHz to 1 525,0 MHz
An S-PCN MES may be handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed equipment, or may
be an element in a multimode terminal; it may consist of a number of modules with associated connections and user
interface, or may be a self contained single unit.
If the MES is an element in a multimode terminal, unless otherwise stated in the present document, its requirements
apply only to the S-PCN MES element of the terminal operating in the MSS frequency band given in table 1.
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2
which states that "….radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [1] may apply to equipment within the scope of the present
document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
NOTE 2: These MESs are controlled and monitored by a Network Control Facility (NCF). The NCF is outside the
scope of the present document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
ETSI
9 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[2] Void.
[3] Void.
[4] ITU-T Recommendation O.153 (1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] CISPR 16-1-4 (2010): "Specification for radio disturbance and immunity measuring apparatus and
methods - Part 1-4: Radio disturbance and immunity measuring apparatus- Antennas and test sites
for radiated disturbance measurements".
[6] Void.
[7] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[8] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.2] ETSI EN 301 682: "Satellite Personal Communications Networks (S-PCN); Network Control
Facilities (NCF) for Mobile Earth Stations (MESs), including handheld earth stations, for S-PCN
in the 1,5/1,6 GHz bands, providing voice and/or data communications under the Mobile Satellite
Service (MSS)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [1] and the following
apply:
3dB Bandwidth (B3dB): total width of the signal spectrum 3 dB below the maximum in-band density
applicant: manufacturer or his authorized representative within the European Community or the person responsible for
placing the apparatus on the market
carrier-off state: MES is in this state when either it is authorized by the Network Control Facility (NCF) to transmit
but when it does not transmit any signal, or when it is not authorized by the NCF to transmit
carrier-on state: MES is in this state when it is authorized by the NCF to transmit and when it transmits a signal
ETSI
10 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
carrier-on time (initial bursts): period when an MES is transmitting a signal
NOTE: For MESs that transmit in a non-continuous mode, the carrier-on time only includes the times when the
MES is transmitting a signal.
conducted measurement: measurement of emissions from an antenna port of the MES made by direct wired
connection to the port
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
Equivalent Isotropically Radiated Power (EIRP): product of transmitter power and the antenna gain in the direction
considered, relative to an isotropic source radiating uniformly in all directions
fellow radio station: one of the (other) modes of a multimode MES
handheld: indicates an MES which is self-contained and is small enough and light enough to be carried and used
during a call with one hand
host-connected: indicates an MES for which connection to or integration with host equipment is necessary to offer
functionality
host equipment: any equipment which has a complete user functionality when not connected to the MES, and to which
the MES provides additional functionality, and to which connection is necessary for the MES to offer functionality
Installable Equipment (IE): equipment which is intended to be installed in a vehicle
NOTE: An IE may consist of one or several interconnected modules. The IE is composed of modules intended to
be externally mounted as declared by the applicant, and defined as Externally Mounted Equipment (EME)
and the remaining modules(s) as Internally Mounted Equipment (IME).
Laboratory Test Equipment (LTE): logical grouping that contains the standard test equipment provided by a test
laboratory
MSS band: continuous range of frequencies allocated by the ITU to the MSS
multimode: indicates equipment that accommodates radio stations of different radio networks
NCF control message: message, normally originating from a network, to a specified terminal or set of terminals of the
network which indicates to the terminal or set of terminals that it/they should carry out some specific action or should
enter or maintain some specific state
NOTE: For test purposes NCF control messages may originate from Special Test Equipment (STE).
network control channel: channel by which an MES receives general control information from the NCF of its S-PCN
nominated bandwidth (Bn): bandwidth of the MES radio frequency transmission that is nominated by the applicant
and that is wide enough to encompass all spectral elements of the transmission necessary for communication and which
have a level greater than the specified unwanted emissions limits; also the nominated bandwidth is centred on the
transmit frequency and does not exceed 180 % of the 3 dB bandwidth of the signal and is within the assigned part of the
MSS transmit frequency band within which the MES operates
NOTE: The nominated bandwidth is wide enough to take account of the transmit carrier frequency stability.
operational frequency range(s): sub-portion(s) of the band 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz in the earth-to-space direction to the MSS network, for which the equipment has been
designed as declared by the applicant
Portable Equipment (PE): equipment generally intended to be self-contained, free standing and portable
NOTE: A PE would normally consist of a single module, but may consist of several interconnected modules.
radiated measurement: measurement of an actual radiated field
Special Test Equipment (STE): equipment which allows a test laboratory to control the MES so that the tests required
by the present document can be performed
ETSI
11 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
sub-band: contiguous portion of the operating band
NOTE: Two sub-bands are defined (see table 1).
test laboratory: laboratory which performs the conformance testing of the MES against the present document
NOTE: The test laboratory may be the applicant's laboratory.
test load: substantially non-reactive, non-radiating power attenuator which is capable of safely dissipating the power
from the transmitter(s)
transmission format: physical characteristics of the signal that is transmitted by an MES
NOTE: An MES may use more than one transmission format within a single S-PCN.
unwanted emissions: emissions falling outside the nominated bandwidth in the carrier-on state and those generated in
the carrier-off state
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
B 3dB Bandwidth
3dB
B Nominated Bandwidth
n
CDMA Code Division Multiple Access
CMF Control and Monitoring Functions
dBW deciBels relative to 1 Watt
EIRP Equivalent Isotropically Radiated Power
EMC Electro-Magnetic Compatibility
EME Externally Mounted Equipment
IE Installable Equipment
IEC International Electrotechnical Commission/Committee
IME Internally Mounted Equipment
ITU International Telecommunications Union
LTE Laboratory Test Equipment
MES Mobile Earth Station
MIC MES Identification Code
MSS Mobile Satellite Service
NCF Network Control Facility
PE Portable Equipment
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
S-PCN Satellite Personal Communications Network
STE Special Test Equipment
TDMA Time Division Multiple Access
4 Technical requirement specifications
4.1 Environment profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the applicant. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
The environmental profile for operation of the equipment shall include the ranges of humidity, temperature and supply
voltage.
Table 2: Void
ETSI
12 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
4.2 Conformance requirements
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz
and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state)
4.2.1.1 Justification
The technical requirements presented in this clause shall apply to all MESs that are capable of transmitting either in
sub-band 1, or sub-band 2, or in both sub-bands as defined in table 1 for the purpose of:
• Protection of other radio services operating outside the band 1 626,5 MHz to 1 660,5 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 1 frequency band as defined in table 1; and
• Protection of other radio services operating outside the band 1 668,0 MHz to 1 675,0 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 2 frequency band as defined in table 1.
4.2.1.2 Technical requirements
Unwanted emissions from Mobile Earth Stations (LMESs) outside the band 1 626,5 MHz to 1 660,5 MHz and outside
the band 1 668 MHz to 1 675 MHz shall be below the following limits.
Unless otherwise stated the specification in this clause shall apply to all types of MESs notwithstanding their
transmitting capabilities within the frequency bands as defined in table 1:
1) For MES that are capable of transmitting within only the sub-band 1 frequency band as defined in table 1, the
maximum EIRP spectral density of the unwanted emissions from the MES outside the band 1 626,5 MHz to
1 660,5 MHz shall not exceed the limits in either table 3 or table 3a. The applicant shall declare which
alternative shall be used.
2) For MES that are capable of transmitting within only sub-band 2 frequency band or within both the sub-band 1
and sub-band 2 frequency bands, the maximum EIRP spectral density of the unwanted emissions from the
MES outside the bands 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz shall not exceed the
limits in table 3a.
In tables 3 and 3a, whenever a change of limit between adjacent frequency bands occurs, the lower of the two limits
shall apply at the transition frequency.
ETSI
13 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Table 3: Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz for MES only capable of
transmitting within sub-band 1 frequency band as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 6)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 3) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 4) (see note 3)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 4)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 4)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 4, 5, 7)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 4, 5, 7)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 4, 5, 7)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 4, 5, 7)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 4, 5, 7)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 5, 7)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 The levels in table 4a shall apply from 1 660,5 MHz to 1 662,5 MHz
1 662,5 to 1 665,5 -60 30 kHz Average
1 665,5 to 1 670,5 -60 100 kHz Average
1 670,5 to 1 680,5 -60 300 kHz Average
1 680,5 to 1 690,5 -60 1 MHz Average
1 690,5 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Peak Hold
(see note 1)
NOTE 1: In the band 3 253,0 MHz to 3 321,0 MHz the maximum EIRP in one, and only one, 3 MHz
measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band the power limit in table 3
shall be applied.
In each of the bands 4 879,5 MHz to 4 981,5 MHz, 6 506,0 MHz to 6 642,0 MHz and 8 132,5 MHz to
8 302,5 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not
exceed -48 dBW. Elsewhere in this band the power limit in table 3 shall be applied.
NOTE 2: The average measurement method defined in clause 5.2.2.3 shall apply except that an averaging
period of 20 ms shall be used in the sub-band 1 573,42 MHz to 1 580,42 MHz.
NOTE 3: Measurement bandwidths less than 1 MHz are allowable provided the power in the narrower
bandwidth is integrated over 1 MHz.
NOTE 4: Linearly interpolated in dBW vs. Frequency.
NOTE 5: The power limits specified in the band 1 624,5 MHz to 1 626,5 MHz require further study. This study is
important to determine whether less stringent limits may enhance spectrum efficiency and utilization
immediately above 1 626,5 MHz.
NOTE 6: Peak Hold and Average measurements shall be performed as specified in clauses 5.2.2.2 and 5.2.2.3.
NOTE 7: For systems employing CDMA, the EIRP limits shall be decreased by 10 log (N) dB, where N is the
maximum number of MESs in the receive beam of the satellite to which these MESs are
communicating and which are expected to transmit simultaneously in the same frequency band within
that same beam. This number shall be declared by the manufacturer (N = 1 in a TDMA system).
ETSI
14 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Table 3a: Unwanted emissions outside the bands 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz for MES capable of transmitting within all or any part of
sub-band 1 and sub-band 2 frequency bands as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 5) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 6) (see note 5)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 6)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 6)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 6, 7, 9)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 6, 7, 9)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 6, 7, 9)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 6, 7, 9)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 6, 7, 9)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 7, 9)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 note 1 note 1 note 1
1 662,5 to 1 666,0 -55 30 kHz Average
1 666,0 to 1 668,0 note 2 note 2 note 2
1 668,0 to 1 675,0 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 675,0 to 1 677,0 note 2 note 2 note 2
1 677,0 to 1 680,0 -60 30 kHz Average
1 680,0 to 1 685,0 -60 100 kHz Average
1 685,0 to 1 695,0 -60 300 kHz Average
1 695,0 to 1 705,0 -60 1 MHz Average
1 705,0 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Average
(see note 3)
ETSI
15 Final draft ETSI EN 301 681 V1.4.0 (2011-09)
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
NOTE 1: For an MES transmitting in sub-band 1 (as defined in table 1) the limits defined in table 4a shall apply
for the band 1 660,5 MHz to 1 662,5 MHz. For an MES transmitting in sub-band 2 (as defined in
table 1) a limit of -55 dBW in 30 kHz shall apply for the band 1 660,5 MHz to 1 662,5 MHz.
NOTE 2: For an MES transmitting in sub-band 2 (as defined in table 1) the limits defined in table 4a shall apply
for the bands 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz. For an MES transmitting
in sub-band 1 (as defined in table 1) a limit of -55 dBW in 30 kHz shall apply for the bands
1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz.
NOTE 3: In the bands 3 253,0 MHz to 3 321,0 MHz and 3 336,0 MHz to 3 350,0 MHz the maximum EIRP in
one, and only one, 3 MHz measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band
the power limit in table 3a shall be ap
...
Harmonized European Standard
Satellite Earth Stations and Systems (SES);
Harmonized EN for Mobile Earth Stations (MESs) of
Geostationary mobile satellite systems, including handheld
earth stations, for Satellite Personal Communications
Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile
Satellite Service (MSS) covering the essential requirements
of article 3.2 of the R&TTE Directive
2 ETSI EN 301 681 V1.4.1 (2011-11)
Reference
REN/SES-00320
Keywords
earth station, MES, mobile, MSS, radio, satellite,
S-PCN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 681 V1.4.1 (2011-11)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 8
2 References . 8
2.1 Normative references . 9
2.2 Informative references . 9
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 11
4 Technical requirement specifications . 11
4.1 Environment profile . 11
4.2 Conformance requirements . 12
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 12
4.2.1.1 Justification . 12
4.2.1.2 Technical requirements . 12
4.2.1.3 Conformance test . 15
4.2.2 Unwanted emissions within the bands 1 626,5 MHz to 1 660,5 MHz and 1 660,5 MHz to
1 662,5 MHz and within the bands 1 666,0 MHz to 1 668,0 MHz, 1 668,0 MHz to 1 675,0 MHz and
1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 15
4.2.2.1 Justification . 15
4.2.2.2 Technical requirements . 16
4.2.2.3 Conformance test . 17
4.2.3 Unwanted emissions in carrier-off state . 17
4.2.3.1 Justification . 17
4.2.3.2 Technical requirements . 18
4.2.3.3 Conformance test . 18
4.2.4 MES Control and Monitoring Functions (CMF) . 18
4.2.4.1 Self-monitoring functions/Processor monitoring . 18
4.2.4.1.1 Justification . 18
4.2.4.1.2 Technical requirements. 18
4.2.4.1.3 Conformance test . 18
4.2.4.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 19
4.2.4.2.1 Justification . 19
4.2.4.2.2 Technical requirements. 19
4.2.4.2.3 Conformance test . 19
4.2.4.3 Network control authorization . 19
4.2.4.3.1 Justification . 19
4.2.4.3.2 Technical requirements. 19
4.2.4.3.3 Conformance test . 19
4.2.4.4 Network control reception . 19
4.2.4.4.1 Transmission disable/enable . 19
4.2.4.4.2 Transmit frequency control . 20
4.2.4.5 Fellow radio stations in a dual-mode or multimode terminal . 20
4.2.4.5.1 Justification . 20
4.2.4.5.2 Technical requirements. 20
4.2.4.5.3 Conformance test . 20
4.2.5 Equipment identity . 21
4.2.5.1 Justification . 21
4.2.5.2 Technical requirements . 21
4.2.5.3 Conformance test . 21
ETSI
4 ETSI EN 301 681 V1.4.1 (2011-11)
4.2.6 Protection of the radio astronomy service operation in the band 1 660 MHz to 1 660,5 MHz and in
the band 1 668,0 MHz to 1 670,0 MHz . 21
4.2.6.1 Purpose . 21
4.2.6.2 Technical requirements . 21
4.2.6.3 Conformance test . 21
5 Testing for compliance with technical requirements . 21
5.1 Environmental conditions for testing . 21
5.2 Essential radio test suites . 22
5.2.1 General . 22
5.2.1.1 Description of equipment . 22
5.2.1.2 Testing of host-connected equipment and plug-in modules . 23
5.2.1.2.1 Alternative approaches . 23
5.2.1.2.2 Alternative A: combined equipment . 23
5.2.1.2.3 Alternative B: use of a test jig . 23
5.2.1.3 CMF/Special Test Equipment (STE) . 23
5.2.1.4 General test requirements . 23
5.2.1.4.1 MES test modes . 23
5.2.1.4.2 Special Test Equipment (STE) . 24
5.2.1.4.3 Laboratory Test Equipment (LTE) . 25
5.2.1.4.4 Methods of test for MES RF emissions according to the equipment type . 25
5.2.1.4.5 Procedures for measurement of radiated emissions . 25
5.2.1.4.6 Procedures for measurement of conducted emissions . 30
5.2.1.4.7 Interpretation of the measurement results . 32
5.2.1.4.8 Test report . 32
5.2.2 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band
1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 32
5.2.2.1 Method of test . 32
5.2.2.2 Peak measurement . 33
5.2.2.3 Average measurement . 33
5.2.2.4 Test requirements . 34
5.2.3 Unwanted emissions within the band 1 626,5 MHz to 1 660,5 MHz and the band 1 624,5 MHz to
1 626,5 MHz and 1 660,5 MHz to 1 662,5 MHz and within the band 1 668,0 MHz to 1 675,0 MHz
and the band 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 34
5.2.3.1 Method of test . 34
5.2.3.2 Measurement method . 35
5.2.3.3 Test requirements . 35
5.2.4 Unwanted emissions in carrier-off state . 35
5.2.4.1 Method of test . 35
5.2.4.2 Measurement method . 36
5.2.4.3 Test requirements . 36
5.2.5 MES Control and Monitoring Functions (CMF) . 36
5.2.5.1 Self-monitoring functions/Processor monitoring . 36
5.2.5.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 36
5.2.5.3 Network control authorization . 36
5.2.5.3.1 Method of test . 36
5.2.5.3.2 Test procedure . 37
5.2.5.3.3 Test requirements . 37
5.2.5.4 Network control reception . 37
5.2.5.4.1 Transmission disable/enable . 37
5.2.5.4.2 Transmit frequency control . 38
5.2.5.5 Fellow radio stations in a dual-mode or multimode terminal . 39
5.2.5.5.1 Method of test . 39
5.2.5.5.2 Test procedure . 39
5.2.5.5.3 Test requirements . 39
5.2.6 Equipment identity . 39
5.2.6.1 Method of test . 39
5.2.6.2 Test procedure . 40
5.2.6.3 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
ETSI
5 ETSI EN 301 681 V1.4.1 (2011-11)
Annex B (informative): The EN title in the official languages . 44
Annex C (informative): Bibliography . 45
History . 46
ETSI
6 ETSI EN 301 681 V1.4.1 (2011-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Satellite Earth Stations
and Systems (SES).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [7] as amended by Directive 98/48/EC [8].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [1].
See article 5.1 of Directive 1999/5/EC [1] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [1] are summarised in annex A.
National transposition dates
Date of adoption of this EN: 18 November 2011
Date of latest announcement of this EN (doa): 29 February 2012
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2012
Date of withdrawal of any conflicting National Standard (dow): 31 August 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [1]. The modular
structure is shown in EG 201 399 [i.1]. The determination of the parameters of the user earth stations using a given
satellite for the protection of the spectrum allocated to that satellite, is considered to be under the responsibility of the
satellite operator or the satellite network operators.
The present document specifies new emission requirements for MESs that are capable of transmitting in the frequency
band from 1 668,0 MHz to 1 675,0 MHz. Following the WRC-03 decision to allocate to MSS the bands 1 518 MHz to
1 525 MHz (space to Earth) and 1 668 MHz to 1 675 MHz (Earth to space) and the conclusions of WRC-07, the present
document specifies the necessary requirements to harmonise the use of these extended frequency bands by MESs.
The present document treats the two parts of the L-band frequency allocation (as extended) as two sub-bands which
may be used separately or in any combination. The original L-band allocation is referenced in the present document as
"sub-band 1" and the extended L-band is referenced as "sub-band 2".
ETSI
7 ETSI EN 301 681 V1.4.1 (2011-11)
A new table (table 3a) is added to the present document for MESs that are capable of transmitting in any combination of
either or both of these sub-bands. The new table 3a is recommended for all new MESs, including MESs that can only
operate in sub-band 1.
The applicant may choose between table 3 and table 3a for new MESs that are capable of transmitting in only the
sub-band 1: the applicant has to declare which alternative is used.
The technical requirements in the present document are applied under article 3.2 of the R&TTE Directive [1],
concerning the effective uses of the spectrum allocated to terrestrial/space radio communication and orbital resources so
as to avoid harmful interference. These requirements are in two major categories:
• emissions limits: to protect other radio services from harmful interference generated by the MES in normal
use;
• MES Control and Monitoring Functions (CMF): to protect other radio services from unwanted
transmissions from the MES. The CMF in each MES is capable of answering to commands from the Network
Control Facilities (NCF) for its S-PCN.
NOTE: The requirements for Network Control Facilities (NCF) for S-PCN are contained in EN 301 682 [i.2].
The determination of the parameters of the user earth stations using a given satellite for the protection of the spectrum
allocated to that satellite, is considered to be under the responsibility of the satellite operator or the satellite network
operators.
Figure 1: Void
ETSI
8 ETSI EN 301 681 V1.4.1 (2011-11)
1 Scope
The present document applies to S-PCN MES for Geostationary mobile satellite systems with an EIRP less than or
equal to 15 dBW.
The present document sets out the minimum performance requirements and technical characteristics of Mobile Earth
Stations (MES) with both transmit and receive capabilities for operation in a Satellite Personal Communication
Network (S-PCN) in any combination of all or any part of the Mobile Satellite Service (MSS) frequency bands
sub-band 1 and sub-band 2 defined in table 1.
Table 1: Mobile Satellite Service (MSS) frequency band
Sub-band Transmission path MSS frequency band
1 MESs transmit 1 1 626,5 MHz to 1 660,5 MHz
MESs receive 1 1 525 MHz to 1 559 MHz
2 MESs transmit 2 1 668,0 MHz to 1 675,0 MHz
MESs receive 2 1 518,0 MHz to 1 525,0 MHz
An S-PCN MES may be handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed equipment, or may
be an element in a multimode terminal; it may consist of a number of modules with associated connections and user
interface, or may be a self contained single unit.
If the MES is an element in a multimode terminal, unless otherwise stated in the present document, its requirements
apply only to the S-PCN MES element of the terminal operating in the MSS frequency band given in table 1.
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2
which states that "….radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [1] may apply to equipment within the scope of the present
document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
NOTE 2: These MESs are controlled and monitored by a Network Control Facility (NCF). The NCF is outside the
scope of the present document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
ETSI
9 ETSI EN 301 681 V1.4.1 (2011-11)
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[2] Void.
[3] Void.
[4] ITU-T Recommendation O.153 (1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] CISPR 16-1-4 (2010): "Specification for radio disturbance and immunity measuring apparatus and
methods - Part 1-4: Radio disturbance and immunity measuring apparatus- Antennas and test sites
for radiated disturbance measurements".
[6] Void.
[7] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[8] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.2] ETSI EN 301 682: "Satellite Personal Communications Networks (S-PCN); Network Control
Facilities (NCF) for Mobile Earth Stations (MESs), including handheld earth stations, for S-PCN
in the 1,5/1,6 GHz bands, providing voice and/or data communications under the Mobile Satellite
Service (MSS)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [1] and the following
apply:
3dB Bandwidth (B3dB): total width of the signal spectrum 3 dB below the maximum in-band density
applicant: manufacturer or his authorized representative within the European Community or the person responsible for
placing the apparatus on the market
carrier-off state: MES is in this state when either it is authorized by the Network Control Facility (NCF) to transmit
but when it does not transmit any signal, or when it is not authorized by the NCF to transmit
carrier-on state: MES is in this state when it is authorized by the NCF to transmit and when it transmits a signal
ETSI
10 ETSI EN 301 681 V1.4.1 (2011-11)
carrier-on time (initial bursts): period when an MES is transmitting a signal
NOTE: For MESs that transmit in a non-continuous mode, the carrier-on time only includes the times when the
MES is transmitting a signal.
conducted measurement: measurement of emissions from an antenna port of the MES made by direct wired
connection to the port
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
Equivalent Isotropically Radiated Power (EIRP): product of transmitter power and the antenna gain in the direction
considered, relative to an isotropic source radiating uniformly in all directions
fellow radio station: one of the (other) modes of a multimode MES
handheld: indicates an MES which is self-contained and is small enough and light enough to be carried and used
during a call with one hand
host-connected: indicates an MES for which connection to or integration with host equipment is necessary to offer
functionality
host equipment: any equipment which has a complete user functionality when not connected to the MES, and to which
the MES provides additional functionality, and to which connection is necessary for the MES to offer functionality
Installable Equipment (IE): equipment which is intended to be installed in a vehicle
NOTE: An IE may consist of one or several interconnected modules. The IE is composed of modules intended to
be externally mounted as declared by the applicant, and defined as Externally Mounted Equipment (EME)
and the remaining modules(s) as Internally Mounted Equipment (IME).
Laboratory Test Equipment (LTE): logical grouping that contains the standard test equipment provided by a test
laboratory
MSS band: continuous range of frequencies allocated by the ITU to the MSS
multimode: indicates equipment that accommodates radio stations of different radio networks
NCF control message: message, normally originating from a network, to a specified terminal or set of terminals of the
network which indicates to the terminal or set of terminals that it/they should carry out some specific action or should
enter or maintain some specific state
NOTE: For test purposes NCF control messages may originate from Special Test Equipment (STE).
network control channel: channel by which an MES receives general control information from the NCF of its S-PCN
nominated bandwidth (Bn): bandwidth of the MES radio frequency transmission that is nominated by the applicant
and that is wide enough to encompass all spectral elements of the transmission necessary for communication and which
have a level greater than the specified unwanted emissions limits; also the nominated bandwidth is centred on the
transmit frequency and does not exceed 180 % of the 3 dB bandwidth of the signal and is within the assigned part of the
MSS transmit frequency band within which the MES operates
NOTE: The nominated bandwidth is wide enough to take account of the transmit carrier frequency stability.
operational frequency range(s): sub-portion(s) of the band 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz in the earth-to-space direction to the MSS network, for which the equipment has been
designed as declared by the applicant
Portable Equipment (PE): equipment generally intended to be self-contained, free standing and portable
NOTE: A PE would normally consist of a single module, but may consist of several interconnected modules.
radiated measurement: measurement of an actual radiated field
Special Test Equipment (STE): equipment which allows a test laboratory to control the MES so that the tests required
by the present document can be performed
ETSI
11 ETSI EN 301 681 V1.4.1 (2011-11)
sub-band: contiguous portion of the operating band
NOTE: Two sub-bands are defined (see table 1).
test laboratory: laboratory which performs the conformance testing of the MES against the present document
NOTE: The test laboratory may be the applicant's laboratory.
test load: substantially non-reactive, non-radiating power attenuator which is capable of safely dissipating the power
from the transmitter(s)
transmission format: physical characteristics of the signal that is transmitted by an MES
NOTE: An MES may use more than one transmission format within a single S-PCN.
unwanted emissions: emissions falling outside the nominated bandwidth in the carrier-on state and those generated in
the carrier-off state
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
B 3dB Bandwidth
3dB
B Nominated Bandwidth
n
CDMA Code Division Multiple Access
CMF Control and Monitoring Functions
dBW deciBels relative to 1 Watt
EIRP Equivalent Isotropically Radiated Power
EMC Electro-Magnetic Compatibility
EME Externally Mounted Equipment
IE Installable Equipment
IEC International Electrotechnical Commission/Committee
IME Internally Mounted Equipment
ITU International Telecommunications Union
LTE Laboratory Test Equipment
MES Mobile Earth Station
MIC MES Identification Code
MSS Mobile Satellite Service
NCF Network Control Facility
PE Portable Equipment
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
S-PCN Satellite Personal Communications Network
STE Special Test Equipment
TDMA Time Division Multiple Access
4 Technical requirement specifications
4.1 Environment profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the applicant. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
The environmental profile for operation of the equipment shall include the ranges of humidity, temperature and supply
voltage.
Table 2: Void
ETSI
12 ETSI EN 301 681 V1.4.1 (2011-11)
4.2 Conformance requirements
4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz
and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state)
4.2.1.1 Justification
The technical requirements presented in this clause shall apply to all MESs that are capable of transmitting either in
sub-band 1, or sub-band 2, or in both sub-bands as defined in table 1 for the purpose of:
• protection of other radio services operating outside the band 1 626,5 MHz to 1 660,5 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 1 frequency band as defined in table 1; and
• protection of other radio services operating outside the band 1 668,0 MHz to 1 675,0 MHz from emissions
caused by S-PCN MESs transmitting within the sub-band 2 frequency band as defined in table 1.
4.2.1.2 Technical requirements
Unwanted emissions from Mobile Earth Stations (LMESs) outside the band 1 626,5 MHz to 1 660,5 MHz and outside
the band 1 668 MHz to 1 675 MHz shall be below the following limits.
Unless otherwise stated the specification in this clause shall apply to all types of MESs notwithstanding their
transmitting capabilities within the frequency bands as defined in table 1:
1) For MES that are capable of transmitting within only the sub-band 1 frequency band as defined in table 1, the
maximum EIRP spectral density of the unwanted emissions from the MES outside the band 1 626,5 MHz to
1 660,5 MHz shall not exceed the limits in either table 3 or table 3a. The applicant shall declare which
alternative shall be used.
2) For MES that are capable of transmitting within only sub-band 2 frequency band or within both the sub-band 1
and sub-band 2 frequency bands, the maximum EIRP spectral density of the unwanted emissions from the
MES outside the bands 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz shall not exceed the
limits in table 3a.
In tables 3 and 3a, whenever a change of limit between adjacent frequency bands occurs, the lower of the two limits
shall apply at the transition frequency.
ETSI
13 ETSI EN 301 681 V1.4.1 (2011-11)
Table 3: Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz for MES only capable of
transmitting within sub-band 1 frequency band as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 6)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 3) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 4) (see note 3)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 4)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 4)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 4, 5, 7)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 4, 5, 7)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 4, 5, 7)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 4, 5, 7)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 4, 5, 7)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 5, 7)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 The levels in table 4a shall apply from 1 660,5 MHz to 1 662,5 MHz
1 662,5 to 1 665,5 -60 30 kHz Average
1 665,5 to 1 670,5 -60 100 kHz Average
1 670,5 to 1 680,5 -60 300 kHz Average
1 680,5 to 1 690,5 -60 1 MHz Average
1 690,5 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Peak Hold
(see note 1)
NOTE 1: In the band 3 253,0 MHz to 3 321,0 MHz the maximum EIRP in one, and only one, 3 MHz
measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band the power limit in table 3
shall be applied.
In each of the bands 4 879,5 MHz to 4 981,5 MHz, 6 506,0 MHz to 6 642,0 MHz and 8 132,5 MHz to
8 302,5 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not
exceed -48 dBW. Elsewhere in this band the power limit in table 3 shall be applied.
NOTE 2: The average measurement method defined in clause 5.2.2.3 shall apply except that an averaging
period of 20 ms shall be used in the sub-band 1 573,42 MHz to 1 580,42 MHz.
NOTE 3: Measurement bandwidths less than 1 MHz are allowable provided the power in the narrower
bandwidth is integrated over 1 MHz.
NOTE 4: Linearly interpolated in dBW vs. Frequency.
NOTE 5: The power limits specified in the band 1 624,5 MHz to 1 626,5 MHz require further study. This study is
important to determine whether less stringent limits may enhance spectrum efficiency and utilization
immediately above 1 626,5 MHz.
NOTE 6: Peak Hold and Average measurements shall be performed as specified in clauses 5.2.2.2 and 5.2.2.3.
NOTE 7: For systems employing CDMA, the EIRP limits shall be decreased by 10 log (N) dB, where N is the
maximum number of MESs in the receive beam of the satellite to which these MESs are
communicating and which are expected to transmit simultaneously in the same frequency band within
that same beam. This number shall be declared by the manufacturer (N = 1 in a TDMA system).
ETSI
14 ETSI EN 301 681 V1.4.1 (2011-11)
Table 3a: Unwanted emissions outside the bands 1 626,5 MHz to 1 660,5 MHz and
1 668,0 MHz to 1 675,0 MHz for MES capable of transmitting within all or any part of
sub-band 1 and sub-band 2 frequency bands as defined in table 1
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
30 to 1 000 -66 100 kHz Peak Hold
1 000 to 1 559 -61 1 MHz Average
1 559 to 1 605,0 -70 1 MHz Average
(see note 5) (see note 2)
1 605,0 to 1 612,5 -70 to -58,5 1 MHz Average
(see note 6) (see note 5)
1 612,5 to 1 616,5 -55 to -50 1 MHz Average
(see note 6)
1 616,5 to 1 621,5 -50 to -46 1 MHz Average
(see note 6)
1 621,5 to 1 624,5 -60 30 kHz Average
1 624,5 to 1 625,0 -60 to -57,5 30 kHz Average
(see notes 6, 7, 9)
1 625,0 to 1 625,125 -57,5 to -57,2 30 kHz Average
(see notes 6, 7, 9)
1 625,125 to 1 625,8 -57,2 to -50 30 kHz Average
(see notes 6, 7, 9)
1 625,8 to 1 626,0 -50 to -47 30 kHz Average
(see notes 6, 7, 9)
1 626,0 to 1 626,2 -47 to -40 30 kHz Average
(see notes 6, 7, 9)
1 626,2 to 1 626,5 -40 30 kHz Average
(see notes 7, 9)
1 626,5 to 1 660,5 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 660,5 to 1 662,5 note 1 note 1 note 1
1 662,5 to 1 666,0 -55 30 kHz Average
1 666,0 to 1 668,0 note 2 note 2 note 2
1 668,0 to 1 675,0 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
1 675,0 to 1 677,0 note 2 note 2 note 2
1 677,0 to 1 680,0 -60 30 kHz Average
1 680,0 to 1 685,0 -60 100 kHz Average
1 685,0 to 1 695,0 -60 300 kHz Average
1 695,0 to 1 705,0 -60 1 MHz Average
1 705,0 to 2 250 -60 3 MHz Average
2 250 to 12 750 -60 3 MHz Average
(see note 3)
ETSI
15 ETSI EN 301 681 V1.4.1 (2011-11)
Carrier - on state
Frequency
EIRP Measurement Measurement method
(MHz)
(dBW) bandwidth (see note 8)
NOTE 1: For an MES transmitting in sub-band 1 (as defined in table 1) the limits defined in table 4a shall apply
for the band 1 660,5 MHz to 1 662,5 MHz. For an MES transmitting in sub-band 2 (as defined in
table 1) a limit of -55 dBW in 30 kHz shall apply for the band 1 660,5 MHz to 1 662,5 MHz.
NOTE 2: For an MES transmitting in sub-band 2 (as defined in table 1) the limits defined in table 4a shall apply
for the bands 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz. For an MES transmitting
in sub-band 1 (as defined in table 1) a limit of -55 dBW in 30 kHz shall apply for the bands
1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz.
NOTE 3: In the bands 3 253,0 MHz to 3 321,0 MHz and 3 336,0 MHz to 3 350,0 MHz the maximum EIRP in
one, and only one, 3 MHz measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band
the power limit in table 3a shall be applied.
In the bands 4 879,5 MHz to 4 981,5 MHz and 5 004,0 MHz to 5 025,0 MHz the maximum EIRP in
one, and only one, 3 MHz measurement bandwidth shall not exceed -48 dBW. Elsewhere in this band
the power limit in table 3a shall be applied.
In the bands
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VDWHOLWVNLKSatellite Earth Stations and Systems (SES) - Harmonized EN for Mobile Earth Stations (MESs) of Geostationary mobile satellite systems, including handheld earth stations, for Satellite Personal Communications Networks (S-PCN) in the 1,5/1,6 GHz bands under the Mobile Satellite Service (MSS) covering the essential requirements of article 3.2 of the R&TTE Directive33.070.40SatelitSatelliteICS:Ta slovenski standard je istoveten z:EN 301 681 Version 1.SIST EN 301 681 V1.4.1:2012en01-januar-2012SIST EN 301 681 V1.4.1:2012SLOVENSKI
STANDARD
Harmonized European Standard SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 2
Reference REN/SES-00320 Keywords earth station, MES, mobile, MSS, radio, satellite, S-PCN ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 6 1 Scope . 8 2 References . 8 2.1 Normative references . 9 2.2 Informative references . 9 3 Definitions and abbreviations . 9 3.1 Definitions . 9 3.2 Abbreviations . 11 4 Technical requirement specifications . 11 4.1 Environment profile . 11 4.2 Conformance requirements . 12 4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 12 4.2.1.1 Justification . 12 4.2.1.2 Technical requirements . 12 4.2.1.3 Conformance test . 15 4.2.2 Unwanted emissions within the bands 1 626,5 MHz to 1 660,5 MHz and 1 660,5 MHz to 1 662,5 MHz and within the bands 1 666,0 MHz to 1 668,0 MHz, 1 668,0 MHz to 1 675,0 MHz and 1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 15 4.2.2.1 Justification . 15 4.2.2.2 Technical requirements . 16 4.2.2.3 Conformance test . 17 4.2.3 Unwanted emissions in carrier-off state . 17 4.2.3.1 Justification . 17 4.2.3.2 Technical requirements . 18 4.2.3.3 Conformance test . 18 4.2.4 MES Control and Monitoring Functions (CMF) . 18 4.2.4.1 Self-monitoring functions/Processor monitoring . 18 4.2.4.1.1 Justification . 18 4.2.4.1.2 Technical requirements. 18 4.2.4.1.3 Conformance test . 18 4.2.4.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 19 4.2.4.2.1 Justification . 19 4.2.4.2.2 Technical requirements. 19 4.2.4.2.3 Conformance test . 19 4.2.4.3 Network control authorization . 19 4.2.4.3.1 Justification . 19 4.2.4.3.2 Technical requirements. 19 4.2.4.3.3 Conformance test . 19 4.2.4.4 Network control reception . 19 4.2.4.4.1 Transmission disable/enable . 19 4.2.4.4.2 Transmit frequency control . 20 4.2.4.5 Fellow radio stations in a dual-mode or multimode terminal . 20 4.2.4.5.1 Justification . 20 4.2.4.5.2 Technical requirements. 20 4.2.4.5.3 Conformance test . 20 4.2.5 Equipment identity . 21 4.2.5.1 Justification . 21 4.2.5.2 Technical requirements . 21 4.2.5.3 Conformance test . 21 SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 4 4.2.6 Protection of the radio astronomy service operation in the band 1 660 MHz to 1 660,5 MHz and in the band 1 668,0 MHz to 1 670,0 MHz . 21 4.2.6.1 Purpose . 21 4.2.6.2 Technical requirements . 21 4.2.6.3 Conformance test . 21 5 Testing for compliance with technical requirements . 21 5.1 Environmental conditions for testing . 21 5.2 Essential radio test suites . 22 5.2.1 General . 22 5.2.1.1 Description of equipment . 22 5.2.1.2 Testing of host-connected equipment and plug-in modules . 23 5.2.1.2.1 Alternative approaches . 23 5.2.1.2.2 Alternative A: combined equipment . 23 5.2.1.2.3 Alternative B: use of a test jig . 23 5.2.1.3 CMF/Special Test Equipment (STE) . 23 5.2.1.4 General test requirements . 23 5.2.1.4.1 MES test modes . 23 5.2.1.4.2 Special Test Equipment (STE) . 24 5.2.1.4.3 Laboratory Test Equipment (LTE) . 25 5.2.1.4.4 Methods of test for MES RF emissions according to the equipment type . 25 5.2.1.4.5 Procedures for measurement of radiated emissions . 25 5.2.1.4.6 Procedures for measurement of conducted emissions . 30 5.2.1.4.7 Interpretation of the measurement results . 32 5.2.1.4.8 Test report . 32 5.2.2 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state) . 32 5.2.2.1 Method of test . 32 5.2.2.2 Peak measurement . 33 5.2.2.3 Average measurement . 33 5.2.2.4 Test requirements . 34 5.2.3 Unwanted emissions within the band 1 626,5 MHz to 1 660,5 MHz and the band 1 624,5 MHz to 1 626,5 MHz and 1 660,5 MHz to 1 662,5 MHz and within the band 1 668,0 MHz to 1 675,0 MHz and the band 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz (carrier-on state) . 34 5.2.3.1 Method of test . 34 5.2.3.2 Measurement method . 35 5.2.3.3 Test requirements . 35 5.2.4 Unwanted emissions in carrier-off state . 35 5.2.4.1 Method of test . 35 5.2.4.2 Measurement method . 36 5.2.4.3 Test requirements . 36 5.2.5 MES Control and Monitoring Functions (CMF) . 36 5.2.5.1 Self-monitoring functions/Processor monitoring . 36 5.2.5.2 Self-monitoring functions/Transmit frequency generation sub-system monitoring . 36 5.2.5.3 Network control authorization . 36 5.2.5.3.1 Method of test . 36 5.2.5.3.2 Test procedure . 37 5.2.5.3.3 Test requirements . 37 5.2.5.4 Network control reception . 37 5.2.5.4.1 Transmission disable/enable . 37 5.2.5.4.2 Transmit frequency control . 38 5.2.5.5 Fellow radio stations in a dual-mode or multimode terminal . 39 5.2.5.5.1 Method of test . 39 5.2.5.5.2 Test procedure . 39 5.2.5.5.3 Test requirements . 39 5.2.6 Equipment identity . 39 5.2.6.1 Method of test . 39 5.2.6.2 Test procedure . 40 5.2.6.3 Test requirements . 40 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 41 SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 5 Annex B (informative): The EN title in the official languages . 44 Annex C (informative): Bibliography . 45 History . 46
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Satellite Earth Stations and Systems (SES). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Directive 98/34/EC [7] as amended by Directive 98/48/EC [8]. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [1]. See article 5.1 of Directive 1999/5/EC [1] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [1] are summarised in annex A.
National transposition dates Date of adoption of this EN: 18 November 2011 Date of latest announcement of this EN (doa): 29 February 2012 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2012 Date of withdrawal of any conflicting National Standard (dow): 31 August 2013
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [1]. The modular structure is shown in EG 201 399 [i.1]. The determination of the parameters of the user earth stations using a given satellite for the protection of the spectrum allocated to that satellite, is considered to be under the responsibility of the satellite operator or the satellite network operators. The present document specifies new emission requirements for MESs that are capable of transmitting in the frequency band from 1 668,0 MHz to 1 675,0 MHz. Following the WRC-03 decision to allocate to MSS the bands 1 518 MHz to 1 525 MHz (space to Earth) and 1 668 MHz to 1 675 MHz (Earth to space) and the conclusions of WRC-07, the present document specifies the necessary requirements to harmonise the use of these extended frequency bands by MESs.
The present document treats the two parts of the L-band frequency allocation (as extended) as two sub-bands which may be used separately or in any combination. The original L-band allocation is referenced in the present document as "sub-band 1" and the extended L-band is referenced as "sub-band 2". SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 7 A new table (table 3a) is added to the present document for MESs that are capable of transmitting in any combination of either or both of these sub-bands. The new table 3a is recommended for all new MESs, including MESs that can only operate in sub-band 1. The applicant may choose between table 3 and table 3a for new MESs that are capable of transmitting in only the sub-band 1: the applicant has to declare which alternative is used.
The technical requirements in the present document are applied under article 3.2 of the R&TTE Directive [1], concerning the effective uses of the spectrum allocated to terrestrial/space radio communication and orbital resources so as to avoid harmful interference. These requirements are in two major categories: • emissions limits: to protect other radio services from harmful interference generated by the MES in normal use; • MES Control and Monitoring Functions (CMF): to protect other radio services from unwanted transmissions from the MES. The CMF in each MES is capable of answering to commands from the Network Control Facilities (NCF) for its S-PCN. NOTE: The requirements for Network Control Facilities (NCF) for S-PCN are contained in EN 301 682 [i.2]. The determination of the parameters of the user earth stations using a given satellite for the protection of the spectrum allocated to that satellite, is considered to be under the responsibility of the satellite operator or the satellite network operators. Figure 1: Void SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 8 1 Scope The present document applies to S-PCN MES for Geostationary mobile satellite systems with an EIRP less than or equal to 15 dBW. The present document sets out the minimum performance requirements and technical characteristics of Mobile Earth Stations (MES) with both transmit and receive capabilities for operation in a Satellite Personal Communication Network (S-PCN) in any combination of all or any part of the Mobile Satellite Service (MSS) frequency bands sub-band 1 and sub-band 2 defined in table 1. Table 1: Mobile Satellite Service (MSS) frequency band Sub-band Transmission path MSS frequency band 1 MESs transmit 1 1 626,5 MHz to 1 660,5 MHz MESs receive 1 1 525 MHz to 1 559 MHz 2 MESs transmit 2 1 668,0 MHz to 1 675,0 MHz MESs receive 2 1 518,0 MHz to 1 525,0 MHz
An S-PCN MES may be handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed equipment, or may be an element in a multimode terminal; it may consist of a number of modules with associated connections and user interface, or may be a self contained single unit. If the MES is an element in a multimode terminal, unless otherwise stated in the present document, its requirements apply only to the S-PCN MES element of the terminal operating in the MSS frequency band given in table 1. The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2 which states that "….radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [1] may apply to equipment within the scope of the present document. NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org. NOTE 2: These MESs are controlled and monitored by a Network Control Facility (NCF). The NCF is outside the scope of the present document. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 9 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [2] Void. [3] Void. [4] ITU-T Recommendation O.153 (1992): "Basic parameters for the measurement of error performance at bit rates below the primary rate". [5] CISPR 16-1-4 (2010): "Specification for radio disturbance and immunity measuring apparatus and methods - Part 1-4: Radio disturbance and immunity measuring apparatus- Antennas and test sites for radiated disturbance measurements". [6] Void. [7] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [8] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending Directive 98/34/EC laying down a procedure for the provision of information in the field of technical standards and regulations. 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". [i.2] ETSI EN 301 682: "Satellite Personal Communications Networks (S-PCN); Network Control Facilities (NCF) for Mobile Earth Stations (MESs), including handheld earth stations, for S-PCN in the 1,5/1,6 GHz bands, providing voice and/or data communications under the Mobile Satellite Service (MSS)". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in the R&TTE Directive [1] and the following apply: 3dB Bandwidth (B3dB): total width of the signal spectrum 3 dB below the maximum in-band density applicant: manufacturer or his authorized representative within the European Community or the person responsible for placing the apparatus on the market carrier-off state: MES is in this state when either it is authorized by the Network Control Facility (NCF) to transmit but when it does not transmit any signal, or when it is not authorized by the NCF to transmit carrier-on state: MES is in this state when it is authorized by the NCF to transmit and when it transmits a signal SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 10 carrier-on time (initial bursts): period when an MES is transmitting a signal NOTE: For MESs that transmit in a non-continuous mode, the carrier-on time only includes the times when the MES is transmitting a signal. conducted measurement: measurement of emissions from an antenna port of the MES made by direct wired connection to the port environmental profile: range of environmental conditions under which equipment within the scope of the present document is required to comply with the provisions of the present document Equivalent Isotropically Radiated Power (EIRP): product of transmitter power and the antenna gain in the direction considered, relative to an isotropic source radiating uniformly in all directions fellow radio station: one of the (other) modes of a multimode MES handheld: indicates an MES which is self-contained and is small enough and light enough to be carried and used during a call with one hand host-connected: indicates an MES for which connection to or integration with host equipment is necessary to offer functionality host equipment: any equipment which has a complete user functionality when not connected to the MES, and to which the MES provides additional functionality, and to which connection is necessary for the MES to offer functionality Installable Equipment (IE): equipment which is intended to be installed in a vehicle NOTE: An IE may consist of one or several interconnected modules. The IE is composed of modules intended to be externally mounted as declared by the applicant, and defined as Externally Mounted Equipment (EME) and the remaining modules(s) as Internally Mounted Equipment (IME). Laboratory Test Equipment (LTE): logical grouping that contains the standard test equipment provided by a test laboratory MSS band: continuous range of frequencies allocated by the ITU to the MSS multimode: indicates equipment that accommodates radio stations of different radio networks NCF control message: message, normally originating from a network, to a specified terminal or set of terminals of the network which indicates to the terminal or set of terminals that it/they should carry out some specific action or should enter or maintain some specific state NOTE: For test purposes NCF control messages may originate from Special Test Equipment (STE). network control channel: channel by which an MES receives general control information from the NCF of its S-PCN nominated bandwidth (Bn): bandwidth of the MES radio frequency transmission that is nominated by the applicant and that is wide enough to encompass all spectral elements of the transmission necessary for communication and which have a level greater than the specified unwanted emissions limits; also the nominated bandwidth is centred on the transmit frequency and does not exceed 180 % of the 3 dB bandwidth of the signal and is within the assigned part of the MSS transmit frequency band within which the MES operates NOTE: The nominated bandwidth is wide enough to take account of the transmit carrier frequency stability. operational frequency range(s): sub-portion(s) of the band 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz in the earth-to-space direction to the MSS network, for which the equipment has been designed as declared by the applicant Portable Equipment (PE): equipment generally intended to be self-contained, free standing and portable NOTE: A PE would normally consist of a single module, but may consist of several interconnected modules. radiated measurement: measurement of an actual radiated field Special Test Equipment (STE): equipment which allows a test laboratory to control the MES so that the tests required by the present document can be performed SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 11 sub-band: contiguous portion of the operating band NOTE: Two sub-bands are defined (see table 1). test laboratory: laboratory which performs the conformance testing of the MES against the present document NOTE: The test laboratory may be the applicant's laboratory. test load: substantially non-reactive, non-radiating power attenuator which is capable of safely dissipating the power from the transmitter(s) transmission format: physical characteristics of the signal that is transmitted by an MES NOTE: An MES may use more than one transmission format within a single S-PCN. unwanted emissions: emissions falling outside the nominated bandwidth in the carrier-on state and those generated in the carrier-off state 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: B3dB 3dB Bandwidth Bn Nominated Bandwidth CDMA Code Division Multiple Access CMF Control and Monitoring Functions dBW deciBels relative to 1 Watt EIRP Equivalent Isotropically Radiated Power EMC Electro-Magnetic Compatibility EME Externally Mounted Equipment IE Installable Equipment IEC International Electrotechnical Commission/Committee IME Internally Mounted Equipment ITU International Telecommunications Union LTE Laboratory Test Equipment MES Mobile Earth Station MIC MES Identification Code MSS Mobile Satellite Service NCF Network Control Facility PE Portable Equipment R&TTE Radio and Telecommunications Terminal Equipment RF Radio Frequency S-PCN Satellite Personal Communications Network STE Special Test Equipment TDMA Time Division Multiple Access 4 Technical requirement specifications 4.1 Environment profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the applicant. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. The environmental profile for operation of the equipment shall include the ranges of humidity, temperature and supply voltage. Table 2: Void SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 12 4.2 Conformance requirements 4.2.1 Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band 1 668,0 MHz to 1 675,0 MHz (carrier-on state) 4.2.1.1 Justification The technical requirements presented in this clause shall apply to all MESs that are capable of transmitting either in sub-band 1, or sub-band 2, or in both sub-bands as defined in table 1 for the purpose of: • protection of other radio services operating outside the band 1 626,5 MHz to 1 660,5 MHz from emissions caused by S-PCN MESs transmitting within the sub-band 1 frequency band as defined in table 1; and • protection of other radio services operating outside the band 1 668,0 MHz to 1 675,0 MHz from emissions caused by S-PCN MESs transmitting within the sub-band 2 frequency band as defined in table 1. 4.2.1.2 Technical requirements Unwanted emissions from Mobile Earth Stations (LMESs) outside the band 1 626,5 MHz to 1 660,5 MHz and outside the band 1 668 MHz to 1 675 MHz shall be below the following limits. Unless otherwise stated the specification in this clause shall apply to all types of MESs notwithstanding their transmitting capabilities within the frequency bands as defined in table 1: 1) For MES that are capable of transmitting within only the sub-band 1 frequency band as defined in table 1, the maximum EIRP spectral density of the unwanted emissions from the MES outside the band 1 626,5 MHz to 1 660,5 MHz shall not exceed the limits in either table 3 or table 3a. The applicant shall declare which alternative shall be used. 2) For MES that are capable of transmitting within only sub-band 2 frequency band or within both the sub-band 1 and sub-band 2 frequency bands, the maximum EIRP spectral density of the unwanted emissions from the MES outside the bands 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz shall not exceed the limits in table 3a. In tables 3 and 3a, whenever a change of limit between adjacent frequency bands occurs, the lower of the two limits shall apply at the transition frequency. SIST EN 301 681 V1.4.1:2012
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 13 Table 3: Unwanted emissions outside the band 1 626,5 MHz to 1 660,5 MHz for MES only capable of transmitting within sub-band 1 frequency band as defined in table 1 Frequency
(MHz) Carrier - on state EIRP (dBW) Measurement bandwidth Measurement method (see note 6) 30 to 1 000
-66 100 kHz Peak Hold 1 000 to 1 559
-61 1 MHz Average 1 559 to 1 605,0 -70 1 MHz (see note 3) Average (see note 2) 1 605,0 to 1 612,5
-70 to -58,5 (see note 4) 1 MHz (see note 3) Average
1 612,5 to 1 616,5
-55 to -50 (see note 4)
1 MHz Average 1 616,5 to 1 621,5
-50 to -46 (see note 4) 1 MHz Average 1 621,5 to 1 624,5
-60 30 kHz Average 1 624,5 to 1 625,0 -60 to -57,5
(see notes 4, 5, 7) 30 kHz Average 1 625,0 to 1 625,125 -57,5 to -57,2
(see notes 4, 5, 7) 30 kHz Average 1 625,125 to 1 625,8 -57,2 to -50
(see notes 4, 5, 7) 30 kHz Average 1 625,8 to 1 626,0 -50 to -47
(see notes 4, 5, 7) 30 kHz Average 1 626,0 to 1 626,2 -47 to -40
(see notes 4, 5, 7) 30 kHz Average 1 626,2 to 1 626,5
-40
(see notes 5, 7) 30 kHz Average 1 626,5 to 1 660,5
NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE 1 660,5 to 1 662,5
The levels in table 4a shall apply from 1 660,5 MHz to 1 662,5 MHz 1 662,5 to 1 665,5
-60 30 kHz Average 1 665,5 to 1 670,5
-60 100 kHz Average 1 670,5 to 1 680,5
-60 300 kHz Average 1 680,5 to 1 690,5
-60 1 MHz Average 1 690,5 to 2 250
-60 3 MHz Average 2 250 to 12 750
(see note 1) -60 3 MHz Peak Hold
NOTE 1: In the band 3 253,0 MHz to 3 321,0 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band the power limit in table 3 shall be applied.
In each of the bands 4 879,5 MHz to 4 981,5 MHz, 6 506,0 MHz to 6 642,0 MHz and 8 132,5 MHz to 8 302,5 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not exceed -48 dBW. Elsewhere in this band the power limit in table 3 shall be applied. NOTE 2: The average measurement method defined in clause 5.2.2.3 shall apply except that an averaging period of 20 ms shall be used in the sub-band 1 573,42 MHz to 1 580,42 MHz. NOTE 3: Measurement bandwidths less than 1 MHz are allowable provided the power in the narrower bandwidth is integrated over 1 MHz. NOTE 4: Linearly interpolated in dBW vs. Frequency. NOTE 5: The power limits specified in the band 1 624,5 MHz to 1 626,5 MHz require further study. This study is important to determine whether less stringent limits may enhance spectrum efficiency and utilization immediately above 1 626,5 MHz. NOTE 6: Peak Hold and Average measurements shall be performed as specified in clauses 5.2.2.2 and 5.2.2.3. NOTE 7: For systems employing CDMA, the EIRP limits shall be decreased by 10 log (N) dB, where N is the maximum number of MESs in the receive beam of the satellite to which these MESs are communicating and which are expected to transmit simultaneously in the same frequency band within that same beam. This number shall be declared by the manufacturer (N = 1 in a TDMA system).
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 14 Table 3a: Unwanted emissions outside the bands 1 626,5 MHz to 1 660,5 MHz and 1 668,0 MHz to 1 675,0 MHz for MES capable of transmitting within all or any part of sub-band 1 and sub-band 2 frequency bands as defined in table 1 Frequency
(MHz) Carrier - on state EIRP (dBW) Measurement bandwidth Measurement method (see note 8) 30 to 1 000
-66 100 kHz Peak Hold 1 000 to 1 559
-61 1 MHz Average 1 559 to 1 605,0 -70 1 MHz (see note 5) Average (see note 2) 1 605,0 to 1 612,5
-70 to -58,5 (see note 6) 1 MHz (see note 5) Average
1 612,5 to 1 616,5
-55 to -50 (see note 6)
1 MHz Average 1 616,5 to 1 621,5
-50 to -46 (see note 6) 1 MHz Average 1 621,5 to 1 624,5
-60 30 kHz Average 1 624,5 to 1 625,0 -60 to -57,5
(see notes 6, 7, 9) 30 kHz Average 1 625,0 to 1 625,125 -57,5 to -57,2
(see notes 6, 7, 9) 30 kHz Average 1 625,125 to 1 625,8 -57,2 to -50
(see notes 6, 7, 9) 30 kHz Average 1 625,8 to 1 626,0 -50 to -47
(see notes 6, 7, 9) 30 kHz Average 1 626,0 to 1 626,2 -47 to -40
(see notes 6, 7, 9) 30 kHz Average 1 626,2 to 1 626,5
-40
(see notes 7, 9) 30 kHz Average 1 626,5 to 1 660,5
NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE 1 660,5 to 1 662,5
note 1 note 1 note 1
1 662,5 to 1 666,0 -55 30 kHz Average 1 666,0 to 1 668,0
note 2 note 2 note 2
1 668,0 to 1 675,0 NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE 1 675,0 to 1 677,0 note 2 note 2 note 2
1 677,0 to 1 680,0 -60 30 kHz Average 1 680,0 to 1 685,0
-60 100 kHz Average 1 685,0 to 1 695,0
-60 300 kHz Average 1 695,0 to 1 705,0
-60 1 MHz Average 1 705,0 to 2 250
-60 3 MHz Average 2 250 to 12 750
(see note 3) -60 3 MHz Average
ETSI ETSI EN 301 681 V1.4.1 (2011-11) 15 Frequency
(MHz) Carrier - on state EIRP (dBW) Measurement bandwidth Measurement method (see note 8) NOTE 1: For an MES transmitting in sub-band 1 (as defined in table 1) the limits defined in table 4a shall apply for the band 1 660,5 MHz to 1 662,5 MHz. For an MES transmitting in sub-band 2 (as defined in table 1) a limit of -55 dBW in 30 kHz shall apply for the band 1 660,5 MHz to 1 662,5 MHz. NOTE 2: For an MES transmitting in sub-band 2 (as defined in table 1) the limits defined in table 4a shall apply for the bands 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz. For an MES transmitting in sub-band 1 (as defined in table 1) a limit of -55 dBW in 30 kHz shall apply for the bands 1 666,0 MHz to 1 668,0 MHz and 1 675,0 MHz to 1 677,0 MHz. NOTE 3: In the bands 3 253,0 MHz to 3 321,0 MHz and 3 336,0 MHz to 3 350,0 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not exceed -38 dBW. Elsewhere in this band the power limit in table 3a shall be applied.
In the bands 4 879,5 MHz to 4 981,5 MHz and 5 004,0 MHz to 5 025,0 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not exceed -48 dBW. Elsewhere in this band the power limit in table 3a shall be applied.
In the bands 6 506,0 MHz to 6 642,0 MHz and 6 672,0 MHz to 6 700,0 MHz the maximum EIRP in one, and only one, 3 MHz measurement bandwidth shall not exceed -48 dBW. Elsewhere in this band the power limit in table 3a shall be applied.
In the bands 8 132,5 MHz to 8 302,5 MHz and 8 340,0 MHz to 8 375,0 MHz the maximum EIRP in one, and only one, 3 M
...
