SIST EN 300 328-1 V1.3.1:2003
(Main)Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Part 1: Technical characteristics and test conditions
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Part 1: Technical characteristics and test conditions
To extend the scope of ETS 300 328 to cover 500 mW EIRP directional RLAN systems.
Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) – Širokopasovni prenosni sistemi – Oprema za prenos podatkov, ki deluje v frekvenčnem pasu 2,4 GHz ISM in uporablja modulacijsko tehniko z razpršenim spektrom – 1. del: Tehnične karakteristike in preskusni pogoji
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.UD]SUãHQLPElectromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Part 1: Technical characteristics and test conditions33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 300 328-1 Version 1.3.1SIST EN 300 328-1 V1.3.1:2003en01-december-2003SIST EN 300 328-1 V1.3.1:2003SLOVENSKI
STANDARD
SIST EN 300 328-1 V1.3.1:2003
ETSI EN 300 328-1 V1.3.1 (2001-12)European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);Wideband Transmission systems;Data transmission equipment operatingin the 2,4 GHz ISM band andusing spread spectrum modulation techniques;Part 1: Technical characteristics and test conditions SIST EN 300 328-1 V1.3.1:2003

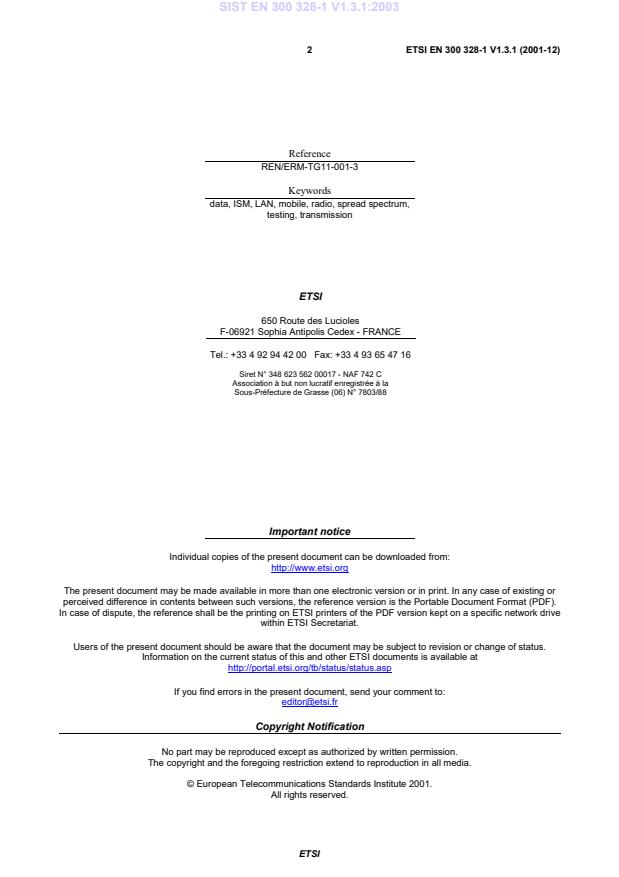

ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 2
Reference REN/ERM-TG11-001-3 Keywords data, ISM, LAN, mobile, radio, spread spectrum, testing, transmission ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.fr Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2001. All rights reserved.
SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 3 Contents Intellectual Property Rights.5 Foreword.5 Introduction.6 1 Scope.7 2 References.8 3 Definitions, abbreviations and symbols.9 3.1 Definitions.9 3.2 Abbreviations.10 3.3 Symbols.10 4 General.11 4.1 Manufacturer declarations.11 4.2 Presentation of equipment for type testing.11 4.2.1 Choice of model.11 4.2.2 Presentation.12 4.2.3 Choice of operating frequencies.12 4.3 Design.12 4.3.1 General.12 4.3.2 Controls.12 4.4 Interpretation of the measurement results.12 5 Technical characteristics.13 5.1 Modulation.13 5.1.1 FHSS modulation.13 5.1.2 DSSS and other forms of modulation.13 5.2 Transmitter parameter limits.13 5.2.1 Effective radiated power.13 5.2.2 Peak power density.13 5.2.3 Frequency range.13 5.2.4 Spurious emissions.14 5.3 Receiver parameter limits.14 5.3.1 General.14 5.3.2 Spurious emissions.15 6 Test conditions.15 6.1 Normal and extreme test conditions.15 6.2 Power sources.15 6.2.1 Power sources for stand-alone equipment.15 6.2.2 Power sources for plug-in radio devices.16 6.3 Normal test conditions.16 6.3.1 Normal temperature and humidity.16 6.3.2 Normal power source.16 6.3.2.1 Mains voltage.16 6.3.2.2 Lead-acid battery power sources used on vehicles.16 6.3.2.3 Other power sources.16 6.4 Extreme test conditions.16 6.4.1 Extreme temperatures.16 6.4.2 Extreme power source voltages.17 6.4.2.1 Mains voltage.17 6.4.2.2 Lead-acid battery power sources used on vehicles.17 6.4.2.3 Power sources using other types of batteries.17 6.4.2.4 Other power sources.17 6.4.3 Procedure for tests at extreme temperatures.17 6.5 Testing of host connected equipment and plug-in radio devices.18 6.5.1 The use of a host or test jig for testing Plug-In radio devices.18 SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 4 6.5.2 Testing of combinations.18 6.5.2.1 Alternative A: General approach for combinations.18 6.5.2.2 Alternative B: For host equipment with a plug-in radio device.18 6.5.2.3 Alternative C: For combined equipment with a plug-in radio device.18 6.5.2.4 Alternative D: For equipment with multiple radios.18 6.6 Test data sequence.19 7 Methods of measurement.19 7.1 General.19 7.2 Measurements of transmitter parameters.19 7.2.1 Effective radiated power.19 7.2.1.1 Radiated measurements.19 7.2.1.2 Conducted Measurements.20 7.2.2 Peak power density.21 7.2.3 Frequency range of equipment using FHSS modulation.22 7.2.4 Frequency range of equipment using other forms of modulation.23 7.2.5 Spurious emissions.23 7.3 Measurements of receiver parameters.25 7.3.1 General.25 7.3.2 Spurious emissions.25 8 Measurement uncertainty values.26 Annex A (normative): Test sites and arrangements for radiated measurements.27 A.1 Test sites.27 A.1.1 Open air test sites.27 A.1.2 Anechoic chamber.28 A.1.2.1 General.28 A.1.2.2 Description.28 A.1.2.3 Influence of parasitic reflections.28 A.1.2.4 Calibration and mode of use.28 A.2 Test antenna.30 A.3 Substitution antenna.30 Annex B (normative): General description of measurement.31 B.1 Conducted measurements and use of test fixture.31 B.2 Radiated measurements.31 B.3 Substitution measurement.32 Annex C (informative): Bibliography.33 History.34
SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document is part 1 of a multi-part deliverable covering the Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques, as identified below: Part 1: "Technical characteristics and test conditions"; Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive". Annex A provides additional requirements concerning radiated measurements. Annex B contains normative specifications for the adjustment of the measurement equipment and of the equipment to be measured in order to achieve correct results. Annex C provides a Bibliography.
National transposition dates Date of adoption of this EN: 30 November 2001 Date of latest announcement of this EN (doa): 28 February 2002 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2002 Date of withdrawal of any conflicting National Standard (dow): 31 August 2002
SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 6 Introduction Wideband radio data transmission systems are rapidly being introduced into a variety of commercial and industrial applications and the technology employed by these systems is still developing. The present document may be used for the assessment of the performance of the equipment. The performance of the equipment submitted for type testing should be representative for the performance of the corresponding production model. In order to avoid any ambiguity in that assessment, the present document contains instructions for the presentation of equipment for type testing purposes where required (clause 4), testing conditions (clause 6) and methods of measurement (clause 7). It is intended to include requirements for multi-radio equipment in the present document, but at this time the technical considerations are still ongoing. Upon completion of this work, the present document will be revised to include these requirements. ETSI intend to recommend to CEPT that the requirement for a minimum aggregate bit rate (250 kbit/s) is removed from the CEPT Recommendation 70-03 (annex 3) [1]. When CEPT have made this decision, the present document will be revised to reflect this decision. SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 7 1 Scope The present document covers equipment referred to in CEPT/ERC Recommendation 70-03 (annex 3) [1]. The present document covers the minimum technical characteristics for radio data transmission equipment having the following technical parameters: - wideband radio modulation techniques; - aggregate bit rates in excess of 250 kbits/s; - operation in the 2,4 GHz to 2,4835 GHz Industrial, Scientific and Medical (ISM) band; - effective radiated power of up to -10 dBW (100 mW); - power density of up to -10 dBW (100 mW) per 100 kHz for frequency hopping modulation; - power density of up to -20 dBW (10 mW) per 1 MHz for other forms of spread spectrum modulation. The present document only addresses the transceivers, transmitters and receivers of equipment offered for testing and includes such technologies as IEEE 802.11 [5], HomeRF ™. The equipment offered for testing may be used in fixed, mobile or portable applications, e.g.: - stand-alone radio equipment with or without their own control provisions; - plug-in radio devices intended for use with or within a variety of host systems, e.g. personal computers, hand-held terminals, etc.; - plug-in radio devices intended for use within combined equipment, e.g. cable modems, set-top boxes, access points, etc.; - combined equipment or a combination of a plug-in radio device and a specific type of host equipment. The equipment may be fitted with integral antennae and/or antenna connectors. CEPT/ERC Recommendation 70-03 (annex 3) [1] defines the total power and power density limits for systems using spread spectrum modulation together with a minimum aggregate bit rate of 250 kbit/s. The recommendation does not address the details of these modulation techniques. Therefore, the present document does not cover the design or operation of the equipment being tested but describes a common set of measurements to be applied to various types of such equipment, including those employing Frequency Hopping Spread Spectrum (FHSS) modulation and Direct Sequence Spread Spectrum (DSSS) modulation. CEPT/ERC Recommendation 70-03 (annex 3) [1] specifies that spread spectrum modulation be used and it gives power density values for FHSS and DSSS modulation. The present document specifies the minimum technical parameters of FHSS modulation such that it can be clearly differentiated from other types of modulation, including DSSS modulation. The present document describes measurements for operating frequency range(s), effective radiated power and power density as well as spurious emissions for transmitters and receivers. The measurement methods have been adapted from TR 100 027 [2] where possible. The present document specifies test site characteristics, test conditions, equipment calibration and methods of measurement. The present document is a general standard which may be superseded by specific standards covering specific applications. Additional standards or specifications may be required for equipment such as that intended for connection to the Public Switched Telephone Network (PSTN) and/or other Public Data Networks (PDN). SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 8 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] CEPT Recommendation 70-03 (annex 3): "Relating to the use of Short Range Devices (SRD)". [2] ETSI TR 100 027: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Methods of measurement for private mobile radio equipment". [3] ETSI TR 100 028-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1". [4] ETSI TR 100 028-2: "Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2". [5] IEEE 802.11: "IEEE Standard for Information technology - Telecommunications and information exchange between systems - Local and metropolitan area networks - Specific requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications". SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 9 3 Definitions, abbreviations and symbols 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: aggregate bit rate: bit rate at the air interface (see point D in figure 1) including protocol overhead where applicable and excluding the effects of signal spreading ABCDData bufferprocessingradio devicedata 1data nclock 1clock nsignal spreadingTxamplifierspreading signaltransmitter A: Interface B: Input into processing logic C: Input into the modulator D: Air Interface
Figure 1: Parameters related to the aggregate bit rate chip: unit of modulation used in direct sequence spread spectrum modulation chip rate: number of chips per second chip sequence: sequence of chips with defined length and defined chip polarities direct sequence spread spectrum modulation: form of modulation where a combination of data to be transmitted and a known code sequence (chip sequence) is used to directly modulate a carrier, e.g. by phase shift keying NOTE: The transmitted bandwidth is determined by the chip rate and the modulation scheme. fixed station: equipment intended for use in a fixed location and fitted with one or more antennae NOTE: The equipment may be fitted with either antenna socket(s) or integral antenna(e) or both. frequency hopping spread spectrum modulation: spread spectrum technique in which the transmitter signal occupies a number of frequencies in time, each for some period of time, referred to as the dwell time NOTE: Transmitter and receiver follow the same frequency hop pattern. The frequency range is determined by the lowest and highest hop positions and the bandwidth per hop position (see clause 5.2.3). frequency range: range of operating frequencies over which the equipment can be adjusted SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 10 hand-portable station: equipment normally used on a stand-alone basis and to be carried by a person or held in the hand NOTE: The equipment may be fitted with one or more antennae. The equipment may be fitted with either antenna socket(s) or integral antenna(e) or both. host: host equipment is any equipment which has complete user functionality when not connected to the radio equipment part and to which the radio equipment part provides additional functionality and to which connection is necessary for the radio equipment part to offer functionality integral antenna: antenna designed to be connected to the equipment without the use of a standard connector and considered to be part of the equipment NOTE: An integral antenna may be fitted internally or externally to the equipment. manufacturer: for the purposes of the present document "manufacturer" is understood to refer to the manufacturer or applicant of equipment offered for testing mobile station: equipment normally used in a vehicle or as a transportable station NOTE: The equipment may be fitted with one or more antennae. The equipment may be fitted with either antenna socket(s) or integral antenna(e) or both. operating frequency: nominal frequency at which the equipment can be operated; this is also referred to as the operating centre frequency NOTE: Equipment may be adjustable for operation at more than one operating frequency. plug-in radio device: radio equipment module intended to be used with or within host, combined or multi-radio equipment, using their control functions and power supply combined equipment: any combination of non-radio equipment that requires a plug-in radio device to offer full functionality multi-radio equipment: radio, host or combined equipment using more than one radio transceiver power envelope: frequency/power contour within which the useful RF power is generated spread spectrum modulation: modulation technique in which the energy of a transmitted signal is spread throughout a relatively large portion of the frequency spectrum stand-alone radio equipment: equipment that is intended primarily as communications equipment and that is normally used on a stand-alone basis 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: DSSS Direct Sequence Spread Spectrum e.i.r.p. equivalent isotropically radiated power FHSS Frequency Hopping Spread Spectrum ISM Industrial, Scientific and Medical RF Radio Frequency Tx Transmitter 3.3 Symbols For the purposes of the present document, the following symbols apply: dBm dB relative to 1 milliwatt power dBW dB relative to 1 watt power SIST EN 300 328-1 V1.3.1:2003
ETSI ETSI EN 300 328-1 V1.3.1 (2001-12) 11 4 General 4.1 Manufacturer declarations The manufacturer shall declare the following specific characteristics of the equipment: a) the aggregate bit rate (see clause 3.1 for the definition); b) the type of modulation used: FHSS modulation, DSSS modulation or any other type of spread spectrum modulation (see clause 5.1); c) where FHSS modulation is used: the number of hopping channels, the dwell time per channel and the maximum time between two instances of use of the same channel; these values shall fall within the specifications given in clause 5.1.1; d) the operating frequency range(s) of the equipment and, where applicable, band(s) of operation (see clause 5.2.3); e) the type of the equipment, for example: stand-alone equipment or plug-in radio devices (see also clause 3.1). In case of combined equipment using a plug-in radio device, and more than one combination is intended, each combination should be declared as well (see also clause 6.5); f) the extreme operating conditions that apply to the equipment offered for testing; g) where the radio equipment is capable of different transmitter power settings, the manufacturer shall declare the intended combination(s) of the ra
...
