Continuous handling equipment and systems - Safety and EMC requirements for equipment for mechanical handling of bulk materials except fixed belt conveyors

This standard deals with the technical requirements to minimise the risks due to the hazards listed in clause 4, which can arise during operation and maintenance of mechanical handling equipment defined in clauses 3.1 to 3.3 and which are designed for continuously conveying bulk materials from the loading point(s) to the unloading point(s).In general, it also applies to equipment which are built into machines or attached to machines. This standard deals with the technical requirements for EMC. The standard does not apply to: continuous handling equipment and systems for open-cast lignite mining; continuous handling equipment and systems for underground mining; tunnel digging and excavating machines; bulk material processing or classification machines such as grinders, crushers, screens; fixed belt conveyors for bulk materials. These are covered by the standard EN 620:2002+A1:2010"; fixed pneumatic handling equipment. These equipment and systems are covered by the standard EN 741; the interface between the machinery dealt with in this standard and the fixed belt or pneumatic conveyor. This standard does not give the additional requirements for: a) use in public areas or for the transportation of people; b) floating, dredging and ship mounted equipment; c) conveyors requiring a high level of cleanliness for hygiene reasons, e.g. in direct contact with foodstuffs or pharmaceuticals; d) transportation of the equipment; e) hazards caused by vibration; f) use in ambient air temperature below - 20 °C and above + 40 °C; g) the effects of wind on strength and stability; h) hazards resulting from handling specific hazardous materials, (e.g. Explosives, radiating material); i) hazards resulting from contact with or inhalation of harmful fluids, gas, mists, fumes and dusts; j) biological and micro-biological (viral or bacterial) hazards; k) hazards due to heat radiation from the materials handled; l) hazards caused by operation in electromagnetic fields outside the range of EN 61000-6-2; m) hazards caused by operation subject to special regulations (e.g. explosive atmospheres); n) hazards caused by noise; o) hazards caused by the use of ionising radiation sources (e.g. measurement equipment); EN 618:2002+A1:2010 (E) 6 p) hazards caused by hydraulic equipment; q) hazards caused by inadequate controls cabins lighting; r) the risk related to elevating of the control stations; s) hazards related to contact with or inhalation of harmful fluids, gases, mists, fums and dusts. The safety requirements apply to equipment and systems placed on the market after the date of publication of this standard.

Stetigförderer und Systeme - Sicherheits- und EMV- Anforderungen an mechanische Fördereinrichtungen für Schüttgut ausgenommen ortsfeste Gurtförder

1.1   Diese Norm behandelt die technischen Anforderungen, um die in Abschnitt 4 aufgeführten Gefährdungen zu minimieren. Diese Gefährdungen können während des Betriebs und der Wartung von in Abschnitt 3.1 bis 3.3 definierten Stetigförderern, die für die Förderung von Schüttgut von der(den) Be- zu der(den) Entladestelle(n) konstruiert wurden, entstehen. Im Allgemeinen gilt sie auch für Einrichtungen, die in Maschinen eingebaut oder an Maschinen angebracht werden. Diese Norm behandelt die technischen Anforderungen an die elektromagnetische Verträglichkeit.
1.2   Diese Norm gilt nicht für:
- Stetigförderer und Systeme im Braunkohletagebau,
- Stetigförderer und Systeme im untertägigen Bergbau,
- Tunnelgrabmaschinen und schürfende Maschinen,
- Bearbeitungs- oder Sortiermaschinen für Schüttgut, wie z. B. Schleifmaschinen, Brechermühlen, Sichter,
- ortsfeste Gurtförderer für Schüttgut; diese werden in der Norm EN 620:2001 behandelt,
- ortsfeste pneumatische Stetigförderer; diese Einrichtungen und Systeme werden in der Norm EN 741 behan-delt,
- die Schnittstelle zwischen der in dieser Norm behandelten Maschine und einem stationären Gurt- oder pneu-ma-tischen Förderer.
1.3   Diese Norm gibt keine zusätzlichen Anforderungen für:
a) den Gebrauch in der Öffentlichkeit und die Personenbeförderung;
b) schwimmende, unter Wasser baggernde und auf Schiffen montierte Einrichtungen;
c) Stetigförderer, die ein hohes Reinheitsniveau aus hygienischen Gründen erfordern, z. B. in direktem Kontakt mit Nahrungs- und Arzneimitteln;
d) den Transport der Einrichtung;

Equipements et systèmes de manutention continue - Prescriptions de sécurité et de CEM pour les équipements de manutention mécanique des produits en vrac à l'exception des transporteurs fixes à courroie

La présente norme traite des prescriptions techniques destinées à réduire les risques dus aux phénomènes dangereux énumérés dans l'article 4, qui peuvent se produire pendant le fonctionnement et la maintenance des équipements de manutention mécanique, définis aux paragraphes 3.1 à 3.3, conçus pour la manutention en continu de produits en vrac, du (des) point(s) de chargement jusqu'au(x) point(s) de déchargement. D'une manière générale, elle s'applique également aux équipements intégrés ou reliés à des machines. La présente norme traite des prescriptions techniques relatives à la compatibilité électromagnétique (CEM).
1.2   La norme ne s'applique pas :
-   aux équipements et systèmes de manutention continue pour les mines de lignite à ciel ouvert ;
-   aux équipements et systèmes de manutention continue pour les mines souterraines ;
-   aux tunneliers et machines d’excavation ;
-   aux équipements de transformation ou classement des produits en vrac tels que broyeurs, concasseurs, cribles ;
-   aux transporteurs fixes à courroie pour produits en vrac. Ceux-ci sont traités dans la norme !EN 620:2002+A1:2010" ;
-   aux équipements fixes de manutention pneumatique. Ces équipements et systèmes sont traités dans la norme EN 741 ;
-   l'interface entre les machines visées par la présente norme et les transporteurs fixes à courroie ou les transporteurs pneumatiques.
1.3   La présente norme ne fixe pas de prescriptions complémentaires concernant :
a)   l'utilisation de ces équipements dans des lieux publics ou pour le transport des personnes ;
b)   les équipements flottants, de dragage ou montés sur des navires ;
c)   les transporteurs nécessitant un niveau élevé de propreté pour des raisons d'hygiène, par exemple en contact direct avec des produits alimentaires ou pharmaceutiques ;
d)   le transport de l'équipement ;
e)   les phénomènes dangereux engendrés par les vibrations ;

Naprave in sistemi za kontinuirni transport - Varnostne zahteve in zahteve za elektromagnetno združljivost naprav, sistemov in opreme za kontinuirni transport sipkih materialov na pomičnih ogrodjih (razen naprav na nepomičnih ogrodjih) (vključno z dopolnilom A1)

Ta standard obravnava tehnične zahteve za zmanjševanje tveganj zaradi nevarnosti, navedenih v klavzuli 4, ki lahko nastanejo med delovanjem in vzdrževanjem naprav za mehansko manipulacijo, opredeljenih v klavzulah od 1.3 do 3.3, ki so načrtovane za kontinuirni transport sipkih materialov od točk nakladanja do točk raztovarjanja. Na splošno velja tudi za opremo, ki je vgrajena v stroje ali nanje pritrjena. Ta standard obravnava tehnične zahteve za elektromagnetno združljivost. Ta standard ne velja za: naprave in sisteme za kontinuirni transport za dnevne kope lignita; naprave in sisteme za kontinuirni transport za podzemne kope; izkope za tunele in stroje za izkop; stroje za obdelavo in klasifikacijo sipkega materiala, kot so mlini, drobilniki, rešeta; naprave za sipke materiale na nepomičnih ogrodjih. Ti so zajeti s standardom EN 620:2002+A1:2010; nepomične naprave za pnevmatsko manipulacijo. Ta oprema in sistemi so zajeti v standardu EN 741; ta standard obravnava vmesnik med stroji in naprave na nepomičnih ogrodjih ali pnevmatske naprave. Ta standard ne določa dodatnih zahtev za: a) uporabo na javnih območjih ali za prevoz ljudi; b) plavajoče, vlačilne in na ladjo nameščene naprave; c) naprave, ki zahtevajo visoko stopnjo čistoče iz higienskih razlogov, npr. v neposrednem stiku z živili ali zdravili; d) transport naprav; e) nevarnosti, ki jih povzročajo vibracije; f) uporabo pri zunanjem zraku pod -20 °C in nad +40 °C; g) učinke vetra na moč in stabilnost; h) nevarnosti, ki so posledica ravnanja z nekaterimi nevarnimi materiali (npr. eksplozivi, sevalni material); i) nevarnosti, ki so posledica stika s škodljivimi tekočinami, plini, meglicami, hlapi in prahom ali njihovega vdihavanja; j) biološke in mikrobiološke (virusne ali bakterijske) nevarnosti; k) nevarnosti zaradi sevanja toplote iz materialov, s katerimi se ravna; l) nevarnosti, ki jih povzroča delovanje na elektromagnetnih poljih zunaj razpona EN 61000-6-2; m) nevarnosti, ki jih povzroča delovanje, ki je predmet posebnih predpisov (npr. eksplozivne atmosfere); n) nevarnosti, ki jih povzroča hrup; o) nevarnosti, ki jih povzroča uporaba virov ioniziranega sevanja (npr. merilna oprema); EN 618:2002+A1:2010 (E) 6; p) nevarnosti, ki jih povzroča hidravlična oprema; r) nevarnosti, ki jih povzroča neprimerna osvetljava nadzornih kabin; s) tveganje, povezano z dvigovanjem nadzornih postaj; t) nevarnosti, povezane s stikom z nevarnimi tekočinami, plini, meglicami, hlapi in prahom ali njihovim vdihavanjem. Varnostne zahteve veljajo za naprave in sisteme, dane na tržišče po datumu objave tega standarda.

General Information

Status
Published
Publication Date
16-Jan-2011
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
23-Dec-2010
Due Date
27-Feb-2011
Completion Date
17-Jan-2011

RELATIONS

Buy Standard

Standard
SIST EN 618:2003+A1:2011 - natisnjeno za čitalnico
English language
67 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 618:2003+A1:2011
01-februar-2011
1DGRPHãþD
SIST EN 618:2003
1DSUDYHLQVLVWHPL]DNRQWLQXLUQLWUDQVSRUW9DUQRVWQH]DKWHYHLQ]DKWHYH]D
HOHNWURPDJQHWQR]GUXåOMLYRVWQDSUDYVLVWHPRYLQRSUHPH]DNRQWLQXLUQLWUDQVSRUW
VLSNLKPDWHULDORYQDSRPLþQLKRJURGMLK UD]HQQDSUDYQDQHSRPLþQLKRJURGMLK
YNOMXþQR]GRSROQLORP$
Continuous handling equipment and systems - Safety and EMC requirements for
equipment for mechanical handling of bulk materials except fixed belt conveyors
Stetigförderer und Systeme - Sicherheits- und EMV- Anforderungen an mechanische
Fördereinrichtungen für Schüttgut ausgenommen ortsfeste Gurtförder

Equipements et systèmes de manutention continue - Prescriptions de sécurité et de

CEM pour les équipements de manutention mécanique des produits en vrac à
l'exception des transporteurs fixes à courroie
Ta slovenski standard je istoveten z: EN 618:2002+A1:2010
ICS:
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
53.040.10 Transporterji Conveyors
SIST EN 618:2003+A1:2011 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 618:2003+A1:2011
---------------------- Page: 2 ----------------------
SIST EN 618:2003+A1:2011
EUROPEAN STANDARD
EN 618:2002+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2010
ICS 53.040.10 Supersedes EN 618:2002
English Version
Continuous handling equipment and systems - Safety and EMC
requirements for equipment for mechanical handling of bulk
materials except fixed belt conveyors

Equipements et systèmes de manutention continue - Stetigförderer und Systeme - Sicherheits- und EMV-

Prescriptions de sécurité et de CEM pour les équipements Anforderungen an mechanische Fördereinrichtungen für

de manutention mécanique des produits en vrac à Schüttgut ausgenommen ortsfeste Gurtförder

l'exception des transporteurs fixes à courroie

This European Standard was approved by CEN on 8 March 2001 and includes Amendment 1 approved by CEN on 9 November 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same

status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 618:2002+A1:2010: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)

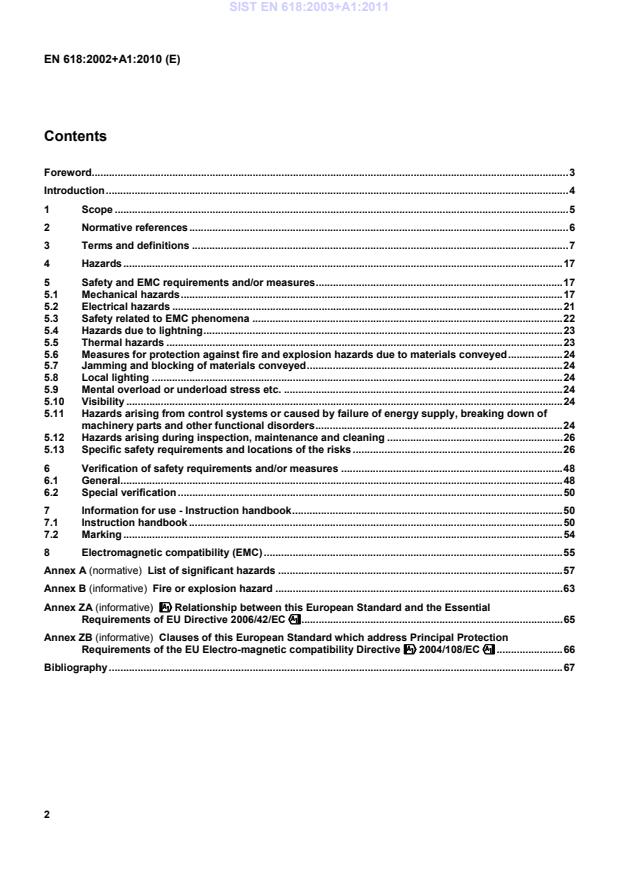

Contents

Foreword ...................................................................................................................................................................... 3

Introduction ................................................................................................................................................................. 4

1 Scope .............................................................................................................................................................. 5

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 7

4 Hazards ......................................................................................................................................................... 17

5 Safety and EMC requirements and/or measures ...................................................................................... 17

5.1 Mechanical hazards ..................................................................................................................................... 17

5.2 Electrical hazards ........................................................................................................................................ 21

5.3 Safety related to EMC phenomena ............................................................................................................ 22

5.4 Hazards due to lightning ............................................................................................................................. 23

5.5 Thermal hazards .......................................................................................................................................... 23

5.6 Measures for protection against fire and explosion hazards due to materials conveyed ................... 24

5.7 Jamming and blocking of materials conveyed ......................................................................................... 24

5.8 Local lighting ............................................................................................................................................... 24

5.9 Mental overload or underload stress etc. ................................................................................................. 24

5.10 Visibility ........................................................................................................................................................ 24

5.11 Hazards arising from control systems or caused by failure of energy supply, breaking down of

machinery parts and other functional disorders ...................................................................................... 24

5.12 Hazards arising during inspection, maintenance and cleaning ............................................................. 26

5.13 Specific safety requirements and locations of the risks ......................................................................... 26

6 Verification of safety requirements and/or measures ............................................................................. 48

6.1 General .......................................................................................................................................................... 48

6.2 Special verification ...................................................................................................................................... 50

7 Information for use - Instruction handbook .............................................................................................. 50

7.1 Instruction handbook .................................................................................................................................. 50

7.2 Marking ......................................................................................................................................................... 54

8 Electromagnetic compatibility (EMC) ........................................................................................................ 55

Annex A (normative) List of significant hazards ................................................................................................... 57

Annex B (informative) Fire or explosion hazard .................................................................................................... 63

Annex ZA (informative) !!!!Relationship between this European Standard and the Essential

Requirements of EU Directive 2006/42/EC"""" ........................................................................................... 65

Annex ZB (informative) Clauses of this European Standard which address Principal Protection

Requirements of the EU Electro-magnetic compatibility Directive !!!!2004/108/EC"""" ....................... 66

Bibliography .............................................................................................................................................................. 67

---------------------- Page: 4 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
Foreword

This document (EN 618:2002+A1:2010) has been prepared by Technical Committee CEN /TC 148, "Continuous

handling equipment and systems - Safety", the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of an identical text or

by endorsement, at the latest by June 2011, and conflicting national standards shall be withdrawn at the latest by

June 2011.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights.

CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document includes Amendment 1, approved by CEN on 2010-11-09.
This document supersedes EN 618:2002.

The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ".

This document has been prepared under a mandate given to CEN by the European Commission and the European

Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this

document.
!deleted text"

This standard forms part of a series of five standards the titles of which are given below:

EN 617, Continuous handling equipment and systems — Safety and EMC requirements for the equipment for the

storage of bulk materials in silos, bunkers, bins and hoppers

EN 618, Continuous handling equipment and systems — Safety and EMC requirements for equipment for

mechanical handling of bulk materials except fixed belt conveyors

!EN 619", Continuous handling equipment and systems — Safety and EMC requirements for equipment for

mechanical handling of unit loads

EN 620, Continuous handling equipment and systems — Safety and EMC requirements for fixed belt conveyors for

bulk material

EN 741, Continuous handling equipment and systems — Safety requirements for systems and their components

for pneumatic handling of bulk materials.
!deleted text"

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,

Switzerland and United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
Introduction
This European standard is a "Type C" standard as defined in EN 1070.

The equipment concerned and the extent to which hazards are covered are indicated in the scope of this standard.

EN 617, EN 620 and EN 741 need to be considered for a complete continuous handling system (machine).

While producing this standard, it was assumed that:
 only suitably trained persons will operate the equipment;
 all parts of the equipment without specific requirements in this standard are:

 designed in accordance with the usual engineering practice and calculation codes (e.g. for mobile

equipment FEM 2 131/2 132 or ISO 5049-1, ...) including all failure modes;

 made of materials of adequate strength and of quality for their intended purpose taking into account all

failure modes using recognised design methods and appropriate safety factors;
 harmful materials, such as asbestos, are not used as part of the machine;

 components will be kept in good repair and working order in accordance with the manufacturer’s instructions,

to retain specified health and safety characteristics throughout its working life;

 by design of the load bearing elements, a safe operation of the equipment is assured for loading ranging from

zero to 100 % of the rated capacity;

 negotiations occur between the manufacturer and the user concerning materials characteristics (see Note 1)

and particular conditions for the use and places of use for the machinery related to health and safety;

 the place of installation is adequately lit.

NOTE 1 For the description of bulk materials, reference can be made to documents FEM 2 581/2 582 and ISO 3435.

When provisions of this type C standard are different from those which are stated in type A or B standards the

provisions of this type C standard take precedence over the provisions of other standards, for equipment that have

been designed and built according to the provisions of this type C standard.

1) “Manufacturer” within the European Union is to be understood as intended in the Machinery Directive.

---------------------- Page: 6 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
1 Scope

1.1 This standard deals with the technical requirements to minimise the risks due to the hazards listed in clause

4, which can arise during operation and maintenance of mechanical handling equipment defined in clauses 3.1 to

3.3 and which are designed for continuously conveying bulk materials from the loading point(s) to the unloading

point(s).In general, it also applies to equipment which are built into machines or attached to machines. This

standard deals with the technical requirements for EMC.
1.2 The standard does not apply to:
 continuous handling equipment and systems for open-cast lignite mining;
 continuous handling equipment and systems for underground mining;
 tunnel digging and excavating machines;

 bulk material processing or classification machines such as grinders, crushers, screens;

 fixed belt conveyors for bulk materials. These are covered by the standard !EN 620:2002+A1:2010";

 fixed pneumatic handling equipment. These equipment and systems are covered by the standard EN 741;

 the interface between the machinery dealt with in this standard and the fixed belt or pneumatic conveyor.

1.3 This standard does not give the additional requirements for:
a) use in public areas or for the transportation of people;
b) floating, dredging and ship mounted equipment;

c) conveyors requiring a high level of cleanliness for hygiene reasons, e.g. in direct contact with foodstuffs or

pharmaceuticals;
d) transportation of the equipment;
e) hazards caused by vibration;
f) use in ambient air temperature below – 20 °C and above + 40 °C;
g) the effects of wind on strength and stability;

h) hazards resulting from handling specific hazardous materials, (e.g. Explosives, radiating material);

i) hazards resulting from contact with or inhalation of harmful fluids, gas, mists, fumes and dusts;

j) biological and micro-biological (viral or bacterial) hazards;
k) hazards due to heat radiation from the materials handled;

l) hazards caused by operation in electromagnetic fields outside the range of EN 61000-6-2;

m) hazards caused by operation subject to special regulations (e.g. explosive atmospheres);

n) hazards caused by noise;

o) hazards caused by the use of ionising radiation sources (e.g. measurement equipment);

---------------------- Page: 7 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
p) hazards caused by hydraulic equipment;
q) hazards caused by inadequate controls cabins lighting;
r) the risk related to elevating of the control stations;

s) hazards related to contact with or inhalation of harmful fluids, gases, mists, fums and dusts.

1.4 The safety requirements apply to equipment and systems placed on the market after the date of publication

of this standard.

NOTE 1 The requirements of this standard can be used for comparable machines outside the scope of this standard with the

same risks.

NOTE 2 Directive 94/9/EC concerning equipment and protective systems intended for use in potentially

explosive atmospheres can be applicable to the type of machine or equipment covered by this European Standard.

The present standard is not intended to provide means of complying with the essential health and safety

requirements of Directive 94/9/EC.
2 Normative references

!The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced document

(including any amendments) applies."
!deleted text"

EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper limbs

EN 349:1993, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body

EN 418:1992, Safety of machinery — Emergency stop equipment functional aspects - Principles for design

!deleted text"

EN 617, Continuous handling equipment and systems — Safety and EMC requirements for storage of bulk

materials in silos, bunkers, bins and hoppers

!EN 620:2002+A1:2010", Continuous handling equipment and systems — Safety and EMC requirements for

fixed belt conveyors for bulk material

!EN 741", Continuous handling equipment and systems — Safety requirements for systems and their

components for pneumatic handling of bulk materials

EN 811:1996, Safety of machinery — Safety distances to prevent danger zone being reached by the lower limbs

EN 953:1997, Safety of machinery — General requirements for the design and construction of guards (fixed,

movable)

EN 954-1:1997, Safety of machinery — Safety related parts of control systems — Part 1: General principles for

design
EN 1037:1995, Safety of machinery — Prevention of unexpected start-up
EN 1070:1998, Safety of machinery — Terminology

EN 1088:1995, Safety of machinery — Interlocking devices associated with guards — Principles for design and

selection
---------------------- Page: 8 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)

EN 1127-1:1997, Safety of machinery — Fire and explosion — Part 1: Explosion prevention and protection

EN 12150-1:2000, Glass in building — Thermally toughened soda lime silicate safety glass — Part 1: Definition

and description
!deleted text"
EN 13586:1999, Cranes — Access

EN 26184-1:1991, Explosion protection systems — Part 1: Determination of explosion indices of combustibles

dusts in air (ISO 6184-1:1985)
!deleted text"

EN 60204-1:1997, Safety of machinery — Electrical equipment of machines — Part 1: Specification for

requirements

!EN 60204-11:2000, Safety of machinery — Electrical equipment of machines — Part 11: Requirements for HV

equipment for voltages above 1 000 V a.c. or 1 500 d.c. and not exceeding 36 kV (IEC 60204-11:2000)"

EN 60947-5-1:1991, Low voltage switch gear and control gear — Part 5: Control circuit devices and switching

elements — Section 1: Electromechanical control circuit devices
EN 60529:1991, Degrees of protection provided by enclosures (IP code)

EN 61000-6-2:1999, Electromagnetic compatibilty (EMC) — Part 6-2: Generic standards — Immunity for industrial

environments (CEI 61000-6-2:1999)

!EN 61000-6-3, Electromagnetic compatibility (EMC) — Part 6-3: Generic standards — Emission standard for

residential, commercial and light-industrial environments (IEC 61000-6-3:2006)"

!EN ISO 12100-1, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic

terminology, methodology (ISO 12100-1:2003)"

!EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2:

Technical principles (ISO 12100-2:2003)"

!EN ISO 13732-1:2008, Ergonomics of the thermal environment — Methods for the assessment of human

responses to contact with surfaces — Part 1: Hot surfaces (ISO 13732-1:2006)"
ISO 2148:1974, Continuous handling equipment — Nomenclature — Bilingual edition

ISO 3435:1977, Continuous mechanical handling equipment — Classification and symbolisation of bulk materials

ISO 3864:1984, Safety colours and safety signs

ISO 5049-1:1994, Mobile equipment for continuous handling of bulk materials — Part 1: Rules for the design of

steel structures

IEC 61241-1-2:1999, Electrical apparatus for use in the presence of combustible dust — Part 1-2: Electrical

apparatus protected by enclosures — Selection, installation and maintenance
3 Terms and definitions

For the purposes of this standard, the terms and definitions stated in EN 1070 and ISO 2148 apply. Additional

terms used in this standard are defined below. For other definitions on components of fixed belt conveyors, see

!EN 620:2002+A1:2010".
---------------------- Page: 9 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.1
fixed equipment
3.1.1
scraper conveyor / drag bar feeder :

conveyor for loose bulk materials with as driving medium one or more endless chains equipped with scraper bars

pushing the material in an open trough shaped casing (see Figure 1)
Figure 1
3.1.2
"en-masse" conveyor

conveyor for loose bulk materials with a chain as the driving medium having attached flights or scraper flights

moving the material "en masse" in an enclosing trough (see Figure 2)
Figure 2
3.1.3
bucket elevator :

elevator for loose bulk materials with buckets as the carrying medium attached to a belt or chains as the driving

medium (see Figure 3)
---------------------- Page: 10 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
Figure 3
3.1.4
screw feeders / conveyors

conveyor for loose bulk materials with a trough or tube as the carrying medium, the material being moved by the

action of a rotating screw. This screw can be rigid or flexible to take curves (see Figure 4)

Figure 4
3.1.5
vibratory conveyor

conveyor for loose bulk materials which consists of a flexibly mounted trough or tube, in which the material moves

under the effect of vibrations (see Figure 5)
Figure 5
---------------------- Page: 11 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.1.6
rotarydrum, table or vane feeder

continuous volumetric dosing element within a housing consisting of a rotating shaft with several blades which

transport the material from the inlet to the outlet (see Figure 6)
Figure 6
3.2
movable equipment

equipment generally intended to be moved only when out of operation (see Figure 7)

Figure 7
3.3
mobile equipment
equipment whose structure is self propelled during normal operation
---------------------- Page: 12 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.1
stacker

mobile equipment on tracks (rails), crawlers or tyres for continuously piling or stacking bulk materials using

unidirectional moving belts mounted on a boom as the final carrying and conveying medium (see Figure 8)

Figure 8
3.3.2
gantry stacker

mobile equipment mounted on a gantry travelling over the bulk material stack and along rail tracks, for continuously

pileling or stacking bulk materials using endless moving belts as the carrying and conveying medium (see Figure 9)

Figure 9
---------------------- Page: 13 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.3
ship loader

mobile equipment travelling on rails or tyres for continuously loading a ship with bulk materials or bags of bulk

materials (see Figure 10)
Figure 10
3.3.4
bucket-wheel reclaimer

mobile equipment on rails, crawlers or tyres used to reclaim continuously bulk materials, using a bucket wheel at

the end of a boom and endless moving belts as the carrying and conveying medium (see Figure 11)

Figure 11
---------------------- Page: 14 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.5
ship unloader

mobile equipment travelling on rails or tyres for continuously unloading bulk materials or bags of bulk materials

from ship holds (see Figure 12)
Figure 12
---------------------- Page: 15 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.6
scraper/reclaimer

mobile equipment travelling on rails for continuously reclaiming bulk materials from a stockpile using an endless

scraper chain (see Figure 13)
Figure 13
3.3.7
bridge reclaimer

mobile equipment mounted on rails for continuously blending/reclaiming bulk materials from a stockpile using a

bucket wheel running along a girder and a belt as the carrying and conveying medium (see Figure 14)

Figure 14
---------------------- Page: 16 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.8
screw reclaimers

mobile equipment located bellow a stockpile for continuously reclaiming bulk materials using a screw as the

carrying or conveying medium (see Figure 15)
Figure 15
---------------------- Page: 17 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
3.3.9
buckets loader

mobile equipment for continuously reclaiming bulk materials from a stockpile and loading it into trucks or trailers,

using scraping or digging buckets and a feeding screw to feed a belt conveyor which elevates the bulk materials to

the level of the trucks or trailers (see Figure 16)
Figure 16
3.4
working area

area as intended by the manufacturer, where persons work at, or operate equipment under normal conditions

(inspection, maintenance and cleaning are excluded)
3.5
traffic area

area as intended by the manufacturer, which is accessible or reachable by all persons without opening a guard,

activating a trip device or using additional means. This area includes permanent means of access

3.6
mechanical brake

brake applied mechanically by stored energy (e.g. spring force) until released by an external sustained power

supply under the control of the operator or automatically
3.7
automatically acting mechanical brake
mechanical brake that is automatically applied in the event of:
 failure of energy supply in the brake system;
---------------------- Page: 18 ----------------------
SIST EN 618:2003+A1:2011
EN 618:2002+A1:2010 (E)
 failure in the brake electrical control circuit(s);
 failure of energy supply to the drive(= motor).
4 Hazards

This clause contains hazards and hazardous situations, as far as they are dealt with in this European standard,

identified by risk assessment significant for this type of machinery and which require action to eliminate or reduce

risk. Clause 5 deals with these hazards in the same order.

NOTE The hazards listed in Annex A usually occur in combination e.g. crushing, shearing and drawing-in.

5 Safety and EMC requirements and/or measures

Equipment and systems shall comply with the safety requirements and/or measures of this clause.

For the application of EN 953, EN 294, EN 811, EN 349, EN 1037, EN 60204-1 and !EN 60204-11" the

manufacturer shall carry out an adequate risk assessment for the requirements thereof where choice is necessary.

NOTE This specific risk assessment is part of the general risk assessment relating to the hazards not covered by this “C”

standard.

Belt conveyor mounted on the equipment shall be in accordance with !EN 620:2002+A1:2010" with the

exception of double safe way of escape.

Safety devices shall also be provided to prevent kickback of any manually operated crank.

In addition, the equipment shall be designed according to the principles to !EN ISO 12100" for hazards

relevant but not significant which are not dealt with by this standard.

NOTE The general safety requirements given in Clauses 5.1 to 5.12 are common to all types of mechanical handling

equipment dealt with by this standard. Clause 5.13 gives the specific safety requirements of some types of mechanical handling

equipment.
5.1 Mechanical hazards
Mechanical hazards shall be safeguarded preferably by guards.

Appropriate safety distances in accordance with Table 1 of EN 349 or Table 2, 3, 4 or 6 of EN 294 and EN 811

and/or hinged or sliding guards, fixed enclosing guards, fixed distance guards or interlocking guards shall be

provided to protect operators from crushing and shearing hazards.

For mobile equipment, visual warning devices such as flashing lamps and/or auditory warning devices shall be

fitted. If the driver cannot see the danger zone, the auditory warning devices shall provide a sound pressure level

15 dB(A) over the threshold of ambient sound pressure level at a height of 1,6 m from the floor at an horizontal

distance of 1m and shall be started 10 s before the start of the movement and provided during 3 s; the visual

warning devices shall operate throughout the equipment operation.
5.1.1 Guard construction

Guards shall be in accordance with EN 953 and may be perforated or imperforated sheet construction. If of

perforated construction, the safety distances to prevent danger areas being reached shall comply with EN 294.

Where it is intended to step on covers or guards, they shall be able to withstand a force of 1500 N evenly

distributed ov
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
