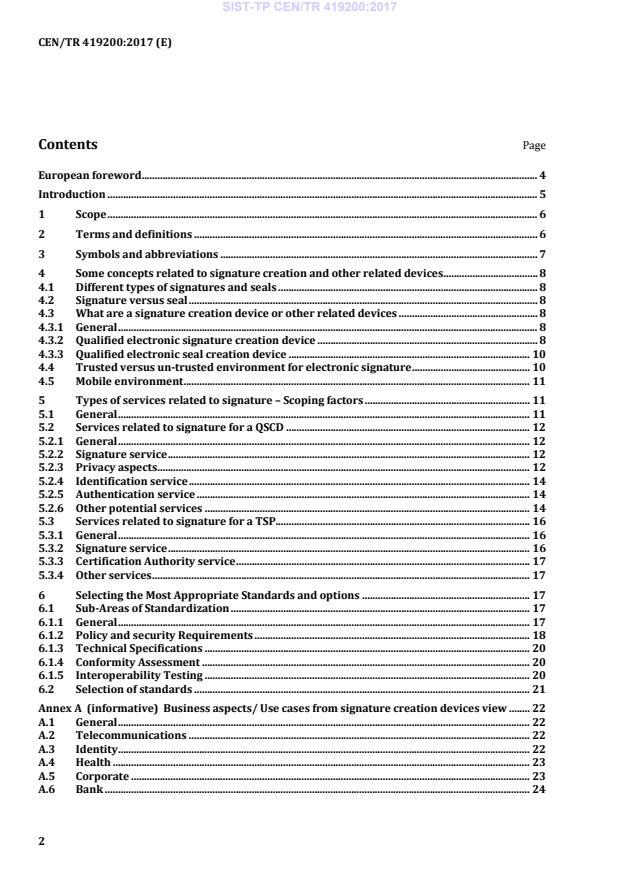

Contents Page

European foreword ....................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

2 Terms and definitions ................................................................................................................................... 6

3 Symbols and abbreviations ......................................................................................................................... 7

4 Some concepts related to signature creation and other related devices .................................... 8

4.1 Different types of signatures and seals ................................................................................................... 8

4.2 Signature versus seal ..................................................................................................................................... 8

4.3 What are a signature creation device or other related devices ..................................................... 8

4.3.1 General ................................................................................................................................................................ 8

4.3.2 Qualified electronic signature creation device .................................................................................... 8

4.3.3 Qualified electronic seal creation device ............................................................................................ 10

4.4 Trusted versus un-trusted environment for electronic signature ............................................. 10

4.5 Mobile environment .................................................................................................................................... 11

5 Types of services related to signature – Scoping factors ............................................................... 11

5.1 General ............................................................................................................................................................. 11

5.2 Services related to signature for a QSCD ............................................................................................. 12

5.2.1 General ............................................................................................................................................................. 12

5.2.2 Signature service .......................................................................................................................................... 12

5.2.3 Privacy aspects .............................................................................................................................................. 12

5.2.4 Identification service .................................................................................................................................. 14

5.2.5 Authentication service ............................................................................................................................... 14

5.2.6 Other potential services ............................................................................................................................ 14

5.3 Services related to signature for a TSP................................................................................................. 16

5.3.1 General ............................................................................................................................................................. 16

5.3.2 Signature service .......................................................................................................................................... 16

5.3.3 Certification Authority service ................................................................................................................ 17

5.3.4 Other services ................................................................................................................................................ 17

6 Selecting the Most Appropriate Standards and options ................................................................ 17

6.1 Sub-Areas of Standardization .................................................................................................................. 17

6.1.1 General ............................................................................................................................................................. 17

6.1.2 Policy and security Requirements ......................................................................................................... 18

6.1.3 Technical Specifications ............................................................................................................................ 20

6.1.4 Conformity Assessment ............................................................................................................................. 20

6.1.5 Interoperability Testing ............................................................................................................................ 20

6.2 Selection of standards ................................................................................................................................ 21

Annex A (informative) Business aspects/ Use cases from signature creation devices view ........ 22

A.1 General ............................................................................................................................................................. 22

A.2 Telecommunications .................................................................................................................................. 22

A.3 Identity ............................................................................................................................................................. 22

A.4 Health ............................................................................................................................................................... 23

A.5 Corporate ........................................................................................................................................................ 23

A.6 Bank .................................................................................................................................................................. 24

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)

Annex B (informative) Illustration of Application of Standards ............................................................... 25

B.1 General ............................................................................................................................................................. 25

B.2 Telecommunications ................................................................................................................................... 25

B.2.1 First example .................................................................................................................................................. 25

B.2.2 Second example ............................................................................................................................................. 25

B.3 Identity ............................................................................................................................................................. 25

B.3.1 General ............................................................................................................................................................. 25

B.3.2 First example .................................................................................................................................................. 26

B.3.3 Second example ............................................................................................................................................. 26

B.3.4 Third example ................................................................................................................................................ 27

B.4 Health ................................................................................................................................................................ 27

B.4.1 First example .................................................................................................................................................. 27

B.4.2 Second example ............................................................................................................................................. 28

B.5 Corporate ......................................................................................................................................................... 28

B.5.1 First example .................................................................................................................................................. 28

B.5.2 Second example ............................................................................................................................................. 28

B.6 Bank ................................................................................................................................................................... 28

B.6.1 First example .................................................................................................................................................. 28

B.6.2 Second example ............................................................................................................................................. 29

Annex C (informative) Comparison of definitions between Directive 1999/93/EC and

Regulation (EU) 910/2014 ........................................................................................................................ 30

Bibliography ................................................................................................................................................................. 32

---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
European foreword

This document (CEN/TR 419200:2017) has been prepared by Technical Committee CEN/TC 224

“Personal identification and related personal devices with secure element, systems, operations and

privacy in a multi sectorial environment”, the secretariat of which is held by AFNOR.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent

rights.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association.
---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
Introduction

ETSI/TR 119 000 [16] provides a general structure for electronic signatures standardization outlining

existing and potential standards for electronic signatures. This identifies six areas of standardization

with a list of existing and potential future standards in each area.

This guide is part of a series of guidance documents assisting users and their suppliers in identifying the

electronic signature standards and options relevant to their need. Each guide addresses a particular

area as identified in ETSI/TR 119 000 [16].

This series is based on the process of selecting Business Scoping Parameters for each area of

standardization based on an analysis of the business requirements. The selection of these scoping

parameters is based on a process involving an analysis of the business requirements and associated

risks leading to an identification of the policy and security requirements and the resulting Business

Scoping Parameters from which the appropriate standards and options can be selected. Having

identified the requirements in terms of Business Scoping Parameters for an area, each guidance

document provides assistance in selecting the appropriate standards and options for that area. Where

standards and options within one area make use of another area this is stated in terms of Scoping

Parameters of that other area.

This guidance does not include any normative requirements but provides guidance on addressing the

signature creation and other related devices area, on the selection of applicable standards and their

options for a particular business implementation context and associated business requirements and on

the implementation of a standard (or a series of standards).

This area covers signature devices but also electronic signature-related devices including (not

exhaustively) authentication devices, identity devices offering value added services around electronic

signatures. This list can be extended as further services that could be listed for devices are identified.

This general process of the selection of standards and options is described further in

ETSI/TR 119 000:2015, 4.2.6 [16].
---------------------- Page: 7 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
1 Scope

The Technical Report provides guidance on the selection of standards and options for the

signature/seal creation and other related devices (area 2) as identified in the framework for

standardization of signatures: overview ETSI/TR 119 000 [16].

The Technical Report describes the Business Scoping Parameters relevant to this area (see Clause 5)

and how the relevant standards and options for this area can be identified given the Business Scoping

Parameters (Clause 6).
The target audience of this document includes:

— business managers who potentially require support from electronic signatures/seals in their

business and will find here an explanation of how electronic signatures/seals standards can be

used to meet their business needs;

— application architects who will find here material that will guide them throughout the process of

designing a system that fully and properly satisfies all the business and legal/regulatory

requirements specific to electronic signatures/seals, and will gain a better understanding on how to

select the appropriate standards to be implemented and/or used;

— developers of the systems who will find in this document an understanding of the reasons that lead

the systems to be designed as they were, as well as a proper knowledge of the standards that exist

in the field and that they need to know in detail for a proper development.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

NOTE Legal definitions (from Directive 1999/93/EC [20] or Regulation (EU) 910/2014 [21]) relative to this

document can be found in Annex C.
2.1
secure element

tamper resistant component used to provide security, confidentiality, and multiple application

environment required to support various business models
EXAMPLE UICC, embedded SE, smartSD, smart microSD, etc.
2.2
trusted execution environment
TEE

specific execution environment on the mobile phone (or any connected device) application processor

that is made of both software and, depending of the support of the processor, hardware parts, to

manage the access control to the memory management unit and define a boundary between secure and

unsecure (mobile OS) execution environment
2.3
trusted user interface
TUI

means to securely address user interaction for sensitive applications through the display, keyboard,

microphone, etc.
---------------------- Page: 8 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
3 Symbols and abbreviations

For the purposes of this document, the following symbols and abbreviations apply.

C/S Client/Server
CC Common Criteria
CSP Certification Service Provider
CV Card Verifiable (certificate)
HIC Health Insurance Card
HPC Health Provider Card
IAS Identification, Authentication and Signature
IBAN International Bank Account Number
ICC Integrated Circuit Card
MNO Mobile Network Operator
PIN Personal Identification Number
PIV Personal Identity Verification (card)
PK Public Key
PP Protection Profile
QSCD Qualified electronic Signature Creation Device
SC Sole Control
SCA Signature-Creation Application
SCC Sole Control Component
SCDev Signature Creation Device
SE Secure Element
SIM Subscriber Identity Module
SSA Server Signing Application
SSCD Secure Signature Creation Device
SSH Secure Shell protocol
SSL Secure Sockets Layer protocol

STIC Système de Traitement des Infractions Constatées (system for processing recorded

infringements)
SVA Signature-Validation Application
SWIFT Society for Worldwide Interbank Financial Telecommunication
TEE Trusted Execution Environment
TLS Transport Layer Security protocol
TSCM Trustworthy Signature Creation Module
TSP Trust Service Provider
TUI Trusted User Interface (in the context of TEE)
TW4S Trustworthy Systems Supporting Server Signing
UICC Universal Integrated Circuit Card
---------------------- Page: 9 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
4 Some concepts related to signature creation and other related devices
4.1 Different types of signatures and seals

Regulation (EU) 910/2014 [21] introduces several levels for signatures, starting from “basic” electronic

signature up to advanced electronic signature. An advanced electronic signature created by a qualified

electronic signature creation device and based on a qualified certificate is equivalent to a hand-written

signature.

Regulation (EU) 910/2014 [21] introduces the notion of electronic seal, and gives several levels as for

electronic signatures, starting from “basic” electronic seal up to advanced electronic seal. An advanced

electronic seal created by a qualified electronic seal creation device and based on a qualified certificate

can benefit from the presumption of integrity and correctness of origin of the data to which the seal is

linked. The intention is e.g. to allow companies to issue business documents (e.g. invoices) matching EU

legal requirements.
4.2 Signature versus seal

An electronic seal is the electronic equivalent of a seal or stamp which applied on a document

guarantees its origin and integrity.

A seal can be viewed as an authority's proof of a document's content integrity, authenticity and level of

authority, while a signature is a person's or legal entity’s commitment to the content of a document. A

seal is created by a legal person (e.g. the tax revenue officer) and it expresses the will of the authority

(the state) in whose name the seal-creator acts. A signature always expresses the will of the signer

himself. Technically this means that a signature will always be confirmed by an explicit user verification

entry (e.g. PIN verification); this will not be systematically the case for a seal

(see EN 419212-2:2014 [26], Annex B, Table 1).

In the rest of this document there will be no particular notion of a seal since it technically compares to

the signature and does not need additional specific standards.
4.3 What are a signature creation device or other related devices
4.3.1 General

The term “signature creation or other related devices” encompasses the signature creation device and

other signature-related devices including identification device, authentication device, seal device or

signature verification device (see Clause 5 for security services around electronic signature).

4.3.2 Qualified electronic signature creation device

An advanced electronic signature based on a qualified certificate and created by a qualified electronic

signature creation device (QSCD) is equivalent to a hand-written signature and is legally recognized.

Such QSCD is defined by Regulation (EU) 910/2014 as the following:

Qualified electronic signature creation device is an electronic signature creation device that meets

the following requirements (Annex II):

1. Qualified electronic signature creation devices shall ensure, by appropriate technical and procedural

means, that at least:

(a) the confidentiality of the electronic signature creation data used for electronic signature creation

is reasonably assured;

(b) the electronic signature creation data used for electronic signature creation can practically occur

only once;
---------------------- Page: 10 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)

(c) the electronic signature creation data used for electronic signature creation cannot, with

reasonable assurance, be derived and the electronic signature is reliably protected against

forgery using currently available technology;

(d) the electronic signature creation data used for electronic signature creation can be reliably

protected by the legitimate signatory against use by others.

2. Qualified electronic signature creation devices shall not alter the data to be signed or prevent such

data from being presented to the signatory prior to signing.

3. Generating or managing electronic signature creation data on behalf of the signatory may only be

done by a qualified trust service provider.

4. Without prejudice to point (d) of point 1., qualified trust service providers managing electronic

signature creation data on behalf of the signatory may duplicate the electronic signature creation

data only for back-up purposes provided the following requirements are met:

(a) the security of the duplicated data sets must be at the same level as for the original data sets;

(b) the number of duplicated data sets shall not exceed the minimum needed to ensure continuity of

the service.

The first part of the definition (points 1. and 2.) are almost all the same as in

Directive 1999/93/EC [20], and a common interpretation is to implement it as a Secure Element.

In the EN 419212 series [4] “Application Interfaces for secure elements used as Qualified electronic

Signature (Seal-) Creation Devices”, the device is clearly assimilated to a SE and the document describes

all functional and security mechanisms, protocols and APDU commands to implement the European

legal framework for electronic signatures. A SE compliant to the standard will be able to produce a

“Qualified electronic signature” that fulfils the requirements of Regulation (EU) 910/2014 [21] and

therefore can be considered equivalent to a hand-written signature.

In SSCD PP EN 419211 [3] “Protection profiles for secure signature creation device “, smart card is

indicated as a typical example for SSCD. Moreover, all products certified against the previous version of

SSCD PP (CWA 14169) are smart cards, see for example French certification body ANSSI web site

http://www.ssi.gouv.fr/fr/produits-et-prestataires/produits-certifies-conformes-sscd.html, German

certification body BSI web site https://www.bsi.bund.de/certified_products/digital_signature, or more

generic Common Criteria list of signature products web site
http://www.commoncriteriaportal.org/products.

According to Article 51 (1) in the Regulation (EU) 910/2014 [21], an SSCD compliant with

Directive 1999/93/EC [20] is compliant with the Regulation. This is highlighted by the study done by

IAS experts team on behalf of the Commission to support the implementation of the eIDAS

Regulation (EU) 910/2014 [21]: the documents SMART 2012/0001 [22] and [23] establish the

SSCD PP EN 419211 [3] is compliant (except for terminology ) to Regulation (EU) 910/2014 [21] and

can be used as such as a reference for certification of QSCD. A Technical Report will detail the matching

for terminology between Directive 1999/93/EC [20] and Regulation (EU) 910/2014 [21] (to be

published by CEN/TC 224 WG17).

The second part of the definition (points 3. and 4.) clearly indicates that the generation and

management of electronic signature can be done on behalf of the signatory, using a remote server. ETSI

ESI is defining architecture and policy requirements in case of mobile environment

1) The SSCD PP EN 419211 has been finalized within Directive 1999/93/EC context. It is nevertheless compliant with the

Regulation 910/2014/EU, except for the terminology (a TR will be provided by CEN for the mapping), and applicable as such.

---------------------- Page: 11 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)

(see ETSI SR 019 020 [11]). CEN/TC 224/WG 17 is working on the extension of the security

requirements for trustworthy systems supporting server signing (CEN/TS 419241 [7]) to a protection

profile to address this case (see 5.3.2).
4.3.3 Qualified electronic seal creation device

An advanced electronic seal based on a qualified certificate and created by a qualified electronic seal

creation device is legally recognized. Such device is defined by Regulation (EU) 910/2014 [21] as the

following:

Qualified electronic seal creation device is an electronic seal creation device that meets the same

previous requirements, since Article 29 shall apply mutatis mutandis.

As already mentioned, a seal can be technically addressed by available signature standards, including

the QSCDs’ ones the EN 419211 series [3] and EN 419212 series [4].
4.4 Trusted versus un-trusted environment for electronic signature

Two environments can be distinguished with respect to signature creation applications.

If the SCA is in a trusted environment, the environment is considered to be trusted by the user. Device

authentication is not required as the end-user knows the environment that s(he) will apply for

signature. See Figure 1.
Figure 1 — Trust of the environment

If the SCA is in an un-trusted environment, a device authentication will be used if the operating

environment of the QSCD cannot be entirely trusted by the user. This can be the case in public signature

terminals or other devices that cannot provide an a-priori secure channel. See Figure 2.

Figure 2 — Communication in untrusted environment

After successful device authentication, session keys are available on both sides to be used in subsequent

protected transmissions (with secure messaging).

An example of a trusted environment is an environment not connected to the external world (inside an

administration office).
The examples for an un-trusted environment are:
— SCA and QSCD are not at the same location;
— usage of biometrics if the sensor is off-card;
— usage of contactless cards.
---------------------- Page: 12 ----------------------
SIST-TP CEN/TR 419200:2017
CEN/TR 419200:2017 (E)
4.5 Mobile environment

Mobile devices such as smart phones or tablets have been conquering the market over the past 5 years,

giving the opportunity to the end-user to perform electronic transactions including eBanking or

eGovernment. It is clearly a huge vector of deployment for electronic signature, and the European

Commission put emphasis on it when proposing Regulation (EU) 910/2014 [21].

Electronic trusted services may be performed at local level (e.g. through classical QSCD where the user

directly controls the use of the signing or other key through, e.g. the SIM card or whatever SE is

available in the mobile device) or at remote level through a mobile or conventional network (e.g. server

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
