Small steam sterilizers

This European Standard specifies the performance requirements and test methods for small steam sterilizers and sterilization cycles which are used for medical purposes or for materials that are likely to come into contact with blood or body fluids.
This European Standard applies to automatically controlled small steam sterilizers that generate steam using electrical heaters or use steam that is generated by a system external to the sterilizer.
This European Standard applies to small steam sterilizers used primarily for the sterilization of medical devices with a chamber volume of less than 60 l and unable to accommodate a sterilization module (300 mm × 300 mm × 600 mm).
The requirements concerning the quality management and risk management are addressed by other standards (e.g. EN ISO 13485, EN ISO 14971).
This European Standard does not apply to small steam sterilizers that are used to sterilize liquids or pharmaceutical products.
This European Standard does not specify safety requirements related to risks associated with the zone in which the sterilizer is used (e.g. flammable gases).
This European Standard does not specify requirements for the validation and routine control of sterilization by moist heat.
NOTE Requirements for the validation and routine control of sterilization by moist heat are given in EN ISO 17665-1.
This European Standard does not specify requirements for other sterilization processes that also employ moist heat as part of the process (i.e. formaldehyde, ethylene oxide).

Dampf-Klein-Sterilisatoren

Petits stérilisateurs à la vapeur d'eau

La présente Norme européenne spécifie les exigences de performance et les méthodes d’essai relatives
aux petits stérilisateurs à la vapeur d’eau et aux cycles de stérilisation utilisés à des fins médicales ou
pour des matériels susceptibles d’entrer en contact avec du sang ou des fluides corporels.
La présente Norme européenne s’applique aux petits stérilisateurs à la vapeur d’eau à commande
automatique qui produisent de la vapeur d’eau à l’aide d’éléments chauffants électriques, ou qui
utilisent la vapeur d’eau produite par un système externe au stérilisateur.
La présente Norme européenne s’applique aux petits stérilisateurs à la vapeur d’eau employés
essentiellement pour la stérilisation de dispositifs médicaux, dont le volume de la chambre est inférieur
à 60 l et qui ne peuvent pas loger une unité de stérilisation (300 mm  300 mm  600 mm).
Les exigences relatives au management de la qualité et à la gestion des risques sont traitées dans
d’autres normes (par exemple, EN ISO 13485, EN ISO 14971).
La présente Norme européenne ne s’applique pas aux petits stérilisateurs à la vapeur d’eau qui sont
utilisés pour stériliser des liquides ou des produits pharmaceutiques.
La présente Norme européenne ne précise pas les exigences de sécurité en rapport avec les risques
associés à la zone dans laquelle le stérilisateur est utilisé (par exemple, gaz inflammables).
La présente Norme européenne ne spécifie pas les exigences relatives à la validation et au contrôle de
routine de la stérilisation à la chaleur humide.
NOTE Les exigences relatives à la validation et au contrôle de routine d’un procédé de stérilisation à la
chaleur humide sont indiquées dans l’EN ISO 17665-1.
La présente Norme européenne ne définit pas d’exigences relatives à d’autres procédés de stérilisation
qui utilisent également de la chaleur humide (à savoir : stérilisation au formaldéhyde, à l’oxyde
d’éthylène).

Mali parni sterilizatorji

Ta evropski standard določa zahteve za delovanje in preskusne metode za male parne sterilizatorje in sterilizacijske cikle, ki se uporabljajo za medicinske namene ali za materiale, ki lahko pridejo v stik s krvjo ali telesnimi tekočinami.
Ta evropski standard se uporablja za avtomatsko nadzorovane male parne sterilizatorje, ki paro proizvajajo z uporabo električnih grelcev ali uporabljajo paro, ki jo proizvaja sistem zunaj sterilizatorja.
Ta evropski standard s uporablja za male parne sterilizatorje, ki se uporabljajo predvsem za sterilizacijo medicinskih pripomočkov in se vanje ne more namestiti sterilizacijski modul (300 mm × 300 mm × 600 mm), s prostornino komore pod 60 l.
Zahteve glede vodenja kakovosti in obvladovanja tveganj so obravnavane v drugih standardih (npr. EN ISO 13485, EN ISO 14971).
Ta evropski standard se ne uporablja za male parne sterilizatorje, ki se uporabljajo za sterilizacijo tekočin ali farmacevtskih izdelkov.
Ta evropski standard ne določa varnostnih zahtev v zvezi s tveganji, povezanimi z območjem, na katerem se uporablja sterilizator (npr. vnetljivi plini).
Ta evropski standard ne določa zahtev za validacijo in rutinsko kontrolo sterilizacije z vlažno toploto.
OPOMBA: Zahteve za validacijo in rutinsko kontrolo sterilizacije z vlažno toploto so določene v standardu EN ISO 17665-1.
Ta evropski standard ne določa zahtev za druge sterilizacijske postopke, ki prav tako uporabljajo vlažno toploto (tj. formaldehid, etilenoksid).

General Information

Status
Published
Publication Date
05-Dec-2018
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
26-Nov-2018
Due Date
31-Jan-2019
Completion Date
06-Dec-2018

Relations

Effective Date
01-Jan-2019
Effective Date
18-Jan-2023
Effective Date
18-Jan-2023
Effective Date
19-Jan-2023
Effective Date
19-Jan-2023

Buy Standard

Standard
EN 13060:2015+A1:2019
English language
84 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Mali parni sterilizatorjiDampf-Klein-SterilisatorenPetits stérilisateurs à la vapeur d'eauSmall steam sterilizers11.080.10Sterilizacijska opremaSterilizing equipmentICS:Ta slovenski standard je istoveten z:EN 13060:2014+A1:2018SIST EN 13060:2015+A1:2019en,fr,de01-januar-2019SIST EN 13060:2015+A1:2019SLOVENSKI
STANDARDSIST EN 13060:20151DGRPHãþD



SIST EN 13060:2015+A1:2019



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13060:2014+A1
November
t r s z ICS
s sä r z rä s r Supersedes EN
s u r x rã t r s vEnglish Version
Small steam sterilizers Petits stérilisateurs à la vapeur d 5eau
DampfæKleinæSterilisatoren This European Standard was approved by CEN on
s w November
t r s v and includes Amendment
s approved by CEN on
t v June
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
9
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u r x rã t r s v ªA sã t r s z ESIST EN 13060:2015+A1:2019

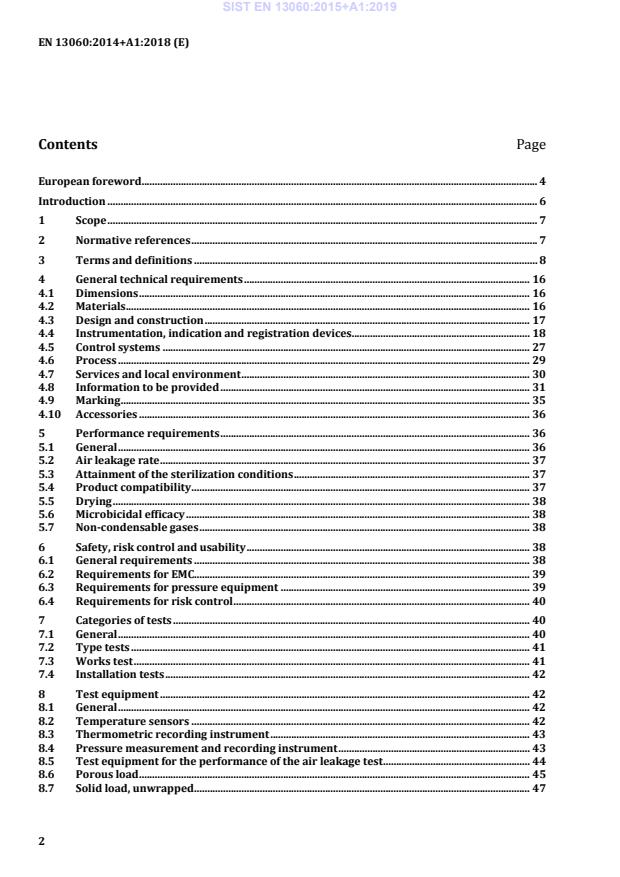

EN 13060:2014+A1:2018 (E) 2 Contents Page European foreword . 4 Introduction . 6 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 8 4 General technical requirements . 16 4.1 Dimensions . 16 4.2 Materials . 16 4.3 Design and construction . 17 4.4 Instrumentation, indication and registration devices. 18 4.5 Control systems . 27 4.6 Process . 29 4.7 Services and local environment . 30 4.8 Information to be provided . 31 4.9 Marking . 35 4.10 Accessories . 36 5 Performance requirements . 36 5.1 General . 36 5.2 Air leakage rate . 37 5.3 Attainment of the sterilization conditions . 37 5.4 Product compatibility . 37 5.5 Drying . 38 5.6 Microbicidal efficacy . 38 5.7 Non-condensable gases . 38 6 Safety, risk control and usability . 38 6.1 General requirements . 38 6.2 Requirements for EMC. 39 6.3 Requirements for pressure equipment . 39 6.4 Requirements for risk control . 40 7 Categories of tests . 40 7.1 General . 40 7.2 Type tests . 41 7.3 Works test . 41 7.4 Installation tests . 42 8 Test equipment . 42 8.1 General . 42 8.2 Temperature sensors . 42 8.3 Thermometric recording instrument . 43 8.4 Pressure measurement and recording instrument . 43 8.5 Test equipment for the performance of the air leakage test . 44 8.6 Porous load . 45 8.7 Solid load, unwrapped . 47 SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 3 8.8 Solid load, single wrapped. 47 8.9 Solid load, double wrapped. 47 8.10 Process challenge device (PCD) and chemical indicator for narrow lumen . 48 8.11 Process challenge device and chemical indicator for simple hollow item . 48 8.12 Balance for load dryness test . 49 9 Test programme . 49 10 Test methods . 51 10.1 General requirements on technical tests . 51 10.2 Air leakage test . 51 10.3 Dynamic sterilizer chamber pressure test . 53 10.4 Empty chamber test . 54 10.5 Solid load test . 54 10.6 Narrow lumen test . 54 10.7 Simple hollow item test . 55 10.8 Small porous load test . 56 10.9 Full porous load test (single and double wrapped) . 57 10.10 Small porous items test (single and double wrapped) . 58 10.11 Solid load dryness test . 58 10.12 Porous load dryness test (small and full, single and double wrapped) . 59 10.13 Small porous items dryness test (single and double wrapped). 60 10.14 Non-condensable gases test . 60 10.15 Microbiological test for solid loads . 64 10.16 Microbiological test for narrow lumens . 64 10.17 Microbiological test for simple hollow item . 64 10.18 Microbiological test for small porous loads . 65 10.19 Microbiological test for full porous loads . 65 10.20 Microbiological test for small porous items . 66 Annex A (informative)
Clarification of the definition of narrow lumens and simple hollow items (see 3.18 and 3.30) . 67 Annex B (informative)
Process evaluation system . 69 Annex C (informative)
Suggested maximum limits of contaminants in and specification for water for steam sterilization . 70 Annex D (informative)
Example of a table to be supplied with pre-purchase documentation and with the instructions for use . 71 Annex E (informative)
Load support systems . 72 Annex F (informative)
Rationale for the tests . 73 Annex G (informative)
Example of a process challenge device for narrow lumen . 76 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 93/42 EEC on medical devices . 77 Bibliography . 82
SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 4 European foreword This document (EN 13060:2014+A1:2018) has been prepared by Technical Committee CEN/TC 102 “Sterilizers and associated equipment for processing of medical devices”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2019 and conflicting national standards shall be withdrawn at the latest by May 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1 approved by CEN on 24 June 2018.
This document supersedes EN 13060:2014. The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. The following amendments have been made in comparison with EN 13060:2004+A2:2010: a) The scope of the standard has been revised with the aim to define small and large sterilizers on the chamber volume; b) Normative references, terms and definitions have been updated, e.g.
— term “hollow load A” has been changed to become “narrow lumen” ( 3.18) — term “hollow load B” has been changed to become “simple hollow items” ( 3.30) c) In Clause 4 various sub-clauses and relevant requirements have been added, such as: — General requirements for design and construction (4.3.1), — Vibrations (4.3.5) — Noise (4.3.6) — Steam penetration test (4.5.1.6) — Software (4.5.4); d) Sub-clause 4.8 has been divided into two subsections: — 4.8 Information to be provided — 4.9 Marking SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 5 e) Requirements in 5.3 on Attainment of the sterilization conditions have been revised; f) Requirements in Clause 6 Safety, risk control and usability have been revised, e.g. requirements on electromagnetic compatibility (EMC), Pressure Equipment and risk control were added g) Requirements on Sound power level (7.2.6) were added; h) Requirements in 8.6 Porous load have been revised; i) Requirements for Process challenge device (PCD) and chemical indicators for products with narrow lumen were revised; j) Annex A has been revised, e.g. the defined hollow load A and B replaced by products with narrow lumen or simple hollow items; k) Example for process challenge device for narrow lumen (PCD) has been moved to a new Annex G. l) Annex ZA including Table ZA.1 on medical device directive and Table ZA.2 on machinery directive have been updated due to the changes made in the standard; m) Standard has been editorially revised; n) Updated Bibliography. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 6 Introduction Small steam sterilizers are widely used for medical purposes, e.g. in general medical practice, dentistry, podiatry, facilities for personal hygiene and beauty care and also veterinary practice. They are also used for materials and equipment which are likely to come into contact with blood or bodily fluids, e.g. implements used by beauty therapists, tattooists, body piercers and hairdressers. The specific nature of such sterilization loads used within these fields of application call for different performance requirements for the sterilization cycles and hence different corresponding test methods. This European Standard specifies the general requirements for small steam sterilizers and associated test methods. Performance is defined by reference to standard test loads. These are used to define a basic minimum performance and are not necessarily related to specific medical devices. It is the responsibility of the user and the manufacturer of the device to be sterilized to determine that any particular cycle is suitable for sterilizing a particular device. The performance tests specified in this standard can also be used by the manufacturer of the device to be sterilized to specify the appropriate performance for decontamination processes according to the requirements for information to be given by medical device manufacturers according to EN ISO 17664. This will enable users to identify the specific sterilizer performance required to safely process their devices. The performance requirements specified in this document are not intended for the process to be effective in inactivating the causative agents of spongiform encephalopathies such as scrapie, bovine spongiform encephalopathy and Creutzfeldt-Jakob disease. However, some national regulations require the use of modified steam processes as part of a general prion decontamination programme. !For sterilizer models of a given design, that have been supplied to the market prior to publication of this edition of EN 13060, with the 4 K band as specified by EN 13060:2004+A2:2010, 5.3.2, these sterilizers can continue to be supplied to the market with the 4 K band." It is essential that the sterilizer and associated equipment is used only for the sterilization of the type of products for which it is designed. The choice of sterilizer, sterilization cycle or quality of services provided can be inappropriate for a particular product. Therefore the suitability of a sterilization procedure for a particular product needs to be verified by validation (see EN ISO 17665-1). SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 7 1 Scope This European Standard specifies the performance requirements and test methods for small steam sterilizers and sterilization cycles which are used for medical purposes or for materials that are likely to come into contact with blood or body fluids. This European Standard applies to automatically controlled small steam sterilizers that generate steam using electrical heaters or use steam that is generated by a system external to the sterilizer. This European Standard applies to small steam sterilizers used primarily for the sterilization of medical devices with a chamber volume of less than 60 l and unable to accommodate a sterilization module (300 mm × 300 mm × 600 mm). The requirements concerning the quality management and risk management are addressed by other standards (e.g. EN ISO 13485, EN ISO 14971). This European Standard does not apply to small steam sterilizers that are used to sterilize liquids or pharmaceutical products. This European Standard does not specify safety requirements related to risks associated with the zone in which the sterilizer is used (e.g. flammable gases). This European Standard does not specify requirements for the validation and routine control of sterilization by moist heat. NOTE Requirements for the validation and routine control of sterilization by moist heat are given in EN ISO 17665-1. This European Standard does not specify requirements for other sterilization processes that also employ moist heat as part of the process (i.e. formaldehyde, ethylene oxide). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. prEN 285:20141), Sterilization — Steam sterilizers — Large sterilizers EN 285:2006+A2:2009, Sterilization — Steam sterilizers — Large sterilizers EN 867-5:2001, Non-biological systems for use in sterilizers — Part 5: Specification for indicator systems and process challenge devices for use in performance testing for small sterilizers Type B and Type S EN 868 (all parts), Packaging for terminally sterilized medical devices 2) EN 1041, Information supplied by the manufacturer of medical devices EN 10088-1, Stainless steels — Part 1: List of stainless steels EN 13060:2004+A2:2010, Small steam sterilizers
1) Under revision. 2) EN 868-1 has been replaced by EN ISO 11607-1. SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 8 EN 13445 (all parts), Unfired pressure vessels EN 60529, Degrees of protection provided by enclosures (IP Code)(IEC 60529) EN 60751:2008, Industrial platinum resistance thermometers and platinum temperature sensors (IEC 60751:2008) EN 61010-1:2010, Safety requirements for electrical equipment for measurement, control, and laboratory use — Part 1: General requirements (IEC 61010-1:2010) EN 61010-2-040:2005, Safety requirements for electrical equipment for measurement, control and laboratory use — Part 2-040: Particular requirements for sterilizers and washer-disinfectors used to treat medical materials (IEC 61010-2-040:2005) EN 61326-1:2013, Electrical equipment for measurement, control and laboratory use — EMC requirements — Part 1: General requirements (IEC 61326-1:2012) EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions, tolerances and designation (ISO 228-1) EN ISO 3746, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting plane (ISO 3746) EN ISO 4017, Hexagon head screws — Product grades A and B (ISO 4017) EN ISO 4126-1, Safety devices for protection against excessive pressure — Part 1: Safety valves (ISO 4126-1) EN ISO 11138-3, Sterilization of health care products — Biological indicators — Part 3: Biological indicators for moist heat sterilization processes (ISO 11138-3) EN ISO 11140-1, Sterilization of health care products — Chemical indicators — Part 1: General requirements (ISO 11140-1) EN ISO 14971:2012, Medical devices — Application of risk management to medical devices (ISO 14971:2007, Corrected version 2007-10-01) EN ISO 17665-1:2006, Sterilization of health care products — Moist heat — Part 1: Requirements for the development, validation and routine control of a sterilization process for medical devices (ISO 17665-1:2006) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 active drain drain through which fluids present in the chamber are discharged during the process SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 9 3.2 automatic controller device that, in response to cycle parameters, operates the apparatus sequentially through the operating cycle(s) 3.3 biological indicator test system containing viable microorganisms providing a defined resistance to a specified sterilization process [SOURCE: ISO/TS 11139:2006, definition 2.3] 3.4 calibration set of operations that establish, under specified conditions, the relationship between values of a quantity indicated by a measuring instrument or measuring system, or values represented by a material measure or a reference material, and the corresponding values realised by standards [SOURCE: ISO/TS 11139:2006, definition 2.4] 3.5 chemical indicator combination of the indicator agent and its substrate that reveals change in one or more process variables based on a chemical or physical change resulting from exposure to a process Note 1 to entry: An indicator intended to be used only in combination with a specific test load is also termed an indicator (both together becoming an indicator system). 3.6 cycle parameter physical value including its tolerances used for control, monitoring, indication and recording of the operating cycle [SOURCE: prEN 285:2014, definition 3. 8, modified: “including its tolerances” was added] 3.7 double ended with separate doors for loading and unloading 3.8 equilibration time period which elapses between the attainment of the sterilization temperature in the usable chamber space and the attainment of the sterilization temperature at all points within the load [SOURCE: EN ISO 17665-1:2006, definition 3.13, modified: ”at the reference measurement point” replaced by “in the usable chamber space” ] 3.9 hazard potential source of harm [SOURCE: ISO/IEC Guide 51:1999, definition 3.5] SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 10 3.10 hazardous situation circumstance in which people, property or the environment are exposed to one or more hazard(s) [SOURCE: ISO/IEC Guide 51:1999, definition 3.6] 3.11 holding time period for which the temperatures at all points within the useable chamber space and the load are continuously within the sterilization temperature band Note 1 to entry: The holding time follows immediately after the equilibration time. The extent of the holding time is related to the sterilization temperature. [SOURCE: EN ISO 17665-1:2006, definition 3.19, modified: “” added, ”at the reference measurement point and” deleted and “within the sterilization load” replaced by “within the usable chamber space and the load] 3.12 installation test series of checks and tests performed during installation of the sterilizer in the place of use 3.13 instructions for use instructions intended for the user (operator) of the sterilizer to enable safe and appropriate use 3.14 locked with the locking device(s) fully engaged 3.15 maximum allowable pressure maximum pressure for which the equipment is designed as specified by the manufacturer Note 1 to entry: See Pressure Equipment Directive 97/23/EC, Article 1, sub-clause 2.3. [SOURCE: EN 764-1:2004, definition 3.8, modified: addition of new Note 1 to entry] 3.16 medical device any instrument, apparatus, implement, machine, appliance, implant, in vitro reagent or calibrator, software, material or other similar or related article, intended by the manufacturer to be used, alone or in combination, for human beings for one or more of the specific purpose(s) of — diagnosis, prevention, monitoring, treatment or alleviation of disease, — diagnosis, monitoring, treatment, alleviation of, or compensation for, an injury, — investigation, replacement, modification or support of the anatomy or of a physiological process, — supporting or sustaining life, — control of conception, SIST EN 13060:2015+A1:2019



EN 13060:2014+A1:2018 (E) 11 — disinfection of medical devices, — providing information for medical purposes by means of in vitro examination of specimens derived from the human body, and which does not achieve its primary intended action in or on the human body by pharmacological, immunological or metabolic means, but which may be assisted in its function by such means [SOURCE: EN ISO 13485:2012, definition 3.7] 3.17 monitoring checking against specifications 3.18 narrow lumen hollow device which is beyond the range defined for a simple hollow item (see 3.30 and Figure A.3), and which is neither solid (see 3.32) nor porous (see 3.22) Note 1 to entry: See Annex A. EXAMPLES Long tubes, mati
...
