SIST EN IEC 62769-2:2023

Field Device Integration (FDI®) - Part 2: Client (IEC 62769-2:2023)

IEC 62769-2:2023 is available as IEC 62769-2:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

IEC 62769-2:2023 specifies the FDI®[1] Client. See Annex C for some typical FDI® Client use cases. The overall FDI® architecture is illustrated in Figure 1. The architectural components that are within the scope of this document have been highlighted in Figure 1.
[1] FDI® is a registered trademark of the non-profit organization Fieldbus Foundation, Inc. This information is given for the convenience of users of this document and does not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance does not require use of the trade name. Use of the trade name requires permission of the trade name holder.

Feldgeräteintegration (FDI®) - Teil 2: FDI-Client (IEC 62769-2:2023)

Intégration des appareils de terrain (FDI®) - Partie 2: Client (IEC 62769-2:2023)

IEC 62769-2:2023 est disponible sous forme de IEC 62769-2:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

L'IEC 62769-2:2023 spécifie le Client FDI®[1]. Voir l'Annexe C pour certains cas d'utilisation types du Client FDI®. L'architecture FDI® complète est représentée à la Figure 1. Les composants architecturaux qui relèvent du domaine d'application du présent document ont été mis en évidence dans Figure 1.
[1] FDI® est une marque déposée de l’organisation à but non lucratif Fieldbus Foundation, Inc. Cette information est donnée à l'intention des utilisateurs du présent document et ne signifie nullement que l'IEC approuve le détenteur de la marque ou l'emploi de ses produits. La conformité n'exige pas l'utilisation de la marque. L'utilisation de la marque exige l'autorisation du détenteur de la marque.

Integracija procesne naprave (FDI®) - 2. del: Odjemalec FDI (IEC 62769-2:2023)

Ta del standarda IEC 62769 določa odjemalca FDI® 1. Za nekatere tipične primere uporabe odjemalca FDI® glej dodatek C.

General Information

• Status: Published
• Public Enquiry End Date: 22-May-2022
• Publication Date: 05-Oct-2023
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.05 - Multilayer applications
• ICS: 35.240.50 - IT applications in industry
• Technical Committee: MOV - Measuring equipment for electromagnetic quantities
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Jul-2023
• Due Date: 08-Sep-2023
• Completion Date: 06-Oct-2023
• Ref Project: EN IEC 62769-2:2023 - Field Device Integration (FDI®) - Part 2: Client

Relations

• Revised: SIST EN IEC 62769-2:2021 - Field Device Integration (FDI) - Part 2: FDI Client (IEC 62769-2:2021)
• Effective Date: 09-Nov-2021

Overview

EN IEC 62769-2:2023 (IEC 62769-2:2023) specifies the Field Device Integration (FDI®) - Part 2: Client. It defines the FDI Client component within the FDI architecture, describing services, models and interfaces used by client applications to access, present and interact with field devices in industrial measurement and control systems. The edition 3.0 (2023) document is the International Standard adopted by CENELEC and supersedes the 2021 edition. Note: FDI® is a registered trademark; compliance with the standard does not require using the trade name.

Key topics and technical requirements

The standard focuses on the FDI Client and includes normative definitions, service models and XML schema. Major technical topics are:

• Device Access Services

  • Device model and node model constructs that describe device structure and properties.
  • Base Property Services, Device Model Services, Locking Services, and Direct Access Services for configuration, read/write and exclusive access operations.
  • Data types required for device interaction.

• Hosting Services

  • Requirements for hosting device-specific UI components and resources on the FDI Client, including parameter type definitions.

• UIP (User Interface Plugin) and UID (User Interface Description)

  • UIP services, instantiation rules, state machine and permission constraints for running user-interface components supplied by device vendors.
  • UID execution model and XML schemas (Annex A) that specify UI elements, actions and data binding.

• Actions and interactive device transfer

  • Definitions of action sequences, interactive transfer to device and associated request/response semantics.

• Normative XML schema (Annex A) that formalizes message and UI element structures for interoperability.

Applications and who uses it

EN IEC 62769-2:2023 enables consistent integration of field devices into engineering tools, control systems and asset management applications. Typical users include:

• Device manufacturers (to supply compliant UI packages and device models)
• Control system vendors and DCS/SCADA integrators (to implement FDI Clients)
• System integrators and automation engineers (for commissioning, configuration and diagnostics)
• Software developers building operator and maintenance tools

Practical uses: device configuration, diagnostics, secure read/write access, vendor-supplied graphical UIs, and standardized data exchange between devices and enterprise systems in process and factory automation.

Related standards

EN IEC 62769-2 references and is part of the FDI series (Parts 1, 3–6). It also aligns with related international standards cited in Annex ZA, including:

• IEC 62769-1 (FDI Overview) and IEC 62769-3 (FDI Server)
• IEC 61804 (EDDL / function blocks), IEC 62541 (OPC UA), and IEC 62443 (security) - referenced for interoperability and security considerations.

Keywords: FDI Client, Field Device Integration, EN IEC 62769-2:2023, IEC 62769-2, device access services, UIP, UID, industrial automation, device model, XML schema.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2023
Integracija procesne naprave (FDI®) - 2. del: Odjemalec FDI (IEC 62769-2:2023)
Field Device Integration (FDI®) - Part 2: Client (IEC 62769-2:2023)
Feldgeräteintegration (FDI®) - Teil 2: FDI-Client (IEC 62769-2:2023)
Intégration des appareils de terrain (FDI®) - Partie 2: Client (IEC 62769-2:2023)
Ta slovenski standard je istoveten z: EN IEC 62769-2:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62769-2

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 25.040.40; 35.100.05 Supersedes EN IEC 62769-2:2021
English Version
Field Device Integration (FDI®) - Part 2: Client
(IEC 62769-2:2023)
Intégration des appareils de terrain (FDI®) - Partie 2: Client Feldgeräteintegration (FDI®) - Teil 2: FDI-Client
(IEC 62769-2:2023) (IEC 62769-2:2023)
This European Standard was approved by CENELEC on 2023-05-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62769-2:2023 E

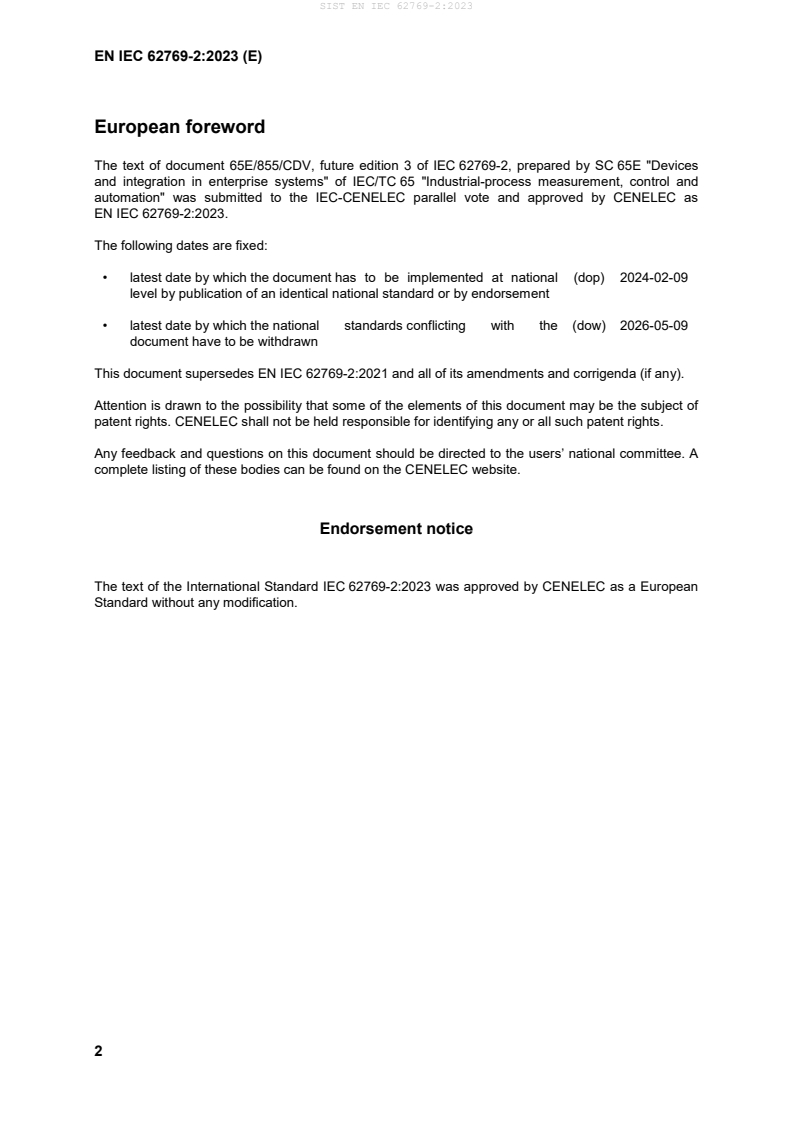

European foreword
The text of document 65E/855/CDV, future edition 3 of IEC 62769-2, prepared by SC 65E "Devices
and integration in enterprise systems" of IEC/TC 65 "Industrial-process measurement, control and
automation" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-02-09
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-05-09
document have to be withdrawn
This document supersedes EN IEC 62769-2:2021 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62769-2:2023 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61804-3 - Devices and integration in enterprise systems EN IEC 61804-3 -
- Function blocks (FB) for process control
and electronic device description language
(EDDL) - Part 3: EDDL syntax and semantics
IEC 61804-4 - Devices and integration in enterprise systems EN IEC 61804-4 -
- Function blocks (FB) for process control
and electronic device description language
(EDDL) - Part 4: EDD interpretation
IEC 62443-3-3 - Industrial communication networks - Network EN IEC 62443-3-3 -
and system security - Part 3-3: System
security requirements and security levels
IEC 62541-3 - OPC Unified Architecture - Part 3: Address EN IEC 62541-3 -
Space Model
IEC 62541-4 - OPC Unified Architecture - Part 4: Services EN IEC 62541-4 -
IEC 62769-1 - Field device integration (FDI) - Part 1: EN 62769-1 -
Overview
IEC 62769-3 - Field Device Integration (FDI®) - Part 3: - -
Server
IEC 62769-4 - Field Device Integration (FDI®) - Part 4: FDI - -
Packages
IEC 62769-5 - Field Device Integration (FDI®) - Part 5: FDI - -
Information Model
IEC 62769-6 series Field Device Integration (FDI®) - Part 6: - series
FDI® Technology Mappings
ISO/IEC 10918-1 - Information technology; digital compression - -
and coding of continuous-tone still images;
requirements and guidelines
ISO/IEC 15948 - Information technology - Computer graphics - -
and image processing - Portable Network
Graphics (PNG) - Functional specification
ISO 639 - Code for the representation of names of - -
Publication Year Title EN/HD Year
languages
ISO 3166 - Codes for the representation of names of - -
countries
IEEE 754 - IEEE Standard for Floating-Point Arithmetic - -
IETF RFC 2083 - PNG (Portable Network Graphics) - - -
Specification Version 1.0
IETF RFC 3066 - Tags for the Identification of Languages - -

IEC 62769-2 ®
Edition 3.0 2023-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Field device integration (FDI®) –
Part 2: Client
Intégration des appareils de terrain (FDI®) –
Partie 2: Client
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-6442-3
– 2 – IEC 62769-2:2023 © IEC 2023
CONTENTS
FOREWORD . 10
1 Scope . 12
2 Normative references . 12
3 Terms, definitions, abbreviated terms, acronyms and conventions . 13
3.1 Terms and definitions . 13
3.1.1 Terms used for Services . 14
3.1.2 Terms used for Device Access Services . 14
3.2 Abbreviated terms and acronyms . 14
3.3 Conventions . 15
4 Overview . 15 ®
5 FDI Client . 16
5.1 Device Access Services . 16
5.1.1 General . 16
5.1.2 Device Model . 17
5.1.3 Node model . 18
5.1.4 Services . 24
5.1.5 Base Property Services . 26
5.1.6 Device Model Services . 27
5.1.7 Locking Services . 40
5.1.8 Direct Access Services . 42
5.1.9 Data types . 45
5.2 Hosting Services . 50
5.2.1 General . 50
5.2.2 Services . 50
5.2.3 Parameter type definitions . 63
6 UIP . 64
6.1 UIP Services . 64
6.1.1 Services . 64
6.1.2 Parameter type definitions . 68
6.2 UIP instantiation rules . 69
6.3 UIP state machine. 70
6.3.1 States . 70
6.3.2 State transitions . 70
6.4 UIP permissions and restrictions . 71
6.4.1 Overview . 71
6.4.2 Access to local file system . 71
6.4.3 Export / Import of files . 71
6.4.4 Inter-Process Communication (IPC) . 72
6.4.5 Open files based on MIME Type . 72
6.4.6 Access to ressources . 72
6.5 UIP deployment . 72 ®
6.5.1 UIP downloads from FDI Server . 72 ®
6.5.2 UIP management on FDI Client . 74
7 Actions . 74
7.1 General . 74
7.2 Sequence diagram . 75

IEC 62769-2:2023 © IEC 2023 – 3 – ®
7.3 FDI Action schema definition . 77
7.4 Interactive transfer to device . 78
8 User Interface Description (UID) . 79
8.1 Overview. 79
8.2 UID execution . 82
Annex A (normative) XML schema . 85
A.1 General . 85
A.2 AbortRequestT . 85
A.3 AccessT . 85
A.4 AcknowledgementRequestT . 86
A.5 ActionListT . 86
A.6 AbortingNotificationT . 87
A.7 ActionRequestT . 87
A.8 ActionResponseT . 88
A.9 ActionT . 89
A.10 AxisListT . 90
A.11 AxisT . 90
A.12 BitEnumerationItemListT . 91
A.13 BitEnumerationItemT . 92
A.14 ButtonListT . 92
A.15 ChartT . 92
A.16 ChartTypeT . 93
A.17 ColorNameT . 94
A.18 ColorT. 95
A.19 ColorValueT . 95
A.20 ColumnBreakT . 95
A.21 DateTimeDataT . 96
A.22 DelayMessageRequestT . 96
A.23 DiagramLineT . 97
A.24 EnumerationItemListT . 98
A.25 EnumerationItemT . 98
A.26 FormatSpecifierT . 99
A.27 GraphT . 99
A.28 GridT . 100
A.29 HandlingT . 100
A.30 ImageT . 101
A.31 InfoRequestT . 102
A.32 InputRequestT . 102
A.33 InputResponseT . 103
A.34 InputValueT . 103
A.35 InputValueTypeT . 104
A.36 LabelHelpT . 104
A.37 LabelT . 105
A.38 LineTypeT . 105
A.39 ListOfActionArgumentsT . 106
A.40 MenuT . 107
A.41 MenuReferenceT . 108
A.42 MenuStyleT. 109
A.43 NumericDataT . 109

– 4 – IEC 62769-2:2023 © IEC 2023
A.44 NumericTemplateT . 110
A.45 OptionListT . 111
A.46 OrientationT . 111
A.47 ParameterInputRequestT . 111
A.48 ParameterListT . 112
A.49 ParameterT . 112
A.50 PluginT . 114
A.51 RangeListT . 115
A.52 RangeT . 115
A.53 ResponseT . 116
A.54 RowBreakT . 116
A.55 ScalingT . 116
A.56 SelectionRequestT . 117
A.57 SelectionResponseT . 117
A.58 SeparatorT . 118
A.59 SizeT . 118
A.60 ParameterClassT . 118
A.61 ActionClassT . 121
A.62 SourceListT . 122
A.63 SourceT . 123
A.64 StringDataT . 123
A.65 StringTemplateT . 124
A.66 StringOptionListT . 124
A.67 StringOptionT . 125
A.68 StringT . 125
A.69 TimeScaleT. 126
A.70 UidLayoutInformation . 126
A.71 UidRequestT . 127
A.72 UidResponseT . 127
A.73 UiElementSizeableT . 128
A.74 UiElementT . 128
A.75 UiTemplateT . 129
A.76 VariantT . 130
A.77 VariantOptionListT . 131
A.78 VariantOptionT . 131
A.79 VectorListT . 132
A.80 VectorT . 132
A.81 WaveformListT . 133
A.82 WaveformT . 133
A.83 WaveformTypeT . 134
A.84 WaveformTypeHorizontalT . 134
A.85 WaveformTypeVerticalT . 134
A.86 WaveformTypeYTT . 135
A.87 WaveformTypeXYT . 136
A.88 WaveformKeyPointListT . 137
A.89 WaveformVectorT . 137
A.90 WaveformVectorElementListT . 138
A.91 WaveformVectorElementT. 138
Annex B (informative) Action example . 140

IEC 62769-2:2023 © IEC 2023 – 5 – ®
Annex C (informative) Typical FDI Client use cases . 151
C.1 General . 151
C.2 Bulk operations . 151
C.3 Progress bar support . 151
Bibliography . 153
®
Figure 1 – FDI architecture diagram . 12
Figure 2 – Overall structure of a Device . 17
Figure 3 – Structure of Blocks . 18
Figure 4 – Device Model NodeClasses . 18
Figure 5 – Example: Variable hierarchy representing a RECORD . 22
Figure 6 – Variable hierarchy representing a VALUE_ARRAY of RECORDs. 23
Figure 7 – UIP state machine . 70 ®
Figure 8 – FDI Action sequence diagram . 76
Figure 9 – Sequence diagram interactive transfer to device . 79
Figure 10 – User Interface Descriptions . 81
Figure 11 – User Interface Description sequence diagram . 83
Figure B.1 – Action example (step 1) . 145
Figure B.2 – Action example (step 2) . 146
Figure B.3 – Action example (step 3) . 147
Figure B.4 – Action example (step 4) . 148
Figure B.5 – Action example (step 5) . 149
Figure B.6 – Action example (step 6) . 150
Figure C.1 – Progress bar support . 152

Table 1 – BaseNodeClass Attributes . 19
Table 2 – Object NodeClass Attributes . 19
Table 3 – Variable NodeClass Attributes . 20
Table 4 – Service Definition Table . 24
Table 5 – Service result codes . 26
Table 6 – GetDeviceAccessInterfaceVersion Service parameters . 27
Table 7 – GetOnlineAccessAvailability Service parameters . 27
Table 8 – Browse Service parameters . 28
Table 9 – CancelBrowse Service parameters . 29
Table 10 – Read Service parameters . 30
Table 11 – Read Service result codes . 30
Table 12 – Read operation result codes . 31
Table 13 – CancelRead Service parameters . 32
Table 14 – Write Service parameters . 33
Table 15 – Write operation result codes . 33
Table 16 – CancelWrite Service parameters . 34
Table 17 – CreateSubscription Service parameters . 35
Table 18 – CreateSubscription Service result codes . 35

– 6 – IEC 62769-2:2023 © IEC 2023
Table 19 – Subscribe Service parameters . 36
Table 20 – Subscribe operation result codes . 38
Table 21 – Unsubscribe Service Parameters . 38
Table 22 – Unsubscribe operation result codes . 38
Table 23 – DeleteSubscription Service parameters . 39
Table 24 – DataChangeCallback Service parameters . 40
Table 25 – DataChangeCallback result codes . 40
Table 26 – InitLock Service parameters . 41
Table 27 – InitLock Service result codes . 41
Table 28 – ExitLock Service parameters . 42
Table 29 – ExitLock Service result codes . 42
Table 30 – InitDirectAccess Service parameters . 43
Table 31 – InitDirectAccess Service result codes . 43
Table 32 – ExitDirectAccess Service parameters . 44
Table 33 – ExitDirectAccess Service result codes . 44
Table 34 – Transfer Service parameters . 44
Table 35 – Transfer Service result codes . 45
Table 36 – Base data types . 45
Table 37 – Identifiers assigned to Attributes . 46
Table 38 – NodeSpecifier . 46
Table 39 – DataValue . 47
Table 40 – InnerErrorInfo . 48
Table 41 – LocalizedText Definition . 48
Table 42 – LocaleId Examples . 49
Table 43 – Range Data Type Structure . 49
Table 44 – EUInformation Data Type Structure . 50
Table 45 – EnumValueType Definition . 50
Table 46 – GetClientTechnologyVersion Service parameters . 51
Table 47 – OpenUserInterface Service parameters . 51
Table 48 – CloseUserInterface Service parameters. 52
Table 49 – LogAuditTrailMessage Service parameters . 52
Table 50 – SaveUserSettings Service parameters . 53
Table 51 – LoadUserSettings Service parameters . 53
Table 52 – Trace Service parameters . 54
Table 53 – ShowMessageBox Service parameters . 54
Table 54 – ShowProgressBar Service parameters . 55
Table 55 – UpdateShowProgressBar Service parameters . 55
Table 56 – EndShowProgressBar Service parameters . 56
Table 57 – StandardUIActionItemsChange Service parameters . 56
Table 58 – SpecificUIActionItemsChange Service parameters . 57
Table 59 – InitExportFile Service parameters . 57
Table 60 – WriteExportFile Service parameters . 58
Table 61 – FinishExportFile Service parameters . 58

IEC 62769-2:2023 © IEC 2023 – 7 –
Table 62 – InitImportFile Service parameters . 59
Table 63 – ReadImportFile Service parameters . 59
Table 64 – FinishImportFile Service parameters . 60
Table 65 – InitOpenDefaultApplication Service parameters . 60
Table 66 – WriteOpenDefaultApplication Service parameters . 61
Table 67 – FinishOpenDefaultApplication Service parameters . 61
Table 68 – GetHostingProperties Service parameters . 62
Table 69 – GetHostingProperties Key Value Pairs . 62
Table 70 – DefaultResult definition . 63
Table 71 – ButtonSet definition . 63
Table 72 – AcknStyle definition . 63
Table 73 – Activate Service parameters . 64
Table 74 – Deactivate Service parameters . 65
Table 75 – SetSystemLabel Service parameters . 66
Table 76 – SetTraceLevel Service parameters . 66
Table 77 – GetStandardUIActionItems Service parameters . 66
Table 78 – GetSpecificUIActionItems Service parameters . 67
Table 79 – InvokeStandardUIAction Service parameters . 67
Table 80 – InvokeSpecificUIAction Service parameters . 68
Table 81 – TraceLevel definition . 68
Table 82 – StandardUIAction definition . 69
Table 83 – StandardUIActionItem definition . 69
Table 84 – SpecificUIActionItem definition . 69
Table 85 – UIP states . 70
Table 86 – UIP state transitions . 71
Table A.1 – Elements of AbortRequestT . 85
Table A.2 – Enumerations of AccessT. 86
Table A.3 – Elements of AcknowledgementRequestT . 86
Table A.4 – Elements of ActionListT . 86
Table A.5 – Elements of ActionRequestT . 88
Table A.6 – Elements of ActionResponseT . 89
Table A.7 – Elements of ActionT . 90
Table A.8 – Elements of AxisListT . 90
Table A.9 – Attributes of AxisT . 91
Table A.10 – Elements of AxisT . 91
Table A.11 – Elements of BitEnumerationItemListT . 91
Table A.12 – Elements of BitEnumerationItemT . 92
Table A.13 – Elements of ButtonListT . 92
Table A.14 – Elements of ChartT . 93
Table A.15 – Enumerations of ChartTypeT . 94
Table A.16 – Enumerations of ColorNameT . 95
Table A.17 – Enumerations of DateTimeDataT. 96
Table A.18 – Elements of DelayMessageRequestT . 97

– 8 – IEC 62769-2:2023 © IEC 2023
Table A.19 – Attributes of DiagramLineT . 97
Table A.20 – Elements of DiagramLineT . 98
Table A.21 – Elements of EnumerationItemListT . 98
Table A.22 – Elements of EnumerationItemT . 99
Table A.23 – Elements of GraphT . 100
Table A.24 – Elements of GridT . 100
Table A.25 – Enumerations of HandlingT . 101
Table A.26 – Attributes of ImageT . 102
Table A.27 – Elements of ImageT . 102
Table A.28 – Elements of InfoRequestT . 102
Table A.29 – Elements of InputRequestT . 103
Table A.30 – Elements of InputResponseT . 103
Table A.31 – Elements of InputValueT . 104
Table A.32 – Elements of InputValueTypeT . 104
Table A.33 – Elements of LabelHelpT . 105
Table A.34 – Elements of LabelT . 105
Table A.35 – Enumerations of LineTypeT . 106
Table A.36 – Attributes of MenuT . 108
Table A.37 – Elements of MenuT . 108
Table A.38 – Attributes of MenuReferenceT . 108
Table A.39 – Elements of MenuReferenceT . 109
Table A.40 – Enumerations of MenuStyleT . 109
Table A.41 – Enumerations of NumericDataT . 110
Table A.42 – Elements of NumericTemplateT . 110
Table A.43 – Elements of OptionListT . 111
Table A.44 – Enumerations of OrientationT .
...
