SIST EN 14198:2017+A1:2019/kFprA2:2021

Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives

This European Standard specifies basic requirements for the braking of trains hauled by locomotives:
-   For trains hauled by locomotives and intended for use in general operation each vehicle is fitted with the traditional brake system with a brake pipe compatible with the UIC brake system.
NOTE   This ensures technical compatibility of the brake function between vehicles of various origins in a train (see 5.4).
-   For trains hauled by locomotives and intended for use in fixed or predefined formation, the requirements on the vehicle and the train are necessary. In the case of a UIC brake system, this standard applies; if not, the EN 16185 series or the EN 15734 series applies.
If concerned, the UIC brake architecture described in this standard (see 5.4) can be used for brakes for multiple unit train and high speed trains and urban rail described in the EN 13452 series, the EN 16185 series and the EN 15734 series.
This European Standard also takes into account electrical and electronic control functions and additional brake systems like dynamic brakes and adhesion independent brakes.
The brake system requirements, which are specific for on-track machines are set out in EN 14033 1.
This European Standard does not apply to Urban Rail rolling stock braking system, which is specified by EN 13452 1.

Bahnanwendungen - Bremsen - Anforderungen an die Bremsausrüstung lokbespannter Züge

Applications ferroviaires - Freinage - Exigences concernant le système de freinage des trains tractés par locomotive

Železniške naprave - Zavore - Zahteve, ki jih morajo izpolnjevati zavorni sistemi vlakov, vlečeni z lokomotivami - Dopolnilo A2

General Information

• Status: Not Published
• Public Enquiry End Date: 31-Mar-2020
• ICS: 45.040 - Materials and components for railway engineering
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: IŽNP - Reilway applications
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 20-May-2021
• Due Date: 25-May-2021
• Completion Date: 20-May-2021
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Ref Project: EN 14198:2016+A1:2018/FprA2 - Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives

Relations

• Consolidated By: SIST EN 14198:2017+A2:2021 - Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives
• Effective Date: 24-Mar-2021
• Amends: SIST EN 14198:2017+A1:2019 - Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives
• Effective Date: 04-Sep-2019

Overview

EN 14198:2016+A1:2018/prA2 (CEN) defines essential brake system requirements for trains hauled by locomotives. The standard ensures interoperability by requiring a traditional brake pipe compatible with the UIC brake system for general-operation trains, and it sets vehicle and train-level requirements for fixed/predefined formations. EN 14198 also covers electrical/electronic control functions and additional brake types such as dynamic brakes and adhesion-independent brakes. Urban rail braking systems are excluded (see EN 13452‑1), and on-track machine brake specifics are handled in EN 14033‑1.

Key topics and technical requirements

• UIC brake compatibility: Vehicles intended for general operation must provide a brake pipe compatible with the UIC brake architecture to ensure cross-origin train braking interoperability.
• Fixed-formation requirements: Trains in fixed or predefined formations are subject to additional vehicle- and train-level criteria; where a UIC brake system is not used, EN 16185 or EN 15734 series apply.
• Electrical/electronic control: The standard addresses integration of electrical and electronic brake control and train protection interfaces.
• Additional brake systems: Includes guidance for dynamic brakes and adhesion-independent systems as part of the train braking concept.
• Amendment A2 - Annex F (normative): Introduces mandatory requirements and a test method for the venting performance of emergency valves used as safety equipment or by train protection systems:
  • Venting capacity is measured as the time from an emergency demand to a 1.5 bar pressure drop in a 400 L reservoir mounted at the brake-pipe extremity.
  • For each emergency-demand type, the 1.5 bar drop must be achieved within 3.9 seconds.
  • Test setup specifies a 400 L reservoir connected by a flexible hose (32 mm internal diameter, 5 ± 0.5 m length) and requires testing of the worst-case valve configuration.
• Braking performance limits (edits in Table A.1): Clarifications and numeric updates include a maximum mean retardation force of 16.5 kN per axle at 100 km/h, and braked weight limits (e.g., 15.25 t per wheelset), with conditional allowances for certain wagons up to 120 km/h subject to wheelset load and brake type.

Applications and users

Who uses EN 14198:

• Rolling-stock designers and OEMs specifying locomotive-hauled train brake systems
• Railway operators and infrastructure managers ensuring cross-fleet compatibility
• Signalling and train-protection engineers integrating emergency brake functions
• Test laboratories performing venting and emergency-valve certification Practical uses:
• Ensuring UIC brake interoperability across multi-origin consists
• Specifying emergency valve performance to meet stopping-distance and safety requirements
• Defining compatibility rules for integrating dynamic/distributed braking and electronic controls

Related standards

• EN 13452 series - Urban rail braking systems (excluded from EN 14198)
• EN 16185, EN 15734 - Braking for multiple units, high‑speed and specific formations (when UIC not used)
• EN 14033‑1 - Brake system requirements for on-track machines

Keywords: EN 14198, railway braking, UIC brake, emergency valve venting, train brake system, locomotive-hauled trains, braking interoperability, dynamic brake.

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 14198:2017+A1:2019/oprA2:2020
01-marec-2020
Železniške naprave - Zavore - Zahteve, ki jih morajo izpolnjevati zavorni sistemi
vlakov, vlečeni z lokomotivami - Dopolnilo A2
Railway applications - Braking - Requirements for the brake system of trains hauled by
locomotives
Bahnanwendungen - Bremsen - Anforderungen an die Bremsausrüstung lokbespannter
Züge
Applications ferroviaires - Freinage - Exigences concernant le système de freinage des
trains tractés par locomotive
Ta slovenski standard je istoveten z: EN 14198:2016+A1:2018/prA2
ICS:
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN en,fr,de
14198:2017+A1:2019/oprA2:2020
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 14198:2017+A1:2019/oprA2:2020

SIST EN 14198:2017+A1:2019/oprA2:2020

DRAFT
EUROPEAN STANDARD
EN 14198:2016+A1:2018
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA2
January 2020
ICS 45.040; 45.060.01
English Version
Railway applications - Braking - Requirements for the
brake system of trains hauled by locomotives
Applications ferroviaires - Freinage - Exigences Bahnanwendungen - Bremsen - Anforderungen an die
concernant le système de freinage des trains tractés Bremsausrüstung lokbespannter Züge
par locomotive
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 256.

This draft amendment A2, if approved, will modify the European Standard EN 14198:2016+A1:2018. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14198:2016+A1:2018/prA2:2020 E
worldwide for CEN national Members.

SIST EN 14198:2017+A1:2019/oprA2:2020
EN 14198:2016+A1:2018/prA2:2020 (E)

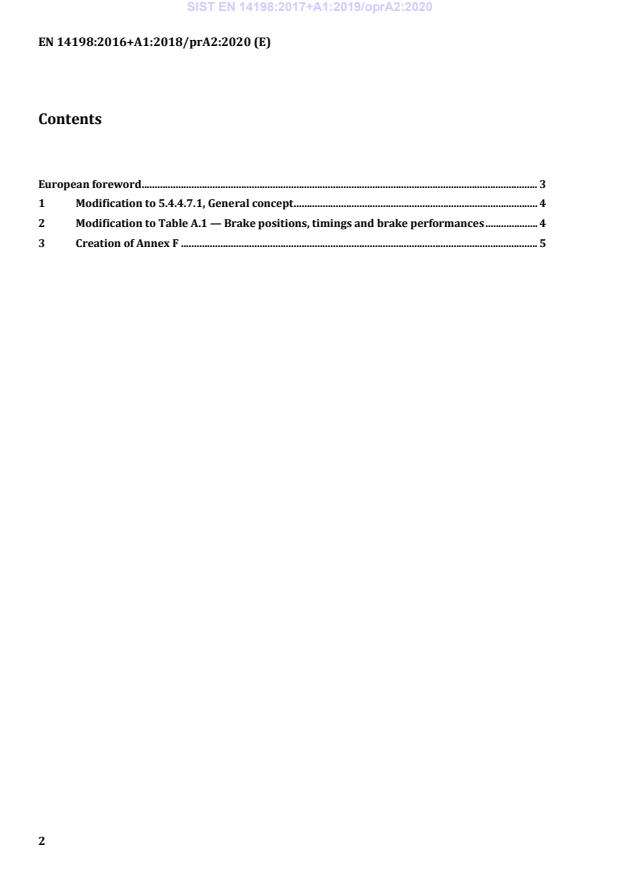

Contents
European foreword . 3
1 Modification to 5.4.4.7.1, General concept . 4
2 Modification to Table A.1 — Brake positions, timings and brake performances . 4
3 Creation of Annex F . 5

SIST EN 14198:2017+A1:2019/oprA2:2020
EN 14198:2016+A1:2018/prA2:2020 (E)
European foreword
This document (EN 14198:2016+A1:2018/prA2:2020) has been prepared by Technical Committee
CEN/TC 256 “Railway applications”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 14198:2016+A1:2018.
SIST EN 14198:2017+A1:2019/oprA2:2020
EN 14198:2016+A1:2018/prA2:2020 (E)
1 Modification to 5.4.4.7.1, General concept
After Table 2 replace the sentence
“The device for venting the brake pipe shall be capable of venting a 400 l reservoir connected to the brake
pipe interface in accordance with E.4.”
by
“The emergency valve shall be capable of venting a 400 l reservoir connected to the brake pipe interface
in accordance with E.4.
The integration of the emergency valves at vehicle/train level shall be assessed in accordance with the
Annex F.”
2 Modification to Table A.1 — Brake positions, timings and brake performances
For row “S-wagon S2 Vaiable load relay” replace
e
“100 – 125 up to 65
...
