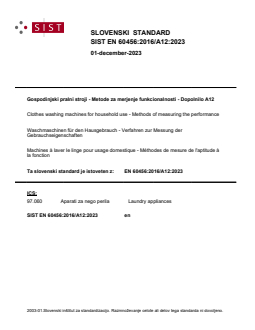

SLOVENSKI STANDARD
01-december-2023
Gospodinjski pralni stroji - Metode za merjenje funkcionalnosti - Dopolnilo A12
Clothes washing machines for household use - Methods of measuring the performance
Waschmaschinen für den Hausgebrauch - Verfahren zur Messung der
Gebrauchseigenschaften
Machines à laver le linge pour usage domestique - Méthodes de mesure de l'aptitude à
la fonction
Ta slovenski standard je istoveten z: EN 60456:2016/A12:2023
ICS:
97.060 Aparati za nego perila Laundry appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

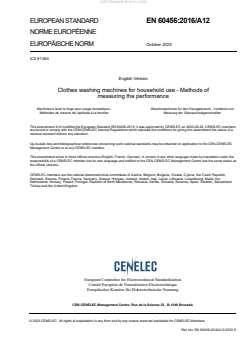

EUROPEAN STANDARD EN 60456:2016/A12
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2023
ICS 97.060
English Version
Clothes washing machines for household use - Methods of
measuring the performance
Machines à laver le linge pour usage domestique - Waschmaschinen für den Hausgebrauch - Verfahren zur
Méthodes de mesure de l'aptitude à la fonction Messung der Gebrauchseigenschaften
This amendment A12 modifies the European Standard EN 60456:2016; it was approved by CENELEC on 2023-06-29. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60456:2016/A12:2023 E

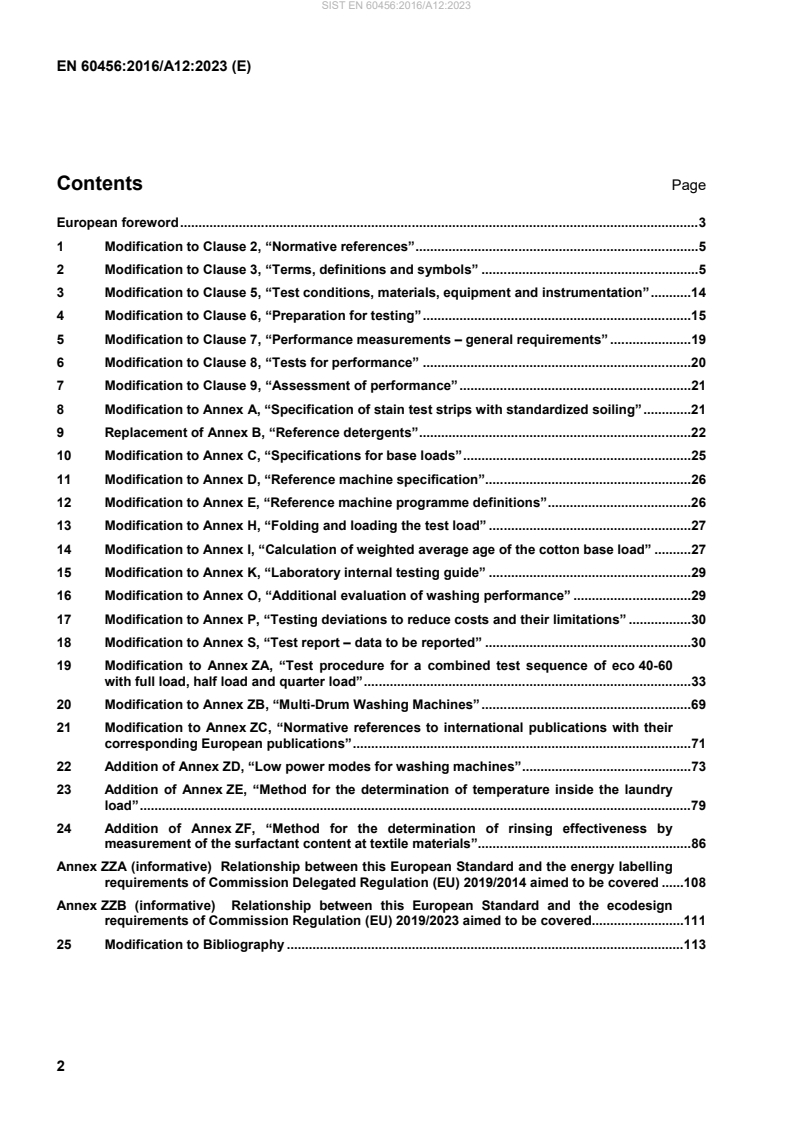

Contents Page
European foreword . 3
1 Modification to Clause 2, “Normative references” . 5
2 Modification to Clause 3, “Terms, definitions and symbols” . 5
3 Modification to Clause 5, “Test conditions, materials, equipment and instrumentation” . 14
4 Modification to Clause 6, “Preparation for testing” . 15
5 Modification to Clause 7, “Performance measurements – general requirements” . 19
6 Modification to Clause 8, “Tests for performance” . 20
7 Modification to Clause 9, “Assessment of performance” . 21
8 Modification to Annex A, “Specification of stain test strips with standardized soiling” . 21
9 Replacement of Annex B, “Reference detergents” . 22
10 Modification to Annex C, “Specifications for base loads” . 25
11 Modification to Annex D, “Reference machine specification” . 26
12 Modification to Annex E, “Reference machine programme definitions” . 26
13 Modification to Annex H, “Folding and loading the test load” . 27
14 Modification to Annex I, “Calculation of weighted average age of the cotton base load” . 27
15 Modification to Annex K, “Laboratory internal testing guide” . 29
16 Modification to Annex O, “Additional evaluation of washing performance” . 29
17 Modification to Annex P, “Testing deviations to reduce costs and their limitations” . 30
18 Modification to Annex S, “Test report – data to be reported” . 30
19 Modification to Annex ZA, “Test procedure for a combined test sequence of eco 40-60
with full load, half load and quarter load” . 33
20 Modification to Annex ZB, “Multi-Drum Washing Machines” . 69
21 Modification to Annex ZC, “Normative references to international publications with their
corresponding European publications” . 71
22 Addition of Annex ZD, “Low power modes for washing machines” . 73
23 Addition of Annex ZE, “Method for the determination of temperature inside the laundry
load” . 79
24 Addition of Annex ZF, “Method for the determination of rinsing effectiveness by
measurement of the surfactant content at textile materials”. 86
Annex ZZA (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) 2019/2014 aimed to be covered . 108
Annex ZZB (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) 2019/2023 aimed to be covered. 111
25 Modification to Bibliography . 113
European foreword
This document (EN 60456:2016/A12:2023) has been prepared by CLC/TC 59X “Performance of household
and similar electrical appliances”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-04-27
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-10-27
conflicting with this document have to be
withdrawn
This document introduces the following technical modifications:
a) The programme to be tested for the combined test series is the new introduced eco 40-60
programme. This programme needs to be tested with default settings with the given temperature.
b) The test loads that have to be used for testing are full, half and quarter of the rated capacity of the
washing machine. Therefore, a new quarter load is introduced and defined to be approximately a
quarter of the rated capacity (see Table ZA.15). The quarter load is treated as a separate load and not
created by dividing full load or half load.
c) The number of test runs per treatment for the combined test series changed to 3 tests with full load, 4
tests with half load and 3 tests with quarter load.
d) The time between two subsequent test runs within one day changed from 2 h to one hour.
e) The normalization run is included in the calculation of the load age. The maximum number of usages for
base load with a load mass greater or equal to 4.5 kg was changed to be between 35 and 60
normalization runs and test runs and the maximum number of usages for base load with a load mass
less than 4.5 kg was changed to be between 30 and 67 normalization runs and test runs.
f) Annex ZE is integrated, which defines the test procedure for temperature inside the load.
g) Annex ZF is integrated, which defines the test procedure for rinsing effectiveness.
h) The procedure to measure low power modes is modified (see Annex ZD).
i) Specific weighting factors are introduced for the calculation of the weighted average value of the
combined test series.
j) Annex ZB Tolerances and control procedures is deleted. Annex ZB is replaced by a new Annex ZB which
defines the testing procedure for multi-drum washing machines.
k) A new standard powder detergent IEC-P is introduced (see Annex B), that substitutes the standard
powder detergent IEC-A* by replacing the bleach component sodium perborate with sodium percarbonate
due to Commission Regulation (EU) 2020/171 amending Annex XIV to Regulation (EC) No 1907/2006 of
the European Parliament and of the Council concerning the Registration, Evaluation, Authorization and
Restriction of Chemicals (REACH). According to REACH Regulation Article 56, the substances which are
listed in the Annex XIV cannot be used or placed on the market after the “sunset date”, unless the
authorization is granted. Sodium perborate has a sunset date of 27th of May 2023 after having been
classified as toxic to reproduction.
l) The tolerances for the remaining moisture content in Table E.2 are adapted, due to change in the
commercially available material.
m) In normative clauses undated references were dated.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a standardization request addressed to CENELEC by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annexes ZZA and ZZB, which are an integral part of
this document.
Annex ZA sets out the procedure to be applied for testing according to Commission Regulations with regard to
energy labelling and ecodesign and provides all necessary links to all relevant clauses of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to Clause 2, “Normative references”
Add the following references:
EN 60704-2-4:2012, Household and similar electrical appliances - Test code for the determination of airborne
acoustical noise - Part 2-4: Particular requirements for washing machines and spin extractors
EN 50564:2011, Electrical and electronic household and office equipment - Measurement of low power
consumption
Electrical and electronic household and office equipment - Measurement of networked
EN 50643:2018,
standby power consumption of edge equipment
2 Modification to Clause 3, “Terms, definitions and symbols”
Add the following table before 3.1.1:
“
Table 3.1 — Reference table for terms in alphabetical order
Term subclause
automatic machine 3.1.10
base load 3.1.18
combined cycle time 3.1.Z19
combined programme time 3.1.Z18
combined rated capacity 3.1.Z17
combined test series 3.1.Z10
Cycle 3.1.15
cycle time 3.1.25
delay start 3.1.Z22
eco 40–60 3.1.Z24
end of programme 3.1.24
full load 3.1.Z1
half load 3.1.Z2
horizontal axis washing machine 3.1.8
left on mode 3.1.29
main wash duration 3.1.26
manual washing machine 3.1.9
multi-drum mode 3.1.Z14
multi-drum washing machine 3.1.Z13
network 3.1.Z21
nominal test load mass 3.1.21
As amended by EN 60704-2-4:2012/A11:2020.
As amended by EN 50643:2018/A1:2020.
Term subclause
off-mode 3.1.28
operation 3.1.13
part A 3.1.Z3
part B 3.1.Z4
programme 3.1.14
programme time 3.1.23
quarter load 3.1.Z5
rated capacity 3.1.22
rated voltage 3.1.30
reference machine 3.1.3
remaining moisture content 3.1.27
simultaneous cycle 3.1.Z16
simultaneous programme 3.1.Z15
spin extraction 3.1.16
spin extractor 3.1.5
spin speed 3.1.17
standard extractor 3.1.6
standby mode 3.1.Z20
test load 3.1.19
test load mass 3.1.20
test run 3.1.11
test series 3.1.12
test washing machine 3.1.2.
Treatment 3.1.Z6
treatment full 3.1.Z7
treatment half 3.1.Z8
treatment quarter 3.1.Z9
vertical axis washing machine 3.1.7
washer-dryer 3.1.4
washing machine 3.1.1
wrinkle guard function 3.1.Z23
“
Replace the term 3.1.12 and terms 3.1.22 to 3.1.24 and 3.1.28 with the following:
“
3.1.12
test series
repetitions of test runs with the same treatment which, collectively, are used to assess the performance for
one treatment
3.1.22
rated capacity
maximum mass of dry textiles of a particular type which the manufacturer declares can be treated in the test
washing machine on the programme selected
Note Z1 to entry: For multi-drum mode washing machines the rated capacities are for each individual drum.
Note Z2 to entry: For different textile types the rated capacity of a multi-drum washing machine is usually different.
3.1.23
programme time
time from the initiation of the programme (excluding any user programmed delay) until the end of the
programme
Note Z1 to entry: If the end of programme is not indicated, the programme time is equal to the cycle time.
3.1.24
end of programme
the time when the test washing machine indicates the end of the programme and the load is accessible to
the user
Note Z1 to entry: Where there is no end of programme indicator and the door is locked during operation, the
programme is complete when the load is accessible to the user. Where there is no end of programme indicator and the
door is not locked during operation, the programme is complete when the power consumption of the appliance drops to
some steady-state condition and is not performing any function.
Note Z2 to entry: An indication of the end of the programme may be in the form of a light (on or off), a sound, an indicator
shown on a display or the release of a door or latch. In some washing machines there may be a short delay from an end
of programme indicator until the load is accessible by the user.
3.1.28
off-mode
condition in which the test washing machine is connected to the mains and is not providing any function
Note Z1 to entry: The following is also considered as off mode:
(a) conditions providing only an indication of off-mode;
(b) conditions providing only functionalities intended to ensure electromagnetic compatibility.
“
Replace terms 3.1.Z1 to 3.1.Z10 and terms 3.1.Z13 and 3.1.Z14 with the following:
“
3.1.Z1
full load
test load used for a combined test series according to Annex ZA, having a nominal mass that is equal to the
rated capacity of the test washing machine
3.1.Z2
half load
test load, part A or part B, used for a combined test series according to Annex ZA, having a nominal mass
that is approximately equal to a half of the rated capacity of the test washing machine
3.1.Z3
part A
one half of the full load
3.1.Z4
part B
remaining part of the full load excluding part A
3.1.Z5
quarter load
test load used for a combined test series according to Annex ZA, having a nominal mass that is
approximately equal to a quarter of the rated capacity (see Table ZA.15) of the test washing machine
3.1.Z6
treatment
combination of test load and programme to be used for a test run within a test series
3.1.Z7
treatment full
eco 40-60 programme with full load
3.1.Z8
treatment half
eco 40-60 programme with half load
3.1.Z9
treatment quarter
eco 40-60 programme with quarter load
3.1.Z10
combined test series
combination of test series with different treatments which, collectively, are used to assess the performance
3.1.Z13
multi-drum washing machine
washing machine equipped with more than one drum whether in separate units or in the same casing
3.1.Z14
multi-drum mode
programme where some or all of the drums of a multi-drum washing machine are operated simultaneously
Note Z1 to entry: A washing machine with more than one drum for the treatment of the textiles, where drums cannot be
operated simultaneously is not regarded as having a multi-drum mode. In this case each drum has to be tested
separately.
Note Z2 to entry: This definition may apply only for specific programmes. In this case only these programmes can be
tested in multi-drum mode.
“
Add the following terms:
“
3.1.Z15
simultaneous programme
series of operations which are pre-defined within the multi-drum washing machine and which are declared
by the manufacturer as suitable for washing certain textile types in two or more drums at the same time
3.1.Z16
simultaneous cycle
complete washing process, started at the same time for two or more drums, as defined by the simultaneous
programme selected, consisting of a series of operations (wash, rinse, spin, etc.) and including any
operations that occur after the completion of the simultaneous programme
Note Z1 to entry: Examples of operations that may occur after the completion of the programme are pumping, monitoring
and anti-creasing (where applicable).
3.1.Z17
combined rated capacity
sum of rated capacities of all drums suitable for running a simultaneous programme
3.1.Z18
combined programme time
the time from the simultaneous initiation of the programme for two or more drums (excluding any user
programmed delay) until the end of the simultaneous programme
Note Z1 to entry: If the end of programme is not indicated, the combined programme time is equal to the combined
cycle time.
3.1.Z19
combined cycle time
time from the simultaneous initiation of the programme for two or more drums (excluding any user
programmed delay) until all activity ceases
Note Z1 to entry: Activity is considered to have ceased when the power consumption reverts to a steady-state condition
that persists indefinitely without user intervention. If there is no activity after the end of the programme, the combined
cycle time is equal to the combined programme time.
Note Z2 to entry: Cycle time includes any activity that may occur after the programme is completed. This could include
any electronic activity or any additional mechanical activity that occurs for a limited period after any end of programme
indicator. Any cyclic event that occurs indefinitely is considered to be steady-state.
3.1.Z20
standby mode
condition where the test washing machine is connected to the mains and provides only the following
functions, which can persist for an indefinite time:
(a) reactivation function, or reactivation function and a mere indication of enabled reactivation function; and/or
(b) reactivation function through a connection to a network; and/or
(c) information or status display; and/or
(d) detection function for emergency measures
3.1.Z21
network
communication infrastructure with topology of links, an architecture, including the physical components,
organizational principles, communication procedures and formats protocols
3.1.Z22
delay start
condition where the user has selected a specified delay to the beginning of the cycle of the selected
programme
3.1.Z23
wrinkle guard function
operation of the test washing machine after completion of a programme to prevent excessive wrinkle
building of the laundry
3.1.Z24
eco 40-60
name of the programme to be able to clean normally soiled cotton laundry declared to be washable at 40 °C
or 60 °C, together in the same washing cycle
“
Replace 3.2.Z1 with the following:
“
3.2.Z1 Symbols relating to Annex ZA, Annex ZD and Annex ZF
Symbol in Symbol in Unit Clause
this IEC 60456: Description (first
document 2010 appearance)
- - ZA.2
rounding up to full integer values (no decimal
places) as defined in EN ISO 80000-2:2019
- - Rounding to nearest integer values (no decimal ZA.2
places) as defined in EN ISO 80000-2:2019
- - Washing Efficiency Index for treatment z (z = full, ZA.5.4
I
Wz,
1/2, 1/4)
A - - weighting factor for the full rated capacity ZA.5.3.2
Asp - A average absorbance ZF.3.2.4
a
Asp - A average net absorbance for test run j ZF.3.2.4
avg,j
Asp - A net absorbance for specimen i ZF.3.2.4
i
Asp - A absorbance reading at 223 nm for specimen i ZF.3.2.4
i,223
Asp - A absorbance reading at 330 nm for specimen i ZF.3.2.4
i,330
Asp - A peak absorbance at wavelength m ZF.3.2.4
m
Asp - A relative peak absorbance at wavelength m ZF.3.2.4
r,m
B - - weighting factor for half of the rated capacity ZA.5.3.2
C - - weighting factor for a quarter of the rated capacity ZA.5.3.2
c - kg rated capacity to calculate the Standard Annual ZA.5.3.2
Energy Consumption of the test washing machine
c - mg/L concentration of the detergent of test run j ZF.3.3.5
j
c - mg/L concentration of Stock 1 solution ZF.5.4
S1
c - mg/L concentration of Stock 2 solution ZF.5.5
S2
Symbol in
Symbol in Unit Clause
this IEC 60456: Description (first
document 2010 appearance)
cWSS - mg/L detergent concentration of working standard ZF.5
solution
C - - sum of the average reflectance values (Y-values) ZA.5.4
z,i
for treatment z (z = full, 1/2, 1/4) for each test run i
(i = 1, 2, 3, 4)
C - average sum of the reflectance values in each test ZA.5.4
ref
C
ref
run of the reference machine out of all 5 runs
C - - average value for the sum of the reflectance values
z ZA.5.4.
for treatment full, treatment half and treatment
quarter
D - % average value for the remaining moisture content ZA.5.5
for the combined test series
D - % remaining moisture content of test run with half ZA.5.5
1/2,part
load part (part = part A, part B)
D - mg/g mass of detergent recovered per gram of test ZA.3.3.5
j
swatches per test run j
DL - g/kg ratio of mass of detergent per kg of load for the test ZA.6.2
l
run
- g/kg rinsing effectiveness for the combined test ZA.6.2
R
max
series
D - % remaining moisture content of test run i for the ZA.5.5
z,i
treatment z (z = full, 1/2, 1/4)
e - - slope of the detergent concentration curve ZF.3
Energy Efficiency Index of a test washing
EEI - - ZA.5.10
machine
f - - intercept of the detergent concentration curve ZF.3.3.5
i - - test run ZE.5
k - - data logger number ZE.5
L - mg/g ratio of mass of detergent and test swatch j ZF.3.3.5
j
m - - total number of data loggers ZE.5
m - - mass of detergent ZF.5.4
det
m - - mass of transferred Stock 1 solution ZF.5.5
m - - mass of transferred Stock 2 solution ZF.5.6
m - g weight of test swatch j ZF.3.3.5
j
m - g weight of water in sample j ZF.3.3.5
w,j
M M g mass of the conditioned base load ZA.6.2
M M g mass of detergent used ZA.6.2
det det
M M g mass of base load before each test run (without ZA.6.2
dry dry
test strips)
Mn - kg nominal partial test load mass ZA.2
part
Symbol in
Symbol in Unit Clause
this IEC 60456: Description (first
document 2010 appearance)
Mpart - g mass of the conditioned half load (part = part A, ZA.5.5
part B)
M - g mass of the half load part (part = part A, part B) at ZA.5.5
r,1/2,part,i
the end of the test run i (i = 1, 2, 3, 4)
M - g mass of base load for treatment z (z = full, 1/4) at ZA.5.5
r,z,i
the end of the test run i (i = 1, 2, 3)
n - - number of pillowcases at rated test load mass ZA.2
PC
n - - number of pillowcases in part A ZA.2
PC,A
n - - number of pillowcases in part B ZA.2
PC,B
n - - number of sheets at rated test load mass ZA.2
SH
n - - number of sheets in part A ZA.2
SH,A
n - - number of sheets in part B ZA.2
SH,B
n - - number of stain test strips in part A ZA.2
STS,A
n - - number of stain test strips in part B ZA.2
STS,B
n - - number of towels at rated test load mass ZA.2
T
n - - number of towels in part A ZA.2
T,A
n - - number of towels in part B ZA.2
T,B
n - - number of test runs for treatment z ZA.5.3
z
part - - half load identifier (part = part A, part B) ZA.5.5
p p kPa laboratory supply water pressure cold ZA.6.2
c c
P - W power consumption in delay start ZD.1
ds
p p kPa laboratory supply water pressure hot (if connected) ZA.6.2
h h
W Power consumption in standby mode in condition ZD.1
P -
ns
of network standby
P - W Power consumption in off mode ZD.1
om
P - W Power consumption in standby mode ZD.1
sm
R - g/kg rinsing effectiveness (average of all test runs) ZF.3.3.5
R - g/kg ratio of mass of detergent of test run j ZF.3.3.5
j
R - g/kg is the average value for rinsing effectiveness for ZA.5.11
1/4
treatment quarter
R - g/kg is the average value for rinsing effectiveness for ZA.5.11
1/2
treatment half
average value for rinsing effectiveness for
Rfull - g/kg ZA.5.11
treatment full
−1
S1/4 - min maximum spin speed for treatment quarter ZA.5.6
−1
S1/2 - min maximum spin speed for treatment half ZA.5.6
SCE - kWh Standard Cycle Energy Consumption ZA.5.10
c
−1
S - min maximum spin speed for treatment full ZA.5.6
full
Symbol in
Symbol in Unit Clause
this IEC 60456: Description (first
document 2010 appearance)
sz - - standard deviation for treatment z ZA.5.3
s - g/kg standard deviation of the rinsing effectiveness ZA.3.3.5
R
s - g/kg standard deviation of the ratio of mass of detergent
r,j
recovered per gram of test swatch for test run j
−1
S - min maximum spin speed of test run i for treatment z ZA.5.6
z,i
(z = full, 1/2, 1/4)
t t °C ambient temperature (test room) ZA.6.2
a a
t t °C measured average cold water inlet temperature ZA.6.2
c c
t t °C measured average hot water inlet temperature ZA.6.2
h h
t - min average value for the programme time for ZA.5.8
z
treatment z (z = full, 1/2, 1/4)
t - min programme time for test run i for treatment z ZA.5.8
z,i
(z = full, 1/2, 1/4)
ϑ - °C total average maximum temperature for each ZE.5
max,z
treatment z (z = full, 1/2, 1/4)
ϑmax,z,i - °C average maximum temperature for the test run i ZE.5
with treatment z (z = full, 1/2, 1/4)
ϑ - °C maximum temperature for the data logger k (k = 1, ZE.5
max,z,i,k
2, 3) for test run i (i = 1, 2, 3, 4) for the treatment z
(z = full, 1/2, 1/4)
- L weighted average value for the total water ZA.5.7
V
consumption for the combined test series
V1/4 - L water consumption for treatment with quarter load ZA.5.7
V1/2 - L water consumption for treatment with half load ZA.5.7
V V L volume of cold water used during the main wash ZA.6.2
cm cm
V V L volume of cold water used in the test run ZA.6.2
ct ct
V - L water consumption for treatment with full load ZA.5.7
full
V L volume of supply hot water used during the main ZA.6.2
hm
V
hm
wash
V V L volume of supply hot water used in the test run ZA.6.2
ht ht
V V L water consumption during the main wash ZA.6.2
m m
V - L water consumption for treatment z (z = full, 1/2, ZA.5.7
z
1/4)
Vz,i - L water consumption for test run i for treatment z ZA.5.7
(z = full, 1/2, 1/4)
W - kWh value for the total energy consumption for the ZA.5.9
combined test series
W1/4 - kWh energy consumption for treatment quarter ZA.5.9
W1/2 - kWh energy consumption for treatment half ZA.5.9
W W kWh total electrical energy metered during the test ZA.6.2
et total
Symbol in
Symbol in Unit Clause
this IEC 60456: Description (first
document 2010 appearance)
Wfull - kWh energy consumption for treatment full ZA.5.9
- kWh value for total energy consumption without hot ZA.6.2
W
total,cold
water
W - kWh average value for the total energy consumption for ZA.5.9
z
treatment z (z = full, 1/2, 1/4)
W - kWh total energy consumption for test run i for ZA.5.9
z,i
treatment z (z = full, 1/2, 1/4)
x - mg/L concentration of the detergent in the sample ZF.3.3.5
x - - value for each test run i ZA.6.2
i
x - - average value for treatment z (z = full, 1/2, 1/4) ZA.5.3
z
x - - value for each test run i of treatment z (z = full, ZA.5.3
z,i
1/2, 1/4)
y - A absorbance value of the sample ZF.3.3.5
z - - treatment ZA.5.3
3 Modification to Clause 5, “Test conditions, materials, equipment and
instrumentation”
In 5.1, delete the following sentence:
“Rounding rules that are given in the regulation supersede standardization.”
In 5.2.2.3, replace Note 2 by the following note:
“
NOTE Z Clause ZA.4.8 describes the recording of water volumes on a continuous basis during filling in order to
determine weighted average temperature.“
In 5.3.2.1, add after the first paragraph the following note:
“
NOTE Z1 For the combined test series according to Annex ZA one base load is used to test the full load and half
load and a separate base load is used to test the quarter load.”
In 5.3.5, replace the content with the following:
“The reference detergent is distributed in three separate components:
— base powder (with enzyme and foam inhibitor);
— bleach - sodium percarbonate;
— bleach activator - TAED.
The three components shall be stored separately and be used within a limited time. The date of manufacture
for each component shall be marked by the supplier on the container. The life of each component for
detergent IEC-P and the storage conditions shall be as specified by the manufacturer. If no expiry date for the
detergent components is specified by the manufacturer, the expiry date is deemed to be one year from the
date of manufacture.
Mixing of detergent components, dosage and placement of detergent is specified in 6.3.
Base powder with neither sodium percarbonate nor TAED shall be used in the preparation of wool shrinkage
specimens.”
In 5.5.2, modify the table as follows:
“
Parameter Unit Minimum Minimum Additional
resolution accuracy requirements
Mass
test load mass or base load g 2 g ±5 g -
mass
Individual load items g 0,5 g ±1 g -
Detergent mass g 0,05 g ±0,1 g -
Titration mass g 0,005 g ±0,01 g -
Temperature
Ambient temperature °C 0,1 °C ±1 K -
Water temperature °C 0,1 °C ±0,6 K -
Ambient humidity % (RH) 1 % (RH) ±3 % (RH) The specifications shall
be met over a
temperature range of
15 °C to 25 °C.
Water volume (water inlet) L 0,1 L ±2 % Separate metering for
hot and cold inlets,
where applicable.
NOTE Devices using
viscosity should be
calibrated at the actual
nominal
temperature ± 5 °C, and
the nominal flow rate.
Liquid volumes for
titration are covered by
the specification for
mass in 5.4.1.
Water pressure kPa 10 kPa ±5 % -
Time s 5 s ±1 % -
−1 −1
Spin speed min 1 min ±1 % -
“
4 Modification to Clause 6, “Preparation for testing”
In 6.2.1.1, replace the first paragraph with the following:
“The measurements shall be carried out on a washing machine which is installed and used in accordance with
the manufacturer’s instructions, except as required by this document. Where there is more than one option for
installation, the option chosen for testing shall be documented in the test report.
NOTE Performance on an aged and/or used machine can differ from a new and/or unused machine”:
In 6.2.1.3, replace the 2nd paragraph with the following:
“All filters shall be thoroughly cleaned before each combined test series.
After cleaning the filters, a cleaning run shall be undertaken on a programme with the maximum wash
temperature set and setting maximum main wash water level if applicable, without load and without detergent.
The cleaning run shall be carried out not less than one day in advance but not more than two weeks in
advance and without any other run before the combined test series is started.
After the cleaning run the test washing machine shall be allowed to cool down to the ambient temperature of
the test room. It shall be accepted that this requirement has been met if the internal surface temperature of the
test washing machine drum is at ambient air temperature of the test room, or if the test washing machine
has been left standing at stable laboratory ambient temperature with the door left open at maximum angle for
not less than 16 h.
The test washing machine shall remain in the test room at ambient temperature for the duration of the
combined test series.”
In 6.2.1.4, replace the 2nd and 3rd paragraphs with the following:
“Between each test run the door shall be left open at maximum angle.
For the combined test series according to Annex ZA the time between the end of the first test run and the
start of the second test run of a day shall be according to Annex ZA 4.4.”
In 6.3.1, replace Note 2 with the following:
“
Base powder with neither sodium percarbonate nor TAED shall be used in the preparation of wool shrinkage
specimens. However full detergent IEC-P is used for a wool shrinkage test.”
In 6.3.2, replace Table 1 with the following:
“
Table 1 — Detergent dose
Test Washing Machine Reference machine
Load type and
Dose
Dose Dose Dose
Reference
Hard Water Soft Water
Hard Water Soft Water
Programme
(refer to 5.2.2.2) (refer to 5.2.2.2)
(refer to 5.2.2.2) (refer to 5.2.2.2)
Cotton – all
reference
programmes 25,4 g +
37,6 g + 11,3 g/kg 103,4 g 68,9 g
except Cotton 7,5 g/kg
20 °C and Cotton
30 °C
Cotton – Cotton
37,6 g + 25,4 g +
20 °C and Cotton 54,5 g 36,7 g
5,6 g/kg 3,8 g/kg
30 °C only
Synthetics/ Blends 37,6 g + 25,4 g +
103,4 g 68,9 g
11,3 g/kg 7,5 g/kg
Wool 50.8 g + 33.8 g +
70 g 47 g
15 g/kg 10 g/kg
“
Modify the note as follows:
“
NOTE Z1 The detergent dose applies for tests with full test load, half test load and quarter test load.”
In 6.4.1:
replace the second paragraph with the following:
“The same base load shall be used for all test runs in a test series.
For the combined test series according to Annex ZA two base loads are required. For the tests for
treatment full and treatment half the same base load shall be used. For the tests for treatment quarter a
separate base load shall be used.
No normalization runs shall occur between test runs in a test series. The base load is dried in a dryer
between test runs within a test series but the base load does not have to be conditioned prior to the next
test run. Subclause 8.2.5 specifies requirements for checking the base load between test runs in a test
series.“
and replace the paragraph added after Figure 2 with the following:
“For the test series according to Annex ZA, Figure ZA.2 applies except that there are 10 valid test runs
within a combined test series.”
Delete Note Z1.
Replace Figure 1 with the following figure:
“
Figure 1 — Load item preparation prior to a test series
”
In 6.4.3.1, add after the first paragraph the following paragraph:
“For the combined test series according to Annex ZA any individual cotton base load item shall not be used
for more than 96 normalization runs and test runs, excluding pre-treatment runs prior to initial use (refer to
6.4.2).”
In 6.4.3.2, add after the second paragraph the following:
“For the combined test series according to Annex ZA the weighted average age of the base load during a
test series and the weighted average age of the base load before starting a test series shall be according to
Table Z.1.
Table Z.1 — weighted average age
base load with a load mass greater
base load with a load mass less than
or equal to 4,5 kg weighted average 4,5kg weighted average age during a
age during a test series test series
normalization runs
35 – 60 30 – 67
and test runs
Modify the paragraph at the end with the following:
For the combined test series according to Annex ZA the weighted average age limitations for the base load
apply only for full load and quarter load and not for half load. Annex I applies only for full load and quarter
load and not for half load.”
In 6.4.6.1, replace the third paragraph with the following:
“For the combined test series according to Annex ZA Table 2 applies to define the full load and the quarter
load for a test series. Refer to Annex ZA regarding the splitting of the full base load for the tests with half
load and for the related number of strips and the number of sheets, pillowcases and towels to be used for
part A and part B of the half loads.”
5 Modification to Clause 7, “Performance measurements – general requirements”
Replace after the paragraph starting with “The primary requirement of…” with the following:
“For the combined test series according to Annex ZA the following parameters shall be selected:
The load type shall be cotton.
The following parameters shall be measured for the test washing machine using a combined test series
consisting of 10 test runs and using three load sizes (full load, half load and quarter load) as set out in
Annex ZA:
— washing performance;
— water extraction performance;
— spin speed;
— water consumption;
— energy consumption
— programme time;
— rinsing effectiveness;
— temperature inside the load and
— power consumption of low power modes (not related to the test series).
The following parameters shall be measured for the reference washing machine using a test series
consisting of 5 runs as set out in Clause 8 and using a 5,00 kg cotton test load as defined for the reference
washing machine:
— washing performance;
— water extraction performance;
— spin speed;
— water consumption.
— energy consumption and
— programme time.
The evaluation of these parameters for the test washing machine is specified in Annex ZA. The evaluation of
these parameters for the reference washing machine is specified in Clause 9.
Programmes to be tested on the test washing machine:
The eco 40-60 programme for normally soiled load shall be used in accordance with the manufacturers’
instruction. Exactly the same programme setting for the eco 40-60 programme shall be used for the tests
with full load, half load and quarter load.
Relevant reference programme on the reference machine shall be cotton 60 °C. Readymade programme
memory card including the cotton 60 °C reference programme shall be obtained from the manufacturer of the
reference machine and be labelled EN 60456:2011.
Selected water hardness shall be hard water – refer to 5.2.2.2.”
6 Modification to Clause 8, “Tests for performance”
In 8.2.2, add after the first paragraph the following paragraph:
“For the combined test series according to Annex ZA two base loads shall be prepared. One base load is
required for full load and half load testing and a separate base load is required for quarter load testing.”
Add after the second paragraph the following:
“For tests according to Annex ZA with treatment full and treatment half the same base load shall be used
throughout a test series. For tests according to Annex ZA with treatment quarter a separate base load shall
be used throughout a test series.”
Replace the last paragraph with the following:
“The loading sequence for full load and quarter load to be used for the test series according to Annex ZA
shall be in accordance with the requirements of Annex H and the loading sequence table relevant for half
loads is given in Annex ZA.
NOTE Z1 The load composition for half loads is different from that of the full load and quarter load of the same
nominal mass.”
In 8.2.5, replace the second and third paragraph with the following:
“The combined test series consisting of 10 test runs in the order as defined in Annex ZA shall be carried out
on the test washing machine using the selected programme. A test series of 5 test runs is carried out on
the reference machine using cotton 60 °C as reference programme.
After drying the loads shall be left at ambient conditions for at least 5 h before loading the machine for the next
test run.
Replace the paragraph before the note with the following:
For the combined test series the number of permitted test runs is specified in Annex ZA.
Replace the second last paragraph before Figure 4 with the following:
For test series with treatment full, treatment half and treatment quarter specific validity criteria for test
runs and the combined test series of the test washing machine are set out in Annex ZA.
Replace the paragraph before Figure 4 with the following:
For the combined test series consisting of 10 test runs for the test washing machine a schematic
representation is set out in Figure ZA.2.”
In 8.5.1, replace Note Z1 with the following:
“For the combined test series specific requirements for the measurement of rinsing performance (rinsing
effectiveness) are included in Annex ZA.“
In 8.6.1, replace the fifth paragraph with the following:
“For the combined test series specific requirements for the measurement of water consumption, energy
consumption and programme time of the test washing machine are included in Annex ZA.”
In 8.6.2, add after the third paragraph the following new one:
“The combined test series according to Annex ZA consists of 3 treatments with 10 test runs in total for the
measurement of water consumption, energy consumption and programme time of the test washing
machine.”
7 Modification to Clause 9, “Assessment of performance”
In 9.1, delete Note Z1.
In 9.4.1:
add after the first paragraph the following:
“For the combined test series, the evaluation for the test washing machine is included in Annex ZA.”
and delete Note Z1.
8 Modification to Annex A, “Specification of stain test strips with standardized
soiling”
In A.1, add footnote reference “1” after the first sentence of the second paragraph, and add the following text
for footnote 1:
“1 Related test materials are supplied by Swissatest Testmaterialen AG and WFK – Testgewebe GmbH. Such
test materials might be commercially available by other suppliers after the date of publication of this standard.
This information is given for the convenience of users of this document and does not constitute an
endorsement by CENELEC of the product named. Equivalent products may be used if they can be shown to
lead to the same results.”
Replace the content of A.4.3 with the following:
“From each of the following programmes, five test runs in the reference machine using programmes described
in Annex E shall be carried out:
— cotton 60 °C, 169 g detergent IEC-P
— cotton 40 °C, 169 g detergent IEC-P
— cotto
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
