Forced draught burners for liquid fuels

This European Standard specifies the terminology, the general requirements for the construction and operation of forced draught oil burners and also the provision of control and safety devices, and the test procedure for these burners.
This European Standard applies to forced draught oil burners supplied with:
― fuel based on first raffinates and their mixtures with biogenous liquid fuels having a viscosity at the burner inlet of 1,6 mm2/s (cSt) up to 6 mm2/s (cSt) at 20 °C; and
― higher boiling petroleum based first raffinates (viscosity greater than 6 mm2/s), that require preheating for proper atomization.
This European Standard is applicable to:
― single burners fitted to a single combustion chamber;
― single burners fitted to an appliance with additional requirements;
NOTE When additional requirements apply which are not identified or specified in this standard, the specification of the required safety measures and/or protective devices and compliance with them is outside the scope of this standard.
― single-fuel and dual-fuel burners when operating on oil only;
― the oil function of dual-fuel burners designed to operate simultaneously on gaseous and liquid fuels.
This European Standard deals with all significant machine hazards, hazardous situations and events relevant to burners, when they are used as intended and under conditions of misuse which are reasonably foreseeable, see Annex J.
This European Standard also deals with the additional requirements for the burners in the scope with pressurized parts and/or firing pressurized bodies, see Annex K.
This European Standard specifies the requirements to ensure the safety during commissioning, start-up, operation, shut-down and maintenance.
This European Standard deals also with forced draught burners intended to be used with biogenous liquid fuels, mixtures.
This European Standard deals also with burners equipment to increase the total appliance efficiency; see Annex M.

Gebläsebrenner für flüssige Brennstoffe

In dieser Europäischen Norm sind die Terminologie für und die allgemeinen Anforderungen an die Konstruktion und den Betrieb von Ölgebläsebrennern und die Bereitstellung von Steuerungs- und Sicherheitseinrichtungen festgelegt sowie das Prüfverfahren für diese Brenner.
Diese Europäische Norm ist auf Ölgebläsebrenner anwendbar, die vorgesehen sind für:
-   Brennstoff auf Basis von Erstraffinaten und ihren Gemischen mit biogenen flüssigen Brennstoffen, dessen Viskosität am Brennereintritt bei 20 °C 1,6 mm2/s (cSt) bis zu 6 mm2/s (cSt) beträgt; und
-   höher siedende Fraktionen aus der ersten Raffination von Erdöl (Viskosität größer als 6 mm2/s), wofür eine Vorwärmung erforderlich ist, um eine ordnungsmäßige Zerstäubung zu erreichen.
Diese Europäische Norm ist anwendbar auf:
-   Einzelbrenner angebaut an einem einzigen Feuerraum;
-   Einzelbrenner angebaut an einen Gerät, das zusätzliche Anforderungen aufweist;
ANMERKUNG   Wenn zusätzliche Anforderungen anwendbar sind, welche nicht in dieser Norm identifiziert oder festgelegt werden, dann liegt die Spezifikation der erforderlichen Sicherheitsmaßnahmen und/oder Schutzeinrichtungen und die Konformität mit diesen Anforderungen außerhalb des Anwendungsbereichs dieser Norm.
-   Ein- und Zweistoffbrenner, wenn sie nur mit Öl betrieben werden;
-   den Ölbetrieb von Zweistoffbrennern, die für den gleichzeitigen Betrieb mit gasförmigen und flüssigen Brennstoffen konstruiert sind.
Die vorliegende Europäische Norm behandelt sämtliche signifikanten maschinenbezogenen Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse im Hinblick auf Brenner, wenn diese zweckentsprechend sowie unter zweckentfremdeten Bedingungen verwendet werden, die vernünftigerweise vorhersehbar sind, siehe Anhang J.
Diese Europäische Norm behandelt darüber hinaus die zusätzlichen Anforderungen für Brenner im Anwendungsbereich mit druckbeaufschlagten Teilen und/oder für Brenner, die Druckgeräte befeuern, siehe Anhang K.
Diese Europäische Norm legt die Anforderungen fest, die für die Sicherheit während Inbetriebnahme, Anlauf, Betrieb und Abschaltung sowie Wartung erforderlich sind.
Diese Europäische Norm behandelt auch Gebläsebbrenner, die für die Verwendung mit biogenen flüssigen Brennstoffen und Brennstoffgemischen vorgesehen sind.
Diese Europäische Norm behandelt auch Brenner mit Ausrüstung für die Steigerung der Gesamt-Geräteeffizienz der Anlage; siehe Anhang M.

Brûleurs automatiques à air soufflé pour combustibles liquides

La présente Norme européenne spécifie la terminologie, les exigences générales concernant la conception et le fonctionnement des brûleurs à fioul à air soufflé et également les dispositions concernant les dispositifs de régulation et de sécurité ainsi que la procédure d'essai concernant ces brûleurs.
La présente Norme européenne s'applique aux brûleurs à fioul à air soufflé alimentés par :
-   du combustible à base de premiers raffinats et leurs mélanges avec des combustibles liquides biogènes présentant une viscosité à l'entrée du brûleur comprise entre 1,6 mm2/s (cSt) et 6 mm2/s (cSt) à 20 °C et ;
-   des premiers raffinats à base de pétrole à point d'ébullition élevé (viscosité supérieure à 6 mm2/s), qui nécessitent un préchauffage pour une atomisation appropriée.
La présente Norme européenne peut être appliquée à :
-   des brûleurs individuels montés sur une seule chambre de combustion ;
-   des brûleurs individuels montés sur un appareil présentant des exigences supplémentaires ;
NOTE   Si des exigences supplémentaires non identifiées ou spécifiées dans la présente norme s'appliquent, la spécification des mesures de sécurité et/ou des dispositifs de protection requis et leur respect ne relèvent pas du domaine d'application de la présente norme.
-   des brûleurs mono et bicombustible lorsqu'ils fonctionnent avec du fioul uniquement ;
-   la fonction fioul des brûleurs biocombustibles conçus pour fonctionner simultanément avec des combustibles gazeux et liquides.
La présente Norme européenne traite de tous les risques significatifs des machines, des situations et des événements dangereux liés aux brûleurs, lorsque ces derniers sont utilisés comme prévu et dans des conditions anormales qui peuvent être raisonnablement prévues ; voir l'Annexe J.
La présente Norme européenne traite également des exigences supplémentaires concernant les brûleurs relevant du domaine d'application et comportant des parties sous pression et/ou installés sur des corps de chauffe fonctionnant sous pression ; voir l'Annexe K.
La présente Norme européenne spécifie les exigences à satisfaire pour garantir la sécurité au cours d'une mise en service, d'un démarrage, d'un fonctionnement, d'un arrêt et d'une maintenance.
La présente Norme européenne traite aussi des brûleurs à air soufflé destinés à être utilisés avec des combustibles liquides biogènes et des mélanges des liquides biogènes.
La présente Norme européenne traite également des équipements de brûleurs destinés à augmenter le rendement total de l'appareil ; voir l'Annexe M.

Ventilatorski gorilniki za tekoča goriva

General Information

Status
Published
Public Enquiry End Date
28-Feb-2017
Publication Date
06-Apr-2020
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Apr-2020
Due Date
06-Jun-2020
Completion Date
07-Apr-2020

RELATIONS

Buy Standard

Standard
SIST EN 267:2020
English language
117 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
kSIST FprEN 267:2017
English language
127 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 267:2020
01-maj-2020
Nadomešča:
SIST EN 267:2010+A1:2012
Ventilatorski gorilniki za tekoča goriva
Forced draught burners for liquid fuels
Gebläsebrenner für flüssige Brennstoffe
Brûleurs automatiques à air soufflé pour combustibles liquides
Ta slovenski standard je istoveten z: EN 267:2020
ICS:
27.060.10 Gorilniki na tekoče in trdo Liquid and solid fuel burners
gorivo
SIST EN 267:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 267:2020
---------------------- Page: 2 ----------------------
SIST EN 267:2020
EN 267
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2020
EUROPÄISCHE NORM
ICS 27.060.10 Supersedes EN 267:2009+A1:2011
English Version
Forced draught burners for liquid fuels

Brûleurs à air soufflé pour combustibles liquides Gebläsebrenner für flüssige Brennstoffe

This European Standard was approved by CEN on 8 October 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 267:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 267:2020
EN 267:2020 (E)

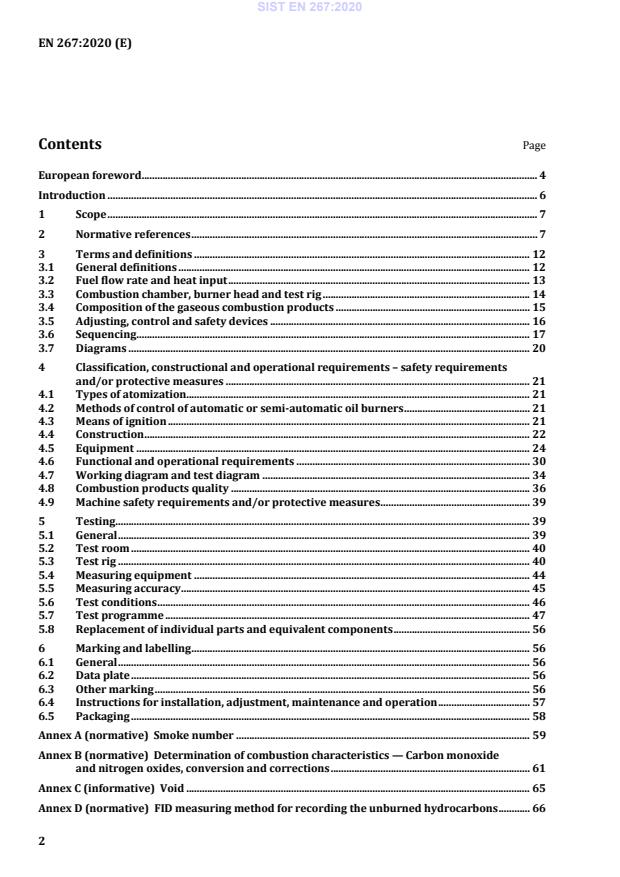

Contents Page
