EUROPEAN STANDARD
EN 50377-16-1

NORME EUROPÉENNE
December 2011
EUROPÄISCHE NORM

ICS 33.180.20

English version


Connector sets and interconnect components to be used in optical fibre
communication systems -
Product specifications -
Part 16-1: Type LF3 APC simplex terminated on IEC 60793-2-50 category
B1.1 and B1.3 singlemode fibre with titanium composite ferrule for
category C


Jeux de connecteurs et composants Steckverbindersätze und
d'interconnexion à utiliser dans les Verbindungsbauelemente für
systèmes de communication par fibres Lichtwellenleiter -
optiques - Datenübertragungssysteme -
Spécifications de produits - Produktnormen -
Partie 16-1: Type LF3 APC simplex Teil 16-1: Bauart LF3-APC-Simplex zum
raccordé sur des fibres unimodales de Anschluss an Einmodenfasern der Typen
catégorie B1.1 et B1.3 de la CEI 60793-2- B1.1 und B1.3 nach IEC 60793-2-50 mit
50, avec férule en composite de titane, Titanium-Komposit-Ferrule für die
pour utilisation en catégorie C Kategorie C

This European Standard was approved by CENELEC on 2011-10-31. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50377-16-1:2011 E

---------------------- Page: 3 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)

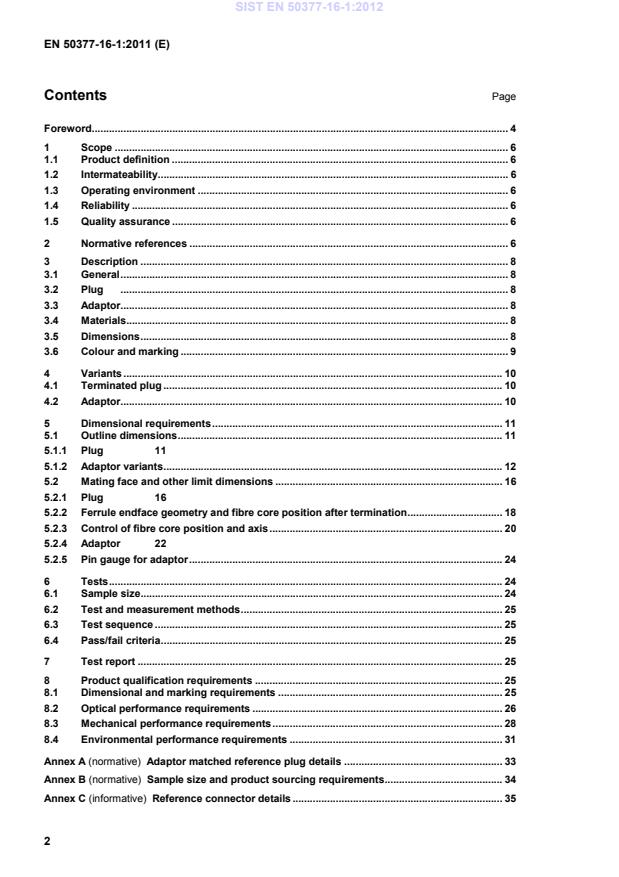

Contents Page
Foreword . 4
1 Scope . 6
1.1 Product definition . 6
1.2 Intermateability . 6
1.3 Operating environment . 6
1.4 Reliability . 6
1.5 Quality assurance . 6
2 Normative references . 6
3 Description . 8
3.1 General . 8
3.2 Plug . 8
3.3 Adaptor. 8
3.4 Materials . 8
3.5 Dimensions . 8
3.6 Colour and marking . 9
4 Variants . 10
4.1 Terminated plug . 10
4.2 Adaptor. 10
5 Dimensional requirements . 11
5.1 Outline dimensions . 11
5.1.1Plug 11
5.1.2 Adaptor variants . 12
5.2 Mating face and other limit dimensions . 16
5.2.1Plug 16
5.2.2 Ferrule endface geometry and fibre core position after termination . 18
5.2.3 Control of fibre core position and axis . 20
5.2.4Adaptor 22
5.2.5 Pin gauge for adaptor . 24
6 Tests . 24
6.1 Sample size . 24
6.2 Test and measurement methods . 25
6.3 Test sequence . 25
6.4 Pass/fail criteria . 25
7 Test report . 25
8 Product qualification requirements . 25
8.1 Dimensional and marking requirements . 25
8.2 Optical performance requirements . 26
8.3 Mechanical performance requirements . 28
8.4 Environmental performance requirements . 31
Annex A (normative) Adaptor matched reference plug details . 33
Annex B (normative) Sample size and product sourcing requirements . 34
Annex C (informative) Reference connector details . 35
2

---------------------- Page: 4 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
C.1 Reference plug . 35
C.2 Test details . 35
Bibliography . 36


Figures
Figure 1 - Outline dimensions – Plug. 11
Figure 2 - Outline dimensions . 12
Figure 3 - Mating face and other limit dimensions – Plug . 16
Figure 4 - Ferrule end face geometry - After termination . 18
Figure 5 - Positioning of fibre core . 19
Figure 6 - Ferrule end face geometry - Allowable undercut. 20
Figure 7 - Requirements for the attenuation grades for the plug fibre core connected to the ideal
reference. 20
Figure 8 - Mating face and other dimensions . 22
Figure 9 - Pin gauge for adaptor . 24


Tables
Table 1 - Ensured level of random attenuation . 6
Table 2 - Preferred colour scheme . 9
Table 3 - Plug variants . 10
Table 4 - Adaptor variants . 10
Table 5 - Geometrical parameters . 19
Table 7 - Optical performance requirements . 26
Table 8 - Mechanical performance requirements . 28
Table 9 - Environmental performance requirements . 31
Table A.1 . 33
Table B.1 . 34
Table C.1 . 35
Table C.2 . 35


3

---------------------- Page: 5 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
Foreword
This document (EN 50377-16-1:2011) has been prepared by CLC/TC 86BXA "Fibre optic interconnect,
passive and connectorised components".
The following dates are fixed:
(dop) 2012-10-31
• latest date by which this document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2014-10-31
• latest date by which the national
standards conflicting with this
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
4

---------------------- Page: 6 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)

Connector sets and interconnect components
to be used in optical fibre communication systems - Product specifications
Part 16-1: Type LF3 APC simplex terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibre
with titanium composite ferrule for Category C
Description Performance
Coupling mechanism: latched push-pull Application: For use in Category C
(controlled environment)
Configuration: plug/adaptor/plug Attenuation grades: B: ≤ 0,12 dB mean
(random mate) ≤ 0,25 dB for > 97 %
of measurements
C: ≤ 0,25 dB mean
Fibre category EN 60793-2-50
type B1.1 and B1.3 ≤ 0,50 dB for > 97 %
of measurements
Cable type: see Table 3 Return loss grade: 1: ≥ 60 dB (mated)
≥ 55 dB (unmated)
Related documents:
EN 60794-2
Optical fibre cables - Part 2: Indoor cables - Sectional specification (IEC 60794-2)
EN 61300 (series)
Fibre optic interconnecting devices and passive components - Basic test and
measurement procedures (IEC 61300 series)
EN 61753-1
Fibre optic interconnecting devices and passive components performance standard -
Part 1: General and guidance for performance standards (IEC 61753-1)
1
EN 61754-28
Fibre optic connector interfaces - Part 28: Type LF3 connector family (IEC 61754-28)
EN 61755-1
Fibre optic connector optical interfaces - Part 1: Optical interfaces for single mode non-
dispersion shifted fibres - General and guidance (IEC 61755-1)
EN 61755-3-8
Fibre optic connector optical interfaces - Part 3-8: Optical interface, 2,5 mm and
1,25 mm diameter cylindrical 8 degrees angled-APC composite ferrule using Titanium
as fibre surrounding material, single mode fibre (IEC 61755-3-8)
Outline and maximum dimensions (mm):


1
At draft stage (CDV).
5

---------------------- Page: 7 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
1 Scope
1.1 Product definition
This European Standard contains the initial, start of life dimensional, optical, mechanical and environmental
performance requirements which a terminated and assembled singlemode resilient alignment sleeve LF3 APC
8° simplex connector set (plug-adaptor-plug), adaptor and patchcord will meet in order for it to be categorised
as an EN standard product.
Since different variants and grades of performance are permitted, product marking details are given in 3.5.
1.2 Intermateability
Although all products conforming to the requirements of this European Standard will intermate, the resulting
level of random attenuation performance will only be ensured in accordance with Table 1. The intention is that
this will be true irrespective of the manufacturing source(s) of the product.
When intermating plug variants having different attenuation grades, the resulting level of attenuation cannot be
assured to be any better than the worst attenuation grade.
The intermating of a grade C plug with a grade B plug will result in an uncertain level of random attenuation
performance.
Table 1 - Ensured level of random attenuation
Plug variant/Attenuation grade C B
C C C
B C B

1.3 Operating environment
The tests selected combined with the severities and durations are representative of a Category C environment
as defined in EN 61753-1.
1.4 Reliability
Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with
this European Standard does not guarantee the reliability of the product. This should be predicted using a
recognised reliability assessment programme.
1.5 Quality assurance
Compliance with this European Standard does not guarantee the manufacturing consistency of the product.
This should be maintained using a recognised quality assurance programme.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 60793-2-50, Optical fibres — Part 2-50: Product specifications —Sectional specification for class B single-
mode fibres (IEC 60793-2-50)
6

---------------------- Page: 8 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
EN 60794-2-50, Optical fibre cables — Part 2-50: Indoor cables — Family specification for simplex and duplex
cables for use in terminated cable assemblies (IEC 60794-2-50)
EN 61300-2-1, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-1: Tests — Vibration (sinusoidal) (IEC 61300-2-1)
EN 61300-2-2, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-2: Tests — Mating durability (IEC 61300-2-2)
EN 61300-2-4, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-4: Tests — Fibre/cable retention (IEC 61300-2-4)
EN 61300-2-6, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-6: Tests — Tensile strength of coupling mechanism (IEC 61300-2-6)
EN 61300-2-12, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-12: Tests — Impact (IEC 61300-2-12)
EN 61300-2-17, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-17: Tests — Cold (IEC 61300-2-17)
EN 61300-2-18, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-18: Tests — Dry heat — High temperature endurance (IEC 61300-2-18)
EN 61300-2-19, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-19: Tests — Damp heat (steady state) (IEC 61300-2-19)
EN 61300-2-22, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-22: Tests — Change of temperature (IEC 61300-2-22)
EN 61300-2-42, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-42: Tests — Static side load for connectors (IEC 61300-2-42)
EN 61300-2-44, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 2-44: Tests — Flexing of the strain relief of fibre optic devices (IEC 61300-2-44)
EN 61300-3-4, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-4: Examinations and measurements — Attenuation (IEC 61300-3-4)
EN 61300-3-6, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-6: Examinations and measurements — Return loss (IEC 61300-3-6)
EN 61300-3-10, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-10: Examinations and measurements — Gauge retention force (IEC 61300-3-10)
EN 61300-3-15, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-15: Examinations and measurements — Dome eccentricity of a convex polished ferrule
endface (IEC 61300-3-15)
EN 61300-3-16, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-16: Examinations and measurements — Endface radius of spherically polished ferrules
(IEC 61300-3-16)
EN 61300-3-23, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-23: Examination and measurements — Fibre position relative to ferrule endface
(IEC 61300-3-23)
EN 61300-3-28, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-28: Examinations and measurements — Transient loss (IEC 61300-3-28)
7

---------------------- Page: 9 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
EN 61300-3-34, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-34: Examinations and measurements — Attenuation of random mated connectors
(IEC 61300-3-34)
EN 61300-3-42:2008, Fibre optic interconnecting devices and passive components — Basic test and
measurement procedures — Part 3-42: Examinations and measurements — Attenuation of single mode
alignment sleeves and or adaptors with resilient alignment sleeves (IEC 61300-3-42:2007)
EN 61753-1, Fibre optic interconnecting devices and passive components performance standard — Part 1:
General and guidance for performance standards (IEC 61753-1)
EN 61755-1, Fibre optic connector optical interfaces — Part 1: Optical interfaces for single mode non-
dispersion shifted fibres — General and guidance (IEC 61755-1)
EN 61755-2-2, Fibre optic connector optical interfaces — Part 2-2: Optical interface standard single mode
angled physically contacting fibres (IEC 61755-2-2)
EN 61755-3-8, Fibre optic interconnecting devices and passive components — Fibre optic connector optical
interfaces — Part 3-8: Optical interface, 2,5 mm and 1,25 mm diameter cylindrical 8 degrees angled-APC
composite ferrule using titanium as fibre surrounding material, single mode fibre (IEC 61755-3-8)
3 Description
3.1 General
The LF3 APC connector is a single position plug connector set of plug adaptor plug configuration
characterised by a cylindrical, spring loaded butting ferrule of 1,25 mm nominal diameter and a latched push-
pull coupling mechanism. The optical alignment mechanism of the connectors is of a resilient sleeve style.
3.2 Plug
The plug features a cylindrical composite ferrule using titanium as fibre surrounding material and a push-pull
mechanism. It has a single male key which is used to limit and may be used to orientate, the relative rotation
between mated connectors.
3.3 Adaptor
The adaptor has a zirconia ceramic resilient alignment sleeve. The mounting styles are simplex rectangular
flange equipped with snap-latches or screws, and duplex rectangular flange with snap-latches or screws.
Covers (dust caps) shall be provided to protect each port of the adaptor.
3.4 Materials
Materials which are not specified or which are not specifically described are left to the discretion of the
manufacturer.
3.5 Dimensions
Outline dimensions and other dimensions necessary to ensure intermateability or which affect performance
are specified. All other dimensions are left to the discretion of the manufacturer. Where the mating face limit
dimensions are not in agreement with an EN Interface Standard this is clearly stated.
8

---------------------- Page: 10 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
3.6 Colour and marking
Marking of the product shall be in the following order of precedence:
– identification of manufacturer;
– manufacturing date code: year/week;
– manufacturers part number;
variant identification number.
The following colour scheme is preferred:
Table 2 - Preferred colour scheme
Adaptor Delatch housing
Green Green
Preferred RAL number 6018.

9

---------------------- Page: 11 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
4 Variants
4.1 Terminated plug
The following variants are permitted:
Table 3 - Plug variants

E N 5 0 3 7 7 - 16 - 1 - * * - * 1




No. Fibre/Cable Structure
∅∅∅∅mm
01 0,6 - 1,4 Buffered fibre
02 1,6 ± 0,2 Reinforced cable
03 Reinforced cable
2,0 ± 0,2
04 Reinforced cable
2,4 ± 0,2
05 2,8 ± 0,2 Reinforced cable
06 Reinforced cable
3,0 ± 0,2




Code Attenuation grade
B B
C C



Code Return loss grade
1 1


4.2 Adaptor
The following variants are permitted:

Table 4 - Adaptor variants

E N 5 0 3 7 7 - 16 - 1 - A * *




No. Format
A01 Simplex – clip fixing
A02 Duplex – clip fixing
A03 Simplex – screw fixing
A04 Duplex – screw fixing

10

---------------------- Page: 12 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
5 Dimensional requirements
5.1 Outline dimensions
5.1.1 Plug
Variant No. 01

Ref. Dimensions Remarks
min. mm max.
A
- 25 See footnote
B - 35
D - 11,5
E - 5,52
Footnote  Rigid length.
Variant No. 02/03/04/05/06

Ref. Dimensions Remarks
min. mm max.
A - 36 See footnote
B - 52
D - 11,5
E - 6,2
Footnote  Rigid length.
Figure 1 - Outline dimensions – Plug
11

---------------------- Page: 13 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
5.1.2 Adaptor variants
Variant No. A01
Panel cut out
see footnote
Laser protection
shutter not shown


Ref. Dimensions Remarks
min. mm max.
DA 29,0 30,0
DB 11,5 11,6
DC 6,9 7,0
DD 7,1 7,2
DE 11,7 11,8
DF - 14,5
DI Approximate 1,5 See footnote
DJ 14,0 14,3
DK 13,4 13,7
DL 11,0 12,8
Footnote  Panel cut out: panel thickness should be between 1,2 mm and 1,7 mm.

Figure 2 - Outline dimensions
12

---------------------- Page: 14 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)

Variant No. A02

Panel cut out
see footnote
Laser protection
shutter not shown

Ref. Dimensions Remarks
min. mm max.
EA 29,0 30,0
EB 13,0 13,1
EC 13,1 13,3
ED 13,5 13,7
EE 13,2 13,4
EF - 16,2
EI Approximate 1,5 See footnote
EJ 14,0 14,3
EK 14,7 15,3
EL 11,0 12,8
EN 6,25 Basic dimension
Footnote  Panel cut out: panel thickness should be between 1,2 mm and 1,7 mm.

Figure 2 - Outline dimensions (continued)
13

---------------------- Page: 15 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
Variant No. A03



Panel cut out
see footnote
Laser protection

shutter not shown
Ref. Dimensions Remarks
mm
min. max.
GA 29,0 30,0
GB 11,5 11,6
GC 6,9 7,0
GD 7,1 7,2
GE 11,7 11,8
GG 15,9 16,1 See footnote
GH - 3,8
GJ 13,8 14,2
GL 11,0 12,8
Footnote  The diameter of the bore holes shall be between 2,2 mm and 2,4 mm.

Figure 2 - Outline dimensions (continued)
14

---------------------- Page: 16 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)
Variant No. A04



Panel cut out
see footnote

Laser protection
shutter not shown
Ref. Dimensions Remarks
min. mm max.
FA 29,0 30,0
FB 13,0 13,1
FC 13,1 13,3
FD 13,5 13,7
FE 13,2 13,4
FG 17,4 17,6 See footnote
FH - 3,8
FJ 13,8 14,2
FL 11,0 12,8
FN 6,25 Basic dimension
Footnote  The diameter of the bore holes shall be between 2,2 mm and 2,4 mm.

Figure 2 - Outline dimensions (continued)

15

---------------------- Page: 17 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)

5.2 Mating face and other limit dimensions
5.2.1 Plug



Top view with protection
cap opened (APC type)


Figure 3 - Mating face and other limit dimensions – Plug
16

---------------------- Page: 18 ----------------------

SIST EN 50377-16-1:2012
EN 50377-16-1:2011 (E)


Ref. Dimensions Remarks
min. mm max.
B 10,3 10,6 See footnote 1
C 4,2 4,45
D 3,2 3,35
F 0,3 0,5 Radius
G 4,88 5,10 Ferrule extension
H 4,42 4,52
1
H 4,42 4,52
2
I 3,0 3,2 Diameter
J H/2 H/2
M - 1,0
N - 0,5
O 1,1 -
Q 8,6 8,9
U 5,0 5,1
V 12,1 -
Y 3,3 -
Z - 7,5
AF 17 Degrees
AO 3,35 3,4 Height protection cap
AP 6,7 6,9 Length protection cap
AQ 2,5 2,63
AR 4,45 4,48 Width protection cap
EA 90 Degrees, see footnote 2
EB 8 Degrees
Footnotes
1 Dimension B is given for a plug endface when not mated. The ferrule is movable by a certain axial
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
