High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (usually called laminates) - Part 8: Classification and specifications for design laminates

This European Standard specifies performance requirements for design laminates intended for interior use with a design effect surface having a phenolic based core and a decorative surface, not covered by EN 438 3 [1], EN 438 4 [2], EN 438 5 [3] and EN 438 6 [5]. Three surface layer types (metal, wood veneer and pearlescent decor) are defined in this part of EN 438.
EN 438 2 specifies the test methods relevant to this part of EN 438.

Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) - Teil 8: Klassifizierung und Spezifikationen für Design-Schichtpressstoffe

Diese Europäische Norm legt die Leistungsanforderungen an dekorative Hochdruck-Schichtpressstoffplatten (HPL) mit Oberflächen mit Designeffekt fest, die für Anwendungen im Innenbereich vorgesehen sind. Die Platten haben einen Kern auf Phenolharzbasis und eine dekorative Oberfläche, die in den Normen EN 438-3 [1], EN 438-4 [2], EN 438-5 [3] und EN 438-6 [5] nicht behandelt wird. In diesem Teil von EN 438 sind drei Oberflächenmaterialtypen festgelegt: Metall, Holzfurnier und Perlglanzdekor.
In EN 438-2 sind die Prüfverfahren festgelegt, die für diesen Teil von EN 438 von Bedeutung sind.

Stratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 8 : Classification et spécifications relatives aux stratifiés à effets de surface spéciaux

La présente Norme européenne spécifie les exigences de performance s’appliquant aux stratifiés décoratifs pour usage en intérieur, à effets de surface spéciaux, avec une âme phénolique et une face décorative, ne relevant pas des normes EN 438-3 [1], EN 438-4 [2], EN 438 5 [3] et EN 438-6 [5]. Trois types de couches de surface (métallique, placage bois et décor perlescent) sont définis dans la présente partie de l’EN 438.
L’EN 438-2 spécifie les méthodes d’essai correspondant à la présente partie de l’EN 438.

Dekorativni visokotlačni laminati (HPL) - Plošče na osnovi duromernih smol (laminati) - 8. del: Razvrstitev in specifikacije laminatov s posebnimi vzorci

Ta evropski standard določa zahteve glede zmogljivosti za laminate s posebnimi vzorci, ki so namenjeni uporabi v notranjih prostorih na površini z vzorcem iz jedra na osnovi fenola in dekorativni površini, ki ni zajeta v standardih EN 438 3 [1], EN 438 4 [2], EN 438 5 [3] in EN 438 6 [5]. V tem delu standarda EN 438 so opredeljene tri vrste površinskih plasti (kovina, furnir in biserni dekor).
Standard EN 438 2 določa preskusne metode, ki se nanašajo na ta del standarda EN 438.

General Information

Status
Published
Public Enquiry End Date
22-Nov-2017
Publication Date
09-Dec-2018
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
29-Nov-2018
Due Date
03-Feb-2019
Completion Date
10-Dec-2018

RELATIONS

Buy Standard

Standard
SIST EN 438-8:2019
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) - Teil 8: Klassifizierung und Spezifikationen für Design-SchichtpressstoffeStratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 8 : Classification et spécifications relatives aux stratifiés à effets de surface spéciauxHigh-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (usually called laminates) - Part 8: Classification and specifications for design laminates83.140.20Laminated sheetsICS:Ta slovenski standard je istoveten z:EN 438-8:2018SIST EN 438-8:2019en,fr,de01-januar-2019SIST EN 438-8:2019SLOVENSKI

STANDARDSIST EN 438-8:20091DGRPHãþD
SIST EN 438-8:2019
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 438-8
November
t r s z ICS
z uä s v rä t r Supersedes EN
v u zæ zã t r r {English Version

Classification and specifications for design laminates spécifications relatives aux stratifiés à effets de surface spéciaux æ Teil

zã Klassifizierung und Spezifikationen für DesignæSchichtpressstoffe This European Standard was approved by CEN on

t z September
t r s zä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

v u zæ zã t r s z ESIST EN 438-8:2019

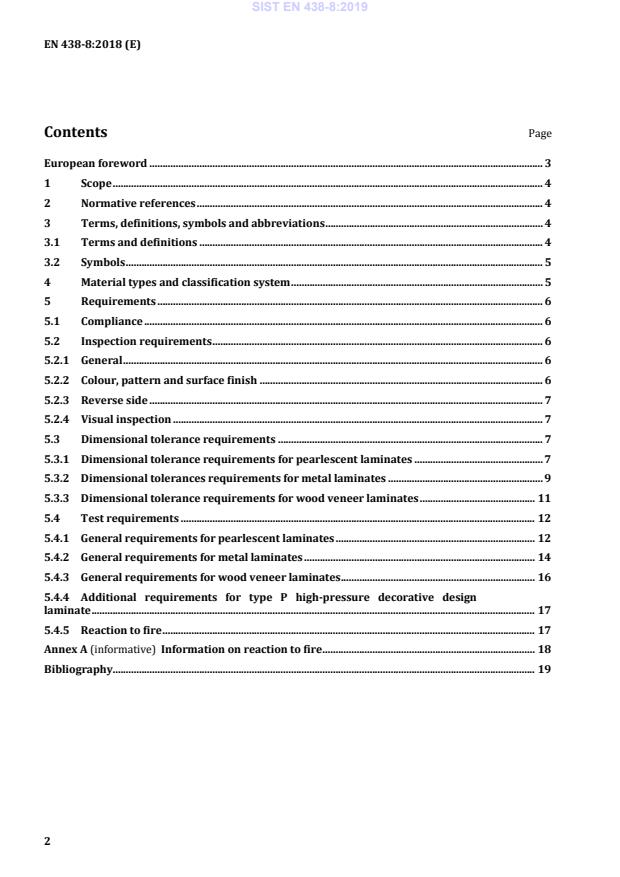

EN 438-8:2018 (E) 2 Contents Page European foreword ...................................................................................................................................................... 3 1 Scope .................................................................................................................................................................... 4 2 Normative references .................................................................................................................................... 4 3 Terms, definitions, symbols and abbreviations ................................................................................... 4 3.1 Terms and definitions ................................................................................................................................... 4 3.2 Symbols ............................................................................................................................................................... 5 4 Material types and classification system ................................................................................................ 5 5 Requirements ................................................................................................................................................... 6 5.1 Compliance ........................................................................................................................................................ 6 5.2 Inspection requirements .............................................................................................................................. 6 5.2.1 General ................................................................................................................................................................ 6 5.2.2 Colour, pattern and surface finish ............................................................................................................ 6 5.2.3 Reverse side ...................................................................................................................................................... 7 5.2.4 Visual inspection ............................................................................................................................................. 7 5.3 Dimensional tolerance requirements ..................................................................................................... 7 5.3.1 Dimensional tolerance requirements for pearlescent laminates ................................................. 7 5.3.2 Dimensional tolerances requirements for metal laminates ........................................................... 9 5.3.3 Dimensional tolerance requirements for wood veneer laminates ............................................ 11 5.4 Test requirements ....................................................................................................................................... 12 5.4.1 General requirements for pearlescent laminates ............................................................................ 12 5.4.2 General requirements for metal laminates ........................................................................................ 14 5.4.3 General requirements for wood veneer laminates .......................................................................... 16 5.4.4 Additional requirements for type P high-pressure decorative design laminate ......................................................................................................................................................................... 17 5.4.5 Reaction to fire .............................................................................................................................................. 17 Annex A (informative)

Information on reaction to fire ................................................................................. 18 Bibliography................................................................................................................................................................. 19

SIST EN 438-8:2019

EN 438-8:2018 (E) 3 European foreword This document (EN 438-8:2018) has been prepared by Technical Committee CEN/TC 249 “Plastics”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2019, and conflicting national standards shall be withdrawn at the latest by May 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 438-8:2009. In comparison with the previous edition, the following technical modifications have been made: The test methods referenced have been updated as appropriate; the terms, definitions, symbols and abbreviations are aligned with the other parts of the EN 438 published; the machined crosshead speed for the determination of the flexural characteristics, is the same of the one specified in EN 438-4:2016. EN 438, High-pressure decorative laminates (HPL) — Sheets based on thermosetting resins (usually called laminates), consists of the following parts: — Part 1: Introduction and general information; — Part 2: Determination of properties; — Part 3: Classification and specifications for laminates less than 2 mm thick intended for bonding to supporting substrates; — Part 4: Classification and specifications for compact laminates of thickness 2 mm and greater; — Part 5: Classification and specifications for flooring grade laminates less than 2 mm thick intended for bonding to supporting substrates; — Part 6: Classification and specifications for Exterior-grade compact laminates of thickness 2 mm and greater; — Part 7: Compact laminate and HPL composite panels for internal and external wall and ceiling finishes; — Part 8: Classification and specifications for design laminates; — Part 9: Classification and specifications for alternative core laminates. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 438-8:2019

EN 438-8:2018 (E) 4 1 Scope This document specifies performance requirements for design laminates intended for interior use with a design effect surface having a phenolic based core and a decorative surface, not covered by EN 438-3 [1], EN 438-4 [2], EN 438-5 [3] and EN 438-6 [4]. Three surface layer types (metal, wood veneer and pearlescent decor) are defined in this part of EN 438. EN 438-2 specifies the test methods relevant to this part of EN 438. 2 Normative references The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 438-2:2016, High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (usually called laminates) – Part 2: Determination of properties EN ISO 178, Plastics - Determination of flexural properties (ISO 178) EN ISO 1183-1, Plastics - Methods for determining the density of non-cellular plastics – Part 1: Immersion method, liquid pyknometer method and titration method (ISO 1183-1) 3 Terms, definitions, symbols and abbreviations 3.1 Terms and definitions For the purposes of this document, the following terms and definitions apply. ISO and IEC maintain terminological databases for use in standardization at the following addresses:

IEC Electropedia: available at http://www.electropedia.org/
ISO Online browsing platform: available at http://www.iso.org/obp

3.1.1 high-pressure decorative design laminate design laminate HPL sheet consisting of decorative design surface layer(s) and core layers bonded together by an high pressure process Note 1 to entry: Typical values for the high pressure process are a temperature of

120 °C and a pressure of

5 MPa. 3.1.2 surface layer upper decorative layer consisting in one or more sheets of fibrous material (usually paper) impregnated with aminoplastic thermosetting resins (usually melamine based resins) Note 1 to entry: The surface layers appear on one or both side(s) of the laminate(s). They are not necessarily treated with thermosetting resin. In case of one-sided laminates, the back of the sheet(s) can be made suitable for adhesive bonding to a substrate. SIST EN 438-8:2019

EN 438-8:2018 (E) 5 3.1.3 Types of high-pressure decorative design laminates

3.1.3.1 pearlescent laminate design laminate, the surface layer of which consists of a pearlescent effect decorative paper, which is impregnated with aminoplastic thermosetting resins (usually melamine based resins) Note 1 to entry: To achieve the optimum aesthetic effect from the pearlescent pigment a protective melamine layer is not used. Note 2 to entry: As a result some surface properties are reduced (e.g. scratch, wear), therefore it is recommended that these products are used for vertical applications. 3.1.3.2 metal laminate design laminate, the surface layer of which consists of a thin layer of metal Note 1 to entry: Example: aluminium, steel or copper. Note 2 to entry: It is often protected by a thin layer of lacquer or in the case of aluminium the surface can be anodized. The surface performance and appearance of these metal laminates is equivalent to that of thin metal sheet. Note 3 to entry: As some surface properties are lower than that of melamine (e.g. scratch and wear), it is recommended that these products are used for vertical applications. 3.1.3.3 wood veneer laminate design laminate, the surface layer of which consists of a wood veneer, which is covered by a protective melamine layer Note 1 to entry: The surface appearance of these wood veneer laminates is similar to wood. Note 2 to entry: Wood veneer laminates are not normally available in postforming grade. 3.1.4 core layer fibrous materials (usually paper) impregnated with thermosetting resins (usually phenolic based resins) 3.2 Symbols For the purposes of this document, the following symbol applies. t nominal thickness of the design laminate 4 Material types and classification system High-pressure decorative design laminate is defined using a three letter classification system as shown in Table 1. SIST EN 438-8:2019

EN 438-8:2018 (E) 6 Table 1 — High-pressure decorative design laminate classification system First letter Second letter Third letter A (Pearlescent laminate) C (Compact) S (Standard grade) M (Metal laminate) T (Thin laminate < 2 mm) or P (Postformable grade) W (Wood veneer laminate)

or F (Flameretardant grade) Type S – Standard grade high-pressure decorative design laminate. Type P – Postformable high-pressure decorative design laminate, similar to type S but can also be formed at elevated temperature. Type F – High-pressure decorative design laminate with improved fire retardance similar to type S or P but also complying with special requirements of specified tests which may vary according to the application (e.g. construction, marine, transport) and the country of use (see 5.4.5). In addition to the abbreviation “HPL” and the number of this European Standard, materials shall be specified by the alphabetical classification system. EXAMPLE “Pearlescent Standard Grade Thin high-pressure decorative design laminate” is designated as HPL/EN 438-8 ATS. 5 Requirements 5.1 Compliance High-pressure decorative design laminate classified in Table 1 shall comply with all appropriate requirements specified in 5.2, 5.3 and 5.4. This applies to both full-size sheets and cut-to-size panels. 5.2 Inspection requirements 5.2.1 General Inspection shall be carried out in accordance with EN 438-2:2016, Clause 4, at a distance between 750 mm and 1 500 mm. 5.2.2 Colour, pattern and surface finish 5.2.2.1 Pearlescent When inspected in daylight or D65 standard illuminant, as specified in EN ISO 11664-2, and also under tungsten-filament lightning illuminant A as specified in EN ISO 11664-2, a slight difference between the corresponding colour reference sample held by the supplier and the specimen under test is acceptable. As colour and surface finish are critical, it is recommended that sheets are checked for colour and surface-finish compatibility without protective film before fabrication or installation. Some of these products are directional in surface finish or colour and they shall be installed in the correct orientation. 5.2.2.2 Metal When inspected in daylight or D65 standard illuminant, as specified in EN ISO 11664-2, and also under tungsten-filament lightning illuminant A as specified in EN ISO 11664-2, a slight difference between the corresponding colour reference sample held by the supplier and the specimen under test is acceptable. As colour and surface finish are critical, it is recommended that sheets are checked for colour and surface-finish compatibility without protective film before fabrication or installation. SIST EN 438-8:2019

EN 438-8:2018 (E) 7 Some of these products are directional in surface finish or colour and they shall be installed in the correct orientation. Small indentations in the surface are unavoidable. 5.2.2.3 Wood veneer Due to the fact that wood is a natural product, each veneer may be considered as unique. Slight colour and structure differences are considered as normal. Singularities such as knots and resin inclusions are not considered as defects, but as a part of the decor. There are differences in light fastness performances depending on the wood species and the source of the wood. 5.2.3 Reverse side The reverse side of single-sided sheets shall be suitable for adhesive bonding (e.g. sanded). In the case of sanded backs, slight chatter marks shall be permitted. 5.2.4 Visual inspection 5.2.4.1 General The following inspection requirements are intended as a general guide, indicating the minimum acceptable quality for laminates. Cut-to-size panels and certain applications involving full-size sheets may call for special quality requirements which can be negotiated between supplier and purchaser; in such cases the following requirements may be used as a basis for agreement. Only a small percentage of sheets in a batch (the level to be agreed with the customer) should contain defects of the minimum acceptable level. 5.2.4.2 Surface quality The following surface defects are permissible: a) Dirt, spots, dents and similar surface defects. The admissible size of such defects is based on a maximum contamination area equivalent to 1,0 mm2/m2 of laminate and is proportional to the sheet size under inspection. The total admissible area of contamination may be conc

...
