SIST IEC 62642-2-6:2024

Alarm systems - Intrusion and hold-up systems - Part 2-6: Intrusion detectors - Opening contacts (magnetic)

IEC 62642-2-6:2010 provides for security grades 1 to 4, (see IEC 62642-1) specific or non-specific wired or wirefree opening contacts (magnetic), and includes the requirements for four environmental classes covering applications in internal and outdoor locations as specified in IEC 62599-1.

Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et les hold-up - Partie 2-6: Détecteurs d'intrusion - Détecteurs d'ouverture à contacts (magnétiques)

La CEI 62642-2-6:2010 est prévue pour les grades de sécurité 1 à 4 (voir la CEI 62642-1), les détecteurs d'ouverture à contacts (magnétiques) filaires spécifiques ou non spécifiques ou non filaires, et inclut les exigences pour les quatre classes d'environnement couvrant les applications localisées en intérieur et en extérieur telles que définies dans la CEI 62599-1.

Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-6. del: Detektorji vloma - Kontaktni javljalniki (magnetni) (IEC 62642-2-6:2010)

Standard IEC 62642-2-6:2010 določa varnostne razrede od 1 do 4 (glej standard IEC 62642-1), specifične oziroma nespecifične (ne)ožičene kontaktne javljalnike (magnetne) ter podaja zahteve za štiri okoljske razrede, ki zajemajo načine uporabe v notranjih prostorih in na prostem, kot je opredeljeno v standardu IEC 62599-1.

General Information

• Status: Published
• Publication Date: 01-Jul-2024
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 13.310 - Protection against crime
• ICS: 13.320 - Alarm and warning systems
• Technical Committee: EAL - Alarm systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 21-Jun-2024
• Due Date: 26-Aug-2024
• Completion Date: 02-Jul-2024
• Ref Project: IEC 62642-2-6:2010 - Alarm systems - Intrusion and hold-up systems - Part 2-6: Intrusion detectors - Opening contacts (magnetic)

Relations

• Replaces: SIST IEC 60839-2-2:1995 - Alarm systems. Part 2: Requirements for intruder alarm systems. Section Two: Requirements for detectors - General
• Effective Date: 01-Dec-2010

Overview

IEC 62642-2-6:2010 - “Alarm systems - Intrusion and hold‑up systems - Part 2‑6: Intrusion detectors - Opening contacts (magnetic)” specifies functional, electrical and environmental requirements and tests for magnetic opening contacts used in intrusion and hold‑up alarm systems. Adopted as SIST IEC 62642-2-6:2024, this International Standard covers both wired and wirefree (wireless) opening contacts and supports security grades 1 to 4 and four environmental classes (internal and outdoor) as referenced in IEC 62599-1.

Key Topics

• Scope and purpose: Defines requirements for magnetic opening contacts that detect displacement of doors, windows or shutters by monitoring the magnetic field between two parts (corresponding magnet and switch component).
• Security grades: Criteria and mandatory functions for detectors to fulfil grades 1–4 (see IEC 62642-1 for system requirements).
• Functional requirements: Events to be processed, generation and classification of signals/messages, reverse signals (cancellation), switch‑on delays and operational behaviour.
• Detection performance: Definitions of approach (make) distance and removal (break) distance, detection verification and immunity to incorrect operation.
• Tamper security: Requirements for resistance to unauthorised access, including sealed construction and tamper signals.
• Electrical and EMC: Electrical limits, low supply voltage behaviour and electromagnetic compatibility referenced to IEC 62599-2 and IEC 61000 series.
• Environmental classification & testing: Environmental test methods and conditions (based on IEC 62599-1 and IEC 60068 family) including salt mist, temperature and humidity endurance.
• Interference and immunity tests: Use of standardized interference test magnets and procedures to verify resistance to external magnetic fields and sabotage magnets.
• Marking & documentation: Mandatory labelling, user instructions and test documentation requirements.
• Test annexes: Detailed normative annexes covering test magnets, testing matrix, movement axes, test surfaces and faces.

Applications

IEC 62642-2-6 is intended for:

• Manufacturers designing magnetic door/window contacts for commercial, residential and industrial alarm systems.
• System integrators and security installers specifying detector performance for projects.
• Independent test labs and certification bodies conducting conformity and grade testing.
• Security consultants, specifiers and facility managers selecting detectors for indoor and outdoor perimeter protection, access control monitoring, roller shutters and other opening elements.

Keywords: IEC 62642-2-6, opening contacts (magnetic), intrusion detectors, alarm systems, security grade, environmental classes, wirefree contact, tamper security, interference magnets, EMC testing.

Related Standards

• IEC 62642-1 (system requirements)
• IEC 62599-1 (environmental test methods)
• IEC 62599-2 (EMC immunity for fire & security)
• IEC 60068‑1 / IEC 61000 series
• EN 50131‑2‑6 (harmonized basis referenced in development)

Standards Content (Sample)

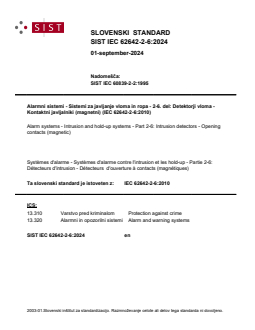

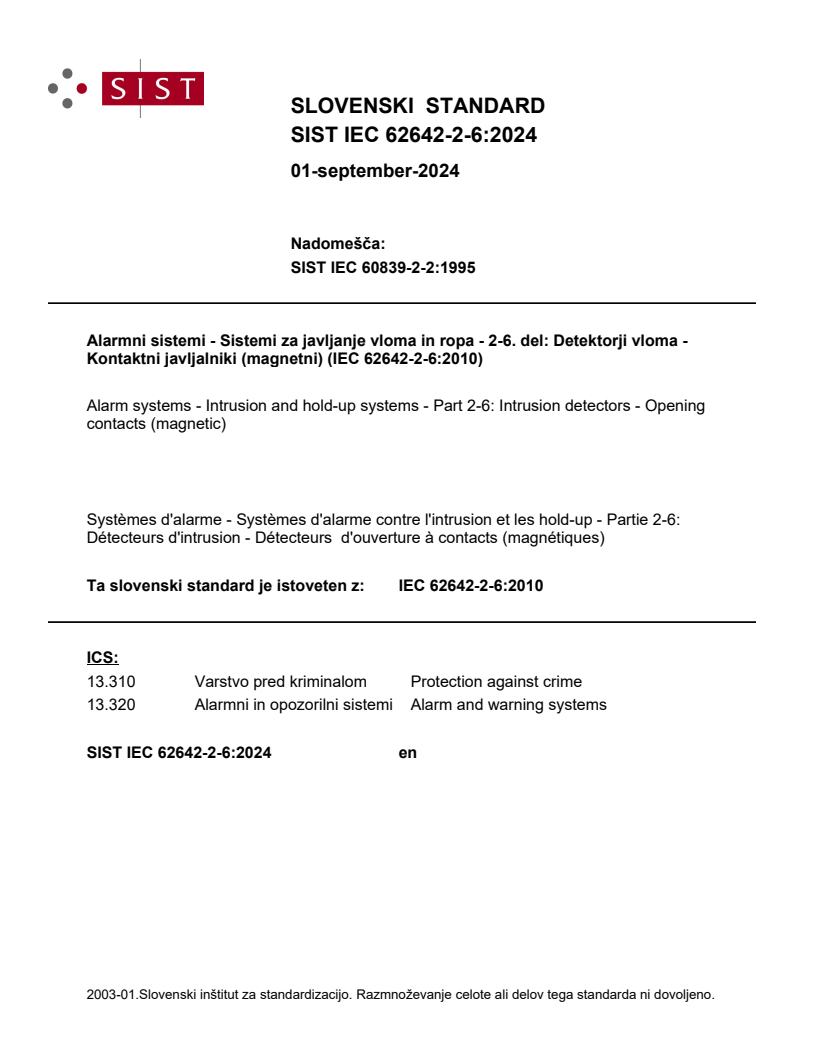

SLOVENSKI STANDARD
01-september-2024
Nadomešča:
SIST IEC 60839-2-2:1995
Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-6. del: Detektorji vloma -
Kontaktni javljalniki (magnetni) (IEC 62642-2-6:2010)
Alarm systems - Intrusion and hold-up systems - Part 2-6: Intrusion detectors - Opening
contacts (magnetic)
Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et les hold-up - Partie 2-6:
Détecteurs d'intrusion - Détecteurs d'ouverture à contacts (magnétiques)
Ta slovenski standard je istoveten z: IEC 62642-2-6:2010
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

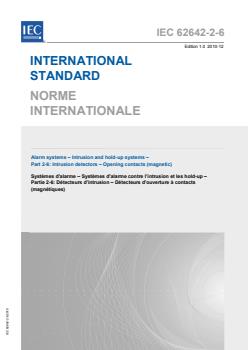

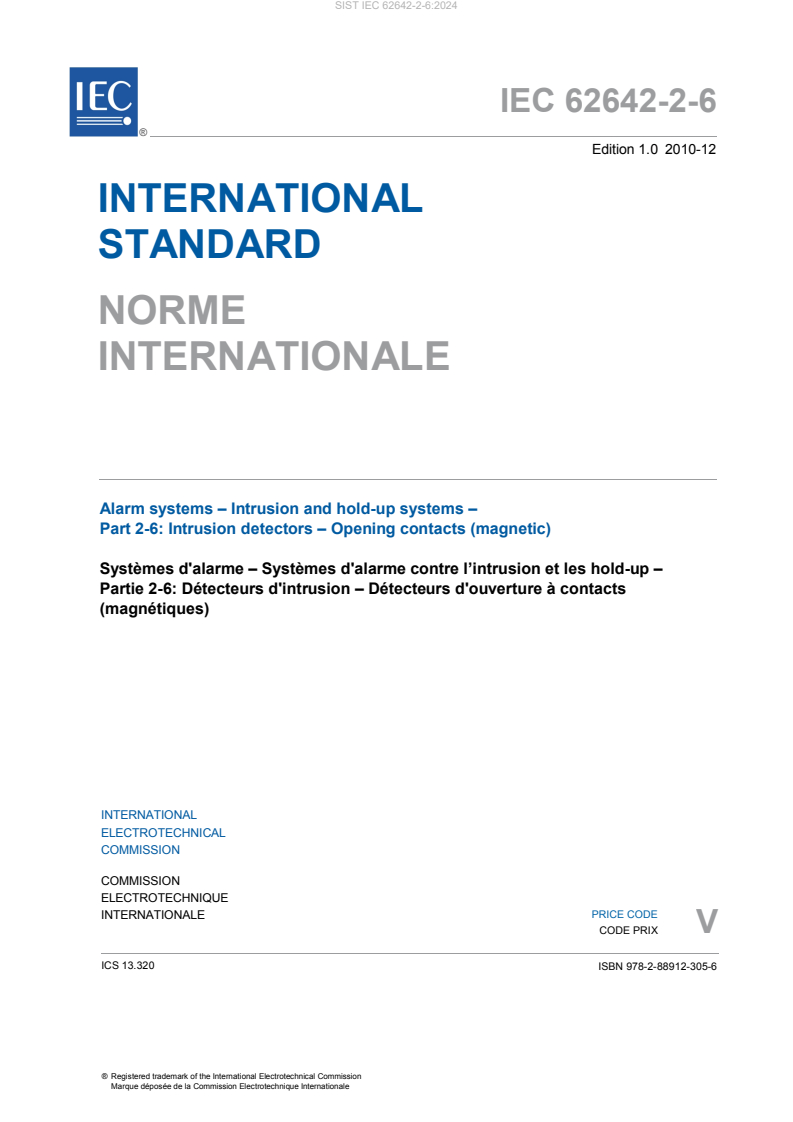

IEC 62642-2-6 ®
Edition 1.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Alarm systems – Intrusion and hold-up systems –
Part 2-6: Intrusion detectors – Opening contacts (magnetic)

Systèmes d'alarme – Systèmes d'alarme contre l’intrusion et les hold-up –
Partie 2-6: Détecteurs d'intrusion – Détecteurs d'ouverture à contacts
(magnétiques)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 13.320 ISBN 978-2-88912-305-6
– 2 – 62642-2-6 Ó IEC:2010

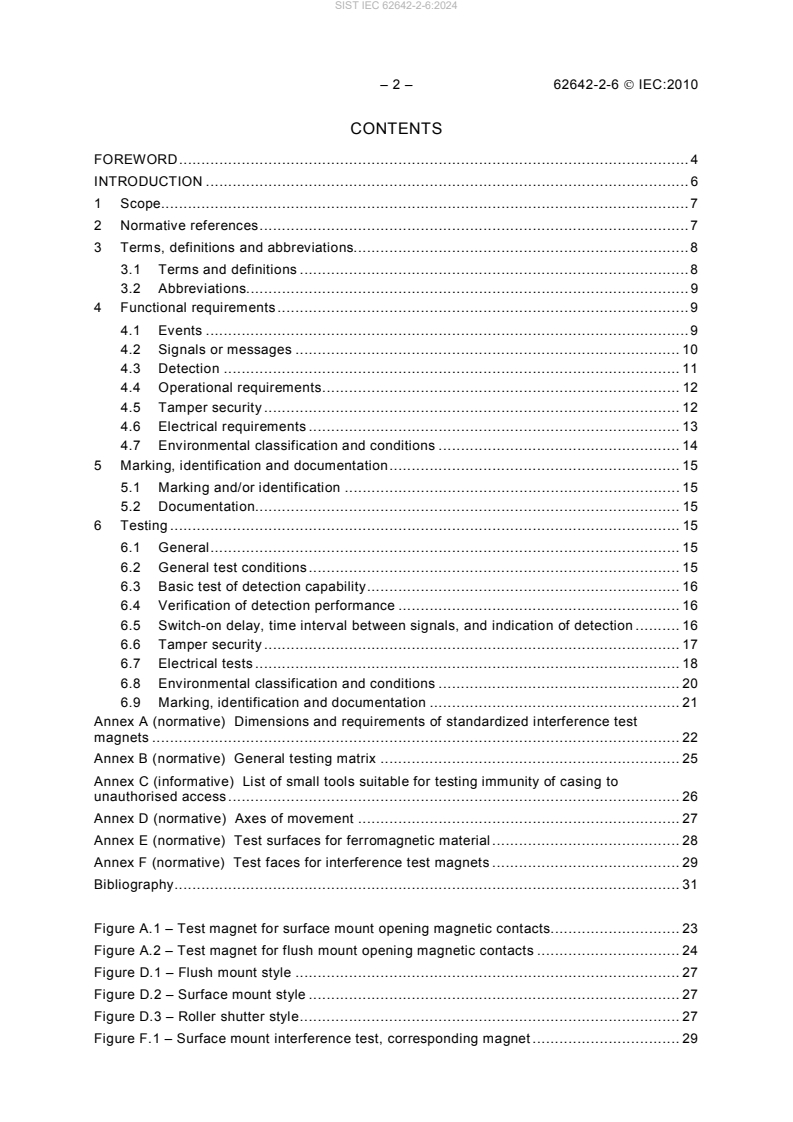

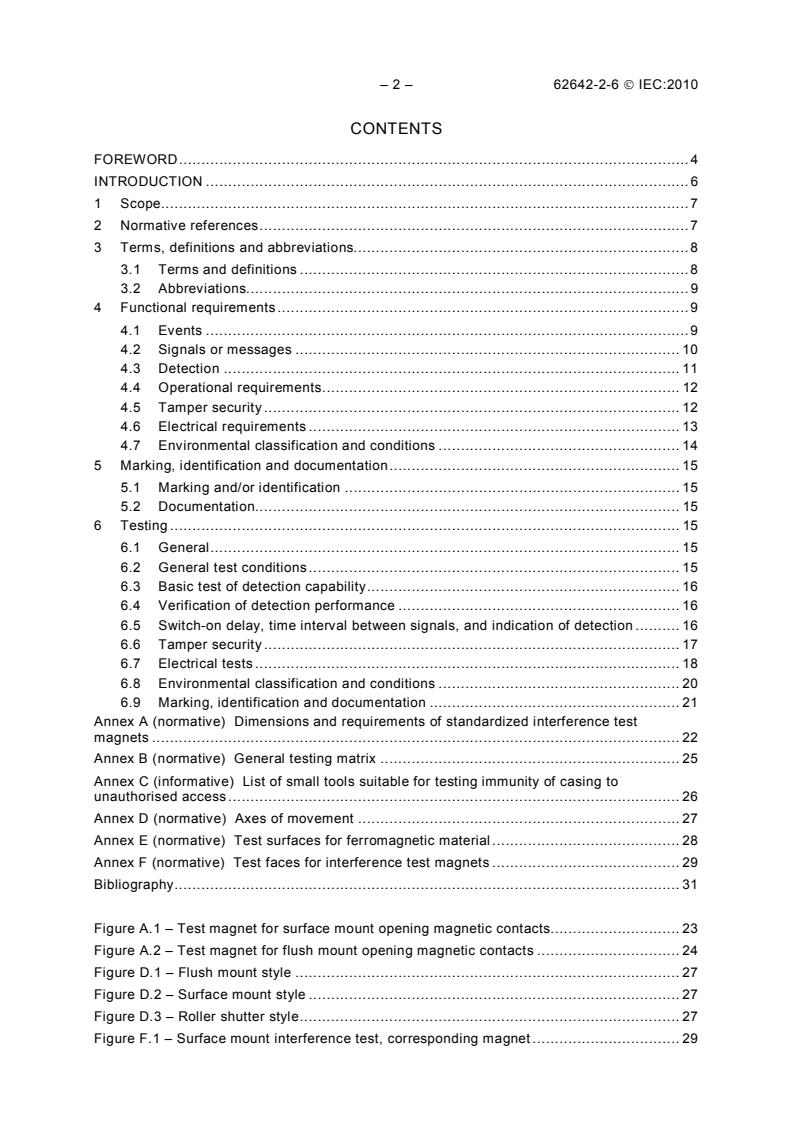

CONTENTS
FOREW ORD . 4
INTRODUCTION . 6
1 Sc o pe . 7
2 Normative references . 7
3 Terms, definitions and abbreviations. 8
3.1 Terms and definitions . 8
3.2 Abbrev iations. 9
4 Functional requirements . 9
4.1 Events . 9
4.2 Signals or messages . 10
4.3 Detection . 11
4.4 Operational requirements . 12
4.5 Tamper security . 12
4.6 Electrical requirements . 13
4.7 Environmental classification and conditions . 14
5 Marking, identification and documentation . 15
5.1 Marking and/or identification . 15
5.2 Documentation. 15
6 Testing . 15
6.1 General . 15
6.2 General test conditions . 15
6.3 Basic test of detection capability . 16
6.4 Verification of detection performance . 16
6.5 Switch-on delay, time interval between signals, and indication of detection . 16
6.6 Tamper security . 17
6.7 Electrical tests . 18
6.8 Environmental classification and conditions . 20
6.9 Marking, identification and documentation . 21
Annex A (normative) Dimensions and requirements of standardized interference test
magnets . 22
Annex B (normative) General testing matrix . 25
Annex C (informative) List of small tools suitable for testing immunity of casing to
unauthorised access . 26
Annex D (normative) Axes of movement . 27
Annex E (normative) Test surfaces for ferromagnetic material . 28
Annex F (normative) Test faces for interference test magnets . 29
Bibliography . 31

Figure A.1 – Test magnet for surface mount opening magnetic contacts . 23
Figure A.2 – Test magnet for flush mount opening magnetic contacts . 24
Figure D.1 – Flush mount style . 27
Figure D.2 – Surface mount style . 27
Figure D.3 – Roller shutter style . 27
Figure F.1 – Surface mount interference test, corresponding magnet . 29

62642-2-6 Ó IEC:2010 – 3 –
Figure F.2 – Surface mount interference test, independent magnet . 30
Figure F.3 – Flush mount interference test, independent magnet . 30

Table 1 – Events to be processed by grade . 10
Table 2 – Generation of signals or messages . 11
Table 3 – Electrical requirements . 13
Table 4 – Environmental tests, operational . 21
Table 5 – Environmental tests, endurance . 21

– 4 – 62642-2-6 Ó IEC:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ALARM SYSTEMS –
INTRUSION AND HOLD-UP SYSTEMS –

Part 2-6: Intrusion detectors –
Opening contacts (magnetic)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62642-2-6 has been prepared by IEC technical committee 79:
Alarm and electronic security systems.
This standard is based on EN 50131-2-6 (2008).
The text of this standard is based on the following documents:
FDIS Report on voting
79/325/FDIS 79/331/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62642-2-6 Ó IEC:2010 – 5 –
A list of all parts of the IEC 62642 series can be found, under the general title Alarm systems
– Intrusion and hold-up systems, on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 62642-2-6 Ó IEC:2010
INTRODUCTION
This part 2-6 of the IEC 62642 series of standards gives requirements for intrusion detectors
with opening contacts (magnetic) used in intrusion and hold-up alarm systems. The other
parts of this series of standards are as follows:
Part 1 System requirements
Part 2-2 Intrusion detectors – Passive infrared detectors
Part 2-3 Intrusion detectors – Microwave detectors
Part 2-4 Intrusion detectors – Combined passive infrared / Microwave detectors
Part 2-5 Intrusion detectors – Combined passive infrared / Ultrasonic detectors
Part 2-6 Intrusion detectors – Opening contacts (magnetic)
Part 2-71 Intrusion detectors – Glass break detectors – Acoustic
Part 2-72 Intrusion detectors – Glass break detectors – Passive
Part 2-73 Intrusion detectors – Glass break detectors – Active
Part 3 Control and indicating equipment
Part 4 Warning devices
Part 5-3 Requirements for interconnections equipment using radio frequency techniques
Part 6 Power supplies
Part 7 Application guidelines
Part 8 Security fog devices/systems
This International Standard is for opening contacts (magnetic) used as part of intrusion and
hold-up alarm systems (I&HAS) installed in buildings. It includes four security grades and four
environmental classes.
The purpose of an opening contact (magnetic) is to detect a displacement of a door or window
from the defined closed position. The opening contact comprises two separate parts, the
active connection between which is at least one magnetic field. Separating the two parts
disturbs the connection and produces an intruder signal or message.
The number and scope of these signals or messages will be more comprehensive for systems
that are specified at the higher grades.
This International Standard is only concerned with the requirements and tests for opening
contacts (magnetic). Other types of detectors are covered by other documents identified
IEC 62642-2 series.
62642-2-6 Ó IEC:2010 – 7 –
ALARM SYSTEMS –
INTRUSION AND HOLD-UP SYSTEMS –

Part 2-6: Intrusion detectors –
Opening contacts (magnetic)
1 Scope
This part of the IEC 62642 provides for security grades 1 to 4, (see IEC 62642-1) specific or
non-specific wired or wirefree opening contacts (magnetic), and includes the requirements for
four environmental classes covering applications in internal and outdoor locations as specified
in IEC 62599-1.
A detector fulfils all the requirements of the specified grade.
Functions additional to the mandatory functions specified in this International Standard may
be included in the detector, providing they do not influence the correct operation of the
mandatory functions.
The two separate parts of the opening contact (magnetic) are referred to in the body of this
International Standard as the detector.
This International Standard does not apply to system interconnections.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60068-1:1988, Environmental testing – Part 1: General and guidance
IEC 60068-2-52, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 61000-6-3, Electromagnetic compatibility (EMC) – Part 6-3: Generic standards –
Emission standard for residential, commercial and light-industrial environments
IEC 62599-1, Alarm systems – Part 1: Environmental test methods
IEC 62599-2, Alarm systems – Part 2: Electromagnetic compatibility – Immunity requirements
for components of fire and security alarm systems
IEC 62642-1, Alarm systems – Intrusion and hold-up systems – Part 1: System requirements
EN 10130:1991, Cold rolled low carbon steel flat products for cold forming – Technical
delivery conditions
Amendment 1 (1998)
– 8 – 62642-2-6 Ó IEC:2010
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in the IEC 62642-1, as well
as the following apply.
3.1.1
prohibited area
mounting arrangement, as stated by the manufacturer, of the two components of the detector
in which the detector no longer meets the requirements of this International Standard
3.1.2
incorrect operation
physical condition that causes an inappropriate signal or message from a detector
3.1.3
wirefree detector
detector connected to the control and indicating equipment by non-physical means such as
radio frequency signals
3.1.4
approach distance
make distance
separation distance between the two components of a detector that are being brought
together at which an intrusion signal or message is reversed
3.1.5
removal distance
break distance
separation distance between the two components of a detector that are being moved apart at
which an intrusion signal or message is generated
3.1.6
opening contact (magnetic)
detector in usually two separate parts. The active connection between the two parts is at least
one magnetic field. Separating the two parts disturbs the connection and produces an
intrusion signal or message
3.1.7
corresponding magnet
activating part of the detector, comprising of one or more components, to generate at least
one magnetic field
3.1.8
switch component
reacting part of the detector, comprising one or more components to detect the magnetic
field(s) of the corresponding magnet and generate an appropriate signal or message
3.1.9
surface mount contact
opening contact (magnetic), where both parts (switch component and corresponding magnet)
are mounted on the surface of two parts of the monitored object (fixed and moving part)
3.1.10
flush mount contact
opening contact (magnetic), where both parts (switch component and corresponding magnet)
are mounted within two parts of the monitored object (fixed and moving part)

62642-2-6 Ó IEC:2010 – 9 –
3.1.11
sealed contact
type of detector construction, whereby there is no direct access to the internal components or
connections e.g. a “potted” unit usually supplied with integral connecting cable
3.1.12
reverse signal
signal or message generated by a detector to indicate that there is no longer an intrusion
event e.g. change of state or cancellation of an intrusion signal or message
3.1.13
intrusion event
abnormal condition indicating the presence of a hazard
3.1.14
low supply voltage
supply voltage level below which the operation of the detector can no longer be guaranteed
3.1.15
interference test magnets
magnets used for verifying the behaviour of the detector in the presence of an external
magnetic field at least one of which is identical to the corresponding magnet supplied with the
detector
3.1.16
external magnetic field
deliberately induced magnetic field generated by a source other then the corresponding
magnet e.g. sabotage magnet
3.1.17
immunity
characteristic of a detector such that only a limited reduction in its detection performance is
permitted in the presence of one of the interference test magnets
3.2 Abbreviations
For the purposes of this document, the abbreviations given in the IEC 62642-1, as well as the
following apply.
EMC electromagnetic compatibility
BTD basic test of detection capability
4 Functional requirements
4.1 Events
The detector shall respond to events in accordance with Table 1 and as defined in this
Clause 4.
– 10 – 62642-2-6 Ó IEC:2010
Table 1 – Events to be processed by grade
Event Grade
1 2 3 4
Break distance exceeded M M M M
Inside make distance M M M M
a
Remote enable of detection indication Op Op M M
Magnetic interference Op Op M M
Resistance to access to the inside of the detector Op M M M
b c c c
Detection of access to the inside of the detector Op M M M
Interconnection integrity M M M M
d
Removal from the mounting surface Op M M M
e
Low supply voltage Op Op M M
f
Total loss of external power M M M M
g
Matched coded pairs Op Op Op M
Key
M = Mandatory
Op = Optional
a
Only required if detection indicator present.
b
Generation of a tamper signal for opening by normal means is not required.
c
Not required for sealed contacts.
d
Mandatory for wirefree at grades 2, 3 and 4; mandatory for all surface mounted
grade 4 types, optional for surface mounted grades 1, 2 and 3.
e
See 4.6.7.
f
See 4.6.6.
g
The code shall have a minimum of 8 differs.

4.2 Signals or messages
The response to the signals or messages generated by the detector is determined by the
I&HAS. The detector shall generate signals or messages in accordance with Table 2, based
on the events listed in Table 1. Signals or messages shall be generated within 10 s of the
event occurring. The response of a detector to events defined as optional in Table 1 shall be
in accordance with Table 2.
62642-2-6 Ó IEC:2010 – 11 –
Table 2 – Generation of signals or messages
Event Signals or messages
Intrusion Tamper Fault
Break distance exceeded M NP NP
Inside make distance NP NP NP
a
Magnetic interference grade 3 Op Op Op
b
Magnetic interference grade 4 M Op M
Detection of access to the inside of the detector NP M NP
Removal from the mounting surface NP M NP
c
Low power supply voltage Op Op M
d
Total loss of external power M Op Op
Key
M = Mandatory
NP = Not Permitted
Op = Optional
a
Required only if the approach and removal distances are greater than twice the distances
specified by the manufacturer (see 6.6.4); at least one of these signals or messages
(Intrusion or/and Tamper or/and Fault) shall be generated or an independent signal or
message shall be generated.
b
Required only if the approach and removal distances are greater than twice the distances
specified by the manufacturer (see 6.6.4); either intrusion AND fault signals or messages,
OR an independent signal or message shall be generated.
c
See 4.6.7.
d
See 4.6.6.
4.3 Detection
4.3.1 Detection performance
4.3.1.1 General
The operating parameters of the detector shall be verified as specified by the manufacturer
for the axes of movement shown in Annex D.
The manufacturer shall clearly state in the product documentation any special limitation
concerning installation e.g. a prohibited area between a surface on the detector and the
minimum make distance.
4.3.1.2 Removal/break distance
The detector shall generate an intrusion signal or message at the removal distance specified
by the manufacturer. This distance shall be specified for all normal operating axes. If the
detector is designed for installation on ferromagnetic surfaces or in ferromagnetic material,
the removal/break distance shall also be specified for all normal operating axes when the
detector is mounted using the material as specified in Annex E.
4.3.1.3 Approach/make distance
The detector shall generate a reverse signal or message at the minimum separation
distance(s) specified by the manufacturer. This distance shall be specified for all normal
operating axes. If the detector is designed for installation on ferromagnetic surfaces or in
ferromagnetic material, the approach/make distance shall be specified for all normal operating
axes when the detector is mounted using the material as specified in Annex E.

– 12 – 62642-2-6 Ó IEC:2010
4.3.2 Indication of detection
When a detection indicator is provided to show when an intrusion signal or message is
generated, this indicator shall be capable of being enabled and disabled.
The adjustment to enable or disable this indication locally within the detector shall only be
accessible when the detector is opened by normal means.
A detector at grade 3 or grade 4 shall be capable of receiving indication enable and disable
commands from the CIE when such an indicator is present.
4.4 Operational requirements
4.4.1 Time interval between intrusion signals or messages
Detectors using wired interconnections shall be able to provide an intrusion signal or message
not more than 15 s after the end of the preceding intrusion signal or message.
Detectors using wirefree interconnections shall be able to provide an intrusion signal or
message after the end of the preceding intrusion signal or message within the following times:
Grade 1 300 s;
Grade 2 180 s;
Grade 3 30 s;
Grade 4 15 s.
4.4.2 Switch on delay
Where a detector requires an internal or external power supply in accordance with 4.6, the
detector shall meet all functional requirements within 180 s of the power supply reaching its
nominal voltage.
4.4.3 Fault condition signals
A detector shall generate a fault signal or message in accordance with the manufacturer’s
specification and the provisions of Table 2 in the presence of a fault condition, according to
Table 1, or as a result of an internal self-test if this feature is provided.
4.5 Tamper security
4.5.1 Tamper security requirements
All terminals and means of mechanical and electronic adjustments shall be located within the
detector’s housings.
The tamper security requirements for each grade of detector are shown in Table 1.
4.5.2 Prevention of unauthorised access to the inside of the detector through covers
and existing holes
Access holes shall not allow interference with the operation of the detector by probing with
commonly available tools. Damage shall not be caused that would prevent normal operation.
If the detector can be opened, a tool shall be required to open the unit. For grades 2, 3 and 4
detectors, all covers giving access to components that could adversely affect the operation of
the detector shall be fitted with a tamper detection device that shall generate signals or
messages in accordance with Table 2. It shall not be possible to gain such access without

62642-2-6 Ó IEC:2010 – 13 –
generating a tamper signal or message or causing visible damage. Sealed contacts do not
require the means to detect access to the inside of the detector.
4.5.3 Detection of removal from the mounting surface
A detection device shall be fitted that generates a tamper signal or message in accordance
with Table 2 if the detector is removed from the mounting surface. Operation of the tamper
device shall not be compromised by external means. This device shall activate before access
can be gained to it.
4.5.4 Magnetic field interference
When the detector is mounted in accordance with the manufacturer’s instructions and is
subject to the presence of an external magnetic field generated by the interference test
magnets specified in Annex A and applied to the faces of the detector according to Annex F,
the detector shall either:
be immune to any influence by the interference test magnets and continue to operate normally
with the make and break distances not exceeding twice those specified in accordance with
4.3.1,
or
generate an intrusion, and/or tamper, and/or fault, and/or other independent signal or
message in accordance with Table 2 when the make or break distances exceed twice those
specified in accordance with 4.3.1. These signals or messages may be generated either on
application of the interference test magnet or when the corresponding magnet has returned to
its original installed position.
NOTE The signals or messages generated by a grade 4 detector are intended to be used by the I&HAS to
positively identify an attempt to sabotage the detector through magnetic interference.
4.5.5 Matched coded pairs
A grade 4 detector shall consist of a matched pair of switch component and corresponding
magnet. The means of matching shall have a minimum of 8 differs. It shall not be possible to
determine the specific pair identity by visual inspection of the detector.
The probability of the use of each code shall be equal.
4.6 Electrical requirements
4.6.1 Grade dependencies
The requirements of 4.6.2 to 4.6.6 only apply to detectors having external power to operate
the components of the detector.
Table 3 – Electrical requirements
Test Grade 1 Grade 2 Grade 3 Grade 4
Detector current consumption Required Required Required Required
Input voltage range Required Required Required Required
Slow input voltage rise Not required Required Required Required
Input voltage ripple Not required Required Required R
...

IEC 62642-2-6 ®
Edition 1.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Alarm systems – Intrusion and hold-up systems –
Part 2-6: Intrusion detectors – Opening contacts (magnetic)

Systèmes d'alarme – Systèmes d'alarme contre l’intrusion et les hold-up –
Partie 2-6: Détecteurs d'intrusion – Détecteurs d'ouverture à contacts
(magnétiques)

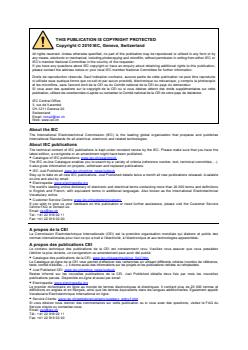

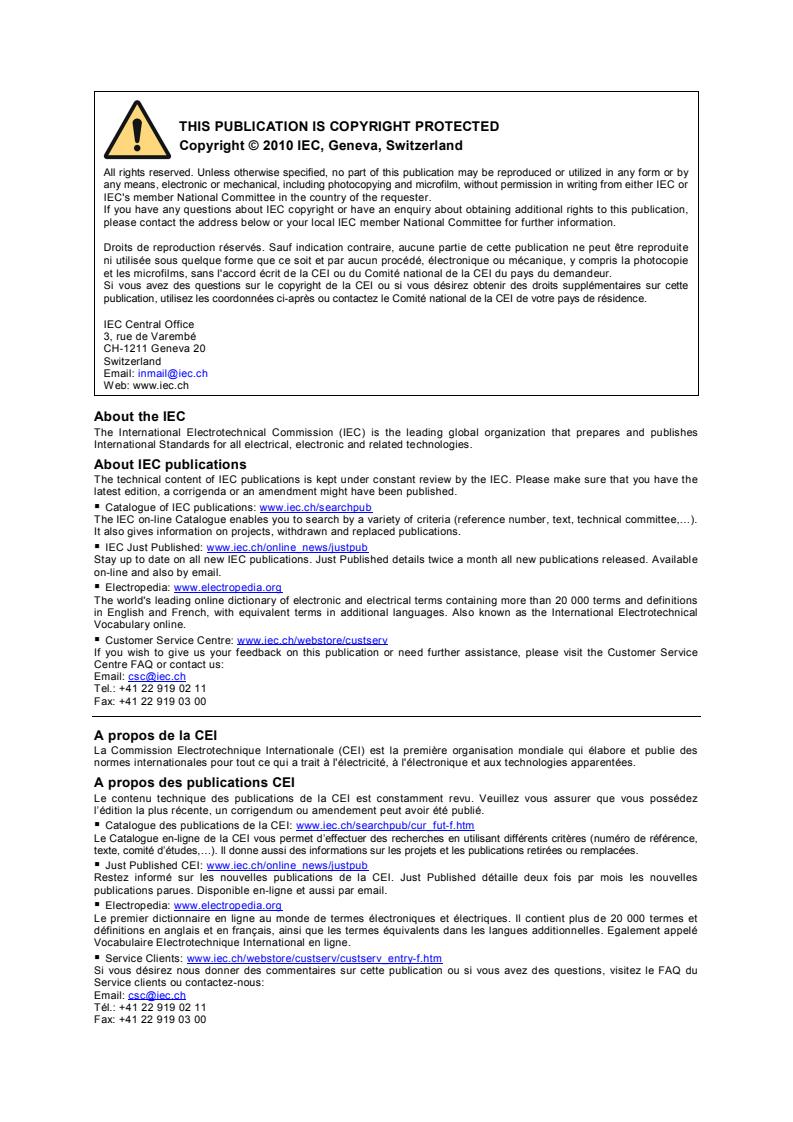

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
§ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
§ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
§ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
§ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
§ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
§ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
§ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
§ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 62642-2-6 ®
Edition 1.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Alarm systems – Intrusion and hold-up systems –
Part 2-6: Intrusion detectors – Opening contacts (magnetic)

Systèmes d'alarme – Systèmes d'alarme contre l’intrusion et les hold-up –
Partie 2-6: Détecteurs d'intrusion – Détecteurs d'ouverture à contacts
(magnétiques)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 13.320 ISBN 978-2-88912-305-6
– 2 – 62642-2-6 Ó IEC:2010
CONTENTS
FOREW ORD . 4
INTRODUCTION . 6
1 Sc o pe . 7
2 Normative references . 7
3 Terms, definitions and abbreviations. 8
3.1 Terms and definitions . 8
3.2 Abbrev iations. 9
4 Functional requirements . 9
4.1 Events . 9
4.2 Signals or messages . 10
4.3 Detection . 11
4.4 Operational requirements . 12
4.5 Tamper security . 12
4.6 Electrical requirements . 13
4.7 Environmental classification and conditions . 14
5 Marking, identification and documentation . 15
5.1 Marking and/or identification . 15
5.2 Documentation. 15
6 Testing . 15
6.1 General . 15
6.2 General test conditions . 15
6.3 Basic test of detection capability . 16
6.4 Verification of detection performance . 16
6.5 Switch-on delay, time interval between signals, and indication of detection . 16
6.6 Tamper security . 17
6.7 Electrical tests . 18
6.8 Environmental classification and conditions . 20
6.9 Marking, identification and documentation . 21
Annex A (normative) Dimensions and requirements of standardized interference test
magnets . 22
Annex B (normative) General testing matrix . 25
Annex C (informative) List of small tools suitable for testing immunity of casing to
unauthorised access . 26
Annex D (normative) Axes of movement . 27
Annex E (normative) Test surfaces for ferromagnetic material . 28
Annex F (normative) Test faces for interference test magnets . 29
Bibliography . 31

Figure A.1 – Test magnet for surface mount opening magnetic contacts . 23
Figure A.2 – Test magnet for flush mount opening magnetic contacts . 24
Figure D.1 – Flush mount style . 27
Figure D.2 – Surface mount style . 27
Figure D.3 – Roller shutter style . 27
Figure F.1 – Surface mount interference test, corresponding magnet . 29

62642-2-6 Ó IEC:2010 – 3 –
Figure F.2 – Surface mount interference test, independent magnet . 30
Figure F.3 – Flush mount interference test, independent magnet . 30

Table 1 – Events to be processed by grade . 10
Table 2 – Generation of signals or messages . 11
Table 3 – Electrical requirements . 13
Table 4 – Environmental tests, operational . 21
Table 5 – Environmental tests, endurance . 21

– 4 – 62642-2-6 Ó IEC:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ALARM SYSTEMS –
INTRUSION AND HOLD-UP SYSTEMS –

Part 2-6: Intrusion detectors –
Opening contacts (magnetic)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62642-2-6 has been prepared by IEC technical committee 79:
Alarm and electronic security systems.
This standard is based on EN 50131-2-6 (2008).
The text of this standard is based on the following documents:
FDIS Report on voting
79/325/FDIS 79/331/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62642-2-6 Ó IEC:2010 – 5 –
A list of all parts of the IEC 62642 series can be found, under the general title Alarm systems
– Intrusion and hold-up systems, on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 62642-2-6 Ó IEC:2010
INTRODUCTION
This part 2-6 of the IEC 62642 series of standards gives requirements for intrusion detectors
with opening contacts (magnetic) used in intrusion and hold-up alarm systems. The other
parts of this series of standards are as follows:
Part 1 System requirements
Part 2-2 Intrusion detectors – Passive infrared detectors
Part 2-3 Intrusion detectors – Microwave detectors
Part 2-4 Intrusion detectors – Combined passive infrared / Microwave detectors
Part 2-5 Intrusion detectors – Combined passive infrared / Ultrasonic detectors
Part 2-6 Intrusion detectors – Opening contacts (magnetic)
Part 2-71 Intrusion detectors – Glass break detectors – Acoustic
Part 2-72 Intrusion detectors – Glass break detectors – Passive
Part 2-73 Intrusion detectors – Glass break detectors – Active
Part 3 Control and indicating equipment
Part 4 Warning devices
Part 5-3 Requirements for interconnections equipment using radio frequency techniques
Part 6 Power supplies
Part 7 Application guidelines
Part 8 Security fog devices/systems
This International Standard is for opening contacts (magnetic) used as part of intrusion and
hold-up alarm systems (I&HAS) installed in buildings. It includes four security grades and four
environmental classes.
The purpose of an opening contact (magnetic) is to detect a displacement of a door or window
from the defined closed position. The opening contact comprises two separate parts, the
active connection between which is at least one magnetic field. Separating the two parts
disturbs the connection and produces an intruder signal or message.
The number and scope of these signals or messages will be more comprehensive for systems
that are specified at the higher grades.
This International Standard is only concerned with the requirements and tests for opening
contacts (magnetic). Other types of detectors are covered by other documents identified
IEC 62642-2 series.
62642-2-6 Ó IEC:2010 – 7 –
ALARM SYSTEMS –
INTRUSION AND HOLD-UP SYSTEMS –

Part 2-6: Intrusion detectors –
Opening contacts (magnetic)
1 Scope
This part of the IEC 62642 provides for security grades 1 to 4, (see IEC 62642-1) specific or
non-specific wired or wirefree opening contacts (magnetic), and includes the requirements for
four environmental classes covering applications in internal and outdoor locations as specified
in IEC 62599-1.
A detector fulfils all the requirements of the specified grade.
Functions additional to the mandatory functions specified in this International Standard may
be included in the detector, providing they do not influence the correct operation of the
mandatory functions.
The two separate parts of the opening contact (magnetic) are referred to in the body of this
International Standard as the detector.
This International Standard does not apply to system interconnections.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60068-1:1988, Environmental testing – Part 1: General and guidance
IEC 60068-2-52, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 61000-6-3, Electromagnetic compatibility (EMC) – Part 6-3: Generic standards –
Emission standard for residential, commercial and light-industrial environments
IEC 62599-1, Alarm systems – Part 1: Environmental test methods
IEC 62599-2, Alarm systems – Part 2: Electromagnetic compatibility – Immunity requirements
for components of fire and security alarm systems
IEC 62642-1, Alarm systems – Intrusion and hold-up systems – Part 1: System requirements
EN 10130:1991, Cold rolled low carbon steel flat products for cold forming – Technical
delivery conditions
Amendment 1 (1998)
– 8 – 62642-2-6 Ó IEC:2010
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in the IEC 62642-1, as well
as the following apply.
3.1.1
prohibited area
mounting arrangement, as stated by the manufacturer, of the two components of the detector
in which the detector no longer meets the requirements of this International Standard
3.1.2
incorrect operation
physical condition that causes an inappropriate signal or message from a detector
3.1.3
wirefree detector
detector connected to the control and indicating equipment by non-physical means such as
radio frequency signals
3.1.4
approach distance
make distance
separation distance between the two components of a detector that are being brought
together at which an intrusion signal or message is reversed
3.1.5
removal distance
break distance
separation distance between the two components of a detector that are being moved apart at
which an intrusion signal or message is generated
3.1.6
opening contact (magnetic)
detector in usually two separate parts. The active connection between the two parts is at least
one magnetic field. Separating the two parts disturbs the connection and produces an
intrusion signal or message
3.1.7
corresponding magnet
activating part of the detector, comprising of one or more components, to generate at least
one magnetic field
3.1.8
switch component
reacting part of the detector, comprising one or more components to detect the magnetic
field(s) of the corresponding magnet and generate an appropriate signal or message
3.1.9
surface mount contact
opening contact (magnetic), where both parts (switch component and corresponding magnet)
are mounted on the surface of two parts of the monitored object (fixed and moving part)
3.1.10
flush mount contact
opening contact (magnetic), where both parts (switch component and corresponding magnet)
are mounted within two parts of the monitored object (fixed and moving part)

62642-2-6 Ó IEC:2010 – 9 –
3.1.11
sealed contact
type of detector construction, whereby there is no direct access to the internal components or
connections e.g. a “potted” unit usually supplied with integral connecting cable
3.1.12
reverse signal
signal or message generated by a detector to indicate that there is no longer an intrusion
event e.g. change of state or cancellation of an intrusion signal or message
3.1.13
intrusion event
abnormal condition indicating the presence of a hazard
3.1.14
low supply voltage
supply voltage level below which the operation of the detector can no longer be guaranteed
3.1.15
interference test magnets
magnets used for verifying the behaviour of the detector in the presence of an external
magnetic field at least one of which is identical to the corresponding magnet supplied with the
detector
3.1.16
external magnetic field
deliberately induced magnetic field generated by a source other then the corresponding
magnet e.g. sabotage magnet
3.1.17
immunity
characteristic of a detector such that only a limited reduction in its detection performance is
permitted in the presence of one of the interference test magnets
3.2 Abbreviations
For the purposes of this document, the abbreviations given in the IEC 62642-1, as well as the
following apply.
EMC electromagnetic compatibility
BTD basic test of detection capability
4 Functional requirements
4.1 Events
The detector shall respond to events in accordance with Table 1 and as defined in this
Clause 4.
– 10 – 62642-2-6 Ó IEC:2010
Table 1 – Events to be processed by grade
Event Grade
1 2 3 4
Break distance exceeded M M M M
Inside make distance M M M M
a
Remote enable of detection indication Op Op M M
Magnetic interference Op Op M M
Resistance to access to the inside of the detector Op M M M
b c c c
Detection of access to the inside of the detector Op M M M
Interconnection integrity M M M M
d
Removal from the mounting surface Op M M M
e
Low supply voltage Op Op M M
f
Total loss of external power M M M M
g
Matched coded pairs Op Op Op M
Key
M = Mandatory
Op = Optional
a
Only required if detection indicator present.
b
Generation of a tamper signal for opening by normal means is not required.
c
Not required for sealed contacts.
d
Mandatory for wirefree at grades 2, 3 and 4; mandatory for all surface mounted
grade 4 types, optional for surface mounted grades 1, 2 and 3.
e
See 4.6.7.
f
See 4.6.6.
g
The code shall have a minimum of 8 differs.

4.2 Signals or messages
The response to the signals or messages generated by the detector is determined by the
I&HAS. The detector shall generate signals or messages in accordance with Table 2, based
on the events listed in Table 1. Signals or messages shall be generated within 10 s of the
event occurring. The response of a detector to events defined as optional in Table 1 shall be
in accordance with Table 2.
62642-2-6 Ó IEC:2010 – 11 –
Table 2 – Generation of signals or messages
Event Signals or messages
Intrusion Tamper Fault
Break distance exceeded M NP NP
Inside make distance NP NP NP
a
Magnetic interference grade 3 Op Op Op
b
Magnetic interference grade 4 M Op M
Detection of access to the inside of the detector NP M NP
Removal from the mounting surface NP M NP
c
Low power supply voltage Op Op M
d
Total loss of external power M Op Op
Key
M = Mandatory
NP = Not Permitted
Op = Optional
a
Required only if the approach and removal distances are greater than twice the distances
specified by the manufacturer (see 6.6.4); at least one of these signals or messages
(Intrusion or/and Tamper or/and Fault) shall be generated or an independent signal or
message shall be generated.
b
Required only if the approach and removal distances are greater than twice the distances
specified by the manufacturer (see 6.6.4); either intrusion AND fault signals or messages,
OR an independent signal or message shall be generated.
c
See 4.6.7.
d
See 4.6.6.
4.3 Detection
4.3.1 Detection performance
4.3.1.1 General
The operating parameters of the detector shall be verified as specified by the manufacturer
for the axes of movement shown in Annex D.
The manufacturer shall clearly state in the product documentation any special limitation
concerning installation e.g. a prohibited area between a surface on the detector and the
minimum make distance.
4.3.1.2 Removal/break distance
The detector shall generate an intrusion signal or message at the removal distance specified
by the manufacturer. This distance shall be specified for all normal operating axes. If the
detector is designed for installation on ferromagnetic surfaces or in ferromagnetic material,
the removal/break distance shall also be specified for all normal operating axes when the
detector is mounted using the material as specified in Annex E.
4.3.1.3 Approach/make distance
The detector shall generate a reverse signal or message at the minimum separation
distance(s) specified by the manufacturer. This distance shall be specified for all normal
operating axes. If the detector is designed for installation on ferromagnetic surfaces or in
ferromagnetic material, the approach/make distance shall be specified for all normal operating
axes when the detector is mounted using the material as specified in Annex E.

– 12 – 62642-2-6 Ó IEC:2010
4.3.2 Indication of detection
When a detection indicator is provided to show when an intrusion signal or message is
generated, this indicator shall be capable of being enabled and disabled.
The adjustment to enable or disable this indication locally within the detector shall only be
accessible when the detector is opened by normal means.
A detector at grade 3 or grade 4 shall be capable of receiving indication enable and disable
commands from the CIE when such an indicator is present.
4.4 Operational requirements
4.4.1 Time interval between intrusion signals or messages
Detectors using wired interconnections shall be able to provide an intrusion signal or message
not more than 15 s after the end of the preceding intrusion signal or message.
Detectors using wirefree interconnections shall be able to provide an intrusion signal or
message after the end of the preceding intrusion signal or message within the following times:
Grade 1 300 s;
Grade 2 180 s;
Grade 3 30 s;
Grade 4 15 s.
4.4.2 Switch on delay
Where a detector requires an internal or external power supply in accordance with 4.6, the
detector shall meet all functional requirements within 180 s of the power supply reaching its
nominal voltage.
4.4.3 Fault condition signals
A detector shall generate a fault signal or message in accordance with the manufacturer’s
specification and the provisions of Table 2 in the presence of a fault condition, according to
Table 1, or as a result of an internal self-test if this feature is provided.
4.5 Tamper security
4.5.1 Tamper security requirements
All terminals and means of mechanical and electronic adjustments shall be located within the
detector’s housings.
The tamper security requirements for each grade of detector are shown in Table 1.
4.5.2 Prevention of unauthorised access to the inside of the detector through covers
and existing holes
Access holes shall not allow interference with the operation of the detector by probing with
commonly available tools. Damage shall not be caused that would prevent normal operation.
If the detector can be opened, a tool shall be required to open the unit. For grades 2, 3 and 4
detectors, all covers giving access to components that could adversely affect the operation of
the detector shall be fitted with a tamper detection device that shall generate signals or
messages in accordance with Table 2. It shall not be possible to gain such access without

62642-2-6 Ó IEC:2010 – 13 –
generating a tamper signal or message or causing visible damage. Sealed contacts do not
require the means to detect access to the inside of the detector.
4.5.3 Detection of removal from the mounting surface
A detection device shall be fitted that generates a tamper signal or message in accordance
with Table 2 if the detector is removed from the mounting surface. Operation of the tamper
device shall not be compromised by external means. This device shall activate before access
can be gained to it.
4.5.4 Magnetic field interference
When the detector is mounted in accordance with the manufacturer’s instructions and is
subject to the presence of an external magnetic field generated by the interference test
magnets specified in Annex A and applied to the faces of the detector according to Annex F,
the detector shall either:
be immune to any influence by the interference test magnets and continue to operate normally
with the make and break distances not exceeding twice those specified in accordance with
4.3.1,
or
generate an intrusion, and/or tamper, and/or fault, and/or other independent signal or
message in accordance with Table 2 when the make or break distances exceed twice those
specified in accordance with 4.3.1. These signals or messages may be generated either on
application of the interference test magnet or when the corresponding magnet has returned to
its original installed position.
NOTE The signals or messages generated by a grade 4 detector are intended to be used by the I&HAS to
positively identify an attempt to sabotage the detector through magnetic interference.
4.5.5 Matched coded pairs
A grade 4 detector shall consist of a matched pair of switch component and corresponding
magnet. The means of matching shall have a minimum of 8 differs. It shall not be possible to
determine the specific pair identity by visual inspection of the detector.
The probability of the use of each code shall be equal.
4.6 Electrical requirements
4.6.1 Grade dependencies
The requirements of 4.6.2 to 4.6.6 only apply to detectors having external power to operate
the components of the detector.
Table 3 – Electrical requirements
Test Grade 1 Grade 2 Grade 3 Grade 4
Detector current consumption Required Required Required Required
Input voltage range Required Required Required Required
Slow input voltage rise Not required Required Required Required
Input voltage ripple Not required Required Required Required
Input voltage step change Not required Required Required Required

– 14 – 62642-2-6 Ó IEC:2010
4.6.2 Detector current consumption
The detector's quiescent and maximum current consumption shall not exceed the figures
claimed by the manufacturer at the nominal input voltage.
4.6.3 Slow input voltage change and input voltage range limits
The detector shall meet all functional requirements when the input voltage lies between
± 25 % of the nominal value, or between the manufacturer's stated range limits if greater.
When the supply voltage is raised slowly, the detector shall function normally at the specified
range limits.
4.6.4 Input voltage ripple
The detector shall function during the sinusoidal variation of the input voltage by ± 10 % of
nominal, at a frequency of 100 Hz.
4.6.5 Input voltage step change
No signals or messages shall be caused by a step in the input voltage between nominal and
maximum and between nominal and minimum.
4.6.6 Total loss of external power
This subclause applies to detectors that require an external power supply.
This does not include any applied voltage to a purely reed based switch detector.
An intrusion signal or message shall be generated by the total loss of the supply voltage.
No generation of a message or signal is required when this total loss of external power
condition is detected by the CIE due to system design, e.g. bus based systems.
4.6.7 Low supply voltage
This subclause applies to detectors that require an external power supply.
NOTE This does not include any applied voltage to a purely reed based switch detector.
A fault signal or message shall be generated when the minimum level of voltage that is
required for the detector to operate reliably is compromised according to the specification of
the manufacturer. No generation of a message or signal is required when this low power
condition is detected by the CIE due to system design, e.g. bus based systems.
4.6.8 Interconnection Integrity
The detector shall provide a means to enable the I&HAS to monitor the integrity of the
interconnection. Where the interconnecting cable or wire is provided with the detector, means
shall be provided to permit the monitoring of this interconnecting cable in accordance with
IEC 62642-1 (e.g. a tamper loop or end of line resistor built into the body of the detector).
NOTE This requirement may be fulfilled either by the detector itself or by suitable system design.
4.7 Environmental classification and conditions
4.7.1 Environmental classification
The environmental classification is described in IEC 62642-1 and shall be specified by the
manufacturer.
62642-2-6 Ó IEC:2010 – 15 –
4.7.2 Immunity to environmental conditions
Detectors shall meet the requirements of the relevant environmental tests described in
IEC 62599-1 at the severity levels defined in Tables 4 and 5.
For all grades, the detector shall not generate or be affected by the EMC conditions and
severity levels defined in IEC 62599-2 and IEC 61000-6-3.
Unless specified otherwise for operational tests, the detector shall not generate unintentional
intrusion, tamper, fault or other signals or messages when subjected to the specified range of
environmental conditions.
For endurance tests, the detector shall continue to meet the requirements of this International
Standard after being subjected to the specified range of environmental conditions.
5 Marking, identification and documentation
5.1 Marking and/or identification
Marking and/or identification shall be applied to the product in accordance with the
requirements of IEC 62642-1.
5.2 Documentation
The product shall be accompanied with clear and concise documentation in accordance with
IEC 62642-1. The documentation shall additionally state for the corresponding grade
dependent functions:
a) a list of all options, functions, inputs, indications, signals or messages and their relevant
characteristics;
b) the recommended mounting configuration, details of suitable fixing methods, prohibited
areas, mounting location and siting requirements;
c) a statement of the operational approach and removal distances on ferromagnetic and non-
ferromagnetic mounting surfaces for all recommended configurations and operational
axes;
d) the effect of any adjustable controls on the detector’s performance;
e) any disallowed field adjustable control settings or combinations of these;
f) the operating voltage range and/or nominal operating voltage and the maximum and
quiescent detector current consumption at this nominal voltage;
g) the value of supply voltage below which a fault signal is generated.
6 Testing
6.1 General
The tests are intended to be primarily concerned with verifying the correct operation of the
detector to the specification provided by the manufacturer. All the test parameters specified
shall carry a general tolerance of ± 10 % unless otherwise stated. A list of tests appears as a
general test matrix in Annex B.
6.2 General test conditions
6.2.1 Standard laboratory conditions for testing
The general atmospheric conditions in the measurement and tests laboratory shall be those
specified in IEC 60068-1:1988, 5.3.1, unless stated otherwise:

– 16 – 62642-2-6 Ó IEC:2010
Temperature 15 °C to 35 °C
Relative humidity 25 % RH to 75 % RH
Air pressure 86 kPa to 106 kPa
6.2.2 General detection testing environment and procedures
The manufacturer’s documented instructions regarding mounting and operation shall be read
and applied to all tests.
6.2.3 Testing procedures
The intrusion and, where appropriate, tamper, fault and any other signal or message outputs
shall be monitored.
Where appropriate, the detector shall be connected to the nominal supply voltage, and
allowed to stabilise for 180 s.
6.3 Basic test of detection capability
The general test conditions of 6.2 apply.
Monitor the output of the detector with its corresponding magnet within the make distance.
Move the corresponding magnet to a position beyond the break distance. Record the status of
the intrusion signal or message during the test.
Pass/Fail criteria: An intrusion signal or message shall be generated when the magnet is
moved beyond the break distance.
6.4 Verification of detection performance
6.4.1 General
The general test conditions of 6.2 shall apply to all tests in this series.
Detection performance shall be tested against the manufacturer’s documented claims. Any
variable controls shall be set to the values recommended by the manufacturer to achieve the
claimed performance.
6.4.2 Measurement of approach/removal distances
By moving the corresponding magnet relative to the switch component, measure the approach
and removal distances where the switch component generates intruder and reverse signals or
messages. Record the response of the switch component. Note the approach and removal
distances for all the configurations claimed in the manufacturer’s documentation.
Pass/Fail criteria: An intrusion signal or message shall be generated beyond the removal
distance and shall generate a reverse signal within the approach distance claimed in the
manufacturer’s documentation.
6.5 Switch-on delay, time interval between signals, and indication of detection
The general test conditions of 6.2 apply.
Switch on the detector’s power supply with the indicator enabled (if provided), and allow 180 s
for stabilisation. Carry out the BTD. Note the response. Carry out the BTD again, after the
grade-dependant time interval between signals according to 4.4.1. Note the response again.
Disable the intrusion indicator (if provided). Repeat the BTD.

62642-2-6 Ó IEC:2010 – 17 –
Pass/Fail criteria: The detector shall generate an intrusion signal or message in response to
the BTD. The intrusion signal or message and the intrusion indicator shall respond at the
same time. A second intrusion signal or message shall be generated after the grade-
dependant time interval specified in 4.4.1 has elapsed. With the indicator disabled (if
provided) the detector shall still generate an intrusion signal or message.
6.6 Tamper security
6.6.1 General
The general test conditions of 6.2 apply.
The tests of this subclause shall be applied to the detector at the grade in accordance with
Table 1.
6.6.2 Prevention of unauthorised access to the connections or components within the
detector
Attempt to overcome the tamper detection device by deliberate attack with normally available
objects as listed in Annex C, by distorting the housing or by attempting to access the
connections or components within the detector without causing visible external damage.
Grade dependency appears in Table 1. Monitor the outputs of the detector.
Pass/Fail criteria: Where there is no physical damage to the detector, a tamper signal or
message shall be generated before access is gained to any circuit connection or control that
can adjust the performance of the detector
6.6.3 Detection of removal from the mounting surface
The object of this test is to confirm the operation of the tamper device by removing the
detector from the mounting surface.
Place the unit on the mounting surface without the fixing screws, unless they form a part of
the tamper detection device.
Slowly prise the detector away from the mounting surface and attempt to prevent the tamper
device from operating by inserting a strip of steel between 100 mm and 200 mm long by
10 mm to 20 mm wide, and 1 mm thick between the rear of the detector and its mounting
surface. Attempt to gain access to the circuit connections or controls. Monitor the outputs of
the detector.
Pass/Fail criteria: A tamper signal or message shall be generated before the tamper device
can be inhibited or access is gained to any circuit connection or control that can adjust
performance.
6.6.4 Resistance to magnetic field interference
This test shall be performed for grade 3 and grade 4 products only.
The switch component and the corresponding magnet shall be installed according to the
manufacturer’s description with a separation distance calculated as 50 % of the specified
make distance on the y-axis. If a prohibited area is described by the manufacturer, the
distance of this area will be added to the previously calculated separation distance.
The test environment/installation shall support reproducible adding and removal of the
corresponding magnet without any changes to the original installation distance, to simulate
the opening and closing of the monitored object. The interference test magnets shall be
applied onto all exposed and accessible housing surfaces when mounted normally.

– 18 – 62642-2-6 Ó IEC:2010
For detector’s designed for use in both surface and flush mounted installations, then all
corresponding tests shall be performed.
For detector’s designed for installation in a ferromagnetic environment, the tests shall be
performed in such an environment following the installation instructions and using the
installation material (if required) by the manufacturer. For surface mount opening contacts,
the test shall be undertaken with the switch component placed on a steel mounting plate
based on the material defined in Annex E, having dimensions of
(600 mm ´ 600 mm ´ 1,6 mm). For flush mount opening contacts, the test shall be undertaken
using 2 steel mounting plates based on the material defined in Annex E, having dimensions of
(200 mm ´ 200 mm ´ 1,6 mm).
Surface mount opening contacts:
The interference test magnets shall be applied in both polarization directions at 2 points
randomly chosen on each surface both parallel and perpendicular to the surface, refer
...
